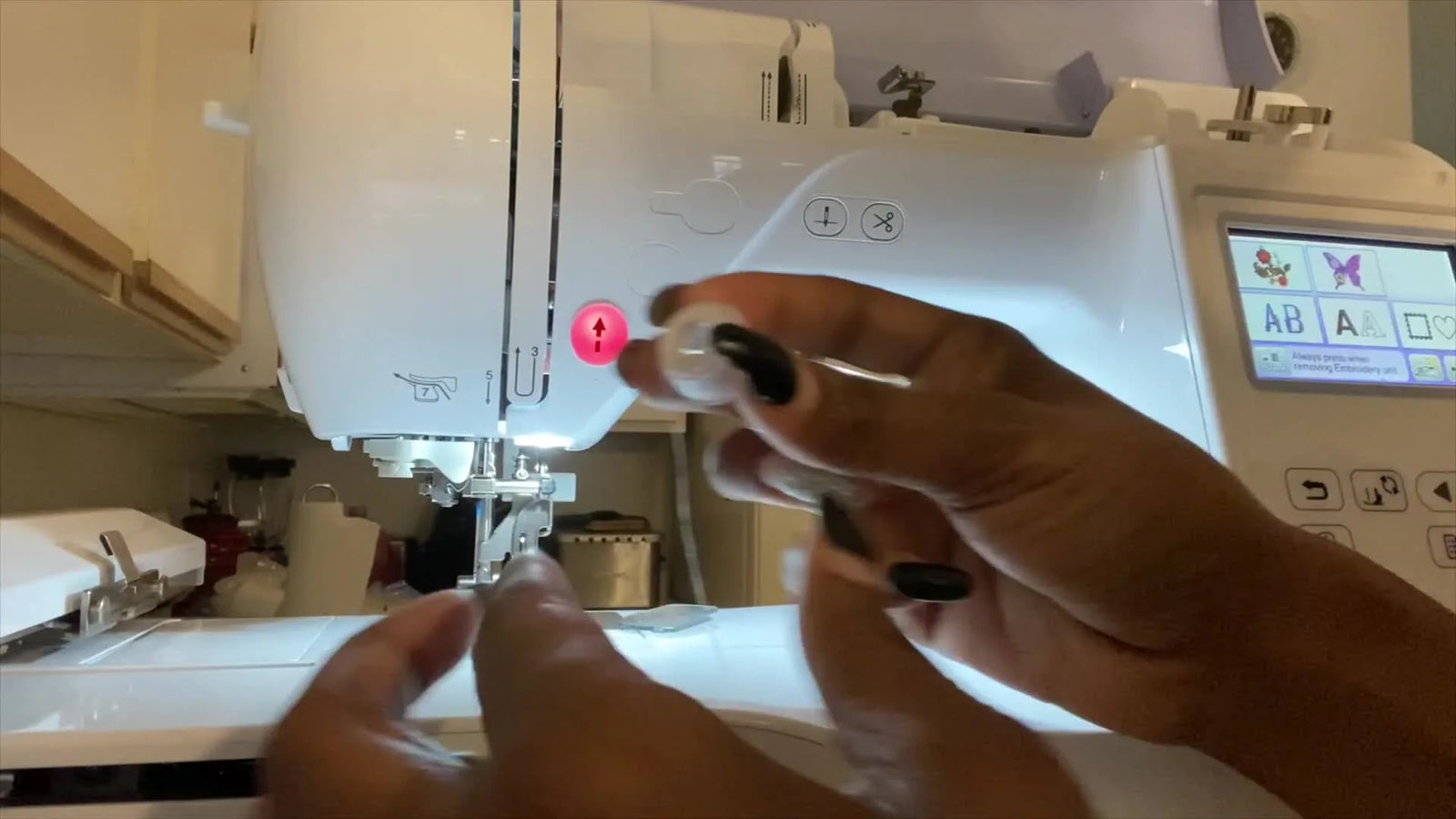

Brother PE800 Setup Without the Tears: Wind a Bobbin, Fix a Winder Jam, Thread the Needle, and Swap Needles the Right Way

If your Brother PE800 is arriving “tomorrow” and you’re already nervous, you’re in good company. New machines feel expensive, delicate, and a little intimidating—especially the first time the motor runs and thread starts doing weird things.

This post rebuilds the exact workflow shown in the video: how to rescue a jammed bobbin winder (without a screwdriver), wind a bobbin cleanly, insert it using the “P” rule, change the needle safely, pick the correct spool cap, and thread the upper path so the machine actually stitches.

Brother PE800 First-Day Panic Is Normal—Here’s the Calm Checklist Before You Touch Thread

A lot of beginners think they “broke the machine” when the bobbin winder stops but the motor keeps running. In the video, that’s exactly what happened—and it’s one of the most common first-week mistakes.

Before you start, take 60 seconds to set yourself up like a shop tech would. It prevents 80% of the “why is it doing that?” moments.

Quick reality check (what you’re about to do):

• You’ll wind a bobbin on the top winder.
• You’ll load the drop-in bobbin using the “P” orientation.
• You’ll replace the needle (flat side to the back).
• You’ll thread the upper path and confirm the take-up lever is captured.

Warning: Keep fingers, hair, jewelry, and loose sleeves away from the needle area and any moving parts when the machine is running. When changing a needle, use the screwdriver carefully—needles can snap, and a dropped needle can become a sharp hazard.

Pre-Flight Prep Checklist

• Power State: Ensure machine is OFF while changing needles to prevent accidental stitching.
• Hardware Check: Confirm the bobbin case is free of dust or lint (use a small brush, never canned air).
• Consumables: Have your embroidery thread (40wt usually), bobbin thread (90wt or 60wt), and a fresh 75/11 embroidery needle ready.


The “Pop-Off” Fix: Clearing a Brother PE800 Bobbin Winder Jam Under the Tension Disc Cap

In the video, the bobbin stopped winding but the motor kept running—a classic sign the thread has slipped and nested underneath the bobbin winder guide. This usually happens because slack thread gets sucked under the disc during initial startup.

What you’ll see:

• The bobbin isn’t filling.
• The machine sounds like it’s still working/humming.
• Thread is caught under the silver guide/tension disc area.

What the video does (and what you should do):

1. Stop immediately when you notice it’s not actually winding.
2. Locate the silver tension disc cap on the bobbin winder guide atop the machine.
3. Pop the cap off with your fingers. Sensory Check: It will feel tight. You need to be firm. It will release with a distinct snap.
4. Remove the tangled thread nest underneath.
5. Snap the cap back on securely. Sensory Check: Listen for the click to ensure it's seated.

The host first tried tweezers, but the real fix was removing the cap to access the trapped thread.

Expected outcome:

• The guide area is clear.
• Thread can travel smoothly around the tension disc again without binding.

Pro tip from the comment section (translated into shop advice): This “thread mess” happens to a lot of PE800 owners, especially on a brand-new machine. Don’t treat it like a failure—treat it like your first maintenance lesson.

Wind a Bobbin on the Brother PE800 Without Slipping: Guides #1–#2, Tension Disc Wrap, Then Lock Right

Once the jam is cleared, the video shows a clean bobbin winding routine. Winding a bobbin correctly is 50% of your tension quality. A spongy bobbin equals bad stitching.

What the video uses

• An empty bobbin (Class 15/SA156).
• A spool of thread.
• The PE800’s top bobbin winder path.

Step-by-step bobbin winding (exact sequence shown)

1. Place the thread spool on the spool pin.
2. Follow the printed bobbin-winding path:
   • Go through guide #1.
   • Go up to guide #2.
3. Wrap the thread around the bobbin-winder tension disc following the diagram:
   • Behind the disc, then in front. Crucial: Pull the thread taut here. You should feel the thread slide into the tension discs, not just rest on top of them.
4. Put the empty bobbin on the winder spindle.
5. Manually wind the thread around the bobbin several times so it “catches.”
6. Slide the bobbin holder to the right into the lock position. Sensory Check: You will feel a mechanical clunk as it engages.
7. Press the flashing Start/Stop button (it turns orange/green) to begin winding.

Checkpoint while it’s winding:

• You should see thread building up evenly, like a brick wall.
• If it looks like a conical pile or is loose/loopy, stop right away and re-thread the winding path.




Why bobbin winding fails (the practical reason)

Thread winding is a controlled tug-of-war. If the thread isn’t seated around the tension disc correctly, it can slip, loop, and dive under the guide—then you get the “motor running, bobbin not winding” situation.

In general, consistent winding depends on:

• A smooth thread path (no snags).
• Enough friction at the tension disc to prevent free-spooling.
• A bobbin that’s seated fully on the spindle.

If you’re using bargain thread, it may shed lint or have inconsistent diameter, which can make winding less stable. The video uses polyester thread (including Brother bobbin thread and Coats & Clark polyester), which is a common, reliable choice for home embroidery.

Brother #90 Bobbin Thread on the PE800: What the Video Shows (and What to Double-Check)

The host shows a Brother bobbin thread spool and calls out that it’s #90 bobbin thread.

What to do with that information:

• Use the bobbin thread type recommended for your machine. Brother generally recommends #90 (white weight) for this series, though #60 is also common in third-party pre-wounds.
• Why it matters: Embroidery bobbin thread is thinner than top thread. This ensures the knot forms on the bottom of the fabric, keeping your top design clean.
• If you switch bobbin thread brands later, test stitch-outs before running a “real” project.

In general, bobbin thread is designed to be finer and more consistent for embroidery. Always defer to your manual for what your PE800 expects.

The “P-Shape” Rule That Saves Your Stitching: Insert the Brother PE800 Drop-In Bobbin Correctly

This is the moment that prevents a lot of tension drama. If you get this wrong, you will see "bird nesting" (loops of thread) on the bottom of your fabric immediately.

The exact rule shown

Hold the bobbin so the thread tail hangs down on the left, forming a capital “P” shape.

• P = Perfect (Thread hangs off the left).
• q = Quit (Thread hangs off the right—this is wrong).

Step-by-step bobbin insertion (as demonstrated)

1. Open the bobbin cover.
2. Hold the bobbin in the “P” orientation.
3. Drop it into the bobbin case.
4. The Tension Trick: Pull the thread into the slot and guide it under the plastic tension area (the gray tab/clip). Tactile Check: Hold the bobbin still with your finger so it doesn't rotate while you pull the thread. You should feel slight resistance as the thread slides under the tension spring.
5. Pull the thread along the curved track until the built-in cutter trims it.
6. Close the cover.




Expected outcome:

• The thread tail is cut cleanly by the built-in blade.
• The bobbin thread is seated under the tension clip—check visually that the thread isn't floating above the gray tab.

Comment Q&A, cleaned up: Someone asked whether the bobbin has a hole on top and whether it threads like sewing machine bobbins. The creator replied “yes.” Practically speaking: you can wind and handle it like other bobbins, but on the PE800 the critical part is still the drop-in orientation and routing under the tension clip.

Change a Brother PE800 Needle Safely: Disc Screwdriver, Flat Side to the Back, Push Up to the Stopper

Needle changes are simple—until they aren’t. Most “mystery” thread breaks and skipped stitches on a single-needle embroidery machine trace back to a needle that’s dull, bent, or installed incorrectly. Change your needle every 8-10 hours of stitching time.

What the video does

1. Use the disc-shaped screwdriver included with the machine.
2. Loosen the black needle clamp screw (turn counter-clockwise/toward you).
3. Remove the old needle (it may drop out when loosened).
4. Orientation: Insert the new needle with the flat side of the shank facing the BACK of the machine.
5. The Stopper: Push the needle up until it hits the stopper. Tactile Check: Make sure it cannot go up any further. A needle even 1mm too low will break or cause timing issues.
6. Hold it in place and tighten the screw firmly.


Expected outcome:

• Needle is fully seated (not “halfway up”).
• Flat side is truly facing the back.
• Clamp screw is snug so the needle can’t drift during stitching.

Why this matters (the “why” a tech cares about)

In general, the needle’s flat side is how the machine indexes the needle’s scarf and eye relative to the hook timing. If it’s rotated even slightly, the hook may miss the loop—leading to skipped stitches, shredding, or thread breaks.

Stop Thread Snags Before They Start: Choosing the Right Brother PE800 Spool Cap Size

The video shows multiple spool caps (small/medium/large) and highlights a common snag: using a cap that’s too large can let thread catch behind it.

What the video recommends

• Match the spool cap to the spool size. Rule of thumb: The cap should be strictly smaller than the diameter of the spool rim.
• For cross-wound spools (the ones with X patterns), the host notes using the smaller cap to prevent snagging.
• Press the cap tight against the spool on the horizontal pin. Auditory Check: Listen for a quiet click or squeak as the spool seats fully.

Expected outcome:

• Thread feeds smoothly off the spool.
• No “catching” or jerking of the thread behind the cap.

If you’re running a home setup and constantly re-threading, this tiny choice can save a surprising amount of time.

The Take-Up Lever Trap on the Brother PE800: Threading Points #1–#8 (and the One You Can’t Miss)

If your machine “won’t stitch” even though it looks threaded, the take-up lever is the first place I look.

Upper threading path (as shown)

1. Critical Pre-Check: Raise the presser foot. Why? This opens the tension discs. If you thread with the foot down, the thread floats on top of the tension discs and you will get zero tension (loops everywhere).
2. Follow the numbered guides 1 through 5.
3. Critical step at #6: Guide the thread from right to left so it slips into the metal “snatch” (eye) of the take-up lever.
4. Continue down to 7.
5. Pass through the horizontal guide 8 above the needle.


Two checkpoints that prevent false threading

• Presser foot UP while threading.
• Visually confirm the take-up lever capture. Look inside the slit at step 6. Is the thread inside the metal eyelet? If you miss it, the machine will not stitch correctly.

Expected outcome:

• Thread moves freely when you pull it (while foot is up).
• When you drop the presser foot, you should feel significant resistance when pulling the thread.

Watch out (common beginner moment): People often thread with the presser foot down because it “feels” like the machine is ready. On many machines, that closes the tension discs and makes threading unreliable.

Use the Brother PE800 Automatic Needle Threader: Trim at the Side Cutter, Then Pull the Loop Through

The video finishes with the automatic needle threading routine.

What the video does

1. Pass thread through guide #7.
2. Pull thread through the side cutter on the left side to trim.
3. Firmly push down the auto-threader lever on the left side.
4. A hook passes through the needle eye and pulls a loop through.

Expected outcome:

• You see a loop of thread through the back of the needle eye. Capture this loop and pull the tail through.

If it doesn’t catch, re-check that the needle is fully seated and that the thread is in the correct pre-threader guide.

The “Hidden” Prep Pros Do Before Every Hoop: Thread, Needle, and Stabilizer Choices That Prevent Rework

The video focuses on machine setup, but once you start stitching real designs, your results will depend just as much on what you put under the fabric as on how you thread.

In general, embroidery quality is a system: thread + needle + fabric + stabilizer + hooping tension. If one piece is off, you’ll chase problems that look like “tension issues” but are actually hooping or stabilization issues.

Here’s the prep I recommend before your first real project—especially if you’re planning gifts, Etsy items, or anything you can’t afford to redo.

Setup Checklist (do this before you start a design)

• Bobbin Check: Confirm the bobbin is inserted in the “P” orientation and the thread is under the tension clip/sensor.
• Needle Check: Confirm the needle is new (or at least not visibly bent/dull) and installed flat-side-back.
• Spool Check: Confirm spool cap matches spool size; no snagging.
• Tension Check: Confirm presser foot was UP while threading and the take-up lever is captured.
• Stabilizer Strategy: Choose stabilizer based on fabric (use the decision tree below).
• Test Drive: Run a small test stitch-out (usually an “H” or “I” test) on scrap fabric before committing to the final item.

Stabilizer Decision Tree for Home Embroidery: Pick Backing by Fabric (So the PE800 Doesn’t “Fight” You)

Even though stabilizer isn’t shown in the video, it’s the next pain point beginners hit: puckering, shifting, and outlines that don’t line up.

Use this simple decision tree as a starting point (and adjust based on your manual and your design density).

Decision Tree (Fabric → Stabilizer starting point):

• If the fabric is stable woven (canvas, denim, non-stretch cotton):
  • Start with one layer of medium tearaway for lighter designs.
  • Upgrade to medium cutaway if the design is dense (>15,000 stitches).
• If the fabric is stretchy knit (t-shirts, hoodies, rib knit):
  • Always start with cutaway. Tearaway will distort the knit during stitching.
  • Consider a water-soluble topper if the surface is textured (like pique polo).
• If the fabric is thin or slippery (lightweight cotton, rayon blends):
  • Start with mesh cutaway (softer against skin) and reduce hooping tension.
• If the fabric is lofty or textured (towels, fleece):
  • Use tearaway or cutaway on the back.
  • Crucial: Add a water-soluble topper on top to prevent stitches from sinking into the pile.

If you’re stocking a small studio, it’s smart to keep a stabilizer “matrix” on hand—one option for knits (cutaway), one for wovens (tearaway), and one topper (Solvy)—so you’re not improvising mid-order. Also, keep a can of temporary spray adhesive handy—it helps float fabric when you can't hoop it tightly.

Faster Hooping Without Hoop Burn: When Magnetic Hoops Make Sense for PE800 Owners

The video is about threading and setup, but most home embroiderers quickly discover the real time sink is hooping—especially if you’re doing multiple placements, gifts, or small-batch orders.

If you’re constantly re-hooping to fix wrinkles, fighting fabric burn marks from tight plastic rings, or struggling to hoop thick items like towels, a tool upgrade can be a practical next step. A huge number of PE800 users eventually search for a magnetic hoop for brother pe800 because it changes the mechanics of how you hold the fabric.

Here’s the decision logic I use with customers:

• Scenario trigger: You dread hooping, you get "shiny" hoop marks (hoop burn), or your wrists hurt from tightening screws.
• Judgment standard: If hooping takes longer than the actual stitching, or if you are losing money on ruined garments, your process is the bottleneck.
• Options:
  • Level 1: Keep using standard hoops but add "hoop burn" prevention sheets and practice "floating" fabric.
  • Level 2: Upgrade to a brother pe800 magnetic hoop for easier loading and consistent clamping pressure without the screw-tightening fatigue.

Warning: Magnetic frames are capable of exerting very strong pinching force. Keep them away from pacemakers/implanted medical devices, keep fingers clear when the magnets snap together, and store them away from children and sensitive electronics.

In general, magnetic clamping reduces "over-tightening" habits that distort fabric grain. That matters because distorted fabric doesn't relax perfectly after stitching—so you can end up with puckers even when your specific tension settings are fine.

Setup Like You Mean It: A Small Workflow Upgrade That Makes Home Embroidery Feel Professional

If you’re planning to stitch more than a couple of items a month, your body will tell you where the inefficiency is: wrists, thumbs, and shoulders from repeated hooping and trimming.

A simple workflow upgrade is to standardize your hooping station. Many professionals use a specific hooping station for embroidery to keep placement exact (e.g., always 4 inches down from the collar) and reduce fatigue.

If you’re comparing systems, you’ll hear names like hoopmaster—these are industry standards for consistency. The key isn't necessarily the brand name, but the ability to repeat a placement without measuring five times.

For PE800 owners who want the simplest “plug-in” improvement, exploring magnetic embroidery hoops for brother pe800 is often the gateway to professional workflow: faster loading than traditional hoops, without turning your craft room into a factory floor.

When the Brother PE800 Still Misbehaves: Symptom → Likely Cause → Fix (Based on the Video)

When something goes wrong, don’t randomly re-thread five times. Diagnose it using this low-cost-first logic.

Symptom: Bobbin winder stops but motor runs

• Likely cause: Thread jammed under the bobbin winder tension disc/guide.
• Fix: Pop off the tension disc cap, remove the nest, snap it back on.

Symptom: Thread keeps snagging behind the spool cap

• Likely cause: Spool cap too large for the spool.
• Fix: Switch to the smaller cap and press it snug against the spool.

Symptom: Machine won’t stitch (or stitches look wrong) after threading

• Likely cause: Missed the take-up lever at step #6, or threaded with presser foot down.
• Fix: Raise presser foot, re-thread, and visually confirm the thread is inside the take-up lever eyelet.

Symptom: Auto needle threader won’t pull a loop through

• Likely cause: Needle not fully seated, or thread not in the correct guide (#7) before using the lever.
• Fix: Re-seat needle (flat side back, pushed ALL the way to stopper), re-route thread, then try again.

The Upgrade Path After You Master Threading: From “One Gift” to Small-Batch Production

Once you can wind, insert, and thread confidently, the next ceiling is speed and consistency.

• If you’re staying in hobby mode, focus on repeatable setup and high-quality consumables.
• If you’re starting to sell, your bottleneck becomes hooping time and color changes.

That’s where tools like magnetic embroidery hoops (for faster, more consistent clamping) can matter more than people expect. And if you ever find yourself dreading the 6th thread color change on a single design, looking into a multi-needle machine upgrade (like the cost-effective productivity options from SEWTECH) becomes a viable business decision: fewer interruptions, smoother batching, and higher profitability per hour.

Operation Checklist (End-of-Run Habits)

• Listen: Stop immediately if the sound changes from a rhythmic "thump-thump" to a grinding noise.
• Reset: After winding, cut thread cleanly and return the bobbin winder to the left/unlocked position.
• Verify: After threading, do a gentle pull test near the needle to confirm the thread path is seated in the tension discs.
• Maintenance: Keep a small screwdriver and tweezers nearby, but don’t force parts—access first (like removing the bobbin cover), then remove thread.
• Storage: If you’re using any magnetic embroidery hoop, separate the magnets with the included spacers and store safely so they can’t snap onto metal tools or pinch fingers.

FAQ

• Q: How do I fix a Brother PE800 bobbin winder that stops winding while the motor keeps running?
  A: Stop the machine and clear the thread nest under the bobbin-winder tension disc cap—this is a very common first-week jam.
  • Stop: Press Start/Stop immediately when the bobbin is not filling.
  • Remove: Pop off the silver bobbin-winder tension disc cap with your fingers (firm pull).
  • Clear: Pull out the tangled thread underneath, then snap the cap back on.
  • Rewind: Re-thread the bobbin-winding path and start again.
  • Success check: The cap snaps back with a clear click and the bobbin fills evenly instead of staying empty while the motor hums.
  • If it still fails… Re-check that the thread is wrapped correctly around the bobbin-winder tension disc (behind then in front) and the bobbin is fully seated on the spindle.
• Q: How do I wind a bobbin on a Brother PE800 so the bobbin is tight and even (not loose or cone-shaped)?
  A: Follow guides #1–#2, seat the thread into the bobbin-winder tension disc, then lock the spindle to the right before pressing Start/Stop.
  • Route: Go through guide #1, then guide #2, then wrap the thread around the tension disc as shown (behind then in front) and pull it taut.
  • Catch: Hand-wrap the thread around the empty bobbin several turns so it grabs.
  • Lock: Slide the bobbin holder to the right until it mechanically engages, then press the flashing Start/Stop button.
  • Monitor: Stop immediately if the thread builds into a cone or looks spongy/loopy, then re-thread the winding path.
  • Success check: The thread stacks evenly like a “brick wall” and the bobbin feels firm (not springy) when pinched lightly.
  • If it still fails… Inspect for snagging thread, excess slack at startup, or linty/inconsistent thread that may destabilize winding.
• Q: How do I insert a Brother PE800 drop-in bobbin correctly using the “P-shape” rule to prevent bird nesting?
  A: Load the bobbin in the “P” orientation and pull the thread under the gray tension clip before closing the cover.
  • Orient: Hold the bobbin so the thread tail hangs on the left, forming a capital “P.”
  • Seat: Drop the bobbin into the case, then pull the thread into the slot and under the gray tension area while holding the bobbin still.
  • Cut: Pull the thread along the curved track to the built-in cutter, then close the bobbin cover.
  • Success check: You feel slight resistance as the thread slides under the tension area, and the built-in blade trims the tail cleanly.
  • If it still fails… Open the cover and confirm the thread is not “floating” above the gray tab/clip and the bobbin orientation is still “P,” not “q.”
• Q: How do I thread the Brother PE800 upper path so the take-up lever is captured and the machine actually stitches?
  A: Thread with the presser foot UP and visually confirm the thread is inside the take-up lever eye at threading point #6.
  • Lift: Raise the presser foot before threading to open the tension discs.
  • Follow: Thread points #1 through #5 exactly, then guide the thread right-to-left into the take-up lever at #6.
  • Continue: Finish threading down to #7 and through guide #8 above the needle.
  • Success check: With presser foot down, you feel significant resistance when gently pulling the upper thread; with foot up, it pulls freely.
  • If it still fails… Re-thread and look directly into the slit at #6—missing the take-up lever is the most common cause of “looks threaded but won’t stitch.”
• Q: How do I change a Brother PE800 embroidery needle safely to avoid breaks, skipped stitches, and thread shredding?
  A: Power OFF, install a fresh 75/11 embroidery needle flat-side-back, and push it fully up to the stopper before tightening.
  • Power: Turn the machine OFF before loosening the needle clamp screw.
  • Replace: Remove the old needle carefully, then insert the new needle with the flat side facing the BACK.
  • Seat: Push the needle up until it hits the stopper (do not leave it even 1 mm low), then tighten the clamp screw firmly.
  • Success check: The needle cannot be pushed higher, the flat side is truly facing back, and the needle does not slip when lightly touched.
  • If it still fails… If thread breaks or skips continue, re-check that the needle is fully seated and consider that a dull/bent needle is a frequent root cause (many users change needles every 8–10 hours of stitching time).
• Q: How do I choose the correct Brother PE800 spool cap size to stop thread snagging behind the cap?
  A: Use a spool cap that is slightly smaller than the spool rim and seat it snugly against the spool on the horizontal pin.
  • Match: Pick small/medium/large so the cap diameter is strictly smaller than the spool’s outer rim.
  • Seat: Press the cap tight against the spool so the spool cannot wobble.
  • Adjust: For cross-wound spools, a smaller cap often feeds smoother and reduces catching.
  • Success check: The thread feeds smoothly without jerking, and it does not catch behind the cap during stitching.
  • If it still fails… Remove the cap and re-seat it squarely; if snagging persists, re-check the thread path for any missed guide.
• Q: When should a Brother PE800 owner upgrade from standard hoops to a magnetic embroidery hoop for hoop burn, re-hooping, and slow workflow?
  A: If hooping time, hoop burn marks, or re-hooping is the real bottleneck, start with technique fixes first, then consider a magnetic hoop for consistent clamping.
  • Diagnose: Compare time spent hooping vs stitching; if hooping takes longer or ruins garments, the process is limiting results.
  • Level 1: Reduce over-tightening, use hoop-burn prevention sheets, and “float” fabric when appropriate.
  • Level 2: Switch to a magnetic embroidery hoop to reduce screw-tightening fatigue and over-clamping distortion.
  • Safety: Keep magnetic hoops away from pacemakers/implanted medical devices, keep fingers clear when magnets snap together, and store magnets separated.
  • Success check: Fabric clamps evenly with less force, hoop marks reduce, and repeat hooping becomes faster and more consistent.
  • If it still fails… Re-check stabilizer choice and hooping technique, because puckering can look like “tension trouble” even when threading is correct.
