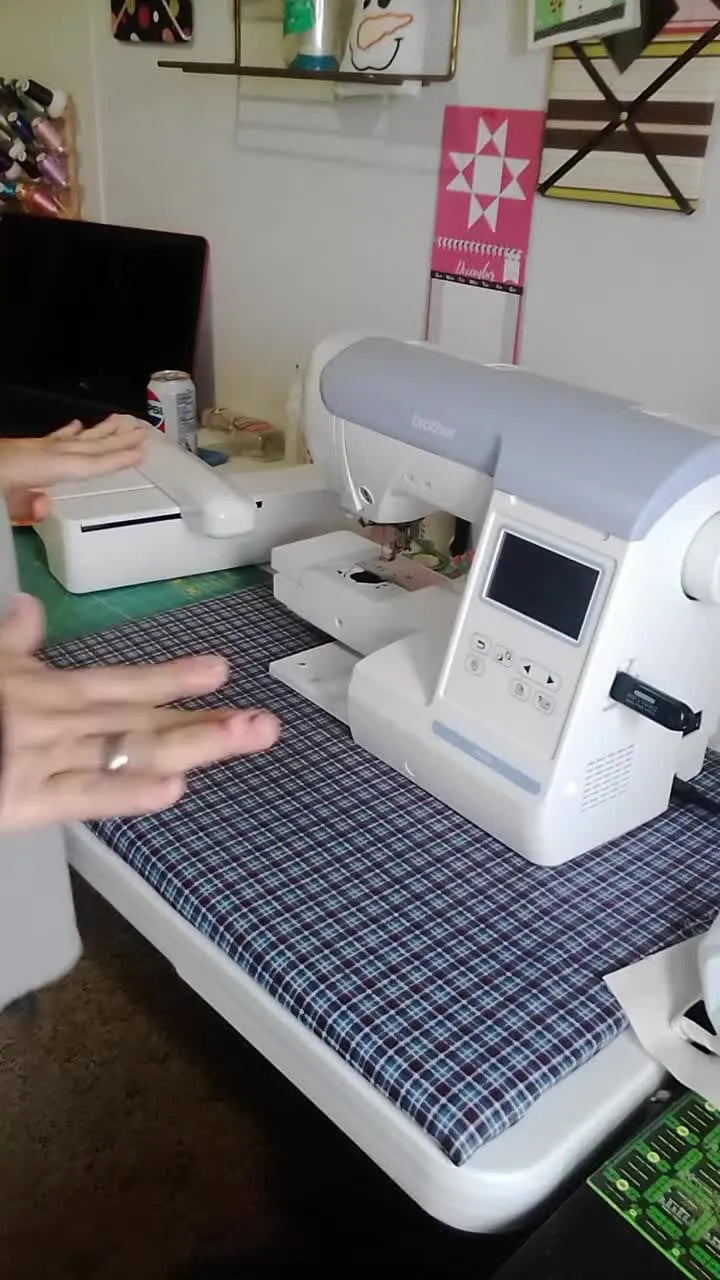

Brother PE800 Setup Without the Headache: Hoops, the Embroidery Unit “Click,” and USB Designs That Actually Load

If you just unboxed a Brother PE800 and your brain is oscillating between excitement and dread—Where do the hoops go? Why won’t the arm slide on? Why is the screen yelling at me?—pause. Breathe. You are not alone. I have trained hundreds of operators, and I’ve watched first-day setups go sideways for one simple reason: Cognitive Overload.

New users try to "start stitching" before the machine is physically integrated. Embroidery is a discipline of physics, not just software.

This guide rebuilds the setup process into a calm, repeatable engineering ritual. We will move beyond the basic manual to understand the tactile feedback of the machine—the clicks, the resistance, and the sounds that tell you, "You are safe to proceed."

The Brother PE800 Color Screen Upgrade: Nice Feature, But It Won’t Save You From Tension or Setup Mistakes

The presenter validates the Brother PE800’s reputation, highlighting the color LCD touch screen as a massive leap from older monochromatic models. Visualizing the design in color reduces anxiety. However, a screen is merely a monitor; it is not a mechanic.

Here is the veteran reality: A screen cannot compensate for poor physics. The presenter notes the PE800 can be "picky" about tension. In my 20 years of experience, "picky" is code for "unforgiving of variance."

The "Sweet Spot" Empirical Data

When setting up, ignore the factory "default" as gospel. You must dial in based on reality:

• Speed: The machine can run faster, but for your first 10 hours, cap your speed at 350–400 SPM (Stitches Per Minute). This is your "Learning Safety Zone."
• Tension: Standard embroidery thread (40wt polyester) usually requires a top tension setting between 3.0 and 4.0.
• Sensory Check: When pulling thread through the needle path (with the presser foot DOWN), you should feel consistent resistance, similar to flossing your teeth. If it pulls freely, you have zero tension. If it snaps, it’s too tight.


Brother PE800 Hoop Compatibility: Picking the 4x4 Hoop vs 5x7 Hoop Without Wasting a Single Stitch

The video contrasts the standard 4x4 hoop with the PE800’s expanded 5x7 field. In the industry, we don't just look at "size"; we look at specific stabilization requirements.

Hoop choice is a production decision, not just a design decision.

The Physics of the Hoop

• The 4x4 Hoop: Structurally rigid. Best for beginners doing monograms or small logos. Less fabric surface area means less "flagging" (fabric bouncing up and down).
• The 5x7 Hoop: Essential for jacket backs or larger layout designs. However, the larger area requires better stabilization to prevent the center from sagging.

If you are researching options like brother pe800 hoop size, do not just ask "what fits?" Ask, "What keeps my fabric stable with the least amount of rework?"

Pro Tip: If your design fits in a 4x4, use the 4x4. The tighter the frame, the crisper the lettering.

Repositionable Hoop Templates on Brother Machines: When a “Repositionable Embroidery Hoop” Helps (and When It Adds Stress)

The presenter demonstrates the transparent grid template. This sheet is your GPS. A repositionable setup allows you to stitch areas larger than the machine's physical limit by moving the hoop to specific coordinates.

However, beginners often underestimate the Alignment Discipline required. If your fabric shifts 1mm between placements, your design will have gaps.

When to use this technique?

• Level 1 (Novice): Avoid repositioning. Master single-hoop designs first.
• Level 2 (Intermediate): Use the repositionable embroidery hoop method only when you have mastered "floating" (using adhesive stabilizer) to prevent fabric drag.

Sensory Anchor: When using the grid, look directly from above (bird's-eye view). If you look from an angle, the parallax error will cause you to mark the fabric incorrectly.

The “Power-Off First” Rule on Brother PE800: Preventing Setup Errors Before They Start

In the video, the presenter turns the machine on, realizes the embroidery unit is detached, and has to power down. This is the most common error that fries motherboard sensors.

The Golden Rule: The embroidery unit (the carriage) connects to the brain of the machine. Never interrupt that connection while the brain is active.

Warning: ALWAYS switch the Brother PE800 OFF before attaching or removing the embroidery unit/arm. Attaching while powered can cause a voltage spike to the stepper motors or cause the carriage to move unexpectedly, risking injury or mechanical misalignment.

The “Hidden” Prep Before You Touch the Embroidery Unit: Thread, Stabilizer, and a Clean Work Zone

Before we click plastic parts together, we must prepare the consumables. The presenter mentions thread and stabilizer, but let’s create a Flight Deck Prep List.

Prep Checklist: The "Hidden" Consumables

• Embroidery Needles: Not sewing needles. Use 75/11 for standard cotton/wovens, or Ballpoint 75/11 for knits.
• Adhesive Spray (e.g., 505): Essential for floating fabric without hoop burn.
• Curved Snips: For trimming jump stitches flush to the fabric.
• Full "Arm Swing" Zone: Clear 18 inches to the left of the machine. The arm moves fast; if it hits a coffee mug or a wall, it will knock the calibration out of sync.

If you are building good habits early, this is the moment you decide on your workflow. Many users eventually adopt a hooping station for embroidery machine to ensure every shirt is hooped straight, reducing the "crooked logo" frustration that plagues startups.

Attaching the Brother PE800 Embroidery Unit: Getting the “Click” Without Forcing Plastic

The video shows a struggle—the presenter pushes the unit, it resists, and she has to wiggle it. This is a high-risk moment. The connector pins are fragile.

The Strategy: You are docking a space station, not jamming a drawer shut.

Setup Checklist: The Mechanical Connection

1. Level the Field: Ensure the machine is on a flat, sturdy table. No card tables (vibration kills stitch quality).
2. Visual Alignment: Look at the connector plug on the machine and the socket on the unit.
3. The Approach: Slide the unit horizontally from left to right.
4. The Engagement: Apply pressure from the base of the unit, not the edge of the carriage arm.


Checkpoints & Expected Outcomes

• Checkpoint 1: Slide the unit onto the rail.
  • Sensory Check: It should glide smooth, like a drawer on ball bearings. If it grinds, pull back.
• Checkpoint 2: The Final Push.
  • Sensory Check: Listen for the "Click." It should be a crisp, mechanical snap.
• Checkpoint 3: The Wiggle Test.
  • Tactile Check: Gently try to pull the unit to the left without pressing the release release. It should be immovable.

Warning: Pinch Hazard. Keep fingers clear of the gap between the embroidery unit and the machine body. Never force the connection; if it binds, alignment is off.

Brother PE800 Startup Safety Message: Let the Carriage Calibrate, and Keep Your Hands Out of the Danger Zone

Once attached and powered on, the machine wakes up. The screen warns you that the carriage will move. This is Calibration Mode—the machine is finding its "Zero X/Y" coordinates.

The Protocol:

1. Tap the screen to acknowledge.
2. Step back.
3. Watch the arm move to the extremes and return to center.

Warning: During initialization, the carriage moves rapidly and with significant torque. Keep hands, scissors, coffee cups, and fabric clear of the movement zone. A collision here can strip the plastic gears inside the servo motor.

The Brother PE800 USB Icon (“Little Fork”) and Design Loading: What the Machine Expects From You

The presenter identifies the USB icon (the “little fork”). The PE800 is a standalone computer. It expects data in a specific format.

Data Hygiene Rules:

1. Format: Your USB stick should be formatted to FAT32 and ideally be 8GB or smaller. High-capacity drives (64GB+) often confuse these older operating systems.
2. File Type: The machine only speaks .PES or .DST. It cannot read a JPEG or a PDF.
3. Hierarchy: Don't bury designs in 10 layers of folders. Keep them in the root directory or one folder deep.








Operation Checklist: The "Pre-Flight" Confirmation

• Drive Inserted: Fully seated in the side port.
• Design Loaded: Select the design and verify it appears on screen.
• Hoop Verification: Look at the screen—does it show the generic hoop outline? Does your physical hoop match that size?
• Color Check: Does the machine show the correct color stops?

If you are looking to streamline this, terms like hooping for embroidery machine often lead to tutorials on batch-processing your files so you aren't standing at the machine fiddling with buttons.

The “Why” Behind PE800 Hooping Success: Physics of Hooping, Stabilizer Support, and Why Beginners Get Wrinkles

The video covers setup, but 90% of failure happens here. Embroidery is the art of stabilization.

The Physics: The needle penetrates the fabric at 600 times per minute. Every penetration pushes fabric down; every retraction pulls it up. If your fabric is loose, you get "puckering" (wrinkles around the letters).

The "Drum Skin" Tactile Standard

When you hoop, the fabric should be taut. Tap it with your finger.

• Correct: It sounds like a dull drum (thump-thump).
• Incorrect: It ripples or feels spongy.
• Incorrect: It is stretched so tight the weave of the fabric is distorted (this will warp when unhooped).

The Stabilizer Decision Tree

Follow this logic flow for 95% of projects:

1. Is the fabric stretchy? (T-Shirt, Hoodie, Knit)
   • Decision: You MUST use Cutaway Stabilizer.
   • Why: Knits have no structure. Tearaway will dissolve, and the stitches will distort.
2. Is the fabric stable? (Denim, Canvas, Towel)
   • Decision: You can use Tearaway Stabilizer.
   • Why: The fabric supports itself; the stabilizer is just for temporary rigidity.
3. Does the fabric have pile/fluff? (Towel, Velvet)
   • Decision: Add a Water Soluble Topper on top.
   • Why: Prevents stitches from sinking into the fluff.

This is where the brother pe800 magnetic hoop becomes a logical discussion. Traditional hoops require grip strength and can leave "hoop burn" (crushed fabric marks). Magnetic hoops use vertical force rather than friction, significantly reducing hoop burn and making the "drum skin" tension easier to achieve without distortion.

When the Brother PE800 Feels “Picky”: Sensory Checks That Catch Problems Before Thread Breaks

The presenter notes the machine's sensitivity. Let's turn that into a diagnostic system.

The Sound of Success vs. Failure:

• Healthy Sound: A rhythmic, soft chug-chug-chug. Consistent volume.
• Danger Sound: A sharp slap-slap (thread too loose) or a grinding vrrr-clunk (needle hitting the plate).

The "Bird's Nest" Warning: If the machine sounds like it is "crunching" fabric, STOP IMMEDIATELY. Do not let it finish the letter. This sound usually means a "bird's nest" of thread is gathering under the throat plate, often caused by the top thread slipping out of the tension disks.

Troubleshooting the Brother PE800 Embroidery Unit Attachment: Symptoms, Causes, Fixes That Don’t Damage the Machine

Troubleshooting should be systematic, moving from Low Cost (User Error) to High Cost (Mechanical Failure).

My Technician Note: If the unit refuses to attach, check for Lint/Thread debris in the connector port. A single piece of thread can block the sensor.

The Upgrade Path That Actually Makes Sense: Faster Hooping, Cleaner Results, and a Realistic “Next Step” for Production

You have mastered the setup. You are stitching. Now, you will encounter the "Hobbyist Ceiling." This manifests as: Sore wrists, hoop burn marks on expensive garments, or spending 15 minutes hooping for a 5-minute stitch-out.

Here is the commercial upgrade path used by professionals:

Level 1: The Efficiency Upgrade (Magnetic Hoops) To solve hoop burn and wrist fatigue, look for a magnetic embroidery hoops for brother pe800.

• Why: Magnets clamp instantly. No screws to tighten.
• Target: If you do bulk items or delicate fabrics.
• Options: For larger projects, the brother 5x7 magnetic hoop is the standard workhorse. For pockets/logos, the brother 4x4 embroidery hoop in magnetic form is faster.

Warning: Magnetic Field Safety. These hoops use industrial-grade neodymium magnets. They are incredibly strong. Pinch Hazard: Do not get skin caught between magnets. Medical: Keep away from pacemakers. Tech: Keep away from credit cards and hard drives.

Level 2: The Production Upgrade (Machine) If you find yourself waiting 10 minutes for the single needle to change colors, or if you have orders for 50 shirts, you have outgrown the PE800.

• The Solution: A Multi-Needle Machine (like SEWTECH models).
• Why: 10+ needles means no thread changes. The machine runs continuously. This is how you turn a hobby into a paycheck.

A Final Reality Check: Your First Win on the Brother PE800 Should Be Boring

The presenter’s video ends with a successful setup. Your goal is not "excitement"—it is predictability.

The best operators make it look boring:

1. Prep: Consumables ready, proper stabilizer chosen.
2. Setup: Unit clicks in, machine powers up, validates safety.
3. Execute: Load file, standard tension check, press start.

When your embroidery process is boring, your results will be beautiful. Welcome to the craft.

FAQ

• Q: What should be prepared before attaching the Brother PE800 embroidery unit to avoid setup errors and collisions?
  A: Prepare thread, stabilizer, tools, and a clear movement zone before touching the Brother PE800 embroidery arm—this prevents rushed mistakes and calibration crashes.
  • Use embroidery needles (not sewing needles): 75/11 for standard wovens, Ballpoint 75/11 for knits.
  • Set up consumables: stabilizer ready, adhesive spray available if floating, and curved snips within reach.
  • Clear an 18-inch “arm swing” zone to the left so the carriage cannot hit a wall, mug, or tools.
  • Success check: the Brother PE800 carriage can move through initialization without striking anything.
  • If it still fails… re-check table stability (avoid shaky card tables) and remove any items near the arm path.
• Q: How do I attach the Brother PE800 embroidery unit correctly if the Brother PE800 arm will not slide on or will not “click” into place?
  A: Power OFF and dock the Brother PE800 embroidery unit straight and gently—never force it, because the connector pins are fragile.
  • Turn the Brother PE800 OFF before attaching the unit.
  • Align visually and slide the unit horizontally from left to right on the rail.
  • Press from the base of the unit (not the edge of the carriage arm) until it seats.
  • Success check: a crisp mechanical “click” is heard and the unit passes the wiggle test (it will not pull left without pressing the release).
  • If it still fails… inspect for lint/thread debris around the connector area and try again without forcing.
• Q: Why does the Brother PE800 show “Install Embroidery Unit” even when the embroidery unit is attached?
  A: The Brother PE800 usually shows “Install Embroidery Unit” when the unit is not fully seated—re-seat it with power OFF and confirm the locking click.
  • Switch the Brother PE800 OFF before removing or reattaching the embroidery unit.
  • Remove the unit, re-align rails and connector, then press firmly until the click engages.
  • Power ON and allow initialization to complete without touching the carriage.
  • Success check: the message clears after startup and the carriage calibrates normally.
  • If it still fails… check for thread/lint blocking the connector area and confirm the unit cannot move during the wiggle test.
• Q: What is a safe starting speed and top tension on the Brother PE800 to reduce thread breaks and “picky” tension behavior?
  A: For the first hours on the Brother PE800, slow down and use a conservative tension range—this is common, and it stabilizes learning.
  • Cap speed at 350–400 SPM for the first ~10 hours of use.
  • Use a top tension starting point of 3.0–4.0 for standard 40wt polyester embroidery thread.
  • Pull thread through the needle path with the presser foot DOWN to feel consistent resistance (not loose, not snapping).
  • Success check: resistance feels like flossing teeth and stitching sounds steady (soft, rhythmic, consistent volume).
  • If it still fails… rethread the Brother PE800 with the presser foot UP so the thread seats correctly into the tension discs.
• Q: How do I know if Brother PE800 hooping tension is correct to prevent puckering and wrinkles around letters?
  A: Hoop the fabric taut but not stretched—aim for the “drum skin” feel so the Brother PE800 needle action cannot bounce the fabric.
  • Tighten the hoop until fabric is firm and flat, then tap-test the surface.
  • Avoid spongy slack (causes puckering) and avoid over-stretching (distorts weave and rebounds after unhooping).
  • Match stabilizer to fabric: knits use cutaway; stable woven fabrics can use tearaway; add water-soluble topper on pile fabrics.
  • Success check: tapping the hooped fabric gives a dull drum “thump-thump” with no ripples.
  • If it still fails… upgrade stabilization (especially on 5x7 areas) and reduce speed while testing.
• Q: What should I do on a Brother PE800 if the machine makes a crunching sound or forms a bird’s nest under the needle plate?
  A: Stop immediately—continuing on a Brother PE800 can pack thread under the plate; the common cause is top thread not seated in tension.
  • Press stop as soon as the sound turns from rhythmic to crunching/slapping/grinding.
  • Rethread the upper thread path with the presser foot UP, then recheck resistance with the presser foot DOWN.
  • Verify the sound: return to a consistent soft “chug-chug-chug,” not slap-slap or vrrr-clunk.
  • Success check: stitching resumes without fabric bunching and the sound stays even.
  • If it still fails… inspect for thread buildup under the throat plate area and confirm the needle is not bent before restarting.
• Q: When should a Brother PE800 user upgrade to magnetic embroidery hoops or a multi-needle machine to reduce hoop burn, wrist fatigue, and slow production?
  A: Upgrade in layers: first fix technique, then reduce hooping strain with magnetic hoops, and only then consider a multi-needle machine if volume demands it.
  • Level 1 (technique): improve hooping “drum skin” tension, stabilizer choice, and slow speed while learning.
  • Level 2 (tool): switch to magnetic hoops if hoop burn marks, sore wrists, or frequent hoop popping are limiting consistency.
  • Level 3 (capacity): move to a multi-needle machine if constant color changes or larger orders (e.g., dozens of shirts) make single-needle workflow the bottleneck.
  • Success check: hooping time drops and fabric marks/rework decrease while stitch quality stays predictable.
  • If it still fails… reassess stabilization and workflow first (many “upgrade” problems are still setup/stabilizer problems).
• Q: What magnetic hoop safety rules should Brother PE800 users follow to avoid pinch injuries and device interference?
  A: Treat magnetic embroidery hoops as industrial clamps—pinch injuries are common if fingers get between magnets, and magnets must be kept away from sensitive devices.
  • Keep fingers clear when closing the magnetic frame; separate magnets deliberately and slowly.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Keep magnetic hoops away from credit cards and hard drives.
  • Success check: the hoop closes without any skin contact in the clamping area and stores safely away from sensitive items.
  • If it still fails… stop using the hoop until handling technique is controlled and the work area allows safe two-hand placement.
