Brother PE800 Setup That Actually Stitches Clean: Your First-Day Checklist, Hooping Habits, and a Sewing Room Layout That Won’t Fight You

The box is open, the styrofoam is everywhere, and you are staring at a brand-new Brother PE800. The Start button is glowing green, the hoop is clicked in… and your brain is already racing: Did I set this up right? Am I about to create a bird's nest of thread that destroys my favorite shirt?

I have spent twenty years in embroidery production, and I’ve watched that "first-day excitement" turn into "second-day frustration" more times than I can count. Usually, the machine is fine. The problem is almost always that the prep, hooping mechanics, and workspace flow are fighting the operator.

This guide rebuilds the setup shown in the video—machine assembled, standard 5x7 hoop attached, thread kit ready—but I am going to layer on the "veteran safety protocols" that manuals don't teach you. We will move beyond just "turning it on" to building a production-grade workflow that eliminates fear and guarantees that professional "thump-thump-thump" sound of a happy machine.

The Calm-Down Check: What a Powered-On Brother PE800 Is (and Isn’t) Telling You

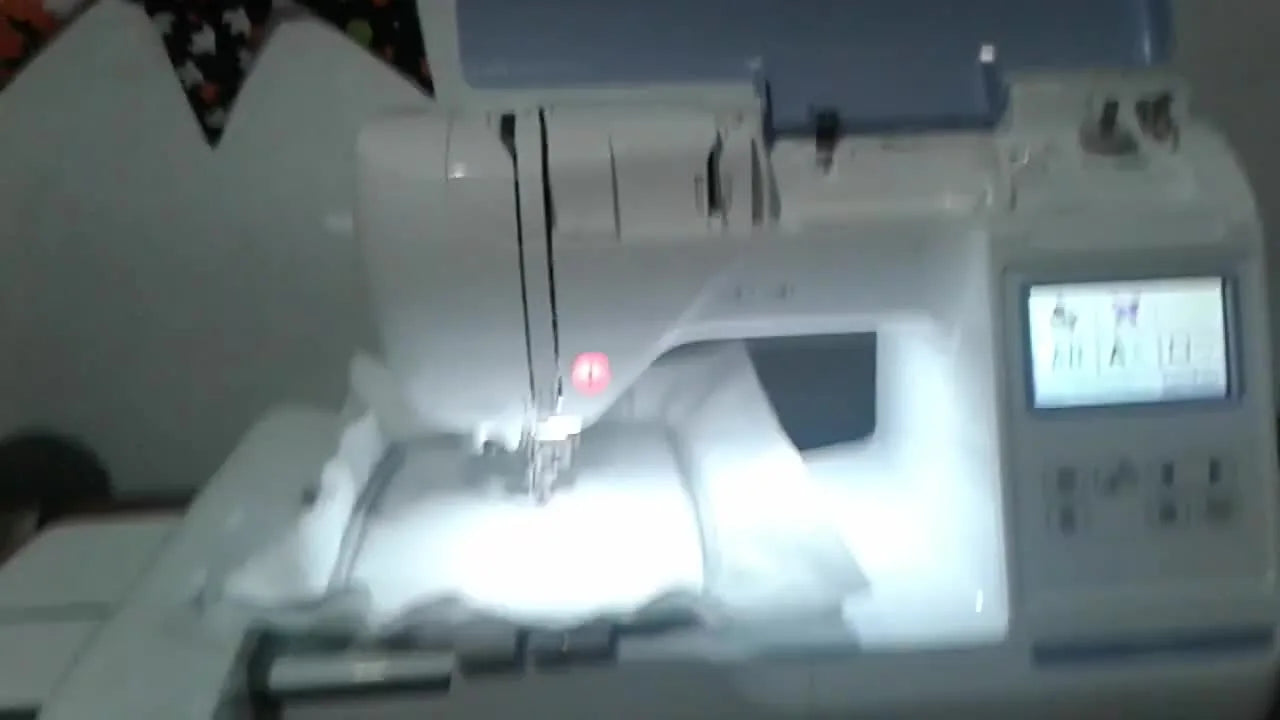

In the video, the Brother PE800 is powered on, the needle area is lit, and simple tear-away stabilizer is hooped. It looks "ready to sew."

Here is the cold reality: a powered-on PE800 tells you the motherboard is awake, but it does not guarantee:

• The top thread is seated in the tension discs (the most common error).
• The stabilizer choice can support your specific fabric density.
• The bobbin is feeding counter-clockwise (the "P" shape rule).

If you are coming from a machine that gave you headaches—like the creator mentions a Baby Lock Flourish that "gave me problems"—your stress levels are likely high. The antidote to fear is a Mechanical Pre-Flight Check.

Before you ever press the "Lock Screen" button, do this key sensory check: The Floss Test. With the presser foot up, pull your top thread near the needle. It should pull freely. Now, put the presser foot down. Pull the thread again. You should feel significant resistance—like pulling dental floss between tight teeth. If you don't feel that grip, your machine will instantly birdnest, no matter what the screen says.

The “Hidden” Prep Under the Table: Thread, Tear-Away Stabilizer, and the Stuff You’ll Wish You Bought Earlier

The creator shows two key consumables immediately: a box of 63 spools of embroidery thread and 100 sheets of tear-away stabilizer stored under the desk.

That is a solid start, but beginners often burn through supplies because they lack the "Hidden Consumables" that make the job possible. If you want your PE800 to be dependable, you need to stage your station for rescue, not just sewing.

The "Hidden Consumables" Rescue Kit

Beyond thread and stabilizer, have these within arm's reach:

1. Curved Embroidery Snips: For trimming jump stitches flush to the fabric.
2. Tweezers: For grabbing thread tails that vanish into the bobbin case.
3. Temporary Spray Adhesive (like 505): Vital for floating fabrics that are too thick to hoop.
4. Seam Ripper: Because you will make mistakes.

One sentence that matters for long-term sanity: if you are critically analyzing your technique for hooping for embroidery machine, you will realize that 90% of "machine errors" are actually "stabilizer errors." Use the checklist below to organize your station before you load a design.

Prep Checklist (Do this before you pick a design)

• Verify Hoop Size: Confirm the machine recognizes the standard 5x7 hoop (130x180mm).
• Bobbin Orientation: Ensure the pre-wound bobbin unwinds in a 'P' shape (thread coming off the left side).
• Needle Condition: Run your fingernail down the needle tip. If it catches, change it. A burred needle shreds thread.
• Stabilizer Staging: Keep your tear-away sheets flat. Curled stabilizer fights the hoop.


The Brother PE800 5x7 Hoop Reality: How to Hoop Tight Without Warping Fabric (and Why “Drum Tight” Gets Misunderstood)

The close-up in the video shows the plastic hoop with white stabilizer hooped tight. That is the correct visual cue—but beginners often misunderstand the "Drum Tight" rule.

The Physics of Hooping:

• Too Loose: The fabric "flags" (bounces up and down with the needle). This causes skipped stitches and loops.
• Too Tight: You stretch the fabric fibers open. When you un-hoop later, the fabric shrinks back, and your design puckers like a raisin.

If you are using the standard brother 5x7 hoop, your goal is Neutral Tension.

The Tapping Test: Gently tap the hooped stabilizer with your finger.

• Sound: It should sound like a dull thud, not a high-pitched ping.
• Feel: It should be taut, but if you push, it should give slightly.

Pro-Tip on "Hoop Burn": Standard plastic hoops rely on friction and force. If you are seeing shiny rings ("hoop burn") on delicate fabrics like velvet or performance wear, this is a mechanical limitation of the hoop, not your skill. This is the #1 trigger point where professional shops switch to magnetic systems (more on that later).

The Thread Path & Bobbin Area on the Brother PE800: The 60-Second “Machine Health” Scan

The video provides a top view of the machine where the thread path and spool pin live. Even without changing settings, you can prevent a lot of first-week issues by doing a quick sensory check of this area.

The "Why" Behind the Thread Path: Embroidery thread is slippery. The machine uses a series of guides and tension discs to control it. If the thread jumps out of the "take-up lever" (the silver arm that moves up and down), you will lose the stitch instantly.

The Sensory Scan:

• Look: Is the thread spool cap actually holding the spool? If the spool bounces, tension fluctuates.
• Listen: When running, the machine should have a rhythmic chug-chug-chug sound. A sharp click-click-click usually means the needle is hitting the foot or plate.
• Feel: Touch the table while it runs. Excessive vibration implies your table isn't stable, which can cause registration errors (where outlines don't line up with the fill).


The Brother PE800 Touchscreen Menu: Pick a Simple Test Design Before You Try to Be a Hero

The video shows the PE800’s pattern selection menu (fonts, florals). That is your cue to start simple.

New users often download a dense, 20,000-stitch design from the internet for their first run. Do not do this. Low-quality digitized files are the enemy of calibration.

The "Sweet Spot" for First Runs:

1. Select a built-in "B" font (Block style).
2. Type your name.
3. Speed Limiter: The PE800 can go up to 650 SPM (Stitches Per Minute). For your first week, limit it to 400-500 SPM. This gives you reaction time to stop the machine if you hear a strange noise.

If you are tempted to jump straight into a big logo because you bought "extra everything," slow down. A controlled test tells you: Hoop is stable, thread path is clear, and bobbin tension is balanced.

“My Old Machine Gave Me Problems”: How to Avoid Repeating the Same Reliability Story on the Brother PE800

The creator’s reason for switching is straightforward: the Baby Lock Flourish gave her problems, and she hopes the Brother-built machine will be more reliable.

A new machine feels dependable, but reliability is a workflow, not a product feature.

Here are the three "Silent Killers" of reliability in home embroidery:

1. Adhesive Build-up: Using spray adhesive inside the machine area creates sticky needles that skip stitches.
2. Lint Accumulation: Polyester thread sheds. If you don't clean the bobbin case every 50,000 stitches, tension becomes erratic.
3. Workspace Friction: If you have to fight your workspace to re-thread or re-hoop, you will rush the process and make mistakes.

If you are considering future upgrades, establish a "clean machine" protocol now. Blow out the bobbin case area (with a bulb syringe, not canned air which pushes dust deeper) after every project.

The Accessory Inventory Moment: Thread Kits, Tear-Away Stabilizer, and What “Grand Slam Packages” Don’t Teach You

In the video, the creator opens the thread box and points out the stabilizer stash. Beginners often obsess over having 100 thread colors but ignore the physics of how the hoop holds the fabric.

The Standard Hoop Friction Point: The Brother PE800 comes with a screw-tightened inner and outer hoop. For thick items (like towels) or stiff items (like canvas), screwing this hoop tight enough requires significant hand strength.

The "Wrist Fatigue" Indicator: If you find yourself un-hooping and re-hooping 3 or 4 times to get a garment straight, or if your wrists hurt after a session, you are encountering a workflow bottleneck. This is exactly when seasoned professionals search for a magnetic hoop for brother pe800. Unlike screw hoops, magnetic hoops clamp fabric instantly without "creeping" or distorting the grain. It is not about being fancy; it is about saving your hands and cutting setup time by 50%.

The Incoming Embroidex Starter Kit: How to Plan Supplies So You Don’t Stop Mid-Project

The creator mentions an incoming Embroidex order that acts like a starter kit. This is a smart instinct. Nothing kills creative momentum like running out of white bobbin thread at 11 PM.

Inventory Rule of Thumb:

• The "One in Use, One on Deck" Rule: Always have a backup roll of your most used stabilizer.
• Compatibility Checks: When buying third-party accessories, many users look for embroidex hoops or similar bundles. Always verify they are listed as "Brother PE800 Compatible." An ill-fitting hoop can crash into your needle bar and destroy the machine's timing.

Hidden Variable: Needles. You need different needles for different jobs:

• 75/11 Sharp: For wovens/cotton.
• 75/11 Ballpoint: For knits/t-shirts (pushes fibers aside instead of cutting them).
• 90/14: For heavy denim or canvas.


The Stabilizer Decision Tree (Tear-Away Isn’t Wrong—It’s Just Not Universal)

The video shows tear-away stabilizer sheets, which are the default beginner choice. However, using tear-away on the wrong fabric is the leading cause of "why is my design puckering?" posts.

Use this Decision Tree to ensure your foundation is solid:

Decision Tree: Fabric → Stabilizer Choice

1. Is the fabric stretchy (T-shirt, Hoodie, Polo)?
   • YES: STOP. Do not use Tear-Away. Use Cut-Away (Mesh) stabilizer. Stretchy fabric needs permanent support, or the stitches will distort when washed.
   • NO: Go to step 2.
2. Is the fabric unstable/loose weave (Linen, light cotton)?
   • YES: Use Fusible No-Show Mesh or a heavy Cut-Away.
   • NO: Go to step 3.
3. Is the fabric stable and thick (Denim, Canvas, Towel)?
   • YES: Tear-Away is perfect here. It provides support during stitching and tears away cleanly afterwards.
4. Does the fabric have "fluff" or pile (Towel, Velvet, Fleece)?
   • YES: Add a Water Soluble Topper on top of the fabric to keep stitches from sinking into the pile.


The Sewing Room Layout Tour: Why Your Table, TV, and Storage Placement Affects Stitch Quality

The creator shows her reorganized room: a new white table, a positioned TV, and storage. This matters more than just aesthetics.

The Stability Factor: A wobble in your table translates to a wobble in the needle bar. If your table shakes, your stitch registration will drift.

• Recommendation: Use a solid table. If it shakes, move the machine closer to the table leg (the most stable point).

The Hooping Station: If you start doing bulk orders (e.g., 10 shirts for a family reunion), doing it on a cluttered desk leads to crooked logos. This is where hooping stations add value—they act as a jig to ensure every shirt is hooped in the exact same spot, every single time. Repeatability is the difference between a hobby and a business.

The “Ruler on the Table Edge” Detail: Build Repeatability Into Your Brother PE800 Workflow

The video briefly shows ruler markings on the edge of the sewing table. That tiny detail is a pro move in disguise.

Why Calibration Matters: In embroidery, "eyeballing it" is a recipe for disaster.

• Standard Rule: For left-chest logos, the center is usually 7-9 inches down from the shoulder seam and centered between the placket and side seam.
• Use the Table: Mark these standard distances on your table edge (using painter's tape) so you can lay the shirt down and measure instantly.


The Fix That Prevents 80% of Beginner Frustration: A Clean Setup Loop (Hoop → Thread → Test Stitch)

The video ends with the creator preparing to stitch. Before you press that button, run this final "Pre-Flight" loop. This checklist prevents the most common disasters (needle breaks and heavy birdnesting).

Setup Checklist (Right before you press Start)

• Hoop Lock: Is the hoop lever firmly locked? Try to wiggle the hoop; it should not budge.
• Clearance: Is there fabric bunched up under the hoop? (A common error is sewing the back of a shirt to the front).
• Presser Foot: Is the foot down? (The light should be green).
• Thread Tail: Is the top thread tail cut short? Long tails can get pulled into the bobbin case.
• Speed: Is the speed slider set to minimal/medium for the first checks?

Warning: Physical Safety
Keep fingers, scissors, and loose sleeves away from the needle area once the machine is running. The Brother PE800 carriage moves fast and unpredictable. A finger in the hoop path can result in severe injury or a broken drive gear.

When You “Adjust Tension” and It Gets Better: What That Comment Really Means (Without Overcorrecting)

The creator replies in the comments that she adjusted tension and things improved. Because the video doesn’t show settings, let me give you the Safe Zone.

The "1/3 Rule" for Tension: Flip your finished embroidery over.

• You should see 1/3 top thread (left), 1/3 white bobbin thread (center), and 1/3 top thread (right).
• If you see NO bobbin thread: Top tension is too loose. Tighten slightly (higher number).
• If you see ONLY bobbin thread: Top tension is too tight. Loosen slightly (lower number).

Expert Advice: Never adjust the bobbin case screw unless you have a dedicated tension gauge. Do 99% of your adjustments on the top tension dial on the screen.

The Upgrade Path That Feels Natural: From Stock Brother PE800 Hoop to Magnetic Hoops (When It’s Actually Worth It)

Most beginners start with the included plastic hoop. That is correct for learning. But as you progress, you will encounter the "Hoop Burn" vs. "Grip" Dilemma. To hold a thick towel, you have to tighten the screw so much it hurts your hand. To hold a delicate silk, the plastic hoop leaves a permanent ring.

The Solution Ladder:

1. Level 1 (Skill): Use "floating" techniques (hooping stabilizer only and spraying adhesive).
2. Level 2 (Tool): Upgrade to a generic brother pe800 magnetic hoop.
   • Why: The magnets clamp straight down. No twisting, no friction burn, no "pop-out" mid-stitch.
   • ROI: If you hoop more than 20 items a week, the time saved pays for the hoop in a month.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength magnets (Neodymium).
* Pinch Hazard: Do not let the two frames snap together without fabric in between; they can pinch fingers severely.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on laptops or tablets.

If You’re Comparing Brands: Brother PE800 vs Baby Lock Flourish, and Why the “Same Interface” Can Still Feel Different

The creator notes the PE800 feels physically similar to her Baby Lock Flourish. This is astute—Brother manufactures machines for Baby Lock. The "guts" are often identical.

Why this matters for you: It means accessories are often cross-compatible. If you see tools marketed as babylock magnetic hoops, they might fit your Brother, but always check the connector width (Standard Brother SA444 size usually fits PE800).

The Psychological Reset: Even if the interface is the same, every machine has a unique "personality" or tolerance. Your Flourish might have liked a tension of 4.0; your PE800 might prefer 3.6. Don't force your old settings on your new machine. Listen to what this machine is telling you.

The Operation Rhythm: How to Run Your First Stitch-Out Like a Shop (Even If You’re Just Having Fun)

Once you press Start, your job is not to hover in panic—it is to monitor smartly.

The "First 100 Stitches" Rule: Watch the machine like a hawk for the first layer of stitching. This is when birds-nesting happens. If the sound changes from a thump to a crunch, Hit Stop immediately.

Operation Checklist (End-of-Run Habits)

• Trim Jump Stitches: Use your curved snips to trim connecting threads.
• Inspect Back: Check for loops or knots.
• Tear Correctly: Support the stitches with your thumb while tearing away the stabilizer to avoid distorting the design.
• Project Log: Write down what worked (e.g., "White T-Shirt: Cutaway Mesh, 75/11 Ballpoint needle, Tension 3.4").

If you find yourself loving the process but hating the frequent thread changes on a single-needle machine, keep that in mind. The natural progression for a growing hobby-business is eventually moving to a Multi-Needle machine (like the SEWTECH systems). But for now, mastering the brother magnetic hoop 5x7 workflow on your PE800 is the best education you can get.

The Bottom Line: Your Brother PE800 Will Feel “Reliable” When Your Setup Is Repeatable

The video shows a real, honest start: a PE800 powered on, a standard hoop, and a willingness to learn.

Turn that honest start into consistent results by respecting the physics of embroidery:

1. Hoop for Neutral Tension, not brute force.
2. Match Stabilizer to Fabric, using the decision tree.
3. Listen to your Machine, and stop before the crash.

If you build these habits now, your PE800 won't just be a plastic appliance—it will be a dependable production partner that can build a business.

FAQ

• Q: How can Brother PE800 users prevent thread birdnesting before pressing Start?
  A: Re-thread with the presser foot up, then confirm the thread is actually gripping when the presser foot is down.
  • Do: Perform the “Floss Test”—pull the top thread near the needle with presser foot up (should pull freely), then with presser foot down (should feel strong resistance).
  • Do: Re-thread the entire path if the resistance does not change; most “instant nests” come from thread not seated in the tension discs.
  • Success check: The thread feels like dental floss between tight teeth when the presser foot is down, and the first stitches form cleanly without piling thread under the hoop.
  • If it still fails: Stop immediately and confirm bobbin orientation is correct and the top thread tail is trimmed short before restarting.
• Q: What is the correct bobbin orientation for a Brother PE800 to avoid tension issues?
  A: Load the pre-wound bobbin so it unwinds in a “P” shape (counter-clockwise), with the thread coming off the left side.
  • Do: Remove the bobbin, reinsert it, and visually confirm the “P” shape before pulling the thread into the bobbin path.
  • Do: Use the machine’s normal threading route for the bobbin thread and keep the bobbin area free of loose thread tails.
  • Success check: Stitching sounds steady and the underside does not show big loops or random knots.
  • If it still fails: Clean lint around the bobbin case area and re-run a simple test design before changing any tension settings.
• Q: How tight should fabric and stabilizer be hooped in the Brother PE800 5x7 hoop to prevent puckering and skipped stitches?
  A: Aim for neutral tension—taut without stretching the fabric grain—because “drum tight” is often overdone.
  • Do: Tighten the screw until the fabric is smooth and held firmly, then stop before the fabric looks stretched or distorted.
  • Do: Use the tapping test: tap the hooped area to judge tension instead of cranking harder.
  • Success check: The hoop area gives a dull “thud” (not a sharp “ping”), and the fabric doesn’t bounce (“flag”) while stitching.
  • If it still fails: Recheck stabilizer choice for the fabric type, because puckering is often a stabilizer mismatch rather than hoop technique.
• Q: How should Brother PE800 users choose tear-away vs cut-away stabilizer to stop designs from puckering?
  A: Use tear-away only on stable, thicker fabrics; use cut-away (mesh) for stretchy or unstable fabrics to keep the design supported after stitching.
  • Do: Switch to cut-away mesh for T-shirts, hoodies, polos, and other stretchy knits; avoid tear-away on stretch fabrics.
  • Do: Use fusible no-show mesh or heavier cut-away for loose weaves (like linen or light cotton).
  • Success check: After unhooping, the design stays flat instead of drawing up like a raisin, and the fabric doesn’t ripple around the stitches.
  • If it still fails: Add a water-soluble topper on fluffy fabrics (towel, velvet, fleece) to prevent stitches from sinking into the pile.
• Q: How can Brother PE800 users safely adjust upper thread tension without overcorrecting?
  A: Adjust only the top tension in small steps and confirm balance using the “1/3 rule” on the back of the embroidery.
  • Do: Flip the sample over and look for 1/3 top thread, 1/3 bobbin thread, 1/3 top thread across the satin/fill areas.
  • Do: Increase top tension slightly if you see no bobbin thread; decrease top tension slightly if you see mostly bobbin thread.
  • Success check: The underside shows a clean, centered bobbin line rather than wide loops or an all-white bobbin takeover.
  • If it still fails: Avoid turning the bobbin case screw unless you have a tension gauge; recheck threading, needle condition, and lint in the bobbin area first.
• Q: What “hidden consumables” should a Brother PE800 embroidery station include to prevent mid-project failures?
  A: Keep a small rescue kit at arm’s reach so troubleshooting is immediate, not a stop-and-search.
  • Do: Stage curved embroidery snips, tweezers, temporary spray adhesive (for floating), and a seam ripper next to the machine.
  • Do: Keep stabilizer sheets flat (not curled) so the hoop seats evenly.
  • Success check: Thread tails get trimmed cleanly, bobbin tangles can be cleared fast, and re-hooping doesn’t turn into a 10-minute delay.
  • If it still fails: Add a simple “prep checklist” habit (hoop size recognized, bobbin orientation, needle condition) before loading any design.
• Q: What safety rules should Brother PE800 users follow during stitching to avoid injury or machine damage?
  A: Keep hands, sleeves, and tools out of the hoop path because the Brother PE800 carriage moves fast and unpredictably.
  • Do: Stop the machine before reaching near the needle area to trim, reposition, or check the fabric.
  • Do: Confirm there is no fabric bunched under the hoop (to avoid sewing the garment to itself).
  • Success check: The run sounds rhythmic (not crunching/clicking), and nothing comes close to the moving hoop or needle.
  • If it still fails: If you hear a sudden sound change, hit Stop immediately and check for clearance issues, incorrect hoop locking, or thread caught in the bobbin area.
• Q: When should Brother PE800 users upgrade from the stock 5x7 screw hoop to a magnetic hoop, and what are the magnetic hoop safety precautions?
  A: Upgrade when hoop burn, wrist fatigue, or repeated re-hooping becomes the bottleneck; handle magnetic hoops carefully to avoid pinch injuries and device interference.
  • Do: Use Level 1 first—floating techniques (hoop stabilizer only and use temporary adhesive) when items are hard to hoop.
  • Do: Move to a magnetic hoop when thick towels require extreme screw force or delicate fabrics show shiny hoop rings.
  • Success check: Fabric clamps quickly without grain distortion, hooping time drops noticeably, and hoop marks are reduced on delicate materials.
  • If it still fails: Keep magnets from snapping together without fabric, keep magnets at least 6 inches from pacemakers, and avoid placing magnetic hoops directly on laptops or tablets.
