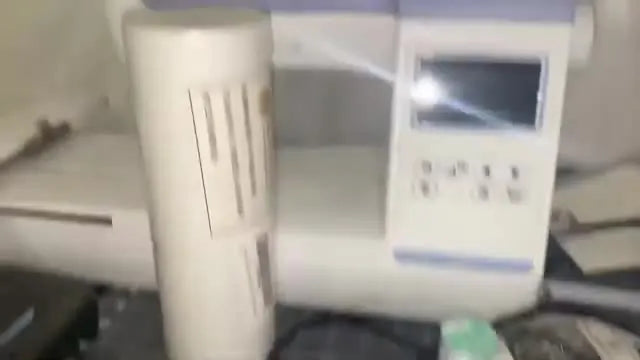

Brother PE800 Setup for Real-World Patches: The No-Panic Path from “Intimidated” to First Profitable Stitch

You’re not alone if a brand-new embroidery machine sits on the table for weeks because it feels “too technical.” As an educator with two decades in this industry, I’ve watched that exact moment play out in hundreds of shops: the machine is paid for, the business idea is real, but the first thread path and the first hooping attempt feel like a sheer cliff face.

The Brother PE800 is a capable entry-level machine, but it demands respect for the laws of physics. This guide transforms the typical unboxing overview into a do-this-next workflow for the Brother PE800 single-needle embroidery machine. We will cover the specific accessories shown (tearaway stabilizer, acrylic felt, standard 5x7 hoop) and, crucially, the "hidden" consumables like temporary adhesive spray and water-soluble pens that beginners often miss until it's too late.

Stop Staring at the Brother PE800: Set a 30-Minute “First Power-On” Session That Actually Moves You Forward

The creator says it plainly: he bought the PE800 to expand beyond sublimation, but felt intimidated and kept procrastinating. That’s normal—because embroidery has significantly more moving mechanical parts than vinyl or heat press work. Fear of breaking the needle or jamming the bobbin case is the #1 blocker for new owners.

Here’s the mindset shift I teach shop owners: your first session is not about making a sellable patch. It’s about building a repeatable setup ritual so you can produce on demand later without checking the manual every five minutes.

If you’re coming from vinyl/sublimation, treat embroidery like a new production line: thread path consistency + proper stabilization + hooping tension + file prep. Miss one, and you’ll burn time and money.

One search term that matters here is brother embroidery machine for beginners—because while the PE800 is an excellent learning platform, it is unforgiving of bad habits. You must build your skills on a solid foundation of safety and routine.

Read the Brother PE800 Thread Path Like a Map (and Don’t “Finagle” Blind)

In the video, he opens the top lid and points out the bobbin winder/spool area, saying you have to “finagle” the thread through and that he needs the manual before messing with it. That caution is strictly necessary. "Finagling" or forcing thread is the fastest way to strip a tension gear or bend the take-up lever.

Here’s the practical way to approach threading without turning it into a two-hour frustration loop:

1. Open the top cover and visually locate the bobbin winding post and the numbered thread path markings.
2. Raise the presser foot. This is critical. When the foot is up, the tension discs open. If you thread with the foot down, the thread floats on top of the discs, resulting in zero tension and a massive "bird's nest" of thread on the underside of your fabric instantly.
3. Audit the Spool Cap: Ensure the spool cap is slightly larger than the diameter of your thread spool. If it's too small, the thread will snag on the spool's jagged edge; too big, and the thread won't unwind smoothly.
4. Listen for the "Click": As you pass the thread through the tension adjustment gear (usually step 3 or 4), pull it firmly until you hear or feel a mechanical click. That is the sound of the thread seating between the tension discs.


What you should expect when threading is “right” (beginner checkpoint)

• Tactile Check: With the presser foot down, pull the thread near the needle. You should feel a consistent, firm resistance, similar to pulling dental floss from its container. If it pulls freely, you missed the tension discs.
• Visual Check: The thread stays seated in guides and doesn't pop out when you wiggle it.
• Auditory Check: The machine triggers a rhythmic, humming sound when stitching. A loud "clack-clack-clack" usually indicates a bent needle hitting the bobbin case or a thread shredding issue.

Warning: Mechanical Safety Hazard. Keep fingers, hair, hoodie strings, and loose jewelry away from the needle area and any moving parts. The embroidery needle moves vertically at 600+ stitches per minute and can puncture bone instantly. Always power off or engage the lockout mode before threading the needle or changing the bobbin.

The “Hidden” Prep: Stabilizer, Felt, and Bobbin Thread—What Each One Is Really Doing

The video highlights three key consumables: New brothread tearaway stabilizer (1.8 oz), Acrylic felt sheets, and Bobbin thread. Let’s decode what these actually do to your physics.

Stabilizer isn't optional—it’s your foundation

He notes the tearaway stabilizer goes on the “flip side” of the garment. Correct: stabilizer (backing) acts as the "road" for your needle. Without it, the fabric will pucker and distort under the 10,000+ needle penetrations of a typical design.

If you’re researching hooping for embroidery machine techniques for stretchy items like the beanie shown later, relying solely on basic tearaway is a rookie mistake.

Expert Reality:

• Tearaway (shown): Best for stable woven fabrics (denim, canvas, felt) and items where the back is visible (towels). It offers stability but less long-term support.
• Cutaway (not shown but essential): Absolute requirement for knits (t-shirts, hoodies, beanies). It stays permanently attached to prevent the fabric from stretching out of shape during and after stitching.
• Hidden Consumable: Temporary Adhesive Spray (like Odif 505). This helps hold the fabric to the stabilizer, preventing shifting without need for excessive hoop tightness.

Acrylic felt: The perfect "Sandbox" material

In the video, he admits he doesn’t know what felt does yet—he just knows he “needed it.” Felt is the ideal beginner substrate because:

1. It doesn't fringe/fray: You can cut a patch shape with scissors and the edge looks clean.
2. It is stable: It has no grain line to warp.
3. It hides tension errors: The fuzzy texture is forgiving of slightly sinking stitches.

Bobbin thread: The quiet hero

Use specialized 60wt or 90wt embroidery bobbin thread (usually white polyester). It is thinner than your top thread (usually 40wt), which prevents bulk buildup on the back of the design. Never use standard sewing cotton in the bobbin; it produces lint that can clog the PE800’s sensors.

Prep Checklist (do this before you even think about a “real order”)

• Manual Accessibility: Confirm you have the Brother PE800 operation manual (paper or PDF) open to the "Troubleshooting" section.
• Test Kit: Set aside specialized "trash" fabric (old heavy cotton shirts or denim) and felt for your first 10 mistakes.
• Bobbin Supply: Verify you have at least 2-3 pre-wound bobbins. Running out mid-patch is a classic beginner panic moment.
• Needle Check: Install a fresh 75/11 Embroidery Needle. A dull needle causes 90% of early thread breaks.
• Clearance: Clear the table space behind the machine. The embroidery arm moves back and forth; if it hits a wall or coffee mug, it will knock the machine's calibration out of alignment.


The Brother PE800 5x7 Hoop Limit: Plan Your Patch Sizes Like a Business Owner, Not a Hobbyist

The creator holds up the standard hoop and explains it sandwiches the fabric and that 5x7 is the maximum hoop size for this machine.

This physical constraint must dictate your business model.

• The search term brother pe800 hoop size is critical because it defines your "sandbox." The actual stitching area is slightly smaller than the physical inside edge of the hoop to preventing the presser foot from hitting the plastic frame.
• If your ambition is full-back jacket designs (typically 10x12 inches or larger), you immediately hit a wall. You either split the design (advanced technique) or upgrade to a larger machine.

A practical patch-sizing rule (shop-tested)

Don’t plan to use every millimeter of that 5x7 space. Leave a safety margin of at least 10mm around your design.

• Why? Hooping is rarely perfect. If you design a 4.95" x 6.95" patch and hoop it slightly crooked, the needle will slam into the plastic hoop, likely breaking the needle and potentially damaging the drive gear.

Physics you can feel: The "drum skin" myth

Beginners are often told to hoop fabric "tight as a drum." This is dangerous advice for knits.

• Wovens (Denim/Felt): Yes, fairly tight.
• Knits (T-shirts): Hoop with neutral tension. If you stretch the shirt while hooping, the design will sew perfectly flat, but when you unhoop, the fabric will snap back to its original size, and your design will pucker like a raisin.

Hooping Without Hoop Burn: When a Magnetic Hoop Is a Real Upgrade (and When It’s Not)

Standard hoops use friction (inner ring pressing against outer ring) to hold fabric. This works, but it takes hand strength and can crush the fibers of sensitive fabrics like velvet or performance wear, leaving a permanent "hoop burn" ring.

If you are exploring a brother pe800 magnetic hoop solution, you are looking at the single most effective upgrade for workflow efficiency.

The Decision Logic: Friction vs. Magnet

A well-made magnetic hoop for brother pe800 allows you to "float" material. You hoop the stabilizer, then magnetically snap the fabric on top. This is the industry standard method for avoiding hoop burn on delicate garments.

Warning: High-Power Magnet Safety. Magnetic hoops use industrial-grade neodymium magnets. They can pinch skin severely if they snap shut unexpectedly. Keep them at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media. Never leave them within reach of children.

“Scene trigger + decision standard + options” (how to upgrade without getting sold to)

• Scene Trigger: You are embroidering 20 patches. By the 5th one, your wrists hurt from tightening the screw, and you notice a shiny "crushed" ring on the fabric that won't steam out.
• Decision Standard: If hooping takes longer than the actual stitching, or if garment damage (hoop burn) is costing you money, you need a mechanical advantage.
• Options:
  • Level 1: Use "floating" techniques with standard hoops and adhesive spray (messy, but cheap).
  • Level 2: Upgrade to Magnetic Hoops for Home Machines. This solves the burn issue and speeds up single-needle production.
  • Level 3: If you are doing 50+ items a week, the single-needle magnet workflow will still be too slow. This is when you look at Industrial Magnetic Frames on a multi-needle machine like a SEWTECH, where you can hoop the next garment while the first one stitches.

The Brother 1034DX Serger Isn’t Just “Extra”: It’s a Finishing Tool That Can Raise Your Perceived Quality

The video shows the Brother Lock 1034DX serger and calls out the cutting knife. While embroidery puts the design on the fabric, the serger finishes the structure of the goods.

For a patch business, a serger is an "Excellence Tool." It allows you to create custom heavy-duty fabric blanks by Merrowing (overlocking) the edges before you even start embroidering, or to finish the inside seams of a custom embroidered garment so it feels retail-quality against the skin.

However, do not let it distract you. Focus on mastering the embroidery tension first. A perfectly serged patch with a bird-nested embroidery design is still unsellable.

Hats, Beanies, and Jackets on a Brother PE800: What’s Realistic on Day One

He picks up a black beanie, stretches it, and talks about hats, polos, and patches.

Here is the "Safety Zone" reality check for the PE800:

Beanies (The Abyss of Frustration)

Knits stretch. Ribbed knits stretch a lot.

• The Risk: The needle pushes the knit loops apart. Without massive stabilization, the design will sink and disappear.
• The Fix: You need Iron-on Cutaway Mesh stabilizer + a water-soluble Topping (film) on top to keep the stitches floating above the ribs.
• Reality: The PE800 does not have a "free arm" small enough to slide a beanie onto easily. You will likely have to pin or float the beanie flat, which is tricky for beginners.

Jackets and Polos

• Left Chest Logos: Entirely Doable.
• Placement Standard: The center of a left chest logo is typically 7-9 inches down from the shoulder seam and centered between the placket and side seam.
• Hooping: Use a placement ruler/grid. If you are researching brother embroidery hoops for larger jackets, remember that you cannot exceed the machine's throat width. You may have to roll or clip the excess jacket fabric out of the way so it doesn't drag on the needle bar.

The CD Question and “Digitizing Software”: Don’t Let File Confusion Stall Your First Stitch

In the video, he finds a CD and wonders if it’s digitizing software. This is a common confusion point.

We must separate “Machine Operation” from “File Creation.”

• The CD: Usually contains the manual PDF and some basic sample designs (.pes files). It is rarely full digitizing software.
• Digitizing: The act of creating a file from a JPG image. This requires expensive software (like Hatch, Wilcom, or PE-Design) and years of practice.

Pro Tip: Don't try to learn digitizing and machine operation in the same week. You will burn out. Buy pre-made, professionally digitized files (e.g., from Etsy or dedicated sites) to test your machine. Once you know the machine works, then start learning to create your own files.

Stabilizer Decision Tree: Pick Backing Based on Fabric and Goal (Not Guesswork)

Using the wrong stabilizer is the cause of 80% of "why does my design look wrinkly?" posts. Use this logic tree.

Decision Tree (Fabric → Stabilizer Choice)

1. Is the item a stretchy Knit (T-shirt, Hoodie, Beanie)?
   • YES → CUTAWAY Stabilizer. No exceptions. You need permanent support.
   • NO → Go to step 2.
2. Is the item a stable Woven (Denim, Canvas, Towel)?
   • YES → TEARAWAY Stabilizer. It provides support during stitching but pulls away cleanly for a neat back.
   • NO → Go to step 3.
3. Is the item sheer or delicate (Silk, Organza)?
   • YES → Wash-Away (Water Soluble) Stabilizer. It dissolves completely so no stiff paper remains.
   • NO → If it's a thick jacket, standard Tearaway is usually sufficient.

The "Topping" Rule: If the fabric has "pile" or texture (Towels, Velvet, Fleece), you must use a water-soluble topping film on the front to prevent stitches from sinking into the fluff.

Setup That Prevents Wasted Hours: Hoop, Stabilizer, and Workspace Flow

This is where small-business owners win: you don’t need perfection—you need repeatability.

A simple, repeatable setup flow

1. Prep the Stabilizer: Cut it 2 inches wider than the hoop on all sides.
2. Mark the Fabric: Use a water-soluble pen or chalk to mark your center point (crosshairs) on the fabric.
3. Hoop: Loosen the screw. Place outer hoop down. Lay stabilizer. Lay fabric (aligning crosshairs). Insert inner hoop.
4. The "Finger Check": Tighten the screw. Generally, you should not be able to pull the fabric edges easily once tightened. If the fabric slips, tighten more.

If you find yourself spending 5+ minutes hooping a single shirt, you might investigate a hoop master embroidery hooping station. While expensive, this system standardizes placement (making sure every logo is exactly aligned) and is a massive efficiency tool once your order volume stabilizes.

Setup Checklist (before you press start)

• Coverage: Is the stabilizer fully caught by the hoop on all 4 sides?
• Orientation: Is the inner hoop's attachment bracket on the correct side for the PE800 arm?
• Movement: Is the area around the machine clear? (A bunched-up heavy hoodie dragging on the table can pull the hoop and ruin registration).
• Thread Color: Is the correct first color threaded? (Single needle machines do not auto-switch).

Single-Needle Thread Changes: The Real Cost You Must Price Into Orders

The creator points out that multi-color designs on a single needle require changing threads one by one. This is the Primary Friction Point of the PE800.

If a design has 12 color changes, you must physically stop, cut, unthread, rethread (through the eye!), and restart 12 times. This can add 15-20 minutes to a single patch.

Commercial Reality:

• When pricing, charge for your time, not just the stitch count.
• Batch your work: If doing 10 shirts, do all the "Color 1" steps on all 10 shirts? NO. You cannot remove the hoop mid-design. You must finish one shirt completely before starting the next. This acts as a hard cap on your production speed.

Operation Habits That Keep the Brother PE800 Healthy (and Your Results Consistent)

Machines talk to you. You just have to learn their language.

Listen and feel (machine health in plain language)

• The Sound: A healthy machine sounds like a rhythmic sewing machine. A sharp "thud-thud" suggests the needle is dull and punching the fabric rather than piercing it. A grinding noise suggests a thread nest is forming in the bobbin area.
• The Vibration: Place your hand on the table. If the machine is walking across the table, your speed is too high (adjust the speed slider on the screen or in settings, usually down to 600 spm for better quality) or your surface is unstable.

The Beanie Trap: Stretching

If you pull a beanie tight to fit the hoop, you are pre-loading potential energy. When stitches lock that stretch into place, the beanie will never return to its original shape. Rule: Hoop neutral, trust the sticky spray and stabilizer.

Operation Checklist (end-of-run quality control)

• The Underside: Flip it over. You should see 1/3 white bobbin thread in the center of satin columns, with top thread on the sides. If you see no white bobbin thread, your top tension is too tight. If you see only white thread, top tension is too loose.
• Outline Registration: Does the black outline actually sit on the color fill, or is there a gap? Gaps usually mean the fabric shifted (poor stabilization).
• Thread Tails: Trim jump stitches manually if the machine didn't catch them all.

Quick Troubleshooting: Symptoms You’ll Hit Early (and the Fix That Usually Works)

Don't panic. 90% of issues are physical, not computerized.

Symptom: "Check Upper Thread" Error or Thread Breaks

• Likely Cause: The thread slipped out of the tension disc or the spool cap is snagging the thread.
• Fix: Rethread completely with the presser foot UP. Check the spool cap size.

Symptom: Bird's Nest (Ball of thread under the fabric)

• Likely Cause: You threaded the machine with the presser foot down, so there was zero tension on the top thread.
• Fix: Cut the nest carefully (don't pull hard!). Remove the hoop. Rethread properly. Change the needle as it may have bent.

Symptom: Design is puckered/wrinkled

• Likely Cause: Not enough stabilizer or incorrect hooping (stretched fabric).
• Fix: Switch to Cutaway stabilizer. Don't stretch the fabric in the hoop.

The Upgrade Path That Makes Business Sense: From PE800 Learning to Production-Grade Output

The creator says it well: a single needle is an introduction, and eventually, it won’t cut it for high volume.

Here is the clean progression for a growing embroidery business:

1. Phase 1: Skill Acquisition (PE800): Master the variables. Learn to stabilize. Produce high-quality samples.
2. Phase 2: Efficiency Upgrade (Magnetic Hoops): If you are sticking with the single needle but hate hooping, looking for a magnetic embroidery hoops for brother pe800 is the logical step. It solves the wrist strain and hoop burn issues, allowing you to work faster and with more delicate garments.
3. Phase 3: Scale Upgrade (Multi-Needle): When you get an order for 50 polos, the thread changes on a PE800 will nightmare. This is the trigger to move to a SEWTECH Multi-Needle Machine. You gain:
   • Auto-Color Changes: Set 15 colors and walk away.
   • Speed: 1000+ SPM durability.
   • Tubular Hooping: Slide shirts and bags onto the arm easily (no more unpicking side seams).
   • Industrial Magnetic Frames: The ultimate workflow—hoop the next shirt on a magnetic station while the machine stitches the current one.

The Bottom Line: Your First Win Is Consistency, Not Perfection

This video represents a classic "new equipment, new chapter" moment. The combination of the PE800, proper stabilizer, and felt is a verified recipe for learning.

Your job now is simple:

1. Master the thread path using the "presser foot up" rule.
2. Respect the physics of the 5x7 hoop limit.
3. Stabilize correctly using the Decision Tree.
4. Protect your time by upgrading to magnetic hoops or multi-needle machines when the volume demands it.

Once you can produce the same high-quality patch twice in a row without looking at the manual, you are no longer a beginner "playing" with a machine—you are a manufacturer.

FAQ

• Q: What “hidden” supplies should be ready before running the first design on a Brother PE800 single-needle embroidery machine?
  A: Prepare stabilizer, pre-wound bobbins, a fresh 75/11 embroidery needle, plus temporary adhesive spray and a water-soluble marking pen before pressing Start.
  • Gather: Tearaway and/or cutaway stabilizer (match to fabric), 2–3 pre-wound bobbins, and a new needle.
  • Add: Temporary adhesive spray (to prevent shifting) and a water-soluble pen/chalk for center crosshairs.
  • Clear: Space behind the Brother PE800 so the embroidery arm cannot hit a wall or objects.
  • Success check: The hoop moves freely through the full stitch area without snagging fabric, cords, or table items.
  • If it still fails: Open the Brother PE800 Troubleshooting section in the operation manual and confirm bobbin type and needle installation.
• Q: How do you thread a Brother PE800 embroidery machine correctly to avoid a bird’s nest on the underside?
  A: Rethread the Brother PE800 with the presser foot UP so the thread seats into the tension discs—never “finagle” with the foot down.
  • Raise: Presser foot fully up before starting the thread path.
  • Follow: The numbered thread path marks and pull firmly at the tension area until the thread seats (often you can feel or hear it).
  • Test: With presser foot DOWN, pull near the needle to confirm firm, consistent resistance.
  • Success check: The thread feels like steady resistance (not free-sliding), and stitching sounds rhythmic rather than chaotic.
  • If it still fails: Verify spool cap size is slightly larger than the spool diameter and rethread from the start again.
• Q: How can a beginner confirm Brother PE800 top tension is correct by checking the underside of embroidery?
  A: Use the “1/3 white bobbin thread” rule on satin columns as the quick tension check on the Brother PE800.
  • Flip: Check the underside after a test run.
  • Look: Aim to see about 1/3 white bobbin thread in the center of satin columns, with top thread showing on both edges.
  • Adjust: If no white bobbin thread shows, top tension is too tight; if mostly white shows, top tension is too loose.
  • Success check: Underside shows a balanced mix (not all top thread, not all bobbin thread) and the design face looks smooth.
  • If it still fails: Rethread with presser foot up and replace the needle, since a dull/bent needle often causes early tension-looking problems.
• Q: What stabilizer should be used on a Brother PE800 for a knit beanie versus a woven patch blank?
  A: Use cutaway stabilizer for stretchy knits like beanies, and tearaway stabilizer for stable wovens like denim/canvas/felt.
  • Decide: If the item stretches (T-shirt/hoodie/beanie), choose cutaway—no exceptions for reliable results.
  • Choose: If the item is stable woven (denim/canvas/towel), tearaway is usually appropriate.
  • Add: For textured fabrics (towel/velvet/fleece), place water-soluble topping film on the front to prevent stitch sink.
  • Success check: The design finishes without puckering, and stitches sit on top of the fabric texture instead of disappearing into it.
  • If it still fails: Increase stabilization support (often switching from tearaway to cutaway on “stretchy” items fixes persistent wrinkling).
• Q: What causes the “Check Upper Thread” message and repeated thread breaks on a Brother PE800 embroidery machine?
  A: The most common cause is incorrect threading (thread not seated in the tension discs) or thread snagging at the spool cap.
  • Rethread: Start over with presser foot UP and follow the full thread path.
  • Inspect: Confirm the spool cap is slightly larger than the spool so thread unwinds smoothly without catching.
  • Replace: Install a fresh 75/11 embroidery needle if breaks continue.
  • Success check: The Brother PE800 runs without sudden stops, and the stitch sound stays even (no loud clacking or shredding).
  • If it still fails: Check for thread nests in the bobbin area and clean out any trapped thread before restarting.
• Q: How should the Brother PE800 5x7 hoop size limit change patch sizing and layout to avoid hitting the hoop?
  A: Do not design to the edge—leave at least a 10 mm safety margin inside the Brother PE800 5x7 hoop stitching area.
  • Plan: Keep the design comfortably inside the hoop boundary rather than “maxing out” the 5x7.
  • Align: Mark center crosshairs and hoop carefully to avoid crooked placement.
  • Verify: Run a slow, careful first stitch-out on test felt before committing to production.
  • Success check: The needle path never contacts the hoop plastic, and the design remains fully inside the stitched field.
  • If it still fails: Re-hoop with better alignment and reduce design dimensions rather than forcing edge-to-edge placement.
• Q: When is a magnetic hoop upgrade worth it for Brother PE800 hoop burn, wrist pain, or slow hooping—versus upgrading to a multi-needle machine?
  A: Upgrade in levels: first improve hooping technique, then consider a magnetic hoop for Brother PE800 if hooping is the bottleneck, and move to a multi-needle machine when color changes and volume cap production.
  • Level 1: Use better setup habits—proper stabilizer, careful hooping tension (neutral on knits), and temporary adhesive spray to reduce shifting.
  • Level 2: Use a magnetic hoop to reduce hoop burn risk and speed up repetitive hooping when standard hoop tightening is slowing production.
  • Level 3: Upgrade to a multi-needle machine when frequent thread changes and higher weekly volume make single-needle workflow the limiting factor.
  • Success check: Hooping time no longer exceeds stitch time for typical jobs, and fabric damage from hoop marks is reduced.
  • If it still fails: Audit where time is actually going (hooping vs. thread changes vs. rework) and upgrade the bottleneck, not the “most expensive” item.
• Q: What safety rules should be followed when using a Brother PE800 needle area and when handling high-power magnetic hoops?
  A: Power off or lock out the Brother PE800 before hands go near the needle, and treat magnetic hoops like pinch hazards that must be kept away from medical devices.
  • Stop: Turn off power or use lockout mode before threading, changing the bobbin, or swapping needles.
  • Secure: Keep hair, hoodie strings, and jewelry away from the needle area during operation.
  • Separate: Keep magnetic hoops away from children and at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media.
  • Success check: No hands enter the needle zone while the machine can move, and magnetic frames are handled with controlled placement (no snapping shut).
  • If it still fails: Slow down setup steps and create a repeatable “power-off before touch” habit to prevent near-miss injuries.
