Brother PE800 Mandalorian Patch, Done Right: Clean Hooping, On-Screen Border Editing, and a Fray-Check Finish That Won’t Unravel

If you have ever attempted a patch on a single-needle machine and felt like the process required three hands and a degree in physics, you are not alone. Beginner fatigue in patch-making usually stems from fighting the materials rather than the machine itself.

A clean, professional patch is 90% prep and control: creating a movement-free "sandwich" of layers, stabilizing the felt so it doesn't warp under high-stitch-count borders, and using a finishing method that forgives minor cutting errors.

In this white paper, we will deconstruct Jennifer’s Mandalorian patch workflow on the Brother PE800. I will overlay her visual steps with industry-standard data, sensory benchmarks (how things should feel and sound), and the safety protocols we use in commercial production. We will also identify exactly when you should stop fighting your current tools and when it is time to upgrade your workflow.

The Calm-Down Primer: Your Brother PE800 Patch Will Stitch Fine—If the Hoop Is Doing Its Job

In commercial embroidery, we have a saying: "If you can't hoop it, you can't stitch it." A patch feels high-stakes because unlike a shirt, the edge is exposed. Any distortion in the fabric (layer shift) results in a non-circular border or a design that sits off-center.

Jennifer uses a standard 4x4 hoop for this project. She selects the smallest Mandalorian file to ensure a safe margin for the border. When working with a standard plastic brother 4x4 embroidery hoop, your primary enemy is "flagging"—the fabric bouncing up and down with the needle.

To combat this, we must address the two primary failure points of amateur patches:

1. Layer Shift: The felt and stabilizer sliding apart during the 4,000+ needle penetrations.
2. Structural Failure: The border unraveling after cutting because the stitch density wasn't supported.

The solution, which we will detail below, involves a "fully hooped sandwich" technique combined with chemical sealing (Fray Check).

The “Hidden” Prep Pros Do First: Felt Choice, Stabilizer Cut, and a Bobbin Reality Check

Before touching the screen, we must assemble our physical assets. Jennifer begins by cutting white felt and a scrap of cutaway stabilizer.

Chief Education Officer's Note: In the video, there was confusion regarding "craft felt." Let us set the industry record straight: Do not use the flimsy, transparent acrylic felt sheets found in the kids' aisle. For patches, you need 100% Polyester Felt (Bolt Felt) or specialized "Stiff Felt." It must be dense enough to hold a satin stitch without perforating like a postage stamp.

The Hidden Consumables List

The video mentions the basics, but to guarantee success, ensure you have these "hidden" essentials:

• 75/11 Sharp Needles: (Ballpoint needles can struggle to pierce dense felt/stabilizer combos cleanly).
• Temporary Spray Adhesive (e.g., ODIF 505): A light mist binds the stabilizer to the felt, preventing "micro-shifting."
• Curved Appliqué Scissors (Duckbill): Essential for trimming close without cutting the border.

Why Hooping Both Layers is Non-Negotiable

Felt is non-woven; it has no grain, but it is soft. Cutaway stabilizer provides the "skeleton." By hooping both the felt and the stabilizer together, you create a rigid substrate. The stabilizer acts as a clutch, preventing the felt from shrinking inward as the dense border stitches pull tight.

Warning: Mechanical Safety
When positioning the hoop or trimming thread tails, keep your hands clear of the needle bar area. On the PE800, hitting the "Start" button accidentally effectively turns the needle into a sewing-speed pile driver. Always keep the machine in "Lock" mode (if available) or keep your finger off the start button when your hands are inside the hoop area.

Prep Checklist: The "Go/No-Go" Criteria

• Bobbin Check: Open the shuttle cover. Is the bobbin at least 50% full? (Running out during a satin border leaves an visible seam).
• Material Validation: Is the felt dense (can't see through it)? Is the stabilizer Cutaway (not Tearaway)?
• Blade Check: Are your scissors sharp enough to cut felt cleanly, or do they "chew" the fabric?
• Fray Check Location: Is the bottle uncapped and within arm's reach?


USB to Stitch File on Brother PE800: Pick the Smallest PES First, Then Build Up

Jennifer inserts a USB stick and selects the file. On the Brother PE800 interface:

1. Tap USB Icon.
2. Navigate to folder.
3. Select the 2.54" x 3.5" (Smallest) Mandalorian PES file.

Expert Insight: Always start with a file significantly smaller than your hoop limit. A 4x4 hoop has a usable area of roughly 3.93" x 3.93". By starting with a 2.54" wide design, you leave ample "safety buffer" for the automated border we are about to add. If you start with a 3.8" design, adding a border will push you out of bounds, triggering a machine error.

On-Screen Editing on Brother PE800: Add Shield Frame #002 Without Letting It Crash Into the Skull

This step turns a raw design into a patch. Beginners often stitch the design first and try to sew a border later—this is a recipe for misalignment. We will build the entire assembly digitally first.

Step-by-Step Layout Strategy:

1. Selection: With the skull loaded, press Add.
2. Frame Choice: Select Frame #002 (Shield Shape). This corresponds to a satin stitch (dense zigzag).
3. Resizing: Use the Touchscreen Arrow Keys to scale the frame.
   • Visual Goal: Ensure there is distinct white space between the skull's helmet and the black border. The video shows a final height of 3.37 inches.
4. Color Synchronization: The machine may default the border to "Red" or another color. Click Color Change and set both the design and the border to 900 (Black). This prevents the machine from stopping unnecessarily between the design and the border.

Terms like hooping for embroidery machine often refer to the physical act, but "digital hooping"—ensuring your design fits the virtual hoop with buffer room—is just as critical.

The Border Fit Test: Use the PE800 Preview Like a Pro (Before You Waste Felt)

Visual verification is your insurance policy. Jennifer taps the Preview/Check key (magnifying glass icon) to view the outer boundary box.

What to Audit on the Screen:

• Equidistant Spacing: Is the gap between the helmet and border equal on the left and right?
• Overlap Risk: Does the satin stitch touch any part of the inner design? If yes, enlarge the frame by 2mm.
• Hoop Limits: Does the design stay within the red boundary box?


Hooping Felt + Cutaway on a 4x4 Hoop: Tight, Flat, and Not “Drum-Head” Tight

Jennifer demonstrates placement: Lower hoop -> Stabilizer -> Felt -> Upper hoop. She presses down firmly to lock the inner ring.

The "Two-Hand" Problem: You will notice Jennifer struggling to keep the layers aligned while tightening the screw. This is the defining frustration of standard hoops. The felt tries to slide, or the stabilizer wrinkles.

The Floating Myth vs. Reality: Many YouTubers suggest "Floating" (hooping stabilizer only and pinning felt on top). For patches, do not float. Floating allows the felt to lift during the dense border stitching, resulting in a wobbly, egg-shaped patch. Hooping both layers captures the fabric by its edges, providing the tension needed for a perfect satin stitch.

The Sensory Standard: How Tight is Right?

• Tactile: The felt should feel firm, like a stiff canvas, but not stretched like a drum skin. If it is too tight, the felt will bounce back (relax) when removed, puckering the patch.
• Visual: The grid lines on your cutting mat should not look warped through the hoop.

The Commercial Solution: Magnetic Hoops

If you are doing this once, the plastic hoop is fine. If you are doing a run of 20 patches, the hand strain from tightening screws becomes a liability. This is where a magnetic hoop for brother pe800 changes the game.

• The Benefit: It uses magnetic force to clamp straight down. No screwing, no twisting friction that distorts the felt.
• The Result: You can hoop a patch setup in 5 seconds versus 45 seconds, with zero "hoop burn" (marks on the felt).

Warning: Magnetic Safety
Commercial-grade magnetic hoops are extremely powerful. They pose a pinch hazard. Never place your fingers between the magnets as they snap shut. Individuals with pacemakers should consult their doctor before handling strong magnets. Keep magnets away from computerized machine screens and credit cards.

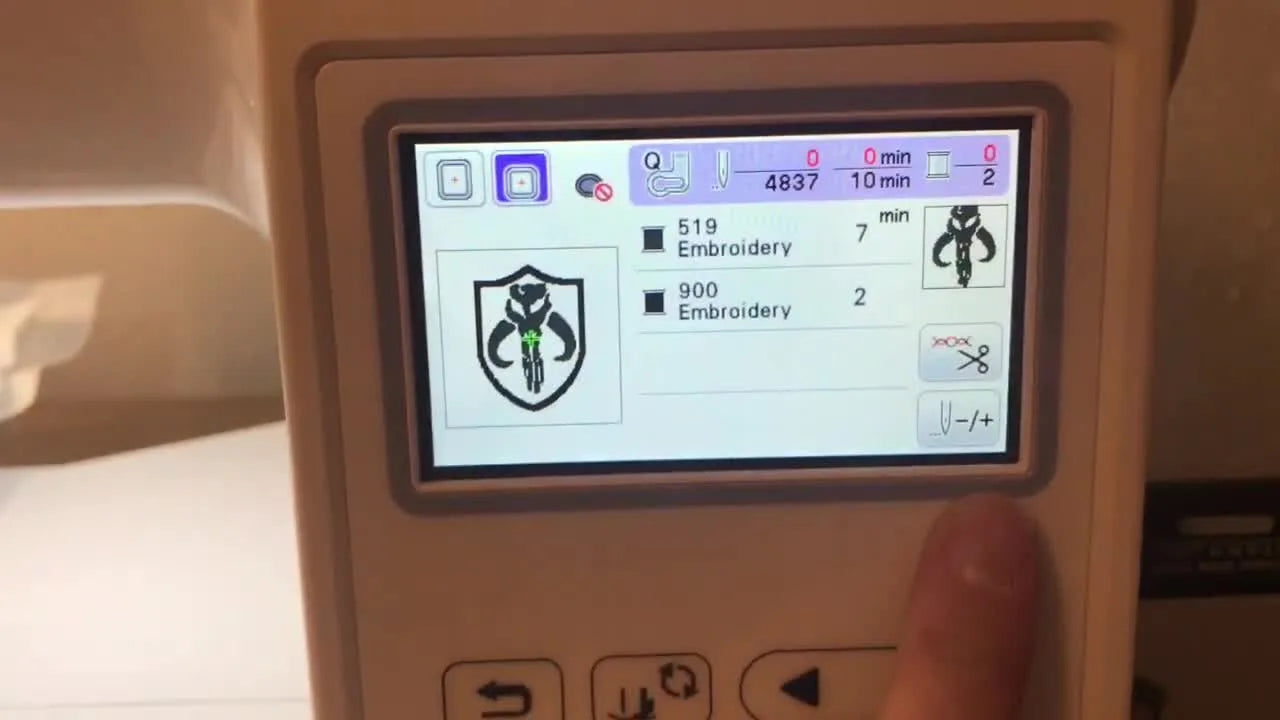

The Pre-Flight Screen Check on Brother PE800: Stitch Count, Time, and Color Consistency

Before you commit, verify the telemetry on your screen:

• Total Stitches: ~4,837 (Video reference).
• Duration: ~10 minutes.
• Color Stop: Single color (Black/900).

Checklist 1: Setup Protocol

• Hoop Seating: Push the hoop onto the embroidery arm carriage until you hear/feel a solid "Click." Wiggle it gently—it should be immovable.
• Clearance: Ensure no fabric is tucked under the hoop where it could get sewn to the back of the patch.
• Foot Status: Presser foot is UP during threading, and DOWN before stitching.


Threading the Brother PE800 Without Mystery Tension: The Spool Cap Is Non-Negotiable

Jennifer loads Black #900 Polyester thread. She explicitly highlights the Spool Cap.

The Physics of Delivery: Your machine pulls thread at high speed. If the spool is smaller than the spool pin, or if it has a nick in the plastic rim, the thread will snag. The spool cap creates a smooth surface for the thread to unwind. Rule: The cap must be slightly larger than the spool diameter. Without it, tension becomes erratic, leading to birdsnests.

The Thread Path Checkpoint: If It Feels “Grabby,” Stop and Rethread Before You Stitch

Sensory Benchmark: The "Floss" Test As you pull the thread through the tension discs (guides 3-4-5), you should feel a smooth, consistent resistance, similar to pulling dental floss.

• If it feels loose: You missed the tension disc.
• If it feels stuck: The thread is caught on a burr or knot.

Do not force it. Cut the thread at the spool and pull the excess out through the needle (floss it through) to clear the path.

Automatic Needle Threader on Brother PE800: Use Lever #9, Then Pull a Clean Tail

Use the automatic threader (Lever #9). Once the loop passes through the eye, pull at least 4 inches of tail.

• Why? If the tail is too short, the first needle plunge will pull the thread out of the eye (unthreading the machine).


Confirm the “Q” Embroidery Foot and a Green Start Light: Your Machine Is Ready, Not Guessing

Jennifer verifies the "Q" foot is attached. Lower the presser foot lever. The light turns Green.

• Pro Tip: Keep the safety lid (bobbin cover) in place, but you can leave the top cover open slightly to watch the spool unwind if you suspect a snag is coming.


The First-Seconds Trick: Pause After a Few Stitches and Trim the Starting Tail Cleanly

Jennifer hits start, watches 3-5 stitches form, and immediately hits Stop. She uses her curved scissors to trim the starting thread tail flush with the fabric.

Why this matters: If you do not trim this tail now, the machine will stitch over it. You will end up with a messy black line trapped under your border that is impossible to remove later. This is the difference between "Homemade" and "Handmade."

Let It Stitch: Don’t Hover, Just Watch for the Three Early Warning Signs

Resume the machine. The PE800 will now run the design.

Checklist 2: Operational Monitoring

Do not walk away for the first minute. Listen and look for:

1. Auditory: A rhythmic hum-hum-hum is good. A loud thump-thump or grinding noise requires an immediate E-Stop.
2. Visual: Is the bobbin thread showing on top? (Tension too high on top/too low on bottom). Are loops forming? (Top tension zero).
3. Physical: Place a hand lightly on the table. Heavy vibration suggests the machine is struggling to pierce—change your needle on the next run.


Fray Check Patch Finishing: Seal Before You Cut, Wait ~20 Minutes, Then Seal Again

Once the stitch-out finishes, remove the hoop. Do not unhoop the fabric yet. Jennifer applies Dritz Fray Check (a liquid seam sealant) directly onto the satin border and the raw felt edge.

The Chemistry of the Edge: Fray Check is essentially a cyanoacrylate adhesive (like super glue) dissolved in solvent. It penetrates the fiber and locks the thread knots.

1. Coat 1: Apply while hooped or immediately after unhooping. Let dry for 20 minutes.
2. The Cut: Use sharp scissors to cut 1-2mm from the edge. The hardened fibers will cut cleanly rather than fraying.
3. Coat 2: Run a final bead along the raw cut edge to seal the "white core" of the felt.


The Final Reveal—and the Real Question From Comments: How Do You Attach the Patch to a Garment?

The patch is now a standalone object. Jennifer discusses attachment methods in the comments:

• Sew-On: The most durable. Use a straight stitch on a sewing machine just inside the black border.
• Iron-On (Heat n Bond): Good for placement, but thick felt insulates the glue. You must heat from the garment side, not the patch side.
• Velcro: Requires sewing the hook-side Velcro to the back of the patch.


Washability Reality Check: Felt Patches Can Wash, But Your Backing Choice Changes Everything

Viewer Question: "Can I wash this?" The Verdict:

• 100% Polyester Felt + Cutaway: Highly washable. Cold water, gentle cycle, air dry. Polyester does not shrink.
• Wool Blend / Craft Felt: Will shrink and pill. Do not machine wash.
• Adhesive Backed: The wash cycle is the enemy of glue. If you only glue it, it will eventually fall off. Always reinforce with a tack stitch.


The Upgrade Path (Without the Hype): When Better Hooping and Better Throughput Actually Matter

Jennifer’s method produces a beautiful result for 1 to 5 patches. However, if you attempt to make 50 patches for a local club using this method, you will encounter the "Single-Needle Wall":

1. Hooping Fatigue: Screwing and unscrewing the hoop 50 times hurts.
2. Thread Change Time: On a single-needle, every color change is a manual stop.
3. Speed: The PE800 maxes out at 650 stitches per minute (SPM).

Decision Tree: Is It Time to Upgrade?

Use this logic flow to determine your next move:

1. Symptom: "I spend more time hooping than stitching, and my wrists hurt."
   • Solution: Upgrade to a brother pe800 magnetic hoop. This solves the physical strain and increases hooping speed by 300%.
2. Symptom: "I get 'Hoop Burn' (shiny marks) on my felt that won't go away."
   • Solution: Magnetic hoops eliminate the friction ring that causes burn.
3. Symptom: "I need to make 50+ patches a week and I can't sit there changing threads."
   • Solution Level 1: Optimize your station. Look into a hoopmaster hooping station to standardize placement.
   • Solution Level 2: It is time for a multi-needle machine. A SEWTECH multi-needle system allows you to load all colors at once, run at higher speeds (1000+ SPM), and use commercial magnetic frames natively. This moves you from "Hobbyist" to "Producer."

Quick Troubleshooting: The Three Patch Problems That Waste the Most Felt

When things go wrong, start with the "Low Cost" checks first.

Final Word: This Patch Method Is Simple—Because It’s Built Around Control

The secret to Jennifer's success isn't the specific machine; it's the removal of variables.

1. Stabilize the core: Felt + Cutaway + Spray.
2. Verify the file: Resize digitally, not on the fly.
3. Secure the finish: Fray Check seals the deal.

Start here. Master the control. When the volume of orders begins to compromise your enjoyment or your wrists, remember that the industry has developed tools—from how to use magnetic embroidery hoop systems to multi-needle beasts—ready to take the load off your hands.

FAQ

• Q: What supplies are non-negotiable for making a clean felt patch on a Brother PE800 single-needle embroidery machine?
  A: Use dense polyester felt, cutaway stabilizer, a 75/11 sharp needle, light spray adhesive, curved appliqué scissors, and Fray Check—missing any one of these commonly causes distortion or messy edges.
  • Confirm: Choose 100% polyester “bolt felt” (not flimsy craft felt) and pair it with cutaway stabilizer.
  • Install: Fit a fresh 75/11 sharp needle before starting the run.
  • Prep: Mist temporary spray adhesive to bond felt to cutaway and prevent micro-shifting.
  • Success check: The hooped “sandwich” feels firm and flat, and trimming does not “chew” the felt.
  • If it still fails: Stop and re-check bobbin fullness and scissors sharpness before stitching another patch.
• Q: How tight should felt and cutaway stabilizer be hooped in a Brother 4x4 plastic embroidery hoop on a Brother PE800 to avoid an oval or puckered patch?
  A: Hoop felt + cutaway together so it is tight and flat but not “drum-head” tight—over-tension and under-control both lead to distortion.
  • Hoop: Stack lower hoop → stabilizer → felt → upper hoop, then lock the ring without twisting the layers.
  • Avoid: Do not “float” felt for patches; dense borders can lift and wobble the edge.
  • Check: Keep the felt firm like stiff canvas, not stretched like a drum skin.
  • Success check: The surface looks flat (no wrinkles) and does not relax into puckers immediately after unhooping.
  • If it still fails: Add a light mist of temporary spray adhesive to reduce layer shift during the 4,000+ penetrations.
• Q: How can Brother PE800 users prevent birdnesting (a ball of thread under the needle plate) during a patch border stitch-out?
  A: Rethread the top thread with the presser foot raised so the thread seats fully in the tension discs—birdnesting is most often a threading-path issue, not a “bad design.”
  • Raise: Lift the presser foot before threading to open the tension discs.
  • Rethread: Follow the full path and make sure the thread is deep in the tension discs and take-up area.
  • Verify: Use the “floss test”—pulling thread through guides should feel smooth with consistent resistance.
  • Success check: The underside shows controlled stitches (not loose loops piling up) in the first seconds of stitching.
  • If it still fails: Inspect the spool delivery—use the correct spool cap and remove any snagging source before restarting.
• Q: Why is white bobbin thread showing on top when stitching patches on a Brother PE800, and what is the fastest fix?
  A: Clean the bobbin area and slightly reduce top tension (a small change like -1 is a safe starting point)—this symptom often comes from tight top tension or lint in the bobbin case.
  • Stop: End the run early if the top shows obvious white bobbin thread.
  • Clean: Remove the bobbin case and clear lint from the area.
  • Adjust: Lower top tension slightly and test again (follow the Brother PE800 manual for limits).
  • Success check: The top surface returns to solid top-thread coverage with no white “railroad tracks.”
  • If it still fails: Re-check threading with the presser foot raised and confirm the spool cap is installed correctly.
• Q: What Brother PE800 safety steps prevent accidental needle injuries when hooping felt patches or trimming thread tails?
  A: Keep hands out of the needle-bar area unless the machine is effectively “locked out”—accidentally hitting Start can drive the needle instantly.
  • Position: Move hands away from the needle bar before touching the Start/Stop control.
  • Pause: Stop after 3–5 stitches to trim the starting tail, then resume with hands fully clear.
  • Control: Do not reach into the hoop area while the machine is ready to run.
  • Success check: Trimming is done with the needle stationary and the machine not actively stitching.
  • If it still fails: Rebuild the habit—stop the machine first, then trim; never do both at once.
• Q: What magnetic hoop safety rules should Brother PE800 patch makers follow when upgrading from a standard plastic hoop?
  A: Treat embroidery magnetic hoops as pinch hazards—keep fingers out of the closing zone and avoid use around pacemakers or sensitive items.
  • Grip: Hold magnets by the sides and keep fingertips away from the mating surfaces.
  • Separate: Keep strong magnets away from pacemakers, machine screens, and credit cards.
  • Work: Set the hoop down flat before letting magnets snap closed.
  • Success check: The hoop clamps straight down without finger contact and without twisting the fabric layers.
  • If it still fails: Slow down and reposition—never “fight” magnets while fingers are between parts.
• Q: When should a Brother PE800 patch workflow upgrade to a magnetic hoop, a hooping station, or a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the bottleneck: reduce hooping strain with a magnetic hoop, standardize placement with a hooping station, and move to multi-needle when thread changes and volume dominate your time.
  • Choose Level 1 (technique): If patches distort, fix the sandwich first—felt + cutaway + spray adhesive, and verify design fit on-screen before stitching.
  • Choose Level 2 (tool): If hooping hurts wrists or causes hoop burn marks, switch to a magnetic hoop for faster, more consistent clamping.
  • Choose Level 3 (capacity): If making 50+ patches weekly and manual thread changes are the limiter, consider a SEWTECH multi-needle machine for higher speed and fewer stops.
  • Success check: The main time loss (hooping time, rework from distortion, or thread-change downtime) measurably drops on the next batch.
  • If it still fails: Track where minutes are spent per patch (hooping vs. stitching vs. rethreading) and upgrade only the step that is actually limiting output.
