Brother PE800 Appliqué That Actually Looks Pro: Placement, Tacking, Trim, Satin—Without the Panic

Appliqué looks like “advanced embroidery” until you do it once—then you realize it’s mostly a clean sequence and a couple of habits that prevent shifting, puckering, and ugly edges. In this tutorial, we’ll rebuild the exact workflow shown on a Brother PE800: import the design, hoop quilting cotton with tearaway, stitch the placement line, tack the appliqué fabric, trim, and finish with a satin stitch border.

Along the way, I’ll also address the questions that keep coming up from new PE800 owners: “How do I make the machine do the placement stitch?” “Is satin stitch something I select?” “Why does my design shift when I remove the hoop?” and “Do I need expensive software?”—all with practical fixes and sensory checks you can apply immediately.

Calm First: What the Brother PE800 Appliqué File Is (and Why You Can’t “Add” a Satin Stitch on the Screen)

If you’re staring at the PE800 screen thinking, “Where do I choose placement stitch, tacking stitch, satin stitch?”—you’re not missing a menu. On the PE800, those steps are built into the embroidery design file you load (the video example is a custom logo design purchased from a digitizer). That’s why the machine runs the outline, then the tack-down, then later the satin border: the file is programmed to do it, much like a player piano roll dictates the keys.

This matters because it changes how you troubleshoot:

• If your design doesn’t include appliqué stops/steps (stops 1 and 2 usually), you can’t force the PE800 to magically become an appliqué design.
• If the lettering stitches immediately after the tack-down (as in the video), that’s not you doing something wrong—it’s how the file was digitized.

If you’re using hooping for embroidery machine instructions you found online, remember that the biggest “skill” isn’t button-pushing—it’s controlling fabric stability so the digitized file can do its job cleanly without physical interference.

The “Hidden” Prep Pros Do Before They Touch the Hoop: Design, Fabric, Thread, and Stabilizer Choices

The video uses a simple, beginner-friendly combo: quilting cotton (woven) on top, tearaway stabilizer underneath, and no topper because the fabric isn’t textured. That’s a solid baseline. However, as an educator, I need to give you the physics behind this so you can adapt when you switch to T-shirts or towels.

Here’s what I want you to do before you stitch a single needle drop:

What the PE800 screen is telling you (use it like a production checklist)

In the video, the design is set up on the LCD and centered in the hoop boundary. Later, the machine shows:

• Design size: 5.00 x 5.00 inches
• Stitch count: 9019 stitches
• Estimated time: 23 minutes

Those numbers aren’t just trivia—they’re a warning system. A 9,000-stitch design roughly equates to 23 minutes of the needle punching your fabric. This creates a "drilling effect." If your stabilization is weak, the fabric will contract, causing the final satin border to miss the edge (the dreaded "gap").

Stabilizer decision tree (simple, reliable, and beginner-proof)

Use this decision tree when you’re choosing backing for appliqué on a home single-needle machine. The goal is to match the stabilizer's strength to the fabric's instability.

Decision Tree: Fabric → Stabilizer Choice 1) Is your base fabric woven and stable (like quilting cotton, denim, canvas)?

• YES: Start with Tearaway (medium weight, ~1.8oz). This is what the video uses.
• NO: Go to #2.

2) Is your base fabric stretchy, a knit (T-shirt), or loose/unstable?

• YES: You MUST use Cutaway (Mesh or Heavy). Tearaway will perforate and fail, causing gaps.
• NO: Go to #3.

3) Is the surface textured (towel, fleece, minky) or do stitches sink in?

• YES: Add a Water-Soluble Topper (thin film) on top in addition to your backing.
• NO: Backing alone is likely sufficient.

Why puckering happens (and why it’s not “just you”)

Puckering is a physics problem: the stitches pull the fabric inward toward the center of the hoop. Woven cotton resists this well; knits and lighter fabrics do not.

If you’re fighting puckering and you already bought expensive stabilizers, you might be looking at a tool issue. Many users find that switching to magnetic embroidery hoops for brother pe800 helps reduce puckering because these hoops hold the material flat with consistent magnetic pressure all around the frame, rather than relying on a single screw point that can torque the fabric grain.

Prep Checklist (do this before you thread or hoop):

• Design Check: Confirm it is an actual appliqué file (look for placement/tack/satin steps in the preview).
• Scale Check: Ensure design size fits the hoop's internal usable area (e.g., 5x7 hoop has a usable field, keep design within 5x7).
• Consumables: Have your stabilizer stack ready (Backing + Optional Topper).
• Tools: Locate your Curved Appliqué Scissors (duckbill or double-curve preferred).
• Adhesion: Have temporary spray adhesive (like 505) or embroidery tape ready for the appliqué fabric.
• Needle: Check that your needle is fresh. A dull needle pushes fabric into the throat plate, causing birdnesting.


Brother PE800 LCD Setup: Load from USB, Center the Design, and Don’t Skip the “Boring” Screen Checks

The video workflow starts with importing a design via USB flash drive and using the PE800 touchscreen to position it. The host demonstrates that the LCD gives options to resize, rotate, move, and change thread colors, then centers the design in the hoop grid.

Two practical notes from years of troubleshooting stitchouts: 1) Centering is about Physical Tension: The fabric is tightest in the center of the hoop and loosest near the corners. Centering your design ensures the most even tension. If you stitch too close to the edge, you risk needle deflection (hitting the frame) or distortion. 2) Resizing Danger: The PE800 can resize, but it doesn't always recalculate density perfectly. Scaling down an appliqué design can make satin borders too dense (breaking needles), while scaling up can make them sparse (exposing raw edges). Rule of Thumb: Don't resize appliqué designs more than 10-20% on the machine screen.

If you’re shopping or comparing embroidery machine hoops, always remember that the "5x7" label refers to the maximum field, not the physical outer dimension. Give yourself a 10mm safety buffer from the edge.

Threading the Brother PE800 Without Drama: The Take-Up Lever Rule That Saves You From Birdnesting

In the video, the first color is black and the host follows the numbered thread path, catches the thread in the internal hook, and uses the automatic needle threader.

The key tip she calls out is the one that prevents 90% of "lower thread broken" errors:

Warning: Mechanical Safety. Keep fingers clear of the needle area and presser foot when using the automatic needle threader and when reattaching the hoop. Needle strikes happen instantly and can shatter the needle toward your eyes. Always ensure the foot is UP when threading the top path, and DOWN when threading the needle eye.

The “highest needle” habit (Visual Check)

Before using the auto threader, look at the Take-Up Lever (the silver arm that moves up and down). It must be at its highest point, effectively peeking out of the casing. If it isn't, the thread won't slip into the lever's eye.

• The Result: When you start stitching, the thread will have zero tension, instantly creating a giant knot (birdnest) under the throat plate.

Bobbin-thread nesting: The "Floss" Test

One commenter shared a practical method to ensure the bobbin is seated:

• Action: Drop the bobbin in. Follow the arrow guide.
• Sensory Check: Before closing the cover, put your index finger gently on the bobbin to stop it from spinning. Pull the thread tail with your other hand. You should feel a slight resistance, similar to pulling dental floss.
• Why: If the thread pulls freely with zero resistance, it hasn't caught the tension spring. Retry.


Hooping Quilting Cotton in a Brother 5x7 Hoop: Drum-Tight, Not Distorted

The video uses a 5x7 standard hoop with a bottom screw. The host layers tearaway stabilizer under teal quilting cotton, inserts the inner hoop into the outer hoop, smooths the fabric, and tightens the screw.

Here’s the nuance most tutorials skip: “tight like a drum” is a goal, but over-tightening is a trap.

The tension sweet spot (Sensory Guide)

• Tactile: Tap the hooped fabric. It should sound like a dull thud (good) or a ping (too tight/stretched).
• Visual: Look at the weave of the fabric. If the vertical and horizontal threads of the cotton are curved or look like hourglasses, you have pulled the fabric off-grain. When you unhoop later, the fabric will snap back, and your perfectly round circle will turn into an oval.
• The Fix: Hoop it snug, tighten the screw, and then gently pull the edges only to remove wrinkles, not to stretch the fiber.

The "Hoop Burn" Reality: Standard frames rely on friction and extreme pressure to hold fabric, which causes "hoop burn" (shiny rings) on delicate items. If hooping is painful for your wrists or ruining your velvet/corduroy, this is a clear sign to upgrade. A brother 5x7 magnetic hoop uses magnets to clamp the fabric without the friction-twist motion of a standard hoop, eliminating hoop burn and significantly reducing the physical effort needed to hoop thick items.

Placement Stitch on the Brother PE800: The “Outline You Must Respect”

Appliqué begins with the placement stitch—a simple running stitch (usually single ply) that marks exactly where the appliqué fabric needs to land. In the video, it stitches a black circle on the teal base fabric.

This step is your alignment contract. You must pay attention to the edges.

• Visual Check: Does the placement line look smooth? If it looks jagged or loose, stop immediately. Your top tension might be too loose or the fabric is flagging (bouncing).
• Speed Tip: For this step, you can run the machine at standard speed (e.g., 600-650 SPM on the PE800).

A common comment question is “How do you do the placement stitch?” On the PE800, you don’t manually select it—the design file dictates it. It is usually "Color Stop #1."

Tacking Stitch: Lock the Appliqué Fabric Down Before You Touch Scissors

After the placement line, the host places a pink floral fabric square over the stitched circle, making sure it covers the outline completely. Then the machine runs the tacking stitch (Stop #2) to hold it.

Two pro habits here that separate beginners from experts:

1. Use Adhesion (The Missing Link): The video implies you just lay the fabric down. In reality, the movement of the hoop often shifts that fabric before the needle gets there.
   • Action: Lightly spray the back of your pink fabric with embroidery spray adhesive (like Odif 505) OR use a piece of embroidery tape.
   • Why: This guarantees the fabric stays flat.
2. Smooth from Center Out: Run your fingers from the center of the appliqué fabric toward the hoop edges. This removes trapped air bubbles. If you stitch over a bubble, you get a permanent wrinkle (a "pleat").

If you’re experimenting with hooping station for embroidery machine setups or magnetic frames, you'll find that placing the fabric without bumping the hoop is much easier because the magnetic frame provides a flatter clearance under the needle bar.

When Lettering Stitches Immediately After Tack-Down: Don’t Panic—It’s the File’s Stitch Order

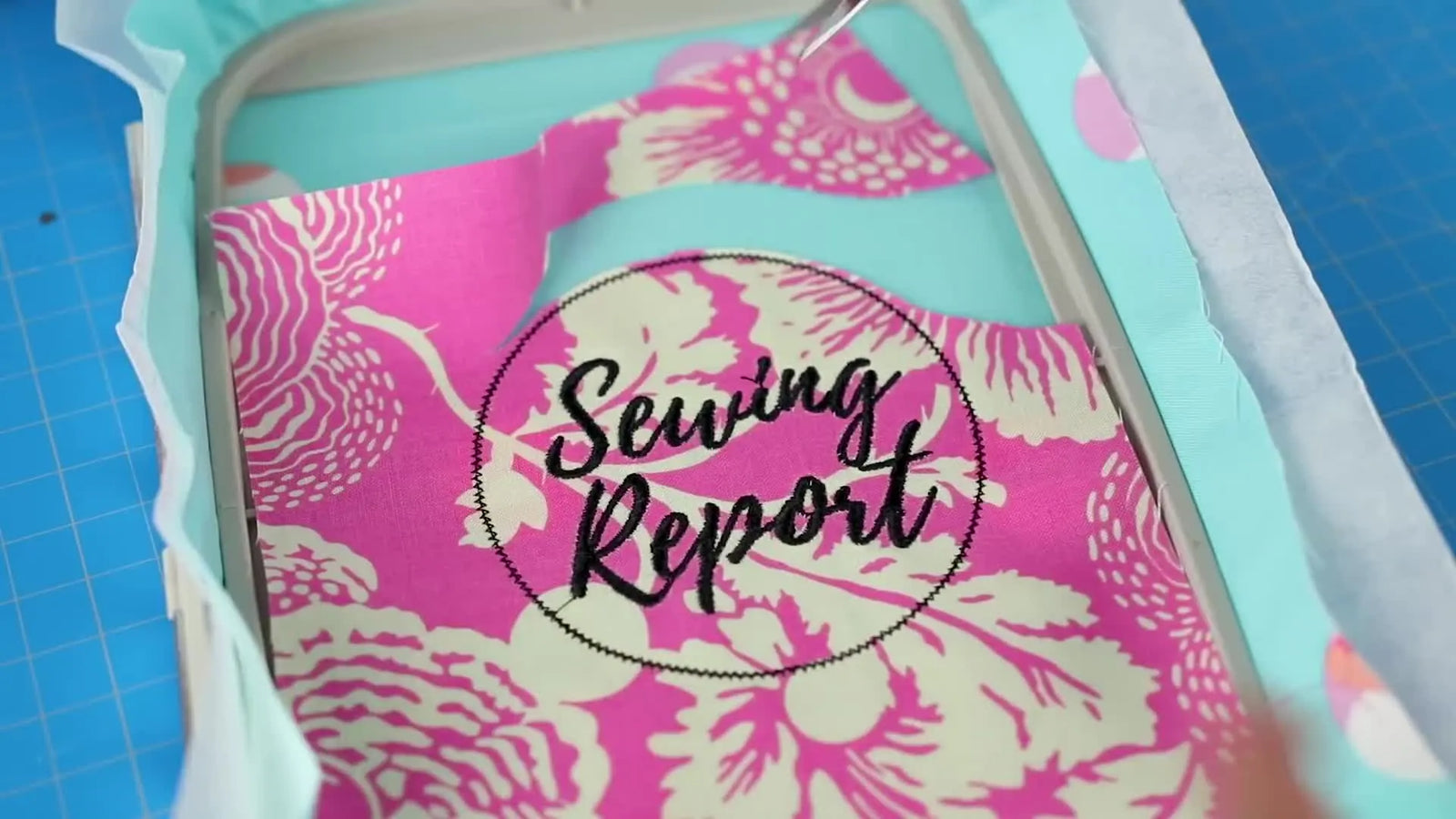

In the video’s design, the black lettering (“Sewing Report”) stitches right after the tacking stitch, without a stop in between. That’s a digitizing choice.

If you expected a pause to trim first, you’re thinking like a different appliqué file. It is crucial to check your machine's screen for the color order.

• Typical Sequence: Placement -> Stop -> Tack -> Stop -> Trim -> Satin.
• This File: Placement -> Tack -> Lettering -> Trim -> Satin.

Risk Management: Because the lettering happens before the trim, you must be extremely careful not to catch the presser foot on the loose edges of the un-trimmed pink fabric. If the fabric flap is large, tape the corners down so the foot doesn't snag it while writing the text.

Trimming Appliqué Fabric in the Hoop: The Curved-Scissor Technique That Makes or Breaks the Edge

At this point, the host removes the hoop from the embroidery unit and trims the excess appliqué fabric with curved appliqué scissors, cutting as close as possible to the tacking stitches without cutting them.

This is the "Surgery Phase." Rush this, and you ruin the project.

How close is “close enough?” (The 1-2mm Rule)

• Goal: Leave about 1mm to 2mm of fabric outside the tack-down line.
• Too Close (<0.5mm): The fabric might fray and pull out from under the satin stitch later.
• Too Far (>3mm): The satin stitch won't cover the raw edge, leaving "whiskers" of pink fabric poking out.

The Tactile Technique

• Anchor: Rest your elbows on the table.
• Orientation: Hold the curved scissors so the "spoon" or curve is facing DOWN against the stabilizer. This prevents the point from digging into your base fabric.
• Action: Do not hack at the fabric. Glide the scissors. Rotate the hoop with your non-dominant hand, keeping your cutting hand steady in one position.

If you are using a magnetic hooping station or just a flat table, ensure the hoop is supported. Trimming while holding the hoop in mid-air leads to hand fatigue and accidental snips of the base fabric (a project killer).

Reattaching the Hoop Without Shifting: The One Habit That Prevents Misalignment After a Bobbin Change

A frequent real-world problem is registration shift (the outline doesn't match the fill) when you remove and reinsert the hoop.

Here’s what helps most on home single-needle machines (PE800, SE1900, etc.):

1. Carry the Frame, Not the Fabric: Never lift the hoop by grabbing the fabric. The weight of the plastic ends will pull the fabric taut and shift it.
2. The "Click": Slide the hoop onto the embroidery arm carriage. Listen for a solid mechanical engagement before you lower the locking lever.
3. Hands Off: Once reattached, verify the hoop has clearance. Do not rest your hands on the table where the hoop might hit them.


Satin Stitch Finish on the Brother PE800: Swap Thread, Let the Design Seal the Edge

The final step in the video is the satin stitch border (Color Stop #4) that encloses the raw edge and gives the appliqué a polished look. The host switches from black thread to pink thread.

Speed Calibration for Satin Stitches

Satin stitches are dense zig-zags that put immense stress on the fabric. On the PE800 screen, I strongly recommend lowering the max speed.

• Setting: If you are running at 650, drop it to 400-500 SPM for the final satin border.
• Why: High speed on dense borders causes the hoop to vibrate. Vibration leads to "wobbly" column edges. Slow and steady gives a razor-sharp finish.

Setup Checklist (right before you run the satin border):

• Hoop Check: Is the hoop locked in?
• Thread Check: Did you thread with the presser foot UP?
• Trim Check: Are there any long threads or fabric whiskers sticking up? Trim them now.
• Support: Ensure nothing is obstructing the hoop movement (coffee mug, scissors, wall).


The “Why” Behind Clean Appliqué: Fabric Control Beats Fancy Tools (But Tools Can Buy You Time)

Let’s connect the dots so you can repeat this success on different projects.

1) Hooping physics: Even tension prevents "Drift"

When you remove the hoop to trim, you’re interrupting the mechanical system. If the fabric was barely held by the friction of the inner/outer rings, it minimizes the chance of slipping. However, friction hoops (screw type) have a limit.

2) Material pairing: woven cotton + tearaway is forgiving

The video’s fabric choice is beginner-friendly. If you move to knits, thin fashion fabrics, or anything with spandex, you’ll often need Cutaway stabilizer. If you use Tearaway on a knit, the needle perforations will act like a postage stamp, and the satin border will rip the design right out of the shirt.

3) Efficiency reality: The "Hoop Screw Tax"

For hobby use, a standard screw hoop is fine. However, if you start doing batches—10 corporate polos, 20 team patches—the time spent unscrewing, aligning, and re-screwing adds up to hours of lost profit.

This is where the brother pe800 magnetic hoop becomes a logical business upgrade.

• Scenario: You need to hoop a thick towels or a delicate velvet jacket.
• Standard Hoop: Hard to force the inner ring in; leaves "burn" marks.
• Magnetic Hoop: Snaps on immediately; self-adjusts to thickness; zero burn marks.
• Verdict: If you are embroidering more than 2-3 hours a week, the time saved pays for the hoop.

Warning: Magnetic Safety. Sew Tech magnetic hoops use industrial-strength magnets (N52). They are incredibly powerful.
* Pinch Hazard: Keep fingers away from the contact points when snapping the top frame down.
* Medical: Do not use if you have a pacemaker.
* Electronics: Keep at least 6 inches away from cell phones and credit cards.

Troubleshooting Brother PE800 Appliqué: Symptoms → Likely Cause → Fix You Can Do Today

Don't guess. Use this symptom chart to diagnose the issue quickly.

The Upgrade Path (Without the Hard Sell): When to Stick With the Standard Hoop vs Go Magnetic vs Go Multi-Needle

If you’re just learning, do a few appliqués exactly like the video first. Master the rhythm. Then, listen to your body and your business metrics to decide on upgrades.

Level 1: The "Wrist Saver" Upgrade

If your pain is “hooping takes too long," "I can't hoop thick items," or "my wrists hurt," consider a magnetic hoop for brother pe800.

• Why: It turns a 3-minute physical struggle into a 10-second "snap." It is the single most effective tool upgrade for a single-needle machine.

Level 2: The "Production" Upgrade

If your pain is “I have an order for 50 shirts and changing thread colors is killing me,” you have outgrown the Brother PE800.

• Why: A single-needle machine requires you to manually change thread for every color stop.
• Solution: This is when you look at a SEWTECH Multi-Needle Embroidery Machine. These machines hold 10-15 colors at once, trim automatically, and run faster. They change the game from "baby-sitting the machine" to "walking away while it makes money."

Operation Checklist (End-of-Job Habits):

• Wait for the Beep: Confirm "Finished Embroidering" before touching the hoop.
• Inspect Quality: Check the satin coverage. No raw edges, no gaps.
• Clean Up: Tear away stabilizer gently (support the stitches with your thumb while tearing).
• Needle Check: Appliqué is hard on needles. If you hit the hoop or a heavy seam, replace the needle (Size 75/11 or 90/14) before the next project to avoid damage.


If you repeat this exact sequence—Prep (Stabilizer) → Placement → Tack + Adhesion → Trim (Carefully) → Satin (Slowly)—you can get professional results on a Brother PE800. The machine is capable; it just needs you to be the skilled operator who manages the variables it can't see.

FAQ

• Q: Why can’t the Brother PE800 screen add a placement stitch, tack-down stitch, or satin stitch for appliqué?
  A: The Brother PE800 cannot “create” appliqué steps on-screen because placement, tack-down, and satin borders must already be programmed into the embroidery design file.
  • Check: Preview the color stops/sequence; appliqué files typically include an outline/placement step and a tack-down step before the final border.
  • Confirm: If lettering stitches right after tack-down, accept that stitch order as a digitizing choice and plan trimming/taping accordingly.
  • Success check: The machine stitches an initial outline that clearly marks where appliqué fabric should sit.
  • If it still fails: Use a different design that is explicitly digitized as an appliqué file (the machine cannot force a non-appliqué file to behave like one).
• Q: What stabilizer should be used for Brother PE800 appliqué on quilting cotton, T-shirts (knits), and towels (textured fabrics)?
  A: Match stabilizer strength to fabric behavior: tearaway for stable wovens, cutaway for knits, and add water-soluble topper for texture.
  • Use: Medium tearaway as a safe starting point for woven quilting cotton (like the tutorial setup).
  • Switch: Use cutaway (mesh or heavy) for stretchy or unstable knits to prevent perforation and “gap” edges.
  • Add: Place a water-soluble topper on top for towels/fleece/minky so stitches don’t sink.
  • Success check: After stitching, the satin border lands on the fabric edge without exposing raw appliqué or pulling the base fabric into ripples.
  • If it still fails: Step up to a stronger backing (often cutaway) and re-check hooping tightness (avoid “trampoline” looseness).
• Q: How do Brother PE800 users prevent birdnesting under the throat plate when threading the top thread?
  A: Rethread with the presser foot UP and the take-up lever at the highest position; most PE800 birdnesting is upper thread not seated in the tension system.
  • Stop: Halt immediately if nesting starts; cut thread and remove the hoop if needed to clear the jam safely.
  • Set: Raise the presser foot before threading the top path so the thread can enter the tension discs.
  • Check: Turn the handwheel until the take-up lever is at its highest point before using the automatic needle threader.
  • Success check: Stitches form cleanly with no growing knot underneath in the first few seconds of stitching.
  • If it still fails: Perform a bobbin seating check (see the “floss test”) and clean lint from the bobbin area.
• Q: How can Brother PE800 users confirm the bobbin is seated correctly to avoid nesting and tension problems?
  A: Use the “floss test” to verify the bobbin thread is actually under the tension spring before closing the bobbin cover.
  • Drop: Insert the bobbin and follow the printed arrow path exactly.
  • Hold: Lightly stop the bobbin from spinning with a fingertip, then pull the thread tail.
  • Feel: Look for slight resistance like pulling dental floss; zero resistance usually means the thread missed the tension spring.
  • Success check: The bobbin thread pulls with consistent light drag, not free-spooling.
  • If it still fails: Re-seat the bobbin and re-thread the bobbin path again; then re-check upper threading with presser foot UP.
• Q: What is the correct hooping tension for quilting cotton in a Brother 5x7 screw hoop to avoid distortion and puckering?
  A: Aim for drum-tight without stretching the grain; over-tightening can distort shapes after unhooping.
  • Tighten: Insert inner hoop, smooth fabric, then tighten the screw to snug—do not crank down aggressively.
  • Inspect: Look at the cotton weave; if threads curve/hourglass, the fabric is stretched off-grain—rehoop.
  • Adjust: Pull edges only to remove wrinkles, not to stretch the fabric.
  • Success check: Tap the hooped fabric—dull thud is good; a sharp “ping” often indicates over-stretching.
  • If it still fails: Use stronger stabilization for the stitch density, and consider a magnetic hoop if consistent even clamping is hard to achieve with the screw hoop.
• Q: How do Brother PE800 users trim appliqué fabric in the hoop without cutting the base fabric or leaving whiskers?
  A: Trim in the hoop with curved appliqué scissors and leave 1–2 mm outside the tack-down line.
  • Leave: Keep about 1–2 mm margin; too close can fray/pull out, too far can leave exposed edges.
  • Hold: Rest elbows on the table and keep the curved “spoon” side of scissors down against the stabilizer to protect the base fabric.
  • Rotate: Turn the hoop with the non-dominant hand while keeping the cutting hand steady for smooth curves.
  • Success check: After trimming, the tack-down stitches remain intact and the edge looks even with no big flaps or fuzz.
  • If it still fails: Tape down loose corners before any stitching continues, especially if lettering stitches before the final satin border.
• Q: What is a safe upgrade path for Brother PE800 appliqué when hooping causes hoop burn, shifting, or slow batch workflow?
  A: Start by improving technique, then upgrade the hoop for fabric control, then upgrade the machine only when color changes/time become the bottleneck.
  • Level 1 (Technique): Add temporary spray adhesive or embroidery tape for tack-down stability and slow down for dense satin borders (often 400–500 SPM on the PE800).
  • Level 2 (Tool): Use a magnetic hoop when screw-hoop friction causes hoop burn, wrist strain, or inconsistent clamping that leads to shifting/puckering.
  • Level 3 (Capacity): Move to a multi-needle embroidery machine when frequent manual thread changes and long runs are limiting throughput on multi-color orders.
  • Success check: Registration stays aligned after removing/reinstalling the hoop, and satin borders consistently cover edges with fewer rehoops.
  • If it still fails: Re-check stabilizer choice (tearaway vs cutaway) and trimming accuracy before assuming the design file is the problem.
• Q: What safety rules should Brother PE800 users follow for the automatic needle threader and strong magnetic embroidery hoops?
  A: Treat threading and magnets as pinch/strike hazards: keep hands clear near the needle, and keep strong magnets away from fingers and sensitive devices.
  • Keep clear: Do not place fingers near the needle/presser foot area during auto threading or when reattaching the hoop; needle strikes can happen instantly.
  • Set correctly: Thread with presser foot UP (top path), then lower as needed for stitching; ensure stable hoop engagement before running.
  • Protect: Keep fingers away from magnetic hoop contact points when snapping frames together; magnets can pinch hard.
  • Success check: The hoop locks in with a solid mechanical engagement, and hands never enter the needle path during motion.
  • If it still fails: Stop the machine, power down before clearing jams, and consult the machine manual for model-specific safety guidance (especially if any medical implant concerns exist around strong magnets).
