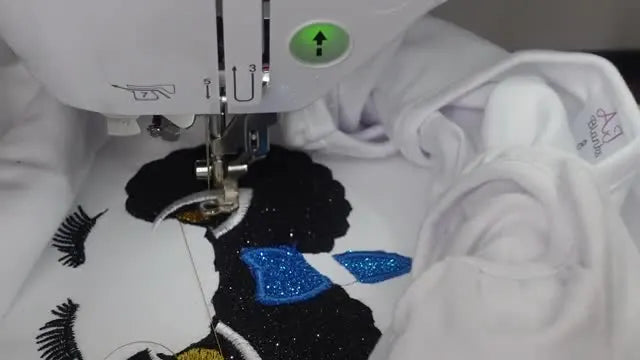

Brother PE800 Appliqué on a Kids’ T-Shirt: The Magnetic Hoop Workflow That Saves Your Seams (and Your Sanity)

Appliqué on a finished garment is one of those techniques that looks “cute and easy” on camera—until you’re wrestling a sleeve seam into a hard plastic hoop, your shirt shifts mid-stitch, or you nick the base fabric while trimming. Suddenly, a fun project turns into a ruined $10 t-shirt and a frustrated operator.

This post rebuilds the workflow shown in the video (Brother PE800 + glitter vinyl appliqué on a child’s t-shirt), but it adds the shop-floor engineering missing from most tutorials. Drawing on 20 years of embroidery experience, I will break down exactly how to stabilize stretchy knits, how to trim without puncturing, and specifically how upgrading your tooling—from stabilizers to magnetic hoops—can transform this from a "risky bet" into a repeatable, profitable process.

The “Don’t Panic” Primer: Brother PE800 Appliqué Is Three Stitches, Not a Mystery

Appliqué triggers anxiety because it interrupts the machine's rhythm. You are stopping, placing material, trimming, and restarting. It feels like a high-stakes surgery. However, to master it, you must simplify your mental model. The embroidery file is simply a loop of three repeating stitch stages.

Think of it like building a sandwich:

1. Placement Stitch ( The Blueprint): A simple running stitch that outlines exactly where the fabric goes.
2. Tack Down Stitch (The Anchor): A second running stitch (sometimes a double run) that locks the appliqué material to the base garment.
3. Satin Stitch (The Finish): The dense, glossy border that covers the raw edges and hides the structural stitches underneath.

Experience Note: The video highlights a crucial stress-reliever. Because the Placement and Tack Down stitches are buried under the Satin stitch, their thread color is irrelevant. You do not need to change thread for these hidden steps—use whatever is threaded to save time.

The Hidden Prep Pros Do First: Stabilizer, Vinyl Choice, and a Clean Hooping Plan

Before you approach the machine, you must make two critical engineering decisions: locking down the stretch and getting the shirt flat.

Stabilizer Strategy: The "Sticky" Solution for Knits

The video demonstrates using sticky tearaway stabilizer for the main design.

• Why it works here: Finished t-shirts are slippery and stretchy. A standard hoop relies on friction, which can distort the fabric grain. Sticky stabilizer acts like a "second skin," gripping the fabric from the bottom so it cannot shift as the frame moves.
• The Pro Caveat: While sticky tearaway is excellent for placement, remember that knits stretch. For high-wear items that go through the wash repeatedly, pros often float a layer of cutaway mesh under the hoop for permanent stability. However, for a rigid vinyl appliqué like the one shown, sticky tearaway often provides sufficient rigidity.

If you are researching the nuances of hooping for embroidery machine workflows, remember this rule: On a knit t-shirt, your stabilizer prevents the "puckering" (wrinkling around the design) more than your tension settings do.

Vinyl Choice: Consistency Over Brand

A viewer asked what vinyl to use. The creator suggests Cricut Smart Iron-On or standard HTV (Heat Transfer Vinyl).

From a production standpoint, the brand matters less than the cut-ability. You want a material that is:

1. Stable: It shouldn't stretch like gum when you pull it.
2. Clean: It should slice cleanly under scissors without fraying.

Vinyl is excellent for this because it has zero fraying, making it very forgiving for beginners.

Prep Checklist (The "Stop or Fail" Check)

• Design Scale: Confirm your design fits the 5x7 field. (Measure the physical garment space; a Size 2T shirt has less real estate than you think).
• Pre-Cut Patches: Cut your appliqué vinyl pieces 1 inch larger than the design on all sides.
• Stabilizer Prep: If using adhesive stabilizer, score the paper backing gently with a pin—drag it like you are scratching the surface—to peel it without tearing the stabilizer itself.
• Scissor Selection: Locate your Double-Curved Appliqué Scissors. (Do not attempt this with straight sewing scissors; you will cut the shirt).
• Consumables: Have a lint roller and adhesive spray (optional standby) ready.


Why a 5x7 Magnetic Hoop Changes Everything on Garments

The video’s biggest takeaway isn’t the design—it's the equipment. A finished child’s shirt has thick side seams, a collar, and hem bulk. Standard plastic hoops require you to force an inner ring inside an outer ring, crushing those seams and often leaving "hoop burn" (shiny crushed fibers) that won't wash out.

A magnetic hoop for brother pe800 solves this physics problem. Instead of friction-fitting the fabric into a channel, it uses high-strength magnets to clamp the fabric from the top.

The Physics of Success

Hooping is just controlled tension. You want the fabric to be neutral and flat (like a piece of paper on a desk), not stretched tightly (like a drum skin).

• The Standard Hoop Risk: To get a thick seam into a plastic hoop, you have to loosen the screw, shove the ring in, and tighten it. This often stretches the knit fabric. When you un-hoop later, the fabric snaps back, and your embroidery looks wrinkled.
• The Magnetic Advantage: You lay the shirt flat. You drop the magnetic top frame. Snap. The fabric is held firmly without being pulled out of shape.

Warning: Magnetic Safety
Magnetic frames use industrial-grade magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the contact zone when snapping the frame down.
* Medical Safety: Keep magnets at least 6 inches away from pacemakers or implanted medical devices.

Hooping a Finished Kids’ Shirt: The Fast, Seam-Friendly Method

In the video, the creator hoops the shirt using a 5x7 magnetic hoop and sticky stabilizer. This is the specific workflow for "floating" a shirt, which is the safest method for beginners.

The Workflow

1. Hoop the Stabilizer Only: Place the sticky stabilizer in the magnetic hoop.
2. Expose the Adhesive: Score and peel the paper to reveal the sticky surface inside the hoop boundaries.
3. Float the Shirt: Turn the shirt inside out (optional, but easier for alignment) or slide the hoop inside the shirt. Smooth the chest area onto the sticky backing.
4. Secure: If necessary, use pins or a basting stitch (if your machine has one) to lock the perimeter.

Using brother 5x7 magnetic hoop systems is particularly helpful on children's garments (like the Size 7/8 shirt in the video) because the magnetic frame is usually thinner and flatter than standard bulky plastic hoops, making it easier to slide inside small sleeves and torsos.

Setup Checklist (Engine Pre-Flight)

• Clearance Check: Slide your hand inside the shirt under the hoop. Is there excess fabric bunched up? (If the back of the shirt gets stitched to the front, the shirt is ruined).
• Orientation: Is the neck hole pointing the right way relative to the machine arm?
• Needle Path: excessive seams. Ensure the needle will not strike a thick collar seam.
• Sensory Check: Tap the hooped fabric. It should not sound like a drum (too tight) nor feel ripples (too loose). It should feel stable, like cardstock.


The Placement Stitch: Your "Target Line"

Run the Placement Stitch. A single outline appears on the stabilizer/shirt.

Pro Tip: Don’t just watch this stitch—analyze it. If this outline is crooked or too high/low, stop now. It is infinitely easier to un-hoop and reset the shirt now than after you have stitched layers of vinyl. This is your "Measure Twice, Cut Once" moment.

Placing Glitter Vinyl: The "Safety Margin" Rule

Cover the placement line with your pre-cut black glitter vinyl.

Common Rookie Mistake: Cutting the vinyl piece to the exact size of the shape. Correct Method: Your vinyl piece should extend at least 0.5 inches beyond the placement line on all sides. If the machine pulls the fabric slightly (which happens with knits), a small margin will result in a gap where the satin stitch falls on empty air. Be generous with your material scraps.

Tack Down Stitch: Locking It Down (Manage Your Speed)

Run the Tack Down Stitch. The machine secures the vinyl to the shirt.

Speed Calibration: The video shows the Brother PE800 running at likely Max speed.

• Beginner Sweet Spot: I recommend slowing your machine down to 400–600 SPM (Stitches Per Minute) for this step.
• Why? Glitter vinyl is thick and has friction. If the needle drags the vinyl while moving fast, it can shift the entire patch. A slower speed ensures the foot walks firmly over the vinyl without displacing it.


Trimming Appliqué: The Surgeon’s Cut

This is the make-or-break moment. Remove the hoop from the machine (but DO NOT remove the fabric from the hoop). Place it on a flat table. You need to trim the excess vinyl close to the tack-down stitch.

The Tool: Double-Curved Scissors

You must use curved scissors. The curve allows the blades strictly to skate parallel to the fabric surface, lifting the vinyl up and away from the t-shirt.

Sensory Cues for a Perfect Trim

1. Visual: Look for the "groove." You want to cut 1mm to 2mm away from the stitch line.
2. Tactile: Use your non-cutting hand to gently pull the excess vinyl up and away. You should feel slight tension—like flossing teeth. This tension helps the blade slice cleanly.
3. Auditory: Listen for crisp snips. If you hear a "tearing" sound, your scissors are dull or you are sawing at the fabric.

Warning: The "Fatal Snip"
Cuts usually happen when you lose focus on the tips of the scissors. Always know where the very points of your blades are. One poke through the garment ruins the project. If working with a magnetic embroidery hoop, be mindful not to pinch the fabric under the magnet frame while rotating the hoop to get a better cutting angle.

Satin Stitch: Hiding the Evidence

Re-attach the hoop and run the Satin Stitch. This dense border (width usually 3mm–4mm) encases the raw vinyl edge.

Observation: If you see white thread showing on top or loops on the sides, check your Upper Tension. Glitter vinyl adds thickness, which increases drag on the top thread.

• Diagnosis: If bobbin thread shows on top, lower the top tension slightly (e.g., from 4.0 to 3.4).
• Goal: You want a smooth, vaulted column of thread that looks like a rope.


Multi-Color Layering: Rinse and Repeat

The video repeats the cycle for the blue horn, red bow, and gold crown. The logic remains identical: Place → Tack → Trim → Satin.

Expert Tip: On small pieces (like the bow), the margin of error is smaller. Use a chopstick or stylus to hold the small vinyl piece down while the machine takes the first few stitches—keeps fingers safe and ensures the piece doesn't slide under the foot pressure.

Re-Hooping for the Name: The True Test of Patience

The creator un-hoops the shirt and re-hoops lower down to add the name "Alainna."

The Risk: Re-hooping an embroidered garment is tricky because the area you just stitched is stiff and bulky. The Solution: This is where the magnetic frames shine. You aren't fighting to jam a stiff, embroidered unicorn into a plastic ring. You simply slide the magnet frame lower.

When browsing regarding brother pe800 hoop size limitations, realize that while the 5x7 field is fixed, your ability to reposition the garment is infinite—provided your hooping system allows for easy movement without distortion.

Finishing: Making It Kid-Approved

A clean front is useless if the child refuses to wear it because "it scratches."

1. Tearaway: Gently support the stitches with your thumb while tearing the stabilizer away to prevent popping stitches.
2. Jump Stitches: Trim all connector threads.
3. Heat Seal: Use a lighter (carefully!) to singe fuzzy thread ends—this prevents unraveling.
4. The Secret Sauce: Apply Fusible Tricot (Cloud Cover / Tender Touch).
   • Cut a piece slightly larger than the design.
   • Use an iron or heat press to fuse it to the inside of the shirt.
   • Result: A soft, silky barrier between the rough bobbin threads and the child's skin.

If you are using efficient embroidery magnetic hoop workflows to speed up production, re-invest that saved time into this finishing step. It is the number one reason customers return.

Operation Checklist (The Closing Protocol)

• Stabilizer Removal: Removed cleanly without distorting the knit?
• Backing Check: Is the fusible backing adhered fully (corners not peeling)?
• Thread Audit: Are there any long tails on the inside that could catch on fingers?
• Clean Up: Did you clear the bobbin area of lint/glitter dust? (Glitter vinyl sheds; clean your race hook immediately).


Decision Tree: Stabilizer & Hoop Selection for Garments

Different fabrics require different engineering. Use this logic flow to make the right choice.

START: What is the fabric?

• A) Stretchy Knit (T-shirt, Onesie)
  • Is the design dense (Heavy fill)?
    • YES → Cutaway Stabilizer (Required for support). Use spray adhesive to float the shirt.
    • NO (Open applique/Outline) → Sticky Tearaway or Fusible PolyMesh may suffice.
  • Hooping Method:
    • Standard Hoop? → Risk of hoop burn. Do not stretch.
    • Magnetic Hoop? → Ideal. Floats the fabric naturally.
• B) Woven Fabric (Denim, Canvas)
  • Stabilizer: Tearaway is typically sufficient.
  • Hooping: Standard hoops work well here, but magnetic hoops offer faster speeds for batching.

Troubleshooting: The "Why Is This Happening" Guide

Hidden Consumables You Need

• Titanium Needles (75/11): They stay sharp longer and resist the adhesive gum from sticky stabilizer.
• Temporary Spray Adhesive (e.g., KK100 or 505): Essential if your sticky stabilizer loses tack.
• Tweezers: For picking out tiny bits of vinyl or stabilizer from tight corners.

The Upgrade Path: From Hobbyist to Production Studio

If you are making one shirt for a niece, the standard hoops and scissors are fine. But if you find yourself sweating over seams, struggling with alignment, or manufacturing 20 shirts for a team, you will hit a pain wall.

Here is the diagnosis logic I use to recommend equipment upgrades:

Scenario A: "I dread hooping. It takes longer than the embroidery."

• Trigger: You avoid projects because fighting the hoop hurts your hands or ruins shirts.
• Solution Level 1: Try "floating" with sticky stabilizer.
• Solution Level 2 (Tooling): Invest in a generic Magnetic Hoop compatible with your machine. The speed difference is roughly 3x faster per shirt, and the risk of hoop burn drops to near zero.

Scenario B: "I have orders for 50 shirts."

• Trigger: You are spending all day changing threads (blue, red, gold, black) for a single design.
• Solution Level 3 (Scale): This is where single-needle machines become profit-killers. A multi-needle machine (like a 10-needle or 15-needle SEWTECH) holds all colors simultaneously. You press start, and it runs the entire appliqué sequence without you re-threading once.

Scenario C: "The inside looks messy."

• Trigger: Customers or kids complain about comfort.
• Solution: Make Tender Touch (Fusible Tricot) a non-negotiable part of your workflow. It costs pennies per shirt but adds dollars to the perceived value.

Appliqué is a rhythm. Place, Tack, Trim, Satin. Once you trust your stabilizer strategy and have a hoop that doesn't fight you, that rhythm becomes the most satisfying sound in the studio.

FAQ

• Q: On a Brother PE800 appliqué on a finished t-shirt, what stitch order should the embroidery file follow to avoid trimming mistakes?
  A: Use the same repeatable three-step sequence: Placement Stitch → Tack Down Stitch → Satin Stitch.
  • Stitch: Run the Placement Stitch first to draw the exact target line on the garment.
  • Stitch: Place the vinyl to cover the placement line, then run the Tack Down Stitch to lock it.
  • Cut: Trim excess vinyl close to the tack-down line without un-hooping the fabric.
  • Success check: The final Satin Stitch fully covers the tack-down stitches and cleanly wraps the vinyl edge with no raw vinyl showing.
  • If it still fails… Stop after the Placement Stitch and re-align the shirt; correcting placement later is much harder.
• Q: When hooping a knit t-shirt for Brother PE800 appliqué, should sticky tearaway stabilizer or cutaway mesh stabilizer be used?
  A: Sticky tearaway is a strong choice for positioning and preventing shifting on finished t-shirts, but cutaway mesh is often added for long-term stability on high-wear knits.
  • Choose: Use sticky tearaway when the goal is clean placement and the appliqué material adds rigidity.
  • Add: Float a layer of cutaway mesh under the hoop when repeated washing and knit stretch make puckering more likely.
  • Prep: Score the paper backing gently so the adhesive reveals cleanly without tearing the stabilizer.
  • Success check: The shirt surface stays flat and neutral (not stretched like a drum) and the design area does not ripple during stitching.
  • If it still fails… Re-check hooping tension and switch to a more permanent stabilizer strategy (often adding cutaway mesh).
• Q: How do you hoop a finished kids’ shirt for Brother PE800 embroidery using a 5x7 magnetic hoop without sewing the back of the shirt to the front?
  A: Hoop the stabilizer first and “float” the shirt onto the adhesive, then do a clearance check before stitching.
  • Hoop: Clamp sticky stabilizer in the 5x7 magnetic hoop (stabilizer-only hooping).
  • Stick: Peel the backing inside the hoop area, then smooth the shirt chest onto the adhesive surface.
  • Check: Slide a hand inside the shirt under the hoop to confirm no extra fabric is bunched in the stitch path.
  • Success check: The hooped area feels stable like cardstock and there is clear separation between front and back layers under the needle area.
  • If it still fails… Add perimeter securing (pins or a basting stitch if available) and repeat the clearance check before starting.
• Q: What is the safest way to trim glitter vinyl appliqué on a Brother PE800 without cutting the t-shirt fabric?
  A: Remove the hoop from the machine (without un-hooping) and trim using double-curved appliqué scissors while keeping the scissor tips controlled.
  • Tool: Use double-curved appliqué scissors so the blades stay parallel to the garment surface.
  • Hold: Gently pull the excess vinyl up and away to create light tension while cutting 1–2 mm from the tack-down stitch.
  • Focus: Track the scissor tips at all times to prevent the “fatal snip” into the base shirt.
  • Success check: The cut edge is smooth and close to the tack-down line, and the shirt fabric underneath shows no nicks or punctures.
  • If it still fails… Replace or sharpen scissors and slow down; rushed trimming is the most common cause of garment damage.
• Q: On a Brother PE800 satin stitch border over glitter vinyl, what should be adjusted if bobbin thread shows on top of the satin stitch?
  A: Lower the upper (top) tension slightly to compensate for the added drag from thick glitter vinyl.
  • Observe: Confirm the symptom is bobbin thread popping to the top surface of the satin column.
  • Adjust: Reduce upper tension a small step (example shown: from 4.0 to about 3.4) and test again.
  • Verify: Keep the satin width consistent (often 3–4 mm) so coverage is reliable.
  • Success check: The satin stitch looks like a smooth, vaulted “rope” with no bobbin thread visible on the top.
  • If it still fails… Rethread the top path and consider needle condition; thick materials can amplify any threading or needle issues.
• Q: What should be done on a Brother PE800 when appliqué top thread breaks because sticky stabilizer glue and vinyl residue gum up the needle?
  A: Clean the thread path and change the needle; adhesive buildup is a common cause of shredding and breaks.
  • Replace: Install a fresh needle; titanium needles (75/11) are often used because they resist adhesive gum longer.
  • Clean: Wipe residue from the needle area and remove lint/glitter dust from the bobbin/race hook after the job.
  • Support: Use temporary spray adhesive if sticky stabilizer loses tack and you are tempted to over-handle the garment.
  • Success check: The machine runs the tack-down and satin steps without repeated shredding, and the thread feeds smoothly without snagging.
  • If it still fails… Re-check the material stack (vinyl thickness + stabilizer) and slow the stitching speed during tack-down.
• Q: What safety precautions are required when using a magnetic embroidery hoop on a Brother PE800 for garment appliqué?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from medical implants.
  • Protect: Keep fingers out of the contact zone when snapping the magnetic top frame down.
  • Control: Set the hoop down flat and lower the magnetic frame deliberately—do not “drop” it blindly.
  • Medical: Keep magnets at least 6 inches away from pacemakers or implanted medical devices.
  • Success check: The frame seats evenly with a controlled snap and no finger pinch incidents, and the garment remains flat without shifting.
  • If it still fails… Stop and reposition calmly; forcing magnets into place usually causes pinches and mis-hooping.
• Q: If hooping a finished t-shirt on a Brother PE800 causes hoop burn, puckering, and slow setup time, what is the step-by-step upgrade path from technique to tools to production capacity?
  A: Start by changing the hooping method, then upgrade to a magnetic hoop, and only then consider a multi-needle machine when order volume demands it.
  • Level 1 (Technique): Float the shirt on sticky stabilizer and avoid stretching the knit “drum tight” during hooping.
  • Level 2 (Tooling): Switch from a friction-fit plastic hoop to a magnetic hoop to reduce hoop burn and speed up garment setup.
  • Level 3 (Scale): Move from a single-needle workflow to a multi-needle setup when frequent color changes make orders (e.g., batches of dozens of shirts) unprofitable.
  • Success check: Hooping time drops, hoop burn marks reduce, and embroidery finishes flatter with fewer re-hoops and less distortion.
  • If it still fails… Reassess stabilizer choice for the fabric (especially knits) and confirm the garment is not being stretched during hooping.
