Brother PE550D Bobbin Tension Fix: The “Letter I” Test That Stops Wavy Columns and Ugly Backing

If your Brother PE550D suddenly starts making designs look “wonky,” you’re not alone—and it’s not always your file. When multiple designs begin misbehaving, that’s often your machine telling you it needs a tension reset.

This post rebuilds the exact method shown in the video: remove the bobbin case, adjust the bobbin tension screw in measured turns, and run a simple built-in stitch test using the capital letter “I.” I’ll also add the shop-floor details that keep you from chasing your tail: how to take notes, what results to trust, and what to do when the machine throws a scary pop-up.

When Brother PE550D Bobbin Tension Is the Real Culprit (Not Your Design)

In my 20 years of embroidery education, the most common phrase I hear is, "I think I digitized this wrong." But the video makes a key point that experienced stitchers learn the hard way: if multiple designs start coming out “wonky,” it’s statistically unlikely that every design is suddenly bad. It is far more likely that your mechanical tension balance has drifted.

Embroidery is a physical tug-of-war between the top thread and the bobbin thread. When that war is balanced, your result is beautiful. When one side wins too easily, you get loops, nests, or distortion.

Here’s when I reach for a bobbin tension test on a Brother PE550D:

• The "Rule of Three": Three unrelated designs start looking off in the same way.
• The "Messy Back" Syndrome: The back of the embroidery looks like a carpet or is inconsistent from one hooping to the next.
• Visual Symptoms: You see the top thread being pulled violently to the back (dots of color underneath), or satin columns (like letter I's) have jagged, wavy edges instead of straight lines.

One viewer asked why the upper tension wasn’t adjusted from the screen first (they mentioned a Brother F540E where tension is adjusted in settings). That’s a fair question. However, in this video’s workflow, the creator keeps the upper tension at 4 (Factory Standard) and uses the bobbin screw to bring the bottom into balance.

Why do this? Because software tension allows for fine-tuning, but mechanical bobbin tension sets the foundation. If your foundation is cracked, no amount of screen-tapping will fix it.

If you’re running a brother embroidery machine, the safest habit is to change one variable at a time during testing—otherwise, you won’t know what actually fixed it.

The “Hidden” Prep Before You Touch the Bobbin Case Screw (Tools, Notes, and a Calm Head)

Before you open the machine, set yourself up so you can test quickly and avoid redoing work. Tension testing requires a "Clean Room" mindset—if your needle is dull or your bobbin is dusty, your test results will lead you astray.

What the video uses (and what you should match as closely as possible):

• Brother PE550D embroidery machine.
• Scrap Cotton Fabric: Use a woven cotton (like quilting cotton or sheeting). Do not test on knits/t-shirts, as their stretch adds a variable we don't want yet.
• Tear-away Stabilizer: Crisp and stable.
• Contrast Threading: Purple embroidery thread (top) and White bobbin thread. This high contrast is essential for visual diagnosis.
• A small flathead screwdriver: specifically the eyeglass-kit style.

A small screwdriver matters because that bobbin screw is tiny. A standard household driver is too thick; it will slip, chew the soft metal slot, or make you inadvertently over-rotate.

Pro tip from the video that most people skip: write notes directly on your stabilizer. The creator records the top tension on the top area and the bobbin screw turns on the bottom area. That turns “guessing” into a controlled experiment.

The "Hidden" Consumables: Before testing, ensure you have:

1. A Fresh Needle (75/11): A burred needle creates friction that mimics bad tension.
2. A Clean Bobbin: Ensure no thread tails are trapping the bobbin spin.

Warning: Mechanical Safety. Keep fingers, tools, and loose thread away from the needle area and moving carriage. Power off before removing plates or the embroidery unit, and never reach into the machine while anything can move. A moving embroidery arm has enough torque to break a finger.

Prep Checklist (do this before disassembly)

• Fresh Start: Install a brand new 75/11 embroidery needle.
• Fabric Prep: Hoop scrap cotton + tear-away stabilizer drum-tight (tap it, it should sound like a drum).
• Thread Check: Thread the top with your test color (purple) and load white bobbin thread.
• Tool Match: Ensure your flathead screwdriver fits the screw slot snugly without wobbling.
• Labelling: Have a fine-point pen ready to write parameters on the stabilizer.
• Spacing: Plan space for at least 4-5 "I" tests so you don’t overlap stitches.


Opening the Brother PE550D Bobbin Area Without Triggering a Malfunction Pop-Up

The video’s access sequence is simple, but the order matters. Modern machines are filled with sensors. If you remove the embroidery unit while the machine is "thinking," it may throw a "Safety Device Activated" error or fail to recalibrate later.

1. Remove the embroidery unit.
   • Action: Place your hand underneath, press the release lever, and slide the embroidery unit gently to the left.
   • Sensory Check: You should feel a smooth release, not grinding.
2. Remove the gray needle plate cover.
   • Action: Place both hands flat on top of the gray plastic cover. Apply slight downward pressure and pull it toward you.
   • Sensory Check: Listen for a plastic "snap" or "pop" as the clips release. Do not force it; it slides then lifts.

Now you can see the bobbin area and the black bobbin case (the "basket" where the bobbin sits).

One of the most useful “save you a headache” tips in the video: turn off the machine each time you remove the embroidery plate/cover. If you don’t, the machine may throw a malfunction message and force a shutdown anyway. It is faster to reboot than to clear error codes.

Removing the Black Bobbin Case: Yes, It Sits Loose—and That’s Normal

Lift the black bobbin case out of the machine. The creator demonstrates you can adjust the screw with the case still inside, but she prefers removing it because it’s easier to control the screwdriver. I strongly recommend removing it. It prevents you from accidentally dropping the screwdriver into the machine's internal gears.

A common comment question was: “Is the bobbin case supposed to be loose?”

Expert Clarification: Yes. The bobbin case (or "bobbin holder") floats on a magnetic track. It is not screwed down. When you drop it in, it will wiggle slightly. That "loose" feeling is not the same thing as “wrong.” What matters is that the white arrow on the case aligns with the white dot on the machine race.

If you’re doing repeated tests, this is where an efficient hooping workflow helps. When you’re constantly flipping, checking, and re-hooping, anything that reduces handling time reduces mistakes. This is the moment many users realize their standard hoops might be contributing to the problem. If you struggle to get fabric tight without "hoop burn" (those white friction marks), upgrading your hoop for brother embroidery machine setup can be a game changer. The less you fight the hoop, the more you can trust your tension test.

The Clockwise-to-Stop Baseline: How to Set a Repeatable Starting Point on the Bobbin Screw

This is the core technique from the video, and it’s why the method works. We aren't just twisting the screw arbitrarily; we are "zeroing out" the instrument.

Look at your bobbin case. You will see two screws. One is coated in green paint (DO NOT TOUCH THIS—it holds the case together). The other is a slotted silver screw. That is your target.

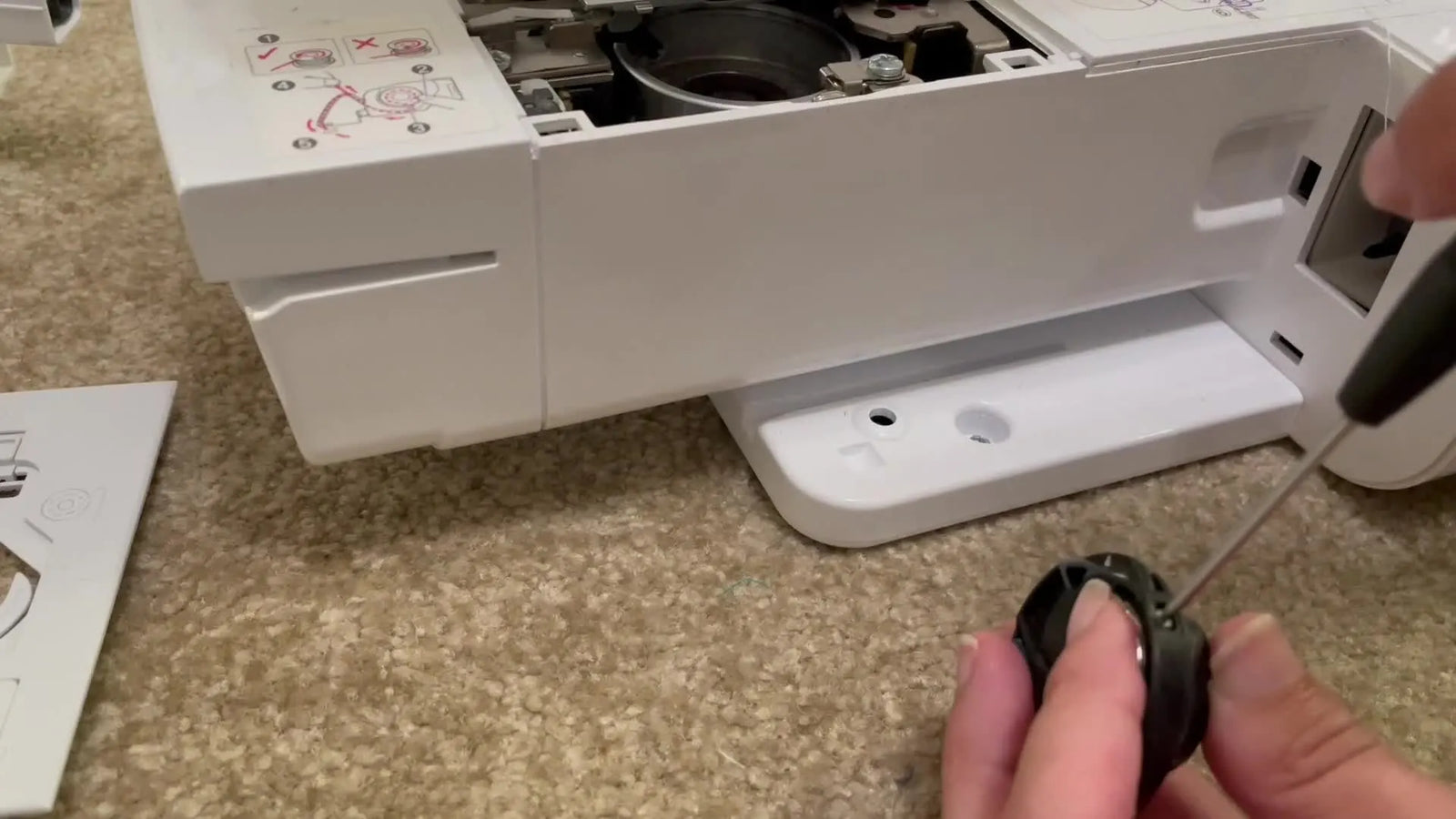

1. Zero Out: Insert the small flathead screwdriver into the silver tension screw.
2. Tighten (Righty-Tighty): Turn clockwise until it stops.
   • Sensory Check: Stop immediately when you feel resistance. Do not crank it down; you will strip the delicate threads. The creator describes this as “no more wiggle room.”
3. Visual Mark: Note the position of the screw slot (e.g., straight up and down like hands on a clock at 12:30).
4. The First Adjustment: Loosen counter-clockwise exactly 1 full turn (360°).

That “tighten to stop, then back off in measured turns” approach gives you a consistent reference point (A Datum). Without a baseline, people make random micro-adjustments and never learn what each change does.

Important reality check from the video: This is trial-based. The creator lands at 3.5 turns counter-clockwise for her machine. Your machine might be 2.5, or 4. She clearly says your machine may differ. We are looking for your machine's "Sweet Spot."

Reassembly on the Brother PE550D: The Bobbin Case Drops In (Loose), Then Everything Snaps Back

Reassemble exactly as shown to ensure the machine sensors are happy:

1. Seat the Case: Drop the bobbin case back into the race. Align the white triangle on the case with the white dot on the metal race.
   • Sensory Check: It should sit flat. If it rocks like a seesaw, it's not seated.
2. Snap the Cover: Snap the gray plate cover back on. Ensure the back tabs engage first.
3. Thread: Insert the bobbin thread. Ensure it passes through the tension spring slit (you should feel slight drag when pulling the thread tail—like flossing teeth).
4. Load: Slide the embroidery unit back onto the machine arm until it clicks.

This is also where you protect stitch quality with good hooping fundamentals. If your fabric is shifting, wrinkling, or being stretched unevenly ("drum skin" tight is the goal), tension tests can lie to you.

Commercial Insight: If you’re still using a standard brother embroidery hoop 4x4 and you notice consistent puckering despite perfect tension, the issue is likely hoop slippage. A magnetic hoop is a practical upgrade path here: same test method, but faster loading and more repeatable fabric tension (it clamps rather than squeezes). In production settings, that repeatability is worth more than people expect.

Setup Checklist (before you stitch the test)

• Alignment: Bobbin case white arrow matches the machine race dot.
• Flatness: Gray plate cover is snapped down flat, not bowing up.
• Thread Path: Bobbin thread is pulled through the tension slit and cut at the cutter.
• Connection: Embroidery unit is clicked in before turning power on.
• Documentation: Pen ready to label "Test #1 - 1 Turn".


The Built-In “Letter I” Tension Test on the PE550D Screen (Font Tab 1, Medium, Rotate 90°)

The video uses a brilliantly simple test pattern: a capital “I.” Why? Because it is a Satin Column. Satin stitches have thread capable of pulling from both sides, making them the most honest indicator of tension balance.

On the PE550D screen:

1. Go to the Alphabet Menu.
2. Choose the first alphabet set (Tab 1) – usually a block font.
3. Select capital “I.”
4. Set size to Medium. (Small is too tight to read; Large wastes thread).
5. Rotate the design 90 degrees so it stitches horizontally. This fits more tests on your scrap strip.
6. Use the directional arrow keys to position the needle so you don’t stitch over previous tests.

This is also why a clean hooping workflow matters. When you’re doing multiple tests in one hoop, you want stable fabric tension and predictable placement. If you’re building a small side business, an embroidery hooping station (or even a consistent bench setup) can reduce placement errors and speed up this testing process significantly.

Reading the Back of the Hoop Like a Technician: Too Tight vs Too Loose vs “Happy Medium”

The creator evaluates results by flipping the hoop and inspecting the back (bobbin side). This is the only view that matters. The front tells you if it looks pretty; the back tells you if it's structurally sound.

What “too tight” looks like (video Test 1)

• Observation: The top thread (purple) is pulled completely to the back. You see almost solid purple on the underside.
• Physics: The bobbin tension is so tight (clamping the thread) that the top thread cannot pull the bobbin thread up. The top thread "loses" the tug-of-war.
• Video fix: Loosen the bobbin screw counter-clockwise (increase turns from 1 to 2, or 2 to 3).


What “too loose” looks like (video Test 4)

• Observation: The stitch column isn’t straight; it looks wavy or jagged. You might feel loops of bobbin thread.
• Physics: The bobbin is offering zero resistance, allowing the top thread to pull it up too easily, or causing the thread to flop around.
• Video fix: Tighten slightly—she moves from 4 turns back to 3.5 turns.


What you’re aiming for (the “happy medium”)

The creator describes the target as the "1/3 Rule":

• Center: You see a strip of white bobbin thread taking up the middle 1/3 of the column.
• Edges: You see a little bit of purple (top thread) on the left and right 1/3s.
• Balance: The stitch feels smooth, and the column edges are straight.

Her final result is at 3.5 turns counter-clockwise with upper tension set to 4.

The Repeatable Loop: Adjust, Stitch, Flip, Label, Repeat (Until the Back Looks Right)

Here’s the exact loop the video demonstrates. Do not skip the labeling step.

1. Stitch the “I” test.
2. Flip the hoop and inspect the back.
3. Label your stabilizer immediately (e.g., "3 Turns").
4. Power Off (Safety first!).
5. Remove the embroidery unit and plate cover.
6. Remove the bobbin case.
7. Reset the screw (tighten to stop), then loosen to the next planned turn count.
8. Reassemble and stitch again.

One moment in the video is worth highlighting: her second test “looked worse,” and she simply treats it as data and keeps going. That’s the right mindset. Tension calibration is not a single magic twist—it’s controlled iteration.

Productivity Note: If you’re doing this often, consider how much time you spend just hooping and unhooping. For hobbyists it’s annoyance; for paid orders it’s lost profit. Upgrading your embroidery machine hoops setup—especially with magnetic frames for faster loading—can turn tension testing from a 30-minute ordeal into a quick, 5-minute routine.

Operation Checklist (your “no-drama” testing routine)

• Isolation: Stitch only one test pattern (“I”) per adjustment.
• Inspection: Flip and judge the back every time (don’t guess from the front).
• Data Logging: Write down top tension and bobbin turns on the stabilizer next to the stitch.
• Safety: Power off before removing the plate/embroidery unit.
• Increments: Change bobbin turns in clear increments (1, 2, 3, 3.5, 4) rather than tiny random nudges.


A Fabric-to-Stabilizer Decision Tree That Keeps Tension Tests Honest

The video tests on scrap cotton with tear-away stabilizer. That’s a stable baseline. However, in the real world, if you test on a fabric that stretches or shifts, you can misread tension problems that are actually hooping or stabilization problems.

Use this simple decision tree before you blame the bobbin screw:

Decision Tree: What stabilizer should you test with?

• IF fabric is stable woven cotton (like the video scrap):
  • THEN: Use Tear-away stabilizer (Medium weight).
• IF fabric is stretchy (T-shirts/Polos) or wants to tunnel/wave:
  • THEN: You MUST use Cut-away stabilizer. Tear-away will allow the stitches to collapse, mimicking bad tension.
• IF fabric is Plush/Towel/Velvet:
  • THEN: Use Water Soluble Topping (Solvy) on top + Tear-away on bottom. The topping prevents the thread from sinking, which looks like loose tension.

No matter what you choose, keep the test consistent: same fabric type, same stabilizer type, same thread pairing. That’s how you isolate tension.

If hooping itself is your bottleneck—slow loading, hand fatigue, or hoop marks—then improving your process for hooping for embroidery machine consistency can be as important as the screw adjustment. In many professional shops, magnetic hoops are the “quiet upgrade” that makes tension and registration more repeatable because they don't distort the fabric grain.

Troubleshooting the Three Most Common PE550D Tension Nightmares (Based on the Video + Comments)

Below are the exact symptoms the video addresses, plus the most common confusion points from the comments (The "Why is this happening to me?" section).

Symptom 1: Top thread is showing on the back (purple pulled underneath)

• Likely cause (video): Bobbin tension is TOO TIGHT.
• Fix (video): Loosen the bobbin screw counter-clockwise (increase turns, e.g., from 1 to 2).

Symptom 2: “Malfunction” or warning pop-up when you’re opening the machine

• Likely cause (video): Removing the embroidery unit/plate while the machine is powered ON and sensors are active.
• Fix (video): Turn OFF the machine before disassembling components.


Symptom 3: Wavy stitch column / the “I” isn’t straight

• Likely cause (video): Bobbin tension TOO LOOSE (she sees this at 4 turns).
• Fix (video): Tighten slightly (she goes back to 3.5 turns).

Symptom 4 (from comments): Birdnesting (“thread nests”) and fabric getting chewed

A commenter described thread tangling like a bird’s nest and the fabric being pushed down the throat plate. The video doesn’t give a specific birdnesting procedure, but it does show a safe habit that prevents a lot of chaos: power off before opening the plate area.

Expert Fix: Birdnesting is rarely just bobbin tension. It is usually:

1. Top threading error: You missed the take-up lever (the metal arm that goes up and down). Rethread with the presser foot UP.
2. Flagging: The fabric is bouncing up and down because it isn't hooped tight enough.

Warning: Magnetic Hoop Safety. If you upgrade to magnetic hoops, be aware they are powerful. Keep them away from pacemakers/implanted medical devices (at least 6 inches), and avoid pinching fingers when the magnets snap together. Store magnets away from computerized screens and electronics.

The Upgrade Path After You Nail Tension: Faster Hooping, Cleaner Output, and Less Rework

Once you’ve found your “happy medium,” the real win is consistency. The video’s method gives you a repeatable calibration routine, but your day-to-day results still depend on the physical stability of your setup.

Here’s a practical tool-upgrade path that fits real embroidery life (Pain -> Diagnosis -> Solution):

1. The Pain: "My tension is good, but I still get hoop burns (shiny marks) or my wrists hurt from tightening the screw."
   • The Upgrade: Magnetic Hoops. These eliminate hoop burn and make hooping 3x faster, reducing the physical strain that leads to sloppy hooping.
2. The Pain: "I spend more time changing thread colors than actually stitching."
   • The Upgrade: Multi-Needle Machine. If you are doing production runs of 50+ shirts, a single needle machine is a bottleneck. Moving to a machine that holds 6+10 colors upgrades your capacity (and profit margin) drastically.
3. The Pain: "My designs look great on cotton but terrible on knits."
   • The Upgrade: Specialized Stabilizers. Build a library of Cut-away and Fusible Poly-mesh stabilizers.

If you’re currently rotating between different brother embroidery hoops or swapping hoop sizes frequently, build a habit: run a quick “I” test after any major change (new thread brand, new bobbin, new stabilizer, or a long period of heavy stitching). It’s faster than ripping out a ruined design.

Finally, remember the creator’s most honest line: this isn’t one-size-fits-all. Your PE550D may land at a different turn count than 3.5—and that’s normal. What matters is that you now have a clean baseline, a controlled test, and a way to read the back of the hoop like a master technician.

FAQ

• Q: When multiple designs look “wonky” on a Brother PE550D, how can Brother PE550D users confirm bobbin tension is the real issue (not a bad design file)?
  A: If three unrelated designs fail in the same way, Brother PE550D bobbin tension drift is more likely than three bad files.
  • Apply the “Rule of Three”: stitch three different designs and compare the same symptom (waviness, messy backs, pull-through).
  • Inspect the embroidery back, not the front, for consistent imbalance signs (solid top-thread color underneath or inconsistent backs).
  • Keep Brother PE550D upper tension at 4 during testing so only one variable changes.
  • Success check: the failure pattern repeats across different designs with similar back-side thread behavior.
  • If it still fails: switch to the built-in Brother PE550D letter “I” satin test to isolate tension from digitizing.
• Q: What prep items must be checked before adjusting the Brother PE550D bobbin case tension screw to avoid false test results?
  A: Start with a “clean-room” setup—Brother PE550D tension tests are unreliable if the needle, bobbin, or test materials add extra variables.
  • Install a fresh 75/11 embroidery needle before any testing.
  • Load clean white bobbin thread and re-check that no loose thread tails are trapping the bobbin.
  • Test on stable scrap woven cotton with tear-away stabilizer and use high-contrast thread colors (example: purple top + white bobbin).
  • Success check: the test stitches change predictably when the screw turns change, instead of random results from run to run.
  • If it still fails: rethread the top completely and verify the bobbin thread is seated through the bobbin tension slit with slight drag.
• Q: How can Brother PE550D owners open the bobbin area and remove the embroidery unit without triggering a Brother PE550D malfunction or warning pop-up?
  A: Power off the Brother PE550D before removing plates or the embroidery unit to prevent sensor-related warnings.
  • Turn OFF the Brother PE550D before removing the embroidery unit or needle plate cover.
  • Remove the embroidery unit by supporting it, pressing the release lever, and sliding it gently out.
  • Remove the gray needle plate cover by pressing down slightly and pulling toward you until the clips “snap” free.
  • Success check: the Brother PE550D restarts normally with no “Safety Device Activated”/malfunction message after reassembly.
  • If it still fails: reboot the machine fully and reassemble with the embroidery unit clicked in place before powering on.
• Q: Is the Brother PE550D black bobbin case supposed to feel loose, and how can Brother PE550D users confirm the bobbin case is seated correctly?
  A: A slightly loose-feeling Brother PE550D bobbin case is normal—correct alignment matters more than tightness.
  • Lift out the black bobbin case and place it back without forcing it.
  • Align the white arrow/triangle on the bobbin case with the white dot on the machine race.
  • Confirm the case sits flat; do not accept a “seesaw” rock.
  • Success check: the bobbin case drops in, wiggles slightly, but sits flat and stitches without abnormal noise.
  • If it still fails: remove and reseat again, then verify the bobbin thread is routed through the tension slit and cut at the cutter.
• Q: How do Brother PE550D users set a repeatable baseline on the Brother PE550D bobbin tension screw without damaging the screw?
  A: Use the “clockwise-to-stop, then back off in measured turns” method so every Brother PE550D adjustment is repeatable.
  • Identify the correct screw: adjust only the slotted silver tension screw, not the green-painted screw.
  • Turn the silver screw clockwise gently until it stops, then stop immediately (do not crank down).
  • Mark the slot position visually, then loosen counter-clockwise in full, counted turns (example sequence: 1, 2, 3, 3.5, 4).
  • Success check: written notes match the exact turn count used for each stitched test, and results trend tighter/looser as expected.
  • If it still fails: restart the loop from the baseline each time (tighten-to-stop again) so previous partial turns do not stack errors.
• Q: How can Brother PE550D owners run the built-in Brother PE550D letter “I” tension test and judge “too tight” vs “too loose” correctly?
  A: Use the Brother PE550D built-in capital “I” satin column and judge only the back of the hoop for a reliable tension read.
  • Select Alphabet Menu → first alphabet set (Tab 1) → capital “I” → Medium size → rotate 90° to stitch horizontally.
  • Stitch one “I” per adjustment, then flip the hoop and inspect the back immediately.
  • Target the “1/3 rule”: bobbin thread centered in the middle third, with a little top-thread showing along both edges.
  • Success check: the “I” edges stitch straight (not jagged/wavy) and the back shows a balanced, centered bobbin strip.
  • If it still fails: if the underside is mostly top-thread color, loosen the bobbin screw; if the column turns wavy at high turn counts, tighten slightly.
• Q: How can Brother PE550D users stop birdnesting and fabric being chewed under the needle on a Brother PE550D during tension testing?
  A: On a Brother PE550D, birdnesting is often caused by top-threading errors or fabric “flagging,” not only bobbin tension.
  • Rethread the top thread with the presser foot UP to ensure the take-up lever is not missed.
  • Hoop scrap cotton drum-tight with stabilizer so the fabric cannot bounce during stitching.
  • Power OFF before opening the bobbin area to clear tangles safely and avoid sensor pop-ups.
  • Success check: the next stitch-out starts cleanly with no thread pile-up under the plate and the fabric does not get pushed down.
  • If it still fails: return to the single “I” test pattern and change only one variable (threading first, then bobbin turns).
