Brother PE-Design 11 Layout & Editing: The Calm, Confident Tour That Stops Beginner Mistakes Before They Stitch Out

Mastering PE-Design 11 isn't just about learning where the buttons are; it’s about translating what you see on a 2D screen into a 3D physical reality of thread, fabric, and tension.

If looking at the interface for the first time feels like staring at the cockpit of a 747, you are not alone. I’ve watched seasoned sewers freeze at that blank grid. But here is the truth: Layout & Editing is highly logical. It is simply a series of commands that tell your machine exactly where to drop the needle.

This guide moves beyond the "what" to the "how" and "why." We will walk through the workflow sequence—design page, ribbon tabs, sewing order, attributes, and simulation—but we will filter it through the lens of a production expert. My goal is to save you from the three enemies of embroidery: bird-nesting, needle breaks, and wasted garments.

The Design Page Grid in Brother PE-Design 11: Where Your Stitch-Out Reality Begins (and Ends)

The white area on your screen is the Design Page. Treat this not just as a canvas, but as your legal safety boundary.

Beginners often ignore the grid until they get to the machine. This is a mistake. The grid corresponds to the physical limits of your hoop's pantograph movement.

• The "Clunk" of Failure: If you design right up to the edge without leaving a safety margin, you risk the machine’s presser foot striking the inner edge of the plastic hoop. That "clunk" sound usually means a ruined design or a broken needle.
• Visual Check: Always maintain a "breathing room" of at least 5mm from the grid edge.

Expert Setup: Before importing anything, matching your Design Page settings to your physical hoop size is vital. If you are using third-party tools, like a magnetic embroidery hoops for brother, ensure your page size reflects the actual sewable area, which might differ slightly from standard plastic hoops.

The Flower Icon File Menu in PE-Design 11: The “Don’t Lose Your Work” Corner

At the top-left, the Flower icon houses core file actions: New, Open, Save, Print, and Import.

This seems basic, but in a busy shop, file management is your insurance policy.

• The "Save As" Rule: Never overwrite your original. If you are resizing a logo for a hat vs. a jacket pocket, save them as Logo_Hat_v1 and Logo_Jacket_v1.
• The Physical Proof: Use the Print function to create a "run sheet." This sheet should travel with the garment. It lists the color swaps and prevents the operator from guessing which blue thread to use.


The Ribbon Tabs (Home / Image / View / ScanNCut): Stop Hunting—Start Predicting Where Tools Live

Under the flower menu is the Ribbon, changing dynamically based on the tabs: Home, Image, View, and ScanNCut.

Novices waste hours "hunting" for icons. Pros use a predictive mental model:

• Home: The construction site. Select, Move, Resize, Text.
• Image: The darkroom. If you are dealing with a JPEG/PNG (Auto-Digitizing or Photo Stitch), go here.
• View: The lens. Zoom, Grid settings, Realistic Preview.
• ScanNCut: The bridge. Cutting data for applique.

Sensory Anchor: If you find yourself clicking randomly, stop. Ask: "Am I trying to change the design (Home) or look at the design (View)?"

The Contextual “Shapes” Tab Trick: Why PE-Design 11 Suddenly Adds New Menus

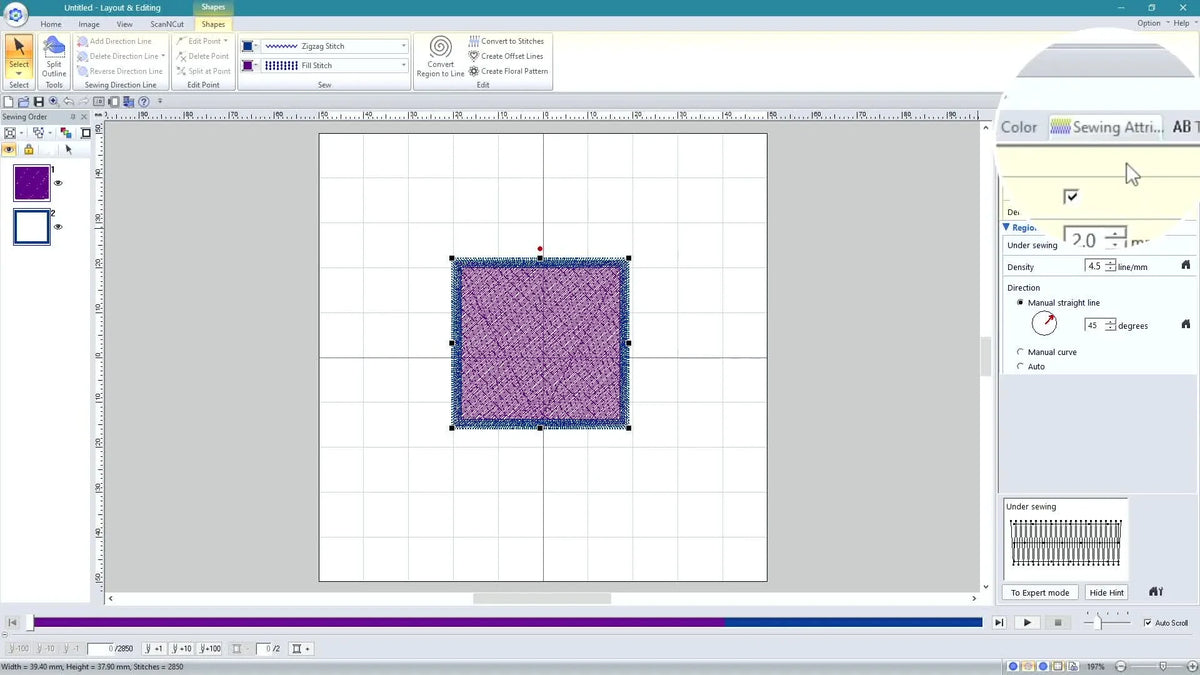

The video demonstrates drawing a rectangle to reveal a critical behavior: Contextual Tabs.

When you select a specific object (like a shape or text), PE-Design 11 spawns a new tab (e.g., Shapes or Text) with tools specific to that object.

• The "Missing Tool" Panic: A common support ticket I receive is, "My outline tool disappeared!" It didn't. You simply deselected the object.
• The Fix: Click the object on the design page. If it highlights (look for the marching ants or box handles), the tool tab will reappear.

The Online Instruction Manual in PE-Design 11: The Fastest Way to Confirm a Feature

The Help tab opens the searchable Online Instruction Manual.

Pro Workflow: Don't guess on complex settings. If you are adjusting "Pull Compensation," search for it.

• Why it matters: Parameters like "pull compensation" fight the physical tendency of fabric to shrink under stitches. A value of 0.2mm might be fine for denim, but 0.4mm is needed for fleece. The manual defines the ranges; your experience defines the choice.

The Quick Access Toolbar: Your Personal “Speed Row” for Daily Commands

Located above or below the ribbon, the Quick Access Toolbar is customizable.

Production Tip: Move your highest-frequency tools here.

1. Undo/Redo: For obvious reasons.
2. Stitch Simulator: You should run this on every design.
3. Hoop Select: To quickly swap context between projects.

The Sewing Order Pane in PE-Design 11: Read It Like a Stitch-Out Timeline

On the left, the Sewing Order pane displays the sequence of events from top to bottom.

This is the sheet music for your machine. Reading it correctly prevents disaster:

• Layering Logic: Does the background fill stitch before the detail text? If the text is at the top of the list, it will be buried by the fill later.
• Color Efficiency: Are there three separate red sections causing three separate stops? Group them (drag and drop) to save minutes per run.
• The "Jump" Check: Look for long distances between consecutive objects. Long jumps increase the risk of the trimmer failing or the thread pulling out of the needle eye.


Thread Color Changes in the Virtual Thread Chart: Make the Screen Match Your Thread Rack

The video highlights selecting elements and changing colors via the virtual thread chart.

The Rookie Mistake: Trusting the screen color blindly. Monitors are RGB; thread is physical dye.

• The Solution: Use the User Thread Chart feature to map your actual inventory (e.g., Madeira Polyneon or Robison-Anton numbers).
• Why: When you hand the file to a machine, you want the machine to display code "1801" (Red), not just a generic red pixel. This reduces operator error.

If you are using efficient holding tools like magnetic embroidery hoops for brother, you are often working on finished goods where you cannot afford a "wrong color" mistake. The digital chart must match the physical rack.

Pro tip from real users (based on common beginner pain)

To build muscle memory, perform this "Loop of Three" before trying a complex project:

1. Import a simple shape.
2. Change its color.
3. Reorder it in the Sewing Order pane.

Repeat this three times. The fear of "breaking the software" will vanish.

Sewing Attributes (Beginner vs Expert Mode): The Switch That Separates “It Sewed” from “It Sewed Well”

The Sewing Attributes pane is the engine room. It controls Density, Under Sewing (Underlay), and Pull Compensation. The video shows the toggle from Beginner Mode to Expert Mode.

Switch to Expert Mode immediately. Beginner mode hides the variables that actually cause thread breaks.

Critical Settings (The Safe Zones)

Beginners often crash their machines by setting density too high (too many stitches). Use these empirical safety zones:

• Density (Uni-fill/Satin):
  • Standard: 4.5 to 5.0 points (approx. 0.4mm - 0.5mm spacing).
  • Risk Zone: Anything lower than 4.0 points (0.3mm) creates a "cardboard" effect and may cause needle heat friction or thread shredding.
• Under Sewing (Underlay):
  • Always On: For any area larger than 5mm. It knits the fabric to the stabilizer before the top stitching lays down.
  • Sound Check: Good underlay sounds like a rhythmic, light tapping. It stabilizes the "canvas."

Warning: Mechanical Risk
Never simply "crank up" density to cover a gap. If you pack stitches too tightly (e.g., density < 3.5 pts), the needle may deflect off the previous thread mass, striking the needle plate and shattering. This can send metal shards flying and ruin hook timing.

The Hidden Connection: Software vs. Tooling

Perfect attributes cannot fix bad hooping. If you see gaps despite correct settings, your fabric is slipping. This is where users of standard plastic hoops often struggle with "hoop burn" or shifting. Upgrading to a brother magnetic hoop can resolve this by providing consistent, perimeter-wide pressure without forcing you to over-tighten screws.

Text Tools in PE-Design 11: Kerning, Angle, and Curved Transforms Without the Headache

The Text tools allow for Kerning (spacing), Offsets, and Curving.

Visual Check: Zoom out to 100%. If letters touch on screen, they will overlap in thread. Add +1 or +2 kerning to let them breathe. Thread has volume; pixels do not.

Watch out: curved text exposes weak stabilization

Curved text (like "arched names" on backs) places stress on the fabric bias. If the fabric isn't stabilized perfectly, the text will distort into an egg shape.

• Solution Level 1: Use a heavier Cutaway stabilizer.
• Solution Level 2: Use a specialized sleeve hoop or a dedicated magnetic frame designed for narrow tubings to prevent the fabric from twisting during the run.

The Built-In Design Library (1,000+ Designs): Import, Resize, and Stay Inside the Page

The Import tab accesses the library. The video demonstrates resizing a floral border to fit the page.

The ±20% Rule:

• Scaling Down: If you shrink a design by more than 20% without ensuring "Stitch Count check" is active, the density becomes dangerously high (mass remains, area shrinks).
• Scaling Up: If you enlarge >20%, stitches become long and loose (snag hazards).
• The Fix: In PE-Design 11, always ensure the "Recalculate Stitch Count" option is checked when resizing imported stitch files (PES), or better yet, resize native outline files (.PEM, .EMB) which recalculate automatically.

Importing Purchased Designs from a USB Drive: Keep Your Files Organized Before PE-Design 11 Gets Blamed

Organization prevents panic. When importing from a USB:

• Keep a "Raw" folder (un-edited originals).
• Keep a "Production" folder (edited, resized, color-sorted).
• Why: If you accidentally ruin the density on a file, you need the Raw backup to restart.

Stitch Simulator in PE-Design 11: Your Cheapest “Test Sew”

The Stitch Simulator is your pre-flight check.

What to look for (The Visual Anchor):

1. The "Wiper" Motion: Watch for excessive travel. If the machine jumps from left to right constantly, reorder your sewing sequence to save time.
2. The Layering Check: Ensure borders stitch after fills. If you see the border run first, the fill will push the fabric and create a gap (white space) between them.

The “Hidden” Prep Before You Touch Any Settings: What Pros Check in 60 Seconds

Consumables are the invisible variable. Before you design, check your physical supplies.

Hidden Consumables Checklist

• Needles: Is the needle fresh? (Replace every 8 hours of run time). Standard: 75/11. Heavy Canvas: 90/14.
• Bobbin: Is the tension correct? (Drop test: hold the thread, the case should slide down 2-3 inches and stop).
• Temporary Spray (e.g., 505): Essential for floating fabric on stabilizer.
• Lighting: Can you see the needle eye clearly?

A Stabilizer Decision Tree That Prevents 80% of Puckering

Software controls the needle; stabilizer controls the fabric. Use this logic tree:

Decision Tree: Fabric → Stabilizer Choice 1) Is the fabric stretchy (T-shirts, Polos, Knits)?

• MUST USE: Cutaway Stabilizer.
• Why: Tearaway will disintegrate under needle penetrations, causing the knit to distort.

2) Is the fabric stable (Denim, Canvas, Towels)?

• USE: Tearaway Stabilizer.
• Why: The fabric supports itself; the stabilizer just adds temporary rigidity.

3) Is there a pile (Towels, Fleece, Velvet)?

• ADD: Water Soluble Topping (Solvy) on top.
• Why: Prevents stitches from sinking into the fluff.

If you are using a hooping station for machine embroidery, this process becomes faster because you can pre-cut stabilizer sheets and align them perfectly every time, reducing the "prep tax" on each garment.

Setup That Saves Time Later: Build a Repeatable PE-Design 11 Workflow

Setup Checklist (Digital Pre-Flight)

• Design Page: Set to match your exact hoop size.
• Grid: Visible and set to 10mm (1cm) for easy estimation.
• Center: Design is centered (Shortcut: Ctrl+M / Cmd+M).
• Sewing Attributes: Density checked? (Target: 4.5-5.0 pts).
• Sewing Order: Optimized to reduce color stick changes.
• Simulator: Watched from start to finish.

Operation: Editing Without Regret

Here is the condensed operational flow:

1. Define Reality: Set Design Page to hoop size.
2. Import/Create: Bring in your art.
3. Engineer: Set Attributes (Density/Underlay). Expert Mode recommended.
4. Sequence: Arrange Sewing Order for efficiency.
5. Simulate: Validate visually.
6. Save: Save strict versions (v1_master, v1_PES).

Two Common “Beginner Panic” Moments—and the Fix

Symptom 1: "The screen looks distinct, but the text is indistinguishable blobs on fabric."

• Likely Cause: The letters were too small (<5mm) and the density was too high. The thread bunched up.
• The Fix: Increase text size or use a specific "Small Font" (60wt thread recommended). Open kerning by +20%.

Symptom 2: "There is a white gap between my outline and my fill."

• Likely Cause: Pull Compensation/Shrinkage. The fill stitches pulled the fabric inward, pulling away from the outline.
• The Fix: In Sewing Attributes, increase Pull Compensation to 0.3mm or 0.4mm. This overlaps the stitches slightly to account for the shrinkage.

The Upgrade Path (When You’re Ready): Make the Digital Work Pay Off on the Machine

You have mastered the software. Now, the bottleneck shifts to the physical world. If you find yourself spending 5 minutes hooping for a 2-minute stitch run, or if you are ruining garments with hoop burn, it is time to evaluate your tools.

Scenario Trigger: Production Fatigue.

• The Pain: Wrists hurt from tightening screws; alignment is inconsistent across 50 shirts.
• The Diagnosis: The standard plastic hoop is a "hobby" tool. It relies on friction and hand strength.
• The Solution Level 1 (Workflow): A embroidery hooping station system aligns the placement automatically.
• The Solution Level 2 (Tooling): A magnetic embroidery hoop.
  • Why: It snaps the fabric tight instantly using magnetic force. No screws, no burn marks, no wrist pain. It allows you to maintain the "drum-tight" tension required for the designs you created in PE-Design 11.

Warning: Magnetic Safety
Commercial magnetic hoops use industrial-strength Neodymium magnets.
* Pinch Hazard: Handle with extreme care; they can crush fingers.
* Medical Device Safety: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on laptops or phones.

The Solution Level 3 (Scale): If your PE-Design files are perfect but your single-needle machine takes too long to change colors, consider the ROI of a Multi-Needle Machine (like SEWTECH). The time you save on thread changes (which PE-Design 11 minimizes but cannot eliminate) translates directly to profit margin.

Final Thought: PE-Design 11 is not a barrier; it is your bridge. By combining the digital logic of the Sewing Order and Attributes with the physical reality of Stabilizers and Quality Hoops, you move from "hoping it works" to "knowing it will." Start with the grid, check your density, and always, always simulate.

FAQ

• Q: How do Brother PE-Design 11 Design Page settings prevent the embroidery machine presser foot from hitting the hoop edge with a “clunk”?
  A: Set the PE-Design 11 Design Page to the exact hoop sewable area and keep at least a 5 mm safety margin inside the grid.
  • Match: Open Design Page settings before importing artwork and select the hoop size you will actually stitch in.
  • Leave: Keep all stitches at least 5 mm away from the page boundary so the pantograph does not drive the foot into the hoop.
  • Center: Use the center function to avoid unknowingly pushing objects to the edge.
  • Success check: The stitch simulator shows no stitches touching the boundary, and the machine runs without the hoop-strike “clunk.”
  • If it still fails: Reduce design size slightly and re-check that the selected hoop size matches the real sewable area of the physical hoop.
• Q: In Brother PE-Design 11, why did the Shapes or Text tools “disappear,” and how do contextual tabs come back?
  A: The tools did not disappear—Brother PE-Design 11 only shows Shapes/Text tabs when the matching object is actively selected.
  • Click: Select the shape or text on the design page until handles/marching-ants appear.
  • Look: Confirm the contextual tab (Shapes or Text) appears on the ribbon after selection.
  • Re-try: If nothing highlights, zoom in and click directly on the object boundary.
  • Success check: The missing tool tab reappears immediately when the object is highlighted.
  • If it still fails: Use the Sewing Order pane to click the object entry to force-select it.
• Q: What PE-Design 11 Sewing Attributes “safe zones” prevent thread breaks and needle damage when stitch density is too high?
  A: Keep density in the safe range and do not “crank up” density to cover gaps, because overly tight stitching can deflect and break needles.
  • Switch: Turn on Expert Mode so Density, Under Sewing (Underlay), and Pull Compensation are visible.
  • Set: Use density around 4.5–5.0 points (about 0.4–0.5 mm spacing); avoid going below 4.0 points as a risk zone.
  • Enable: Turn Under Sewing on for any area larger than 5 mm to stabilize before top stitching.
  • Success check: Underlay sounds like light rhythmic tapping, and the design stitches without shredding or overheating.
  • If it still fails: Do not reduce density further—verify hooping stability and stabilizer choice before changing more software settings.
• Q: In Brother PE-Design 11, how does the Stitch Simulator help prevent long jumps, inefficient travel, and outline-before-fill gaps?
  A: Run the Stitch Simulator on every design and reorder objects to reduce travel and stitch borders after fills.
  • Watch: Look for “wiper” motion (excess left-right travel) and drag items in the Sewing Order pane to reduce jumping.
  • Verify: Confirm fills stitch before borders so the border finishes cleanly on top.
  • Check: Look for long distances between consecutive objects, which can increase trim failures or thread pull-out.
  • Success check: The simulated run looks smooth with minimal long jumps, and borders stitch after fills.
  • If it still fails: Re-group same-color objects to reduce stops and re-simulate from start to finish.
• Q: How do Brother PE-Design 11 resizing rules prevent “cardboard” density when shrinking designs or loose stitches when enlarging stitch files?
  A: Follow the ±20% rule and ensure stitch recalculation is enabled when resizing imported stitch files.
  • Limit: Avoid shrinking or enlarging more than 20% without checking stitch behavior.
  • Enable: When resizing imported stitch files (PES), confirm “Recalculate Stitch Count” is checked.
  • Prefer: Resize native outline files (PEM/EMB) when possible because they recalculate more reliably.
  • Success check: After resizing, the density does not look packed like cardboard when reduced, and stitches do not look overly long/loose when enlarged.
  • If it still fails: Go back to the unedited “Raw” file version and redo the resize with recalculation enabled.
• Q: What stabilizer decision tree prevents puckering when digitizing and stitching designs created in Brother PE-Design 11?
  A: Choose stabilizer by fabric type: cutaway for stretch, tearaway for stable fabrics, and add water-soluble topping for pile.
  • Use: Pick Cutaway stabilizer for knits (T-shirts, polos) to prevent distortion.
  • Use: Pick Tearaway stabilizer for stable fabrics (denim, canvas, towels) for temporary rigidity.
  • Add: Place water-soluble topping on towels/fleece/velvet to stop stitches from sinking.
  • Success check: The fabric stays flat after the run, and details (especially text) stay crisp instead of rippling or sinking.
  • If it still fails: Increase stabilization for curved text or high-stress areas (often a heavier cutaway) and confirm hooping is not slipping.
• Q: What pre-flight consumables checks reduce bird-nesting and wasted garments before running Brother PE-Design 11 designs on an embroidery machine?
  A: Do a 60-second consumables check—needle condition, bobbin tension drop test, and fabric holding—before blaming the file.
  • Replace: Install a fresh needle (the guide recommends changing about every 8 hours of run time; common starting points are 75/11 standard and 90/14 heavy canvas).
  • Test: Perform the bobbin case drop test (it should slide down 2–3 inches and stop) to confirm tension is in range.
  • Secure: Use temporary spray adhesive when floating fabric on stabilizer to prevent shifting during stitching.
  • Success check: The machine starts cleanly without nesting underneath, and the stitch-out stays stable through the first color.
  • If it still fails: Stop the run and re-check hooping slippage and Sewing Attributes (especially density and underlay) before continuing.
• Q: What magnetic hoop safety rules apply when upgrading to a magnetic embroidery hoop for garment production after digitizing in Brother PE-Design 11?
  A: Treat magnetic hoops as industrial tools—handle slowly to avoid pinches and keep magnets away from medical devices and electronics.
  • Handle: Keep fingers clear when closing the hoop; magnets can snap together with crushing force.
  • Separate: Keep magnets at least 6 inches away from pacemakers and similar medical devices.
  • Protect: Do not place magnetic hoops directly on laptops or phones.
  • Success check: The hoop closes without finger contact, and the work area stays clear of sensitive devices.
  • If it still fails: Pause use and change handling technique (two-handed, controlled closing) before attempting production-speed hooping.
