Brother NV800E Thread Shredding Fixes That Actually Stick: From Dry Spools to Burr-Free Needle Plates

The Ultimate Guide to Stopping Thread Shredding: A Data-Driven Maintenance Protocol

Machine embroidery is often described as an art, but in reality, it is a physics equation. It is the management of tension, friction, and speed.

When your thread shreds—separating into fuzzy strands, knotting at the needle eye, and snapping—it feels like a personal failure. Beginners often blame themselves or "ghosts" in the tension disks. However, as an industry veteran, I can tell you: Thread shredding is almost always a friction problem. somewhere in the path, something is rough, dry, or dragging.

If you are currently staring at a bird's nest of thread and feeling the urge to throw your machine out the window, pause. This guide is your "Level 3 Diagnostic." We will move beyond basic advice and use a systematic, empirical approach to eliminate friction points on machines like the Brother NV800E (and similar drop-in bobbin system).

We will cover the "Zero-Cost" fixes first, move into mechanical polishing, and finally discuss how upgrading your workflow tools—like hooping stations—can prevent these issues from returning.

1. Anatomy of a Shred: Decoding the "Fuzz Ball"

Before we pick up a screwdriver, look closely at the break. In the video reference, the microscope view reveals a specific pattern: the thread doesn't snap cleanly (like a tension break); it unravels.

The Sensory Diagnosis

• Visual: Look for a "fuzz ball" or tiny knot jammed right above the needle eye.
• Tactile: Run your fingers along the thread spool. Does it feel crisp, or brittle like dry straw?
• Auditory: Did you hear a rhythmic tick-tick-tick before the break? That is the sound of the thread snagging on a burr.

The Root Causes

If you see fraying before the break, the culprit is Abrasion. Your thread is being "sanded down" by one of these factors:

1. Dehydrated Thread: Old rayon or polyester that has lost its elasticity.
2. Needle Deflection: The needle bending slightly and hitting the metal plate, creating sharp burrs.
3. Bobbin Lift: Dust pushing the bobbin case upward, ruining the tension geometry.


2. The Pre-Flight Check: Zero-Invasive Fixes

Professional embroiderers never open a toolbox until they have ruled out variables. Follow this protocol before touching a screw.

Variable A: The Thread Condition

Thread has a shelf life. Air conditioning and heating systems suck moisture out of fibers, making them brittle.

• The Test: Pull a length of thread and snap it. It should have a slight elastic "give" before breaking. If it snaps instantly without stretching, it is dry.

Variable B: The Needle Logic

Using a Universal needle for dense embroidery is the #1 cause of shredding. Top-stitch needles have larger eyes (reducing friction), and specific embroidery needles have a scarf designed to protect the thread loop.

• The Rule: Change your needle every 8 hours of stitching or every 50,000 stitches.
• The Match:
  • Standard Polyester: Size 75/11 Embroidery Needle.
  • Thick Toweling/Canvas: Size 90/14 Top-Stitch Needle.
  • Metallic Thread: Size 90/14 Metafil/Metallic Needle (Must use).

Warning: Never test a needle for sharpness by running it over your fingernail (a common myth). This damages the needle point. Use the "pantyhose test" or simple visual inspection for bends.

Prep Checklist (Do Not Skip)

• Thread Test: Thread is not brittle and has no visible dust/fading.
• Needle Match: Needle type matches the specific thread weight (e.g., Metallic needle for metallic thread).
• Needle Health: Needle is brand new or verified straight (roll it on a flat mirror to check).
• Workspace: Clear the table. Have a magnetic dish ready for screws.


3. Thread Lubrication: The "Secret Weapon" for Dry Environments

If your thread is chemically sound but just a bit dry (common in winter), lubrication is a valid industry trick. The video demonstrates using Gladine Silicone Spray, but the technique matters more than the brand.

The "Quadrant Spray" Technique

1. Mark It: Use a marker to divide the bottom of the spool into four quadrants.
2. Distance: Hold the spray 20cm (8 inches) away. Do not soak it! You want a mist, not a bath.
3. Rotate: Spray one quadrant, rotate, spray the next.
4. Rest: Let it sit for 5–10 minutes. The silicone needs time to migrate into the inner fibers.

Why this works: It lowers the coefficient of friction as the thread passes through the tension disks and the needle eye.

4. Safe Disassembly: Protecting the Alignment

To find the hidden friction, we must look under the hood. However, on computerized machines, "forcing" the embroidery arm can desynchronize the X-Y motors.

The Protocol

1. Digital Park: Press the "Park/Remove Embroidery Unit" icon on your screen.
2. Listen: Wait for the carriage to move and the motor sound to stop.
3. Power Down: Turn the machine OFF before physically unlocking the unit.
4. Dust Gate: Immediately close the connector cover. Dust in the data port is a $200 repair bill.


5. The "Dust Lift" Theory: Cleaning the Bobbin Area

Here is a phenomenon few manuals explain: Stabilizer Dust Lift. When you stitch, the needle punches out microscopic confetti of stabilizer. This dust accumulates under the black plastic bobbin case. Eventually, it forms a felt-like pad that physically lifts the bobbin case closer to the needle plate. This ruins your thread clearance, causing shredding.

Deep Cleaning Steps

1. Remove: Take out the bobbin cover, bobbin, and the needle plate screws. (Note: Put screws in a magnetic dish. Losing these is a disaster).
2. Extract: Lift out the black bobbin case.
3. The Sweep: Use the brush supplied with your machine.
   • Target: The hook assembly and the feed dogs.
   • Tool: For deep corners, a clean, long-handled paintbrush works better than the tiny kit brush.

Warning: NEVER use canned air or a vacuum. Canned air blows lint deep into the sensors and greased gears. Vacuums can generate static electricity that fries the motherboard. Brush and tweezers only.

6. The Component Often Ignored: The Bobbin Case Felt

Look at your bobbin case. There is a small rectangular piece of felt or "fur" (usually white or black).

• Function: It acts as a brake to prevent the bobbin from over-spinning (backlash).
• Maintenance: If this is packed with lint or worn bald, your bobbin tension will fluctuate wildly, causing top thread shredding. Clean it gently. If it is missing, buy a replacement case immediately.

7. The Hardware Fix: Polishing the "Needle Strike" Zone

This is the core of the expert-level fix. If you have ever had a needle break, or even just bend slightly while stitching thick fabrics, it likely scarred the needle plate hole. Even a microscopic scratch (burr) acts like a knife, slicing your thread every time it passes through.

The P1000 Polishing Protocol

You are going to polish the needle hole, not change its shape.

Tools Needed:

• Wet/Dry Sandpaper (Grit P1000 or higher). Do not use standard wood sandpaper (too rough).
• Water.
• Tissue.

The Method:

1. Prepare: Cut a strip of sandpaper 2cm x 8cm. Fold it lengthwise twice.
2. Wet: Dip in water, blot on tissue. It should be damp, not dripping.

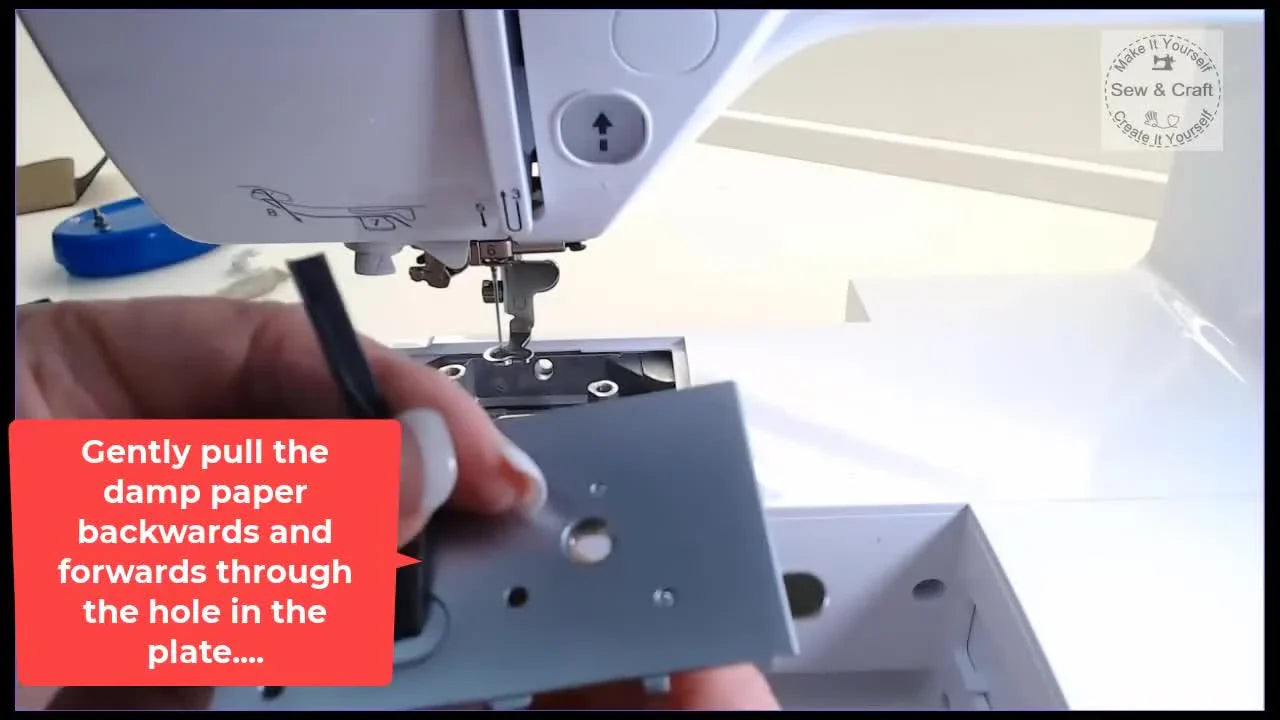

3. The "Floss": Thread the strip through the needle hole on the metal plate.
4. Action: Gently pull back and forth against the back edge and front edge. Do this 5–10 times.
   • Sensory Check: Initially, you might feel a "gritty" resistance. As you polish, it should suddenly feel smooth as glass.
5. Clean: Wipe away all grit residue.

Commercial Pivot: Why do these burrs happen? Usually, it is because the fabric moved, deflecting the needle. If you struggle with keeping fabric tight, looking into a hooping station for machine embroidery can stabilize your prep process, preventing the movement that causes these burrs.

8. Precision Reassembly: The "4-Turn" Rule

Putting the machine back together is where beginners often induce new tension issues.

The Metal Tab Alignment

When replacing the needle plate, ensure the metal tab on the back slides under the plastic housing of the machine. It must sit flush.

The Torque Sequence

If you tighten one screw 100% before the other, the plate will tilt effectively 0.5mm, which is enough to cause needle strikes.

1. Insert both screws loosely by hand.
2. Tighten Left Screw: 4 Turns.
3. Tighten Right Screw: 4 Turns.
4. Repeat until snug. This ensures the plate comes down perfectly flat.




Bobbin Case Re-Seating

• Visual: Align the triangle/arrow on the bobbin case with the white dot on the machine frame.
• Tactile: Tap it with your finger. It should have a tiny bit of "wiggle" (for thread clearance) but should not bounce up and down.

9. Advanced: Checking the Embroidery Foot

If the plate is smooth but shredding persists, check the presser foot. A bent needle often hits the foot before it hits the plate.

• The Check: Run a Q-tip inside the hole of the embroidery foot. If cotton fibers snag, you have a burr.
• The Fix: Use the same P1000 sandpaper technique (rolled into a tube) to gently smooth the inside of the foot.

10. When Tools Are the Answer: Upgrading Your Workflow

If you have performed all the maintenance above and still face frequent breaks—especially on thick items like hoodies or towels—the issue is likely Needle Deflection caused by "Flagging."

Flagging occurs when the fabric bounces up and down with the needle because it isn't hooped tightly enough. This bending needle hits the plate, creating the burrs we just polished out.

The Solution Ladder:

1. Level 1 (Consumables): Use a heavier "Cutaway" stabilizer for unstable fabrics.
2. Level 2 (Workflow): If manual hooping hurts your wrists or leaves gaps, tools like magnetic embroidery hoops for brother machines change the game.
   • Why: They clamp the fabric firmly without the "tug of war" of screw-hoops, reducing flagging and preserving your needle plate.
3. Level 3 (Production): For PE800 owners doing volume, a specific brother pe800 magnetic hoop allows for continuous production with zero "hoop burn" marks on sensitive fabrics.

Warning: Magnetic Safety. These hoops use industrial-strength magnets. Do not place them near pacemakers, hard drives, or credit cards. Watch your fingers—they snap together with significant force.

Decision Tree: Fabric vs. Stabilizer Choice

Wrong stabilizer = Flagging = Needle Deflection = Burrs = Shredded Thread.

1. Is the fabric stretchy (T-shirt, Knit)?
   • Yes: Use Cutaway (No-Show Mesh). Tearaway will fail, causing the design to distort and the needle to deflect.
   • No: Proceed to 2.
2. Is the fabric thick/lofty (Towel, Fleece)?
   • Yes: Use Tearaway (to avoid bulk) + Water Soluble Topping (to stop stitches sinking). Use a fresh 90/14 Needle.
   • No: Proceed to 3.
3. Is the fabric wovens (Cotton, Twill)?
   • Yes: Medium weight Tearaway is usually sufficient.

Final Operational Checklist

Before running your next real project, run this test:

• Bobbin Case: "Arrow-to-Dot" alignment verified.
• Plate: Screws tightened evenly; plate is flush.
• Needle: Fresh needle installed, orientation (flat side back) correct.
• Thread Path: Re-threaded with presser foot UP (to open tension disks).
• Test Stitch: Run a standard "H" or block letter on scrap fabric.
  • Success Metric: No clicking sounds. White bobbin thread shows 1/3 width on the back. Top thread looks smooth, not twisted.

Summary

Thread shredding is not a curse; it is a symptom of friction. By keeping your thread conditioned, your bobbin area clean of "lift," and your needle plate polished mirror-smooth, you eliminate the friction. And when you are ready to stop managing friction and start increasing production speed, consider how advanced tools like magnetic embroidery hoops can remove the mechanical stress that causes these problems in the first place.

FAQ

• Q: Why does Brother NV800E top thread shred and form a fuzzy knot right above the needle eye?
  A: This pattern almost always points to friction/abrasion somewhere in the thread path, not a simple “too tight tension” issue.
  • Inspect: Look for a tiny “fuzz ball” or knot jammed just above the needle eye and listen for a rhythmic tick before the break.
  • Swap: Replace the needle first (a fresh embroidery/top-stitch/metallic needle as appropriate) and re-thread with the presser foot UP to open the tension disks.
  • Reduce drag: If thread feels dry/brittle, lightly lubricate the spool using a light mist and let it rest 5–10 minutes before stitching.
  • Success check: Stitching runs without tick-tick sounds, and the top thread looks smooth (not twisted or fuzzy) at the needle.
  • If it still fails: Deep-clean the bobbin area and check for burrs on the needle plate and embroidery foot.
• Q: How can Brother NV800E users test whether embroidery thread is too dry and causing thread shredding?
  A: Use a simple snap test—dry thread often breaks instantly with no “give.”
  • Pull: Draw out a length of thread from the spool.
  • Snap: Give a firm tug; healthy thread should stretch slightly before breaking.
  • Treat: If it snaps instantly, consider light silicone mist on the spool (do not soak) and wait 5–10 minutes before running the design.
  • Success check: The thread has a slight elastic feel and stops fraying at the needle eye during a test stitch.
  • If it still fails: Change to a correct needle type/size and inspect the needle plate hole for burrs.
• Q: What needle type and change interval helps prevent thread shredding on Brother NV800E embroidery machines?
  A: Use the correct embroidery/top-stitch/metallic needle for the job and change needles about every 8 hours of stitching or every 50,000 stitches.
  • Match: Use 75/11 embroidery needle for standard polyester; 90/14 top-stitch needle for thick toweling/canvas; 90/14 metallic (metafil) needle for metallic thread.
  • Replace: Install a brand-new needle when troubleshooting shredding (needles can bend without looking obvious).
  • Verify: Roll the needle on a flat mirror to confirm it is straight before blaming tension.
  • Success check: No repeated snapping at the needle eye and no clicking sound that suggests snagging.
  • If it still fails: Clean under the bobbin case to address “dust lift,” then polish the needle plate hole if needed.
• Q: Is it safe to use canned air or a vacuum to clean the Brother NV800E bobbin area when thread keeps shredding?
  A: No—avoid canned air and vacuums; use brushing and tweezers to remove lint and stabilizer dust safely.
  • Remove: Take off bobbin cover, remove bobbin, and lift out the bobbin case as needed for access.
  • Brush: Use the supplied brush (and a clean long-handled paintbrush for corners) to sweep the hook area and feed dogs.
  • Pick: Use tweezers for packed lint; keep debris out of sensors and greased parts.
  • Success check: The bobbin case sits correctly (not lifted) and shredding improves after cleaning.
  • If it still fails: Inspect the bobbin case felt/brake pad and check the needle plate hole for a needle-strike burr.
• Q: How do Brother NV800E owners fix thread shredding caused by a burr in the needle plate hole after a needle strike?
  A: Polish the needle plate needle hole gently with P1000 (or higher) wet/dry sandpaper—polish only, do not enlarge the hole.
  • Remove: Take off the needle plate and wipe it clean before polishing.
  • Floss: Dampen a folded strip of P1000 wet/dry sandpaper and “floss” the strip through the needle hole 5–10 times, focusing on front and back edges.
  • Clean: Wipe away all grit residue before reinstalling the plate.
  • Success check: The sanding action changes from “gritty” to smooth-as-glass, and the tick/snapping stops on a test stitch.
  • If it still fails: Q-tip test the embroidery foot hole for burrs and polish the foot opening the same way.
• Q: How should Brother NV800E users reinstall the needle plate to avoid new needle strikes and tension issues (the “4-turn rule”)?
  A: Tighten both needle plate screws evenly in alternating 4-turn increments so the plate seats perfectly flat.
  • Align: Ensure the rear metal tab of the needle plate slides under the plastic housing and sits flush.
  • Start: Insert both screws loosely by hand first.
  • Tighten: Turn left screw 4 turns, right screw 4 turns, and repeat until snug (do not fully tighten one side first).
  • Success check: The plate sits flush with no rocking, and stitching runs without clicking that suggests contact.
  • If it still fails: Confirm bobbin case is correctly seated (arrow/triangle aligned to the machine’s white dot) and re-thread with presser foot UP.
• Q: What is magnetic hoop safety for machine embroidery magnetic hoops, and what should users avoid?
  A: Magnetic hoops clamp with strong force—keep fingers clear and keep magnets away from pacemakers and magnet-sensitive items.
  • Protect: Keep fingertips out of pinch points when the hoop halves snap together.
  • Separate: Open and close the hoop with controlled movement to prevent sudden snapping.
  • Avoid: Do not place magnetic hoops near pacemakers, hard drives, or credit cards.
  • Success check: The fabric is clamped firmly without a “tug of war,” and the project runs with less flagging and fewer needle deflections.
  • If it still fails: Move up the solution ladder—use heavier cutaway stabilizer for unstable fabrics, then reassess hooping technique and needle choice.
