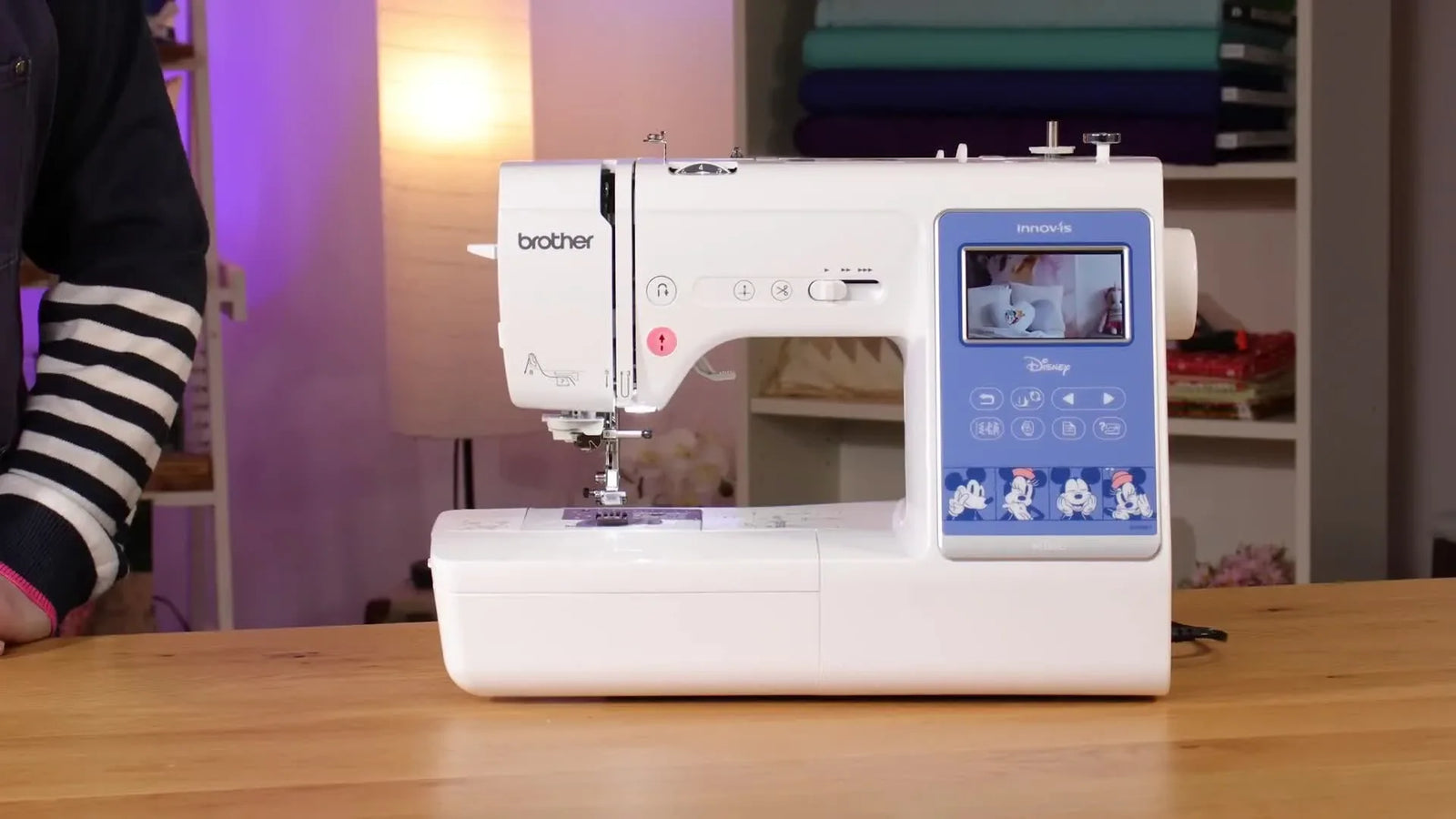

Brother M380D in Real Life: Thread It Right, Sew 8 Layers of Denim, Then Nail Your First 4x4 Disney Embroidery

The "Zero-Panic" Guide to Mastering the Brother M380D: From Unboxing to Production-Ready Embroidery

If you are staring at your new Brother M380D box and your brain is already racing—“Will I break it? Why is the screen yelling at me? Why does my thread look like a bird’s nest?”—stop. Take a breath. This is what we call "New Machine Anxiety," and it is completely normal.

The Brother M380D is a "gateway" machine. It is genuinely beginner-friendly, bridging the gap between standard sewing and the digital world of embroidery. However, machines don't run on hope; they run on physics.

As someone who has trained thousands of embroiderers, I’m not just going to tell you what to do. I’m going to explain how it should feel in your hands so you can build muscle memory. We will transform the standard demo workflow into a shop-floor protocol, complete with the experience-based checks that prevent the classic "First Week Failures": thread nests, broken needles, puckered fabric, and hoop burns.

Unboxing the Brother M380D Sewing & Embroidery Machine Without Missing the “Small Stuff”

The M380D is a hybrid beast. It behaves like a standard sewing machine until you attach the embroidery module, transforming it into a digital creator with a 100 x 100 mm (4 x 4 inches) field.

Most "defective machine" returns are actually setup omissions. Before you plug it in, we need to perform a "Surgical Tray" inventory. You need to identify the tools that keep the machine alive.

The "Hidden Consumables" Inventory: Beginners often rely only on what is in the box. To avoid frustration, ensure you also have:

1. Curved Embroidery Scissors: For snipping jump stitches without looking like you hack-sawed the fabric.
2. Fresh Needles (Size 75/11 & 90/14): The one in the machine is for testing; it will dull quickly.
3. Temporary Adhesive Spray (Optional but Recommended): For floating fabrics that are too thick to hoop.

Prep Checklist (The "Do Not Skip" List):

• Verify Key Components: Locate the embroidery unit, the 100x100mm hoop, and the "Q" foot (Embroidery Foot).
• Tool Accessibility: Find the needle plate screwdriver. Do not lose this; you will need it when (not if) a thread nest happens.
• Spool Cap Physics: Match the cap size to your spool. A small cap on a big spool causes snagging; a big cap on a small spool prevents the thread from unwinding.
• Dust Defense: Locate the hard cover. Dust is the enemy of tension discs.
• Manual Hygiene: Keep the full operation manual on your desk, not in the box.

The Touchscreen + Buttons: The Interface is Your Co-Pilot

The demo highlights the touchscreen and physical buttons: start/stop, speed control, reverse, needle up/down, and the automatic thread cutter.

Cognitive reframing: Do not view the screen as a control panel; view it as a Compliance Officer. It prevents you from making fatal errors.

• The Guardrails: When you attach the embroidery unit, the machine knows. It enforces hoop boundaries so you don't smash a $20 needle into a plastic frame.
• Visual Feedback: When you adjust stitch width/length, the screen shows the change. Trust your eyes.

Threading the Upper Path (1–7): The "Dental Floss" Rule

Threading is the single most common point of failure. If the top thread is not seated deep inside the tension discs, you will get zero tension, resulting in a massive knot on the underside of your fabric.

Sensory Step-by-Step:

1. Raise the Presser Foot: This is non-negotiable. Raising the foot opens the tension discs. If the foot is down, the discs are closed, and the thread will float on top.
2. Spool Logic: Place the spool cap so it touches the spool but doesn't strangle it. The spool must rotate freely.
3. The "Flossing" One-Two: As you guide the thread down channel 3 and up channel 4, hold the thread taut with your right hand near the spool while pulling down with your left. You should feel a slight resistance, similar to snapping dental floss between teeth. That sensation is the thread entering the tension assembly.
4. Auto-Threader Safety: When using the lever (7), keep your fingers away from the needle zone.

Warning: Needle Safety Hazard. Keep fingers clear of the needle area when using the auto-threader or testing stitches. A distraction combined with an accidental press of the "Start" button can lead to a needle through the finger. Always utilize the "Lock" mode on the screen (if available) or turn off the machine when changing needles manually, as explained in guides for the brother sewing and embroidery machine.

Loading the Drop-In Bobbin: The "P" vs. "q" Orientation

The M380D uses a drop-in bobbin system with a clear cover. This is great for visibility, but directionality is physics-bound.

The Visual Anchor: Hold the bobbin so the thread hangs down from the left. It should look like the letter "P". If it looks like a "q", flip it over.

• Placement: Drop it in.
• The Trap: Do not just lay the thread in the groove. You must pull it until it catches in the tension spring of the bobbin case.
• Sensory Check: Pull the tail gently. The bobbin should spin counter-clockwise (anti-clockwise).

Sewing Cotton and Jersey: Letting the Feed Dogs Lead

Before you embroider, you must verify the machine's mechanical health by sewing.

The "Test Strip" Workflow:

1. Cotton (Stable): Use a standard straight stitch. Listen to the machine. It should sound like a rhythmic hum, not a clunky "thump-thump."
2. Jersey (Stretch): Swap to a Jersey/Ballpoint needle. Select the triple stretch stitch (lightning bolt shape). This stitch moves back and forth to allow the seam to stretch with the fabric.

Expert Advice: Do not push or pull the fabric. Your hands are there for steering, not propulsion. If you pull, you bend the needle. If you bend the needle, you damage the hook timing.

Sewing 8 Layers of Denim: The Penetration Test

Beginners fear thick fabrics. The M380D can handle them, provided you respect the physics of needle deflection.

The Protocol for Heavy Duty:

1. Needle Swap: Install a Denim/Jeans needle (Size 90/14 or 100/16). The sharp point punches through; a universal needle will struggle.
2. Stitch Length Adjustment: Increase stitch length to 3.0mm or 3.5mm.
   • Why? Short stitches perforate the denim too closely, potentially tearing the fabric like a postage stamp. Longer stitches float over the bulk.
3. The "Hump Jumper" Technique: When starting on a thick edge, place a piece of folded cardboard under the back of the presser foot to level it out.

Setup Checklist (Heavy Fabrics):

• Denim needle installed (Flat side to the back).
• Stitch length increased (> 3.0mm).
• Hands positioned to guide; fabric weight supported (don't let it drag off the table).

Switching to Embroidery Mode: The Connector Ritual

Turn the machine OFF. This protects the delicate electronic pins in the connector. Remove the accessory tray to expose the free arm.

The Tactile Connection: Slide the embroidery module onto the connector. Listen for the Click. It should feel solid, with no wiggle. If it wiggles, do not force it—pull back and realign.

The 100x100mm Reality: Managing the 4x4 Restriction

The M380D embroidery field is 100 x 100 mm. This is the industry standard for entry-level machines.

The Boundary Mindset: The machine will yell at you (beep and display a message) if a design is 101mm. It does not negotiate.

• Commercial Note: If you plan to sell items, this size is perfect for left-chest logos, patches, and baby clothes. It is too small for jacket backs.
• Resource: Users looking for the brother 4x4 embroidery hoop will find it is the most common hoop size available, so replacements are easy to find.

On-Screen Editing: Avoiding the "Too Big" Error

The Disney designs are built-in, but editing (Text / Rotation) is where you personalize.

The Font Trap: You type a name. It fits visually. You try to sew, and the machine refuses.

• The Cause: Letters have invisible "bounding boxes." A name might look like it fits, but the calculated area exceeds 100mm.
• The Fix: Select the "Small" font size attribute immediately.


Pro Tip: Always rotate and size your text first, then position it. Dragging it to the edge and then trying to resize it usually triggers an error because the resize calculation pushes it out of bounds for a split second.

Hooping: The "Drum Skin" Standard (and How to Cheat)

Hooping is the most difficult physical skill to master. If the fabric is loose, the needle will push the fabric into the hole, causing a bird's nest.

The Physics: You need the fabric to be taut, but not stretched.

• Woven Guidelines: Fabric should be "tambourine tight." Tapping it should produce a dull thud.
• Knit Guidelines: Fabric should look relaxed. If the ribs of the knit are curved, you have over-stretched it.

Decision Tree: Fabric vs. Stabilizer (The "Don't Fail" Logic) This is where beginners ruin shirts. Follow this absolute logic:

Many struggles lead users to search for hooping for embroidery machine tutorials, but the secret is usually in the stabilizer choice, not just the hoop screw.

Inserting the Hoop: The "Double Lug" Lock

1. High Clearance: Raise the presser foot lever to the extra-high position.
2. Slide and Align: Slide the hoop under the foot.
3. The Engagement: Align the hoop slots with the carriage lugs.
4. The Sensory Lock: Press the hoop connector down. CLICK. If you do not hear and feel a sharp snap, the hoop is not locked. A loose hoop means a ruined design.

Warning: Check the clearance! Ensure the tightening screw of the hoop does not hit the body of the machine as the arm moves. Only use a compatible hoop for brother embroidery machine.

The Stitch-Out: Watching the Paint Dry (Crucially)

The machine estimates time (e.g., 29 mins). Press the "Start" button (Green light).

Active Monitoring: Do not walk away for the first 500 stitches.

• The Spool Trap: Rayon embroidery thread is slippery. It can puddle at the base of the spool pin and wrap around it. If the tension suddenly skyrockets, check the spool immediately.
• The Sound of Failure: A smooth "chik-chik-chik" is good. A grinding noise or a "thud-thud" suggests the needle is dull or hitting a knot.

Tension: The "H" Test

The demo mentions the top tension dial.

The Diagnostic: Look at the back of your satin stitch (the thick column stitch).

• Perfect: You see 1/3 top thread color, 1/3 white bobbin thread in the center, and 1/3 top thread color. It looks like an "H".
• Top Tension Too Tight: You see only white thread.
• Top Tension Too Loose: No white thread takes visible; the back is all color (and likely loose loops).
• Adjustment: Only move the dial by 0.5 or 1 number at a time.


Operation Checklist (Pre-Flight):

• Hoop "Clicked" in.
• Presser foot DOWN (Machine won't start if up, but check anyway).
• Path Clear (No scissors or excess fabric behind the arm).
• Thread not caught on the spool pin.
• Stabilizer is correct for the fabric.

Upgrading Your Workflow: When to Buy What

You have mastered the basics. Now you are facing the "Production Bottlenecks." This is where hobbyists become frustration-free pros.

Pain Point 1: "Hooping Leaves Marks" or "My Wrists Hurt" Traditional hoops require significant hand strength to tighten the screw, and the friction can burn delicate velvet or stretch t-shirt collars (Hoop Burn).

• The Solution: magnetic embroidery hoops.
  • Why: They use force, not friction. You lay the fabric, snap the top magnet frame on, and you are done. No screwing, no pulling, no burn marks.
  • Compatibility: Look specifically for a magnetic hoop for brother M-series compatible frame.

Warning: Magnetic Safety. Industrial-strength magnets are used in these hoops. They can pinch skin severely if snapped together carelessly. Keep them away from pacemakers, credit cards, and mechanical watches.

Pain Point 2: "Centering is Impossible" If you are trying to put a logo on the exact same spot on 10 shirts, using a ruler and chalk is slow.

• The Solution: A machine embroidery hooping station. This tool holds the hoop in a fixed position, allowing you to slide the shirt on consistently every time.

Pain Point 3: "I Hate Changing Threads Every 2 Minutes" The M380D is a single-needle machine. If your design has 12 colors, you are the automatic color changer.

• The Solution: This is the trigger for a Multi-Needle Machine (like SEWTECH platforms). When you are producing orders of 20+ items, the time saved by a machine that holds 10-15 needles automatically pays for the equipment.

Final Words: The Path to Mastery

The Brother M380D is a capable machine. If you treat it with respect—clean the bobbin case, change needles every 8 hours of stitching, and follow the "Click/Snap/Floss" sensory checks—it will serve you well.

When you find yourself fighting the equipment (hooping takes too long, color changes are boring), that is not a failure of skill; it is a signal that your business or hobby has outgrown your toolkit. That is the moment to look at magnetic frames and multi-needle solutions. Until then, enjoy the stitching.

FAQ

• Q: What “hidden consumables” should be prepared before setting up the Brother M380D for embroidery so the Brother M380D does not look defective?
  A: Prepare a few small tools and fresh needles before power-on, because most “defective” symptoms are missing-setup issues, not hardware failure.
  • Gather curved embroidery scissors, fresh needles (75/11 and 90/14), and (optionally) temporary adhesive spray for floating hard-to-hoop items.
  • Verify the Brother M380D embroidery unit, 100×100 mm hoop, and Brother “Q” embroidery foot are present and reachable.
  • Match the spool cap size to the spool so thread unwinds smoothly without snagging.
  • Success check: The Brother M380D threads and runs a short test without sudden thread snags, clunks, or immediate underside looping.
  • If it still fails… Re-check upper threading with the presser foot raised and confirm the bobbin is seated through the bobbin-case tension spring.
• Q: How can Brother M380D owners prevent bird’s nests on the underside caused by incorrect upper threading through the Brother M380D tension discs?
  A: Raise the presser foot before threading and “floss” the thread into the tension path so the thread seats inside the tension discs.
  • Raise the presser foot lever fully, then rethread the Brother M380D upper path from the spool.
  • Hold the thread taut near the spool while pulling down/up through the channels to feel slight “dental floss” resistance.
  • Recheck the spool cap placement so it touches the spool without choking it.
  • Success check: The stitch-out sounds smooth and the underside shows controlled stitches instead of a loose wad of thread.
  • If it still fails… Remove the bobbin cover and confirm the bobbin thread is correctly caught in the bobbin-case tension spring (not just laid in the groove).
• Q: What is the correct Brother M380D drop-in bobbin orientation, and how can Brother M380D users verify the bobbin thread is actually in tension?
  A: Load the Brother M380D bobbin in the “P” orientation and pull the thread into the bobbin-case tension spring until it catches.
  • Hold the bobbin so the thread hangs from the left (looks like a “P”), then drop it into the case.
  • Pull the thread along the intended path until it snaps into the tension spring—do not stop at the groove.
  • Gently pull the tail to confirm controlled movement.
  • Success check: The bobbin spins counter-clockwise when you pull the tail gently and the thread feels lightly resisted (not free-falling).
  • If it still fails… Reseat the bobbin and rethread the upper path with the presser foot raised to eliminate a “no top tension” false symptom.
• Q: How can Brother M380D users judge correct embroidery tension using the Brother M380D satin-stitch “H test” before changing the Brother M380D tension dial?
  A: Use the back of a satin stitch to look for the “H” balance, then adjust the Brother M380D top tension in small steps only.
  • Stitch a sample satin column on the same fabric + stabilizer combo you will use for the real job.
  • Inspect the underside: aim for 1/3 top color + 1/3 white bobbin in the middle + 1/3 top color.
  • Adjust the top tension by only 0.5–1 number at a time, then retest.
  • Success check: The underside consistently shows the centered white bobbin “rail” rather than all white (too tight) or all color loops (too loose).
  • If it still fails… Re-check hooping tightness and stabilizer choice, because poor stabilization can mimic tension problems.
• Q: How can Brother M380D users avoid hoop burn, hoop marks, or stretched collars when hooping garments on the Brother M380D 100×100 mm hoop?
  A: Aim for “drum-skin” tautness without stretching the fabric, and use the correct stabilizer so you do not over-tighten the hoop to compensate.
  • Hoop woven fabric “tambourine tight” but do not distort the grain; hoop knits relaxed so the ribs are not curved from stretching.
  • Pair knits with cut-away (mesh or heavy) as a non-negotiable baseline; add towel topping film when stitching terry cloth.
  • Lock the hoop into the Brother M380D carriage until it clicks and confirm the hoop screw has clearance from the machine body.
  • Success check: The fabric surface stays flat (not rippled), the hoop feels firmly locked with a sharp click, and the design does not pucker after stitching.
  • If it still fails… Reduce re-hooping force and consider a magnetic embroidery hoop to minimize friction-based marking and hand strain.
• Q: What needle safety steps should Brother M380D users follow when using the Brother M380D automatic needle threader or when testing stitches near the needle area?
  A: Keep fingers completely out of the needle zone and prevent accidental starts by locking controls (if available) or powering off during hands-on actions.
  • Move hands away from the needle area before operating the Brother M380D auto-threader lever.
  • Use the screen lock mode (if available) or switch the Brother M380D OFF when changing needles or handling thread close to the needle.
  • Avoid pressing Start/Stop while distracted during setup.
  • Success check: Hands never cross under the needle area during threading/testing, and the machine cannot start unexpectedly during manual handling.
  • If it still fails… Stop immediately, power off, and reset the workflow so threading and needle changes are done with zero chance of accidental Start.
• Q: What magnetic hoop safety rules should Brother M380D users follow when using industrial-strength magnetic embroidery hoops for Brother-compatible setups?
  A: Treat magnetic hoops like pinch hazards and keep them away from sensitive items and medical devices.
  • Separate and join magnetic frames slowly with controlled alignment to avoid skin pinches.
  • Keep magnetic hoops away from pacemakers, credit cards, and mechanical watches.
  • Store magnetic hoops so they cannot snap together unexpectedly on a metal surface.
  • Success check: The magnetic frame closes without a sudden slam, and fingers never enter the gap during closure.
  • If it still fails… Pause and change handling technique (use two-hand control and staged contact) before continuing production.
• Q: When Brother M380D single-needle embroidery becomes too slow for orders, how should Brother M380D users choose between technique optimization, magnetic hoops, and upgrading to a SEWTECH multi-needle embroidery machine?
  A: Start by removing setup errors, then upgrade tools for repeatability, and only then upgrade machines when color changes and volume become the true bottleneck.
  • Level 1 (Technique): Standardize hoop “click” locking, correct stabilizer selection, and the first-500-stitches monitoring to prevent nests and rework.
  • Level 2 (Tooling): Add magnetic hoops for faster hooping/less hoop burn and add a hooping station if consistent placement across many shirts is the pain point.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle platform when frequent manual color changes dominate job time (for example, many-color designs or batches of 20+ items).
  • Success check: Production time drops because the main bottleneck is removed (less re-hooping/rework, faster placement, or fewer manual thread changes).
  • If it still fails… Track where minutes are lost (hooping, placement, or color changes) and upgrade the specific bottleneck rather than changing multiple variables at once.
