When you’re sitting in front of a Brother Luminaire XP1, it’s tempting to treat the on-screen edit tools like “nice-to-have toys.” They’re not. Used correctly, they are precision instruments that prevent the two most expensive embroidery mistakes: (1) resizing a design until it sews like bulletproof cardboard, and (2) wasting a full stitch-out because your colors, placement, or symmetry were guessed instead of measured.

This post rebuilds the exact workflow demonstrated in the video—design selection, resizing, thread palette management, Color Shuffling, and coordinate-based alignment—then adds the shop-floor habits that keep your fabric stable, your stitch density sane, and your production time predictable.

Calm the Panic: Brother Luminaire XP1 Embroidery Edit Is Safe—If You Start Centered

The video begins with a simple habit that separates “I’m experimenting” from “I’m controlling the outcome”: leave the design centered at first.

Here’s why that matters in real stitching terms. On many machines (and the Luminaire is no exception), certain edit actions and resets tend to re-center or re-reference the design. If you start with your motif already shoved into a corner, you can end up chasing placement after every change. Center-first keeps your edits predictable.

In the demo, the instructor navigates the built-in library:

• Category 1
• Folder 13
• Design 48

Before pressing Set, she checks the design information (size, estimated time, and color changes). That’s not busywork—those numbers are your first “sanity check.” If the duration says "45 minutes" for a 4-inch coaster, you know immediately the density is too high for lightweight fabric.

The “Hidden” Prep Most People Skip (and then blame the machine)

Even though the video focuses on on-screen editing, your results still depend on what happens at the physical hoop.

If you’re planning to resize larger, shuffle colors, or mirror motifs for a quilt block, do this prep first so you don’t build a perfect on-screen layout that fails in fabric. This is where you gather your Hidden Consumables: fresh needles (Ballpoint for knits, Sharp for wovens), temporary spray adhesive (like 505), and a water-soluble marking pen.

Prep Checklist (Pre-Flight Protocol):

• Needle Check: Run your fingernail down the needle tip. If you feel a "catch" or burr, replace it immediately.
• Stabilizer Match: Confirm your stabilizer can handle the new stitch count. If you are upsizing, standard tearaway might not hold; consider switching to cutaway or a fused mesh.
• Hooping Hygiene: Make sure your hooping method won’t distort the grain. If the fabric looks like an hourglass (pinched in the middle) inside the hoop, you have "hoop burn" risk.
• Clear the Zone: If you’re using a magnetic frame, verify that the embroidery arm path is clear of metal scissors or loose pins that could snap to the magnets.
• Bobbin Audit: visual check—do you have enough bobbin thread for a full test-out? There is nothing frustrating than running out of bobbin thread 90% through a test.

Warning: Needles can break during dense stitch-outs, and broken needle tips can become projectiles. Keep your face and hands out of the needle path, slow down if you hear a sharp “tick,” and follow your machine manual for safe speed limits (usually 600-800 SPM for dense fills).

Stop Stretching Stitches: The Brother Luminaire XP1 Zigzag Recalculation Icon Is the Difference Between “Bigger” and “Better”

The most important lesson in the video is blunt: standard resizing is not the same as stitch recalculation.

The instructor makes you note the original stitch count for Design 48: 6,420 stitches. Then she demonstrates the default resize behavior (left-side option) and shows what happens: the design size changes, but the stitch count stays the same. The machine is essentially stretching the gap between needle penetrations.

That default resize is limited to 10% up or down because anything more would result in gaps (upsizing) or clumps (downsizing).

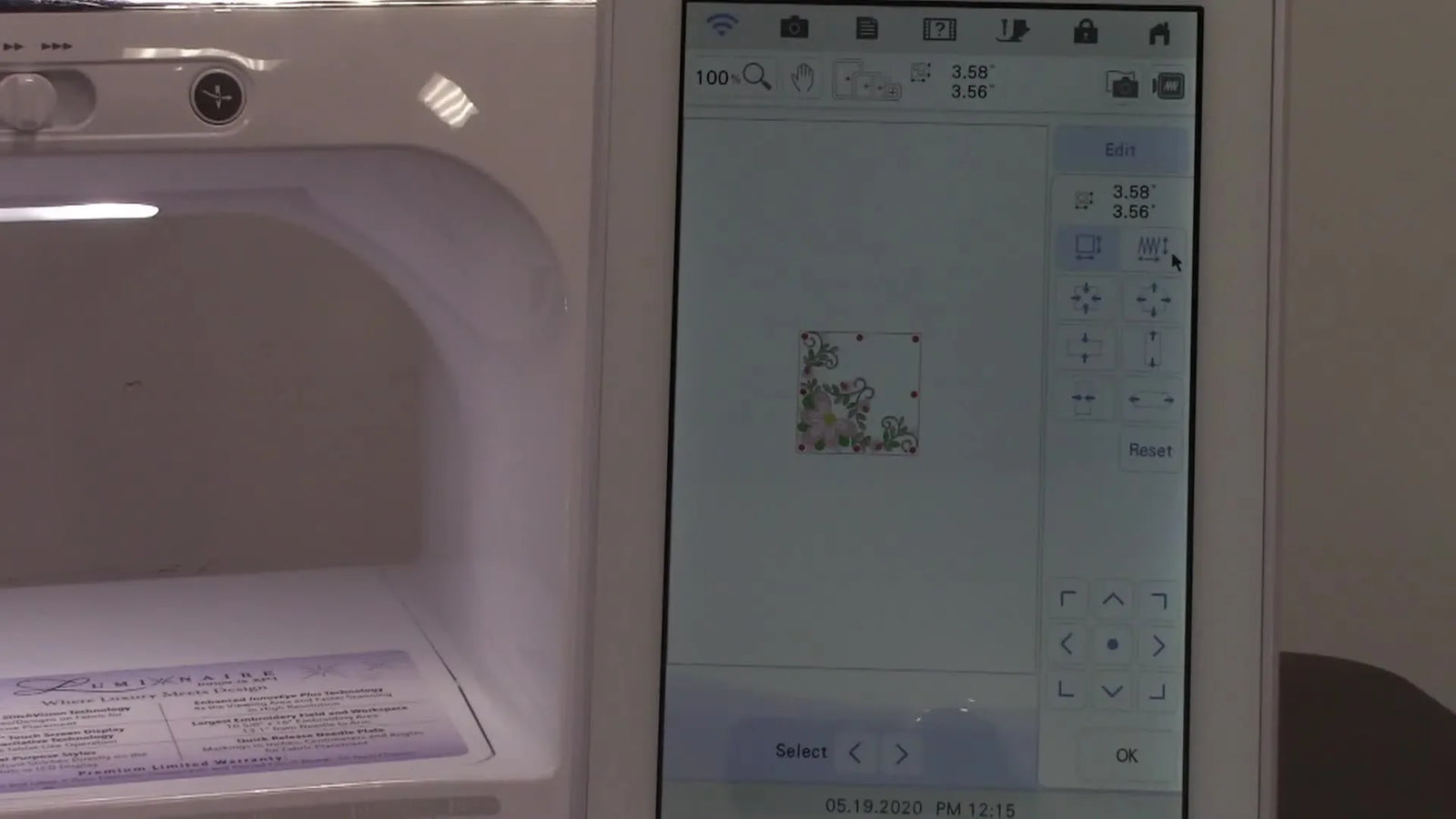

Then she resets and uses the icon on the right that looks like a zigzag—the Recalculation option. With that enabled, the Luminaire allows resizing up to 200%, and it recalculates stitches, keeps density appropriate, and uses underlay if necessary.

What you should see on-screen (your checkpoints)

When you do it correctly, you’ll see the stitch count jump dramatically. In the demo, after upsizing with recalculation, the stitch count increases to 12,389 stitches.

That jump is not “bad news.” It’s the machine telling you it rebuilt the design so the coverage and structure still make sense at the new size.

The practical rule I teach in studios

• The "Cardboard" Test: If you downsize without recalculation, the density doubles. The resulting patch will feel stiff, like cardboard, and may break needles.
• The "Coverage" Test: If you upsize with recalculation, the stitch count must go up. If it doesn't, you are creating a "loose" design that will snag in the wash.

If you’re searching for the one habit that prevents ugly gaps, bulletproof stiffness, and thread shredding after resizing, this is it. However, handling 12,000+ stitches requires a grip that won't slip; this is often why users upgrade to a brother luminaire magnetic hoop to hold thick stabilizer sandwiches firm without hand strain.

The Thread Palette Trap on Brother Luminaire XP1: Why Your Isacord Colors “Disappear” Until You Restart

The video’s thread palette section is where a lot of experienced stitchers still get caught—because it feels like it should work one way, but it doesn’t.

The instructor shows:

• You can scroll through colors and select a specific color.
• You can also convert the whole design to a single color using the monochrome-style button (she demonstrates turning everything red).


Then she points out her machine is set to Floriani threads. Here’s the key warning from the video: you cannot switch thread families in the middle of a design and expect the machine to fully “read” the new library. If you try to jump from Floriani to Isacord mid-session, you may not see the colors you expect.

Her fix is simple and very real-world: turn the machine off and back on (or full reset the workspace) so it can load the different thread family.

Why this matters beyond “color names”

In production, palette confusion wastes time in two ways:

1. The Guesswork Gap: You pick “close enough” colors because the exact ones aren’t showing.
2. Loss of Trust: You lose confidence in your screen preview, so you stop trusting the simulation and waste fabric on test stitch-outs.

If you run a small shop, that’s how a 10-minute setup becomes a 45-minute redo.

ScanNCut Conversion on Luminaire XP1: The “Embroidery” Palette Requirement That Unlocks the Scissors Icon

The video includes a very specific compatibility note: if you want to convert an embroidery design into a cut file for ScanNCut, the thread palette must be set to Embroidery (Brother’s native embroidery threads). That setting is what enables the scissors/cut-file function.

This is one of those details that feels unrelated to embroidery—until you’re on a deadline and the icon you need simply isn’t there.

If you’re building a workflow that mixes embroidery and cutting (applique), precise fabric holding is critical. A shifting fabric means the cut line won't match the stitch line. Many users find that magnetic hoops for brother luminaire provide the necessary flat tension to ensure the cut fabric pieces fit perfectly into the stitched outline.

Color Shuffling on Brother Luminaire XP1: How to Audition 90 Colorways Without Touching Your Digitizing Software

Color Shuffling is where the Luminaire becomes a design playground—but it’s also a serious production tool when you use it with discipline.

In the video, the instructor opens Color Shuffling and shows that the machine can generate 10 pages of variations—90 choices total.

Random mode (fast brainstorming)

Random assigns colors wherever it wants. You can refresh and flip pages to see more options.

Manual mode (control the “anchor” colors)

Manual is where things get useful for matching a brand palette or a fabric print. You select specific colors (e.g., your corporate blue and grey), and the machine shuffles using only those chosen colors.

Gradient mode (monochromatic families)

Gradient takes one color family and creates light-to-dark variations. The instructor demonstrates selecting a single thread color and letting the machine generate hues in that family.

Vivid and Soft modes (mood presets)

• Vivid gives bright, high-contrast palettes.
• Soft gives pastel palettes.




The instructor gives a practical use case: if you have a print fabric and want a monogram or medallion that blends beautifully, Soft palettes can help the embroidery harmonize with the fabric rather than fight it.

That’s not just aesthetics—it’s also a way to reduce the visual impact of minor registration issues on busy prints. A low-contrast palette hides small alignment errors better than high contrast.

Setup Checklist (before you commit to a shuffled palette)

• Lighting Check: Pull the fabric into the same lighting you use for thread selection (daylight vs. warm LEDs changes everything).
• Reality Check: Confirm the palette you’re viewing matches the thread family you actually own.
• Sequence Check: If the design will be resized larger, do the Recalculation Resize first; then shuffle colors after, so you’re previewing the final stitch plan.
• Client Approval: Use the screen to snap a photo for client approval before threading up.

If you’re trying to speed up customer approvals—“Which colorway do you like?”—this feature effectively functions as a digital sample maker. To execute these samples quickly without marking garments, many shops rely on magnetic embroidery hoops for brother to quickly swap garments for color testing.

Mirror-Perfect Corners on Brother Luminaire XP1: Using X/Y Coordinates Instead of Eyeballing Placement

The last section of the video is the one that saves the most re-hooping.

The instructor duplicates the floral design, moves it to the opposite corner, and rotates it until it’s oriented correctly.

Then she opens the Move screen and explains what the coordinate numbers mean:

• The numbers show how far the center of the design is from the center of the hoop.
• Up/right positions show positive values.
• Down/left positions show negative values.


The symmetry rule (the “math” behind pretty)

If one corner motif is placed at a certain X and Y distance from center, the mirrored motif should match the same numbers but with opposite signs.

In the demo, she references a symmetrical offset value of 5.89 and demonstrates matching the coordinate numbers so the two motifs are mathematically opposite.

She also gives a simple real-world example: if you place Minnie 1.75 to the right, you should place Mickey 1.75 to the left so they line up.

Why coordinates beat “nudging” every time

Eyeballing is fine for a single hobby project. Coordinates are how you get repeatability:

• Repeatable placement across multiple quilt blocks.
• Consistent corner motifs on a run of towels.
• Symmetry that still looks symmetrical after the fabric relaxes.

And here’s the production truth: the more often you re-hoop to “fix placement,” the more likely you are to introduce hoop burn, fabric distortion, or registration drift.

If you’re doing this kind of precise layout often, a stable hooping method matters as much as the math. You need to trust that "Center" is actually "Center." Many shops move to magnetic embroidery hoops because it’s faster to load, easier to re-seat consistently without tugging, and reduces the temptation to over-tighten fabric just to keep it from shifting.

Stabilizer Decision Tree for Resized & Recalculated Designs (Because More Stitches Pull Harder)

The video doesn’t specify stabilizer choices, but the stitch-count jump (6,420 → 12,389) tells you the forces on the fabric are changing. Generally, more stitches means more needle penetrations and more pull on the substrate.

Use this decision tree as a practical starting point.

Decision Tree: Fabric → Stabilizer Strategy (for recalculated upsizing)

1. Is the fabric stable (woven quilting cotton, firm canvas)?
   • Yes: Go to step 4.
   • No (It stretches): Go to step 2.
2. Is it a Knit/Stretchy fabric (T-shirt, Jersey)?
   • Action: Use a Cutaway (Mesh) stabilizer. Tearaway will perforate and fail under high stitch counts, causing the design to distort into a ball. Use temporary spray adhesive to bond the fabric to the stabilizer.
3. Is the fabric textured or lofty (towels, fleece)?
   • Action: You need a Water Soluble Topper (film) on top to keep stitches from sinking, AND a tearaway or cutaway on the bottom for support.
4. Is this a “presentation piece” (quilt block, framed embroidery)?
   • Action: Use a medium-weight Tearaway and ensure your hooping is "drum-tight" but not stretched.
5. Is the Stitch Count over 15,000?
   • Action: Regardless of fabric, consider a heavier stabilizer or floating an extra layer of tearaway under the hoop for "insurance."

If you’re building a consistent supply system for different fabrics, having reliable stabilizer/backing on hand is one of the simplest ways to reduce rework.

Two Common Luminaire XP1 Editing Problems (and the Fixes Shown in the Video)

The video includes two troubleshooting moments that are worth keeping as a quick reference table.

If you’re setting up a repeatable workflow for mixed embroidery + cutting, it’s worth writing a small “startup checklist” and taping it near the machine.

The Upgrade Path That Actually Pays Off: Faster Hooping, Less Rework, More Repeatability

Once you start using recalculation resizing, Color Shuffling, and coordinate symmetry, you’ll notice something: your bottleneck stops being the screen. It becomes hooping, re-hooping, and keeping fabric stable while you chase perfect placement.

That’s where tool upgrades should be evaluated—not as “cool accessories,” but as time and consistency multipliers.

When a magnetic hoop/frame is the right next step

If any of these sound familiar, you’re a candidate:

• You frequently re-seat projects to tweak placement after doing coordinate work.
• You’re seeing hoop marks (shiny "hoop burn" rings) on delicate velvets or dark polyesters.
• You’re doing repeated layouts (corner motifs, mirrored designs, monograms) and need consistent registration without wrist pain.

In those cases, many embroiderers move toward a brother magnetic embroidery frame because it minimizes the physical struggle of hooping. The magnets clamp straight down, preventing the "skidding" effect of inner rings that pushes fabric off-center.

Warning: Magnetic Safety
Magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Devices: Keep pacemakers and insulin pumps at a safe distance (consult your doctor).
* Electronics: Do not place phones or credit cards directly on the magnets.

If you’re scaling beyond hobby volume

If you’re stitching one quilt block, time doesn’t feel expensive. If you’re stitching 30 customer polos, it does.

A production-minded setup often includes:

1. Level 1: A consistent hooping method (magnetic or traditional, but repeatable).
2. Level 2: Thread and stabilizer standardized by fabric type.
3. Level 3: A machine that supports efficient multi-color runs.

For shops that are outgrowing single-needle throughput (where changing thread 15 times per shirt kills your profit margin), a multi-needle platform like SEWTECH is the logical next step. It allows you to set up 12+ colors at once and walk away. When paired with magnetic hoops designed for rapid reloading, you shift from "babysitting the machine" to "managing production."

Operation Checklist (the last 60 seconds before you press Stitch)

This is the moment experienced operators slow down—because it’s cheaper to pause now than to unpick later.

Operation Checklist (Pre-Stitch Protocol):

• [ ] Recalculation Confirmed: Did the stitch count jump? (If yes, density is good).
• [ ] Palette Synced: Did you restart if you changed thread brands?
• [ ] ScanNCut Mode: If cutting, is the palette set to "Embroidery"?
• [ ] Mirror Math: Do your X/Y coordinates match in value (e.g., 5.89 and -5.89)?
• [ ] Physical Clearance: Rotate the handwheel or do a "Trace" to ensure the needle won't hit the hoop frame.
• [ ] Sound Check: Listen to the first 100 stitches. A rhythmic "hum" is good; a sharp "clack-clack" means stop and check the thread path.

If you’re building a workflow around fast, repeatable hooping and consistent placement, learning how to use magnetic embroidery hoop correctly is what keeps “speed” from turning into misalignment.

FAQ

• Q: What “hidden consumables” should be prepared before editing and resizing an embroidery design on a Brother Luminaire XP1?
  A: Prepare the needle, stabilizer plan, marking tools, and bobbin first so the on-screen edits don’t fail in the hoop.
  • Replace the needle if a fingernail test finds a catch/burr (ballpoint for knits, sharp for wovens).
  • Match stabilizer to the new stitch load (upsizing often needs stronger support than basic tearaway).
  • Stage temporary spray adhesive (e.g., 505) and a water-soluble marking pen for controlled placement.
  • Check bobbin thread before a full test-out to avoid running out near the end.
  • Success check: the fabric sits flat in the hoop without “hourglass” pinching, and the setup feels calm—not rushed.
  • If it still fails: slow down and do a full pre-stitch checklist before pressing Start (needle, stabilizer, clearance, bobbin).
• Q: How do you prevent “cardboard-stiff” embroidery after resizing a design on a Brother Luminaire XP1?
  A: Use the Brother Luminaire XP1 zigzag “Recalculation” resize option instead of standard resize whenever you change size meaningfully.
  • Note the original stitch count, then resize using the zigzag Recalculation icon (not the standard resize control).
  • Re-check the new stitch count after resizing; recalculation should change the stitch count when size changes.
  • Resize first, then do Color Shuffling afterward so the preview matches the final stitch plan.
  • Success check: stitch count updates (often increases when upsizing) and the design does not feel dense and board-like after stitching.
  • If it still fails: delete the design, re-import it, and redo the resize using Recalculation from the start.
• Q: Why do Isacord thread colors “disappear” on the Brother Luminaire XP1 thread palette after switching from Floriani?
  A: Restart the Brother Luminaire XP1 after changing thread families so the machine fully loads the new thread library.
  • Confirm which thread family is currently selected in the palette settings.
  • Power the machine off and back on (or fully reset the workspace) before selecting Isacord colors again.
  • Re-open the design and re-check the palette after the restart.
  • Success check: the expected Isacord color options display normally and selection feels consistent instead of missing/odd.
  • If it still fails: avoid switching thread families mid-session; restart first, then choose the thread family before design work.
• Q: How do you make the ScanNCut scissors icon appear when converting an embroidery design on a Brother Luminaire XP1?
  A: Set the thread palette to Brother “Embroidery” threads; that setting unlocks the ScanNCut scissors/cut-file function.
  • Open thread palette settings and choose the “Embroidery” (Brother native) palette.
  • Return to the conversion screen and look for the scissors/cut-file icon.
  • Keep fabric holding stable if doing applique workflows so cut lines match stitch lines.
  • Success check: the scissors icon appears immediately once “Embroidery” palette is selected.
  • If it still fails: reset the workspace and confirm the palette did not revert to a different thread family.
• Q: How can Brother Luminaire XP1 X/Y coordinates be used to place mirror-symmetry corner motifs without eyeballing?
  A: Use equal coordinate values with opposite signs so both motifs are mathematically mirrored around hoop center.
  • Place the first motif, then record its X and Y values in the Move screen.
  • Duplicate the motif and set the second motif to the same numbers but reversed sign (e.g., +X becomes −X; +Y becomes −Y).
  • Rotate the duplicated motif as needed for correct orientation after moving.
  • Success check: both corner motifs look evenly balanced, and the coordinate offsets match as +/− pairs.
  • If it still fails: re-center the design first and redo moves from center-based coordinates to avoid chasing drift.
• Q: What needle safety steps should be followed during dense stitch-outs on a Brother Luminaire XP1, especially after recalculation resizing increases stitch count?
  A: Treat dense stitch-outs as higher-risk: slow down, keep clear of the needle path, and stop on sharp ticking sounds.
  • Keep face and hands out of the needle path; broken needle tips can eject.
  • Reduce speed for dense fills and follow the Brother Luminaire XP1 manual for safe operating limits (often 600–800 SPM for dense fills).
  • Stop immediately if a sharp “tick” or “clack” starts and inspect thread path/needle condition.
  • Success check: the first 100 stitches sound like a steady hum, not a sharp rhythmic knock.
  • If it still fails: replace the needle and reassess density/stabilizer before continuing the full stitch-out.
• Q: When should embroidery workflow problems on a Brother Luminaire XP1 be solved with technique changes, magnetic hoops, or a multi-needle machine upgrade?
  A: Use a tiered approach: fix setup first, upgrade hooping next if re-hooping causes marks/drift, and consider multi-needle only when thread-change time becomes the bottleneck.
  • Level 1 (Technique): verify recalculation resizing, correct palette setup, stabilizer match, and coordinate placement to reduce rework.
  • Level 2 (Tool): choose a magnetic hoop/frame when repeated re-seating, hoop burn, or fabric shifting is the recurring trigger during precise placement work.
  • Level 3 (Capacity): move to a multi-needle platform when production runs are slowed mainly by frequent thread changes and constant supervision.
  • Success check: fewer re-hoops, more repeatable placement, and predictable run time on repeated projects (towels, quilt blocks, polos).
  • If it still fails: track what is truly consuming time (hooping, rework, thread changes) and address the biggest bottleneck first.
