Brother Luminaire Innov-is XP2 Maintenance Without the Drama: The Screwless Needle Plate, the Bobbin Case Marks, and the On-Screen Manual That Saves You

Brother Luminaire Innov-is XP2: The Definitive Bobbin Maintenance & Troubleshooting Guide

If your Brother Luminaire Innov-is XP2 suddenly starts throwing cryptic thread messages, bending needles, or locking up with the needle stuck in the down position, stop. You are likely not "bad at embroidery," nor is your machine necessarily broken. You are experiencing a mechanical tolerance issue in the bobbin area.

In my 20 years of diagnostics, I have seen experienced stitchers lose entire production days to one specific error: the bobbin case not being seated with millimeter-perfect alignment. The XP2 is a high-performance machine; like a sports car, it requires precise calibration, not brute force.

This guide restructures the standard maintenance procedure into a zero-friction workflow. We will bypass the guesswork, focusing on sensory checkpoints (what you should see, hear, and feel) and hard empirical data to get you back to perfect stitching safer and faster.

Calm the Panic: Brother Luminaire Innov-is XP2 “Thread Not Threaded Correctly” Errors Often Start at the Bobbin Case

When the machine throws a "Check Upper Thread" error, 90% of users instinctively re-thread the top path. However, on the XP2, this sensor reading is often a false positive triggered by resistance in the lower bobbin assembly.

If you are experiencing the "Spiral of Failure"—bent needles, loud clunking sounds, and repeated stops—switch your focus immediately to the bobbin case.

The Physics of the Error: The bobbin case floats on a magnetic system. If it jumps out of its "seat" by even 2mm (often due to a thread nest or debris), the needle strikes the plastic case instead of entering the hole. This causes the machine to detect high tension and throw a threading error.

The Fix Protocol: Ignore the upper thread for now. We are going to perform a "Surgical Reseat" of the lower cleaning area.

The Built-In Maintenance Video on the Brother Luminaire 2 UI: Find Help Before You Touch Anything

Before applying torque to any screws or levers, utilize the on-board digital resources. The XP2 logic board contains the exact visual standard for maintenance.

Action Sequence:

1. Navigate: Tap the Home icon on the top menu bar.
2. Select: Open the Operation Guide.
3. Execute: Choose Maintenance -> Video.

Why This Matters: Memory is fallible; diagrams are not. Watching the 30-second clip primes your brain on what "normal" looks like. If you are fatigued or frustrated, do not skip this. It prevents you from "inventing" a procedure that could void your warranty.

The Safety Lock Button (Red Light) on Brother Luminaire Innov-is XP2: Your Non-Negotiable Before Needle Plate Removal

CRITICAL SAFETY PROTOCOL

The XP2 features an electronic needle plate release. Never attempt to remove the plate while the machine is active. A stray signal or accidental touch of the "Start/Stop" button while your fingers are in the race area can result in severe puncture injuries.

The Lock-Out Ritual:

1. Press: The Safety Lock Button (key icon) on the screen.
2. Verify: The button must glow RED, and the screen must turn grey/inactive.
3. Test: Tap the screen gently. If it responds, you remain unsafe. If frozen, proceed.

Warning: Mechanical Hazard. Ensure the presser foot is raised and the needle is in the highest position before locking the machine. If the needle is down, the plate cannot slide off and forcing it will damage the cutter mechanism.

Screwless Needle Plate Removal on the Brother Luminaire Innov-is XP2: Slide the Grey Release Lever and Let It Pop Up

Brother has engineered a screwless removal system to encourage frequent cleaning. Do not use screwdrivers or pry tools here.

Execution Steps:

1. Locate: Find the grey release lever on the front right of the needle plate.
2. Action: Slide the lever smoothly to the right.
3. Sensory Check (Auditory): You should hear a distinct mechanical click.
4. Reaction: The plate will pop vertically upward about 5mm.
5. Remove: Lift the plate straight up and place it on a magnetic tray or clear surface.

Troubleshooting: If the plate resists, do not force it. Ensure the accessory box is removed (if applicable) and that no fabric is trapped under the feed dogs.

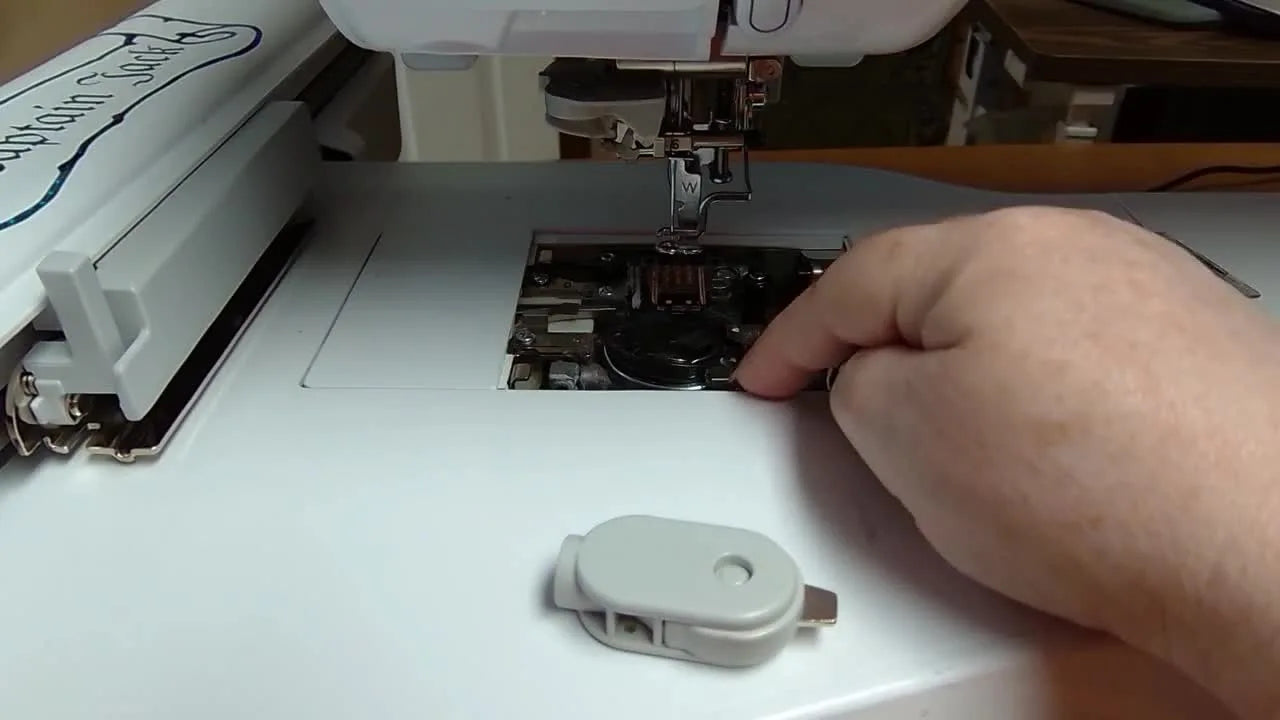

Cleaning the Bobbin Race on Brother Luminaire Innov-is XP2: Brush Lint Out Gently (No Vacuum, No Oil)

With the race exposed, you are looking at the heart of the machine. This area requires clean room protocols.

The Cleaning Workflow:

1. Extract: Lift the black bobbin case straight out. Inspect it for needle strikes (rough burrs on the plastic).
2. Sweep: Use the provided small white brush only. Sweep from the center outward.
3. Target: Focus on the feed dogs and the rotary hook (the metal part that spins).

The "Do Not" List (Strict adherence required):

• NO Canned Air: Blowing air drives lint deep into the gears and sensors, turning a cleaning issue into a $300 service bill.
• NO Standard Vacuums: Household vacuums generate static electricity which can fry the XP2's motherboard. Use only micro-vacuums designed for electronics if absolutely necessary.
• NO Oil: The XP2 rotary hook is self-lubricating (oil-impregnated bronze). Adding oil creates a sludge that attracts more lint.


The “Why” behind the rule (so you don’t relapse)

Lint is abrasive. It acts like a brake pad on your rotary hook, causing inconsistent tension. If you stitch high-lint fabrics (like velvet, Terry cloth, or unwashed cotton), cleaning is mandatory every 20,000 to 30,000 stitches or every 3-4 bobbin changes.

Hidden Consumable: Keep a fresh stock of cleaning brushes and a pair of non-magnetic tweezers. Tweezers are essential for plucking out "thread clouds" that the brush misses.

The White Arrow + White Dot Alignment Marks: Reinstall the Brother Luminaire XP2 Bobbin Case So It Doesn’t Wiggle

This is the single most critical step in this entire document. 99% of "broken" machines are fixed here.

The Alignment Rule:

1. Identify: Locate the White Arrow (looks like a triangle) on the black plastic bobbin case.
2. Match: Locate the White Dot on the stationary metal ring of the machine.
3. Action: Drop the case in so the arrow points exactly at the dot.

The Sensory Validation (The Wiggle Test): Once seated, place your index finger lightly on the bobbin case and wiggle it left/right.

• Correct: It should rotate slightly (about 1-2mm) against the spring cushion. It should feel "spongy" but secure.
• Incorrect: It spins freely or sits unevenly.


Watch out (from the comments, de-identified)

Do not rely on muscle memory from older machines. The XP2 tolerance is tighter. If the arrow is even 3mm off-center, the needle will strike the case on the first rotation, potentially shattering the needle and sending shards into the race.

Reattaching the Brother Luminaire Innov-is XP2 Needle Plate: Catch the Rear Tabs, Then Snap the Front Flush

Assembly Sequence:

1. Align: Slide the plate flat from front to back.
2. Engage: Ensure the two rear tabs slide under the machine housing first.
3. Snap: Press down firmly on the front center (near the grey lever).
4. Sensory Check (Tactile & Visual): You must feel a solid snap. Run your finger across the seam where the plate meets the machine bed. It must be perfectly flush. If you feel a "lip" or ridge, removing and reseating is mandatory.


Pre-Wound Bobbins on Brother Luminaire Innov-is XP2: Use the “P for Perfect” Direction Trick Before You Drop It In

The XP2 is calibrated for specific bobbin weights and extensive usage. While you can wind your own, high-quality pre-wound bobbins (60wt or 90wt polyester) generally offer more consistent tension for embroidery.

The "P" Validation Method:

1. Hold: Hold the bobbin so the thread unwinds hanging down from the left side.
2. Visual: The bobbin and thread tail should form the letter "P". (If it looks like a "q", flip it over).
3. Insert: Drop it into the case.
4. Route: Guide the thread through the slit and under the tension spring blade. You should feel slight drag—like pulling dental floss.
5. Trim: Pull the thread through the built-in cutter groove.

Commercial Reality Check: Standard procedure works for standard projects. However, if you are moving into high-volume production, stopping every 40 minutes to change bobbins or fix tension is a profit-killer.

When "good enough" stops being enough, professionals look at their workflow bottlenecks. If your bottleneck is fabric slippage during hooping, tools like a hooping station for machine embroidery become vital. Similarly, if your bottleneck is bobbin capacity, verify you are using the correct "Class 15/A" style bobbins maximizing yield.

The Handwheel Safety Cycle on Brother Luminaire Innov-is XP2: One Manual Down-Up Before You Power Stitch

Never hit the green "Start" button immediately after reassembly.

The "Pre-Flight" Check:

1. Unlock: Press the Safety Lock button to unlock (Red light off).
2. Manual Rotation: Turn the handwheel on the right side of the machine toward you (counter-clockwise).
3. Cycle: Complete one full rotation. The needle should go down into the plate and come back up to the highest position.
4. Sensory Check:
   • Feel: Is there resistance, grinding, or a metal-on-metal sensation?
   • Hear: Is there a sharp "click" of the needle hitting the plate?
   • Result: If smooth, you are cleared for takeoff. If not, re-lock and check the bobbin case seating immediately.


The “No More Book Pile” Move: Search the Brother Luminaire Digital Operation Manual for BOBBIN and Zoom the Diagram

The XP2 interface is a tablet computer. Use it like one.

Workflow Efficiency:

1. Tap: The "?" Icon.
2. Select: Operation Guide -> Search (Magnifying Glass).
3. Input: Type "BOBBIN" (or "NEEDLE", "PLATE").
4. Interact: Use the pinch-to-zoom gesture (like on a smartphone) to enlarge the diagrams.


Pro tip: build your own “panic keywords” list

In a crisis, your brain freezes. Write down these search terms on a sticky note near your machine:

• THREADING (for upper path diagrams)
• BOBBIN (for lower case seating)
• CLEANING (for proper race maintenance)


The “Hidden” Prep Pros Do Automatically: Set Yourself Up So You Don’t Lose Parts or Create New Problems

Organization is the antidote to mistakes. Professionals do not work in clutter.

The Prep Ritual:

• Clear Zone: Ensure a 12x12 inch clean area to the right of the machine.
• Tray Strategy: Use a magnetic parts tray for the needle plate (even though it's mostly plastic, the metal components stick).

Commercial Upgrade Path (Solving the *Next* Problem)

Once your machine maintenance is solid, your next point of failure is likely hooping. If you find yourself wrestling with thick hoodies or delicate silks, standard plastic hoops often fail to grip securely or leave permanent "hoop burn" marks.

This is where magnetic embroidery hoops change the game. By clamping fabric with vertical magnetic force rather than friction, you eliminate the struggle that causes fabric distortion. For XP2 users specifically, a brother luminaire magnetic hoop is often the first major accessory upgrade required to handle premium garments without damaging them.

Prep Checklist (Do this *before* opening the machine)

• Machine State: Safety Lock is RED (Active).
• Tools: Small white brush and non-magnetic tweezers ready. (NO AIR CANS).
• Surface: Clear space for the needle plate.
• Vision: Task lighting directed into the bobbin race.
• Consumables: Fresh Class 15 bobbin ready (if changing).


Setup That Prevents Repeat Errors: Think “Clean + Seated + Flat” Before You Blame Thread or Tension

Before you assume you have a tension problem, verify the "Trinity of Setup":

1. Clean: No lint under the bobbin case.
2. Seated: Arrow matches Dot.
3. Flat: Needle plate is flush.

Decision Tree: Fabric & Stabilizer Selection Bad stabilization causes just as many "errors" as a dirty bobbin.

Warning: Magnetic Safety
If upgrading to magnetic frames, be aware they use industrial-strength neodymium magnets. Keep away from pacemakers/medical implants (6-inch safety zone) and watch your fingers—the pinch force is significant.

Troubleshooting the Brother Luminaire Innov-is XP2 Bobbin Area: Symptoms → Likely Cause → Fix

Diagnose the problem before you attempt the fix.

The “Why” That Makes You Faster: Sensory Checks and Machine Health Habits That Prevent Downtime

Speed does not come from rushing; it comes from not stopping to fix errors.

Develop your Sensory Anchors:

• Touch: The "snap" of the needle plate.
• Sound: The smooth "purr" of the rotary hook vs. the "clack" of a strike.
• Sight: The perfect "P" shape of the bobbin thread.

When these checks become automatic, you transition from a "Machine Operator" to a "Master Embroiderer."

The Upgrade Path That Actually Makes Sense: When Accessories Improve Workflow (and When They Don’t)

Eventually, you may hit a ceiling where your skills exceed your machine's throughput.

Level 1: Stability Upgrade If you struggle with puckering or hooping thick items, searching for magnetic hoops for brother luminaire is the logical step. This solves the physical holding problem.

Level 2: Capacity Upgrade If your frustration is the constant thread changes (e.g., stopping every 2 minutes to switch blue to green), or if you are turning away orders because you can't stitch fast enough, no amount of maintenance will solve this. This is a capacity problem.

When you are doing production runs of 20+ shirts, the logical migration is from the single-needle XP2 to a Multi-Needle Machine. These platforms allow you to set 10-15 colors at once and stitch at 1000 SPM (Stitches Per Minute) reliably, turning embroidery from a hands-on chore into a hands-off business.

Operation Checklist (The "Go" Signal)

• Manual Cycle: Handwheel turned one full rotation (Needle Down -> Up). No noise.
• Bobbin Check: Thread tail is cut short (no long tails to tangle).
• Plate Check: Finger run test—plate is completely flush.
• Screen: Thread colors confirmed.
• Speed: Set to "Sweet Spot" (600-800 SPM for new designs).
• GO: Press Start.

Maintain your XP2 with this level of discipline, and it will serve you for millions of stitches.

FAQ

• Q: How do I clear a Brother Luminaire Innov-is XP2 “Check Upper Thread” error when the upper thread is already threaded correctly?
  A: Don’t worry—on the Brother Luminaire Innov-is XP2 this message is often triggered by resistance in the bobbin area, so clean and reseat the bobbin case before chasing the upper thread.
  • Lock: Press the Safety Lock so the button glows RED and the screen is inactive.
  • Remove: Slide the grey needle plate release lever to the right and lift the plate straight up.
  • Clean + reseat: Brush lint out (no canned air, no standard vacuum, no oil), then reinstall the bobbin case with the white arrow pointing exactly at the white dot.
  • Success check: The bobbin case passes the “wiggle test”—slight 1–2 mm spongy movement, not free-spinning or uneven.
  • If it still fails: Rethread the upper path with the presser foot UP, then do one manual handwheel down-up cycle before pressing Start.
• Q: What is the safe way to remove the needle plate on a Brother Luminaire Innov-is XP2 so the needle cannot start moving?
  A: Use the Brother Luminaire Innov-is XP2 Safety Lock first—never remove the needle plate while the machine is active.
  • Raise: Ensure the presser foot is up and the needle is at the highest position.
  • Lock: Press the Safety Lock (key icon) until it glows RED and the screen turns grey/inactive.
  • Test: Tap the screen gently to confirm it does not respond.
  • Release: Slide the grey lever smoothly to the right and let the needle plate “pop” up before lifting it off.
  • Success check: The screen remains unresponsive/greyed out the entire time your fingers are in the bobbin race area.
  • If it still fails: If the needle is down and the plate will not slide, do not force it—reposition the needle to highest first, then try again.
• Q: How do I reinstall the Brother Luminaire Innov-is XP2 bobbin case correctly using the white arrow and white dot marks?
  A: Align the white arrow on the Brother Luminaire Innov-is XP2 bobbin case exactly to the white dot on the machine—millimeter accuracy matters.
  • Identify: Find the white arrow (triangle) on the black bobbin case and the white dot on the stationary metal ring.
  • Drop in: Place the bobbin case straight down so the arrow points directly at the dot.
  • Verify: Lightly wiggle the bobbin case left/right to confirm proper seating.
  • Success check: The bobbin case feels secure with a slight “spongy” 1–2 mm movement, not loose or freely spinning.
  • If it still fails: Remove the case, re-check for lint or thread clouds underneath, and reseat again before running the machine.
• Q: How do I know the Brother Luminaire Innov-is XP2 needle plate is seated flat after cleaning, and what happens if it is not flush?
  A: Seat the rear tabs first and snap the front down—if the Brother Luminaire Innov-is XP2 needle plate is not perfectly flush, reseat it immediately.
  • Engage: Slide the plate into position so the two rear tabs go under the machine housing first.
  • Snap: Press firmly on the front center near the grey lever until it clicks/snaps.
  • Inspect: Run a fingertip across the seam where the plate meets the machine bed.
  • Success check: The seam feels perfectly flat with no “lip” or ridge, and you felt a solid snap.
  • If it still fails: Remove and reinstall the plate again—do not stitch with a raised edge because it can cause clicking/strikes.
• Q: How should a Brother Luminaire Innov-is XP2 pre-wound bobbin be inserted using the “P” direction method?
  A: Use the Brother Luminaire Innov-is XP2 “P for Perfect” orientation—thread unwinds from the left and visually forms a “P,” not a “q.”
  • Hold: Position the bobbin so the thread tail hangs down from the left side.
  • Confirm: Flip the bobbin if the thread forms a “q” instead of a “P.”
  • Route: Drop it into the bobbin case and guide the thread through the slit and under the tension spring blade, then trim in the cutter groove.
  • Success check: You feel slight, consistent drag when pulling the thread—like dental floss.
  • If it still fails: Remove the bobbin and re-route the thread under the tension spring blade again before changing any tension settings.
• Q: What should I do on a Brother Luminaire Innov-is XP2 if the machine locks up with the needle stuck down?
  A: Stop immediately—this Brother Luminaire Innov-is XP2 symptom strongly suggests the bobbin case jumped out of alignment, so power down and reseat the case.
  • Power off: Turn the machine off before touching the needle plate area.
  • Open: Remove the needle plate using the grey lever (no prying tools).
  • Reset: Clean lint/thread nests, then reinstall the bobbin case with the arrow aligned to the dot.
  • Pre-flight: Unlock and turn the handwheel toward you for one full down-up cycle before pressing Start.
  • Success check: The handwheel rotation feels smooth with no grinding and no sharp clicking sound.
  • If it still fails: Re-lock the machine and re-check bobbin case seating—do not force stitching if resistance is present.
• Q: What is the safe upgrade path on a Brother Luminaire Innov-is XP2 when hooping causes hoop burn or production stops keep happening?
  A: Treat it as a workflow problem—start with setup technique, then consider a magnetic frame for hoop burn, and only then consider a multi-needle machine for capacity limits.
  • Level 1 (Technique): Verify “Clean + Seated + Flat” in the bobbin area before blaming thread or tension.
  • Level 2 (Tool): If standard hoops are crushing fabric or slipping on thick/delicate garments, consider switching to a magnetic embroidery frame to clamp fabric with vertical force rather than over-tightening.
  • Level 3 (Capacity): If the real issue is frequent thread changes or you cannot stitch fast enough for runs (e.g., 20+ shirts), a multi-needle machine solves throughput rather than maintenance.
  • Success check: Fewer stops per design and no visible fabric crushing/hoop marks on finished garments.
  • If it still fails: Re-check stabilizer choices by fabric type (knits need cut-away mesh; high pile often needs topper) before changing hardware again.
• Q: What magnetic embroidery frame safety rules should Brother Luminaire Innov-is XP2 users follow when using strong magnetic hoops?
  A: Magnetic frames are convenient but powerful—keep magnets away from medical implants and protect fingers from pinch force.
  • Separate: Maintain a 6-inch safety zone from pacemakers/medical implants.
  • Handle: Keep fingertips clear when closing the magnetic clamp to avoid pinching.
  • Store: Keep magnetic parts controlled and away from loose metal tools that can jump toward the magnets.
  • Success check: The frame closes without finger contact and stays securely clamped without over-tightening pressure marks.
  • If it still fails: If safe handling is difficult, switch back to a standard hoop for that job or use a controlled setup area before continuing.
