Brother Luminaire Innov-is XP1 StitchVision Demo, De-Mystified: Projector Placement, Lever Hoop Tension, and the Real-World Workflow That Saves You Re-Stitching

If you have ever stood before a high-end machine demo, mesmerized by the lights but terrified by the price tag, you created a mental gap between "What this machine can do" and "What I can do with it." The Brother Luminaire Innov-is XP1 is an engineering marvel, but let’s be honest: in the hands of an anxious beginner, it is an expensive paperweight.

Machine embroidery is an experience science. It is 20% software and 80% physics—managing how thread, fabric, and stabilizer interact under high-speed tension. The XP1 is packed with features like StitchVision projection and laser alignment designed to reduce your anxiety, but they only work if you build a workflow that respects the materials.

Below is a "White Paper" grade guide to mastering this machine. We are moving beyond the sales pitch into the operational reality: how to prep, hoop, and stitch without ruining expensive garments.

And yes, the comments on price are valid. When a machine costs as much as a compact car, it must pay for itself—either in pure joy or, for many of you, in production efficiency.

Calm the Panic First: What the Brother Luminaire Innov-is XP1 Is (and Isn’t) Doing When the Screen Beeps

Fear causes mistakes. When you are nervous, you tap the screen too lightly or too quickly. The presenter in the demo repeatedly mentions listening for the "beep." This isn't just a quirk; it is your auditory anchor.

On the XP1, the screen uses specific resistance touch technology. When you tape an icon with the rubber-tip stylus or the Sensor Pen, the "beep" is the machine’s way of saying: "I have received your command and firmly locked it in."

Sensory Training:

• Listen: If you don’t hear the sharp electronic chirp, stop. Do not tap again harder.
• Feel: Changes your angle. The demonstrator had to sit at an awkward angle for the camera. In your studio, sit centered. A deliberate, rhythmic tap is better than a frantic peck.

Pro tip from the field: If the screen seems unresponsive, it’s rarely the screen’s fault. It is usually "user drift." clear the grease from the screen with a microfiber cloth and slow down your hand speed.

Warning: Physical Safety Hazard. Keep fingers, long hair, dangling jewelry (necklaces/bracelets), and loose sleeves at least 4 inches away from the needle area when testing projection or grid lines. You are often leaning in close to see the light, and accidental activation of the "Start" button or foot pedal can cause severe needle puncture injuries.

The “Hidden” Prep Pros Do: Thread Path, Needle Plate Choice, and Why This Saves You a Bad First Stitch

Novices trust the machine; experts trust their preparation. Before you even look at the projector, you must perform the "boring" physical checks that prevent 80% of birdsnests and thread breaks.

1. The Physics of the Thread Stand

The demo shows a dual spool stand that snaps onto the top lid via magnets. This isn't just for storage.

• The Action: Extend the telescoping guide fully until you hear a distinct "click-lock."
• The Why: Thread needs vertical distance to relax its twist before it hits the tension discs. If the guide is half-mast, the thread enters at a sharp angle, adding drag and causing tension issues.
• Security: The magnets are strong. To remove the stand, do not yank; peel it off from one side.

2. The Tool-less Needle Plate Swap

Why change the plate? The standard plate has a wide oval hole to allow the needle to move left/right for zig-zag stitches. However, when doing straight stitch embroidery on delicate fabrics, the fabric can get pushed into that wide hole (flagging), causing skipped stitches.

• The Fix: Use the straight stitch plate for precision work.
• The Action: Slide the lever right -> Plate pops up -> Snap new plate down. Listening for the "snap" is non-negotiable.

Hidden Consumables You Need:

• Fresh Needles: A needle lasts 4-6 operational hours. If you hear a "thump-thump" sound, your needle is dull.
• Scanning/Snowman Stickers: You will lose these. Buy backups.
• Tweezers: For grabbing thread tails.

Level 1 Prep Checklist (The "No-Fail" Protocol):

• Thread Stand: Fully extended, verified by a "click."
• Thread Path: No loops around the spool pin; thread flows freely like dental floss.
• Bobbin Check: Open the cover. Is the bobbin area free of lint? (Blow it out).
• Needle: Is it new? (75/11 is the universal "sweet spot" for standard embroidery).
• Plate: Correct plate installed and clicked flush.

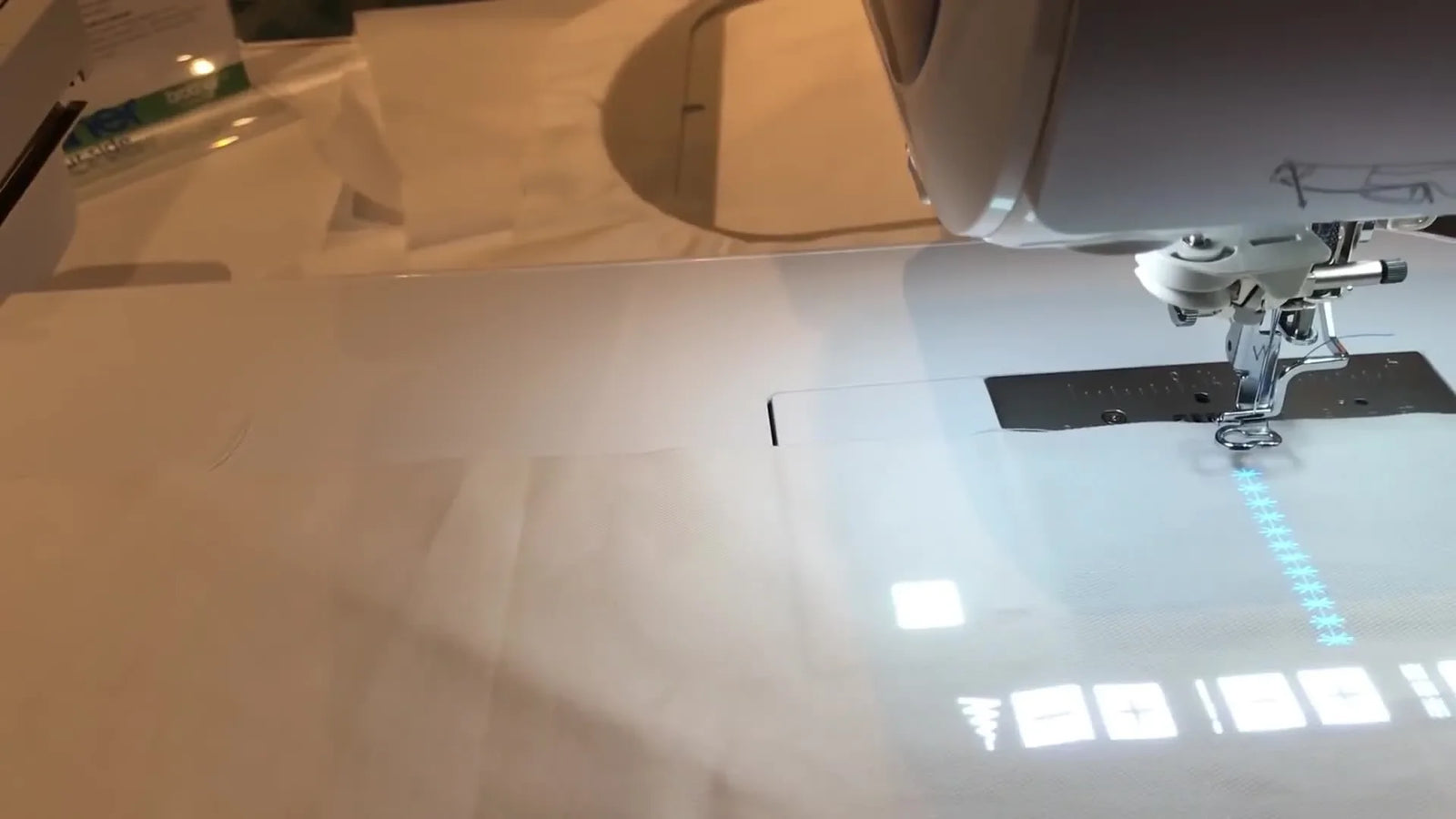

StitchVision Projection on the Brother Luminaire Innov-is XP1: Preview the Stitch on Fabric Before You Commit

The "fear of the first stitch" is real. StitchVision helps alleviate this by projecting the actual stitch onto the fabric. Use this to verify Start Point and Width.

The Workflow:

1. Select: Tap the decorative stitch.
2. Project: Tap the triangular icon.
3. Verify: Look at the light on the fabric. Does it fall off the edge? Is it centered?
4. Adjust: Use the Sensor Pen to "scrub" the width/length options.

Expert Reality Check: Projection shows you where the needle intends to go. It cannot predict where the fabric will go if you hooped it poorly. If your fabric is loose, the projection will look perfect, but the result will be distorted.

This is where the conversation often turns to equipment. Users struggling with "hoop burn" (the ugly ring left by standard hoops) often search for terms like brother luminaire magnetic hoop to find solutions that hold fabric firmly without crushing the fibers—a critical upgrade for delicate materials or velvet.

Laser Grid Lines on the XP1: Straight Seams, 60° Quilting Angles, and Why Alignment Beats Re-Doing Blocks

Human eyes are terrible at judging straight lines over long distances. "Drift" happens to everyone. The laser grid is your robotic guide.

The Application:

• Quilting: Set the angle to 60 degrees. Align your fabric edge to the red guideline.
• Seaming: Use the green line to predict exactly where the needle will drop.

Key Insight: Using the grid reduces cognitive load. You stop squinting and guessing. If you are doing production runs of quilt blocks, this feature alone saves hours of ripping out seams.

The 10 5/8" x 16" Brother Embroidery Hoop Lever Clamp: How to Hoop Without Wrinkles (and Without Over-Stretching)

The demo highlights the massive 10 5/8" x 16" field and the lever clamp mechanism. This is a significant improvement over traditional thumbscrews, but it requires technique.

The "Drum Skin" Myth vs. "Neutral Tension"

Many beginners are taught to hoop fabric "tight as a drum." This is dangerous. If you stretch the fabric until it screams, it will snap back (shrink) once removed from the hoop, causing puckering.

• The Goal: You want "Neutral Tension." The fabric should be flat and taut, but not stretched out of shape.
• The Tactile Test: Run your fingers over the hooped fabric. It should feel firm, not saggy, but the weave of the fabric should not look distorted.

The Trouble with Standard Hoops: For users with arthritis or those doing high-volume work, manually clamping a leverage hoop 50 times a day is exhausting. This physical pain point is exactly why professionals pivot to magnetic hoops for brother luminaire. Magnetic frames use vertical force rather than friction, allowing you to "slap and stick" the hoop in seconds without adjusting screws or straining your wrists.

Design Placement Without Marking: Project the Full-Color Design, Then Pinch-to-Zoom Like a Phone

Standard positioning stickers are great, but they don't show rotation errors. The XP1 allows you to project the full-color deer design directly onto the hoop.

The "Pinch-to-Zoom" Trap: Just because you can resize a design 20% down doesn't mean you should.

• Density Danger: Shrinking a design increases its density. If you shrink a 10,000 stitch design by 20%, you are packing the same thread into a smaller space. This leads to needle breakage and bullet-proof stiff embroidery.
• Rule of Thumb: Limit resizing to +/- 10% on the machine. For anything more, use software (PE-Design) that recalculates density.

Setup Checklist (Before Pressing Green):

1. Hoop Lock: Is the lever fully depressed? (Give it a tug).
2. Color Match: Does the projected design contrast visible against the fabric?
3. Travel Check: Use the "Trace" button to ensure the needle bar won't hit the hoop frame.


Echo Quilting and Grouping: The One Mistake That Makes Your Design “Disappear” in Stippling Mode

In the demo, the presenter enters stippling mode and the main design vanishes. Panic ensues.

The Logic: The machine needs to know what to avoid.

1. Group It: You must select all elements of your design and hit "Group."
2. Echo: Now, when you apply stippling, the machine calculates the boundary around the entire group, creating that professional negative space.

Visual Cue: Look for the red outline around your grouped design on the screen. If you don't see the red "keep out" zone, your stippling will stitch right over your beautiful deer.

My Design Center on the Brother Luminaire XP1: Build a Heart, Fill It, Then Flip the Outline Outside

My Design Center is essentially "on-board digitizing lite."

The Concept: You are building layers.

1. Shape: The heart vector.
2. Region Property: The fill (Inside).
3. Line Property: The outline (Outside).

The "Flip" Trick: The demo shows using the Flip function to move the decorative outline outside the fill area.

• Why? If the outline sits on the fill, it gets buried in the thread.
• Result: Flipping it outside creates a clean, raised border that frames the embroidery.

This is excellent for patches and appliqué preparation.

The “Menu Locked” Moment: Why the XP1 Won’t Let You Use Sewing Guide in Embroidery Mode

If the machine beeps an "Error" tone and greys out a menu, it isn't broken. It is protecting you. The XP1 has distinct operating systems for Sewing vs. Embroidery.

Rapid Troubleshooting Guide:

Cabinet Fit, Ergonomics, and Why “Bigger Machine” Problems Are Usually Table Problems

The XP1 is a beast. If you put it on a flimsy folding table, the vibration at 1000 SPM (Stitches Per Minute) will cause the needle to sway and the screen to wobble.

Calculated Stability: You need a solid surface. If the embroidery arm hangs off the edge, gravity will pull the hoop down, causing drag and registration errors (where outlines don't match the fill).

The Ergonomic Upgrade: If you are doing repeated runs (team jerseys, Christmas stockings), leaning over a flat table hurts your back. This is why professionals invest in a hooping station for machine embroidery. These devices hold the hoop at a consistent angle and height, ensuring that every shirt is hooped in the exact same spot—vital for uniformity.

The Real Cost Conversation: When a High-End Hobby Machine Competes with Multi-Needle Production

Let’s address the elephant in the room: the price tag (MSRP ~$20k range).

• The Hobbyist: You are paying for the experience. Ideally, you want to sew, quilt, and embroider on one glorious station.
• The Business Owner: If you are trying to launch a brand, ask yourself: "Does this machine scale?"

The "Bottleneck" Reality: A single-needle machine requires you to stop and manually change the thread for every color. Detailed designs might require 15 thread changes. That is 15 times the machine is stopped.

• Level 1 (Hobby): XP1 is perfect.
• Level 2 (Side Hustle): You optimize the XP1 with better tools.
• Level 3 (Business): If you take an order for 50 polo shirts, the XP1 will kill your profit margin in labor hours. This is where you look at SEWTECH Multi-Needle Machines (like the 15-needle models). They change colors automatically and stitch while you hoop the next garment.

The Bridge: Before you buy a $15,000 multi-needle machine, try a magnetic hooping station. It mimics the industrial workflow and speeds up your prep time on the XP1 significantly.

Decision Tree: Fabric Type → Stabilizer Strategy → Hooping Method (So Placement Tools Actually Work)

Don't guess. Follow this logic path to determine your setup.

Warning: Magnet Safety. Magnetic hoops generate powerful pinching force. Keep away from pacemakers, credit cards, and hard drives. Do not let two rings snap together without fabric in between—you can pinch your skin severely.

Scenario A: The T-Shirt (Stretchy Knit)

• Stabilizer: No Show Mesh (Cutaway) + Fusible interlining on the back of the shirt to stop stretch.
• Hooping: Do not pull! Use a Magnetic Hoop to hold gently or float the shirt on adhesive stabilizer.
• Needle: Ballpoint (75/11).

Scenario B: The Quilt Block (Cotton Woven)

• Stabilizer: Medium Tearaway or Cutaway (depending on density).
• Hooping: Standard Lever Clamp hoop is efficient here.
• Needle: Sharp/Universal (75/11).

Scenario C: The Towel (Deep Pile)

• Stabilizer: Tearaway (Bottom) + Water Soluble Topping (Top - vital!).
• Hooping: Difficult with lever clamps due to thickness. A Magnetic Hoop is superior here as it self-adjusts to the towel thickness without crushing the loops.
• Needle: Sharp (90/14) to penetrate bulk.


Operation Checklist: Run the XP1 Like a Pro (Projection → Hoop Lock → Stitch-Out) Without the Usual Pitfalls

Print this out. Laminate it. This is your pilot's checklist.

1. Consumables Check: New needle? Bobbin full (at least 50%)? Correct thread weight (40wt usually)?
2. Hooping: Fabric is neutral (no stretch), inner ring slightly recessed.
3. Mounting: Slide hoop onto arm until it clicks. Wiggle it to ensure it's locked.
4. Projection: Turn on. Align center.
5. Trace: Run the trace function to check physical boundaries.
6. Presser Foot: Lower it.
7. Speed Governer: New? Set max speed to 600 SPM. Pro? 1050 SPM.
8. Go: Press Start.

Operation Checklist (Post-Run):

• Inspect the back. Is the bobbin thread showing about 1/3 width in the center of the satin column? (This is perfect tension).
• Did the outline register with the fill? If not, increase stabilizer next time.
• Did the hoop leave a mark? (Steam it out, or buy a magnetic hoop).


The Upgrade Path That Actually Feels Like an Upgrade: Faster Hooping, Cleaner Finishing, and Scalable Output

You have the machine. Now, equip your studio to match its capability.

1. The "Must-Haves" (Under $50):

• Temporary Spray Adhesive (prevents shifting).
• Curved appliqué scissors.
• High-quality polyester embroidery thread (generic thread breaks at high speeds).

2. The Productivity Unlock (Magnetic Hoops): If use the standard hoop and it feels like a wrestling match, searching for a magnetic hoop for brother is your next logical step. These hoops remove the mechanical strain of screwing and unscrewing, and they virtually eliminate "hoop burn" on delicate fabrics.

3. The Scalability Unlock (Multi-Needle): When you are ready to move from "fun" to "funds," standard single-needle machines hit a wall. High-volume orders require multi-needle automated color changes. SEWTECH offers solutions that allow you to produce 5x the output without 5x the labor.

Professionals often research systems like the hoopmaster hooping station or compatible alternatives. Why? because standardizing how you put the shirt in the hoop is the secret to getting the logo straight on 100 shirts in a row.

One Last Reality Check: The XP1 Is “User-Friendly,” But Your Process Still Matters

The Brother Luminaire XP1 is a Ferrari. It has lane assist (Projection) and cruise control (Laser Guide). But if you put bad gas in it (cheap thread) or drive with the parking brake on (poor stabilization), it will stall.

The machine’s "user-friendly" features are there to refine your work, not to replace the fundamental physics of embroidery. Respect the prep, invest in the right stabilization tools and hoops, and giving yourself permission to make mistakes on scrap fabric. That is how you turn a $20,000 purchase into a priceless creative partner.

FAQ

• Q: Why does the Brother Luminaire Innov-is XP1 touchscreen feel unresponsive unless the Brother Luminaire Sensor Pen or stylus is used correctly?
  A: Slow down and confirm the Brother Luminaire Innov-is XP1 registers each tap with the sharp “beep” before tapping again.
  • Clean: Wipe the Brother Luminaire Innov-is XP1 screen with a microfiber cloth to remove grease.
  • Tap: Use a deliberate, rhythmic tap with the rubber-tip stylus or Sensor Pen rather than rapid pecking.
  • Reposition: Sit centered in front of the Brother Luminaire Innov-is XP1 to avoid awkward angles that reduce touch accuracy.
  • Success check: Every intended command produces one clear electronic “beep” and the icon changes as expected.
  • If it still fails: Power-cycle and confirm the correct tool is being used; if the behavior persists, follow the Brother manual for touchscreen diagnostics.
• Q: What Brother Luminaire Innov-is XP1 pre-stitch prep prevents birdnesting and thread breaks before the first embroidery stitch?
  A: Do the “boring” physical checks first—most Brother Luminaire Innov-is XP1 birdnests come from thread path, lint, needle, or plate issues.
  • Extend: Pull the telescoping thread guide up until the click-lock is felt/heard.
  • Verify: Rethread so the thread flows freely (no loops around the spool pin; it should feed smoothly).
  • Clean: Open the bobbin cover and remove lint from the bobbin area.
  • Replace: Install a fresh needle (75/11 is a safe starting point for standard embroidery).
  • Success check: The thread feeds smoothly and the first stitch-out runs without immediate shredding, snapping, or a knot under the fabric.
  • If it still fails: Change the needle immediately again and re-check the thread stand height and bobbin area for lint.
• Q: When should the Brother Luminaire Innov-is XP1 straight stitch needle plate be used instead of the standard needle plate for embroidery?
  A: Use the Brother Luminaire Innov-is XP1 straight stitch plate when delicate fabric is flagging or getting pushed into the wide oval hole on the standard plate.
  • Swap: Slide the lever to the right, lift out the plate, and snap the straight stitch plate in place.
  • Confirm: Press down until the plate sits flush.
  • Avoid: Do not proceed if the plate is not seated flat.
  • Success check: A clear “snap” is heard and the needle plate sits flush with no rocking.
  • If it still fails: Re-seat the plate and re-check the needle condition; a dull needle can mimic plate-related stitch problems.
• Q: How can Brother Luminaire Innov-is XP1 users hoop the 10 5/8" x 16" hoop without wrinkles and without puckering after unhooping?
  A: Hoop for “neutral tension,” not “drum tight,” to prevent Brother Luminaire Innov-is XP1 puckering after embroidery.
  • Support: Hoop on a flat surface so fabric is not pulled upward while clamping.
  • Smooth: Lay fabric flat and remove wrinkles before closing the lever clamp.
  • Feel: Run fingers across the hooped area and ensure the weave is not distorted.
  • Success check: Fabric feels firm and flat with no sag, and the weave/knit does not look stretched out of shape.
  • If it still fails: Increase stabilization next time or consider a magnetic hoop to reduce hoop drag and hoop-marking on delicate fabrics.
• Q: What does “perfect tension” look like on the back of Brother Luminaire Innov-is XP1 embroidery after a stitch-out?
  A: The Brother Luminaire Innov-is XP1 tension is in the sweet spot when bobbin thread shows about 1/3 of the satin column width centered on the back.
  • Inspect: Turn the piece over immediately after the run and look at the middle of satin columns.
  • Compare: Check multiple areas (not just one spot) to confirm consistency.
  • Adjust next run: If outlines don’t register with fills, plan to increase stabilizer rather than blaming projection.
  • Success check: Bobbin thread is visible in the center of satin stitching at roughly one-third width, consistently.
  • If it still fails: Re-run the Level 1 prep (fresh needle, clean bobbin area, correct plate) and stabilize more firmly before changing any advanced settings.
• Q: Why does the Brother Luminaire Innov-is XP1 show “Key cannot be used” or lock menus like Sewing Guide during embroidery?
  A: The Brother Luminaire Innov-is XP1 is protecting the user—some functions are disabled in the wrong mode (Sewing vs. Embroidery).
  • Switch: Press the Home button and select the correct mode for the function needed.
  • Retry: Return to the menu after mode change rather than forcing repeated taps.
  • Proceed: Continue only when the correct mode is active and menus are available.
  • Success check: The previously greyed-out function becomes selectable without an error tone.
  • If it still fails: Confirm the machine is truly in the intended mode and consult the Brother manual for mode-specific restrictions.
• Q: What needle-area safety rule should Brother Luminaire Innov-is XP1 users follow when testing StitchVision projection or laser grid lines?
  A: Keep fingers, hair, jewelry, and loose sleeves at least 4 inches away from the Brother Luminaire Innov-is XP1 needle area during projection/alignment checks.
  • Pause: Do not lean in with hands near the needle when visibility is the goal.
  • Secure: Tie back long hair and remove dangling bracelets/necklaces before testing projection.
  • Prevent: Avoid accidental Start button or foot-pedal activation while close to the needle area.
  • Success check: Projection and grid checks are completed with hands and loose items clearly outside the needle zone.
  • If it still fails: Stop immediately and reset posture/work area so the operator can view the projection without reaching into the needle area.
• Q: What is the safest upgrade path for Brother Luminaire Innov-is XP1 productivity when hooping is slow, hoop burn happens, and multi-color orders take too long on a single-needle machine?
  A: Use a tiered fix: optimize Brother Luminaire Innov-is XP1 setup first, then upgrade to magnetic hoops for faster hooping, and consider a multi-needle machine only when labor time becomes the bottleneck.
  • Level 1 (Technique): Reduce speed to 600 SPM when new, follow the pre-stitch checklist, and confirm hoop lock + trace before starting.
  • Level 2 (Tool): Move to magnetic hoops when hooping is physically painful, leaves hoop burn, or thick items (like towels) are hard to clamp.
  • Level 3 (Capacity): Consider a multi-needle system when frequent multi-color runs and manual thread changes are consuming profit hours.
  • Success check: Hooping time drops, placement becomes repeatable, and rework (puckering/misalignment) decreases across repeated garments.
  • If it still fails: Add a hooping station to standardize placement and re-check stabilization choices by fabric type (knit vs woven vs towel pile).
