If your Brother Luminaire Innov-is XP1 suddenly feels "sluggish"—screen taps registering a millisecond late, erratic connectivity, or just a general sense of electronic lethargy—your instinct might be to freeze. In the high-stakes world of embroidery, where one glitch can ruin a $50 jacket back, we are conditioned to leave well enough alone. Firmware updates often trigger a specific type of anxiety: the fear of turning a precision instrument into a very expensive paperweight.

However, as someone who has managed production floors for two decades, I view firmware not as a risk, but as preventative maintenance. Think of it like changing the oil in your car. It ensures the computerized brain keeps up with the mechanical brawn.

Here is the good news: The update failures I see in studios are rarely caused by "mystery bugs." They are caused by human workflow errors—wrong file paths, impatient fingers, or dirty data ports.

This guide rebuilds the update process (specifically showcasing the jump from v1.22 to v1.24, though the physics apply to all versions) with industrial-grade safety protocols. We will not just "install a file"; we will verify your machine’s health, secure your data, and then—once the software is stable—look at how to upgrade your physical workflow to match your machine’s renewed speed.

1. The Nomenclature Check: "Update" vs. "Upgrade" (Don't Get Scammed)

Before we touch a button, we must clarity a terminology distinction that saves new business owners hundreds of dollars. In the Brother ecosystem, words have financial definitions.

• The Update (Free): This is maintenance code. It fixes bugs, improves screen latency, and stabilizes the OS. You download this from the manufacturer’s support site. It costs zero dollars.
• The Upgrade (Paid): This is a feature expansion (like a Kit I or Kit II). It is purchased through a standardized dealer, usually physical media or a license key, and often comes with hardware like larger hoops or specialized feet.

The Scam Alert: If you see an online listing selling a "System Update File" for $20, close the tab. You are being charged for something that is free.

Cognitive Note: When you finish a free update, the machine might display the text “Upgrade Complete.” Do not be confused; this is just the machine’s internal language. You did not accidentally buy anything.

2. The "Pre-Flight" Inspection: Know Your Baseline

Professional pilots don't take off without checking their gauges; professional embroiderers shouldn't download files without checking their version. Updating a machine that is already current introduces unnecessary risk variables.

The Inspection Sequence:

1. Power on your XP1.
2. Navigate to the Machine Settings menu (the paper icon).
3. Scroll (typically to Page 7 on the XP1) until you see the Version field.
4. Sensory Check: Take a photo of this screen with your phone. In the stress of a failed update, memory is unreliable. A photo is hard data.

In our case study, the machine is running Version 1.22.

Phase 1: Preparation Checklist

• Visual Check: Confirm current firmware version via the Settings menu.
• Hardware Check: Locate a high-quality USB drive (2GB - 32GB preferred). Avoid generic promotional drives given away at trade shows; their read/write speeds vary unpredictably.
• Environment: Ensure you have a 30-minute window of uninterrupted power. Do not attempt this during a thunderstorm or if your building has unstable voltage.
• Hidden Consumable: Have Isopropyl Alcohol handy to clean the USB contacts if the machine fails to read the drive initially.

3. The "Clean Room" Download Protocol

The number one cause of update failure is a "dirty" USB stick—one cluttered with old .PES design files, family photos, or PDFs. The machine’s bootloader is looking for a specific needle in a haystack. We want to remove the haystack.

Step-by-Step Data Hygiene:

1. Format your USB: On your computer, format the drive to FAT32. This wipes it clean and sets the file system Brother machines prefer.
2. Source the File: Go strictly to the Brother Solutions Center (Support website). Search "XP1".
3. Download: Select your OS (Windows/Mac) and download the Update Software.
4. Verify: Read the "Update History" link. It tells you why you are doing this. In v1.24, they improved camera calibration and projector accuracy—features critical for precise positioning.


The File Extension Rule

Often, your computer (Windows especially) will try to be helpful. It sees a file it doesn't recognize and asks, "What app should I use to open this?"

The answer is: None.

Do not try to open, unzip, or execute the file on your computer. You are simply the courier.

• Visual Check: The file must end in .UPF.
• Tactile Concept: Think of the .UPF file like a physical key. You don't take a file to the key; you put the key in the lock (the machine).


4. USB Architecture: The "Root" Rule

This is where 80% of support tickets originate. The machine’s bootloader is rudimentary; it cannot dig through folders named "My Downloads" or "Embroidery 2024".

The Protocol:

1. Drag the .UPF file directly onto the USB drive icon.
2. Verification: When you open the USB drive on your computer, you should see only the specific .UPF file. It should not be inside a folder. This is called the "Root Directory."


Phase 2: Setup Checklist

• USB drive formatted to FAT32 (optional but recommended for stability).
• Correct .UPF file downloaded from official source.
• File placed in the Root Directory (not in a folder).
• USB contains NO other files.
• USB safely ejected from computer (Right-click -> Eject).

5. Entering the Neural Core: The Bootloader Sequence

To update the brain, we must bypass the standard operating system. This requires a specific physical "handshake" with the machine buttons.

The Physical Sequence:

1. Turn the machine main power OFF.

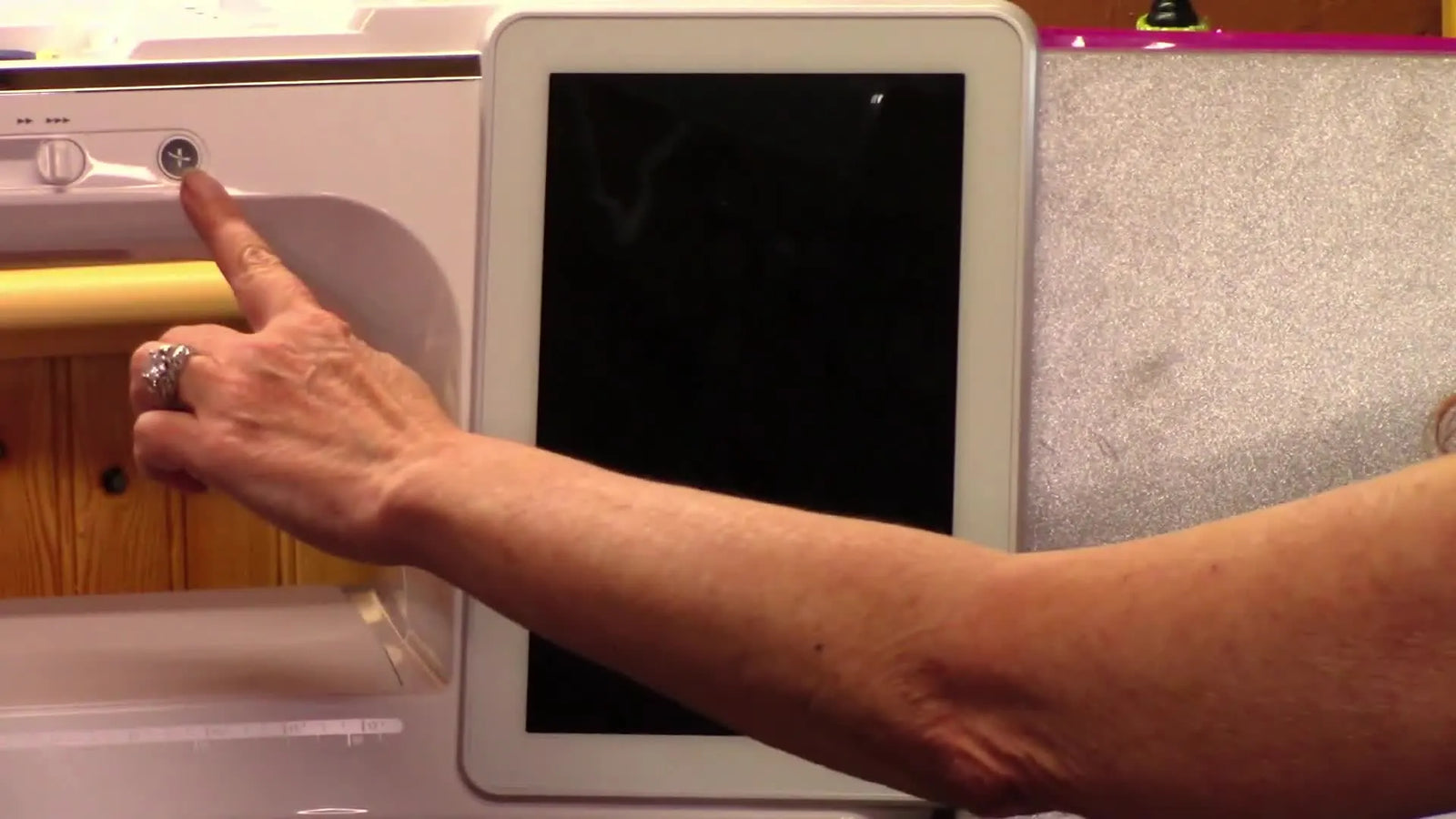

2. Locate the Automatic Needle Threading button (usually the button directly above the Start/Stop button).
3. Tactile Action: Press and hold the Threading button. While keeping firm pressure on it, reach over and flip the Main Power switch to ON.
4. Auditory/Visual: Hold the button until the screen lights up white. You will see a special service interface with icons. You can now release the Threading button.

NOTE: If the machine boots to the normal "Warning" screen, you let go too early. Power down and try again.

Warning: Mechanical Safety:
When powering on the machine, the embroidery unit or needle bar may perform a calibration shuffle. Keep hands clear of the needle area. Even in service mode, servo motors can engage unexpectedly. Never rest tools or coffee on the bed of the machine.

6. The Installation: The "Do Not Touch" Zone

You are now in the service menu. It looks different—stark, industrial.

1. Port Selection: The screen will show icons representing the USB ports (top port vs. bottom port). Identify which physical slot you are using and tap the corresponding icon.
2. Insertion: Insert your USB stick.
3. Execution: Press LOAD.

The Critical Moment: A progress bar will appear saying "Saving the upgrade file." The Start/Stop button may cycle colors (Red/Amber/Green). This is the machine writing to its ROM.

• Rule: Walk away. Do not bump the table. Do not jostle the USB stick. Do not turn on a vacuum cleaner on the same electrical circuit.
• Duration: This can take anywhere from 3 to 15 minutes depending on the file size.






Warning: Data Corruption Risk:
NEVER power off the machine while the progress bar is active. Cutting power during a ROM write can "brick" the main board, requiring a physical motherboard replacement by a certified technician. If the bar stalls, wait at least 45 minutes before considering intervention.

7. Verification and The "Hashtag" Anomaly

Once the screen says "Upgrade Complete," the danger has passed.

1. Remove the USB stick.
2. Cycle the power (Off, wait 5 seconds, On).
3. Go back to Machine Settings -> Page 7.
4. Visual Check: Confirm the version now reads 1.24.




The "#" Symbol

Look closely at your new version number. Does it look like Version 1.24 #? If you see that Hashtag (#), your job is not done. It indicates missing Tutorial Video Data. You must return to the Brother website, download the separate "Tutorial Video" package, and repeat the installation process. Ignoring this can cause crashes when you try to watch help videos on-screen.

Phase 3: Operation Checklist

• "Upgrade Complete" message displayed.
• USB removed before rebooting.
• Version verified in settings (Target: 1.24).
• Sanity Check: Touch 5 different menu items. Does the screen feel responsive?
• Open a complex design to ensure file reading is stable.

8. Beyond the Software: Optimizing the Physical Interface

Congratulations. Your XP1 is now running optimized code. The latency is gone. But in a production environment, updating the firmware is only Step 1.

The XP1 is a high-speed machine. If your software is fast, but your physical workflow is slow, you are creating a bottleneck. The most common friction point? Hooping.

Once your machine is stable, evaluate your "Material Workflow" using this decision matrix. Software fixes bugs; logic fixes quality.

The Stabilizer Decision Tree

Don't guess. Engineering determines the result.

9. The Upgrade Path: Moving from Hobbyist to Production

If you have updated your firmware and dialed in your stabilizer, but you still dread the process of hooping—specifically the struggle to tighten screws, the unsightly "hoop burn" rings on delicate garments, or the pain in your wrists—it is time to look at your tools.

The factory-standard plastic hoops are functional, but they are slow.

• For the Serious Hobbyist: If you primarily make gifts on a brother embroidery machine, standard hoops are acceptable. Focus on technique: finger-tighten the screw, then pull the fabric taut (like a drum skin), then give the screw one final quarter-turn.
• For the Side Hustle: If you are doing batches of 5-10 shirts, a hooping station for embroidery creates a repeatable template, ensuring every logo lands in the exact same spot on the chest.
• For the Production Shop: This is where professionals switch to Magnetic Frames.

Professionals dealing with thick jackets or delicate performance wear often search for magnetic embroidery hoops for brother solutions. Why? Because they eliminate the "inner ring/outer ring" friction. You simply lay the fabric over the bottom frame and snap the top magnet down.

For XP1 owners specifically, looking into a brother luminaire magnetic hoop or high-end third-party equivalents can cut hooping time by 40%. When you are billing by the hour, that time is margin.

Warning: Magnetic Safety:
Magnetic Hoops utilize industrial neodymium magnets. They generate massive force.
* Pinch Hazard: They can crush fingertips if handled carelessly.
* Medical Risk: Keep at least 6 inches away from pacemakers and ICDs.
* Data Risk: Keep away from credit cards, mechanical watches, and phones.

The Ultimate Scale-Up: If you find yourself perfectly updated, perfectly hooped, but simply limited by the single needle of the Luminaire (having to stop and change threads 15 times for one design), that is the trigger point to consider multi-needle architecture, such as SEWTECH production machines. These allow you to set 15 colors at once and walk away—the true definition of automation.

10. Troubleshooting: Field Diagnostics

If the update process failed, define the symptom before attempting a fix.

Embroidery is a discipline of variables. By locking down your firmware (software variable) and your hooping/stabilizer choices (physical variables), you eliminate the chaos. Update the machine immediately, verify it thoroughly, and then get back to creating.
