If your Brother Luminaire sometimes insists on a bigger hoop, you’re not imagining things. The machine is doing its job—telling you something sits outside the stitchable boundary. In this guide, we’ll follow a clear, real-world demo to show how to match your screen to your hoop, tame a basting box that overflows, and delete sneaky stray stitches from My Design Center so your designs actually fit. brother embroidery machine
What you’ll learn
- How the embroiderable area differs from the hoop’s opening, and how to visualize it on-screen so your placement is accurate.
- The setting to adjust when a basting box refuses to fit, plus the one extra step that makes the change “take.” brother embroidery hoops
- A practical method to spot and remove accidental lines drawn in My Design Center that silently force a larger hoop.
- Quick cues your Luminaire gives you—greyed-out options and red bounding boxes—and how to use them to troubleshoot fast.

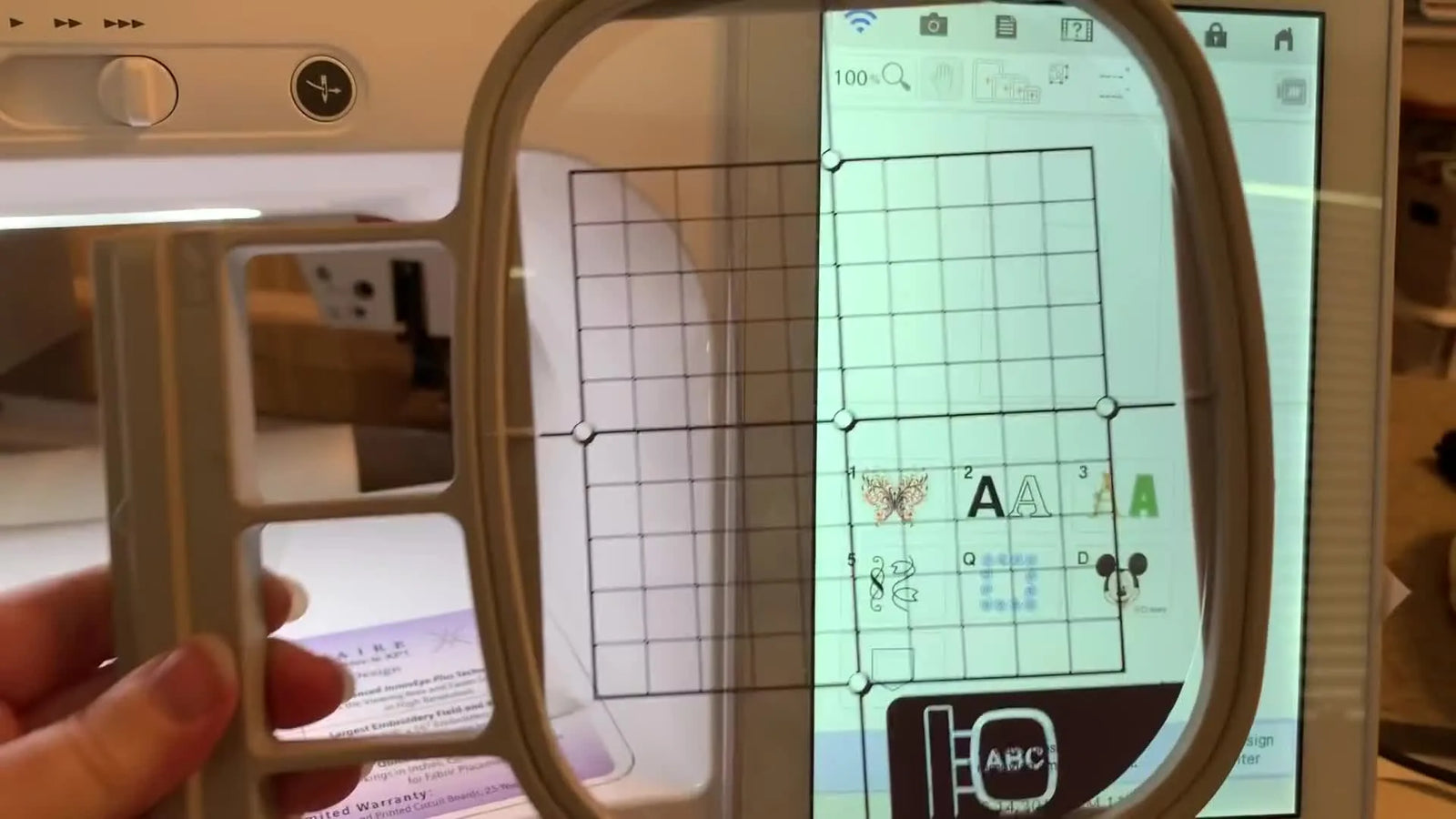

Mastering Your Luminaire's Embroiderable Area What is the embroiderable area? The most common early confusion: the hoop’s physical opening is not the same as its stitchable field. In the video, the demonstrator holds a 4x4 hoop with a grid template and aligns it to the screen. That gridded square is the true 4x4 embroiderable area; the clear plastic beyond the grid is not stitchable, even though it’s inside the frame.
Think of the grid as your “keep-in zone.” Anything pushed beyond that box will trigger the machine to disable the 4x4 choice and prompt you toward a larger frame. This is by design: the machine prevents you from stitching off the hoop.
A physical template makes the concept click. The grid shows boundaries that match what you’ll set on-screen, so your eye and your machine agree on the same limits.
Matching physical hoops to screen settings On the Luminaire, you can mirror the real hoop by setting the screen’s frame size. Navigate to the Embroidery Frame Display and select the 4"x4" option when you’re working with a 4x4 hoop. This immediately gives you an accurate visual fence for design placement.
With the frame set, drop in a simple design—an octagon in the demo—and recolor it if that helps you see edges. Now, if you nudge any part outside the 4x4 field, the 4x4 choice will grey out. You may also hear a subtle alert when trying to pick a too-small hoop. That’s your cue: reposition to bring the whole design back inside the box.
When you push the design beyond the boundary, the machine shows that it will fit a larger hoop (like 5x7) while keeping 4x4 disabled. It’s not picky; it’s protecting your project.
Quick check
- If the 4x4 option is greyed out, something is out of bounds.
- Centering or resizing usually restores the correct hoop choice.
Troubleshooting Basting Box Overflows Why your basting box might not fit Basting stitches are excellent for stabilizing fabric, but the basting outline can push beyond the hoop if its distance from the design is set too large. In the demo, the design is slightly enlarged and centered, then a basting box is added. With the default distance, the basting outline extends past the field—instantly disabling 4x4.
This can be frustrating because the design itself technically fits; it’s the basting outline causing the error. The visual tells are clear: the outline visibly sits outside the boundary and your hoop selection greyed out.
brother embroidery machine hoops
Adjusting the basting distance setting Head to Settings (page 9 in the demo) and find Embroidery Basting Distance. Reducing it to 0.020" brings the basting outline closer to the design. That alone doesn’t update the active outline, though—there’s one more step.
Return to Embroidery, deselect the basting box, then select it again. That refresh applies your new distance. The result: the basting box now fits completely inside the 4x4 field, and the 4x4 option becomes available again.
Quick check
- Change Embroidery Basting Distance to 0.020" when a basting outline is the culprit.
- Deselect and re-select the basting box so the new value takes effect.
Watch out - If the basting outline still forces a bigger hoop, re-check that you actually re-selected the basting box after changing the setting.
Eliminating Accidental Stitches from My Design Center Identifying hidden stitch lines A sneaky cause of hoop errors is an accidental touch in My Design Center. While sketching or shaping your design, a small, faint mark can get digitized into a stitch. It might be tiny and easy to miss—but the machine treats it as part of your design file.
In the demo, a heart design fits the 4x4 area, but a faint mark below it gets colored so you can see it. When moving to the next screen, the machine draws a red bounding box around those stray lines—your first indicator they’ve become stitches. Then, when trying to proceed to embroidery, the machine wants the largest hoop, not the expected 4x4.
Using selection and cut tools for a clean design The fix is straightforward. Recall the design from memory and, in My Design Center, use the selection handles to draw a box around the stray marks. Tap Cut (scissors) to remove them. If you suspect more stray stitches, repeat the selection-and-cut step. When you save the cleaned file and return to embroidery, it now fits the 4x4 field as expected.
Pro tip
- If a design that “should” fit suddenly requires the largest hoop, suspect a hidden stitch. The red bounding box is your friend.
- Save a clean version to memory so those deleted marks don’t sneak back in later.
From the comments
- Several users realized their stitchable area is smaller than the hoop opening and that this mismatch caused intermittent errors.
- Others said they were overestimating the room in the hoop and plan to rely on grids going forward.
- A community reply mentioned there are charts for embroiderable areas per hoop—handy when planning design dimensions.
Practical Tips for Brother Luminaire Users
- Always match screen frame size to your physical hoop before placing designs. This alignment helps the machine’s grey-out cues reflect reality.
- When a design seems to fit but the hoop is still disabled, temporarily hide or remove extras like basting boxes. If 4x4 returns, adjust Embroidery Basting Distance down.
- Use color changes strategically to expose faint marks in My Design Center before they become stitches.
- After any setting change, confirm it’s applied by toggling the element—deselect/re-select the basting box, for instance.
- When in doubt, recall from memory and re-check for strays. The red bounding box is a reliable tell.
Watch out
- It’s easy to bump the screen while working in My Design Center. Those faint lines can be nearly invisible until the red bounding box gives them away.
- Don’t assume an error means the design is too big—sometimes it’s just the basting distance or a stray stitch.
Quick check
- 4x4 greyed out? Confirm everything—design and any outlines—sits fully inside the screen’s 4x4 boundary.
- Basting box misbehaving? Reduce distance to 0.020" and re-select the box.
- Still no luck? Reopen in My Design Center and look for stray marks.
Join the Community: Just Stitching with the Brother Luminaire The video’s creator invites users to connect in a friendly Facebook group for more Luminaire-specific help. Lively communities often surface shortcuts and reference charts (like embroiderable areas per hoop) that are easy to keep on hand at your machine.
From the comments, we’ve seen how many “aha!” moments come from simple alignment fixes, template use, and recognizing that the stitchable field is smaller than the physical opening. If you’re new to the platform, joining a group can flatten the learning curve fast. brother sewing and embroidery machine
Conclusion: Embroider with Confidence A few core habits eliminate the most common hoop headaches on the Brother Luminaire:
- Set the on-screen frame size to your actual hoop.
- Keep your entire design—and any basting outline—inside the visible field.
- If a hoop size greys out unexpectedly, check for stray stitches using the red bounding box.
- Use selection handles and the Cut tool to remove accidental marks in My Design Center.
With these moves, your Luminaire’s guardrails start to feel like a coaching system rather than a blockade. Designs land where you expect, basting stabilizes as intended, and the right hoop unlocks on the first try. Happy stitching.
P.S. If you use multiple hoop types, it can help to keep a small reference card for embroiderable dimensions nearby. Templates and on-screen frames make that translation from physical to digital nearly foolproof. brother embroidery frames
Resources to remember
- Embroidery Frame Display: pick the frame that matches your hoop.
- Embroidery Basting Distance: set to 0.020" to pull the outline in when needed, then re-select the basting box.
- My Design Center: selection handles + Cut (scissors) remove stray stitches. brother embroidery hoop 4x4
If you’re expanding your kit later, the same embroiderable-area principles apply no matter which standard frames you use. Prioritize accurate placement, watch for greyed-out choices, and let the red bounding box guide your cleanup. brother embroidery machine
