Brother Luminaire Color Sort (3 Spools Icon) Explained: Fewer Thread Changes Without Ruining Stitch Order

Mastering the "Color Sort" feature on the Brother Luminaire XP1/XP2 is the difference between a hobbyist who changes thread 20 times for 4 shirts and a professional who changes it 5 times and goes to lunch.

If you have ever stared at your screen, wondering why the machine refuses to combine two identical shades of red, this guide is your manual. We will move beyond the basic "how-to" and into the "why," covering the physics of stitch layering, the logic of machine intelligence, and the stabilizing protocols necessary when you start batching designs.

The Logic: Why Your Machine Refuses to "Just Merge Everything"

Before we press a single button, you must understand the "Safety First" rule of embroidery digitizing. The Brother Luminaire is not broken; it is protecting you from ruining your garment.

The Layering Law: Embroidery is a physical construction, not a flat print.

1. Foundation: Fill stitches (Tatami) lay the groundwork.
2. Detail: Satins and shading add dimension.
3. Definition: Outlines (Running Stitch/Bean Stitch) sharpen the edges.

If the Color Sort feature simply grabbed every black stitch in the design and sewed them first, your Mickey Mouse outline would be stitched underneath his face, burying the detail.

The Golden Rule: The Luminaire’s Color Sort will only merge colors that are consecutive and identical. It will never violate the ordinal layer structure of the design file.

Phase 1: The Pre-Flight Inspection

Goal: Verify the DNA of your design before duplication.

In the example, we select a Mickey Mouse head from the Disney/Pixar category. Do not hit "Set" yet. Look at the data.

The Visual Audit: Look at the thread list on the right side of the screen. You are looking for a linear 1-2-3-4-5 progression.

• Mickey’s Data: 5 Colors. Each color appears exactly once.
• Sequence: Peach → White → Red → Pink → Black.

This is the "Green Light" scenario. Because no color repeats within the single design, the machine allows you to stack multiple Mickeys, and it will easily group them into: All Peaches → All Whites → All Reds, etc.

Phase 2: Strategic Layout & Spacing

Goal: Create a multi-design hoop without inviting disaster.

When you add the second Mickey manually, the machine places it dead center—directly on top of the first.

• Sensory Check: If the screen looks like a jumbled mess of colors, you have overlap.
• Action: touch and drag the new design away.

The "Thumb-Width" Rule: Leave at least 10mm (about a thumb’s width) between design boundaries.

• Why? If designs are too close, the jump stitches may snag, or the presser foot may clip the previous embroidery, causing a layer shift.
• Physics: Fabric shrinks as stitches pull it in (the "draw-in" effect). Two designs placed 2mm apart on screen might overlap by 1mm on fabric after the pull effect. Give them room to breathe.


The Execution: Activating the Algorithm

To engage the sort logic, use this precise path:

1. Tap Embroidery (bottom right).
2. Tap Layout.

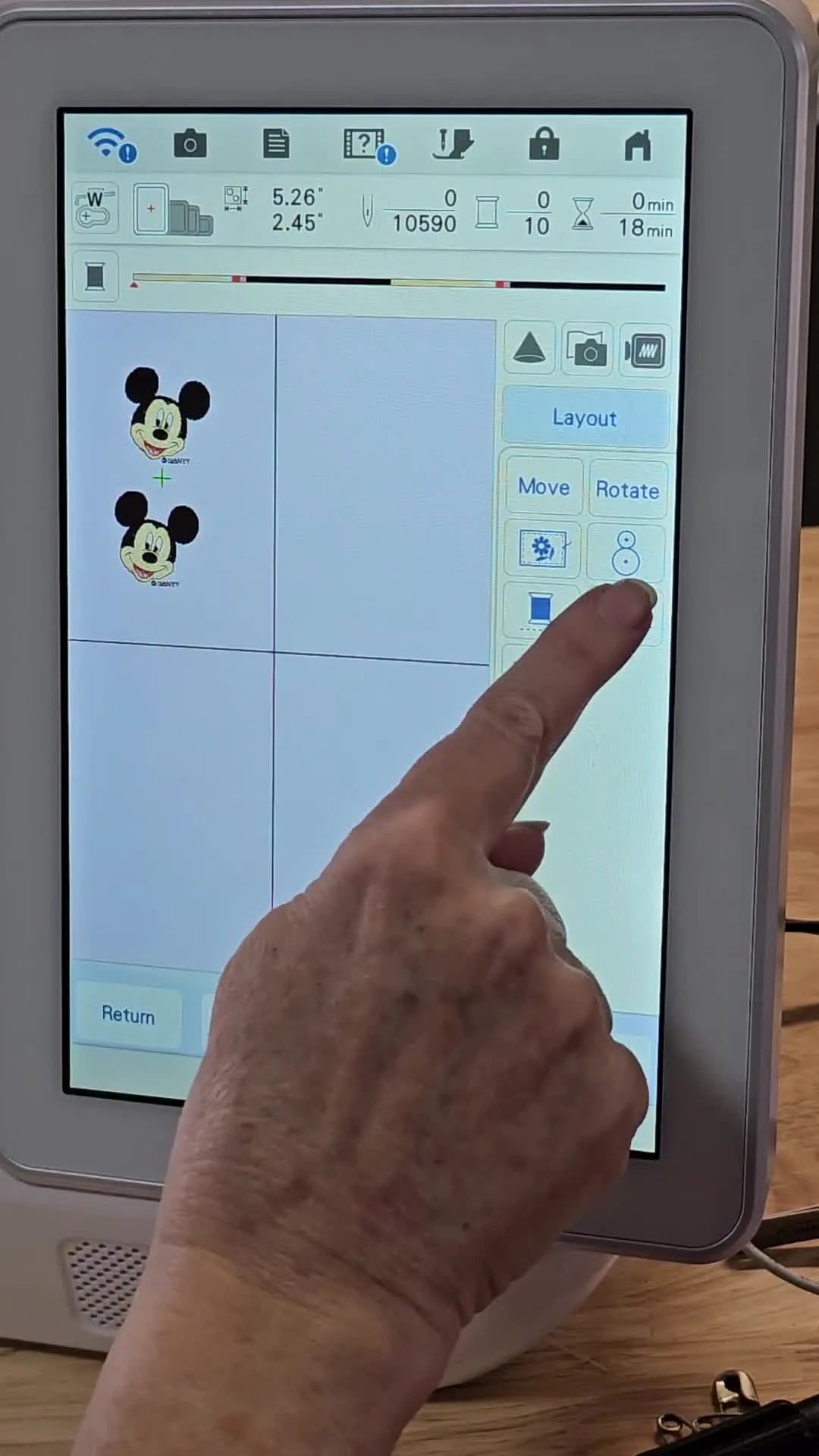

3. Tap the 3 Spools Icon (This is the specific Color Sort toggler).

Visual Confirmation: Watch the thread list. You should see the icons change from a single spool to a "stacked spool" graphic. The numbers on the left (the stop counts) should drop significantly.

PREP CHECKLIST: The "Before You Stitch" Protocol

• Overlap Check: Are all designs separated by at least 10mm of "negative space"?
• Consumables Audit: Do you have enough thread on the spools? (Batching requires 4x the thread volume; running out mid-batch creates tie-offs that ruin the back).
• Needle Integrity: Change your needle now. For detailed character work (like Disney faces), use a slightly smaller needle (Size 75/11) to keep text and eyes crisp.
• Hidden Item: Have your curved appliqué scissors ready for jump stitches, even if the machine trims.

Warning: Never put your hands inside the hoop area while the machine is plotting or moving to a start point. A 1000 SPM (Stitches Per Minute) needle travels faster than your reflex reaction time.

Phase 3: The Perfect Batch (Mickey + Minnie)

Goal: Combining different designs that share the same DNA.

The operator adds a Minnie Mouse design. Here is why this works beautifully:

• Mickey and Minnie share the exact same color palette.
• Crucially, they share the exact same stitch order (Face → Eyes/Detail → Bow/pants → Outline).

Because the architecture of the files is identical, the Color Sort feature allows the Luminaire to treat them as one giant design. You get 4x the output for 1x the thread change effort.

SETUP CHECKLIST: Batching Configuration

• Grid Verification: Use the "Grid" background on the screen to ensure designs are aligned horizontally. Use the grid lines as visual anchors.
• Sort Re-Check: If you moved a design after sorting, the sort often deactivates. Look for the stacked spool icon again.
• Stabilizer Selection:
  • Standard: One layer of Cutaway (2.5oz).
  • Batch Production: Upgrade to a heavier Cutaway (3.0oz) or float a layer of tearaway under the hoop.
  • Why? 4 designs = 4x the needle penetrations. The fabric becomes "Swiss cheese." You need extra stabilization to prevent the material from warping by the time you reach the 4th design.

Phase 4: The "Daisy Duck" Anomaly

Goal: Understanding why the machine "ignored" your command.

This is where beginners panic. The operator adds Daisy Duck. Suddenly, the Color Sort seems broken.

• The Symptom: Ideally, "Pink" should merge. But the machine separates Daisy’s pink bow from Minnie’s pink dress.
• The Cause: Stitch Order.
  • Minnie: Pink is Step #4.
  • Daisy: Pink might be Step #2 or Step #5 in her specific file structure.

The machine cannot pause Minnie at Step #4, jump to Daisy at Step #2, and then go back to Mickey. That requires moving the hoop wildly across the frame, risking registration errors. It simply stitches them in the safest chronological order.

Troubleshooting Guide: Diagnosis & Repair

If your batch isn't sorting correctly, consult this logic table.

Decision Tree: When to Batch vs. When to Single-Stitch

Use this logic flow before committing to a 4-up hoop layout:

1. Do the designs share the exact same palette?
   • NO → Stop. Stitch individually. Thread changes will negate time savings.
   • YES → Go to step 2.
2. Are the designs structurally identical (e.g., 4x same logo)?
   • YES → Green Light. Activate Color Sort.
   • NO → Go to step 3.
3. Is the fabric stable (Denim/Canvas) or unstable (Jersey/Pique)?
   • STABLE → Proceed with caution.
   • UNSTABLE → Yellow Light. Batching on stretchy fabric increases the risk of "pull" distortion. Consider stitching max 2 at a time, or using a magnetic hoop to maintain even tension.

The Production Bottleneck: It’s Not the Software, It’s the Hoop

Color Sort solves the software efficiency problem. But if you are batching designs to make money, your bottleneck is likely physical: hooping time and fabric damage (hoop burn).

When you stuff a large garment into a standard hoop to stitch 4 designs, you often have to over-tighten the screw, leaving permanent "burn" rings on delicate fabrics. Users often search for a brother luminaire magnetic hoop specifically to solve this issue.

The Solution Hierarchy:

• Level 1 (Technique): Use "float" techniques (hooping only stabilizer and spraying adhesive) to avoid crushing the fabric.
• Level 2 (Tool Upgrade): Switch to magnetic hoops for brother luminaire.
  • The Benefit: These hoops use high-strength magnets to clamp fabric without friction. This allows you to slide the garment slightly to adjust alignment without un-hooping the whole sandwich.
  • The Logic: If you save 10 minutes with Color Sort but spend 15 minutes scrubbing out hoop marks, you have lost net time.
• Level 3 (System Upgrade): For shops running multiple machines, standardizing on magnetic embroidery hoops for brother (like the SEWTECH ecosystem) means you can hoop a garment at a station and snap it onto any compatible machine, regardless of the model age.

Many users compare systems, looking at the dime snap hoop for brother luminaire or the brother magnetic embroidery frame. The key metrics you should evaluate are magnet strength (can it hold a thick hoodie?) and frame weight (is it light enough to not wear out your pantograph motor?). SEWTECH magnetic hoops are engineered to balance high holding force with lightweight alloy frames, minimizing motor strain.

Warning: Magnetic hoops contain neodymium magnets. They are incredibly strong. Pinch Hazard: Keep fingers clear when snapping them shut. Medical Safety: Keep at least 6 inches away from pacemakers or insulin pumps.

The Professional Workflow: "Jigging" Your Production

If you are committing to batch production using Color Sort, you need a repeatable physical workflow.

1. Station Setup: Use a dedicated hooping station for embroidery machine (or a marked table surface) to ensure every shirt is loaded at the exact same angle.
2. Color Sort Activation: Load your 4-up file on the machine.
3. Continuous Flow: While the machine stitches the "Sorted" batch (which takes longer due to the reduced stops), you should be hooping the next garment.

By combining the software efficiency of Color Sort with the hardware efficiency of hooping for embroidery machine tools (like magnetic frames), you create a continuous production loop. Advanced tools like the hoop master embroidery hooping station are excellent, but simply marking your table with masking tape and using a magnetic hoop can yield 80% of the benefit for a fraction of the cost.

OPERATION CHECKLIST: The Final Go/No-Go

• Sensor Check: Tap the screen. Does the Color Sort icon show "active" (highlighted or stacked)?
• Tension Check: Pull the fabric gently near the corners of the hoop. It should be taut like a trampoline, not stretched like a drum skin (which causes puckering later).
• Thread Path: Glance at your cone. Is the thread caught on the bottom of the spool?
• Bobbin Status: For a large Sorted batch, start with a fresh full bobbin. Running out of bobbin thread on design #3 of 4 can cause registration shifts when you re-engage the machine.

By respecting the physics of the machine and upgrading your hooping tools to match your software ambitions, you turn the Brother Luminaire from a domestic machine into a production powerhouse.

FAQ

• Q: Why does the Brother Luminaire XP1/XP2 Color Sort feature refuse to merge the same thread color across a design batch?
  A: Brother Luminaire XP1/XP2 Color Sort only merges colors that are consecutive and identical, so it will not break the original stitch layer order.
  • Verify: Open the thread list and check whether the repeated color appears in separate “steps” (not back-to-back).
  • Accept: Let the machine keep the safe chronological order when designs have different stitch architecture (fill vs outline order).
  • Choose: Batch only designs that share the same palette and the same stitch order (e.g., identical logos or character files built the same way).
  • Success check: The thread list shows fewer stops and the Color Sort icon changes to a stacked-spool style.
  • If it still fails: Rebuild the batch using structurally identical designs, or stitch designs separately to protect quality.
• Q: How do I turn on Color Sort on the Brother Luminaire XP1/XP2 and confirm it is actually active?
  A: Activate Color Sort from the Layout screen and confirm the spool icon and stop counts change.
  • Tap: Embroidery (bottom right) → Layout → tap the 3 spools icon.
  • Watch: The thread list icons should switch to a “stacked spool” look and the stop numbers should drop.
  • Re-do: If any design was moved/edited after sorting, tap the 3 spools icon again as the last step.
  • Success check: The stacked-spool indicator remains on when returning to the main embroidery screen, and the stop count stays reduced.
  • If it still fails: Re-enter Layout and repeat the toggle; do not finalize positioning after sorting.
• Q: What spacing should be used when batching multiple designs on a Brother Luminaire XP1/XP2 hoop to avoid overlaps and registration issues?
  A: Leave at least 10 mm (about a thumb width) between design boundaries to account for draw-in and prevent clipping/snags.
  • Drag: Move each added design away from the center overlap before stitching.
  • Measure: Use the on-screen layout and keep “negative space” around every design edge.
  • Plan: Assume fabric draw-in can turn small on-screen gaps into real overlaps on the garment.
  • Success check: The screen preview looks clearly separated (not a jumbled color stack), and designs are not touching.
  • If it still fails: Reduce the number of designs per hoop (e.g., 2-up instead of 4-up) and increase stabilization.
• Q: What needle and bobbin preparation should be done before running a long Color Sort batch on the Brother Luminaire XP1/XP2?
  A: Start a batch with a fresh needle and a full bobbin because long, reduced-stop runs punish worn consumables.
  • Change: Install a new needle before starting; for detailed character faces, use a smaller 75/11 as a safe starting point (confirm with the machine manual).
  • Start: Begin with a fresh full bobbin to avoid running out on design #3 of #4.
  • Stage: Keep curved appliqué scissors ready for jump stitches even if the machine trims.
  • Success check: Stitching sounds smooth (no popping), detail areas look crisp, and the batch completes without bobbin run-out.
  • If it still fails: Re-check thread path for snags and restart the batch with new consumables.
• Q: How can Brother Luminaire XP1/XP2 users prevent hoop burn marks when batching multiple designs on delicate garments?
  A: Avoid over-tightening standard hoops; use float techniques first, and consider a magnetic hoop if hoop burn is a repeat problem.
  • Stop: Do not crank the hoop screw extra tight just to “hold 4 designs.”
  • Float: Hoop only stabilizer and use spray adhesive to bond the garment, reducing fabric crushing.
  • Upgrade: Switch to a magnetic hoop system when hoop marks and hooping time become the bottleneck.
  • Success check: After unhooping, the garment shows minimal or no ring marks and the fabric surface recovers quickly.
  • If it still fails: Reduce batch size per hoop and increase stabilizer support to prevent shifting without over-tensioning.
• Q: What stabilizer setup works best for Brother Luminaire XP1/XP2 Color Sort batching to prevent shifting and outline gaps?
  A: For multi-design batches, increase stabilization because repeated needle penetrations can warp fabric over time.
  • Use: One layer of cutaway (2.5 oz) as standard; for batch production, move to heavier cutaway (3.0 oz) or float a tearaway under the hoop.
  • Bond: Add fusible stabilizer (for example, fusible PolyMesh) or spray adhesive to reduce fabric migration during long runs.
  • Align: Use the grid background to keep designs level before stitching.
  • Success check: Final outlines close cleanly with no gaps, and the last design in the batch matches the first without drift.
  • If it still fails: Decrease stitch load per hoop (fewer designs) and re-check spacing and hoop tension.
• Q: What safety rules should Brother Luminaire XP1/XP2 operators follow during plotting and start-point movement, and what extra safety applies to magnetic hoops?
  A: Keep hands out of the hoop area during movement, and treat magnetic hoops as pinch hazards with medical-device precautions.
  • Keep clear: Never place fingers inside the hoop area while the machine is plotting or moving to the start point.
  • Pause first: Stop the machine before trimming jump stitches or adjusting anything near the needle path.
  • Handle magnets carefully: Keep fingers clear when snapping magnetic hoops shut to avoid pinches.
  • Medical safety: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: Hands stay outside the sewing field during all auto-movements, and magnetic frames close without finger contact.
  • If it still fails: Slow down the workflow—finish positioning and checks before pressing start, and use a consistent hooping station routine.
