Brother Luminaire & Babylock Solaris IQ Designer: Add a Basket-Weave Quilting Background Without Bulky Stitches (and Stitch the What-Knot Basket Cleanly)

If you’ve ever stared at your Brother Luminaire or Babylock Solaris screen thinking, “I just want the quilting to look intentional—not like a dense, stiff mess,” you’re in the right place. Machine embroidery is an experience science; what works on screen doesn't always translate to fabric unless you understand the physics of "push and pull."

This project is the perfect teaching ground: the What-Knot Quilted Basket requires a clean background texture, crisp satin borders, and a foam-and-fabric sandwich. This combination is notoriously unforgiving—if your hooping is weak or your digitization is too dense, layers will shift, and your basket will feel like cardboard.

Below, I’ll rebuild the full workflow from the video—first the on-screen IQ Designer / My Design Center quilting build, then the in-the-hoop (ITH) stitch-out. Along the way, I’ll add the "old hand" sensory checks that prevent the most common heartbreak: folded corners, exposed foam, and hoop burn.

Start Calm: Loading the What-Knot Quilted Basket PES File on Brother Luminaire / Babylock Solaris Without Losing Your Place

The video begins exactly where most newbies rush and make mistakes: file selection. Take 30 seconds to set the digital stage.

• On the machine, open the design “pocket” (lower-left area of the screen).
• Choose the first USB port (ensure your stick is seated firmly; listen for a soft system 'ding' or icon flash).
• Navigate to the embroidery designs folder, then select the PES file for the What-Knot Quilted Basket.
• Tap Set to load it.

Why this matters: The next steps depend on the machine knowing the exact outer limits of this specific design. Your boundary box must be derived from the actual file you’ll stitch, not a generic shape.

The Boundary Box Trick: Using the Stamp Pattern “Flower” Icon and Distance -0.108 to Tuck Quilting Inside Satin Stitch

Here’s the first “make-or-break” move. If your quilting runs all the way to the edge under the satin border, you create bulk that breaks needles and causes wavy edges. We need to create a "safety zone."

1. Go to Edit.
2. On the right-side category list, select the icon that looks like a flower (Stamp Pattern).
3. You’ll see a red box surround the design. Use the minus control to shrink that box inward.
4. Set Distance to -0.108 (or as close as your machine increments allow, e.g., -0.110).
5. Tap Memory and confirm saving it to the My Design Center Stamp Pattern list.

Expected outcome: The red boundary box shrinks visibly inside the design edge. This ensures your quilting stops before it hits the final satin border, keeping the edges flat.

The “Hidden” Prep Pros Do Before My Design Center Quilting (So the Foam Sandwich Doesn’t Shift Later)

Before you jump into My Design Center, do a physical reality check. This is an in-the-hoop sequence with foam, floated fabric, trimming, and a final satin border. Stability is everything.

If you are planning to float layers (positioning them on top of the hoop rather than clamping them in), you are relying entirely on the "tack-down" stitch to hold things steady.

Pro Insight: One upgrade path that’s worth considering for thick ITH stacks is magnetic embroidery hoops. Traditional hoops require you to force the inner ring inside the outer ring, which can crush thick foam or leave "hoop burn" (shiny crush marks) on the fabric. Magnetic frames simply snap down, holding thick sandwiches securely without distortion—a massive advantage for projects like this.

Prep Checklist (Complete this before touching the screen):

• Design: Confirm file is loaded and centered.
• Scissors: Locate double-curved appliqué scissors or sharp snips (crucial for getting close to the foam).
• Stabilizer: Use Water-Soluble Stabilizer (WSS). Do not use tear-away, as it leaves rigid paper inside the foam sandwich.
• Layers: Have your foam and two fabric cuts ironed and within arm's reach.
• Consumables: Have masking tape (or painter's tape) ready for the backing step.


My Design Center Quilting Done Right: Why the Paint Can (Not the Brush) Makes Pattern 17 Fill the Whole Shape

Now you’ll move from embroidery edit into My Design Center to generate the texture.

1. Tap Home, then OK, then enter My Design Center.
2. Go to Shapes, then the flower area where your saved stamp patterns live.
3. Select the outline you saved in step 2 and tap OK.

Now, the key tool choice that confuses beginners:

• Select the red icon with diagonal lines (Region Property area). This controls the fill, not the outline.
• Enter the quilting pattern menu.
• Tap Select, then choose Pattern 17 (Basket Weave).
• Select the Paint Can icon (Fill), NOT the Paint Brush (Line).
• Tap inside the shape on the screen to pour the pattern in.

Visual Check: If you see a thick line around the edge but no pattern inside, you used the Brush. Undo and use the Can.

The Four Settings That Make Basket Weave Quilting Look Expensive: 120% Size, Outline OFF, Random Shift 3, Single Run Thickness

This is the "Secret Sauce." Default machine settings are often too dense for foam quilting, turning your soft basket into a stiff brick. Modify these four specific values:

After applying Pattern 17, tap Next in the interface to access properties:

1. Size: Change 100% to 120%. (Opens up the weave so it looks lofty).
2. Outline: Turn this OFF. (Crucial: My Design Center often defaults to adding a running stitch around the fill. We don't want this double-stitching near our satin border).
3. Random Shift: Set to 3. (This prevents the "robotic grid" look and makes the quilting look more organic/hand-guided).
4. Thickness: Set to Single Run. (Do not use Triple Stitch/Bean Stitch—it will cut through your foam).

Expected outcome: A basket weave texture that reads as "lofty quilting," not "bulletproof embroidery."

Don’t Get Trapped by the “Set” Warning: Converting My Design Center to Embroidery Mode Without Losing Edits

When you tap Set to convert the My Design Center design into an embroidery pattern, the machine warns you that My Design Center will be exited and data will be discarded.

Don't Panic. This just means the editable vector shape is being converted to stitches.

• If you think you might want to change the density later, save the design before tapping Set.
• Otherwise, tap Set, confirm, and you land back in Embroidery Edit mode with your new quilting background.


Layering Like a Pro: Add the Original Basket Design Back on Top, Then Add Heart #5 and Resize to 2.26" x 2.66"

Now you have the background. You need to stack the functional parts back on top.

1. Tap Add.
2. Navigate back to the original What-Knot Basket PES file you loaded first. Add it. It will layer perfectly centered on top of your quilting.

Now, add the decorative center heart:

1. Tap Add again.
2. Go to Shapes (built-in machine shapes).
3. Select Heart #5, then Set.
4. Tap Edit -> Size.
5. Use the icon with arrows pointing inward to resize proportionally.
   • Target Size: Roughly 2.26" x 2.66".
   • Visual Check: Ensure the heart sits comfortably in the center without touching the eyelets or borders.

Tap OK, then Embroidery. You are finally ready to stitch.

The Foam Placement Sequence (Color 2): Floating Foam on Water-Soluble Stabilizer Without Drift

The stitch-out begins. The machine will ask for Thread Color 1 (usually the quilting), but we need to skip to the foam placement first.

1. Hoop only your Water-Soluble Stabilizer. Make sure it sounds tight like a drum when tapped.
2. In the stitch sequence, jump forward to Thread Color 2 (Placement Line).
3. Stitch the placement line directly on the stabilizer.
4. Float the Foam: Spray a tiny amount of temporary adhesive (like 505 spray) on your foam square and place it inside the stitched box.
5. Stitch the Tack-down line.

Warning: Keep your fingers away from the needle bar! When floating foam, the temptation is to hold it in place with your hands. Do NOT do this. Use painter's tape or a stylus tool to hold the foam if necessary.

Clean Trimming Inside the Hoop: How Close to Cut Foam (and Why Ragged Edges Show Through Satin)

After the foam tack-down, remove the hoop (carefully, do not pop the stabilizer out).

• The Action: Trim the foam as close to the stitching line as possible without cutting the thread.
• The Sensation: Your scissors should glide. If you are fighting the foam, your scissors are dull.
• The Goal: You want a "zero-edge." If you leave a 2mm lip of foam, the final satin stitch will have a ridge that looks amateur.


The Corner-Tape Rule That Prevents Backing Fabric Folds: Tape Corners Only (Not North/South/East/West)

Now comes the backing fabric. This is the #1 spot where projects fail because corners flip over and get stitched into the design.

1. Turn the hoop upside down.
2. Center your backing fabric (Right Side Facing Out/Down).
3. Tape ONLY the 4 corners.
   • Why? If you tape the flat sides (North/South), the fabric creates a "tunnel" that can gape open. Taping corners pulls the fabric taut diagonally.

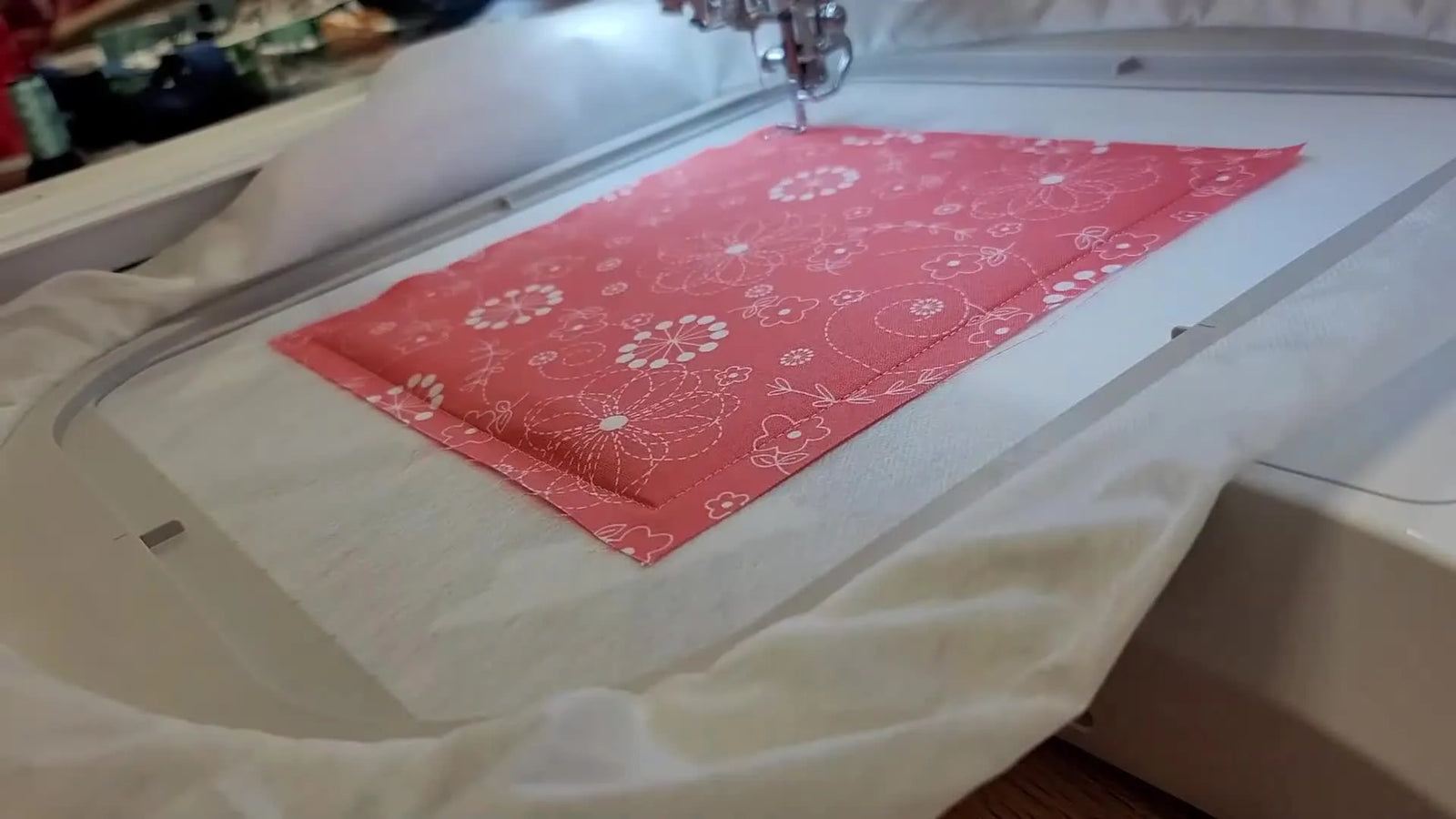

4. Flip hoop right side up. Place top fabric over the foam.
5. Return to machine and run the Tack-down Stitch.

This method describes a classic floating embroidery hoop workflow: securing layers via stitches rather than hoop friction. It minimizes fabric distortion significantly.

The “Square-Then-Quilt” Rhythm: Jump to Stitch 0/1 for Background Quilting, Then Jump to Step 5 for Eyelets

The sequence in the file is unique. Now that the "sandwich" is built, we have to go back to do the quilting.

1. Use the Needle +/- key on your screen.
2. Go back to Stitch 0 (or Color 1).
3. Press Start. The machine will now quilt that beautiful Pattern 17 basket weave through all layers (Top + Foam + Backing).

Once quilting is done:

1. Use Needle +/- to jump forward to Step 5 (Eyelets).
2. Stitch the round eyelets for the ribbon holes.

If you find yourself doing production runs of these baskets, the repetitive precise placement can be tiring. Professional shops often mitigate this by using a standardized hooping station for embroidery, which ensures every layer is centered identically before it even reaches the machine.

The Trim That Makes the Satin Border Look Store-Bought: Remove Excess Fabric From Top and Bottom Before the Final Outline

Before the final satin border, you must trim the excess fabric from the outside perimeter.

1. Remove hoop.
2. Trim top fabric close to the tack-down line.
3. Flip and trim backing fabric close to the line.

Critical Quality Check: Run your finger along the trimmed edge. If you feel bumps or "tails" of fabric, trim closer. Any fabric extending beyond the line will poke out of the satin stitch, looking like "whiskers."

If you’re struggling to keep the sandwich stable while trimming, this is where magnetic hoops for brother luminaire shine. Their strong clamping force prevents the stabilizer from slipping even during aggressive trimming manipulation.

The Final Pop: Change to Madeira Poly Aqua #903 and Stitch the Center Heart Without Pulling the Block Out of Square

The hard work is done. Now for the decoration.

• Change thread to your accent color (Instructor uses Aqua #903).
• Stitch the final satin border.
• Stitch the center Heart.

Constraint Check: Watch the machine as it stitches the satin border. If the fabric pushes forward creating a "wave" in front of the foot, your sandwich was too loose. (Next time: Use spray adhesive or a magnetic frame).

Rinsing Water-Soluble Stabilizer Without Ending Up With a Stiff, Crunchy Basket Block

The project enters the sink looking stiff.

• Cut away as much excess stabilizer as possible first.
• Rinse with warm water.
• The Trick: If you want a firm basket, give it a quick rinse (leaving some starch in the fibers). If you want a soft quilt block, soak it for 15+ minutes to dissolve every molecule.
• Dry: Lay flat on a towel. Do not wring it out, or you will distort the bias.

Decision Tree: Fabric Type → Stabilizer & “Sandwich” Strategy

Use this logic flow to avoid ruining materials:

• Scenario A: Quilting Cotton (Standard)
  • Stabilizer: Water-Soluble (WSS) Mesh or Heavy.
  • Method: Float foam, Tape backing corners.
• Scenario B: Thin/Slippery Fabric (Silk/Satin)
  • Stabilizer: Fusible Woven Interfacing on the back of the fabric plus WSS in hoop.
  • Tools: Consider magnetic hoops for babylock embroidery machines to prevent fabric slippage without crushed velvet marks.
• Scenario C: High Volume Production (50+ units)
  • Workflow: Use a hoop master embroidery hooping station to pre-align backing fabric for consistent speed and apply spray adhesive for instant bond.

Troubleshooting: Why Did This Happen?

When things go wrong, it’s usually physics, not magic.

Setup Checklist: Screen Settings to Confirm Before You Stitch

• Stamp Pattern Boundary set to -0.108 (Saved to memory).
• Fill Pattern is #17 (Basket Weave) using Paint Can (Fill), not Brush.
• Properties: Size 120%, Outline OFF, Random Shift 3, Single Run.
• Heart resized to approx 2.26" x 2.66".
• You understand the stitch sequence jump (Start at Color 2 -> Back to Stitch 0 -> Forward to Eyelets).

Operation Checklist: The “No-Panic” Stitch-Out Rhythm

• Hoop: WSS is drum-tight.
• Placement: Color 2 stitched; Foam floated and tacked.
• Sandwich: Backing taped (Corners!), Top fabric floated and tacked.
• Quilting: Jumped back to Stitch 0; Quilting executed.
• Trim: Excess fabric removed cleanly from top AND bottom.
• Finish: Border and Heart stitched.
• Safety: Fingers kept clear during all float steps.

Warning (Magnet Safety): If you choose to upgrade to magnetic hoops, treat them with respect. They have industrial-strength magnets (often 60+ lbs of force). Keep them away from pacemakers, credit cards, and computerized machine screens. Watch your fingers—they can pinch severely if they snap together unexpectedly.

The Upgrade Path: When to Stick With Standard vs. Move to Magnetic

If you are making one basket for a holiday gift, the standard hoop that came with your machine is perfectly adequate. Slow down, tape carefully, and you will succeed.

However, realize that machine embroidery is a game of variables. If you find yourself facing:

1. Hoop Burn on delicate fabrics.
2. Hand/Wrist Pain from tightening screws on thick foam sandwiches.
3. Slippage where the inner hoop pops out mid-stitch.

Then it is time to look at embroidery hoops magnetic. They aren't magic, but they remove the variable of "clamping force" from the equation, letting you focus on the art, not the wrestling match.

FAQ

• Q: How do I load the What-Knot Quilted Basket PES file on a Brother Luminaire or Babylock Solaris without losing the correct design boundary?
  A: Load the exact PES file first and only then start editing, because the boundary box must come from the stitched file.
  • Open the design “pocket” on the lower-left of the screen and select the USB port where the stick is fully seated.
  • Navigate to the embroidery designs folder, select the What-Knot Quilted Basket PES file, and tap Set to load it.
  • Avoid creating a generic box first; edit after the real design is on-screen.
  • Success check: the design appears with the correct outer limits/selection box for that specific file.
  • If it still fails: re-seat the USB and re-load the PES again before doing any Stamp Pattern or My Design Center steps.
• Q: What does the Brother Luminaire / Babylock Solaris Stamp Pattern “Flower” boundary box Distance -0.108 actually fix on ITH foam quilting projects?
  A: Set Distance to about -0.108 to shrink the boundary inward so quilting stays out of the satin border area and the edge stays flatter.
  • Go to Edit and choose the Stamp Pattern icon that looks like a flower.
  • Shrink the red box inward and set Distance = -0.108 (or the closest increment your machine allows).
  • Tap Memory and save it to the My Design Center Stamp Pattern list.
  • Success check: the red boundary box visibly sits inside the design edge instead of touching the outer edge.
  • If it still fails: if the satin border still waves, re-check that the boundary box was saved and used (not a different shape).
• Q: In Brother My Design Center on Luminaire/Solaris, why does Pattern 17 (Basket Weave) only draw an outline instead of filling the whole shape?
  A: Use the Paint Can (Fill) tool, not the Paint Brush (Line), to pour Pattern 17 into the region.
  • Enter My Design Center, open Shapes, and select the saved Stamp Pattern outline.
  • Choose the Region Property area, select Pattern 17 (Basket Weave), then tap the Paint Can icon.
  • Tap inside the shape to fill it.
  • Success check: the basket weave texture appears across the entire interior, not just a thick perimeter line.
  • If it still fails: undo and confirm the Fill tool was selected before tapping inside the shape.
• Q: What My Design Center settings on Brother Luminaire / Babylock Solaris prevent foam quilting from turning stiff or “drilled” on the What-Knot Quilted Basket?
  A: Use the four specific properties: Size 120%, Outline OFF, Random Shift 3, Thickness Single Run.
  • Change Size from 100% to 120% to open the weave.
  • Turn Outline OFF to avoid extra stitching near the satin border.
  • Set Random Shift = 3 to break up the rigid grid look.
  • Set Thickness = Single Run (avoid Triple/Bean Stitch on foam).
  • Success check: the quilting looks lofty and flexible rather than dense, stiff, or foam-cutting.
  • If it still fails: re-check that Thickness did not revert to a heavier stitch style before converting back to Embroidery mode.
• Q: How do I float foam on Water-Soluble Stabilizer on a Brother Luminaire / Babylock Solaris without foam drift during the placement and tack-down steps?
  A: Hoop only Water-Soluble Stabilizer drum-tight, stitch the placement at Thread Color 2, then float foam with light adhesive and stitch the tack-down.
  • Hoop WSS only and tap it to confirm it is tight like a drum.
  • Jump to Thread Color 2 (Placement Line) and stitch the placement box on the stabilizer.
  • Apply a tiny amount of temporary adhesive to the foam, place it inside the stitched box, then run the Tack-down line.
  • Success check: the foam stays square inside the placement box with no shifting when the tack-down completes.
  • If it still fails: use tape (or a stylus tool) to secure the foam edge instead of holding it with fingers near the needle.
• Q: How do I prevent backing fabric corners from folding and getting stitched on the What-Knot Quilted Basket ITH sequence on Brother Luminaire / Babylock Solaris?
  A: Tape only the four corners on the back side of the hoop—do not tape North/South/East/West edges.
  • Turn the hoop upside down and center the backing fabric with the right side facing out/down as described in the workflow.
  • Tape only the four corners so the fabric is pulled taut diagonally.
  • Flip the hoop right side up, place the top fabric, and run the tack-down stitch.
  • Success check: after stitching, no corner is flipped into the seam area and the backing stays flat with no “tunnel” gap.
  • If it still fails: remove the tape and re-tape corners only using painter’s tape for better grip.
• Q: What safety rules prevent needle injuries when floating foam and fabric on a Brother Luminaire / Babylock Solaris during ITH embroidery?
  A: Never hold floated foam/fabric with fingers near the needle path; secure layers with tape or a tool instead.
  • Keep hands fully clear of the needle bar area whenever the machine is stitching placement or tack-down lines.
  • Use painter’s tape to hold foam/fabric edges if needed, or use a stylus tool for positioning.
  • Pause the machine before repositioning anything in the hoop area.
  • Success check: hands never cross under the needle area during motion, and layers remain controlled without “hand bracing.”
  • If it still fails: slow down and re-run the placement/tack-down sequence rather than trying to “save” a shifting layer by hand.
• Q: When does upgrading to magnetic embroidery hoops make sense for Brother Luminaire / Babylock Solaris ITH foam projects, and what problems does the upgrade solve first?
  A: Upgrade to magnetic embroidery hoops when hoop burn, hoop slippage, or painful over-tightening becomes the repeating failure point—not just for convenience.
  • Level 1 (technique): improve hooping fundamentals (WSS drum-tight, corner-tape-only backing, correct boundary distance and fill settings).
  • Level 2 (tool): use magnetic hoops to reduce hoop burn on delicate fabrics and to clamp thick foam sandwiches without crushing or inner-ring pop-outs.
  • Level 3 (capacity): if production volume is high and placement repetition is exhausting, consider a multi-needle setup as a workflow upgrade (follow machine guidance for specifics).
  • Success check: fewer slip events during aggressive trimming and flatter edges with less fabric marking.
  • If it still fails: reassess stitch settings and sandwich prep first, because even strong clamping cannot correct overly dense quilting choices.
