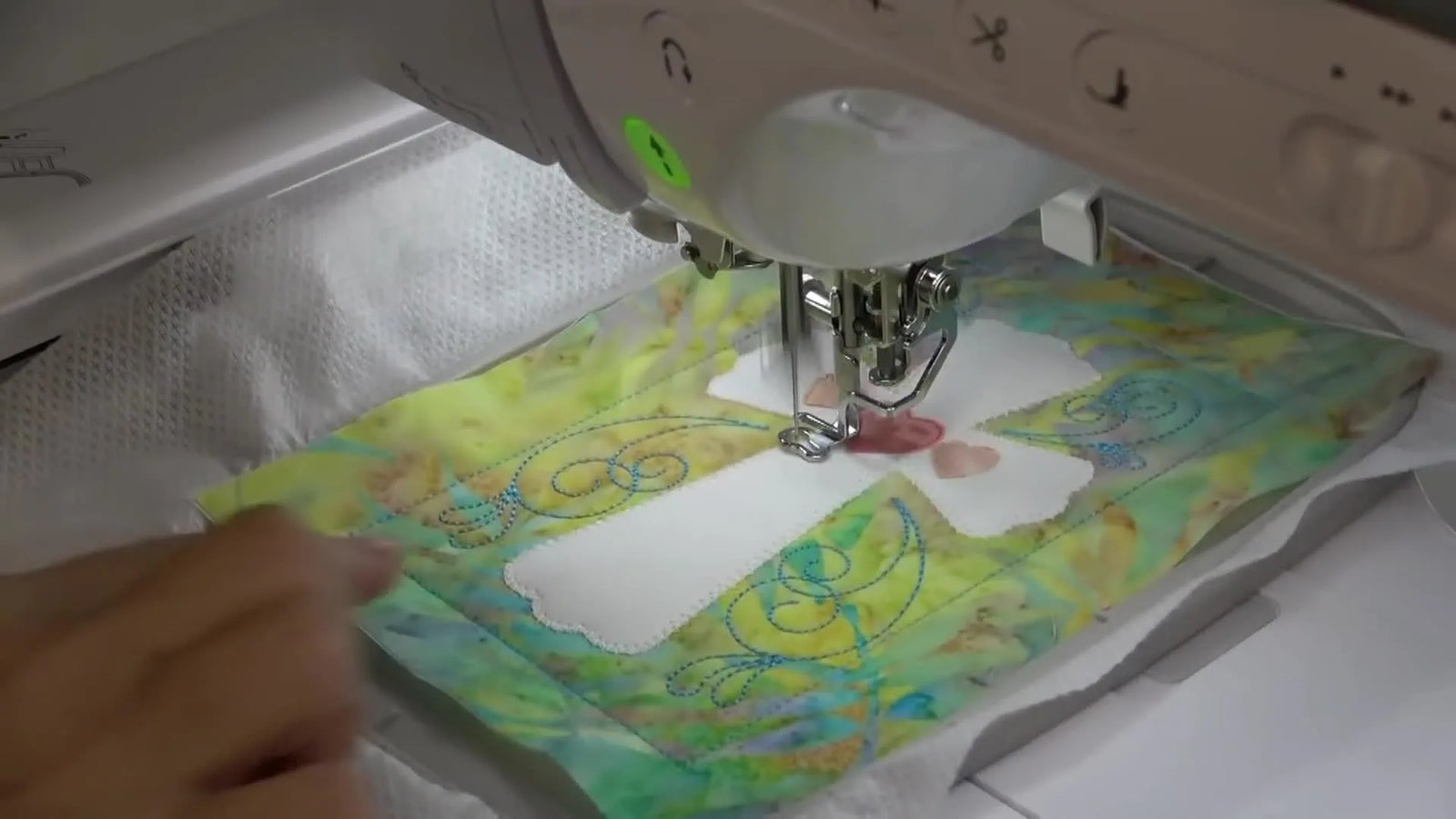

Brother Luminaire 5x7 Cross-Block Appliqué Without the Stress: Cleaner Trims, Better Opacity, and Fewer “Oops” Moments

Mastering the Appliqué Cross Block: A Structural Guide for Precision Embroidery

If you’ve ever pulled a hoop off the machine to trim batting and thought, “One wrong snip and I’m done,” you are validating a universal truth of machine embroidery: The anxiety of the cut is real.

Many beginners abandon projects right here. But machine embroidery is physics, not magic. This Cross Block is entirely manageable on a single-needle setup—provided you trade "hope" for "process." It rewards calm preparation, repeatable tension mechanics, and a trimming workflow that prioritizes control over speed.

Today we are deconstructing Becky Thompson’s process for the Blessings Table Runner – Cross Block (Designs by JuJu). While she uses a Brother Luminaire XP2 in a 5x7 hoop, the principles we will codify here apply whether you are running a home machine or a commercial rig. I will retain the core workflow but layer in the 20-year shop-floor protocols that prevent puckers, eliminate show-through, and stop those maddening thread loops before they start.

The “Don’t Panic” Primer: Cognitive Reframing

This block triggers anxiety because it demands three high-risk operations simultaneously:

1. Cyclical Hooping Stress: You must hoop once, but remove the hoop repeatedly for trimming. Every removal risks shifting the fabric.
2. The "Sandwich" Slide: You are stacking slippery materials (Poly Mesh + Batting + Cotton + Appliqué), creating potential for microscopic movement (drag) that ruins registration.
3. The 3mm Tolerance: You must trim very close to the tack-down line because the final covering satin stitch is only about 3.0 mm to 3.5 mm wide.

The Expert View: The machine’s placement lines are your ruler. Your only job is to maintain the stability of the "sandwich." If the fabric doesn't move, the needle will land true.

Phase 1: Material Science (The Hidden Prep)

Becky starts with a strategy often seen in production houses: Normalization. She treats every piece of fabric so they all behave the same way under the needle.

1. Fabric Organization (Cognitive Offloading)

She uses "Alpha Bitties" (tiles) to label pieces A–N. Physical Action: Lay these out in alphabetical sequence on a board. Do not rely on your memory during the sew-out.

2. The "Hand" Normalization (SF101)

In the video, non-appliqué pieces are backed with Pellon SF101 (Shape-Flex).

• The Physics: Embroidery thread has tension. Fabric has stretch. If the thread is stronger than the fabric, you get puckers. Fusing SF101 turns variable cotton into a stable, paper-like substrate that supports the stitches.
• Pro Standard: Apply SF101 to all quilt weight cottons in the project. This ensures the borders feel identical to the blocks.

3. The Opacity Hack (Physics of Light)

When placing white fabric over a dark or bright background, you risk "color bleed" (show-through).

• The Solution: Beck backs the white appliqué fabric with medium weight cutaway stabilizer.
• Why it works: Cutaway is fibrous and dense. It blocks more light than a second layer of cotton and is cheaper. Unlike interfacing, it adds bulk without stiffness.


PREP CHECKLIST: The "Zero-Fail" Start

• Backing Fabric: Cut to 18 x 44.5 inches (for the 5x7 kit spec).
• Stabilizer (Base): Have your No Show Poly Mesh ready.
• Stabilizer (Opacity): Cut Medium Weight Cutaway scraps for the white appliqué.
• Consumables: Fresh Organ 7511 (Sharp) or 75/11 Ballpoint needle, SF101, and Spray Adhesive (optional but recommended).
• Tools: Curved Embroidery Scissors (double-curved preferred) and Precision Tweezers.
• Organization: Label all cut fabric pieces A-N.


Phase 2: Stabilizer Economy & Hooping Logic

Becky demonstrates a classic "scrap hack": joining two pieces of No Show Poly Mesh to create a hoop-sized sheet.

• Stitch: Wide Zigzag.
• Settings: 4.0 mm Length / 3.5 mm Width.

Why this is safe: This block uses batting and interfaced fabric. The seam in the mesh will be buried deep inside the quilt sandwich and will never be felt.

The Skill Gap: This is the moment to practice your hooping for embroidery machine technique.

• Sensory Check: When hooped, the Poly Mesh should feel taut like a drum skin, but not stretched to the point of deformation. Tap it with your finger—it should have a slight bounce, not a sag. Consistent tension here prevents the "dishing" effect that distorts square blocks.


Phase 3: Machine Setup & Calibrations

Becky loads the design wirelessly using the Embrilliance Utility. But let’s look at the hardware choices that define the stitch quality.

• Needle: Organ 7511. This is a standard sharp embroidery needle. It pierces clean holes, essential for crisp satin edges.
• Bobbin: 90 wt thread.
• Top Thread: 40 wt Polyester (DIME Exquisite).


Expert Analysis: Why 90 wt Bobbin? Standard bobbin thread is 60 wt. Becky uses 90 wt (thinner).

• The Benefit: A thinner bobbin thread reduces the "bulk" of the knot where the top and bottom threads interlock. On dense satin stitches, this allows the top thread to roll under slightly, creating smoother edges and preventing the white bobbin thread from showing on top (railroading).

SETUP CHECKLIST: Pre-Flight Confirmations

• Needle Check: Install a fresh needle. Run your fingernail down the tip to check for burrs.
• Bobbin Case: Clear any lint from the bobbin area. Insert the 90 wt bobbin.
• Tension Test: Pull the bobbin thread gently. It should unspool with smooth, slight resistance (like pulling floss), not jerkily.
• Hooping: Hoop the joined No Show Poly Mesh. Ensure the screw is finger-tight + 1/4 turn.
• Tail Management: Warning: Pull thread tails to the side before hitting start to avoid "bird nesting" underneath.


Phase 4: The Execution (Appliqué Layout)

This is "Raw-Edge Appliqué." Your machine paints the lines; you provide the material.

Step 1: Batting Construction

1. Stitch the Placement Line.
2. Lay batting (with 1/2" margin).
3. Sensory Check: Smooth the batting with your hands. If it "creeps" or lifts, use a light mist of temporary spray adhesive (away from the machine).
4. Stitch Tack-Down.


Step 2: The Critical Batting Trim

Remove the hoop. Place it on a rigid surface (flat table or "Steady Betty"). Do not trim on your lap.

Warning: Physical Safety
Curved embroidery scissors are razor sharp. When trimming batting:
1. Keep your non-cutting hand flat and well away from the blade’s path.
2. Lift the batting slightly, never the stabilizer underneath.
3. If you slice the stabilizer here, the block is likely ruined. Take your time.

Step 3: Background & Thread Management

Place the SF101-backed background fabric. Stitch the tack-down.

The "Tie-Off" Method: Becky changes colors by twisting the new thread to the old and pulling it through.

• Note: This works perfectly on industrial machines. On home machines with complex tension discs, ensure the knot is small enough to pass through, or cut the knot before it hits the needle eye to prevent bending the needle bar.


Step 4: The Cross (Opacity Layer)

Stitch the placement line for the cross. Lay down your White Fabric + Cutaway Stabilizer combo. This double layer prevents the background pattern from shadowing through the white cross.

Step 5: The "3mm" Trim

This is the highest-risk step. You must trim the white fabric close to the stitches so the final Satin Stitch covers the raw edge completely.

• Target: Leave 1mm - 2mm of fabric.
• Technique: Glide the flat of the curved scissors against the tack-down stitch. Let the curve of the blade lift the fabric away from the stabilizer.


Step 6: Hearts & Fussy Cutting

For the hearts, use the placement line to "fussy place" your pink scraps—centering specific motifs. Stitch and trim.

The Physics of "Hoop Burn" and Shift: Every time you remove the hoop to trim, you risk disturbing the tension. This hooping method is reliant on the friction of the inner and outer ring.

• The Risk: If you have to push/pull hard to re-attach the hoop, you might distort the fabric.
• The Fix: This is a limitation of standard hoops. Keep the hoop screw set to a tension where the inner ring clicks in firmly but doesn't require "body weight" force. This is precisely why many users struggle with the brother 5x7 hoop on dense projects—the surface area is small, but the leverage required to hoop can be high.

Phase 5: Quality Assurance

Jump Threads & The Start Loop

Becky spots a small loop at the start of a stitch segment.

• Immediate Action: Use Revlon Pointed Tweezers to lift the loop and snip it now.
• Why: If you wait, the machine will likely stitch over this loop on the next pass, trapping it forever as an ugly bump.


Squaring the Block

Once embroidery is done, the block must be trimmed to size. Use a Trimmer by George 2.0 or a clear quilting ruler.

• Method: Fold back the fabric. Trim the batting/stabilizer flush to the seam line first (reducing bulk). Then trim the fabric to the precise 1/2" seam allowance.
• Tool Note: Use a 60 mm rotary cutter. The 45 mm blades often struggle to slice through Stabilizer + Batting + Fabric cleanly in one pass.




OPERATION CHECKLIST: Final QC

• Visual Scan: Hold the block up to the light. Any gaps between the satin stitch and the appliqué fabric? (If yes, use a fabric marker to touch up).
• Tactile Scan: Run your hand over the back. Snipped all long jump threads?
• Squareness: Measure diagonals. If the block is diamond-shaped, your stabilizer tension was uneven.

Stabilizer Decision Tree: The "Safe Stack" Logic

Use this logic flow to prevent puckering on future blocks:

1. Is the Background Fabric Stretchy (Knits/Loose Weave)?
   • YES: STOP. Use Cutaway Stabilizer (2.5oz or 3.0oz). Poly Mesh is likely too weak to prevent distortion.
   • NO (Quilting Cotton): Proceed with No Show Poly Mesh + SF101 on fabric (matches this tutorial).
2. Is the Appliqué Light and Background Dark?
   • YES: Add a layer of Medium Cutaway or blocking backing behind the light appliqué.
   • NO: Standard fabric prep is sufficient.
3. Are you producing 1 block or 20 blocks?
   • 1 Block: Standard hoop is fine.
   • 20 Blocks: Consider the upgrades below to save your wrists.

The Production Upgrade Path: From Hobby to Industry

Once you master the technique, your bottleneck will shift from "skill" to "equipment."

Upgrade Level 1: Magnetic Hoops (The Friction Killer)

If you dread the "Pop out, Trim, Pop in" cycle because re-hooping disturbs your alignment, you are ready to explore embroidery magnetic hoops.

• The Logic: Instead of friction (screwing two rings together), these use vertical magnetic force to clamp the fabric. You can lift the top frame, trim, and snap it back down in seconds without the fabric shifting.
• The ROI: It eliminates "hoop burn" (the shiny ring marks on fabric) and drastically reduces wrist strain.

Warning: Magnet Safety
Industrial-grade magnetic hoops are powerful.
1. Pinch Hazard: They can snap together with enough force to bruise or break fingers. Handle by the edges.
2. Medical Devices: Keep strong magnets at least 6 inches away from pacemakers and insulin pumps.
3. Electronics: Keep away from computerized sewing cards or tablets.

Upgrade Level 2: Hooping Stations

If you simply cannot get your grain straight, research the logic behind hooping stations. These boards hold the outer fixture steady, allowing you to use both hands to align the fabric and stabilizer perfectly before clamping. It turns a variable skill into a repeatable mechanical step.

Upgrade Level 3: Multi-Needle Capacity

Becky mentions moving to a multi-needle machine for the rest of the runner. Why?

• Color Stops: On a single needle, you change thread manually for every color. On a multi-needle (like SEWTECH models), you program the colors, and the machine swaps them automatically.
• Appliqué Speed: You can leave the hoop on the machine (arms style), pull the fabric forward to trim, and resume. No hooping and re-hooping required.

Final Thoughts

This methodology—Poly Mesh base, SF101 reinforcement, and Opaque layering—is the difference between a "homemade" look and a "custom shop" finish.

Start with one block. Focus on the feel of the tension and the cleanliness of the trim. Once your hands learn the rhythm, the speed will follow.

FAQ

• Q: How do I hoop joined No Show Poly Mesh for a Brother 5x7 embroidery hoop without getting block distortion?
  A: Hoop the joined No Show Poly Mesh so it feels drum-taut, not stretched, and lock the hoop with minimal force.
  • Tap-test the hooped Poly Mesh and aim for a slight bounce (no sag, no “dishing”).
  • Tighten the hoop screw finger-tight plus about a 1/4 turn, then stop.
  • Avoid pulling the mesh to “extra tight” after it is clamped (that often causes distortion later).
  • Success check: the stabilizer surface looks flat and even, and the square elements stitch without leaning or warping.
  • If it still fails: switch the focus to fabric prep consistency (SF101 on quilting cotton) and reduce hoop removal/reinstall force during trimming.
• Q: How do I prevent bird nesting under a Brother Luminaire XP2 at the start of an appliqué color segment?
  A: Manage thread tails before pressing start so the first stitches cannot drag loose thread into the hook area.
  • Pull both top thread and bobbin thread tails to the side before starting each segment.
  • Start the stitch-out only after confirming tails are clear and not under the presser foot area.
  • Stop immediately if a nest begins forming and clear the bobbin area before continuing.
  • Success check: the underside shows clean, flat start stitches with no thread “puff” or wad forming.
  • If it still fails: re-check bobbin area lint and confirm the bobbin thread pulls with smooth, slight resistance (not jerky).
• Q: How do I know Organ 7511 (75/11) needle and 90 wt bobbin thread tension is correct for dense satin edges on raw-edge appliqué?
  A: Use a fresh Organ 7511 needle and confirm the bobbin pulls smoothly so dense satin stitches roll cleanly without showing bobbin on top.
  • Install a new needle and check for burrs by lightly running a fingernail over the tip.
  • Clean lint from the bobbin area before inserting the 90 wt bobbin.
  • Pull the bobbin thread gently and look for smooth, slight resistance (like pulling floss).
  • Success check: satin edges look smooth and filled, and the bobbin thread does not peek on the top surface.
  • If it still fails: stop and re-thread carefully; if needed, return to the machine manual’s tension guidance as a safe baseline.
• Q: How do I trim batting on an appliqué block without cutting the stabilizer underneath when using double-curved embroidery scissors?
  A: Trim on a rigid flat surface and lift only the batting—never the stabilizer—so the scissors ride safely above the base layer.
  • Place the hoop on a table or firm board (do not trim on your lap).
  • Keep the non-cutting hand flat and well away from the blade path.
  • Lift the batting slightly and make small, controlled cuts close to the tack-down line.
  • Success check: the stabilizer remains uncut and the batting edge looks clean with no tears or accidental nicks.
  • If it still fails: slow down and switch to smaller bites; any stabilizer slice is a high-risk failure point for registration.
• Q: How close should I trim white appliqué fabric before a 3.0–3.5 mm satin stitch to avoid gaps and show-through on a Cross Block?
  A: Trim the white appliqué to leave about 1–2 mm outside the tack-down so the final 3.0–3.5 mm satin stitch fully covers the raw edge.
  • Remove the hoop and trim on a flat surface for control.
  • Glide the flat side of curved scissors against the tack-down stitch and let the blade curve lift the fabric.
  • Keep cuts smooth and continuous; avoid jagged “chip” cuts that can telegraph through satin.
  • Success check: after the satin stitch, no raw edge peeks out and there are no visible background shadows at the edge.
  • If it still fails: add the medium weight cutaway behind the white appliqué as an opacity layer and re-check trimming distance.
• Q: How do I stop fabric shifting and hoop burn when repeatedly removing and reattaching a Brother 5x7 embroidery hoop during appliqué trimming?
  A: Set the hoop screw so the inner ring clicks in firmly without requiring heavy force, because excessive force can distort the fabric and leave marks.
  • Adjust the hoop screw to a “firm but not brutal” fit before starting the project.
  • Reattach the hoop gently and consistently each time; avoid pushing/pulling hard on the fabric to make it fit.
  • Minimize handling by trimming efficiently on a stable surface, then returning to the machine.
  • Success check: registration stays accurate after multiple trim cycles and the fabric surface does not show shiny ring marks.
  • If it still fails: consider upgrading to magnetic hoops to reduce friction-based rehooping stress and alignment drift.
• Q: What are the safety rules for industrial-grade embroidery magnetic hoops when using SEWTECH-compatible magnetic frames?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices and sensitive electronics.
  • Handle magnetic frames by the edges and lower the top frame slowly to avoid finger pinches.
  • Keep strong magnets at least 6 inches away from pacemakers and insulin pumps.
  • Store magnetic hoops away from tablets, sewing cards, and other electronics.
  • Success check: the frame closes in a controlled way with no snapping impact, and hands stay clear of the clamping path.
  • If it still fails: switch to a standard hoop until safe handling becomes routine, then reintroduce magnetic frames with a deliberate two-hand technique.
• Q: If appliqué trimming and rehooping keeps causing misregistration on a single-needle embroidery machine, when should I use magnetic hoops or upgrade to a SEWTECH multi-needle machine?
  A: Use a tiered approach: optimize technique first, then reduce rehooping friction with magnetic hoops, and move to multi-needle capacity when color stops and handling time become the bottleneck.
  • Level 1 (Technique): stabilize with No Show Poly Mesh, normalize quilting cotton with SF101, and keep hoop tension consistent.
  • Level 2 (Tool): switch to magnetic hoops to lift-trim-snap back down with less fabric shift and less hoop burn.
  • Level 3 (Capacity): choose a multi-needle machine when frequent color changes and repeated handling slow production and increase mistakes.
  • Success check: alignment remains stable across repeated trims, and the workflow feels controlled rather than stressful.
  • If it still fails: review the stabilizer decision logic—stretchy/loose fabrics often need cutaway instead of Poly Mesh.
