Mastering Multi-Color Lettering on the Brother Innov-is V5LE: The Zero-Software Guide

If you’ve ever typed a name on your Brother Innov-is V5LE, hit Start, and watched in horror as the machine stitched the entire word in a single continuous color, dig deep and take a breath. Nothing is broken. Your machine simply assumes efficiency; it wants to stitch everything in one go unless you explicitly tell it to stop.

For beginners, this is a common point of frustration. You want that boutique look where each letter is a different color, but you assume you need expensive PC software to digitize it.

You don’t.

Drawing on two decades of embroidery experience, I can tell you that the V5LE has a "hidden" shortcut: the built-in Multi Color function. This tool allows you to create multi-colored text directly on the screen. When combined with professional spacing tricks in Embroidery Edit, you can achieve results that rival custom digitization.

Below, I will guide you through this process with the precision of a workshop manual. We will cover the specific button presses, but more importantly, we will cover the physics—hooping tension, stabilizer choices, and the "sensory checks" that guarantee your letters won't drift or pucker.

The Logic: What the "Multi Color" Function Actually Does

To understand the machine, you must think like the machine. By default, the V5LE sees the word "HOME" as a single object: Text Block 1.

The Multi Color button is essentially a "Split and Stop" command. It breaks that single text block into separate stitch segments (one per letter). This forces the machine to physically stop and trim the thread after each character, giving you the window to change spools.

The "Is It Working?" Visual Check: Many users press the button and panic because the letters on the screen still look black. Do not look at the letters; look at the Thread Sequence Bar on the left side of the screen.

• Before Multi Color: The bar shows one black spool icon (1 Stop).
• After Multi Color: The bar expands to four separate spool icons (4 Stops).

If you see four blocks for a four-letter word, you are safe.

Phase 1: The "Invisible" Prep (Where Quality is Actually Created)

The video tutorial rightly focuses on the screen, but in a real embroidery shop, the battle is won before you touch the LCD stylus.

When you stitch a word in four separate segments, you are asking the fabric to stay perfectly registered (aligned) through four separate start/stop cycles. Every time the machine stops and you touch the hoop to change threads, you introduce vibration and potential movement. If your hooping is loose, the letters will drift, looking like a ransom note rather than a professional design.

The "Drum Skin" Sensory Anchor

When you hoop your fabric, tap it gently with your finger.

• Correct: You should hear a dull, rhythmic thump-thump, similar to a drum. The fabric should be taut but not distorted.
• Incorrect: If it sounds loose or ripples when you run your hand over it, re-hoop immediately.

The Physics of Hoop Burn & The Magnetic Solution

Traditional inner/outer ring hoops rely on friction. To get them tight enough for dense lettering, you often have to crank the screw so hard it leaves permanent "hoop burn" (crushed fibers) on delicate fabrics like velvet or performance wear. Detailed text allows no room for error here.

This is a specific production scenario where many intermediate users switch to magnetic embroidery hoops. Unlike standard hoops that pull the fabric unevenly as you tighten the screw, magnetic frames clamp straight down. This provides the immense holding power needed for registration without the friction that causes hoop burn. "Hoop burn" is the enemy of sellable goods; eliminating it is often the first step in professionalizing your workflow.

Warning: Machine Safety First. Keep your fingers clear when sliding a hoop onto the embroidery arm and when lowering the presser foot. The V5LE carriage moves fast—pinch points can cause injury. Never reach under the needle area while the machine is running or calibrating.

Prep Checklist: The "Go/No-Go" Standard

Do not proceed until you have checked all five:

• Needle Check: Is the needle fresh? A burred needle causes loops in lettering. Use a 75/11 Embroidery needle for standard cottons.
• Bobbin Check: Is the bobbin at least 50% full? Running out mid-letter is a nightmare to fix.
• Hoop Check: Use the smallest hoop that fits the design (likely the 180x130mm or 300x180mm). Excess space equals excess vibration.
• Stabilizer Selection: (See Decision Tree below). For the woven cotton in the example, a medium tearaway is minimum; a cutaway is safer.
• Hidden Consumable: Do you have curved snips handy? You will need to trim jump threads manually between colors.


Phase 2: The Quick Method – Forcing Machine Stops

This method is best when you just want the machine to stop so you can swap threads, and you don't care about previewing the specific colors on screens.

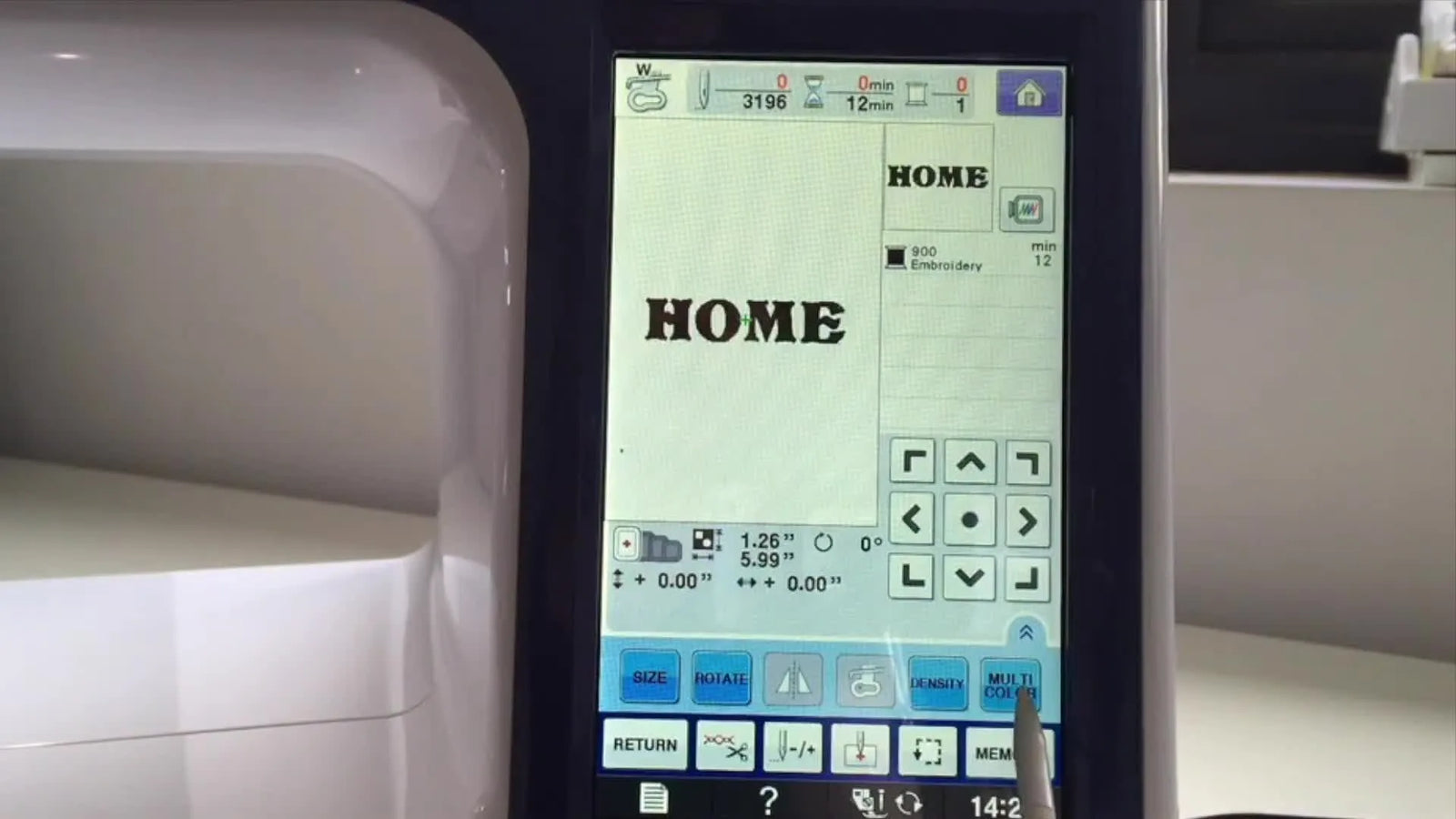

Execution Steps (V5LE Interface)

1. Navigate to the Embroidery menu (Note: Not Embroidery Edit yet).
2. Select your font category. The video demonstrates "Serif Uppercase (Font 1)".
3. Type your text (e.g., HOME).
4. Press Set or Embroidery.
5. Critical Step: Locate and press the Multi Color icon (usually looks like multi-colored squares or text).
6. Verify: Look at the sidebar. Does it show 4 separate thread stops?

If you are trying to streamline how you create names for team jerseys or stockings, searching for tutorials on specific settings like Brother V5LE multi color text often leads you here. It is the fastest "one-click segmentation" tool available on the machine.

Phase 3: The "Pro" Method – Kerning and Spacing

Standard computer fonts are designed for reading on a screen, not stitching on fabric. When you embroider letters, the thread has physical width. Default spacing often looks "gappy" or disconnected.

To fix this, we use Embroidery Edit.

The "Optical Center" Technique

1. Press Home to clear previous patterns.
2. Enter Embroidery Edit.
3. Select Font, Type "HOME", and press Set.
4. Tap the Spacing/Sizing tool (Icon: ABC with arrows).
5. Use the spacing buttons to move letters closer together.
   • The Data: The video shows a value of -0.04.
   • The Eye Test: Don't just trust the number. Look at the screen. The letters should feel like "cousins, not strangers." They should be close enough to look cohesive, but not touching.

Why does this matter? When you stitch in multiple colors, the visual break between colors naturally accentuates gaps. Tightening the kerning makes the word look like a deliberate logo rather than a typed list.

Phase 4: Visualizing – Assigning On-Screen Colors

While the machine doesn't know what thread you physically load, assigning colors on-screen is a vital cognitive aid. It prevents the error of loading Black when you meant to load Pink.

The Configuration Workflow

1. With text in Embroidery Edit, ensure Multi Color is active.
2. Tap the Color Palette (Spool Icon).
3. The screen will highlight the first letter ("H"). Select your color from the grid (e.g., Black).
4. Use the Next/Arrow key to jump to "O". Select the next color (e.g., Purple).
5. Repeat for "M" (Yellow) and "E" (Pink).

This creates a digital map that matches your physical plan. If you are doing repetitive production runs, combining this visual map with physical aids—like using embroidery magnetic hoops to quickly swap garments without re-adjusting screws—creates a highly efficient workflow.

Phase 5: The Stitch-Out – Managing the Variable Variables

The video demonstrates stitching at 800 SPM (Stitches Per Minute). While the V5LE is capable of this, 800 SPM is the "Autobahn" speed. For multi-color lettering with frequent stops, I recommend a "City Driving" speed.

My Recommendation: 600 SPM.

• Why: Lettering involves short satin columns and sharp turns. Lower speeds give the thread tensioner time to recover, resulting in sharper edges and fewer thread breaks upon restart.

The "Jump Thread" Protocol

Between every letter, the machine will stop.

1. Stop: Machine cuts thread (or you cut it).
2. Trim: Before pressing start for the new color, use your snips to trim the "tail" of the previous letter close to the fabric. If you don't, the next letter might stitch over that tail, trapping an ugly loose thread forever.
3. Swap: Load new thread.
4. Start: Hold the new thread tail for the first 3-4 stitches to prevent it from being pulled down into the bobbin case.

If you struggle with hoop placement consistency during these stops, or if you find re-hooping tedious, looking into a hooping station for embroidery can be transformative. These stations hold the hoop and garment in a fixed position, ensuring that your text is perfectly straight every single time, regardless of how many thread changes you manage.

Warning: Magnetic Hoop Safety. If you choose to upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards. They are industrial tools, not toys.

Troubleshooting: The "Why is this happening?" Guide

Stabilizer Decision Tree: Choosing the Right Foundation

The number one reason lettering looks bad is not the machine settings; it is the stabilizer. Use this logic flow to decide:

1. Is the fabric stretchy (T-shirt, Hoodie, Knit)?
   • YES: You MUST use Cutaway Stabilizer. No exceptions. Tearaway will allow the stitches to distort the fabric.
   • NO: Proceed to step 2.
2. Is the fabric sheer or lightweight (Linen, thin Cotton)?
   • YES: Use a No-Show Mesh (PolyMesh) or a soft Cutaway to prevent the stabilizer from showing through.
   • NO: Proceed to step 3.
3. Is it a Towel or Fleece (Deep Pile)?
   • YES: Use Tearaway on the back AND Water Soluble Topper on top. The topper prevents the stitches from sinking into the fluff.
4. Standard Woven Cotton (Quilt cotton, Denim)?
   • Result: Medium Tearaway is sufficient.

If you are setting up a small shop at home, standardizing your stabilizer choices and utilizing hooping stations will reduce your setup time by 50%, allowing you to focus on the creative side rather than fighting the materials.

The Upgrade Path: Thinking Like a Business

You can absolutely achieve professional results with a single-needle V5LE and standard hoops. However, as your volume increases, you will hit specific "pain points." Here is how to diagnose when it's me to upgrade your tools:

• Pain Point: "I hate tightening screws and getting hoop burn on my shirts."
  • The Solution: This is the trigger to search for a magnetic hoop for brother. It solves the physical clamping issue instantly.
• Pain Point: "My text is always slightly crooked."
  • The Solution: This is an alignment issue. A hooping station allows you to align the garment squarely before the hoop is even applied.
• Pain Point: "I am spending more time changing thread than stitching."
  • The Solution: If you are producing 10+ multi-color items a day, a single-needle machine is your bottleneck. This is when professionals move to multi-needle machines (like the SEWTECH commercial line), which hold 10-15 colors simultaneously and change them automatically.


Final Operation Checklist

Before you walk away from the finished piece:

• Trimming: Have you clipped all jump threads between the letters?
• Backside Check: Is the bobbin thread roughly 1/3 of the width of the satin column? (The "1/3 rule").
• Stabilizer Removal: If using Tearaway, support the stitches with your thumb while tearing to prevent stressful distortion.
• Pressing: Turn the garment inside out and press with steam to relax any hoop marks.

Mastering the V5LE's Multi Color function opens a world of creativity without the monthly subscription costs of software. It requires patience and "fingertip feel," but once you master the variables of tension and spacing, you can sign your name in thread with pride.

FAQ

• Q: How do I make the Brother Innov-is V5LE stop after each letter so each letter can be stitched in a different color?
  A: Use the Brother Innov-is V5LE Multi Color function to split one text block into separate stops (one per letter).
  • Press Embroidery (not Embroidery Edit), choose a font, type the word, then press Set/Embroidery.
  • Tap the Multi Color icon to force the machine to stop and trim between letters.
  • Success check: The Thread Sequence Bar on the left changes from 1 spool block to one block per letter (e.g., 4 blocks for “HOME”).
  • If it still fails: Re-check that Multi Color was applied after the text was set, then verify the sidebar again before stitching.
• Q: The Brother Innov-is V5LE Multi Color letters still look black on the screen—how can I confirm Multi Color is actually active?
  A: Ignore the letter color and verify Multi Color using the Brother Innov-is V5LE Thread Sequence Bar.
  • Look at the left-side Thread Sequence Bar instead of the lettering preview.
  • Confirm the bar shows multiple spool icons/blocks (one per letter), not a single block.
  • Success check: A 4-letter word shows 4 separate thread stops in the sequence bar even if the letters appear black.
  • If it still fails: Tap Multi Color again and re-check the thread sequence before pressing Start.
• Q: How do I adjust kerning/letter spacing on the Brother Innov-is V5LE so multi-color lettering does not look too far apart?
  A: Use Embroidery Edit on the Brother Innov-is V5LE and reduce spacing (a common working range is about -0.02 to -0.06).
  • Enter Embroidery Edit, select the font, type the word, and press Set.
  • Open the Spacing/Sizing tool (ABC with arrows) and reduce spacing (the example value shown is -0.04).
  • Success check: The letters look cohesive on-screen—“close enough to feel like a logo,” but not touching.
  • If it still fails: Reduce spacing in small steps and re-evaluate visually, because fabric and font style can change how gaps appear.
• Q: What is the correct hooping tension standard for multi-color lettering on the Brother Innov-is V5LE to prevent letter drift during stops?
  A: Hoop the fabric on the Brother Innov-is V5LE “tight like a drum” so repeated start/stop thread changes do not shift registration.
  • Tap the hooped fabric with a finger and re-hoop if it feels loose or ripples.
  • Choose the smallest hoop that fits the design to reduce vibration.
  • Success check: The fabric gives a dull “thump-thump” sound and stays flat with no ripples when you run your hand over it.
  • If it still fails: Tighten the overall setup—use stronger, more even clamping (often a magnetic hoop helps) and avoid touching/bumping the hoop during thread changes.
• Q: What prep checks should be done before stitching multi-color text on the Brother Innov-is V5LE to avoid loops, running out of bobbin, or messy trims?
  A: Do a quick five-point preflight on the Brother Innov-is V5LE before starting, because multi-color lettering magnifies small mistakes.
  • Replace or confirm a fresh 75/11 embroidery needle for standard cottons.
  • Check the bobbin is at least 50% full so it does not run out mid-letter.
  • Prepare curved snips to trim jump threads cleanly between color stops.
  • Success check: Before stitch-out, every stop has a plan—needle is fresh, bobbin is not low, and snips are within reach.
  • If it still fails: If you see looping or inconsistent stitches, clean lint from the bobbin area and re-check threading/tension before restarting.
• Q: How do I stop fabric puckering around letters on the Brother Innov-is V5LE, and what stabilizer should be used for different fabrics?
  A: Match stabilizer to fabric first; insufficient stabilizer is the most common cause of puckering on the Brother Innov-is V5LE.
  • Use cutaway for any stretchy knit (T-shirts/hoodies)—no exceptions.
  • Use No-Show Mesh (PolyMesh) or soft cutaway for sheer/lightweight fabrics.
  • Use tearaway + water-soluble topper for towels or fleece to prevent sinking.
  • Success check: After stitching, the fabric lies flat around the lettering with no drawn-in “ring” or ripples.
  • If it still fails: Add another layer or switch from tearaway to cutaway; if hoop tension is uneven, consider a magnetic hoop to clamp without pulling the grain.
• Q: What safety precautions should be followed when changing thread and moving hoops on the Brother Innov-is V5LE, and what extra safety applies to magnetic embroidery hoops?
  A: Keep hands clear of pinch points on the Brother Innov-is V5LE carriage, and treat magnetic hoops as high-force tools.
  • Keep fingers away when sliding the hoop onto the embroidery arm and when lowering the presser foot; never reach under the needle area while running or calibrating.
  • Trim and handle thread tails with the machine stopped to avoid sudden carriage movement.
  • Success check: Hands stay outside the needle/carriage zone during Start/Stop and during any automatic movement.
  • If it still fails: If using magnetic hoops, keep magnets at least 6 inches from pacemakers, insulin pumps, and credit cards, and control the hoop halves to avoid sudden snapping/pinching.
