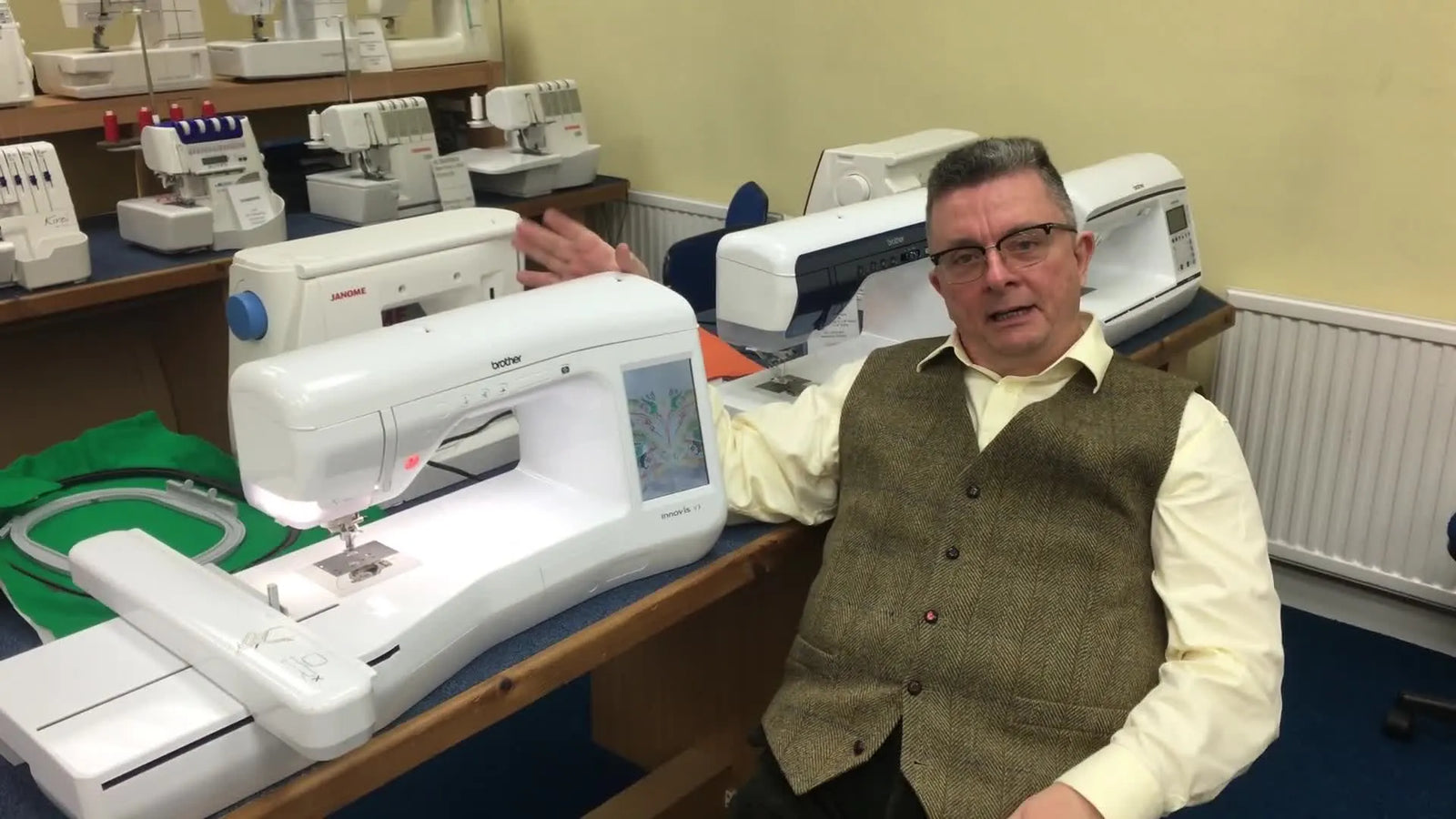

Brother Innov-is V3 Review, Real-World Setup, and the Hooping Choices That Make the Big Frame Actually Enjoyable

If you’re staring at the Brother Innov-is V3 and thinking, “Is this a smart upgrade… or an expensive mistake?” you’re asking the right question. In the video, Alan Bamber calls the V3 a “mighty beast” and—more importantly—frames it honestly: it’s a big, simple, pleasure-first embroidery machine for hobbyists, but it requires a mindset shift from smaller machines.

As an embroidery educator, I’ve watched hundreds of home-embroidery owners go through the same arc: they buy a large-frame machine for the dream (quilt panels, table runners, big names), then get frustrated by the reality (hooping time, fabric distortion, thread nests, and wavy satin stitches). The V3 can absolutely deliver the dream—if you stop treating hooping and stabilization as an afterthought and set it up like a pro.

The “Be Honest With Yourself” Test: Brother V3 vs Brother F440

Alan’s first point is the one most sellers won’t say out loud: if you’re trying to start an embroidery business, don’t spend a fortune before you’ve proven you can sell consistently. He suggests starting with a smaller, cheaper workhorse like the Brother F440 (or similar 5x7" models) to test the waters.

Here is the "Chief Education Officer" translation of that advice:

• If you are validating a business idea: Start small. Minimizing overhead reduces your anxiety.
• If you are a dedicated hobbyist: The V3 is the machine that makes embroidery fun rather than a chore. The large throat space removes the physical fight of stuffing a quilt coating into a small machine.

One commenter even echoed the outcome: they researched, bought the V3, and felt it “ticked all the boxes—big frames, easy to use, great fun.”

If you are currently researching using search terms like brother v3, understand that this machine is a specialist in large-format home décor. It is built for smooth operation, not necessarily high-speed industrial mass production.

The Big-Screen Advantage: Visuals and Ergonomics

Alan highlights two things you feel immediately when you sit at the V3:

1. The Long Arm: A huge physical workspace (approx 11.25") that allows bulky fabrics to drape rather than bundle.
2. The Large LCD Touchscreen: A simple, high-visibility interface.

He contrasts Brother’s “easy on the screen” approach with other brands where you may need “three or four procedures” to do simple tasks. Accessing your design, rotating it, and checking the size happens in seconds.

Expert Reality Check: A good UI reduces cognitive friction, but it doesn't solve physics. The most common mistake new V3 owners make is trusting the screen placement 100% without checking the physical hoop.

• Visual Anchor: Never trust the screen alone. Always use the "Trace" button. Watch the needle foot physically travel the perimeter of your design to ensure it doesn't hit the plastic frame.

USB Workflow: Input, Edit, and Combine

In the video, Alan points out the USB port and describes the basic workflow: plug in a stick, load design, edit.

Pro Tip on Text Layouts: A viewer asked how to add text in multiple lines (like a stacked layout) and couldn’t find an “add” button. This is a common stumbling block. On the V3, you often build layouts by adding one element, setting it, and then adding the next.

The "Clean Feed" Rule:

• Format your USB stick: Before using a stick, format it on the machine itself (save your files elsewhere first!). This creates the folder structure the V3 expects.
• File Hygiene: Don't dump 500 files in one folder. The machine's processor isn't a gaming PC; it will lag. Keep folders to 20-30 designs max.

Warning: Mechanical Safety: Keep fingers, hair, jewelry, and loose sleeves away from the moving needle area and embroidery arm. The V3 moves fast and silently. Never reach in to trim a thread tail while the machine is running—hit the Stop button first.

The Frame Size: What’s the Biggest Hoop for the Brother V3?

The most common pre-purchase question is: “What is the biggest frame?” The answer is 300 x 200 mm (approx. 12" x 8").

This size is the "Sweet Spot" for:

• Quilt blocks (often 8x8 or 10x10).
• Jacket back designs.
• Long table runners (using multi-positioning).

The Physics of Large Hoops: The larger the hoop, the more the fabric wants to shift in the center—knits will sag, and wovens can distort. The clamping pressure is furthest away from the needle in the center of a 300x200 hoop. This means your stabilizer game must be perfect.

The “Hidden” Prep Pros Do Before Any Big Hoop Job

Before you even touch the hoop, you must stabilize the "System" (Fabric + Backing).

Pre-Hooping Strategy: The Stabilizer Decision Tree

Don't guess. Use this logic flow to choose your backing.

1. Is the fabric stretchy? (T-shirts, Knits)
   • YES: You MUST use Cutaway stabilizer. No exceptions. Tearaway will lead to gaps in your design.
   • NO: Proceed to step 2.
2. Is the fabric unstable/loose weave? (Linen, loosely woven cotton)
   • YES: Use Fusible (Iron-on) stabilizer or a sticky stabilizer to lock the fibers in place.
   • NO: Standard Tearaway is likely fine.
3. Does the fabric have a pile/texture? (Towels, Velvet, Fleece)
   • YES: You need a Water Soluble Topper (Solvy) on top to keep stitches from sinking, AND a stabilizer underneath.

Hidden Consumables Checklist:

• Spray Adhesive (Temporary): Crucial for floating fabric or securing large areas in big hoops.
• New Needles: A large project deserves a fresh needle. Use a 75/11 Embroidery Needle for general work, or a 75/11 Ballpoint for knits.

Hooping on the Brother V3: Tension, Distortion, and The "Burn"

Alan discusses the machine, but the user controls the hooping. The standard plastic hoops that come with the machine work by friction and screw tension.

The Struggle: To get fabric tight in a 300x200 hoop, users often over-tighten the screw and pull on the fabric.

• Sensory Check (Tactile): When you run your finger over the hooped fabric, it should feel taut like a drum skin, but if you pull the fabric edge and it stretches like a rubber band, you have gone too far. Pre-stretched fabric will shrink back after stitching, causing puckering.

The Solution for Pain & Quality: If you find yourself struggling with wrist pain from tightening screws, or if you are getting "hoop burn" (shiny crushed rings) on delicate fabrics like velvet, this is a hardware limitation. Many professionals upgrade to magnetic embroidery hoops for brother machines.

• Why Upgrade? Unlike screw hoops that drag fabric, magnetic hoops clamp straight down. This eliminates hoop burn and holds thick items (like towels) securely without forcing the inner ring.
• Production Speed: If you are doing a run of 10 Christmas gifts, a magnetic hoop can cut your re-hooping time by 50%.

Warning: Magnet Safety: Magnetic hoops use powerful Neodymium magnets. Pinch Hazard: Do not get your fingers caught between the rings. Medical Device Warning: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.

The V3 “No-Fuss” Setup Checklist

You are ready to stitch. Run this mental flight check to save your garment.

Pre-Flight Checklist

1. Bobbin Check: Open the slide plate. Is the bobbin full? (Running out mid-design on a V3 is a pain).
2. Threading Path: Rethread the top thread. Ensure the thread is deeply seated in the tension discs.
   • Auditory Check: When flossing the thread through the tension path, you should hear/feel a subtle resistance or click.
3. Hoop Clearance: Attach the hoop and listen for the distinct "Click" of the locking mechanism. Wiggle it—it should be rock solid.
4. Needle Clearance: Ensure the needle is up. Rotate the handwheel (toward you) one full turn to ensure nothing hits.
5. Speed Limiter: Do not start at 1050 SPM. Dial it down. Beginner Sweet Spot: 600-700 SPM. Speed kills quality until your stabilization is perfect.

If you are using third-party brother innovis v3 hoops, ensure the machine recognizes the hoop size on the screen to prevent needle strikes.

Operation: Managing Large Projects

For quilt panels and table runners, the V3 is a beast. But managing the bulk involves technique.

The "Gravity" Problem: If a heavy quilt hangs off the table while you stitch, the weight will drag the hoop, causing registration errors (outlines not matching fills).

• The Fix: Support the fabric. Use the extra table attachment if you have it, or pile books/pillows to the left of the machine to support the weight of the quilt.

Consistency in Batches: If you are running a small shop and embroidering the same logo on left chests repeatedly, alignment is your enemy. A hooping station for brother embroidery machine is often the tool used by shops to ensure every logo lands in the exact same spot on every shirt, reducing the "guesswork" of manual placement.

In-Flight Troubleshooting Checklist

• Birdnesting (Thread wad under the plate):
  • Cause: Top tension is zero (thread popped out of tension discs).
  • Fix: Rethread the TOP of the machine. (90% of "bobbin" problems are actually top thread problems).
• Needle Breaks:
  • Cause: Pulling fabric while stitching OR bent needle.
  • Fix: Replace needle. Ensure design density isn't too high (bulletproof embroidery).
• Skipped Stitches:
  • Cause: Old needle or wrong type (using a sharp on knit).
  • Fix: Switch to a fresh Ballpoint needle.

“Will It Embroider Caps?” - Setting Expectations

A viewer asked about "skip caps" (likely caps/hats). The Honest Answer: The V3 is a flatbed machine. While you can buy "cap frames" for it, the machine does not have a free arm narrow enough to spin a hat 270 degrees.

• Technique: You must flatten the hat bill. It is difficult and often results in needle breaks.
• Business Logic: If you plan to sell hats, do not buy this machine for that purpose. Caps are the domain of multi-needle machines (which have a cylindrical arm).

The Price Conversation: What “Two Grand” Really Means

Alan states the V3 is an investment. In the comments, the price was noted around £1999.00 (historical).

When you spend this amount, you are paying for Reliability and Throat Space. However, budget for the ecosystem, not just the box:

• Machine: $X,XXX
• Digitizing Software: $500 - $1,000 (Pe-Design / Hatch)
• Consumables (Stabilizer/Thread): $200
• Hooping Upgrades: $150+ (Magnetic hoops are an investment in sanity).

Service, Support, and "Unlimited Tuition"

Alan walks into the service area, showing a multi-needle machine being repaired. This is vital context. Embroidery machines are high-precision devices. They vibrate. Screws loosen. Lint packs into gears. Maintenance Rule of Thumb:

• User Maintenace: Clean the bobbin area every bobbin change. Use a brush, not canned air (don't blow lint further inside!).
• Shop Maintenance: Get a full service every 12 months or 5 million stitches.




Troubleshooting the Questions People Actually Ask

Based on the comments and common service logs, here is a quick diagnostic guide.

1. "Screen Turns Off, Machine Still Runs"

• Diagnosis: Screen saver mode or loose ribbon cable.
• Action: Tap the screen.

2. "Stuck in Upgrade Mode"

• Cause: Using a USB stick larger than 4GB or holding the wrong button during boot.
• Action: Use a small capacity USB (2GB or less) formatted to FAT32 for firmware updates.

3. "The Thread Trimmer isn't Cutting"

• Cause: Lint buildup under the needle plate is blocking the knife.
• Action: Remove the needle plate (usually two screws/coin driver). Clean the gray fuzz out of the cutter mechanism carefully.

The Upgrade Path: From Hobby to Production

If you master the V3, you may eventually hit a ceiling. Here is the natural progression of an embroiderer:

1. Level 1 (Technique): You master stabilization and tension on your single-needle flatbed.
2. Level 2 (Workflow Tools): You are tired of hoop burn and slow re-hooping. You invest in a magnetic hoop for brother to speed up flat work.
3. Level 3 (Scaling Up): You have orders for 50 polos or hats. The V3 handles one thread at a time (you have to change colors manually). This is the "Trigger Point" to look at multi-needle machines (6-needle or 10-needle). These machines change colors automatically and handle caps easily.

The Bottom Line

The Brother V3 is a powerhouse for the home artist. It fails only when asked to do things it wasn't designed for (mass production of hats) or when the operator neglects the physics of hooping.

Master the hooping for embroidery machine process, respect the stabilizer, and start slow. The machine is ready; are you?

FAQ

• Q: What is the biggest hoop size for the Brother Innov-is V3, and what projects is that size best for?
  A: The Brother Innov-is V3 maximum hoop size is 300 × 200 mm (about 12" × 8"), which is ideal for large home-decor style embroidery.
  • Choose this hoop for quilt blocks, jacket-back sized designs, and table runners using multi-positioning.
  • Plan stabilization carefully because fabric can shift more in the hoop center on large frames.
  • Success check: After hooping, press the fabric center—it should feel drum-tight without “springy” pre-stretch.
  • If it still fails… reduce design size or switch to a more supportive stabilizer choice (cutaway for knits; fusible/sticky for loose weaves).
• Q: How do Brother Innov-is V3 owners prevent hoop burn and fabric distortion when hooping with the standard screw hoop?
  A: Stop over-tightening the screw and stop pulling the fabric—tight like a drum is correct; stretched like a rubber band is too far.
  • Tighten the hoop only until the fabric is taut, then stop; avoid “cranking” the screw to force flatness.
  • Re-hoop if the fabric was pulled hard during tightening (pre-stretch often rebounds into puckers after stitching).
  • Success check: Run a fingertip across the hooped area—taut and smooth is correct; shiny crushed rings or rippled fabric means excessive pressure/stretch.
  • If it still fails… consider a magnetic hoop upgrade because magnetic clamping presses straight down and often reduces hoop burn on delicate fabrics.
• Q: What stabilizer decision rule should be used for large Brother Innov-is V3 hoops to reduce shifting, gaps, and wavy satin stitches?
  A: Use a simple decision tree: cutaway for knits, fusible/sticky for loose weaves, and a water-soluble topper for pile—then add the appropriate backing underneath.
  • Use cutaway stabilizer on stretchy T-shirts/knits (tearaway often leads to gaps).
  • Use fusible (iron-on) stabilizer or sticky stabilizer on unstable/loose weaves to lock fibers before stitching.
  • Add water-soluble topper on towels/velvet/fleece to prevent stitches from sinking, plus backing underneath.
  • Success check: After stitching, satin columns should stay smooth (not wavy) and outlines should meet fills without gaps.
  • If it still fails… slow down the stitch speed and re-check hooping tightness and fabric support before changing thread tension.
• Q: What is the Brother Innov-is V3 pre-flight checklist before starting an embroidery design to avoid needle strikes and mid-design stoppages?
  A: Do a fast five-point pre-flight every time: bobbin, rethread, hoop lock, needle clearance, and speed limiter.
  • Check the bobbin is full (running out mid-design is hard to recover cleanly).
  • Rethread the top thread and seat it fully in the tension discs.
  • Attach the hoop and confirm the locking “click,” then wiggle-test for zero play.
  • Turn the handwheel toward you one full turn to confirm needle clearance.
  • Start at 600–700 SPM instead of maximum speed until results are stable.
  • Success check: When flossing the thread into the tension path, you should feel/hear subtle resistance; the hoop should feel rock-solid when you tug it.
  • If it still fails… use the machine Trace function and watch the needle path to confirm the design won’t hit the hoop frame.
• Q: How do Brother Innov-is V3 users fix birdnesting (thread wad under the needle plate) during embroidery?
  A: Rethread the TOP thread first—most “bobbin jams” on the Brother Innov-is V3 are actually top-threading/tension-disc seating issues.
  • Stop the machine and remove the tangled thread carefully from the needle plate area.
  • Completely rethread the top path, ensuring the thread is seated deeply in the tension discs.
  • Restart at a lower speed (about 600–700 SPM) until stitching is stable.
  • Success check: The underside should show controlled bobbin lines (not a big wad), and the top stitches should stop pulling thread into the plate.
  • If it still fails… check for a bent needle and replace it, then confirm the bobbin is inserted correctly and the area is clean.
• Q: What causes the Brother Innov-is V3 thread trimmer to stop cutting, and how do you restore cutting?
  A: Lint buildup under the needle plate commonly blocks the cutter—remove the needle plate and clean the cutter area.
  • Power off, then remove the needle plate (typically two screws/coin driver).
  • Brush out the compacted gray fuzz around the trimmer/knife mechanism (avoid forcing lint deeper).
  • Reinstall the plate securely before testing.
  • Success check: After cleaning, the trim should cut cleanly without leaving long tails or failing repeatedly.
  • If it still fails… schedule service, because vibration and lint can also cause mechanical wear that needs a technician.
• Q: What safety rules should Brother Innov-is V3 owners follow around the moving needle area and magnetic embroidery hoops?
  A: Treat the embroidery area like an active machine tool and treat magnetic hoops like pinch hazards—stop motion before reaching in, and keep magnets away from medical devices.
  • Press Stop before trimming thread tails or moving fabric; never reach into the needle/arm path while running.
  • Keep hair, jewelry, loose sleeves, and fingers away from the silent-moving embroidery arm.
  • Handle magnetic hoops slowly and deliberately to avoid finger pinches between rings.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: Hands never enter the sewing field while the needle is moving, and hoop loading/unloading is controlled with no sudden magnet snaps.
  • If it still fails… pause and reset the workflow (Stop → needle up → hands clear → then adjust), rather than trying to “save” a run mid-motion.
