Brother Innov-is Thread Jam Disaster Recovery: Free a Locked Hoop, Clean the Bobbin Race, and Realign the Bobbin Case (Without Making It Worse)

How to Fix a Stuck Hoop & Bird’s Nest on Your Brother Innov-is (And Prevent It From Happening Again)

When a Brother Innov-is embroidery machine locks up mid-stitch, the silence is deafening. It feels like the machine is "holding your project hostage." You tug the hoop, the lever won't release, and your brain immediately jumps to the cost of repairs.

Take a breath. A severe thread jam (the classic "bird's nest" under the fabric) acts like a super-glue anchor, tethering your hoop to the bobbin area. Do not use force. If you yank the hoop now, you risk bending the needle bar or warping the cutter mechanism—turning a $0 fix into a $400 repair.

Here is your field guide to performing "surgical extraction" safely, cleaning the machine, and upgrading your workflow to stop this from happening again.

The “Hoop Won’t Budge” Moment on a Brother Innov-is Embroidery Machine—What’s Actually Happening Under the Needle Plate

If your hoop lifts 2mm but won't come free, you aren't fighting the latch mechanism. You are fighting a dense column of thread that has compacted underneath the fabric, wrapping around the rotary hook and the needle plate.

In the video, the operator lifts the frame slightly to reveal the chaotic tangle underneath. This tension explains why brute force is dangerous: pulling harder transmits that force directly to the precision drive gears of your embroidery unit.

The Golden Rule: If it doesn't move easily, do not force it. The mindset here must be "save the machine first, save the garment second."

The “Emergency Release” Move: Cutting a Stuck Embroidery Frame Free Without Scratching the Needle Plate

The only safe way out is to cut the anchor from underneath.

Step 1: Secure the Machine Before placing your hands near the needle, hit the "Lock" button on your screen (or power off the machine). This prevents the machine from jogging the pantograph while your fingers are in the danger zone.

Warning (Sharp Object Safety): A seam ripper is sharp enough to gouge the metal needle plate or slice into internal wiring. Work slowly, keep the tool horizontal, and never stab downward.

Step 2: The Horizontal Slice Slide your seam ripper flat between the needle plate and the underside of your fabric (or stabilizer). You are not trying to cut the fabric; you are sawing through the thread pillar acting as a zip-tie.

Sensory Check (What to feel):

• Touch: You will feel a "crunchy" resistance as you sever multiple threads.
• Result: As you cut, the hoop should release tension incrementally. It shouldn't "pop" loose; it should slowly yield.

If you are working with a large or heavy embroidery frame, support the weight of the frame with your left hand while cutting with your right to prevent it from snapping back once the tension breaks.

Prep Checklist (Do this BEFORE you start unscrewing)

• Safety Lock: Machine functions are locked or powered off.
• Tool Check: You have a seam ripper, a flat disc screwdriver (coin driver), and a small cleaning brush.
• Consumable Check: Have your sewing oil and a fresh needle ready (the old needle is likely bent).
• Mental Shift: Accept that the current garment might be lost; the priority is protecting the machine chassis.

Needle Plate Screw Removal on a Brother Innov-is: The “Two Short + One Long” Detail That Saves You Later

Once the hoop is free and the ruined fabric is removed, we must expose the bobbin area. Use your disc screwdriver to remove the needle plate screws.

The "Trap" for New Users: Brother needle plates use a specific screw configuration. Mixing them up during reassembly can strip the threads or prevent the plate from sitting flush.

• Rear Screws (2): Usually shorter.
• Right/Front Screw (1): Usually longer (check your specific model manual to verify).

Why remove all three? The operator in the video explains that removing the outer plastic cover before removing the screws creates a gap where screws can fall inside the machine body.

Warning (Internal Damage): Do not drop screws into the open bobbin area. A loose screw rattling inside the motor housing can kill the machine instantly upon startup. Use a magnetic screwdriver tip if available to lift them out safely.

Setup Checklist (Right after hoop is off)

• Identify Screws: Note which hole the "odd" size screw came from (take a photo if needed).
• Keep it Flat: Keep the machine on a level surface to stop runaway screws.
• Tray it: Place screws immediately into a magnetic dish or heavy cup.
• Evaluate: If you are hooping for embroidery machine projects daily and seeing jams often, this isn't random—it's likely a tension or stabilizer issue we need to address later.

Pulling the Bird’s Nest Out of the Bobbin Area: What to Remove (and What Not to Yank)

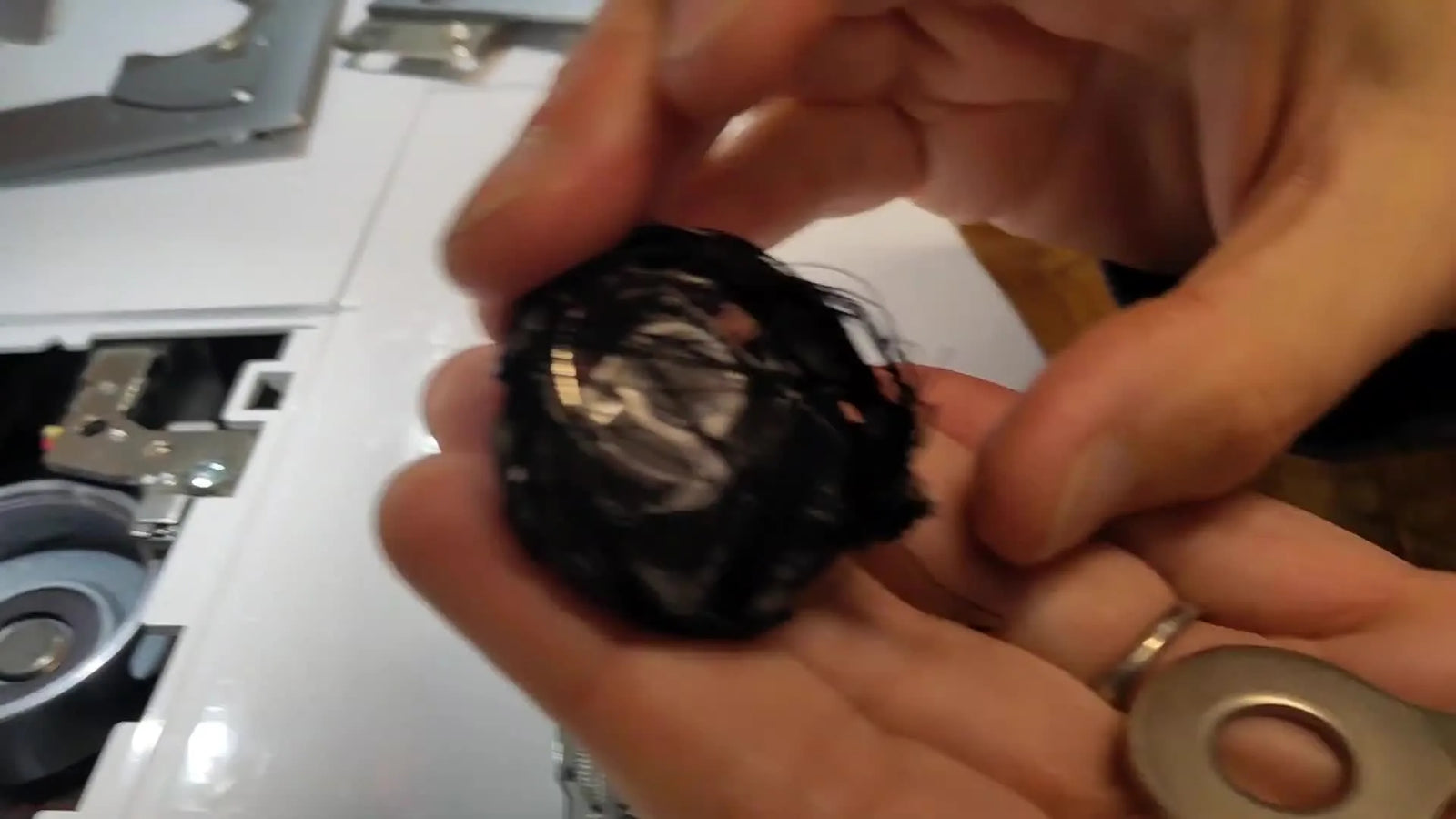

With the plate off, remove the bobbin cover and lift out the black plastic bobbin case. You will likely see a fused mass of thread—the "Bird's Nest."

The Extraction Technique: Do not rip it out like a weed. Use a "Lift and Snip" motion.

1. Gently lift the thread mass with tweezers.
2. If you feel resistance (like pulling a tight shoelace), stop. Snip the holding strands with small embroidery scissors.
3. Repeat until the mass lifts free.

Sensory Check:

• Feel: The thread should slide out. If you feel a "hard stop," you might be pulling on a spring or wire.

The Bobbin Race Cleaning Habit That Prevents Repeat Jams (Plus the “Is That a Wire?” Reality Check)

Once the bulk is gone, use your small white brush to sweep the race area. This isn't just about cleanliness; it's about engineering tolerances. Even a small lint bunny can lift the bobbin case 0.5mm, enough to cause a needle strike.

Critical Distinction: Lint vs. Electronics In the video, the operator pauses to inspect a strand.

• Lint: Moves freely when brushed; breaks easily.
• Wires: Are anchored at both ends; feel stiff; often colored (red, black, white).

Expert Tip: Many jams are caused by "flagging"—where the fabric bounces up and down because it wasn't hooped tightly enough. While traditional hoops struggle with thick items, magnetic embroidery hoops are excellent for maintaining even tension on tricky fabrics without causing "hoop burn" or hand strain, significantly reducing the chance of bird's nests.

The Triangle-to-Dot Bobbin Case Alignment on Brother Innov-is: The One Detail That Stops Needle Strikes

This is the most common point of failure for beginners. You must re-seat the bobbin case with mathematical precision.

The Visual Anchor: Look for a White Triangle (or arrow) on the black bobbin case. Look for a White Dot on the metal machine frame. These two must kiss.

How to Install:

1. Drop the case into the race.
2. Rotate it gently until the triangle aligns with the dot.
3. Auditory Check: It should sit silently. It does not click into place. It floats.
4. Tactile Check: Wiggle it slightly left/right (1-2mm play is normal). If it spins freely 360 degrees, it is wrong.

If you own a brother embroidery machine, this alignment is your daily religion. Get it wrong, and the needle will pierce the plastic case on the very first stitch.

The Handwheel Test: Why Turning Forward Matters (and How to Confirm Clearance Before You Power Up)

Never hit "Start" immediately after a repair. You need a manual verification loop.

The Rule of the Wheel: Always turn the handwheel toward you (Counter-Clockwise). Never turn it backward, as this disrupts the timing belts.

The Test: Turn the wheel slowly through one full needle cycle (Down -> Up).

• Visual: Watch the needle tip pass the edge of the bobbin case. There should be a visible gap.
• Tactile: The wheel should turn smoothly. Any "gritty" feeling or resistance means thread is still stuck in the gears.
• Auditory: Silence is golden. A "tick-tick-tick" sound means the case is sitting high.

Reassembling the Needle Plate Covers: Getting the Plates Flush Before the Screws Go Back In

Slide the metal needle plate back into position, ensuring the plastic cover tabs interlock correctly.

The "Soft Hands" Approach: Do not use the screws to pull the plate down. The plate must sit flush before you insert the screws. If it rocks like a wobbly table, check for lint underneath.

Re-screwing: Insert the "Odd" screw in its correct hole first to anchor the orientation, then the other two. Tighten until snug, but don't over-torque.

Operation Checklist (Your "Green Light" to Stitch)

• Alignment: Bobbin case triangle matches the machine dot.
• Clearance: Manual handwheel rotation was smooth with no needle strikes.
• Flush: Needle plate sits perfectly flat.
• New Needle: Never reuse the needle involved in a jam. Install a fresh organ/schmetz needle.
• Hoop Check: If you are using standard brother embroidery hoops, check that the inner ring isn't warped from the jam force.

A Quick Decision Tree: Stabilizer + Hooping Choices That Reduce Bird’s Nests

Jams often happen because the fabric shifts. Use this logic to prevent the next one.

Decision Tree (The "Why Did This Happen?" Diagnostic):

1. Was the fabric bouncy/stretchy (like a T-shirt)?
   • Yes: Did you use only Tear-away? Fix: Switch to Cut-away stabilizer for structure.
   • No: Proceed to 2.
2. Did the hoop feel loose or pop out?
   • Yes: Your hoop tension screw is too loose, or the fabric is too thick for the frame.
   • Solution: Tighten the screw, or consider a magnetic hooping station and frame setup to handle thick garments better.
3. Are you doing bulk orders (10+ shirts)?
   • Yes: Fatigue leads to bad hooping.
   • Solution: Look into a hooping station for embroidery machine to standardize placement and tension.

The Upgrade Path: Moving From "Fixing Jams" to "Production Mode"

If you just survived this jam, congratulations—you are now an intermediate embroiderer. But if you find yourself clearing bird's nests weekly, your equipment may be bottlenecking your ambition.

Level 1: The Stability Upgrade (For Home Users) If you struggle with "Hoop Burn" (shiny ring marks) or hand pain from tightening screws, standard hoops are your enemy. Many users upgrade to Magnetic Hoops (compatible with Brother single-needles). They snap on holding fabric firmlier than screws, reducing the "flagging" that causes jams.

Warning (Magnet Safety): High-quality magnetic hoops are incredibly strong. Keep fingers clear of the snap zone to avoid pinching ("blood blisters"), and keep them away from pacemakers.

Level 2: The Efficiency Upgrade (For Side Hustles) If you are taking orders, manual hooping is slow and error-prone. A hoopmaster hooping station or similar jig ensures every chest logo lands in the exact same spot, removing the human error that leads to crooked designs and re-hooping fatigue.

Level 3: The Scale Upgrade (For Business Growth) The ultimate fix for "I need to stitch faster but my machine keeps stopping" is moving away from the flat-bed restriction entirely. Small business owners eventually graduate to Multi-Needle Machines (like SEWTECH’s commercial line).

• Why? They have open tubular free-arms (no more sewing the shirt shut), stronger motors that power through thick caps/jackets, and if one needle breaks, the machine simply switches to the next one.

Final Thought: Don't let a bird's nest discourage you. It's a rite of passage. Clean the race, check your alignment, maybe upgrade your hoop, and get back to creating. The machine is tougher than it looks—and now, so are you.

FAQ

• Q: How can a Brother Innov-is embroidery machine safely release a stuck hoop caused by a bird’s nest thread jam?
  A: Power off or lock the Brother Innov-is, then cut the thread “anchor” from underneath instead of pulling the hoop.
  • Lock the screen or power off before putting hands near the needle area.
  • Slide a seam ripper flat between the needle plate and the underside of the fabric/stabilizer, then saw horizontally through the thread pillar.
  • Support the embroidery frame with one hand while cutting so it doesn’t snap back when tension releases.
  • Success check: The hoop tension should reduce gradually and the hoop should lift free without a sudden “pop.”
  • If it still fails: Stop forcing it and move to needle plate removal so the jam can be accessed from the bobbin area.
• Q: Which needle plate screws must be tracked on a Brother Innov-is embroidery machine during jam cleanup (the “two short + one long” issue)?
  A: Keep the Brother Innov-is needle plate screws in their original positions because two are usually short and one is usually longer.
  • Remove all three needle plate screws with a flat disc/coin screwdriver and set them in a tray immediately.
  • Note which hole the “odd” (often longer) screw came from (a quick photo helps).
  • Keep the machine level so screws cannot slide into the open bobbin area.
  • Success check: During reassembly, the needle plate sits flush with no rocking before any screw is tightened.
  • If it still fails: Do not force threads—re-check screw locations and inspect for lint or mis-seated covers under the plate.
• Q: How should a Brother Innov-is embroidery machine user remove a bird’s nest from the bobbin area without damaging the hook or springs?
  A: Use a “lift and snip” method—never yank a bird’s nest out of the Brother Innov-is bobbin race like a weed.
  • Lift the thread mass gently with tweezers.
  • Snip holding strands with small scissors whenever resistance feels like pulling a tight shoelace.
  • Brush remaining lint from the race area after the bulk thread is removed.
  • Success check: The thread mass slides out in sections and nothing feels like a “hard stop” pulling on internal parts.
  • If it still fails: Stop pulling and keep snipping—resistance may mean the thread is wrapped around a spring or wire.
• Q: How can a Brother Innov-is embroidery machine user tell lint from a wire in the bobbin race area during cleaning?
  A: Treat any stiff, anchored strand as a potential wire and only brush away material that moves freely like lint.
  • Brush lightly and watch whether the strand shifts freely and breaks easily (lint behavior).
  • Inspect suspicious strands for stiffness, color, and whether both ends appear anchored.
  • Avoid pulling on anything that does not lift with brushing.
  • Success check: Lint clears with brushing and nothing remains that is loose enough to get caught in the hook path.
  • If it still fails: Stop and consult the machine manual or service support before removing anything that appears anchored.
• Q: How must the Brother Innov-is bobbin case be aligned (white triangle to white dot) to prevent needle strikes after a jam?
  A: Seat the Brother Innov-is bobbin case so the white triangle (on the case) aligns exactly with the white dot (on the machine frame).
  • Drop the bobbin case into the race, then rotate gently until the triangle and dot meet.
  • Do not hunt for a “click”—the case should sit quietly and float.
  • Wiggle slightly left/right; small play is normal, but free 360° spinning indicates incorrect seating.
  • Success check: The case sits silently and does not spin freely around the race.
  • If it still fails: Remove and re-seat the bobbin case again before powering on, because wrong alignment can cause an immediate needle strike.
• Q: What is the correct handwheel test on a Brother Innov-is embroidery machine after clearing a bird’s nest, and what signs mean it is not safe to start?
  A: Turn the Brother Innov-is handwheel toward you (counter-clockwise) through one full needle cycle before pressing Start.
  • Turn slowly through Down → Up while watching the needle pass the bobbin case edge.
  • Stop immediately if the wheel feels gritty or resistant and re-check for trapped thread.
  • Listen for any “tick-tick-tick,” which can indicate the bobbin case is sitting high.
  • Success check: The handwheel turns smoothly, quietly, and the needle passes with visible clearance.
  • If it still fails: Re-open the bobbin area and remove remaining thread/lint, then re-confirm bobbin case alignment.
• Q: How can a Brother Innov-is embroidery machine user reduce repeat bird’s nests using stabilizer choice and hooping tension (including when magnetic hoops help)?
  A: Diagnose fabric movement first—most Brother Innov-is bird’s nests repeat because fabric shifts (flagging) from stabilizer mismatch or loose hooping.
  • Switch stabilizer strategy: If fabric is stretchy/bouncy and only tear-away was used, move to cut-away for more structure.
  • Tighten hooping discipline: If the hoop feels loose or pops out, adjust hoop tension and avoid forcing thick items into a standard frame.
  • Consider magnetic hoops for tricky fabrics: Magnetic embroidery hoops often hold more evenly and can reduce flagging and hoop burn compared with screw-tight hoops.
  • Success check: Fabric stays stable (less bounce) and stitching runs without new thread buildup under the fabric.
  • If it still fails: Treat frequent jams as a repeatable setup issue—review stabilizer + hooping method, then consider a hooping station for consistency or a production-capable multi-needle machine if volume demands it.
• Q: What magnetic hoop safety rule should Brother Innov-is embroidery machine users follow to avoid pinched fingers and medical-device risk?
  A: Keep fingers out of the snap zone and keep strong magnetic hoops away from pacemakers.
  • Separate hoop halves with a controlled grip and never let magnets “slam” together.
  • Position fabric first, then lower the magnetic top ring carefully while hands stay clear of the closing edge.
  • Store magnetic hoops with caution so they do not snap onto metal tools unexpectedly.
  • Success check: The hoop closes without finger contact, and fabric is held firmly without excessive force or strain.
  • If it still fails: If safe handling remains difficult, pause and use a different hooping method or seek a hooping aid/tool that improves control.
