Brother Innov-is NQ3550W in Real Life: The Buttons That Save You Time (and the Setup Mistakes That Waste It)

Here is the calibrated, "Whitepaper-grade" guide for the Brother NQ3550W, optimized for clarity, safety, and operational flow.

If you’re staring at a combo machine like the Brother Innov-is NQ3550W and thinking, “I want this… but I’m scared I’ll never figure it out,” you’re exactly who this machine was built for. I’ve watched thousands of beginners freeze at the same moments: the first embroidery start, the first thread change, the first time they remove the embroidery unit, and the fear of the dreaded “bird's nest.”

Embroidery is an experience-based science. It’s not just about pushing buttons; it’s about sound, feel, and preparation. This guide rebuilds the standard demo into a practical, repeatable workflow you can follow at your table—plus the little “old-hand” habits that keep your stitches clean and your frustration low.

Don’t Panic at the Green Light: Starting Embroidery on the Brother Innov-is NQ3550W Without Hovering

The demo begins with a simple but perfect beginner project: a heart design with a name, stitched in three colors. The machine display shows the design details—3,773 stitches and an estimated 7 minutes. The embroidery field is 6x10 inches, which is the "Goldilocks" size for efficient home décor and towels.

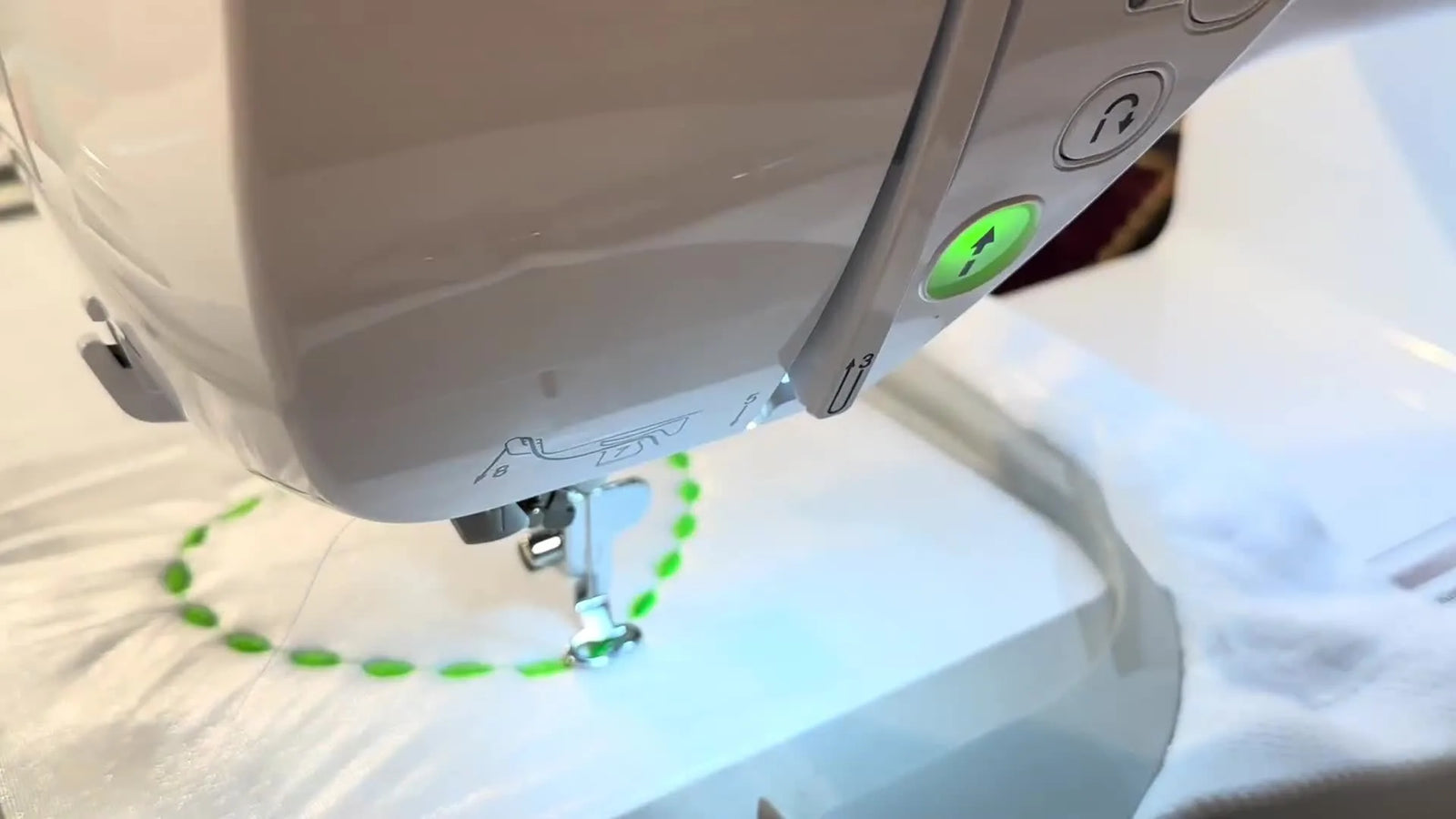

The key moment is the “green light” on the Start/Stop button. In the video, the presenter lowers the presser foot and waits until the Start/Stop button illuminates green.

The "Sweet Spot" Calibration: While the machine can stitch at 850 stitches per minute (SPM), I strongly advise beginners to cap their speed at 600 SPM for the first 10 hours of operation. You lose very little time, but you gain immense control and clearer stitch quality while you learn to listen to the machine.

What to do (The Safe Start Protocol):

1. Lower the Presser Foot: Listen for the engagement click.
2. Visual Check: Confirm the Start/Stop button turns from Red to Green.
3. The "Hover" Technique: Press Start/Stop, let it stitch 4-5 stitches, then press Stop. Trim the starting thread tail close to the fabric. Then press Start again to finish.

Expected outcome: The machine finds its rhythm (a steady humming sound, not a clacking sound) and continues until the color change stop.

Pro tip from the “gift maker” mindset: The presenter mentions making personalized towels quickly. That’s real. Small designs (5–8 minutes) are how you build confidence. Don't start with a 50,000-stitch jacket back; start with a napkin.

Warning: Keep hands clear! The embroidery arm moves rapidly and unpredictably. Keep fingers, hair, jewelry, and loose sleeves at least 4 inches away from the needle area while running. A moving hoop can pinch fingers against the machine body painfully.

The “Hidden” Prep That Makes the NQ3550W Feel Foolproof (Thread, Needle, Stabilizer, and Hooping)

The video mentions stabilizers and education on “proper stabilizer, proper threads, proper needles.” That’s not fluff—those three choices account for 90% of failures.

Here is the "Invisible Prep" list that experts do automatically, but manuals rarely list clearly:

Prep Checklist (Do this BEFORE turning the machine on)

• Fresh Needle: Insert a 75/11 Embroidery Needle (Red Tip) or a 90/14 Topstitch Needle if using metallic thread. Rule of thumb: New project = New needle.
• Hidden Consumables: Have a can of Temporary Spray Adhesive (like 505) and a Water Soluble Marking Pen ready. You cannot float fabric securely without temporary adhesive.
• Plan the Exit: Visualize where you will trim jump stitches.
• Stabilizer Sizing: Cut your stabilizer at least 1.5 inches larger than the hoop on all sides.

Hooping Reality Check

The demo uses a standard hoop. Many beginners struggle not because they lack talent, but because standard hooping is physically demanding. You need "drum-skin" tension without distorting the fabric grain.

If you are doing production runs (e.g., 20 team shirts), the bottleneck becomes hooping for embroidery machine setups. The repetitive strain of tightening screws and forcing inner rings is the #1 cause of operator fatigue.

What experienced operators watch for:

• Tactile Check: Tap the hooped fabric. It should sound like a dull drum.
• Visual Check: The grid lines of the fabric must remain straight, not bowed.
• Placement: The inner ring should push past the outer ring slightly (about 1-2mm) to lock the fabric.

The Needle Threader That “Actually Works”: How to Thread the Brother NQ3550W the Way the Demo Does

The presenter claims: “A needle threader is not a needle threader.” She means that reliability varies wildly. The NQ3550W system is mechanical gold, if you respect the sequence.

In the demo, she follows the numbered thread path 1–6, then highlights a crucial move at #7.

Step-by-step (The "Click-Click" Method):

1. Presser Foot UP: Essential for the tension discs to open.
2. Follow path 1–6. Feel the thread slide into the check spring at step 3.
3. The Critical Cut (#7): On the left side of the machine head, pull the thread firmly into the side cutter. You must feel/hear it cut. If you don't cut here, the tail is too long and will jam the eye.
4. Presser Foot DOWN: Lock the thread in place.
5. The Lever: Push the threader lever down with conviction (one smooth motion).

Expected outcome: A perfect loop of thread pops through the eye. The lever snaps back up cleanly.

Watch out: If the threader hook misses the eye, your needle might be slightly bent. Change the needle immediately.

Comment integration: A viewer noted the manual suggests a spool cap. Physics verification: Yes. If using a cross-wound spool (standard embroidery cone), use the smallest cap that holds it. If the spool dances on the pin, your tension will fluctuate, causing looped stitches.

Quick-Set Bobbin on the Brother NQ3550W: The 20-Second Load That Prevents “Why Won’t It Catch?”

The Quick-Set drop-in bobbin system removes the need to "fish" for the bobbin thread.

What to do (Sensory Focus):

1. Drop the bobbin in. Check: The bobbin should unwind counter-clockwise (forming a 'P' shape, not a '9').
2. Guide thread through the slit. Apply gentle finger pressure on top of the bobbin to stop it from spinning while you route the thread.
3. The Cut: Pull the thread through the channel until it passes the built-in cutter. One clean pull.

Expected outcome: The bobbin tail is cut to the exact length required to catch the first stitch automatically.

Warning: Do not pull the bobbin thread up through the needle plate manually unless you are doing specialized free-motion work. Forcing the handwheel to fish for bobbin thread on a Quick-Set system often causes a tangle underneath (the "bird's nest").

Switching from Embroidery to Sewing Mode on the Brother NQ3550W Without Breaking Anything

This is the highest-risk moment for mechanical damage. The embroidery unit connects to the machine's brain via a sensitive multi-pin connector.

Convert to sewing mode (Safety Sequence):

1. Hoop Off First: Lift the lever, remove the hoop.
2. Power Down: Turn the machine OFF. Never hot-swap the embroidery unit.
3. Release: Press the release lever (underneath, left bottom).
4. Slide: Gently pull the unit to the left. It should slide without force.
5. Close: Snap the free-arm accessory case into place.

Why this matters: Most "alignment errors" or "screen calibration" issues stem from users yanking the unit while the machine is powered on, confusing the stepper motors.

Presser Foot Swap on the NQ3550W: The Screw Everyone Hates (and How to Make It Less Annoying)

Swapping from the 'Q' (Embroidery) foot to the 'J' (Zigzag) foot involves a small screw on the shank.

The Workaround:

1. Needle Up: Ensure the needle is at its highest position.
2. Use the Tool: Do not use your fingernails. Use the small L-shaped screwdriver or "coin key" included with the machine.
3. Tactile Check: Tighten the screw until it stops, then give it a tiny (1/8th turn) extra torque. A loose foot vibrating off the shaft is a common cause of broken needles.

The Clean Finish Combo: Reverse/Reinforcement + Scissor Button for Thread Burying You Can’t See

This is a professional finishing technique automated for the home user.

The Execution:

1. End your seam.
2. Press Reverse/Reinforcement (circle dot icon). The machine stitches 3-4 locking stitches in place.
3. Press Scissor Button.

Expected outcome: The machine cuts both threads and pulls the top tail to the back.

Why it feels like “magic”: When you turn your project over, you won't see a rat's nest of tails. This feature alone saves about 2 minutes of hand-trimming per project.

Knee Lifter Pivoting on the Brother NQ3550W: Hands-Free Corners That Actually Stay Sharp

The knee lifter is your third hand.

How to build the muscle memory:

1. Set the machine to stop with Needle Down (check your settings menu).
2. Sew to a corner. Stop.
3. Nudge the knee lever right. The foot lifts; the needle anchors the fabric.
4. Rotate fabric. Release knee. Sew.

Pro Tip: Adjust the knee lifter bar angle so it rests just against your thigh. You shouldn't have to contort your leg to reach it.

Sideways Sewing on the Brother Innov-is NQ3550W: The Feature You’ll Use More Than You Think

Standard machines move fabric forward/back. This machine moves the feed dogs left/right (Stitch #5, Direction Left-Right).

Practical Application: This is essential for patching cylindrical items (like jeans legs) or attaching patches onto sleeves where you cannot rotate the fabric easily. It saves you from unpicking side seams.

Stabilizer Choices That Keep Gifts Looking Professional (Decision Tree)

The video implies learning stabilizers is key. Here is a definitive logic tree to stop the guessing game.

Stabilizer Decision Tree (The "If This, Then That" Guide)

• Is the fabric stretchy (T-shirts, Polos, Knits)?
  • YES: Use Cutaway Stabilizer. (Tearaway will eventually break loops and ruin the shirt).
• Is the fabric woven and stable (Cotton, Denim, Twill)?
  • YES: Use Tearaway Stabilizer. (Cleaner back finish).
• Does the fabric have a pile/nap (Towels, Velvet, Fleece)?
  • YES: Use Tearaway/Cutaway underneath + Water Soluble Topping (Solvy) on top. The topping prevents stitches from sinking into the fluff.
• Is the project see-through or free-standing (Lace, Organza)?
  • YES: Use Wash-Away (Water Soluble) Stabilizer.

When the Hoop Becomes the Bottleneck: A Practical Upgrade Path

The demo shows a standard 6x10 hoop. For a hobbyist making one gift a week, this is fine. However, "Hoop Burn" (the shiny ring left by crushed fabric fibers) and wrist fatigue are real issues for anyone doing volume.

Here is the upgrade logic based on your production volume:

1. The Technique Fix (Level 1): If you are getting hoop burn, switch to "floating" technique (hoop the stabilizer only, spray adhesive, stick fabric on top).
2. The Tool Fix (Level 2): If you struggle with wrist pain or thick items (carhartt jackets, thick towels), search for terms like magnetic embroidery hoops. These use magnets to clamp fabric without forcing an inner ring, virtually eliminating hand strain and hoop burn. A magnetic hoop for brother is often the first investment intermediate users make.
3. The Production Fix (Level 3): If you are fulfilling orders of 50+ items, hooping speed is your enemy. Systems like the hoopmaster hooping station or similar hooping stations standardize placement, so every logo is in the exact same spot on every shirt.

Warning: Magnetic Safety. Magnetic frames use powerful neodymium magnets. They can pinch skin severely (blood blisters). Keep away from pacemakers, ICDs, magnetic media (credit cards), and mechanical watches.

The Questions Viewers Keep Asking (and the Straight Answers You Actually Need)

“Can it embroider hats?”

Technically, yes, but effectively, no. You cannot put a structured baseball cap on a 6x10 flatbed hoop without crushing the bill. It is frustrating. If hats are your main business, look for a brother hat hoop specific to multi-needle machines, or accept that flatbed hat embroidery is limited to unstructured "dad caps" or beanies.

“Does it use Wi-Fi or USB?”

The NQ3550W supports Wi-Fi design transfer via Brother's software (Design Database Transfer) and USB. Pro Tip: Keep a dedicated USB stick (under 32GB, formatted FAT32) just for the machine. Large drives often confuse embroidery operating systems.

“Is it wise to buy a sewing + embroidery combo machine?”

The trade-off is redundancy. If the embroidery module breaks, you might lose your sewing machine while it's in the shop. However, for space-saving and value, the brother sewing and embroidery machine line is unbeatable.

Setup Checklist (Do this every session)

• Mode Check: Confirm embroidery arm is attached/detached based on task.
• Needle: Check for burrs (run fingernail down the tip). Change if snagging.
• Bobbin: Clean out lint from the bobbin case area (don't blow on it; use a brush).
• Threading: Thread with foot UP, thread needle with foot DOWN.
• Hoop: Stabilizer is drum-tight; Fabric is secure.

Operation Checklist (The Pilot's Scan)

• Clearance: Nothing behind the machine that the hoop will hit.
• Start: Foot down, Light Green.
• Monitor: Watch the first 500 stitches. If it sounds like a jackhammer, STOP. Re-thread.
• Finish: Use the scissor button. Don't pull fabric until the cycle is complete.

The Bottom Line: Who the Brother NQ3550W Is For—and When to Upgrade Your Workflow

The NQ3550W is a fantastic education platform. It automates the scary parts (tension, cutting, threading) so you can focus on design placement.

If you are using the embroidery machine 6x10 hoop for weekend projects, this machine is a joy. But listen to your body. If your wrists hurt from hooping, or you are turning down orders because you can't re-hoop fast enough, don't blame the machine. That is the signal to upgrade your tools (Magnetic Hoops) or your infrastructure (Multi-needle machines).

Embroidery is a journey from "Did I break it?" to "How fast can I run this?" The NQ3550W is the perfect bridge to get you there safely.

FAQ

• Q: How do beginners start embroidery on the Brother Innov-is NQ3550W without creating a bird’s nest at the first stitches?
  A: Use the Brother Innov-is NQ3550W “Safe Start Protocol” and stop after the first 4–5 stitches to trim the tail before running full speed.
  • Lower the presser foot and confirm the Start/Stop button changes from red to green.
  • Press Start/Stop, let the machine sew 4–5 stitches, then press Stop and trim the starting thread tail close to the fabric.
  • Press Start/Stop again and let the color run normally (a slower beginner cap like 600 SPM is a safe starting point).
  • Success check: the machine sound settles into a steady hum (not sharp clacking) and the underside stays clean without a wad of thread.
  • If it still fails: stop immediately, re-thread the upper path with the presser foot UP, and re-check the bobbin is seated correctly.
• Q: How do Brother Innov-is NQ3550W users know if hooping tension is correct before stitching a 6x10 embroidery design?
  A: Aim for “drum-skin” tension without bending fabric grain, and verify with a tap + visual grid check before pressing Start.
  • Tap the hooped fabric to confirm a dull drum sound.
  • Check fabric grain/grid lines stay straight (not bowed or distorted).
  • Confirm the inner ring sits slightly proud of the outer ring (about 1–2 mm) to lock the fabric.
  • Success check: the fabric feels firm and even across the hoop, with no ripples at the edges.
  • If it still fails: switch to floating (hoop stabilizer only, use temporary spray adhesive, then stick fabric on top) to reduce hoop burn and distortion.
• Q: How do Brother Innov-is NQ3550W owners make the built-in needle threader work reliably instead of missing the needle eye?
  A: Follow the Brother Innov-is NQ3550W threading sequence precisely and always use the side cutter step so the tail length is correct.
  • Raise the presser foot before threading so the tension discs open.
  • Thread the numbered path 1–6, then pull the thread firmly into the side cutter until it fully cuts.
  • Lower the presser foot, then push the needle threader lever down in one smooth, confident motion.
  • Success check: a clean thread loop pops through the needle eye and the lever returns smoothly.
  • If it still fails: replace the needle immediately (a slightly bent needle commonly causes hook-miss) and re-try the same sequence.
• Q: How do Brother Innov-is NQ3550W users load the Quick-Set drop-in bobbin so the first stitch catches and the underside does not jam?
  A: Seat the bobbin in the correct unwind direction, route through the channel, and use the built-in cutter—do not “fish” the bobbin thread up manually.
  • Drop the bobbin in so it unwinds counter-clockwise (a “P” shape, not a “9”).
  • Hold gentle finger pressure on the bobbin while guiding thread through the slit and channel.
  • Pull through to the built-in cutter with one clean pull to set the correct tail length.
  • Success check: the machine begins stitching without looping underneath and no thread wad forms under the needle plate.
  • If it still fails: remove the bobbin, clean lint from the bobbin area with a brush, and reload following the same direction check.
• Q: How do Brother Innov-is NQ3550W owners safely remove the embroidery unit and switch to sewing mode without causing alignment or motor issues?
  A: Power the Brother Innov-is NQ3550W OFF before removing the embroidery unit, and never force the unit when sliding it out.
  • Remove the hoop first to prevent the arm from binding.
  • Turn the machine OFF before touching the embroidery unit connection.
  • Press the release lever (lower left underside), then slide the unit left gently without yanking.
  • Success check: the unit slides out smoothly with no grinding or resistance and the machine reverts to sewing mode cleanly after reassembly.
  • If it still fails: stop forcing parts and re-check that the release lever is fully engaged before attempting removal again.
• Q: What safety rules should Brother Innov-is NQ3550W users follow to avoid finger pinches and needle-area injuries during embroidery?
  A: Keep hands and loose items well away from the moving hoop and never “hover-hold” fabric near the needle while the Brother Innov-is NQ3550W is running.
  • Keep fingers, jewelry, hair, and loose sleeves at least 4 inches from the needle/hoop area during stitching.
  • Clear the rear and sides of the machine so the hoop cannot strike objects mid-run.
  • Stop the machine before trimming thread tails or reaching near the presser foot area.
  • Success check: the hoop completes full travel without contacting anything and hands never enter the hoop’s sweep path.
  • If it still fails: slow down and monitor the first stitches only, then step back—most pinches happen when hands stay close “just in case.”
• Q: When Brother Innov-is NQ3550W hooping becomes slow or causes hoop burn and wrist pain, what is the best upgrade path from technique to tools to production?
  A: Use a tiered approach: first adjust technique, then consider magnetic hoops, and only then consider production systems if volume demands it.
  • Level 1 (Technique): float fabric by hooping stabilizer only and using temporary spray adhesive to reduce hoop burn and re-hooping effort.
  • Level 2 (Tool): consider magnetic embroidery hoops if thick items or repeated hooping cause hand strain (magnetic clamping often reduces wrist fatigue).
  • Level 3 (Production): use a hooping station system when consistent placement and speed matter for larger order volumes.
  • Success check: hooping becomes repeatable (less re-hooping), fabric shows fewer shiny ring marks, and setup time per item drops noticeably.
  • If it still fails: reassess stabilizer choice and hooping method first—many “speed problems” are actually rework from fabric shifting or distortion.
