Brother Innov-is F440E: Your First Clean Stitch-Out (Without the Hoop Drama, Threader Rage, or Stabilizer Guesswork)

The Studio-Ready Guide to the Brother Innov-is F440E: From "Box Panic" to Production Confidence

If you are unboxing a Brother Innov-is F440E (or a similar specialized embroidery machine) for the first time, you are likely experiencing a specific mix of emotions: the thrill of creative potential fighting against the "Fear of the Expense." You’re worried about three specific failure points: (1) "Will I mess up the touchscreen settings and crash the needle?", (2) "Why does hooping feel like a wrestling match with slippery fabric?", and (3) "What if the tension goes haywire halfway through a monogram?"

I have spent 20 years in embroidery production, and I can tell you: the machine is tougher than you think, but the materials are more temperamental than you expect.

This guide rebuilds the workflow from the tutorial into a professional studio routine. We will move beyond "following steps" to understanding the physics of why we do them. We will stick to the demonstrated project (7x5 hooping, text editing, two-color stitch-out), but we will add the sensory cues—the sounds, feelings, and sights—that seasoned pros use to guarantee success.

1. The "Pre-Flight" Mindset: Understanding Your Flight Deck

The Brother Innov-is F440E is a dedicated embroidery unit. It has no feed dogs for sewing; it is a specialist. Its workspace is the 7 x 5 inch (180 x 130 mm) hoop. In the industry, we call this the "Money Field"—it is the perfect size for left-chest logos, onesies, towel borders, and monograms.

The Golden Rule of the Screen: You cannot break the machine by pressing buttons on the LCD. Until you press the green "Start" button, you are in a safe simulation mode. You can delete, resize, rotate, and color-swap without cost.

The Single-Needle Reality: This machine has one needle. If your design has four colors, you are the automatic color changer. You must stop, unthread, and rethread.

• The Pro Insight: If you eventually find yourself doing 20+ shirts a day, this manual changing becomes your profit bottleneck. That is when we start talking about SEWTECH multi-needle machines (which hold 10-15 colors at once). But for now, mastering the single needle teaches you valuable thread-handling discipline.


2. Touchscreen Tactics: Digital Setup Without the Guesswork

Wake the machine. Listen for the carriage to move—a mechanical whir-click indicates it has calibrated its X/Y axis.

Step A: Building the Name (Text Logic)

1. Navigate: Select the "Lettering" bank.
2. Input: Type your text (e.g., "Lucy").
3. The Critical Decision: Choose your size (S / M / L) now.
   • Why? Native sizing changes the stitch count properly. Resizing after selection only scales the image, which can ruin density (making stitches too tight or too loose).
   • The Limit: The tutorial resizes in increments. Listen for the "Double Beep." That is the machine saying, "Stop. If you go bigger/smaller, the stitch quality will fail."




Step B: Framing (The Container)

1. Select Border: The tutorial adds a floral diamond frame.
2. Visual Check: Ensure the text floats in the center with visual "breathing room."
3. Color Stop Logic: The machine sees "Color" as a "Stop Command."
   • In the tutorial, the text is Silver, the border is Lilac.
   • Even if you want to sew both in white, assign them different colors on screen. This forces the machine to stop after the text, allowing you to trim jump stitches before the border sews over them.


Step C: The Virtual "Dry Run"

Use the Preview function (usually a magnifying glass icon). Look at the grey rectangle representing your hoop.

• Safety Check: Is the design centered? Is it touching the grey safety line? If it hits the line, the machine will refuse to sew (or worse, hit the frame).


Pro Tip: If you are researching an embroidery machine for beginners, look for this specific feature: "On-screen Trace." It moves the hoop around the design's borders without stitching, showing you exactly where the needle will go.

3. The Physical Foundation: Stabilizers and Fabric Physics

Here is the hard truth: The fabric is just the canvas; the stabilizer is the actual structure. The #1 cause of puckering (where fabric bunches up around letters) is using the wrong support.

The Stabilizer Decision Tree

Do not guess. Use this logic flow for every project:

• Is the fabric Woven? (Denim, Cotton, Calico, Towel) -> Does it stretch? NO.
  • Rx: Use Tearaway Stabilizer (Medium Weight). It supports the stitch, then removes easily.
• Is the fabric Knitted? (T-shirt, Polo, Sweatshirt, Beanie) -> Does it stretch? YES.
  • Rx: Use Cutaway Stabilizer. Non-negotiable. If you use tearaway on a t-shirt, the design will distort after one wash. Cutaway is permanent and holds the stretchy fibers in place.
• Is the fabric Fluffy? (Towel, Velvet, Fleece) -> Does it have pile? YES.
  • Rx: You need a Water Soluble Topping (like a thin film) on top to keep stitches from sinking into the fluff, PLUS stabilizer underneath.

Hidden Consumable Alert: Experienced embroiderers rarely rely on hoop tension alone. They use Temporary Spray Adhesive (like 505 spray) to bond the fabric to the stabilizer before hooping. This creates a "plywood" effect that prevents shifting.

Prep Checklist (The "Or Else" List)

• Stabilizer matches fabric type (Logic check above).
• Fabric is ironed flat (Wrinkles will be sewn in permanently).
• Bobbin is full (Running out mid-letter is a pain).
• New Needle installed? (Change needles every 8-10 hours of stitching).

4. Hooping Mechanics: The "Drum Skin" Standard

Hooping is the physical skill that takes the longest to master. The goal is "Taut, not Stretched."

The Standard Hoop Method (Screw & inner Ring)

1. Loosen: Unscrew the outer hoop until it is loose.
2. Sandwich: Place Outer Hoop -> Stabilizer -> Fabric -> Inner Hoop.
3. Align: Match the arrows/notches on the inner and outer frames.
4. Press: Push the inner hoop down.
   • Sensory Check: You should require firm pressure, but you shouldn't have to put your body weight on it.
5. The "Finger-Tight" Rule: Tighten the screw only with your fingers first.
6. Refine: Gently pull the fabric edges to remove slack. Do not distort the grain of the fabric.
7. Lock: Use the screwdriver to give it one final half-turn.

The Sensory Anchor: Tap the fabric with your finger. It should sound like a light drum—thrum, thrum. If it sounds dull or loose, re-hoop.

The Problem with Standard Hoops

Standard hoops cause two major issues for beginners:

1. Hoop Burn: The friction leaves permanent white marks on delicate fabrics or velvet.
2. Wrist Strain: Constant screwing and unscrewing leads to repetitive strain injury (RSI).

This is the exact "pain point" where professionals switch tools. For repetitive work, a magnetic hoop for brother machines is the industry standard upgrade. Why swap? Instead of wrestling a screw, powerful magnets clamp the fabric instantly. It eliminates "hoop burn" because there is no friction-drag, and it is 3x faster. If you plan to do production runs (e.g., 50 Christmas stockings), the magnetic embroidery hoops approach is not a luxury; it is a labor-saving necessity.

Warning: Magnetic Safety
Modern magnetic hoops use industrial Neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap together instantly.
* Electronics: Keep them away from pacemakers and credit cards.

5. Threading: The Path of Resistance

Machine embroidery happens at 650 stitches per minute (SPM). At that speed, thread behaves like a whip. It needs exact tension.

Upper Threading

Follow the numbers 1 through 6 on the machine casing.

• Sensory Anchor: When you pull the thread down through the tension discs (usually step 2 or 3), you must feel a distinct drag. It should feel like flossing tight teeth. No drag = No tension = Bird’s Nest mess.

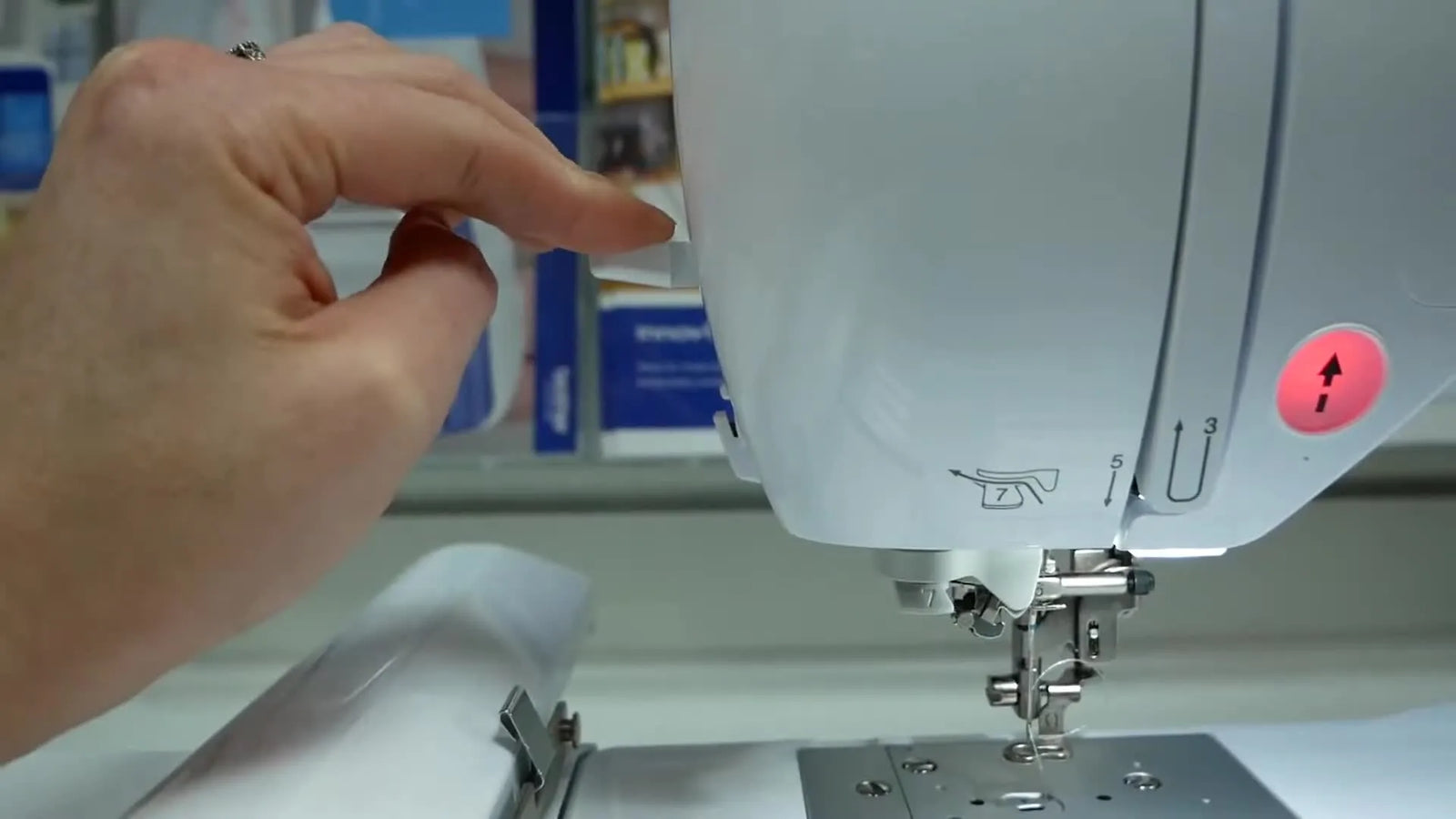

• Needle Threader: Use the #7 lever. If it misses, your needle isn't at the highest point. Press the "Needle Up/Down" button twice to reset it.


Bobbin Loading

Drop the bobbin in.

• Visual Check: The bobbin should look like the letter "P" (thread coming off the left side) before you drop it in.
• The Cut: Pull the thread through the grey plastic guide until it hits the cutter. This guide provides the "bottom tension."


6. The Operation: Eyes on the Road

Clip the hoop into the carriage unit. Listen for the lock. A loose hoop will ruin the design instantly. Lower the presser foot. The light turns Green.

Speed Management

The F440E maxes out at 650 SPM.

• Safe Zone: For your first project, or when using metallic/rayon threads, lower the speed on the screen to 400-500 SPM. Speed causes heat; heat snaps thread. Slow and steady yields a better finish.


Trouble on the Track?

• Thread Break: The machine detects it and stops. Re-thread. Use the -1 / -10 stitch buttons on the screen to back up a few stitches so you don't leave a gap.
• Bird's Nest (Tangle under the plate): Stop immediately. CANCEL the design. Cut the hoop free. This usually means you missed the upper tension disc during threading.

Setup Checklist (Final Countdown)

• Carriage area clear? (No coffee mugs behind the machine).
• Hoop snapped in tight?
• Upper thread pulled through needle?
• Speed set to manageable level (400-650)?
• Presser foot DOWN?


7. The Finishing School: Clean Up & Presentation

The machine stops. The music plays. You aren't done yet.

1. The "Hairy" Phase: You will see "jump stitches" (lines of thread connecting letters). This is normal for single-needle machines.
2. Trim: Use curved embroidery scissors (or "snips") to cut these close to the fabric.
3. Tear: Support the stitches with your thumb and gently tear the stabilizer away.
   • Warning: Do not yank. If you pull too hard, you will distort your fresh stitches.

8. Troubleshooting: The "Why is it doing that?" Matrix

If you encounter issues, follow this triage order (Low Cost -> High Cost):

9. Next Steps: Scaling from Hobby to Side Hustle

The F440E is a fantastic learning platform. But as you gain confidence, you will hit two distinct ceilings:

1. The "Hooping Burnout" Ceiling:
   If you find yourself dreading the setup process because your wrists hurt or you can't get thick towels hooped, don't blame your skills. This is a tool problem. Look into a embroidery hooping station setup or Magnetic Hoops. These tools standardize your placement and remove the physical strain, allowing you to prep faster.
2. The "Color Change" Ceiling:
   When you get an order for 20 shirts with a 6-color logo, you will spend more time changing thread than stitching. This is the trigger point for a Multi-Needle Machine. A machine like the SEWTECH series allows you to load all 12-15 colors at once, press start, and walk away to prep the next hoop. Professionals sell time, not just stitches; multi-needle machines buy you that time back.

Start with the basics. Master the tension. Feel the drum-tight hoop. And when the workflow slows you down, know that the tools exist to speed you up. Happy stitching.

FAQ

• Q: Can the Brother Innov-is F440E LCD touchscreen settings damage the needle or break the machine before pressing Start?
  A: No—on the Brother Innov-is F440E, LCD edits are safe until the green Start button is pressed.
  • Make changes (delete/resize/rotate/color-swap) on-screen first, then use Preview before stitching.
  • Use the on-screen Trace/positioning feature if available to confirm the needle path stays inside the hoop area.
  • Success check: The design sits centered in the grey hoop rectangle and does not touch the safety boundary line.
  • If it still fails: Re-check hoop size selection and reduce any resizing that pushed the design toward the limits.
• Q: Why does the Brother Innov-is F440E “double beep” when resizing lettering, and what should be done when the double beep happens?
  A: The Brother Innov-is F440E double beep is a built-in warning to stop resizing because stitch quality may fail beyond that limit.
  • Choose the lettering size (S/M/L) before finalizing the text to keep proper stitch count.
  • Avoid pushing resizing past the point where the machine warns you; keep the lettering within the safe range.
  • Success check: Letters sew without overly tight pull-in or loose, gappy coverage.
  • If it still fails: Rebuild the text at a different native size (S/M/L) instead of forcing heavy scaling.
• Q: What stabilizer should be used on the Brother Innov-is F440E to prevent puckering on T-shirts, woven cotton, and towels?
  A: Match stabilizer to fabric type on the Brother Innov-is F440E: cutaway for knits, tearaway for stable wovens, and topping for pile fabrics.
  • Use medium tearaway for non-stretch wovens (denim/cotton) when the fabric does not stretch.
  • Use cutaway for knits (T-shirts/polos) because stretch fabrics need permanent support.
  • Add water-soluble topping on towels/fleece/velvet to prevent stitches sinking into the pile (plus stabilizer underneath).
  • Success check: After stitching, lettering edges stay flat with minimal rippling and no “bunching” around satin columns.
  • If it still fails: Use temporary spray adhesive to bond fabric to stabilizer before hooping to reduce shifting.
• Q: How tight should fabric be hooped in the Brother Innov-is F440E 7x5 hoop to avoid puckering and distortion?
  A: Hoop fabric for the Brother Innov-is F440E to “taut, not stretched,” using the drum-skin standard.
  • Loosen the screw, align hoop marks/arrows, and press the inner hoop in with firm pressure (not body weight).
  • Tighten finger-tight first, then gently pull fabric edges only to remove slack without warping the grain.
  • Finish with a small final half-turn using a screwdriver for a consistent clamp.
  • Success check: Tap the hooped fabric and hear a light “drum” sound (thrum, thrum), not a dull slack sound.
  • If it still fails: Re-hoop and add temporary spray adhesive so the fabric and stabilizer act like one layer.
• Q: How can Brother Innov-is F440E bird’s nesting (loops/tangles under the needle plate) be fixed fast during a stitch-out?
  A: Brother Innov-is F440E bird’s nesting is usually an upper-threading problem—stop immediately and re-thread the top thread correctly.
  • Press Stop, then cancel the design if the tangle is severe; cut the hoop free instead of pulling hard.
  • Re-thread the upper path following the printed numbers, ensuring the thread is seated deep in the tension discs.
  • Reinstall the hoop securely and lower the presser foot before restarting.
  • Success check: Stitches resume with a clean underside (no growing wad of thread under the fabric).
  • If it still fails: Confirm the bobbin is correctly seated through the guide/cutter path and recheck threading drag (you should feel resistance).
• Q: On the Brother Innov-is F440E, what do loops on top vs loops on the bottom mean for tension troubleshooting?
  A: Use this rule on the Brother Innov-is F440E: loops on the bottom usually mean the top thread has no tension; loops on top usually mean top tension is too loose or unthreaded.
  • If loops are on the bottom (bird’s nest), re-thread the top and confirm the thread is in the tension discs (bottom mess = top problem).
  • If loops are on the top, re-thread the top and ensure you feel distinct drag through the tension area.
  • Verify the bobbin is seated correctly in its tension spring groove before changing anything else.
  • Success check: Stitch formation looks balanced with no big loops on either side of the fabric.
  • If it still fails: Slow the machine speed (a safer starting point is 400–500 SPM for delicate threads) and test again.
• Q: What are the most important safety risks when using magnetic embroidery hoops as an upgrade from standard hoops on a Brother Innov-is F440E workflow?
  A: Magnetic embroidery hoops can reduce hoop burn and wrist strain, but the magnets snap shut hard—treat them as a pinch hazard and keep them away from sensitive electronics.
  • Keep fingers clear of the mating surfaces and let the magnets clamp straight down without sliding.
  • Store magnets away from pacemakers, credit cards, and devices that can be affected by strong magnetic fields.
  • Handle one side at a time and maintain control so the pieces do not slam together unexpectedly.
  • Success check: The fabric is clamped without friction-drag marks and the hoop closes cleanly without finger contact.
  • If it still fails: Return to standard hooping for that material thickness and focus on stabilizer + spray adhesive until handling is confident.
• Q: When does a Brother Innov-is F440E single-needle workflow justify upgrading from technique fixes to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade when the problem is time and strain, not skill: first optimize setup, then consider magnetic hoops for hooping speed/comfort, and consider a SEWTECH multi-needle machine when color changes become the production bottleneck.
  • Level 1 (technique): Standardize prep—correct stabilizer, full bobbin, fresh needle, manageable speed, and disciplined re-threading when issues appear.
  • Level 2 (tool): Move to magnetic hoops if hoop burn, towel hooping difficulty, or wrist strain is slowing daily output.
  • Level 3 (capacity): Move to multi-needle when frequent multi-color jobs make manual rethreading dominate the workday.
  • Success check: Total job time drops because setup and color-change stoppages are no longer the limiting step.
  • If it still fails: Track where time is lost (hooping vs rethreading vs rework) to choose the next upgrade step logically.
