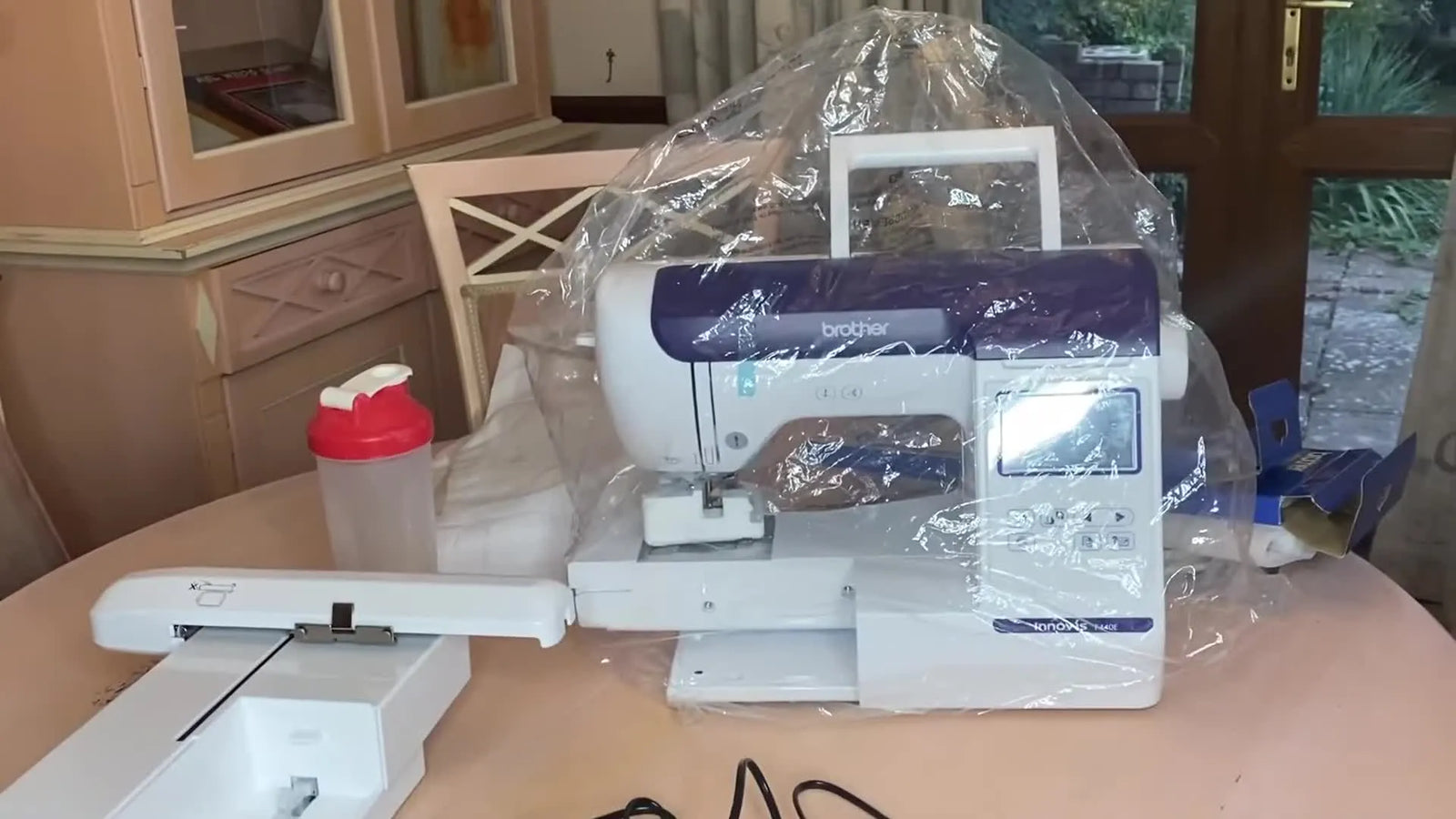

Brother Innov-is F440E Unboxing to First Power-On: The Calm, No-Regrets Setup (Plus Hoop Choices That Actually Matter)

You’re staring at a brand-new Brother Innov-is F440E box, your heart’s racing, and you’re thinking: “Please don’t let me break something on day one.”

I’ve set up, serviced, and taught workflow on embroidery machines for two decades. I have seen thousands of absolute beginners stand exactly where you are now. I’ll tell you the empirical truth: most “first-day disasters”—bird nests, broken needles, or the dreaded "grinding sound"—aren't actually disasters. They are preventable rookie moments caused by skipping the boring stuff (missed packing tape, rushed hooping, wrong stabilizer, or powering on while the carriage is locked).

This guide rebuilds the typical unboxing video into a clean, repeated engineering process you can follow without second-guessing yourself. We will cover what’s in the box, the sensory checks for attaching the embroidery unit, and the physics of hoop sizes—especially that extra-large 30 x 13 cm frame—so your first stitches don't turn into puckers, shifting fabric, or wasted stabilizer.

Meet the Brother Innov-is F440E Without the Panic: What This Machine Is Built to Do

The Brother Innov-is F440E is a dedicated embroidery machine. Unlike sewing combos, it does one thing, and it’s engineered to do it with specific logic. It offers a color touchscreen, built-in designs, and USB data transfer. In unboxing videos, presenters are often visibly excited—and that excitement is dangerous because it makes you rush.

Here is the mindset shift I teach in my workshops: Your first goal is not "make something amazing." Your first goal is "establish a stable baseline."

We need to calibrate the machine and your hands before we worry about artistry. Once the machine is assembled correctly and you understand the physics of the hoop, the art becomes easy. If you bought this because it was recommended as a user-friendly embroidery machine for beginners, you made a solid choice—but "user-friendly" only works if you respect the setup sequence.

Inventory the Box Like a Pro: Manuals, Hoops, Stabilizer, and the "Hidden" Necessities

The video starts by pulling out documents and accessories. This sounds basic, but this is where efficient operators win the game. You need to separate "setup tools" from "consumables."

From the unboxing, you will find:

• The Intelligence: Operation manual and Quick Reference Guide.
• The Hardware: A standard embroidery hoop (usually 18x13cm) and the machine body.
• The Consumables: A sample roll of stabilizer and a spool of bobbin thread.
• The Power: Cables and the Embroidery Unit (the slide-on module).

Missing Items (The "Hidden Consumables"): New users often panic when they realize the box doesn't have everything needed for a specific project. Before you start, check if you have these standard workshop items:

• Curved embroidery scissors (for trimming jump stitches close to fabric).
• Spare Needles: The box has a few, but you need Size 75/11 embroidery needles as backups.
• Temporary Spray Adhesive (vital for float-hooping).


The “Hidden” Prep: Do This Before You Even Think About Thread

Before you look at a power outlet, we must stage the environment. Embroidery machines rely on vibration management.

• Surface Stability: Put the machine on a heavy, solid table. If the table wobbles, your stitch registration will drift.
• The "Travel Zone": Clear at least 12 inches (30cm) to the left of the machine. The embroidery arm moves autonomously and with force. If it hits a coffee mug or a wall, you strip the gears.
• Hoop Staging: Lay out your hoops to compare sizes physically.

This is also where we address the psychological hurdle: Hooping is a physical skill, like riding a bike. It takes muscle memory. If your first attempt is loose, don't blame your talent. It's just physics.

Prep Checklist (Do this before assembly)

• Surface Check: Is the table rock-solid? (Wobbly tables = wavy stitches).
• Clearance Check: Is there 30cm of empty space to the left of the machine?
• Document Separation: Are the manuals within arm's reach (not buried)?
• Consumable Check: Do you have scissors and spare needles ready?
• Parts Bowl: Do you have a small container for tiny screws or caps so they don't roll away?


Hoop Reality Check: Standard Hoop vs. EF85 30 x 13 cm Frame

The video presenter highlights an additional purchase: the extra-large 30 x 13 cm (EF85) multi-position frame. This acts as a "gateway" tool, but it introduces complex variables.

Hoop size is not just about "how big the design is." It dictates the Physics of Flagging.

• Small Hoops: High tension, less fabric movement, better registry. Ideally used for logos and chest prints.
• Large Hoops: The fabric in the center is further from the clamped edges. It bounces (flags) more as the needle creates friction.

When you are researching brother f440e hoops, understand the trade-off: The bigger the hoop, the heavier the stabilizer must be to counteract the bounce.

The Physics You Feel in Your Hands

When you hoop, tap the fabric.

• Woven Fabrics (Cotton/Denim): Should sound like a distinct drum tap.
• Knits (T-shirts): Should be taut but not stretched. If you stretch a T-shirt in the hoop, the embroidery will pucker permanently when you take it out.

Decision Tree: Select Stabilizer Based on Fabric Physics

Stop guessing. Use this logic tree to make safe decisions for your first week.

1. Is the fabric unstable (T-shirts, polo shirts, sweaters)?

• Does it stretch when pulled? YES.
• RX: You MUST use Cutaway Stabilizer (2.5oz or similar). Tear-away will fail eventually, leading to gaps in the design.
• Hooping Strategy: Don't pull it tight. Lay it flat.

2. Is the fabric stable (Denim, Canvas, Towels)?

• Does it hold its shape? YES.
• RX: You can use Tear-away Stabilizer. It supports the stitches but removes easily.
• Hooping Strategy: Drum-tight.

3. Is the surface delicate or "crushable" (Velvet, Terry Cloth)?

• Will the hoop leave a permanent "burn" mark? YES.
• RX: Use a Water Soluble Topping on top to keep stitches from sinking.
• Hooping Strategy: This is where standard plastic hoops struggle. Professionals often switch to a magnetic embroidery hoop to hold these fabrics firmly without crushing the fibers (Hoop Burn).


The Embroidery Unit Slide-On Moment: The "Click" of Confidence

The embroidery unit is the brain and muscle of the operation. In the video, it is removed from the styrofoam. Inspect the connector pins immediately. They should be straight and gold/silver. If they are bent, do not attempt to attach it.

The Tactile Connection Guide

The video shows the slide-in motion. Here is how to do it safely:

1. Level Approach: Hold the unit parallel to the table.
2. The Guide: Look for the visual alignment marks on the left of the bed.
3. The Sensation: Push gently. You should feel a smooth resistance, then a solid clunk/click as it seats.
4. The Test: Gently try to pull it back (without releasing the latch). It should not wiggle.

Warning: Mechanical Safety
Keep your fingers away from the gap between the embroidery unit and the machine body while pushing. The connection creates a pinch point that can trap skin. Never force the unit; if it resists, pull back and re-align.

Setup Checklist (Before Power)

• Unit Connection: Embroidery unit pushed in until it clicked and feels rock solid.
• Swing Clearance: Double-check the space to the left again.
• Bed Inspection: No packing tape or foam left under the needle area.
• Hoop Status: REMOVE any hoops. Never turn the machine on with a hoop attached for the first time; the calibration dance needs space.


Power Cable and First Boot: The "Boring Boot" Protocol

In the video, the power cable connects to the side socket. The switch is on the right. When you flip it, the screen lights up with a safety warning.

Psychological Check: That warning screen is not legal fluff. It is a functional pause. The machine is asking: "I am about to move my robotic arm to find its center. Are your hands clear?"

The Protocol:

1. Plug in.
2. Hands in your lap (away from the needle).
3. Touch the screen to confirm.
4. Listen. You will hear a whirrr-zzzt-click. That is the stepper motors finding "Home." It should sound robotic but smooth, not grinding.

If you are setting up a brother embroidery machine, establishing this respectful "hands-off" boot sequence will save you from calibration errors down the road.

Peel the Protective Tape: The Silent Saboteur

Visuals show blue tape being peeled from the thread tension area.

This is critical. I have solved "broken machine" calls simply by finding a shard of blue tape stuck in the tension discs.

• Action: Run your fingernail along the top thread path.
• Look For: Any transparent film or blue residue.
• Why: Even a millimeter of tape residue adds 50g of drag to your thread, which snap threads instantly.

Touchscreen Tour and Built-In Designs: Your First Diagnostic Test

The presenter browses built-in designs. Don't rush to your computer to download files yet. We use built-in designs for diagnostics.

Why? Because the built-in designs are digitized perfectly for this specific machine's tension logic.

1. Select a small, simple design (like a flower or initial).
2. This confirms the touchscreen is calibrated.
3. It confirms the processor is reading memory correctly.

If you want to practice hooping for embroidery machine accuracy, use these free internal designs on scrap fabric. Do not waste expensive polo shirts on your first three runs.

Thread Spool Basics: fluid Dynamics

The video lists a spool of yellow embroidery thread. Thread feeding is where 60% of rookie errors happen.

• Spool Caps: Use a spool cap that is slightly larger than the spool diameter, but not huge.
• The Path: Thread must floss securely into the top tension discs.
• Sensory Check: When you pull the thread through the needle (with the presser foot UP), it should pull easily. With the presser foot DOWN, you should feel significant drag (like flossing your teeth).


The Hoop Upgrade Conversation: Solving the "Pain Points"

The video shows the standard hoops and the large frame. Now, let's talk about the physical reality of using these plastic frames for hundreds of shirts.

The Pain: Standard plastic hoops work by friction. You must tighten a screw and shove an inner ring into an outer ring.

• Risk: It hurts your wrists over time.
• Risk: It leaves shiny "hoop burn" rings on delicate fabrics.
• Risk: Thick items (towels, jackets) pop out of the hoop.

The Solution (When to Upgrade): If you find yourself struggling to hoop thick items or you are getting clamp marks that won't iron out, the industry standard solution is the Magnetic Hoop.

Terms like magnetic embroidery hoops often pop up in professional forums for a reason. Instead of friction, they use vertical magnetic force to sandwich the fabric.

• Benefit: Zero hoop burn (no friction ring).
• Benefit: Hooping takes 5 seconds, not 60 seconds.
• Benefit: It holds thick towels automatically.
• Brand Note: Sewtech manufacturers high-grade magnetic frames compatible with the Brother F-series that bridge the gap between home struggles and industrial ease.

Warning: Magnet Safety
Magnetic hoops use strong industrial neodymium magnets.
* Pinch Hazard: They snap together with force. Keep fingers clear.
* Medical Device Safety: Keep them at least 6 inches away from pacemakers.

Commercial Logic: The Upgrade Path

1. Level 1 (Beginner): Master the included plastic hoops. Use spray adhesive for extra grip.
2. Level 2 (Enthusiast): Buy a 5x7 Magnetic Hoop. This solves the "hoop burn" and "wrist pain" issues immediately.
3. Level 3 (Business): If you are producing 50+ shirts a week, the F440E (single needle) is your bottleneck. This is when you look at Multi-Needle machines (like Sewtech offerings) to change colors automatically.

Q&A: "Waiting for Delivery" & "Business Use?"

A viewer commented on the long wait time for delivery, and the reply confirmed business use.

Strategic Advice for Business Dreamers: Can you run a business on an F440E? Yes, but Time is your enemy.

• The machine has one needle. A 6-color design requires 5 manual thread changes.
• The Fix: Optimize your designs. Sticking to 1-2 color logos will double your production speed.

If you are shopping for extra embroidery hoops for brother machines for a startup, buy duplicates of the standard 5x7 size. While one is stitching, you should be hooping the next shirt in the second hoop. This is called "Continuous Workflow."

Troubleshooting the First Week: The "Symptom-Fix" Matrix

Even though the video is happy and smooth, you might hit bumps. Here is your cheat sheet.

Symptom: "Bird Nest" (Huge tangle under the fabric)

• Likely Cause: You threaded the top thread while the presser foot was DOWN. The tension discs were closed, so the thread sits on top of them, receiving zero tension.
• The Fix: Raise presser foot. Re-thread. Ensure thread "clicks" deep into the tension path.

Symptom: Needle Breaks immediately

• Likely Cause: You inserted the needle flat-side forward (wrong way) or the hoop screw hit the foot.
• The Fix: Flat side of the needle must face the BACK. Check hoop clearance.

Symptom: Upper Thread Shreds/Snaps

• Likely Cause: Old thread, burr on the spool cap, or needle eye is clogged with stabilizer glue.
• The Fix: Change the needle (Size 75/11). Use a spool net.

Symptom: White bobbin thread shows on top

• Likely Cause: Top tension is too tight OR bobbin case has lint.
• The Fix: Clean the bobbin area. Lower top tension slightly (e.g., from 4.0 to 3.6).

The Upgrade That Pays Back: Efficiency

Once you have done a calm first power-on and a small test design, you will start noticing where you lose time. It isn't the stitching; it's the hooping.

If you are using a hoop for brother embroidery machine and fighting with positioning or fabric slip, remember that stabilization is 80% of the job.

Operation Checklist (Your First Stitch Session)

• Power Safety: Hands clear during startup calibration.
• Thread Check: Presser foot UP during threading? (Vital).
• Test Drive: Pattern selection is a low-density built-in design.
• Speed Limit: Set the speed slider to Medium (approx 350-400 SPM) for the first run. Do not floor the gas pedal yet.
• Observation: Watch the first 100 stitches. If loops appear, hit Stop.
• Success Metric: The final result should lie flat, and the back should show 1/3 white bobbin thread in the center of satin columns.

Welcome to the craft. Respect the setup, check your physics, and the machine will serve you for years.

FAQ

• Q: What “hidden consumables” should be prepared before first power-on of the Brother Innov-is F440E embroidery machine?
  A: Prepare the missing basics first, because most first-day issues come from not having backup needles, trimming tools, or a way to secure fabric.
  • Gather: curved embroidery scissors, spare 75/11 embroidery needles, and temporary spray adhesive for float-hooping.
  • Stage: manuals within reach and a small parts bowl for tiny caps/screws so nothing gets lost.
  • Clear: a solid table surface and at least 30 cm (12 in) open space to the left for the embroidery arm travel.
  • Success check: everything needed for threading, trimming, and hooping is on the table before the machine is plugged in.
  • If it still fails: stop and re-check for packing foam/tape left in the needle/bed area before continuing setup.
• Q: How can a beginner confirm the Brother Innov-is F440E embroidery unit is attached correctly without damaging the connector?
  A: Slide the embroidery unit in level and stop immediately if it resists; it should seat with a smooth push and a solid click.
  • Inspect: connector pins first—pins should look straight; do not attach if any pin is bent.
  • Align: hold the unit parallel to the table and use the alignment marks on the left side of the bed.
  • Push: apply gentle, even pressure until a clear clunk/click is felt; never force.
  • Success check: the unit feels rock solid and does not wiggle when gently pulled without releasing the latch.
  • If it still fails: pull the unit back out, re-align, and check for packing tape/foam blocking the track.
• Q: Is it safe to turn on the Brother Innov-is F440E with an embroidery hoop attached during the first startup calibration?
  A: Do not power on the Brother Innov-is F440E with a hoop attached for the first startup; remove the hoop so the calibration movement has full clearance.
  • Remove: any hoop/frame from the carriage before switching the machine on.
  • Confirm: at least 30 cm (12 in) clear space to the left so the arm cannot hit a wall or objects.
  • Keep clear: hands away from the needle area when acknowledging the touchscreen warning.
  • Success check: the startup sound is smooth and robotic (whirrr-zzzt-click), not grinding.
  • If it still fails: power off and check again for leftover packing tape/foam under the needle/bed area.
• Q: How do beginners stop “bird nest” tangles under fabric on the Brother Innov-is F440E during the first stitch-out?
  A: Re-thread the Brother Innov-is F440E with the presser foot UP, because threading with the presser foot DOWN commonly leaves the thread outside the tension discs.
  • Raise: the presser foot fully before threading the top thread path.
  • Re-thread: floss the thread firmly into the tension area as instructed by the thread path.
  • Test-pull: with presser foot UP, thread should pull easily; with presser foot DOWN, drag should increase noticeably.
  • Success check: stitches form cleanly without a growing wad of thread underneath after the first few seconds.
  • If it still fails: stop immediately and re-check the thread path for protective tape residue adding drag near the tension area.
• Q: What should be checked if the Brother Innov-is F440E breaks an embroidery needle immediately after starting a design?
  A: Correct needle orientation and hoop clearance first, because a backwards needle or hoop contact can snap needles instantly.
  • Reinstall: insert the needle with the flat side facing the BACK (not forward).
  • Verify: the hoop/frame and screw position do not collide with the presser foot area during movement.
  • Restart: run the design again at a moderate speed and watch the first 100 stitches closely.
  • Success check: the needle enters the fabric cleanly without hitting plastic/metal and stitching continues smoothly.
  • If it still fails: stop and re-check that the embroidery unit is fully clicked in and the hoop is mounted correctly.
• Q: What is the correct stabilizer choice for knits vs denim on the Brother Innov-is F440E to prevent puckering and design gaps?
  A: Match stabilizer to fabric stability: use cutaway for stretchy knits and tear-away for stable wovens to avoid puckers and long-term distortion.
  • Choose: cutaway stabilizer for T-shirts/polos/sweaters (stretchy fabrics); avoid stretching the knit in the hoop.
  • Choose: tear-away stabilizer for denim/canvas/towels (stable fabrics); hoop drum-tight.
  • Add: water-soluble topping on crushable/delicate surfaces (like terry or velvet) to prevent stitches sinking.
  • Success check: the finished embroidery lies flat after unhooping, and the fabric does not recoil into ripples.
  • If it still fails: move down one hoop size (smaller hoop = less flagging) or increase stabilizer support as a safe next step.
• Q: When should a Brother Innov-is F440E user upgrade from standard plastic hoops to a magnetic embroidery hoop for hoop burn, thick towels, or wrist pain?
  A: Upgrade to a magnetic embroidery hoop when standard plastic hoops cause hoop burn, painful tightening, or fabric popping—magnetic force holds fabric without friction rings.
  • Level 1: improve technique first—use the included hoops and add temporary spray adhesive for extra grip when needed.
  • Level 2: switch to a magnetic hoop if delicate fabrics show shiny clamp marks, or thick items (towels/jackets) keep slipping or popping out.
  • Level 3: if weekly volume is high and manual thread changes are the bottleneck, consider a multi-needle machine to reduce changeover time.
  • Success check: hooping becomes faster and consistent, and finished items show fewer clamp marks and less shifting.
  • If it still fails: re-check magnet handling safety (pinch risk) and confirm the fabric is supported with the correct stabilizer for the hoop size.
