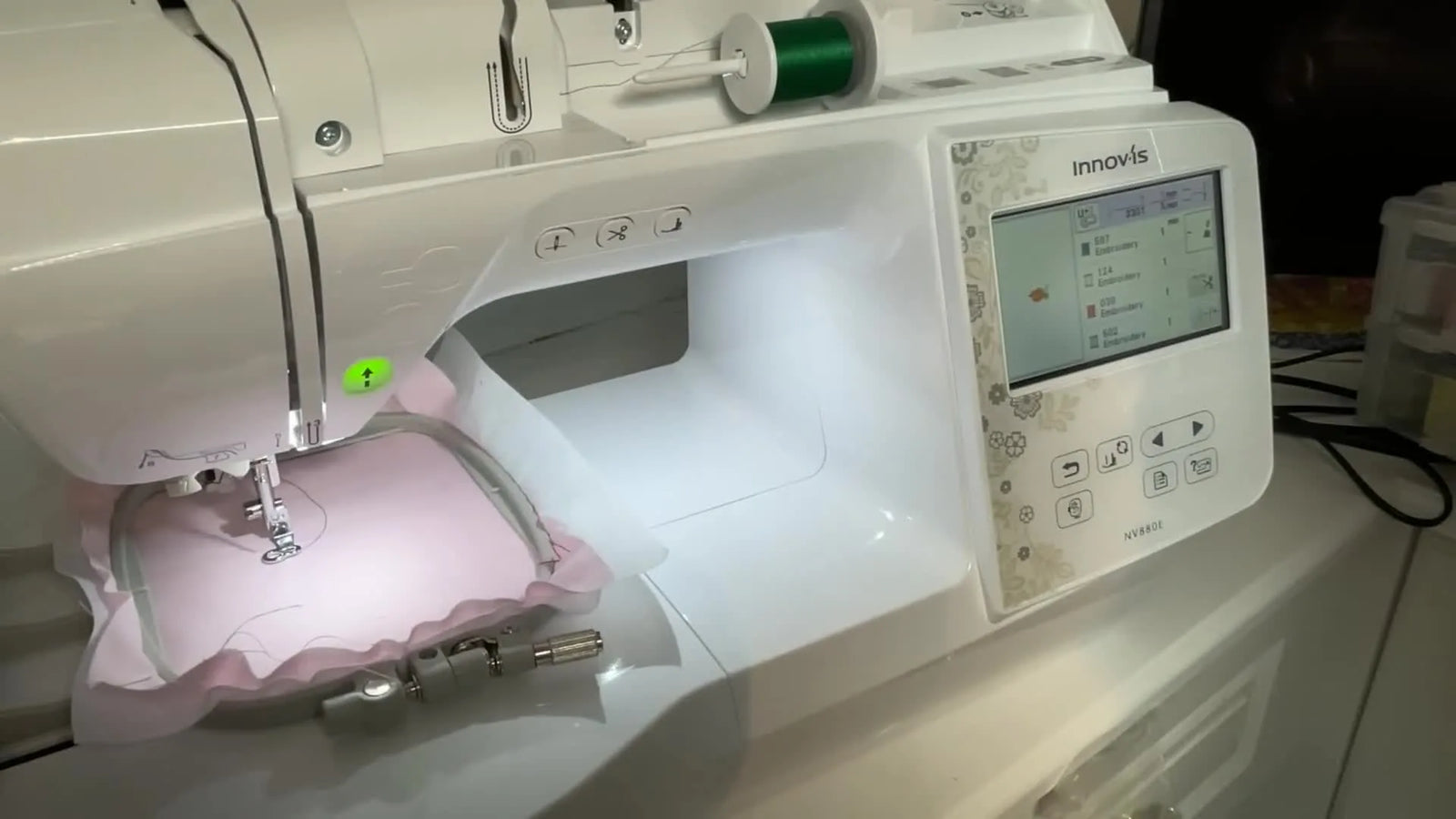

Brother Innov-is 880E Setup & First Stitch-Out: The Real-World “Gotchas” (Hoops, #90 Bobbin Thread, LED Pointer) That Save You Hours

If you have just unboxed your Brother Innov-is 880E and are staring at it with a mix of excitement and mild nausea, take a deep breath. That feeling isn’t incompetence; it’s the correct physiological response to a complex piece of engineering.

You didn’t just buy a sewing machine; you bought a CNC robot that holds a needle.

As someone who has trained thousands of embroiderers, I know the first hour is critical. It’s where habits are formed—either the "production-grade" habits that make embroidery joyful, or the "panic-patching" habits that lead to broken needles and bird nests.

This isn’t just a recap of a video; this is the operational field manual the box didn’t include. We are going to calibrate your machine, your clear out the dangerous myths, and set you up for a flawless first stitch.

The Calm-Down Check: What the Brother Innov-is 880E *Is* (and What It Won’t Do for You)

First, let’s manage the expectations. The 880E is a mid-range dedicated single-needle embroidery machine.

What this means for you:

• The Good: It is significantly more robust than a combo sewing/embroidery unit. It has specialized features like jump-stitch cutting (a massive time saver) and an LED pointer.
• The Reality: It has one needle. If your design has 12 colors, you are the thread changer 11 times. It does not automatically trim potential disasters on the back of the hoop—you still need to understand thread pathing.

Your goal today is not "perfection." It is "predictability." We want to set the machine up so that when you press the green button, you trust what happens next.

Choose the Right Brother Innov-is 880E Hoop Size (The "One-Hoop" Rule)

The machine comes with three hoops. Understanding them is your first step in production planning:

• 10×10 cm (4"×4"): Great for left-chest logos, infant wear, and pockets.
• 15×15 cm (6"×6"): perfect for quilt squares and larger infant bibs.
• 26×16 cm (10.25"×6.25"): The "Production Hero." This allows for large designs across adult garments or combining multiple smaller designs in one run.

The "Hoop Strike" Danger Zone Here is a physical safety warning most manuals bury: The carriage arm moves fast and far. If you place this machine in a cramped cubbyhole, the embroidery arm will slam into the wall when using the large frame. This can knock the calibration out of alignment instantly.

• Rule: You need at least 12 inches of clearance to the left of the machine.

When shopping for third-party accessories, remember that looking up brother embroidery hoops sizes isn't just about what fits the bracket; it's about what fits your workspace.

The "Hidden" Prep Pros Do: Space, Consumables, and a 60-Second Machine Health Check

Before you even thread the needle, we need to gather the "Hidden Consumables" that limit frustration. You need more than just what is in the box.

The "Must-Have" Survival Kit:

1. Fresh Needles: Start with a 75/11 Embroidery Needle per project.
2. Curved Embroidery Scissors: For snipping threads flush against the fabric.
3. Temporary Spray Adhesive (e.g., 505): Crucial for floating fabric.

1. The Physical Clearance Check

As noted above, use your largest hoop (26×16 cm) as a measuring stick. Attach it empty, and move the arm to its furthest limits visually. If it touches a wall, a lamp, or a coffee mug, move the machine.

2. The Bobbin Thread Weight (Critical Protocol)

This is where 50% of new Brother owners fail.

• The Fact: The Innov-is 880E is calibrated for #90 weight bobbin thread (usually white with a green spool cap).
• The Error: Standard sewing bobbin thread is usually #60 weight.
• The Consequence: If you use #60, your tension will be unbalanced. The top thread will be pulled to the bottom, creating a mess, or the bobbin thread will pull to the top, showing white specks on your design.

3. The Sensory Audit

Turn the machine on. It will calibrate (move the arm).

• Listen: You should hear a smooth mechanical whir.
• Fear: You might hear a loud "CLUNK." This is usually the thread cutter resetting. It is normal.
• Stop: If you hear grinding or a high-pitched whine, stop immediately.

Prep Checklist (Pre-Flight):

• Machine has 12" clearance on all sides for the embroidery arm.
• #90 Bobbin Thread is verified (Check the spool label!).
• New needle inserted (Flat side to the back, pushed all the way up).
• Scissors and screwdriver are within arm's reach.




The Two Setup "Gotchas": The Mystery Cable & The Green Cap

There are two hurdles in the setup phase that stops beginners cold.

Gotcha #1: The LED Pointer Cable

You will see a small white cable dangling near the needle bar. It looks unfinished.

• The Fix: This powers the LED drop-light (the red dot that shows where the needle hits). It plugs into a dedicated port on the back of the machine head. Do not force it; it clicks in gently.

Gotcha #2: The Bobbin Case "Green Paint"

Open your bobbin cover. Look at the black bobbin case. You should see a small mark of green paint on the screw.

• The Logic: This confirms the factory tension is set for that #90 bobbin thread we discussed.
• The Rule: Never touch that screw with a screwdriver unless you have a tension gauge and know exactly what you are doing.

Understanding the ecosystem of a brother embroidery machine means respecting these factory presets until you are expert enough to break them.

Use the LCD Built-In Guides: Your On-Board Professor

The machine’s screen isn't just for selecting flowers. It has a built-in "visual manual."

If you are unsure about threading, press the "Help" icon (often a question mark or a movie reel icon). It plays a video on the screen showing you the path.

• Why use this? Because diagrams in paper manuals are 2D. The video shows you the angle of the thread, which matters for the tension disks.




Threading Without Tears: The "Flossing" Technique

Threading is not just putting string through holes. It is about engaging the Tension Discs.

The Procedure:

1. Presser Foot UP: This opens the tension discs. If the foot is down, the discs are closed, and the thread will float on top (Result: Infinite loops on the back of your fabric).
2. Follow the Numbers: Guides 1 through 7.
3. The "Floss" Check: At the top tension path (usually step 3 or 4), hold the thread taut with both hands and snap it in like you are flossing your teeth. You should feel a slight resistance.
4. The Auto-Threader: Pull thread through guide 7, cut it on the side cutter, and press the lever decisively.

The "Golden Rule" of Thread Removal:

Warning: When changing colors, NEVER pull the thread backwards out of the machine from the spool end. This drags lint into the tension discs and can ruin your machine's calibration.
Correct Method: Snip the thread at the spool, then pull the excess tail out through the needle end.

Loading the Frame: The "Click and lock"

The 880E uses a slide-in lock mechanism.

1. Lift the Grey Lever: Ensure the locking lever on the carriage is UP.
2. Slide: Align the hoop connector. Slide it straight in.
3. Auditory Check: Listen for a subtle click or feel it seat into place.
4. Lock: Push the grey lever down. It should offer firm resistance. If it feels loose, the hoop isn't seated.

If you find yourself fighting this step constantly, or if your wrists hurt from tightening the screw on standard hoops, you may want to investigate a hooping station for embroidery. These hold the hoop for you, allowing you to use both hands for fabric manipulation.

Stitch-Out Demo: The "Hands-Off" Test

For your first run, we are creating a baseline.

The Recipe:

• Fabric: Standard Quilting Cotton (woven, non-stretch).
• Stabilizer: Medium Weight Cutaway (2.5 - 3.0 oz).
• Design: A built-in floral or geometric shape (approx 3,000 stitches).

The Process:

1. Hoop firmly: Fabric should feel like a drum skin—tight, but not warped. The grain lines of the fabric should be straight.
2. Select Design: Load it on the screen.
3. engage LED Pointer: Press the button to see the red dot. Ensure it is not near the plastic edge of the hoop.
4. Speed Check: The machine can go fast (850 SPM). For your first run, lower the max speed to 600 SPM. This gives you reaction time if something goes wrong.
5. Green Button: Press and watch.

Observation Mode:

• Watch the "Jump Stitch Trimming." The machine will stop, trim, and move. This is normal.
• Listen to the rhythm. It should be a steady thump-thump-thump. A distinct CRACK sound usually means the needle hit the hoop or a dense knot of thread.




The Physics of Pucker: Stabilizer Decision Logic

Beginners often ask, "Why did my fabric wrinkle?" The Answer: Physics. As the needle adds thread, it pushes fabric apart. The stabilizer's job is to fight that displacement.

Here is your "Cheat Sheet" for stabilizer logic. Memorize this.

Decision Tree: Fabric → Stabilizer Choice

Mastering the art of hooping for embroidery machine operations is actually 90% masterful stabilizer selection.

The "Sweatshirt Struggle": Embroidery on Tubular Garments

A viewer asked, "How do I embroider a kid's sweatshirt without sewing the neck hole shut?" This is the single biggest pain point of single-needle machines. Because the machine has a flat bed, the rest of the shirt bunches up behind the needle.

The Protocol:

1. Turn Inside Out: Keep the front (embroidery area) accessible.
2. Clip: Use hair clips or binder clips to roll up the excess fabric of the back and sleeves.
3. The "Pool" Check: Before stitching, use the "Trace" button. Watch carefully to ensure the bulk of the sweatshirt doesn't get caught under the moving hoop.

If this sounds terrifying, you are right. It is risky. For expensive garments, practice on scrap first.

The Safety Valve: When to Upgrade to Magnetic Hoops

Eventually, you will encounter "Hoop Burn"—that shiny ring left on velvet or dark cotton by the pressure of standard plastic hoops. Or, you will simply get tired of the "screw-tighten-pull-scream" cycle of standard hooping.

This is where magnetic embroidery hoops enter the conversation as a legitimate productivity tool, not just a gadget.

The Upgrade Logic:

• The Problem: Standard hoops crush fabric fibers (hoop burn) and are slow to align.
• The Solution: Magnetic hoops (like the SEWTECH MaggieFrame) use force, not friction. They clamp instantly and leave zero marks.
• The ROI: If you are doing a run of 10 shirts, a magnetic hoop saves you roughly 2 minutes per shirt. That is 20 minutes of production time gained.

If you decide to search for a magnetic hoop for brother, ensure you check the specific connector width (e.g., specific for the 880E arm) to match your machine.

Warning: Magnetic Safety
Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can smash fingers if you aren't careful.
* Device Safety: Keep them away from pacemakers, mechanical watches, and credit cards.

Finishing: The "Pro" Polish

Once the machine sings its "finished" song, remove the hoop.

1. Cut Jump Stitches: Even with auto-trimming, check for tiny tails. Snip them close (1-2mm).
2. Remove Stabilizer:
   • Tearaway: Support the stitches with your thumb and tear gently away from the design.
   • Cutaway: Lift the stabilizer and trim with curved scissors about 0.5cm from the design edge. Do not cut flush to the stitches (you will cut a knot and the embroidery will unravel).

Verdict: The Path Forward

The Brother Innov-is 880E is a fantastic bridge between "crafting" and "creating." It removes the barrier of small hoops and adds precision tools like the LED pointer.

However, treat the embroidery frame and the machine with respect. It is a precise tool that demands precise inputs.

Final Operation Checklist:

• Prep: 12 inches of clearance verified.
• Setup: #90 Bobbin check. Cable plugged in.
• Hooping: Stabilizer matches fabric elasticity (Cutaway for knits!).
• Stitching: Max speed set to 600 SPM for safety.
• Safety: Keep hands away from the moving carriage.

If you find yourself consistently producing more than 20 items a week, or your wrists are screaming from manual hooping, remember that tools exist to solve these pains—from magnetic frames to multi-needle machines. But for now, master the 880E. It’s a beast, and you’re in the driver’s seat.

FAQ

• Q: What “hidden consumables” should be ready before the first stitch on a Brother Innov-is 880E embroidery machine?
  A: Use a small pre-flight kit so the Brother Innov-is 880E does not start the project with preventable issues.
  • Gather: Install a fresh 75/11 embroidery needle, keep curved embroidery scissors nearby, and prepare temporary spray adhesive (e.g., 505) if floating fabric.
  • Verify: Confirm at least 12 inches of clearance to the left side before mounting the 26×16 cm hoop.
  • Set up: Keep the screwdriver within reach, but do not adjust factory tension screws.
  • Success check: You can start and stop without hunting for tools, and the embroidery arm moves without bumping anything.
  • If it still fails… Re-check threading with the on-screen Help videos and confirm the correct bobbin thread weight.
• Q: What bobbin thread weight should be used on a Brother Innov-is 880E, and what happens if #60 bobbin thread is used?
  A: Use #90 weight bobbin thread on the Brother Innov-is 880E because the machine is calibrated for it.
  • Confirm: Read the bobbin thread label and match #90 (commonly the white bobbin with a green spool cap).
  • Avoid: Do not substitute standard sewing bobbin thread that is often #60 weight.
  • Inspect: Watch for tension imbalance symptoms during the stitch-out (top thread pulled to the bottom mess, or bobbin thread showing as white specks on top).
  • Success check: The stitch-out looks balanced without random white speckling on the design surface.
  • If it still fails… Do not touch the green-marked bobbin case screw; re-thread with presser foot UP and run a simple built-in design as a baseline.
• Q: How can Brother Innov-is 880E threading be corrected to stop “infinite loops” or bird-nesting on the back of the fabric?
  A: Re-thread the Brother Innov-is 880E with the presser foot UP so the thread seats into the tension discs.
  • Raise: Lift the presser foot before starting the threading path.
  • Follow: Thread exactly through guides 1–7, then do the “flossing” snap at the top tension path to feel slight resistance.
  • Use: Cut and engage the auto-threader decisively after guide 7.
  • Success check: You feel slight resistance during the floss check, and the back of the sample stitch-out is not covered in loose loops.
  • If it still fails… Remove thread the correct way: snip at the spool and pull out through the needle end (never pull backward from the spool side).
• Q: How much space clearance is required to prevent the Brother Innov-is 880E embroidery arm from striking a wall when using the 26×16 cm hoop?
  A: Leave at least 12 inches of clearance to the left of the Brother Innov-is 880E when using the large 26×16 cm hoop.
  • Mount: Attach the empty 26×16 cm hoop as a clearance “measuring stick.”
  • Observe: Power on and watch the arm reach its limits; move lamps, walls, mugs, and anything in the travel path.
  • Reposition: Relocate the machine if any part of the hoop or carriage can contact an obstacle.
  • Success check: The arm completes calibration and tracing without any contact, knocks, or sudden jolts.
  • If it still fails… Stop using the large hoop until the workspace is cleared, because repeated strikes can knock alignment out quickly.
• Q: How can Brother Innov-is 880E hoop loading be done correctly with the “click and lock” mechanism?
  A: Load the hoop on the Brother Innov-is 880E by lifting the grey lever, sliding straight in, then locking firmly.
  • Lift: Raise the grey locking lever on the carriage before insertion.
  • Slide: Align the hoop connector and push it straight in until it seats.
  • Lock: Push the grey lever down; it should feel firm, not loose.
  • Success check: You feel or hear a subtle click/seat, and the hoop does not wiggle once locked.
  • If it still fails… Remove the hoop and re-insert without angling; do not force it if resistance feels abnormal.
• Q: How can Brother Innov-is 880E stabilizer choice be made to reduce puckering on knits, towels, and woven cotton?
  A: Match stabilizer to fabric behavior on the Brother Innov-is 880E—stretch fabrics need cutaway support, and fluffy fabrics need a topper.
  • Choose: Use cutaway for T-shirts/knits; use tearaway (or cutaway) for stable woven cotton/denim; use tearaway + water-soluble topper for towels/fleece; use wash-away mesh for sheer fabrics.
  • Test: Stitch a small built-in design on scrap first when changing fabric types.
  • Support: Hoop firmly like a drum skin—tight but not warped, with straight grain.
  • Success check: The finished design lies flat without wrinkling around stitch areas.
  • If it still fails… Increase stabilizer support (often moving from tearaway to cutaway helps), and slow the first run to 600 SPM for better control.
• Q: When should a Brother Innov-is 880E owner upgrade from standard hoops to magnetic embroidery hoops, and what magnetic hoop safety rules matter most?
  A: Upgrade to magnetic embroidery hoops when standard Brother Innov-is 880E hoops cause hoop burn or slow, painful screw-tightening—then handle magnets like industrial tools.
  • Diagnose: Look for shiny hoop rings on velvet/dark cotton (hoop burn) or repeated alignment frustration and time loss during multiple garments.
  • Optimize (Level 1): Improve hooping technique and stabilizer matching before buying new tools.
  • Upgrade (Level 2): Switch to magnetic hoops to clamp quickly with less marking, and verify the connector matches the Brother Innov-is 880E arm.
  • Safety: Keep fingers clear to avoid pinch injuries, and keep magnets away from pacemakers, mechanical watches, and credit cards.
  • Success check: Hooping is faster and leaves no visible ring marks on sensitive fabrics.
  • If it still fails… For sustained volume (often 20+ items per week), consider a production upgrade path to a multi-needle machine for faster color changes and throughput.
