If you have ever stared at your embroidery machine screen, paralyzed by the fear that one wrong button press will ruin your fabric, you are not alone. As an educator who has guided thousands of students from their first stitch to their profitable business, I know that "Software Anxiety" is the number one killer of creativity.

You might think, "I just want a simple key fob—why do I need to learn complex PC software for that?" The answer is: You don’t.

Your Brother Innov-is 670e is not just a playback device; it is a capable design station. By understanding the "logic" of the machine—specifically how it handles Grouping and the Shield (Appliqué) function—you can manufacture professional snap tabs without ever touching a computer.

This guide reconstructs the workflow from the video but adds the 20 years of shop-floor experience that a short video clip leaves out. We will cover the specific physics of stitching on vinyl, the "sensory checks" to ensure safety, and the tool upgrades that turn a struggle into a production line.

The Calm-Down Moment: What the Brother Innov-is 670e Can (and Can’t) Do Without Software

Let’s set the expectations to zero friction. The 670e’s on-board editing is powerful, but it follows a strict set of rules.

What you CAN do:

• Resize motifs within a ±20% safety range (maintaining density).
• Add text and treat it as a structural shape (the "scaffold").
• Group objects so the machine sees them as a single entity.
• Generate an auto-outline using the Shield function.

What you CAN’T do:

• You cannot micro-manage stitch angles or underlay settings inside the generated outline. You get the machine’s default satin stitch.

Expert Insight: For key fobs, the default satin stitch is usually sufficient, provided your physical setup (stabilizer and hoop) is solid. If doing this for a repeatable sale, your focus must be on stitch order to ensure you stop exactly when needed to trim your vinyl.

The “Hidden” Prep Pros Do First: Stabilizer, Material, and a Reality Check on Cutting Space

Before you touch the screen, we must secure the physics. Key fobs are unforgiving because they are double-sided and often made of vinyl or faux leather. Vinyl does not "heal"—once the needle punctures it, that hole is permanent.

Here is the "Old Hand" setup for success:

• Needle: Use a 75/11 Sharp or Standard needle. Avoid Ballpoint needles on vinyl; they tear rather than pierce.
• Speed (SPM): Lower your machine speed to 600 SPM. Vinyl creates friction; high speed heats the needle, melts the synthetic coating, and causes thread shreds.
• The Hooping Struggle: Traditional hoops rely on friction. To hold thick vinyl tight, you have to tighten the screw aggressively, which creates "hoop burn" (permanent rings on the material). This is why many makers switch to hooping for embroidery machine setups that utilize magnetic force rather than friction—it's safer for the material and your wrists.

Prep Checklist (Pre-Flight Safety):

* Needle Check: Run your fingernail down the needle tip. If it catches, change it. A burred needle ruins vinyl instantly.
* Bobbin Check: Ensure the bobbin is full. Running out of bobbin thread on a double-sided key fob is a nightmare to fix.
* Consumables: Have your curved appliqué scissors and painter's tape (to hold the back vinyl) ready.
* Visual Gap: Plan for a 2mm-3mm buffer around your design for cutting.

Shrink the Built-In Eagle Motif to a Key-Fob Size (95.0 mm Down to 61.8 mm)

On the 670e home screen, we select the built-in eagle motif.

1. Select the Eagle.
2. Current Size: 95.0 mm (Too big for a pocket).
3. Go to the Size menu.
4. Press the icon with arrows pointing inward (proportional scaling).
5. Shrink until the machine beeps or stops. Final size: 61.8 mm.

The "Why" behind the number: Why 61.8 mm? This isn't random. The machine limits resizing to prevent stitch density from becoming bulletproof. If you shrink a design too much, the stitches clump together, causing nesting or needle breaks. The machine stops at 61.8 mm because that is the safety limit for density.

Build the Snap Tab “Spine” Using Font 01 and a Stretched Capital “I” (Up to ~43.1 mm)

Now we engage in "On-Screen Construction." We need a tab for the snap, but the machine doesn't have a "Tab" button. We will build one using a letter.

1. Tap Add.
2. Choose Text.
3. Select Font 01 (This is crucial: it is a block font with straight edges).
4. Type a capital I. Set size to Large.
5. Go to Size > Vertical Stretch (Middle arrow).
6. Stretch it to max (~43.1 mm).

Sensory Check: Visually, this "I" looks like a thick black bar. This is your "scaffold." It will never be stitched; it exists only to tell the Shield function where to draw the line.

Warning: Mechanical Safety. When testing new designs, never leave the machine unattended. Thick vinyl piles can deflect the needle, causing it to strike the needle plate. If you hear a sharp "click" or a rhythmic "thump," hit the Stop button immediately.

Make the Tab Longer: Duplicate the “I,” Align It, and Remove the Gap (Zoom In)

A single "I" is rarely long enough for a rivet or snap. We need to extend the spine.

1. Tap the Duplicate icon (overlapping squares). Use the arrow keys to stack the second "I" above the first.
2. CRITICAL STEP: Zoom in to 400% or max zoom.
3. Nudge the top "I" down until it overlaps the bottom "I" by at least 1mm.

The "Gap" Pitfall: If the two "I" bars are merely touching or have a microscopic gap, the Shield function will interpret them as two separate islands. It will draw an outline around each one, creating a pinched "hour-glass" shape that will break your snap tab.

Checkpoint (Visual Confirmation):

• Look at the screen zoomed in.
• Do the two bars look like a single, solid monolith?
• Fail: You see a sliver of white space.
• Pass: It looks like one long, continuous elevator shaft.




Position the Eagle Over the Tab, Then Use Multi-Selection + Group So the Shield Tool Behaves

Now we assemble the components. Move the Eagle so it sits nicely over the bottom of your "I" column.

The Grouping Logic: The machine stitches object by object. To create a single outline around the entire cluster, we must force the machine to see the Eagle and the "I"s as one object.

1. Open the Multi-Color/Selection menu.
2. Tap Select All (Icon: Multiple squares).
3. Visual Check: A red box should surround the Eagle AND the Text.
4. Tap OK.
5. Tap Group (Icon: Red square inside a gray box).

Note: The "I" might jump in front of the Eagle visually. Do not panic. We represent this as "Scaffolding" remember? It will be deleted before we stitch.

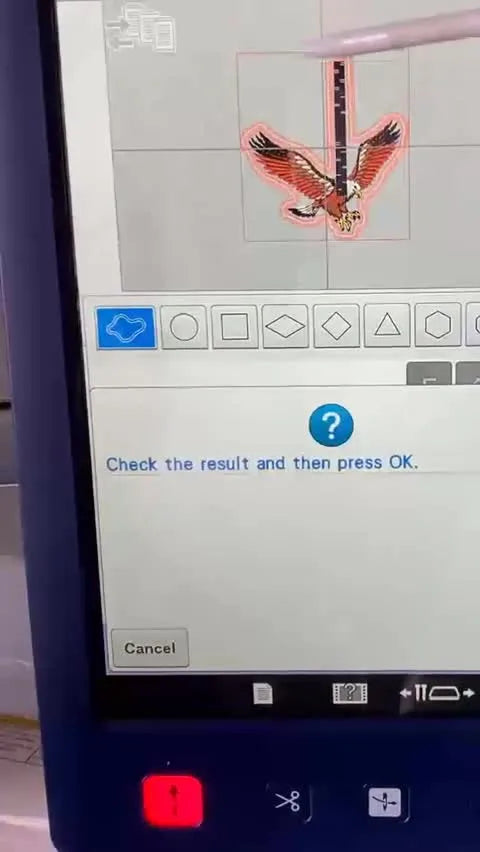

Use the Brother 670e Shield (Appliqué) Function: Dial the Outline Distance from 1.5 mm to 2.0 mm

This is the magic moment. The Shield function calculates a perimeter path based on the outermost edge of your grouped object.

1. Tap the Shield icon.
2. Select Shape Follow (the organic outline, not the square/circle).
3. Appliqué Distance: Set to 2.0 mm.

Expert Analysis on Distance: The video tests 1.5 mm but settles on 2.0 mm. Stick to 2.0 mm.

• Why? The final satin stitch is usually 3mm wide. It sits on top of this line. If your distance is too tight (1.5mm), the satin stitch might chew into your Eagle design.
• The Result: 2.0 mm gives you a "Safe Zone" for cutting with scissors later without snipping the threads.




The Clean-Up That Saves Your File: Ungroup, Select the “I” Pieces, and Delete Only Those

The scaffolding has done its job. We have the outline using the Shield. Now we must remove the ugly "I" bars.

1. Tap Ungroup. (You cannot delete parts of a group).
2. Use the Select (Arrow) tool to cycle through objects.
3. The "Red Box" Dance: Watch the red box.
   • Box around Eagle? STOP. Do not delete.
   • Box around Outline? STOP. Do not delete.
   • Box around the black vertical bar ("I")? GO. Tap Delete (Trash can).

Safety Protocol: If you accidentally delete the Outline, don't try to fix it. Just Undo immediately. If Undo isn't available, start the Shield process again. It is faster to rebuild than to repair.

Read the Stitch Order Like a Pro: The 670e Will Stop for Trimming (Tack-Down + Scissors Icon)

Before stitching, we must verify the "Program." On the embroidery screen, look at the color list. You are looking for the Appliqué Sequence.

You should see these last three steps:

1. Placement/Tack-down: A single run stitch (This is where you place your vinyl).
2. The STOP Command: Look for the Hand or Scissors icon. The machine must stop here. This is when you remove the hoop to tape the backing vinyl on the underside.
3. Satin Cover: The final thick border.

Hidden Consumable: Spray adhesive or Masking Tape. You will need this to secure the back piece of vinyl during that stop. Do not use standard scotch tape; it gums up the needle. Use painter's tape or specific embroidery tape.

Preview the Stitch Path in Simulation Mode (So Nothing Surprises You Mid-Run)

Never trust; always verify. Use the Simulation (playback) feature.

• Watch the virtual needle.
• Does it stitch the Eagle first? (Yes).
• Does it stitch the outline last? (Yes).
• Does it pause? (Yes).

If the outline stitches before the Eagle, your group/ungroup sequence was wrong. The outline must be the final wrapper.

Why This Works (and How to Avoid the Two Most Common Failures)

This workflow exploits the "Object-Oriented" nature of the Brother software. By grouping, you trick the machine into calculating a "Convex Hull" (the rubber-band outline) around the combined shape.

Failure Analysis:

A Practical Decision Tree: Stabilizer + Hooping Choices for Key Fobs

Your success on the screen is meaningless if the physical hooping fails. Use this logic flow to determine your setup.

Decision Tree (Material $\rightarrow$ Strategy):

1. Scenario: Thin Vinyl / Faux Leather
   • Stabilizer: Cutaway (Medium Weight). Tearaway is too weak for the "pull" of the snap.
   • Hooping: Hoop the stabilizer tight as a drum, then float the vinyl on top using spray.
2. Scenario: Thick Marine Vinyl / Glitter Vinyl
   • Challenge: This material is slippery and heavy. Standard hoops pop open.
   • Solution: This is the classic trigger for tool upgrades. If you are fighting the hoop screw, you are damaging the vinyl.
   • Upgrade: Professionals use magnetic embroidery hoops. The vertical clamping force prevents the "push-pull" distortion common in thick vinyls.
3. Scenario: Scaling Up (Batch Production)
   • Challenge: Stacking 50 key fobs implies 100 hoopings (front and back). Wrist fatigue is real.
   • Solution: Evaluate your workflow. If hooping takes longer than stitching, investigate hoop master embroidery hooping station systems for consistency.

Warning: Magnetic Safety. Powerful rare-earth magnets found in modern hoops are dangerous. They can pinch fingers severely and interfere with pacemakers. Keep them at least 6 inches away from computerized machine screens and credit cards.

The Upgrade Path That Actually Makes Sense: When Tools Beat “Trying Harder”

We often blame our skills when the tool is the bottleneck. In the "Key Fob" business model, efficiency is profit.

• Level 1 (The Hobbyist): Use the standard hoop. Use shelf liner to increase grip. It works, but it causes "Hoop Burn" (crushed texture) on delicate vinyls.
• Level 2 (The Side Hustle): You are selling these. You need speed. A magnetic hoop for brother is the logical next step. It eliminates hoop burn because there is no inner ring friction—just vertical pressure. It turns a 2-minute struggle into a 10-second "Click."
• Level 3 (The Production Shop): If you are running 50+ items a day, a single-needle machine requiring manual thread changes is costing you money. The transition to a SEWTECH multi-needle machine allows you to set up all 9 colors of that Eagle, hoop once with magnetic frames, and walk away.

Setup Checklist (The "Don’t Waste Vinyl" List)

Before you press the green Start button, verify these final physical conditions:

• Clearance: Is the hoop arm free to move? (Key fobs often use large backing sheets that can catch on the wall).
• Bobbin Thread: Is it White (standard) or Colored (to match the back vinyl)? Pro Tip: Match the bobbin to the vinyl color for a professional edge.
• Shield Gap: Did you confirm 2.0 mm distance?
• Scaffold Gone: Are the black "I" bars truly deleted?
• Stop Command: Did you see the "Hand/Scissors" icon in the stitch list?

Follow this guide, and you will produce clean, sellable key fobs directly from your 670e screen, turning a "limit" of the machine into your competitive advantage. Happy stitching.

FAQ

• Q: How do I choose the correct needle and machine speed for vinyl key fobs on the Brother Innov-is 670e to prevent shredding and melted needle gunk?
  A: Use a 75/11 Sharp or Standard needle and slow the Brother Innov-is 670e to about 600 SPM as a safe starting point for vinyl.
  • Change: Replace any needle that feels rough—run a fingernail down the tip and swap it if it catches.
  • Reduce: Lower speed before the first test run; vinyl friction can heat the needle and increase thread shredding.
  • Avoid: Do not use a ballpoint needle on vinyl; it tends to tear rather than pierce.
  • Success check: Stitching sounds smooth (no harsh “pop”), and the thread does not fray or leave gummy residue on the needle.
  • If it still fails: Pause and clean/replace the needle again and reduce anything that adds stickiness (heavy tape or adhesive contact with the stitch path).
• Q: Why does the Brother Innov-is 670e stop shrinking a built-in motif at 61.8 mm, and what problem does that limit prevent?
  A: The Brother Innov-is 670e stops at 61.8 mm because it is protecting stitch density from becoming too tight and causing nesting or needle breaks.
  • Accept: Treat the 61.8 mm stop point as the machine’s density safety limit for that design.
  • Plan: Choose a smaller built-in motif or adjust the project layout instead of forcing more shrinking.
  • Test: Run a short stitch-out on scrap if the design is close to the limit.
  • Success check: Stitches remain separated (not “bulletproof” clumps) and the machine runs without sudden thread breaks.
  • If it still fails: Keep the design at the limit (or larger) and focus on stabilizer + hooping stability before changing anything else.
• Q: How do I prevent the “hourglass” snap-tab shape when duplicating and stacking the capital “I” using Brother Innov-is 670e Font 01?
  A: Overlap the duplicated “I” segments by at least 1 mm while zoomed in so the Brother Innov-is 670e Shield tool reads them as one solid shape.
  • Zoom: Increase to 400% (or maximum) before aligning.
  • Nudge: Push the top “I” down until it visibly overlaps the lower “I” (not just touching).
  • Recheck: Look for any sliver of white space between the bars and remove it.
  • Success check: At high zoom, the two “I” bars look like one continuous solid column with no gap.
  • If it still fails: Undo, overlap more aggressively, then rerun Shield using Shape Follow.
• Q: What Brother Innov-is 670e Group and Multi-Selection steps are required so the Shield (Appliqué) function creates one outline around the eagle and tab together?
  A: Use Multi-Selection to “Select All” and then Group so the Brother Innov-is 670e calculates one perimeter for the combined objects.
  • Select: Open Multi-Color/Selection, tap Select All, and confirm one red box surrounds both the eagle and the text bars.
  • Group: Tap OK, then tap Group (so the machine treats the cluster as a single object).
  • Shield: Run Shield with Shape Follow and set the appliqué distance to 2.0 mm for a safer cut zone.
  • Success check: Shield generates a single continuous outline around the entire cluster, not separate outlines around each piece.
  • If it still fails: Verify the “I” bars truly overlap (no gap) and repeat the Select All → Group → Shield sequence.
• Q: What is the best Brother Innov-is 670e Shield (Appliqué) outline distance for key fobs, and why is 2.0 mm safer than 1.5 mm?
  A: Set the Brother Innov-is 670e Shield (Appliqué) distance to 2.0 mm to keep the final satin border from chewing into the eagle design and to leave safer cutting room.
  • Set: Choose Shield → Shape Follow, then dial distance to 2.0 mm.
  • Cut: Plan trimming space around the design; a small buffer helps avoid snipping stitches later.
  • Preview: Use simulation to confirm the outline is the final “wrapper” step.
  • Success check: After stitching, scissors can trim cleanly without cutting into the eagle stitches or the satin border.
  • If it still fails: Increase focus on stitch order verification (outline must stitch last) and ensure the scaffold “I” pieces were deleted before stitching.
• Q: How do I safely delete only the scaffold “I” bars on the Brother Innov-is 670e without deleting the Shield outline or the eagle?
  A: Ungroup first, then use the Select tool and delete only when the red box is around a black “I” bar—not the eagle or the outline.
  • Ungroup: Tap Ungroup so individual elements can be selected.
  • Cycle: Use the Select (arrow) tool and watch which object gets the red box.
  • Delete: Press trash only when the red box highlights an “I” scaffold piece.
  • Success check: The design shows the eagle plus the Shield outline, and the black “I” scaffold bars are gone.
  • If it still fails: Hit Undo immediately; if Undo is not available, rerun Shield after regrouping rather than trying to “patch” the outline.
• Q: What must the Brother Innov-is 670e stitch list show to confirm the appliqué key fob will stop for trimming and backing vinyl placement?
  A: The Brother Innov-is 670e color/stitch list must show the appliqué sequence with a tack-down run, then a Stop (hand/scissors icon), then the final satin cover.
  • Check: Scroll the stitch list and confirm the last steps include placement/tack-down, then the stop icon, then satin border.
  • Prepare: Keep curved appliqué scissors and painter’s tape ready for the stop (avoid standard scotch tape).
  • Simulate: Run Simulation mode to confirm the eagle stitches before the outline, and the stop appears where expected.
  • Success check: The machine pauses at the stop icon so the hoop can be handled and the backing vinyl can be secured without rushing.
  • If it still fails: Do not stitch the project—redo the group/ungroup workflow so the outline is generated and placed as the final wrapper.
• Q: What safety steps should be followed when stitching thick vinyl key fobs on the Brother Innov-is 670e, and what warning signs mean “stop immediately”?
  A: Never leave the Brother Innov-is 670e unattended on new thick-vinyl tests, and stop immediately if you hear sharp clicking or rhythmic thumping that can indicate needle deflection or plate strikes.
  • Stay: Remain at the machine during the first run of any new key fob build.
  • Listen: Hit Stop immediately on a sharp “click” or repeated “thump.”
  • Clear: Verify hoop clearance so backing sheets cannot snag the hoop arm mid-run.
  • Success check: The machine runs with steady, consistent stitching sounds and no contact noise from the needle area.
  • If it still fails: Reduce speed, re-check material stack thickness, and confirm the fabric handling method (hoop stabilizer tight, float vinyl on top) before attempting again.
