Brother Dream Machine 2 Needle Broke Mid-Stitch? The “Thread Spool Nick” Trap That Snaps Needles Fast

The sound of an embroidery needle breaking is unmistakable—a sharp, metallic crack, often followed by the sickening crunch of the machine grinding to a halt. It triggers an immediate physiological response: fear. Fear that the timing is ruined, fear that the hook assembly is scratched, and frustration that your project might be destroyed.

But in the world of precision embroidery, panic is an expensive emotion.

Whether you are running a single-needle home unit or managing a production line, a broken needle is rarely a random act of bad luck. It is a physics problem. On the Brother Dream Machine 2 (affectionately called "McDreamy" by Sue in our case study), this failure was widely misinterpreted as a "machine error," but it was actually a tension failure caused by a microscopic flaw in the spool—a variable most beginners ignore.

This guide reconstructs Sue’s troubleshooting logic into a professional-grade "Standard Operating Procedure" (SOP). We will move beyond guesswork and apply the rigorous standards used by commercial embroiderers to save your machine, your fabric, and your sanity.

The “Stop-and-Listen” Moment on the Brother Dream Machine 2: What That Sudden Halt Really Means

When your machine stops stitching mid-design, it isn't just taking a break. Modern storage and servo-motor systems monitor resistance. If the needle bar encounters resistance that exceeds a safety threshold—usually indicating a jam or a bird's nest—the machine cuts power to the motor to prevent catastrophic gear failure.

However, the "Stop" often comes after the damage is done.

The Auditory Diagnosis

Sue’s most critical advice is a habit usually reserved for industrial operators: Never walk away from a running machine. You must be within "hearing distance" (approx. 5 feet) to catch the subtle auditory cues before the snap.

• The "Tick": A rhythmic clicking sound usually means the needle is slightly bent and tapping the needle plate or presser foot.
• The "Thump": A dull, heavy sound indicates the needle is struggling to penetrate layers, often due to density or dullness.
• The "Crunch": This is the sound of the needle striking the hook assembly or bobbin case.

If you hear any of these changes in the rhythm, hit the Stop button immediately. Saving the machine before the snap prevents shards from dropping into the gears.

Warning: Mechanical Safety Priority. Treat a broken needle incident as a "Sharp Metal Hazard." Before you reach near the needle clamp or remove the needle plate, power off the machine completely. Servo motors have torque; if you accidentally touch the start button or foot pedal while digging for shards, the needle bar can crush your fingers.

The Calm Inspection: Confirm the Needle Break and Freeze the Scene (Before You Touch Anything)

In the incident, Sue zooms in to confirm the break. The needle has snapped, leaving the upper shaft in the clamp and the tip somewhere in the fabric.

Do not unhoop the fabric yet. This is the most common error beginners make.

1. Freeze: Leave the hoop attached to the embroidery arm. If you remove the hoop now, the fabric relaxes, and the hole where the needle entered shifts. This makes it impossible to align the restart perfectly later.
2. Assess: visual check of the needle clamp. Is the screw tight? Is the top of the needle missing?
3. Locate: Can you see the broken tip lying on the surface?

If you are using a standard hoop, keeping the fabric clamped is critical for alignment. This is where users of a magnetic embroidery hoop have a distinct advantage; because the fabric is held by magnetic force rather than friction, you can sometimes gently adjust tension without fully unhooping, but even then—hold steady until the shard is found.

The Elimination Checklist Sue Uses: Why It Wasn’t Fabric, Bobbin, Needle, Design, or Stabilizer

Troubleshooting is the art of elimination. Sue methodically rules out the usual suspects. This is known as "isolating the variable."

• Fabric: It was thin cotton (stable, woven). Not a thick towel or leather that would deflect the needle.
• Design: It stitched perfectly up until the break. Software corruption or bad digitizing usually shows up immediately, not 10 minutes in.
• Density: The design was a standard patch style, likely around 0.4mm stitch spacing. It wasn't "bulletproof" density.
• Stabilizer: The backing was appropriate for the fabric.

By ruling these out, Sue avoided the "Shotgun Approach"—changing everything at once. If you change the needle, the bobbin, the thread, and the design simultaneously, you will never know what caused the crash, and you won't learn how to prevent it next time.

Prep Checklist (run this before you troubleshoot deeper)

• Power: Machine is turned off or locked for safety.
• Documentation: Take a photo of the screen (stitch count/location) and the physical break.
• Needle Bar: Check that the needle clamp screw is present and tight (sometimes they vibrate loose).
• Thread Path: Is the top thread shredded or intact? (Shredding indicates a burr or tension issue).
• Consumables: Have your tweezers and a "shards jar" ready.

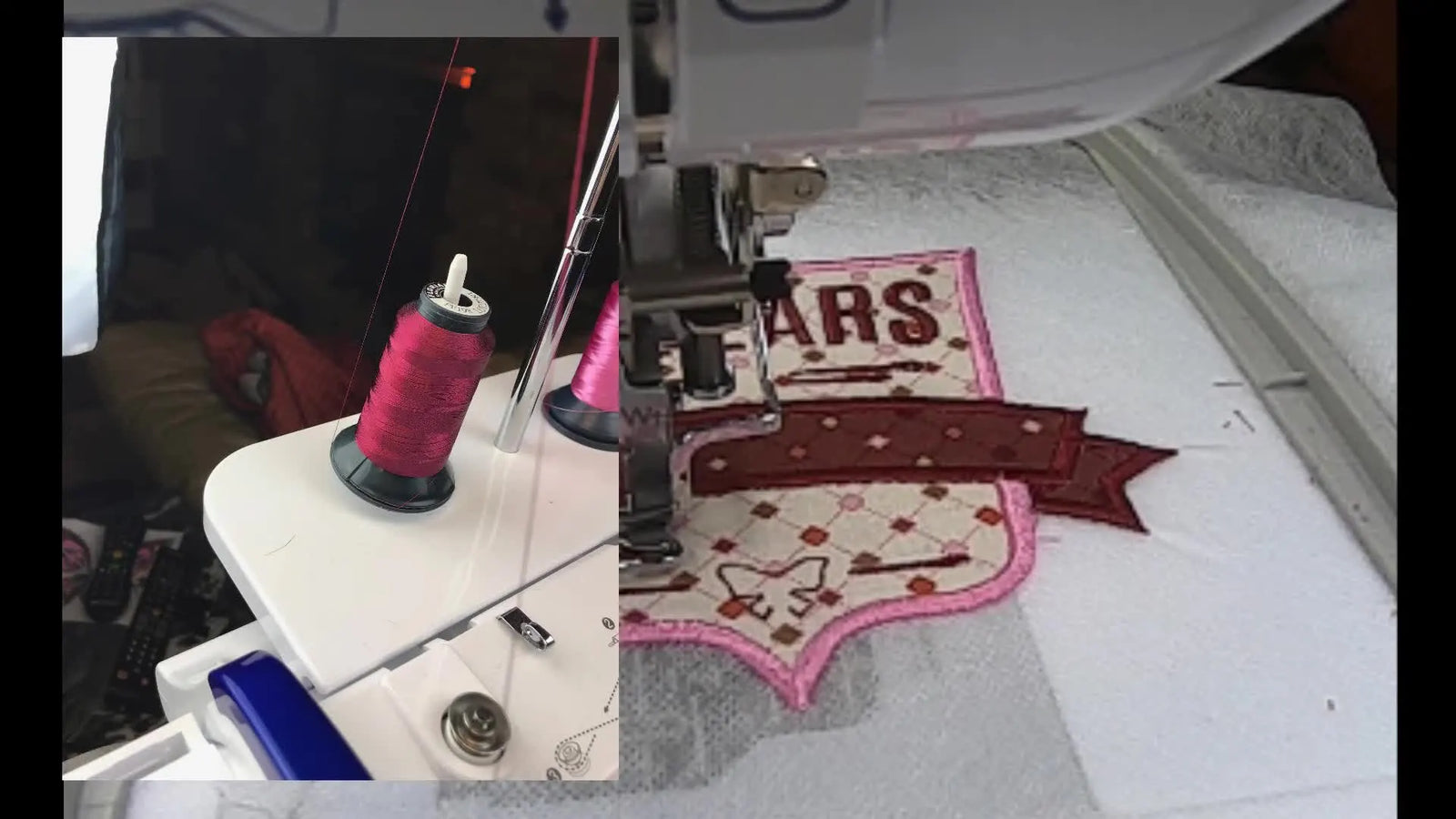

The One Place People Forget: Inspecting the Thread Spool on the Horizontal Spool Pin

The investigation leads Sue to the horizontal spool pin. To the naked eye, the spool looks fine. But under close inspection, the root cause reveals itself: Physics.

On a horizontal pin, the thread must flow off the end of the spool freely. If there is any resistance, the tension discs cannot compensate. In Sue’s case, the thread was getting trapped underneath the spool base, between the plastic spool and the pin holder.

The Chain Reaction of Failure:

1. Thread catches on the spool rim or gets pinched under the base.
2. Tension spikes from the standard ~110g to over 500g instantly.
3. The take-up lever pulls, but no thread comes.
4. The thread acts like a steel cable, pulling the needle backward (deflection).
5. The bent needle strikes the needle plate. Snap.

If you are using a hooping station for machine embroidery to ensure perfect fabric placement, remember that perfect hooping cannot save you from a mechanical feed issue. The "supply chain" of thread must be flawless.

The Hidden Culprit: A Tiny Nick on the Plastic Spool Rim That Hooks Your Thread

Upon removing the spool, Sue finds the "smoking gun": a microscopic nick or "burr" on the plastic rim of the thread spool.

These nicks are common in injection-molded plastics or can happen if a spool is dropped.

• The Trap: As the thread unwinds, it spirals over the rim. It might pass the nick 50 times without issue. But on the 51st rotation, the angle aligns perfectly, and the thread snags on the burr.
• The Result: The machine tries to pull thread that is mechanically locked. Something has to give. Usually, it's the needle.

This explains the "phantom break"—why perfectly good machines break needles on simple designs. It isn't the machine; it's a $0.05 flaw in the spool plastic.

How Sue Fixed the Spool (and When You Should Throw It Out Instead)

Once the diagnosis is confirmed, you have a decision to make: Repair or Replace?

Sue demonstrates the repair:

1. Identify: Locate the rough spot or plastic flash.
2. Smooth: Use a fine-grit emery board (nail file) or very fine sandpaper to buff the plastic rim until it is perfectly smooth.
3. The "Hosiery Test": Run a piece of nylon stocking or delicate floss over the rim. If it catches at all, it's not smooth enough.

When to Trash It: If the spool base is cracked, crushed, or warped, throw it away. Using tape to fix a cracked spool is a gamble that risks your machine's timing. The cost of a spool of thread ($5-$10) is insignificant compared to a service repair bill ($150+).

Setup Checklist (before you restart stitching)

• Spool Audit: Perform the "Hosiery Test" on the spool rim.
• Cap Check: Ensure the spool cap (the white disc) is slightly larger than the spool diameter to prevent the thread from slipping under.
• Needle Swap: Always install a brand-new needle. (Never reuse a needle after a collision; it likely has improper alignment).
• Complete Rethread: Remove the thread entirely and re-thread from the start. Verify the thread sits deep in the tension discs.

The Physics Behind “Thread Snag = Needle Snap” (So You Can Prevent It Next Time)

Understanding the mechanics helps reduce anxiety.

An embroidery machine operating at 600–1000 Stitches Per Minute (SPM) is a violent environment. The needle experiences immense friction and heat.

• Deflection: A standard 75/11 needle is flexible. When the top thread snags, it creates drag. This drag pulls the needle backward (opposite the direction of the stitch formation).
• The Kill Zone: If the needle deflects more than 1-2mm, it misses the hole in the needle plate and strikes strict metal.

Speed Factor: Beginners often ask, "Should I slow down?"

• Yes. For troubleshooting, reduce speed to 600 SPM.
• High speed (1000+ SPM) gives the thread less time to recover from minor snags. If your setup is questionable, speed will expose the flaw faster.

Critical Safety: Finding Every Broken Needle Piece (and Where It Can Go)

This is non-negotiable. You must account for 100% of the needle.

If the needle broke into three pieces and you only found two, the third piece is likely inside the machine.

1. Surface Search: Use a flashlight at a low angle (raking light) to make metallic shards sparkle on the fabric.
2. Magnetic Sweep: Use a telescoping magnet to sweep the needle plate area.
3. Internal Check: Remove the needle plate. Check the bobbin case and the hook assembly. Shards love to hide in the pulse-motor gears or under the feed dogs.

If a shard is left inside, it can jam the cutter or scratch the hook, causing permanent shredding issues.

Operation Checklist (your “all-clear” before you press Start)

• Shard Count: 100% of the broken needle has been recovered.
• Bobbin Check: Remove and reseat the bobbin case to ensure no fragments are underneath.
• Hook Cycle: Hand-turn the handwheel (toward you) for one full rotation to ensure smooth movement without grinding noises.
• Test Patch: Run a test stitch on a scrap piece of fabric before resuming the main project.

Stabilizer Decision Tree for Thin Cotton (and Why It Still Matters Even When It Wasn’t the Cause)

While the stabilizer wasn't the root cause here, proper stabilization provides the necessary "foundation" for the needle to penetrate cleanly. When recovering from a break, your fabric may have been stressed.

Use this decision logic to ensure your setup is robust enough for a restart:

Decision Tree: Fabric Type → Stabilizer Choice

• Scenario A: Thin Woven Cotton (No Stretch)
  • Goal: Crisp definition.
  • Choice: Tearaway (Medium 1.8oz). Sufficient for low stitch counts (<8,000 stitches).
  • Pro Tip: Iron the stabilizer to the fabric if using fusible, or use temporary spray adhesive to prevent shifting.
• Scenario B: Knits / T-Shirts (Stretchy)
  • Goal: Prevent distortion and puckering.
  • Choice: Cutaway (2.5oz). Must use Cutaway. Needles puncture fibers; if the fabric stretches, the design distorts. Cutaway locks the fibers in place.
• Scenario C: High Density / Complex Design
  • Goal: Prevent "bulletproof" stiffness.
  • Choice: Cutaway + Water Soluble Topper. The topper keeps stitches from sinking; the Cutaway supports the density.

If you find yourself constantly battling stubborn creases or "hoop burn" (the shiny ring left by tight plastic hoops), professionals often transition to a magnetic embroidery hoop. These restrict fabric movement without crushing the fibers, allowing for cleaner restarts if you have to re-hoop after a disaster.

Warning: Magnet Safety. Professional magnetic hoops use industrial-grade neodymium magnets. They snap together with immense force. Keep fingers clear of the pinch zone, and never place them near pace-makers or magnetic storage media.

Comment-Proven “Watch Outs” That Save Needles (Even When You’re a Beginner)

The comment section on Sue's video is a goldmine of shared trauma and solutions.

• The "Thread Stand" Fix: Several users noted that horizontal spools are finicky. Moving to an external thread stand (placed behind the machine) allows the thread to travel upward first, relaxing the twist and bypassing spool-rim friction.
• The "Old Thread" Theory: Old polyester thread can become brittle, and old rayon can snap if humidity is too low. If the thread snaps easily when you pull it by hand, throw it out.
• The "Bobbin Reseat": Sometimes the break jolts the bobbin case out of position. If you restart and hear a rattle, stop immediately. You likely need to re-seat the bobbin case against the stopper.

The Upgrade Path That Actually Fits This Problem: Reduce Hooping Stress, Reduce Downtime, Increase Output

Needle breaks are often a symptom of "System Stress"—trying to force a machine or a workflow to do something it isn't optimized for.

When you hit a wall, you have three options: Refine Skill, Upgrade Tools, or Scale Capacity.

1. Level 1: The Frustration of Re-Hooping
   • The Pain: A needle break ruins the fabric, or unhooping to fix it ruins the alignment.
   • The Tool Upgrade: A magnetic hoop for brother dream machine or similar models.
   • Why: It allows you to adjust fabric tension literally in seconds. If a needle breaks and pushes the fabric, you can lift the top magnet, smooth the fabric, and snap it back without removing the bottom frame from the machine.
2. Level 2: The Need for Speed (and Size)
   • The Pain: You are doing "left chest" logos repeatedly, and standard hoops are slow to load.
   • The Tool Upgrade: A specific brother 5x7 magnetic hoop.
   • Why: 5x7 is the industry standard for logos. Magnetic hoops in this size act like a production clamp, reducing "hoop burn" on delicate corporate polos.
3. Level 3: The Production Ceiling
   • The Pain: You are spending more time changing thread colors than stitching. Your single-needle machine is great, but slow.
   • The Capacity Scale: Moving to SEWTECH multi-needle machines.
   • Why: When you have 6, 10, or 15 needles loaded, a thread break on Needle #1 doesn't stop the whole show—you fix it while the machine preps the next color. This is the shift from "Hobbyist" to "Professional."
4. Level 4: Standardization
   • The Pain: Inconsistent results across different projects.
   • The Solution: Standardize your brother embroidery hoops. Use the same backing, same hoop type, and same tension settings for 90% of your work. Consistency reduces variables.


The “Restart With Confidence” Test: Proving the Fix Before You Risk the Real Project

Sue ends with a successful restart. But notice she didn't just hit "Go" and walk away to make coffee.

The "Soft Start" Protocol:

1. Slow Down: Reduce machine speed to the minimum (approx 350-400 SPM).
2. Watch the Slack: Observe the thread feeding from the spool. Is it dancing lightly? Or is it tight and vibrating? (It should be loose and rhythmic).
3. Listen: The sound should be a soft, rhythmic thrum-thrum-thrum. No clicks.

The first 100 stitches after a repair are the most dangerous. If you get through those without a sound change, you can gradually ramp the speed back up.

If you are committed to mastering this craft, invest in the right infrastructure. Whether it is ensuring you have high-quality magnetic embroidery hoops for brother to save your wrists, or simply a bucket of sharp needles, preparation is the only cure for panic.

Final Takeaway

A broken needle is not a failure of character; it is a request for maintenance. By shifting your mindset from "Panic" to "Protocol," you verify the spool, clear the shards, and check the path. This discipline turns a potential disaster into a minor 5-minute pause, keeping your McDreamy running smoothly for years to come.

FAQ

• Q: What should embroidery operators do immediately after a needle breaks on a Brother Dream Machine 2 to prevent misalignment?
  A: Keep the hoop attached to the Brother Dream Machine 2 embroidery arm and power the machine off before touching anything.
  • Freeze: Leave the fabric hooped and do not unhoop while searching for the broken tip.
  • Document: Take a photo of the Brother Dream Machine 2 screen (stitch count/location) and the needle break area.
  • Locate: Visually find the needle tip on the fabric surface before moving the project.
  • Success check: The hoop and fabric have not shifted, and the stitch position is still identifiable for a clean restart.
  • If it still fails… Remove the needle plate only after powering off and begin a controlled shard search around the bobbin/hook area.
• Q: What sounds on a Brother Dream Machine 2 warn that the needle is about to break during embroidery stitching?
  A: Stop the Brother Dream Machine 2 immediately if the stitching sound changes to a “tick,” “thump,” or “crunch.”
  • Listen: Treat a rhythmic “tick” as needle contact with the needle plate or presser foot.
  • Interpret: Treat a dull “thump” as penetration struggle (often density or a dull needle).
  • React: Treat a “crunch” as possible contact with the hook/bobbin area and stop at once.
  • Success check: After stopping, hand-turning the handwheel (toward you) feels smooth with no grinding noise.
  • If it still fails… Power off and inspect for needle damage and metal fragments before restarting.
• Q: How can a horizontal spool pin on a Brother Dream Machine 2 cause thread tension spikes that break embroidery needles?
  A: A snagging spool on the Brother Dream Machine 2 horizontal spool pin can mechanically lock the top thread and force the needle to deflect and snap.
  • Remove: Take the thread spool off and inspect the rim and base where thread could slip underneath.
  • Verify: Check that the spool cap is slightly larger than the spool diameter to prevent the thread from dropping under the spool.
  • Rethread: Fully rethread the top path so the thread seats correctly in the tension discs.
  • Success check: The thread feeds off the spool lightly and rhythmically (not tight/vibrating) during the first stitches.
  • If it still fails… Try feeding from an external thread stand to bypass spool-rim friction on the Brother Dream Machine 2.
• Q: How do embroidery operators fix a nicked plastic thread spool rim that keeps snagging thread and breaking needles on a Brother Dream Machine 2?
  A: Smooth the nick on the plastic spool rim or replace the spool; a tiny burr can repeatedly snag thread and break needles on a Brother Dream Machine 2.
  • Identify: Find the rough spot or plastic flash on the spool rim where thread unwinds.
  • Smooth: Buff the rim with a fine-grit emery board or very fine sandpaper until it feels uniform.
  • Test: Use the “hosiery test” by sliding nylon stocking over the rim to confirm it does not catch.
  • Success check: Nylon glides over the rim without snagging, and the machine stitches without sudden top-thread tightness.
  • If it still fails… Discard any spool that is cracked, crushed, or warped instead of taping it.
• Q: What is the safest way to recover every broken needle piece from a Brother Dream Machine 2 after a needle snap?
  A: Do not restart the Brother Dream Machine 2 until 100% of the broken needle is accounted for and the hook area is confirmed clear.
  • Search: Use a flashlight at a low angle to make metal shards sparkle on fabric and around the needle plate.
  • Sweep: Use a telescoping magnet to scan the needle plate area for fragments.
  • Check: Remove the needle plate and inspect the bobbin case and hook assembly area for hidden shards.
  • Success check: All pieces are recovered, the bobbin case reseats cleanly, and one full handwheel rotation is smooth and quiet.
  • If it still fails… Stop and recheck under the feed area/hook zone because leftover shards can cause ongoing shredding and jamming.
• Q: What stabilizer should be used on thin woven cotton versus knits when restarting embroidery after a needle break on a Brother Dream Machine 2?
  A: Match stabilizer to fabric type before restarting on a Brother Dream Machine 2; thin woven cotton typically uses medium tearaway, while knits require cutaway.
  • Choose (thin woven cotton): Use medium tearaway for stable, non-stretch cotton setups.
  • Choose (knits/T-shirts): Use cutaway to prevent stretch distortion and puckering.
  • Reinforce (dense designs): Use cutaway plus a water-soluble topper when stitches are dense or complex.
  • Success check: The fabric stays flat after stitching with minimal distortion and clean stitch definition.
  • If it still fails… Recheck hooping stability and reduce speed for the restart to lower stress while diagnosing.
• Q: What restart speed and “soft start” steps reduce repeat needle breaks on a Brother Dream Machine 2 after a thread snag repair?
  A: Restart the Brother Dream Machine 2 slowly and watch the thread feed for the first 100 stitches before returning to normal speed.
  • Slow: Drop to the minimum speed (about 350–400 SPM) for the initial restart segment.
  • Observe: Watch the spool feed; the thread should move with light, rhythmic slack rather than tight vibration.
  • Listen: Keep within hearing distance and stop immediately if the sound changes from a smooth rhythm.
  • Success check: The first ~100 stitches complete with steady sound and no new shredding, ticking, or tightening at the spool.
  • If it still fails… Reduce to around 600 SPM for troubleshooting runs and re-audit the spool rim, spool cap size, and complete rethreading.
