Brother Aveneer EV1 Red Truck Appliqué (Part 2): The No-Panic Workflow for Crisp Raw-Edge Layers and a Clean Mylar Window

When an appliqué block has 22–23 on-screen steps, multiple fabric placements, and in-hoop trimming, the stress usually isn’t the stitching—it’s the sequence. Miss one placement, trim one layer too deep, or let the background bubble, and the whole block looks “homemade” in the wrong way.

As someone who has spent two decades on factory floors and teaching studios, I can tell you that machine embroidery is an "experience science." It relies on rhythm, sound, and the physical behavior of materials under tension. This post rebuilds the exact workflow shown in the video for Part 2 of the “Red Truck with Snowman” block on the Brother Aveneer EV1, but with the calm, shop-floor clarity you’d get if a lead technician were standing next to you.

The “It’s Not Ruined” Primer: What This Brother Aveneer EV1 Block Is Really Asking You to Do

This block is a classic raw-edge appliqué build: tack a layer, trim it, then seal it—repeated across the background, truck body, wheels, trims, and finally the window effect.

Two things make it feel harder than it is for beginners:

1. You’re intentionally skipping steps (quilting/snowflakes), which is totally fine—but it means you must stay heavily oriented on the EV1 step list.
2. The window uses a cutwork-style opening + Mylar, so trimming accuracy matters more than usual.

To navigate this without anxiety, we need to establish a mental model. If you keep three rules in mind, you’ll be fine:

• Placement stitches are your map. Don’t “eyeball” fabric placement when the machine is willing to draw you a precise line.
• Tack-down stitches are your clamps. They hold the layer so trimming is safe. Listen for the sound of the machine here—if it sounds like it’s laboring, your adhesive or layers might be too thick.
• Satin stitches are your finish carpentry. They hide the raw edge and broadcast quality.

The “Hidden” Prep Before Step 1: Wadding, Stabilizer, and Why Bubbles Happen

The video starts with Step 1: wadding/batting tack-down. However, successful embroidery happens before you press Start. Let's set yourself up so the block stays flat through all the trims.

Stabilizer Reality Check (Keep it Simple, Keep it Stable)

The video implies a stabilizer/backing under the block. In professional settings, we follow a simple physics rule: Stabilizer must be stronger than the fabric's desire to shrink.

For dense appliqué with multiple trims like this truck:

• The Physics: Every needle penetration creates a micro-distortion. 20,000 stitches equal a lot of pull.
• The Choice: A Cutaway stabilizer (2.5oz or mesh) is the safety net here. While tear-away can work for stable quilting cotton, cut-away prevents the block from warping into a trapezoid. If your base fabric is soft or sticky (like flannel), cut-away is non-negotiable.

Why “Bubbling” Shows Up Right After the Flip-and-Stitch Seam

In the video, the host calls out bubbling and fixes it with a finger press after the seam is stitched and sealed (Step 6). That’s not just a cosmetic tip—it’s material handling.

When you stitch a seam in-hoop, you’re locking two layers together while they’re under hoop tension. If the seam allowance is bulky or not flattened, the top layer represents a larger surface area than the bottom layer. It can't relax evenly, so it domes.

Warning: Keep your hands and tools clear of the needle area when you’re holding fabric during tack-down stitches. This project includes several “hold it gently while it tacks” moments. A common injury occurs when a distracted user chases a wrinkle and their finger drifts under the needle bar. Keep fingers at least 3 inches from the foot.

Essential "Hidden" Consumables

Before you start, ensure you have these often-overlooked tools:

• Curved Appliqué Scissors: Essential for getting close to the stitch without snipping it.
• Temporary Spray Adhesive (e.g., KK100 or Odif 505): Just a light mist prevents shifting better than holding it by hand.
• Fresh Needle: A Titanium 75/11 or 80/12 Sharp needle is ideal for penetrating wadding without pushing it down into the bobbin case.

Prep Checklist (Do This Once, Save Yourself Three Re-Hoops)

• Orientation Check: Confirm you’re using the correct mirrored truck orientation (left-facing vs. right-facing) before stitching anything.
• Pre-Cut Materials: Cut small, manageable pieces: red truck fabric, black wheel fabric, and a Mylar square. Do not try to wrestle large bolts of fabric at the machine.
• Tool Station: Place curved scissors on your right (or dominant side).
• Plan Sequence: Decide now whether you’re skipping quilting/snowflakes so you don’t second-guess mid-run.
• Thread Plan: Queue up red, black, grey, yellow, and pale blue threads (as shown).

Brother Aveneer EV1 On-Screen Steps: How to Skip Quilting Without Losing Your Place

The host uses the EV1 interface to jump past quilting steps and keep moving. That’s a smart time-saver—as long as you don’t skip a structural step.

Here’s the practical way to think about it:

• Safe to skip: Decorative quilting lines, stippling, and snowflakes (if you truly don’t want them).
• Not safe to skip: Any placement/tack/satin sequence that builds a layer or seals an edge.

In the video, the sequence logic is:

1. Step 1: Wadding tack-down.
2. Step 2: Fabric-on-top step (Skipped by host).
3. Step 3: Background tack-down.
4. Step 4: Quilting (Skipped).
5. Step 5: Stitch the seam line.
6. Step 6: Seal the seam.

That “5 then 6” pair is critical. It acts as the anchor. Without it, the background join creates a hinge that will shift later.

If you’re setting up a repeatable workflow for blocks like this, the biggest time sink is usually not stitching—it’s the physical act of precise setup. Mastering the art of hooping for embroidery machine placement is what separates a frustrating afternoon from a productive one. The fabric must be "drum-tight"—when you tap it, it should make a dull thumping sound, not a loose rattle.

Step 1–6: Wadding Tack-Down + Flip-and-Stitch Background Without the Bulk

Step 1 — Wadding/Batting Tack-Down

The machine stitches an outline to secure the wadding to the base.

• Action: Lay floating wadding over the stabilizer. Use a light spray of adhesive if it feels slippery.
• Checkpoint: After Step 1, the wadding should be held flat with no loose corners.

Step 3 — Background Tack-Down (After Skipping Step 2)

The host places the background fabric and intentionally leaves a gap for the mirrored grey section.

• Visual Check: Ensure the fabric edge extends at least 1/4 inch past the placement line towards the "gap" side to ensure the seam catches it later.
• Expected Outcome: The background is secured, but you still have room where the grey piece will visually “read” correctly.

Step 5 — Stitch the Seam Line (Right Sides Together)

The video shows placing fabric right sides together and stitching a line across.

• Technique: Place the raw edge of the new fabric exactly against the raw edge of the tacked-down fabric.

Step 6 — Seal It, Then Finger Press

This is where you prevent bubbling. Finger press the seam flat before moving on to the sealing stitch.

• Pro Tip (The Physics of Bulk): If you see humps or bubbling here, stop. Do not hope the machine will flatten it. Use a bone folder or your fingernail to aggressively crease that seam flat. Every millimeter of height here will cause stitch distortion in the appliqué layers to come.

Step 7–9: Car Body Placement That Looks Professional (Seam Allowance Is the Secret)

Step 7 — Car Outline Stitch

This outline is your placement map. Simple enough, but ensure your thread color is visible on the wadding.

Fabric Placement

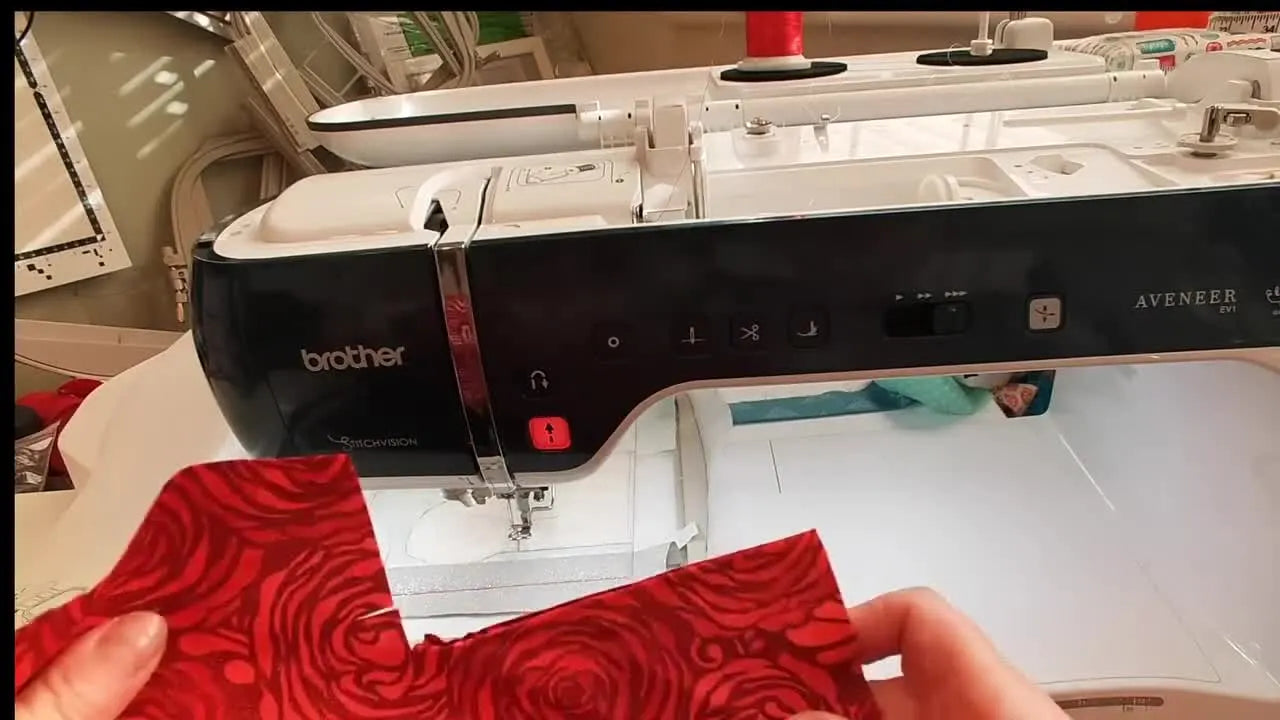

The host uses a red glittery/rose-effect fabric and covers the outline completely.

The video calls out a specific margin: leave at least 0.5 inch seam allowance around the design. That half-inch isn’t “extra waste.” It’s insurance against:

• Fabric shifting during tack-down (the "pull" effect).
• Trimming errors where you nip the fabric too short.
• Edge pull when satin stitches tighten later.

Step 8 — Tack-Down Stitch for the Car Body

This locks the red fabric in place.

• Speed Setting: New users should slow their machine down here. If your machine runs at 1000 SPM (Stitches Per Minute), drop it to 600 SPM. This gives you reaction time if the bulky fabric starts to wave or fold.
• Checkpoint: The red fabric should be firmly held. Run your hand over it—if you feel a bubble, smooth it out now or restart the step.

Step 9 — Satin Stitch to Seal the Car Body

This is the finish edge. Let the machine do its job—don’t tug the hoop to “help.”

This is often the moment of frustration. Appliqué requires repeatedly taking the hoop off the machine to trim, then putting it back on. This mechanical repetition can cause "Hoop Burn" (marks on the fabric) or wrist strain. If you are doing this volume of work, magnetic embroidery hoops can be a meaningful upgrade. Unlike screw-tightened hoops that rely on friction and brute force, magnetic systems slide in and out instantly. This reduces the "wrestling match" of clamping multiple layers evenly, ensuring your fabric stays positioned exactly where the digitizer intended.

Step 10–17: Wheel Appliqué, Trim Discipline, and Clean Satin Without Fraying

The wheel section is where most people accidentally create a messy edge—usually by trimming too far from the tack-down line or by lifting fabric vertically while cutting.

Step 10 — Wheel Placement Stitch

Marks the zone.

Step 11 — Wheel Tack-Down (Black Fabric)

The host places a small black scrap.

• Safety: Holds it gently while it tacks. Use the eraser end of a pencil or a stylus to hold the fabric, not your finger tip.

Warning: Curved scissors and a moving needle are a bad combination if you rush. Stop the machine completely before trimming, and keep your non-cutting hand behind the presser foot line.

Trim After Step 11

• The Technique: Lift the fabric edge slightly, slide the curve of the scissors flat against the stabilizer, and cut.
• Visual Guide: Leave about 1mm to 2mm of fabric. Don’t cut the stitches. If you cut the stitches, the satin stitch later will have nothing to grab, causing a hole.

Step 12 — Satin Stitch (Black)

Seals the wheel edge.

Step 13 — Wheel Trim “Star” Detail (Grey)

Matches the grey used on the back.

Step 14 — Front Light Detail (Yellow)

A small detail, but critical for contrast.

Step 15 — A Step the Host Skips

Fast-forward past Step 15.

Step 16 — Stitch Down the Wheel Trim

Trim again.

Step 17 — Satin Stitch Around the Trim (Red)

Coordinate this color with the back.

The "Clean Cut" Habit: A veteran trimming habit prevents fraying. Trim in small controlled bites (don't try to slice the whole curve in one go). Rotate the hoop, not your wrist. Keep the scissor tips gliding—do not stab downwards.

Step 18–21: The Mylar Window Cutwork Trick (and How Not to Cut Your Wadding)

This is the signature moment: creating the sparkle. We are removing the red fabric to expose a hole, then filling it with Mylar.

Step 18 — Window Placement Stitch, Then Trim the Opening

The machine stitches the window shape. You must cut away the red fabric inside that stitched line.

• The "Surgeon's Cut": Pinch the red fabric in the center of the window to separate it from the wadding. Snip a small hole. Insert scissors, push up to the stitch line, and glide.
• Critical Error Prevention: The video warns: don’t trim the wadding. If you nick the wadding, you create a depression/dent. The Mylar will sink into this divot, losing its reflective angle.

If you’re new to this specific workflow, searching for the Mylar embroidery technique can reveal various ways to stabilize this slipper material, but sticking to this "cutwork first" method is cleaner for beginners.

Step 19 — Place the Mylar Square + Change Thread to Pale Blue

Place a Mylar square completely covering the hole. Tape isn't usually needed if the Mylar is large enough, but a dot of tape on the corners helps.

Step 20 — Stitch the Mylar Down (Including the Meander)

The machine runs a meander stitch to trap the Mylar.

• Checkpoint: After Step 20, the Mylar should be trapped tight. No loose corners.

Tear Away Excess Mylar

Tear gently. Mylar perforates easily. Support the stitches with your thumb while tearing to prevent distorting the delicate window frame.

Step 21 — Stitch Around the Window

This frames the window. The satin stitch covers the raw edges of the red fabric and the Mylar.

Step 22 (and Step 23 If You Want It): Door Handle, Snowflakes, and the “Stop Where You Mean It” Rule

The host stitches Step 22 (door handle) in blue, then stops. This highlights a professional habit: Consistency > Completion.

If you are making a quilt of 12 blocks, and you skipped snowflakes on block 1, you must skip them here.

The Fabric + Stabilizer Decision Tree I Use for Raw-Edge Appliqué Blocks Like This

Use this logic to avoid puckering disaster.

Decision Tree (Base Fabric + Goal → Stabilizer Choice):

1. Is your base fabric stretchy (Knit, T-shirt) or loose woven (Flannel)?
   • Yes: STOP. You must use Cut-Away Stabilizer. Tear-away will result in a distorted truck.
   • No (It's quilt cotton): Proceed to question 2.
2. Does the design have heavy satin stitches (like this truck)?
   • Yes: Cut-Away or a Heavy-Duty Tear-Away (2.5oz+) is recommended.
   • No (Open running stitches): Standard Tear-Away is fine.
3. Are you adding loft (wadding/batting)?
   • Yes: The wadding adds stability, but also bulk. Avoid "sticky" stabilizers that gum up needles when combined with wadding. Use spray adhesive instead.

Setup Checklist: Thread Changes, Trimming Rhythm, and Screen Discipline

• Design Orientation: Confirm Left/Right facing again.
• Thread Staging: Line up Red, Black, Grey, Yellow, Pale Blue.
• Scissor Safety: Curved scissors within reach, but only picked up when the machine is stopped.
• Mental Pause: After every tack-down, ask: “Is this a trim step or a stitch step?”
• Step Verification: If you skip a step, double-check the step number twice.

If you are running repeated blocks, setting up a dedicated hooping station for embroidery can help consistent placement. It ensures every block is hooped at the exact same tension and angle, reducing the "leaning tower" effect on your final quilt.

Troubleshooting the Stuff That Actually Wastes Your Time (Symptoms → Causes → Fixes)

Operation Checklist: The “Don’t Lose the Block” Routine

• Hoop Check: Fabric is taut (drum sound).
• Grouping: Run Placement → Fabric → Tack-down as a single unit logic.
• Trim Hygiene: Trim only after tack-down steps.
• Window Protocol: Stitch Placement -> Cut Fabric -> Place Mylar -> Stitch Down -> Remove Excess.
• Stop Point: Verified Step 22 end point to match previous blocks.

The Upgrade Path That Actually Matters: Faster Hooping, Less Wrist Strain, Cleaner Layers

This project is a perfect example of why hooping and re-accessing the hoop is the real bottleneck in embroidery production. Every time you remove the hoop to trim appliqué, you risk shifting the fabric or hurting your wrists with stiff clamps.

Level 1: Better Tools. Start with better scissors and specific appliqué needles.

Level 2: Tool Upgrade. For projects with constant trimming, magnetic frames for embroidery machine are the industry secret to speed. Since they hold the fabric with powerful magnets rather than friction rings, you can float layers and adjust tension without un-screwing the frame. If you’re utilizing a Brother machine for this workflow, many users search for a specific magnetic hoop for brother to eliminate "hoop burn" (the ring marks) on delicate quilt blocks.

Warning (Magnetic Safety): Magnetic frames generate powerful fields. Keep them away from pacemakers, medical implants, and magnetic-stripe cards. Pinch Hazard: Never let the top ring snap down uncontrolled. Hold the sides and lower it gently to prevent trapping fingers between the magnets.

Level 3: Capacity Upgrade. Finally, if you find yourself making 20, 50, or 100 of these patches for a client, the constant thread changing on a single-needle machine will become your nightmare. This is the "Criteria" for upgrading to a SEWTECH Multi-Needle Machine. When you can set up all 5 colors at once and let the machine run the entire truck without you touching a spool, your hourly profitability changes immediately.

Finishing: The Half-Inch Rule When You Unhoop

At the end, the host shows the completed block in the hoop. When you take it off and cut around it, leave a half inch all the way around. That margin is your "squaring up" allowance. It keeps the appliqué from creeping into your seam line when you sew the blocks together.

Press the block from the back with appropriate heat. Be careful with the Mylar window—direct iron heat can melt it. Use a pressing cloth if you must iron the front.

If you stitch this block once, you’ll enjoy the craft. If you stitch it fifty times, you’ll start caring about efficiency—and that’s when better hooping tools, stronger stabilizers, and multi-needle machines stop being luxuries and start being necessary infrastructure.

FAQ

• Q: What stabilizer should be used for the Brother Aveneer EV1 “Red Truck with Snowman” raw-edge appliqué block to prevent warping and wavy satin stitches?
  A: Use a cutaway stabilizer as the safest choice for this dense, multi-trim appliqué block.
  • Choose cutaway (2.5oz or mesh) when the base fabric is soft, stretchy, or when the design has heavy satin stitching.
  • Avoid relying on light tear-away if the block keeps pulling into a trapezoid shape during the many step cycles.
  • Success check: After stitching and trimming cycles, the block stays flat and square-looking, and satin edges do not look wavy.
  • If it still fails: Slow the machine down during satin steps and re-evaluate hoop tightness before restarting the next block.
• Q: How can embroidery hooping on the Brother Aveneer EV1 be checked so the fabric tension is correct before starting the 22–23 step appliqué sequence?
  A: Hoop the fabric “drum-tight” so the layers do not creep during repeated tack-down and trimming.
  • Tap the hooped fabric and listen for a dull thumping sound (not a loose rattle).
  • Re-check orientation (left-facing vs. right-facing) before the first stitch so the entire step list stays consistent.
  • Success check: The fabric surface stays smooth after the first tack-down, with no shifting when the hoop is removed and reattached for trimming.
  • If it still fails: Re-hoop instead of “hoping it settles,” because repeated trim cycles amplify small slack into visible bubbles and waviness.
• Q: Which “hidden” prep tools and consumables are most important for the Brother Aveneer EV1 raw-edge appliqué truck block (wadding, trimming, and Mylar window)?
  A: Prepare curved appliqué scissors, light temporary spray adhesive, and a fresh needle before pressing Start.
  • Use curved appliqué scissors to trim close without cutting tack-down stitches.
  • Apply only a light mist of temporary spray adhesive to prevent shifting instead of holding fabric by hand.
  • Install a fresh sharp needle (a safe starting point is a Titanium 75/11 or 80/12) for clean penetration through wadding.
  • Success check: Fabric pieces stay where placed during tack-down, trimming feels controlled, and the machine does not sound like it is laboring through bulky spots.
  • If it still fails: Reduce layer bulk and re-check that adhesive use is minimal, because overly thick/sticky buildup can make stitching rough.
• Q: How do you prevent bubbling near the flip-and-stitch background seam on the Brother Aveneer EV1 truck block after the seam is sealed?
  A: Finger press the seam flat immediately after the seam is sealed, and do not continue until the hump is gone.
  • Stop after the sealing step and aggressively crease the seam allowance flat using a fingernail or a bone folder.
  • Smooth the top layer so it relaxes evenly instead of doming over a bulky seam allowance.
  • Success check: The background near the seam lies flat with no visible dome or ridge when you run your hand over it.
  • If it still fails: Revisit fabric alignment at the seam step (right sides together and raw edges aligned) and reduce bulk before stitching the next layers.
• Q: How can frayed or fuzzy wheel edges be fixed on the Brother Aveneer EV1 appliqué truck block when the satin stitch finishes the wheel?
  A: Trim closer to the tack-down line (leave about 1–2 mm) before the satin stitch so the satin has fabric to grab.
  • Stop the machine completely, then lift the fabric edge slightly and keep curved scissors flat while trimming.
  • Cut in small controlled bites and rotate the hoop instead of twisting your wrist.
  • Success check: After the satin stitch, the edge looks smooth and fully covered with no fuzzy fibers poking out.
  • If it still fails: Verify the tack-down stitches were not accidentally cut, because a cut tack-down line can create a hole under the satin.
• Q: How do you cut the Brother Aveneer EV1 Mylar window opening without damaging the wadding/batting in the truck block?
  A: Cut only the red fabric inside the stitched window line and protect the wadding from being nicked.
  • Pinch the red fabric in the center of the window to separate it from the wadding, then snip a starter hole.
  • Glide scissors up to the stitched line and cut the fabric cleanly inside the outline.
  • Success check: The window hole is clean, the wadding surface is intact (no dent), and the Mylar sits on top without sinking.
  • If it still fails: Re-check that all red fabric inside the window line is removed, because leftover fabric can dull the Mylar effect.
• Q: What are the key needle and trimming safety rules for the Brother Aveneer EV1 during “hold it gently while it tacks” appliqué steps?
  A: Keep hands well away from the needle area and use a tool (stylus/pencil eraser) to hold fabric during tack-down.
  • Keep fingers at least 3 inches from the presser foot/needle zone during any “hold it” moment.
  • Hold fabric with a stylus or the eraser end of a pencil, not fingertips.
  • Pick up curved scissors only when the machine is fully stopped, and keep the non-cutting hand behind the presser foot line.
  • Success check: Fabric stays controlled during tack-down without hands drifting toward the needle path.
  • If it still fails: Use a light mist of temporary spray adhesive so less hand-holding is needed during tack-down steps.
• Q: When repeated appliqué trimming on the Brother Aveneer EV1 causes hoop burn or wrist strain, what is the upgrade path from technique changes to magnetic hoops to a SEWTECH multi-needle machine?
  A: Start with speed/handling improvements, then consider magnetic hoops for faster re-hooping, and upgrade to a multi-needle machine when thread changes become the production bottleneck.
  • Level 1: Slow down during bulky tack-down/satin steps (a safe starting point is reducing from 1000 SPM toward 600 SPM, and even slower if needed) and improve trimming rhythm (trim only after tack-down).
  • Level 2: Use magnetic embroidery hoops/frames to reduce clamp wrestling, minimize hoop burn risk, and speed up repeated remove-trim-reinstall cycles.
  • Level 3: Move to a SEWTECH multi-needle machine when frequent color changes (red/black/grey/yellow/pale blue) are limiting output and consistency across many blocks.
  • Success check: Hooping becomes quicker with fewer marks, trimming steps feel repeatable, and block-to-block results match without re-hooping corrections.
  • If it still fails: Re-check stabilizer strength and seam flattening habits first, because no upgrade compensates for a bulky seam or weak backing.
