Bobbin Thread Not Picking Up? Why “Perfect Timing” Still Fails (and the Lint You Can’t See Yet)

The "crunch."

Every machine embroiderer knows that sound. It’s the sickening, rhythmic grinding that tells you a bird’s nest of thread is currently welding your fabric to the needle plate. It is the sound of a ruined garment and, potentially, an expensive repair bill.

You aren't imagining it: when a machine won’t pick up the bobbin thread, or when it jams repeatedly, it feels like the internal timing must be out.

And yes—timing can be the culprit. But in my 20 years of diagnosing machines, from home desktops to industrial multi-heads, the reality is often more frustratingly simple: the timing is mechanically perfect, but the machine is acting like it has “lost its mind” because shredded thread has quietly turned into a compacted blockage inside the upper mechanism.

If you are a beginner, this is the "Panic Phase." This is where you start fighting the fabric—tugging, yanking, and forcing the handwheel—because you just want to finish the job. I understand the fear. But that specific moment of panic is where a $5 thread issue becomes a bent needle bar, a scarred hook, or a destroyed mainboard.

This guide is your safety manual. We will move beyond basic advice and look at the physics of why your machine fails, how to fix it using sensory cues (not just guesses), and when it’s time to stop blaming your skills and upgrade your tools.

The "Stuck Fabric" Moment on a Computer FS-40: How to Stop Before You Make It Worse

Let’s recreate the exact user experience described in Abby’s diagnostic video: you are running a design, perhaps on a hybrid unit. Suddenly, the fabric stops feeding. The machine struggles. The work feels tethered to the needle plate area. The sound changes from a rhythmic thump-thump to a strained grind.

This resistance is your first sensory clue that the top thread isn't releasing from the hook assembly.

The "Safe Release" Protocol: When the fabric feels anchored, your instinct is to pull. Do not pull. Here is the physics-compliant way to extract your work without damaging the rotary hook:

1. Stop immediately. Do not hit the "Cut" button (the blade might jam on the nest).
2. Unplug the machine if it’s making a humming noise (this protects the motor).
3. Raise the needle manually using the handwheel. Important: Turn the wheel toward you (counter-clockwise). turning it backward can worsen the tangle.
4. Lift the presser foot to release the tension discs. This is crucial—if the foot is down, the thread is clamped tight, effectively locking the knot in place.
5. The "Slide Test": Gently wiggle the fabric. If it slides out, good. If not, you must reach under the needle plate (remove the bobbin cover) and snip the bird's nest with fine-point scissors.

If you tug the fabric while the needle is deeply buried in a "thread tumor," you risk deflecting the needle. A deflected needle strikes the rotary hook, creating a burr (scratch). That burr will then shred every thread you use for the rest of the machine's life until polished out.

Warning: Never use your fingers to clear a jam while your foot is near the pedal or the machine is powered on. A sudden jolt can drive a needle through your finger or nail. Always power down or lock the screen before putting your hands in the "danger zone."

The Timing Check on a Rotary Hook: Prove It’s Not the Villain

Abby does what every technician does first: she isolates the variable. She checks the relationship between the needle and the hook.

Most beginners blame "Timing" for every error. Timing is the synchronization between the needle moving down and the hook swinging around to grab the loop. It rarely goes out of sync unless you’ve hit a hoop or broken a heavy needle.

With the bobbin area open and the bobbin case removed, use a screwdriver as a pointer (as shown in the video) to observe the cycle.

The Visual Check (The "Scarf" Rule):

1. Turn the handwheel toward you slowly.
2. Watch the needle go to its lowest point and start to rise.
3. The Success Metric: As the needle rises about 2-3mm, the point of the rotary hook should pass directly behind the needle, specifically in the "scarf" (the indented cutout on the back of the needle).
4. It should pass incredibly close—imagine a sheet of paper fitting between them, but not cardstock.

If the hook meets the needle at that sweet spot, your timing is fine. Do not touch the timing screws. If the mechanism looks mechanically sound, the problem is likely "upstream"—meaning the thread flow is compromised before it even reaches the needle.

The Take-Up Lever “Yank”: Where Weak Thread Starts Shredding

Abby rotates the handwheel to demonstrate the take-up lever’s job. This metal arm is the "heartbeat" of your machine. It pulls thread off the spool and jerks the stitch tight.

The Physics of the Shred: In modern embroidery, this lever moves up and down up to 1,000 times per minute. That creates massive friction and heat.

• The Scenario: You rely on a basic sewing and embroidery machine setup.
• The Error: You are running old, dry thread or a cheap "bargain bin" spool at 800+ SPM (Stitches Per Minute).
• The Result: The thread doesn't snap cleanly. It shreds.

Tiny microscopic fibers (lint) are shaved off the thread as it passes through the eye of the take-up lever and the tension discs. These fibers don't fall on the floor; they are statically charged and stick to the greased metal parts inside the machine head.

This creates a hidden blockage. It explains why some owners swear their machine “only likes one brand.” In the comments, multiple users mention their Husqvarna machines only behaving with Gutermann thread. This is a classic diagnostic sign: the machine has tight tolerances and is allergic to the heavy linting of cheaper threads.

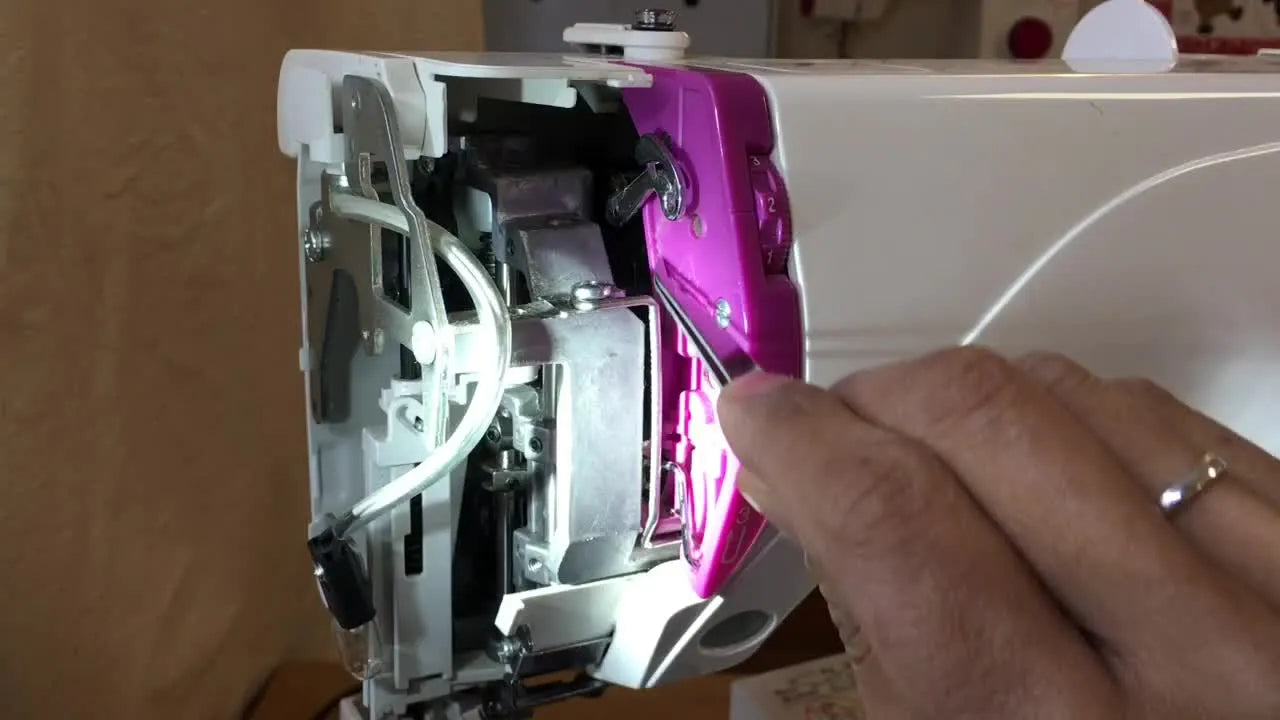

The Hidden Lint Trap Behind the Faceplate: Finding the "Dark Matter"

Abby points out the smoking gun: dark lint and shredded thread packed around the internal uptake mechanism behind the plastic casing.

This is the "Silent Killer" of embroidery machines. You can clean your bobbin area every single day. You can change your needle every project. You can be a perfect owner. But if you never open the side faceplate (the specialized cover protecting the light bulb and uptake lever), you are missing 50% of the problem.

If you are running a sewing and embroidery machine for long sessions—think Christmas rush or uniform orders—this hidden build-up turns into a solid mass. It acts like a brake pad on your thread, causing random tension spikes that ruin designs.

The Oil Trap: How “Just Add More Oil” Turns Lint into Cement

Abby explains a nasty mechanic’s truth that is counter-intuitive to beginners. When a machine sounds clunky or stiff, the impulse is to add oil.

The Chemistry of Failure: Lint is fibrous. Oil is sticky. When you drop oil onto a dusty, lint-filled mechanism without cleaning it first, you are essentially making industrial felt (or sludge).

This sludge packs into the joints of the take-up lever. Instead of moving freely, the lever drags.

• The Sensory Check: Turn your handwheel. It should feel smooth, with constant resistance. If it feels "gummy" or has sticky spots, you likely have an oil/lint compaction issue.

The Golden Rule:

• Clean First, Oil Last.
• Oil is a lubricant, not a cleaner.


The “Hidden” Prep Pros Do First: Tools, Lighting, and a Thread Reality Check

Before you open the machine casing, you must set the stage. Most DIY damage happens here—stripped screws or lost springs—because of poor preparation.

Hidden Consumables You Need (But likely don't have):

• Spiral Cleaning Brush (Spoolie): These grab lint better than flat brushes. (Abby uses a spiral brush in the video).
• Non-Serrated Tweezers: crucial for grabbing thread clumps without scratching the metal thread guides.
• Headlamp or Flexible LED: Ceiling lights are not enough to see into the dark crevices of a machine head.

Prep Checklist (Do this BEFORE removing covers)

1. Disconnect Power: Unplug completely. We are working near moving metal parts.
2. Remove the Needle: This prevents you from stabbing your hand when the tension breaks loose.
3. Consult the Manual: Locate the screw positions for the "Faceplate" or "Lamp Cover."
4. Lighting Check: Shine your flashlight up into the uptake lever slot. Can you see fuzzy grey masses?
5. Mental Check: If you feel resistance removing a cover, stop. Look for the hidden screw (often under a sticker or cap). Don't force plastic tabs.


Cleaning the Take-Up Lever Mechanism: Pull the Clumps, Then Brush the Dust

Abby’s cleaning sequence is surgical and effective. Follow this exact order to avoid pushing debris deeper into the machine.

Step 1: The Extraction Use your tweezers to grab the visible "felt" or tangled thread around the uptake lever linkage.

• Technique: Pull slowly and steadily. If you yank, the clump will break, leaving a piece behind that is harder to reach.

Step 2: The Scrub Use the spiral brush to sweep the metal arms.

• Technique: Rotate the brush as you sweep to "wind" the lint onto the bristles.

Step 3: The Verification Use a flashlight. The metal should look shiny, not matte or fuzzy. Turn the handwheel.

• Sensory Check: You might hear a faint hiss of air or silence. You should not hear a scraping sound.






Setup Checklist (Post-Cleaning / Pre-Operation)

1. Debris Check: Ensure no lint clumps fell down into the needle bar area.
2. Movement Check: Rotate handwheel 3 full cycles. Ensure the uptake lever moves without hesitation.
3. Cover Reassembly: Snap/Screw the faceplate back on. Ensure no wires are pinched.
4. Fresh Needle: Install a brand new needle (see the seating section below).
5. Rethread: Thread the machine from scratch, ensuring the thread snaps audibly into the uptake lever eye.

Thread Science: Why "Bargain" Thread is the Most Expensive Item You Own

Abby explains thread quality using cotton staple length, but this applies even more to the Polyester and Rayon threads we use in modern embroidery.

• High-Quality Thread (e.g., Madeira, Isacord, Glide): Continuous filament or long-staple. It is smooth, has a consistent twist, and glides through tension discs.
• Budget Thread: Short fibers twisted together. Under the stress of 800 SPM, these short fibers pull apart. They don't just break; they "explode" into lint.

The "Floss Test" (Sensory Anchor): Pull your thread through the needle eye. It should feel like pulling waxed dental floss—smooth resistance. If it feels like pulling dry twine or jute (scratchy, uneven), that thread will destroy your tension settings and clog your machine.

Speed Management: Just because your machine can do 1000 SPM doesn't mean it should on every fabric.

• Beginner Sweet Spot: 600 - 700 SPM.
• Why? At this speed, friction is managed, and if a tangle starts, you have time to stop before it becomes a disaster.


Thread Storage: The "Dry Rot" Prevention

Thread has a shelf life. Abby properly notes that sunlight and dry air are enemies.

• Sunlight: UV rays turn polyester brittle.
• Dust: If your thread sits on a rack gathering dust, that dust gets fed directly into your machine's tension discs the next time you sew.

Best Practice: Store thread in closed plastic bins or drawers. Keep them away from HVAC vents (drying) and windows (UV).

If you’re running a brother sewing machine, which often has very precise tension sensors, dusty thread will trigger false "Check Thread" alarms constantly.

The Needle Height Fix: The Technical Detail Most Beginners Miss

Abby highlights a massive user error: Needle Seating. A missed stitch happens when the hook misses the loop. If your needle is inserted even 1mm too low, the loop forms in the wrong place.

The Tactile Confirmation: When inserting a needle:

1. Loosen the screw.
2. Push the needle up.
3. Feel the "Thud": You must feel the butt of the needle hit the metal stopper bar inside the shaft.
4. Hold it there firmly while tightening the screw.

Needle Choice Logic:

• Sharps/Microtex: For woven cottons (crisp penetration).
• Ballpoint: For knits (slides between fibers).
• Embroidery Needles: Have a larger eye to protect the thread from friction (crucial for metallics).




Troubleshooting Matrix: From Symptom to Cure

Stop guessing. Use this table to diagnose the actual problem based on what the machine is doing.

The Commercial Bridge: From "Fixing" to "Optimizing"

Once you have mastered the cleaning and the needle seating, you will eventually hit a wall. That wall is not your skill—it’s the physical limitation of your equipment.

The "Hooping" Pain Point

If you are spending 10 minutes fighting to hoop a thick hoodie, and only 5 minutes stitching it, you are losing money (and hurting your wrists). Traditional friction hoops leave "hoop burn" (shiny crush marks) on velvet and delicate fabrics.

The Solution Ladder:

• Level 1: Use "floating" techniques with adhesive stabilizer (messy, gumming needles).
• Level 2 (The Tool Upgrade): Switch to a magnetic embroidery hoop.
  • Why? They use magnetic force to clamp fabric instantly without forcing it into an inner ring. No hoop burn. No wrist strain.
  • Result: You hooping time drops from 5 minutes to 30 seconds. This is how you search for terms like hooping for embroidery machine efficiency and actually find a solution.

The "Production" Pain Point

If you are running a single-needle sewing and embroidery machine like the Brother FS-40 for business, you are limited by thread changes. A 6-color design requires you to stop and rethread 6 times.

• The Criteria for Upgrade: If you are producing 50+ shirts a week, the downtime of rethreading costs you more than the monthly payment on a professional machine.
• The Option: Multi-needle machines (like SEWTECH models) hold 10-15 colors at once. Large magnetic embroidery frames allow you to load jackets and bags that simply don't fit on a home machine.

Warning: Magnetic Hoop Safety
Magnetic hoops use industrial-grade magnets (Neodymium). They are incredibly strong.
* Pinch Hazard: They can snap together with enough force to bruise fingers. Handle with care.
* Medical Safety: Keep away from pacemakers.
* Electronics: Keep away from credit cards and phone screens.

The Fabric–Needle–Thread–Stabilizer Decision Tree

Use this to prevent problems before you press "Start."

1. Is the fabric stretchy (T-shirt/Polo)?

• Yes: Use Cutaway Stabilizer (Mesh). Tearaway will fail and cause gaps. Use a Ballpoint needle.
• No (Denim/Canvas): Use Tearaway Stabilizer. Use a Sharp/Universal needle.

2. Does the fabric have pile (Towel/Velvet)?

• Yes: Use a Water Soluble Topping (Solvy) to stop stitches sinking in. Use a Magnetic Hoop to prevent crush marks.

3. Is the design dense (20,000+ stitches)?

• Yes: Double your stabilization. Slow the machine to 600 SPM to prevent thread heating.

Final Operation Checklist: Run It Like a Technician

You’ve cleaned the lint. You’ve seated the needle. You have the right stabilizer. Now, test.

• The Sound Check: Listen to the machine. It should create a rhythmic, low hum—not a rattle or high-pitched whine.
• The Tension Check: Look at the back of the embroidery. You should see 1/3 bobbin thread (white) in the center of the satin column. If you see top thread loops on the back, tighten top tension.
• The Consumable Check: If you see fuzz accumulating on the needle bar after just 10 minutes, your thread carries too much lint. Mark that spool as "Practice Only" and don't use it for client work.

The difference between a frustrated hobbyist and a confident producer isn't magic—it's maintenance. Even high-end equipment like an embroidery machine husqvarna or a robust multi-needle unit requires this respect. Treat your machine with clinical care, and it will pay you back in perfect stitches.

FAQ

• Q: How do I safely remove fabric that is stuck on the needle plate during embroidery on a Brother FS-40-style rotary hook machine?
  A: Stop and release tension before touching the fabric—pulling can burr the rotary hook and cause endless shredding.
  • Stop immediately; do not press “Cut” while a bird’s nest is jammed.
  • Power down/unplug if the machine is humming, then handwheel toward you (counter-clockwise) to raise the needle.
  • Lift the presser foot to open the tension discs, then do the “slide test” and gently wiggle the fabric free.
  • Snip the nest from the bobbin/needle plate area with fine-point scissors if the fabric will not slide.
  • Success check: Fabric slides out without force and the handwheel turns smoothly without grinding.
  • If it still fails: Open the bobbin area and remove more thread before turning the handwheel again.
• Q: How can I verify rotary hook timing using the needle scarf rule before touching timing screws on a home embroidery machine?
  A: Use the scarf rule to prove timing is OK—most “timing” complaints are actually thread-flow blockages.
  • Open the bobbin area and remove the bobbin case so the hook is fully visible.
  • Turn the handwheel toward you slowly and watch the needle reach bottom dead center and begin rising.
  • Confirm the rotary hook point passes directly behind the needle in the scarf as the needle rises about 2–3 mm.
  • Success check: The hook passes extremely close behind the needle (paper-thin clearance), right at the scarf, on every slow cycle.
  • If it still fails: Do not adjust screws yet—check for shredded thread/lint compaction in the upper thread path and take-up area first.
• Q: What tools should be prepared before removing the faceplate to clean the take-up lever area on a sewing and embroidery machine?
  A: Prepare the right small tools and lighting first—most DIY damage comes from poor visibility and forcing covers.
  • Unplug the machine completely and remove the needle before opening any covers.
  • Use a spiral cleaning brush (spoolie), non-serrated tweezers, and a headlamp/flexible LED so debris is visible.
  • Check the manual for faceplate/lamp cover screw locations and stop if a cover resists (look for a hidden screw).
  • Success check: You can clearly see the take-up lever area and remove covers without prying or stripping screws.
  • If it still fails: Pause and re-check for hidden fasteners or caps—do not force plastic tabs.
• Q: How do I clean shredded thread and dark lint behind the faceplate around the take-up lever mechanism to stop random tension spikes?
  A: Remove clumps first, then brush—pushing lint deeper is what keeps the problem coming back.
  • Extract: Pull visible “felt” clumps slowly with tweezers so they come out in one piece.
  • Scrub: Sweep the linkage with a spiral brush while rotating the brush to wind lint onto the bristles.
  • Verify: Use a flashlight and rotate the handwheel several cycles to confirm free movement before reassembling.
  • Success check: Metal parts look shiny (not fuzzy/matte) and the handwheel feels smooth with no scraping or gummy spots.
  • If it still fails: Rethread from scratch and install a fresh needle; persistent drag may indicate oil-lint sludge that needs deeper cleaning.
• Q: Why does adding oil to a clunky embroidery machine sometimes make the take-up lever feel gummy, and what is the correct clean-first oil-last rule?
  A: Oil can turn existing lint into sludge—clean the mechanism first, then oil only as your manual specifies.
  • Inspect: Shine a light into the take-up lever area for dark packed lint before adding any oil.
  • Clean: Remove lint/thread buildup completely, especially around joints and moving linkages.
  • Test: Turn the handwheel and confirm resistance is smooth and constant before any lubrication.
  • Success check: The handwheel no longer has “sticky” spots and the take-up action feels consistent.
  • If it still fails: Stop adding oil and re-check for compacted debris behind covers; consult the machine manual for oil points.
• Q: How do I seat an embroidery needle to the correct height to prevent skipped stitches on a home sewing and embroidery machine?
  A: Push the needle all the way up until it hits the internal stopper—being even 1 mm low can cause the hook to miss the loop.
  • Loosen the needle clamp screw and remove the old needle completely.
  • Insert the new needle and push upward until you feel a firm “thud” against the stopper bar.
  • Hold the needle fully up while tightening the screw, then rethread from scratch.
  • Success check: Skipped stitches reduce immediately and stitch formation becomes consistent across satin columns.
  • If it still fails: Check stabilization (fabric flagging) and confirm you are using an appropriate needle type (ballpoint for knits, sharp/microtex for wovens, embroidery needle for thread protection).
• Q: When hooping thick hoodies or pile fabrics causes hoop burn and long setup time, when should an embroiderer switch from floating techniques to a magnetic hoop or to a multi-needle machine?
  A: Use a simple ladder: optimize technique first, upgrade hooping tool next, and upgrade machine only when downtime becomes the real cost.
  • Level 1 (Technique): Try floating with adhesive stabilizer if hooping is impossible, but watch for needle gumming and mess.
  • Level 2 (Tool): Switch to a magnetic hoop to clamp fabric fast and reduce hoop burn and wrist strain.
  • Level 3 (Production): Consider a multi-needle machine when frequent color changes and rethreading stop being tolerable for weekly volume.
  • Success check: Hooping time drops dramatically (minutes to seconds) and fabric shows fewer crush/shiny marks after stitching.
  • If it still fails: Re-evaluate stabilizer choice for the fabric (cutaway for stretch, topping for pile) and slow speed to reduce friction-related issues.
• Q: What are the key safety risks of industrial-strength magnetic embroidery hoops, and how should magnetic hoops be handled to prevent injury or damage?
  A: Treat magnetic hoops like pinch tools—keep fingers clear, and keep magnets away from medical devices and sensitive items.
  • Handle: Separate and join magnets slowly with hands positioned away from the snap zone.
  • Protect: Keep magnetic hoops away from pacemakers and similar medical implants.
  • Store: Keep magnetic hoops away from credit cards and phone screens to avoid damage.
  • Success check: Frames align and clamp without finger pinches, and handling feels controlled rather than “snapping.”
  • If it still fails: Use a slower, two-handed handling method and set the hoop on a stable surface before bringing magnets together.
