Bobbin Ran Out Mid-Design on a Husqvarna Viking? The Calm, Clean Restart That Saves Your Stitch-Out

The sound is unmistakable. You are three hours into a dense 50,000-stitch floral back-piece. The machine is rhythmically thumping along—until the sound changes. The satisfying thud-thud of the needle penetrating fabric turns into a hollow click-click. You look at the screen. The machine is still moving, but the thread sensor hasn't triggered yet. You look at the fabric.

The gap.

For a novice, this is the moment of panic. The stomach drops. The instinct is to rip the hoop off, look underneath, or start pressing buttons frantically.

Stop.

As a veteran with two decades of battling thread breaks and bird nests, I can tell you: Do not touch that hoop.

Recovering from a mid-design bobbin run-out on a Husqvarna Viking is not a guessing game; it is a precision surgical procedure. If you follow the specific sequence of coordinates and physical checks I’m about to teach you, the "repair" will be invisible. If you rush, you will have a hairline gap that will haunt you every time you look at that jacket.

Here is your industry-standard protocol for the invisible restart.

Don’t Panic at the Needle Bar: What “Bobbin Thread Finished” Really Means on a Husqvarna Viking

When your machine finally beeps and throws up the "Bobbin Thread Low" or "Check Thread" warning, it has lost the ability to form a lock stitch. The top thread is looping down, finding nothing to catch, and pulling back up.

The "why" isn't as important as the "physics." Right now, your fabric is under tension in a specific x/y coordinate plane. The machine’s computer knows exactly where that needle is relative to the design only if the hoop stays locked in the carriage arm.

If you unhoop the fabric, you introduce "Hoop Shift." Even a 0.5mm shift is visible to the human eye. If you detach the hoop from the arm, you risk bumping the carriage motors, throwing off the calibration.

This is the beauty of a modern computerized husqvarna embroidery machine: the engineers built a recovery path into the software. Your job is to trust the coordinates, not your hands.

Two harsh realities of machine embroidery you must accept:

1. Sensors suffer from lag. By the time the machine stops, it has likely "air-stitched" for 5 to 10 stitches without bobbin thread.
2. Speed kills quality. Rushing a bobbin change increases the likelihood of a "bird nest" (thread jam) by 40% because you likely missed the tension spring in your haste.


Warning: Mechanical Safety
Keep fingers, scissors, and loose clothing (like hoodie strings) away from the needle bar and the moving carriage arm. Standard embroidery machines move at 600–1000 stitches per minute. Always wait for the "Safety Lock" sound or a complete stop of the carriage motor before reaching inside the harp area.

The “Hidden” Prep Pros Do Before Touching the Screen (So You Don’t Lose Your Place)

Before you acknowledge the error message or press any icon, you need to stabilize the situation. This is the difference between a hobbyist and a production manager. A hobbyist presses "OK" immediately. A pro freezes and records data.

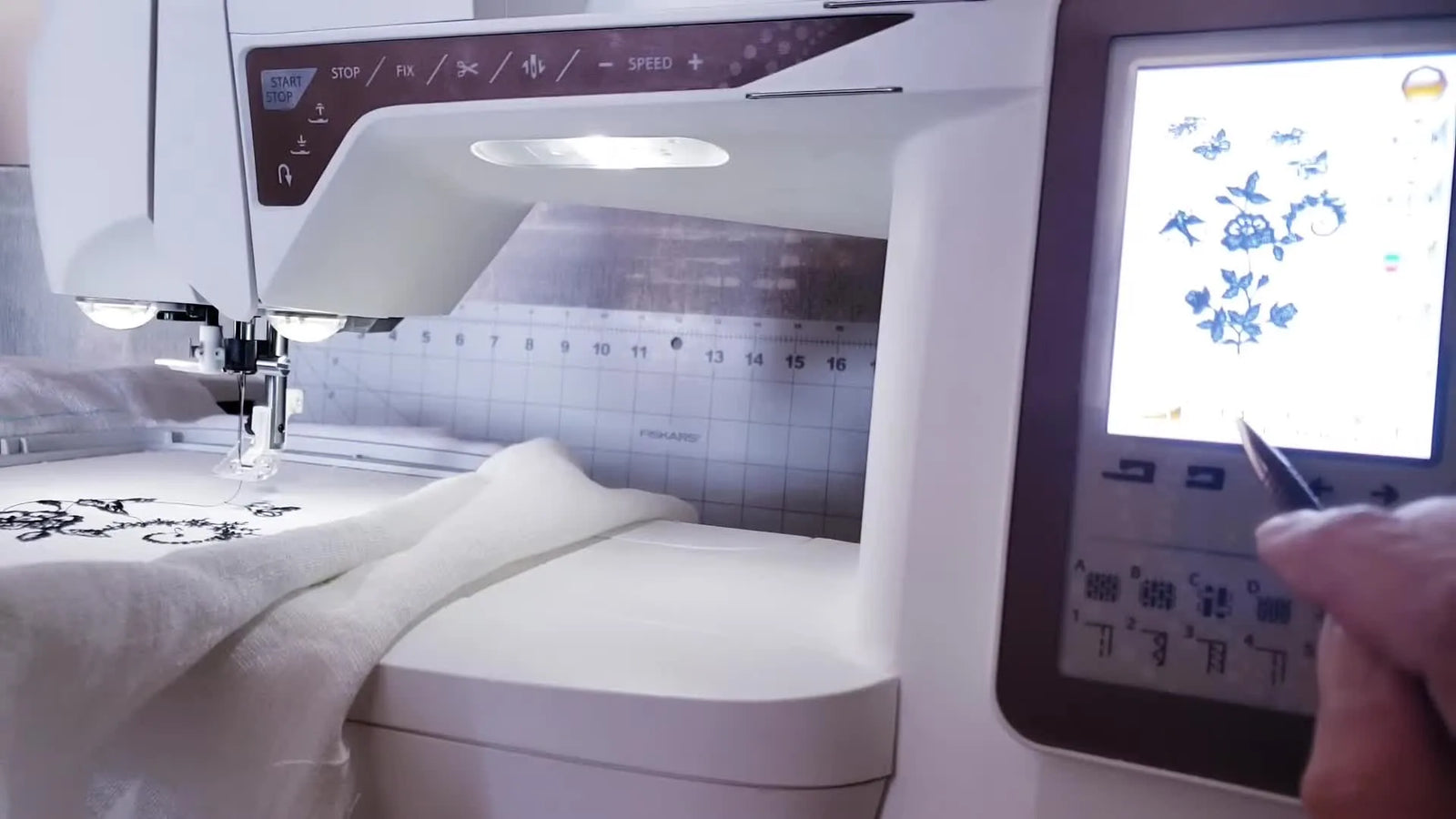

In the video, notice the instructor does not immediately dive for the bobbin case. They look at the screen. This is your "Black Box" recorder.

Prep Checklist: The "Freeze and Log" Protocol

• Audio Check: Ensure the machine is completely silent (no hum from the carriage trying to micro-adjust).
• Visual Verify: Look at the screen. Locate the Current Stitch Number (in the example: 13107).
• Data Entry: Write this number down on a sticky note, your phone, or the margins of your worksheet. Do not rely on memory. Adrenaline makes us forget numbers.
• Consumable Check: Locate your replacement bobbin. Pro Tip: Keep pre-wound bobbins (specifically the Husqvarna-compatible green core type for this machine class) ready. Do not wind a bobbin while the project sits idle; moisture and temperature changes can slightly relax the fabric if it sits too long.
• Hoop Security: Visually confirm the hoop is still firmly snapped into the carriage arm. Do not touch the release lever.


The One Number That Saves the Design: Capturing Stitch 13107 (or Whatever Yours Shows)

Why is the instructor pointing so deliberately at 13107?

In the coordinate geometry of your embroidery (the .hus or .vp3 file), Stitch 13107 is a distinct address. It is your "Point of Failure." However, because of the sensor lag I mentioned earlier, the actual bobbin ran out around Stitch 13100.

Having 13107 written down gives you a safety net for three scenarios:

1. The "Fat Finger" Error: You accidentally hit "Restart Design" instead of "Current Position." You can scrub back to 13107 manually.
2. Power Fluctuation: If the power blinks, modern machines usually have a "Smart Save," but knowing your number confirms you correspond with the specialized backup.
3. The "Ghost" Stitch: Sometimes, to fix a thread nest, you have to turn the machine off and move the handwheel. When you turn it back on, the arm calibrates. You need that number to tell the machine where to return.

Use “Bobbin Position” the Safe Way: Move the 240×150 Hoop Out for Access Without Unhooping

Attempting to change a bobbin while the needle is hovering over the bobbin plate is a recipe for scratched hands and dropped bobbins. Dropping a bobbin case screw into the internal mechanism of the machine is a $150 service call. Avoid this.

Husqvarna machines feature a specialized function widely known as Bobbin Position or "Park Position."

When you select this, the carriage arm calculates a safe path to move the hoop far to the left and forward. This exposes the bobbin cover plate completely.

The "Knuckle Factor": If you are using standard plastic hoops, this space is vital. However, if you are frequently wrestling with thick fabrics (like towels or hoodies), standard hoops can be bulky and make access tight even in the bobbin position.

This is where equipment choice impacts workflow. Many users switching to embroidery hoops for husqvarna viking look for lower profiles. In a production environment, we often use a magnetic hoop for husqvarna viking. Why? Because the magnetic frames are often flatter and lack the protruding adjustment screws of traditional hoops, giving you an extra half-inch of clearance—which sounds small until you have to change a bobbin 20 times a day.

Clean Bobbin Swap, No Drama: Replace the Green Bobbin and Catch the Thread Tail Correctly

The hoop is out of the way. Now, perform the sway.

The Sensory Check of a Perfect Bobbin Load:

1. The Drop: Place the Husqvarna "Green" bobbin in immediately. The "H" logo (if visible) usually faces up/out depending on your specific model instructions.
2. The Floss: Guide the thread into the tension slot. You should feel a distinct resistance, similar to snapping dental floss between teeth.
3. The Cut: Pull the thread over the built-in cutter. If it cuts cleanly, your blade is sharp. If it tears/frays, your cutter is dull (replace it, or use scissors).

Hidden Consumable Alert: While the cover is open, look for "grey fluff." Embroidery thread creates lint. A single dust bunny in the tension spring can drop your bobbin tension to zero, causing loops on top of your fabric.

• Action: Use a small non-nylon brush to sweep the race area.
• Constraint: Never blow into the machine with your mouth (moisture = rust). Use canned air sparingly and only from a distance.

Setup Checklist: The "Pre-Flight" Verify

• Orientation: Bobbin is spinning in the correct direction (usually counter-clockwise for drop-ins, but check your manual's diagram).
• Tension: Thread is engaged in the tension spring. test: Pull gently; the bobbin should not pop out, but rotate effectively.
• Clearance: No loose threads are draping over the magnetic sensor or metal needle plate.
• Closure: The clear cover plate snaps shut with a tactile click. If it feels spongy, the bobbin isn't seated.

“Current Stitch Position” Is Your GPS: Return the Hoop to the Exact Restart Coordinate

Now, we reverse the process. Navigate to the screen and press the Current Stitch Position icon.

The Sound of Accuracy: Listen to the motors. You will hear a high-pitched whine as the x and y axes recalibrate. This is the sound of the stepper motors counting steps to return exactly to the coordinate associated with Stitch 13107.

Crucial Warning: Do not rest your hand on the hoop, the table, or the fabric during this movement. Blocking the hoop now will cause a "Motor Overload" error and ruin the alignment.

The Invisible Fix: Backtrack 1–3 Stitches So the New Bobbin Thread Overlaps

You are back at Stitch 13107. Do not press start.

If you start now, you will have a gap. The machine stopped after the thread ran out. There is a section of 5-10 stitches on your fabric that has top thread but no bottom thread holding it down.

You must perform the "Overlap Maneuver."

Using the Minus (-) button on the screen, step back through the design history.

The "Rule of Thumbs" for Backtracking:

Pro Tip: If you backtrack significantly (10+ stitches), your needle might try to pierce a heavy knot of thread. Hand-turn the wheel for the first stitch to ensure it penetrates safely without deflecting the needle.

Operation Checklist: Final Go / No-Go

• Hoop Position: Fully returned to stitching area.
• Backtrack: Stepped back at least 3 stitches (screen reads approx 13104).
• Thread Path: Upper thread is not caught on the spool pin (common during pauses).
• Visual: Presser foot is down.
• Action: Press Start. Watch the first 5 stitches visually.

Why This Works (and Why It Sometimes Doesn’t): Hooping Physics, Stabilizer Choices, and Repeatable Results

The tutorial shows the "how." As an expert, I must teach you the "why" so you can troubleshoot when things go wrong.

1. Hooping Physics & "Hoop Burn"

The reason we never unhoop is "Physics Relaxation." When you hoop fabric, you stretch the fibers slightly. If you unhoop mid-design, the fabric relaxes. You will never get it back directly into the same tension.

However, leaving fabric in a standard hoop for hours (or days, if you get frustrated) causes "hoop burn"—crushed fibers that never wash out.

• The Fix: If you are doing long production runs, consider upgrading your toolset. A magnetic embroidery hoop uses vertical magnetic force rather than friction rings. This holds the fabric securely without crushing the fibers as aggressively, and crucially, it makes the "hooping" process repeatable if you ever did have to emergency unhoop (though we still avoid it).

Warning: Magnet Safety
Commercial-grade magnetic hoops are extremely powerful to prevent fabric slippage. They can pinch skin severely.
* Keep away from pacemakers and insulin pumps (maintain 6-12 inch distance).
* Store away from credit cards and CRT screens.
* Never place fingers between the magnets when snapping them shut.

2. Stabilizer: The Foundation

If your restart alignment is perfect but the stitches look distorted, your stabilizer has failed. The needle perforates the stabilizer thousands of times. If you used a "Tear Away" on a dense design, the stabilizer might have disintegrated during the bobbin change movement.

Decision Tree: Fabric vs. Stabilizer Choice

• Is the fabric stretchy? (T-shirt, Hoodie, Knit)
  • MUST USE: Cut-Away Stabilizer. (Tear-away will result in gaps after a restart).
  • OPTIONAL: Fusible Cut-Away for extra stability.
• Is the fabric stable? (Denim, Canvas, Twill)
  • USE: Tear-Away (Medium Weight).
  • PRO MOVE: Use a layer of cut-away anyway if the stitch count is >15,000.
• Is the fabric napped? (Towel, Velvet)
  • ADD: Water Soluble Topper (Solvy) to prevent stitches sinking.

3. The Production Mindset: Tools for Throughput

In a hobby setting, a bobbin change is a stress event. In a commercial setting, it is a 30-second standard operation. The difference is workflow.

• Prep: Keep 5 pre-wound bobbins next to the machine.
• Load: Use hooping stations to ensure your fabric is perfectly square every time. If you can trust your hooping, you can trust your restart.
• Scale: If you find yourself spending 50% of your time changing bobbins on a single-needle machine, the bottleneck is the hardware. Devices like the hoopmaster hooping station solve placement, but eventually, volume demands multi-needle machines (which hold larger industrial bobbins).

Troubleshooting the Two Most Common “I Tried This and It Still Looks Wrong” Scenarios

Even with perfect technique, variable happen. Here is your triage table.

The Upgrade Path That Actually Makes Mid-Design Fixes Less Stressful

If you are a weekend warrior, the "Stop, Record, Move, Swap, Overlap" method is your best friend. It costs nothing and saves garments.

However, if you are reading this because you are frustrated with the efficiency of your current setup, recognize that embroidery is an equipment-dependent craft. Your skill is limited by your tools.

The "Pain-Based" Upgrade Ladder:

1. Pain: "My hands hurt from tightening screws." / "I have hoop burn."
   • Solution: Upgrade to Magnetic Hoops. The vertical clamping is ergonomic and fabric-safe.
2. Pain: "I can't get the logo straight." / "It takes me 10 minutes to hoop."
   • Solution: Invest in a Hooping Station. Consistency is key to profit.
3. Pain: "I am constantly changing thread and bobbins." / "I can't take large orders."
   • Solution: This is the trigger for commercial gear. SEWTECH multi-needle embroidery machines offer larger bobbin capacities and auto-thread switching, removing the "mid-design panic" almost entirely.

The goal isn't just to finish the design. It's to finish it so cleanly that nobody—not even you—can tell where the bobbin ran out.

Follow the coordinates. Trust the physics. Keep your bobbins ready.

FAQ

• Q: On a Husqvarna Viking embroidery machine, what should I do the moment the stitching sound changes to a hollow click and the bobbin thread has likely run out?
  A: Stop the machine and do not remove or release the hoop from the carriage arm, because the restart depends on the exact X/Y coordinates staying locked.
  • Wait: Let the machine come to a complete stop before reaching into the embroidery area.
  • Look: Confirm the hoop is still snapped into the carriage arm; do not touch the release lever.
  • Record: Write down the Current Stitch Number shown on the screen before pressing any confirmation buttons.
  • Success check: The hoop has not moved, and you have a stitch number saved (photo or note) before any other action.
  • If it still fails… If you already unhooped or detached the hoop, expect visible misalignment; restart from a safe earlier point only if the machine allows precise position return, and prioritize preventing hoop shift on the next run.
• Q: On a Husqvarna Viking embroidery machine, why is writing down the “Current Stitch Number” (for example 13107) critical before changing the bobbin?
  A: The Current Stitch Number is the recovery “address” that lets the machine return to the exact stitch coordinate after a bobbin run-out or interruption.
  • Capture: Write the number on a sticky note or phone; do not rely on memory.
  • Protect: Avoid pressing the wrong on-screen option (like restarting the design) by having the number as a fallback reference.
  • Verify: Use the number to confirm you returned to the correct point if there’s a power blink or you had to clear a jam.
  • Success check: After returning to position, the machine drives the hoop back with a clear motor recalibration sound and lands at the recorded stitch position.
  • If it still fails… If the displayed position doesn’t match your note, manually navigate back to the recorded stitch number using the machine’s position controls (as available on your model).
• Q: On a Husqvarna Viking embroidery machine, how does “Bobbin Position/Park Position” help change a bobbin without unhooping, especially with a 240×150 hoop?
  A: Use Bobbin Position to move the hoop out of the way for safe access, instead of trying to swap bobbins with the needle area crowded.
  • Select: Tap the Bobbin Position/Park Position function on the screen to shift the hoop left/forward for clearance.
  • Swap: Open the bobbin cover only after the carriage finishes moving and is fully stopped.
  • Avoid: Do not force the hoop by hand while the motors are moving.
  • Success check: The bobbin cover plate is fully accessible and your hands can work without bumping the hoop or needle area.
  • If it still fails… If access is still tight on bulky projects, consider a lower-profile hoop style; in many workflows, magnetic-style frames can improve clearance compared with screw-adjust hoops.
• Q: On a Husqvarna Viking embroidery machine, what is the fastest way to confirm a drop-in “green” bobbin is seated and tensioned correctly to prevent bird nests?
  A: Load the bobbin and confirm the thread is engaged in the tension slot by feel (the “floss resistance”) before closing the cover.
  • Place: Insert the Husqvarna-compatible green bobbin and route the thread into the tension slot.
  • Feel: Pull the thread like dental floss; you should feel distinct resistance, not free-spinning slack.
  • Clean: Brush out any grey lint in the race area; avoid blowing into the machine with your mouth.
  • Success check: The cover closes with a firm click (not spongy), and the thread pull feels controlled and consistent.
  • If it still fails… If you get a bird nest or loose loops, reopen the cover and re-seat the thread into the tension spring/slot, then clean lint from the bobbin area before restarting.
• Q: On a Husqvarna Viking embroidery machine, how many stitches should I backtrack after a bobbin run-out so the restart is invisible?
  A: Backtrack before restarting—often 3–5 stitches is a safe overlap for normal sensor lag, and more if you can see a gap.
  • Return: Use Current Stitch Position to go back to the recorded stitch location first.
  • Back up: Use the minus (-) button to step back (commonly -3 to -5 for typical lag; keep going if loose top thread is visible).
  • Start: Run the first few stitches slowly and watch the needle penetrate cleanly.
  • Success check: The restart area shows no white space/gap, and the new stitches overlap and lock down the loose top thread.
  • If it still fails… If a visible gap remains, increase backtracking next time until the needle is over a fully locked stitch (not just loose top thread).
• Q: On a Husqvarna Viking embroidery machine, what causes a visible gap or white space after restarting from “Current Stitch Position” and how do I prevent it?
  A: The most common cause is not backtracking enough to cover the air-stitched section created before the machine stopped.
  • Assume: Expect 5–10 air stitches can happen before the warning due to sensor lag.
  • Backtrack: Step back additional stitches (start with 3–5; increase if you can still see loose top thread).
  • Observe: Watch the first 5 stitches after restart to confirm the overlap is stitching into existing locked areas.
  • Success check: The restart line blends in with surrounding stitches with no “hairline” separation.
  • If it still fails… If alignment is correct but distortion appears, reassess stabilizer choice; a stabilizer that breaks down during the pause can make the restart look shifted or warped.
• Q: What mechanical safety steps should be followed on a Husqvarna Viking embroidery machine during a bobbin change near the needle bar and moving carriage?
  A: Keep hands and tools out until motion fully stops, because the needle bar and carriage can move rapidly and pinch or puncture.
  • Wait: Do not reach into the harp area until the carriage motor is completely stopped and the machine is silent.
  • Secure: Keep fingers, scissors, and loose clothing away from the needle bar and carriage path.
  • Move: Use the machine’s Bobbin Position/Park Position function instead of pulling the hoop by hand.
  • Success check: You can open the bobbin cover and work with clear access while the carriage remains stationary.
  • If it still fails… If you accidentally block hoop movement and trigger a motor overload or misalignment risk, power down only if your manual allows it, then re-home/return to position using the machine’s built-in recovery steps.
• Q: If repeated bobbin run-outs and hoop marks are slowing production on a Husqvarna Viking embroidery machine, what is a practical upgrade path from technique to magnetic hoops to higher-throughput equipment?
  A: Start by standardizing the restart workflow, then upgrade clamping/hooping tools if hoop burn or slippage persists, and consider multi-needle capacity only when bobbin/thread changes become the main bottleneck.
  • Level 1 (Technique): Freeze and log the Current Stitch Number, use Bobbin Position, swap cleanly, return to Current Stitch Position, then backtrack to overlap.
  • Level 2 (Tooling): If hoop burn, hand fatigue from tightening, or fabric slip is recurring, magnetic-style hoops often reduce crushing and improve repeatability (handle magnets carefully to avoid pinches).
  • Level 3 (Capacity): If time lost to frequent thread/bobbin changes is consistently limiting order volume, a multi-needle workflow may reduce mid-design interruptions.
  • Success check: Bobbin changes become routine (fast, repeatable), and restarts blend invisibly without gaps or double images.
  • If it still fails… If fabric still shows a “double image,” treat it as hoop slippage during movement and focus on improving hoop grip and stabilizer support before increasing speed or volume.
