Master Class: Conquer Foam-Front Trucker Hats Without Fear

Foam-front trucker hats can make even experienced operators sweat. The structure is rigid, the sewing area is notoriously tight, and the foam front panel loves to “eat” stitches, making high-quality lettering look sunken or uneven. It is a collision of physics: you are trying to force a flat design onto a curved, squishy surface while the machine moves at high speeds.

In this tutorial-style breakdown, we are going to rebuild the exact workflow shown in the video, but with added safety protocols and professional context. We will cover expanding the cap sewing field so a prominent design can sit closer to the brim, the critical "hoop on seams" technique to stop design drift, and the nuance of choosing between 75/11 standard needles and 65/9 ballpoint needles. We will also test clear topping film—including the very real risk of it getting sucked into the needle plate—and how to prevent that catastrophe.

You will also see the honest aesthetic tradeoff: topping can look cleaner, but stitching on bare foam creates a surprisingly attractive “indented” finish that many customers actively request.

Calm the Panic First: A Cap Frame “Limit Error” Usually Means Your Sewing Field Height Is Too Conservative

If your cap frame is attached and your machine refuses to stitch taller than what feels like a tiny window (one commenter mentioned being stuck around 2.35"), you are interacting with the machine's safety logic. On many commercial machines, the cap driver profile enforces a conservative sewing field boundary to prevent the metal brim clamp or the cap frame from crashing into the needle bar or head.

However, factory settings are often too safe for modern trucker hats. In the video, the presenter solves this by manually adjusting the machine parameters on the control panel:

• Width limit: set to 13.7 inches (shown at 00:22).
• Height limit: increased from 80 mm to 95 mm (shown at 00:27–00:36).

That extra 15 mm is the "Golden Zone." It allows the design to sit lower on the foam front, closer to the brim, without triggering a frame limit error. This keeps the design visually centered rather than riding high on the forehead.

The "Trace" is Your Insurance Policy

Never trust the numbers blindly. When you change these limits, you are reducing the margin for error.

• The Action: Always run a slow "Trace" or "Contour Check" after loading the hat.
• The Sensory Check: Watch the presser foot bar. It should clear the cap clamp and the brim by at least 3-4mm throughout the entire rotation.
• The Audible Cue: Listen for any scraping sounds. Metal-on-metal sounds mean "STOP immediately."

Warning: Any time you expand a cap sewing field, do a slow “trace/baste” or manual clearance check first. A brim-to-needle-bar collision allows zero forgiveness—it can break needles, shatter the reciprocating shaft, damage the cap driver, and turn a simple $10 job into a $500 repair bill.

The “Hidden” Prep That Saves Hats: Backing Strength, Seam Alignment, and a Realistic Plan for Foam Behavior

Before you touch speed or needles, accept one mechanical truth: foam is not strong. It compresses, it deforms under stitch tension, and it has no structural memory. Without support, satin columns will pull the foam inward, causing gaps and that dreaded "sinking" effect.

The presenter’s baseline consumables are simple but effective:

• Tear-away backing (single layer, heavy weight).
• Adhesive spray or tape (to secure backing to the hat inside).
• Optional clear takeaway topping/film (water-soluble).
• Adhesive tape (specifically to anchor topping).
• "Hidden" Consumable: A fresh pair of sharp snips for the topping.

He also calls out a mistake many novices make when trying to “fix” sinking letters: doubling the backing. In his experience, double-layering caused shifting and ugly lettering, so he avoids it and prefers one strong layer.

From a physics standpoint, this is correct. On a cap frame, you are already fighting the curvature of the cylinder. Adding bulk creates a "spring" effect. When the machine pushes the needle through, thick backing pushes back, creating microscopic shifts that result in poor registration.

Prep Checklist (do this before the hat goes on the machine)

• Design Hygiene: Confirm your design size matches the profile (video uses 2.9" height x 5.5" width) and isn't too dense for foam.
• Stabilizer Selection: Choose one strong tear-away backing layer. Do not double up; it creates drag.
• Tactile Inspection: Press the foam front with your thumb. If it feels very soft/spongy, expect deep indentations and prepare topping.
• Topping prep: Have tape and scissors ready. Do not rely on gravity to hold topping on a vertical cap frame.
• Hardware Check: Verify your cap frame is clean, the strap tension is preset, and it is seated correctly on the driver.


Cap Hooping on a Commercial Cap Driver: “Hoop on the Seams” or Expect the Design to Walk

At 01:25–01:30, the presenter defines the cap-frame rule that separates clean production from heartbreak:

• Align and clamp the hat on the seams.

On foam-front truckers, the central seam (or the side seams depending on the panels) is your only reliable "Zero Point." The foam panel itself is unstable; it can stretch left or right. The seam, however, is reinforced.

If you clamp off-seam, the foam panel acts like a shock absorber, flexing and creeping as the needle penetrates at speed. This is especially dangerous on wide lettering where the pantograph is traveling left-to-right across a 5-inch span. By the time it returns to finish a letter, the hat has shifted, and your outline is off.

Expected outcome: When hooped on the seams, the design acts as one unit with the frame. It stays centered and doesn’t “lean” or drift.

The Business of Hooping

If you are doing caps all day, rely on mechanics, not just eyesight. A good hooping workflow reduces rehoops, reduces rejects, and saves your wrists from repetitive strain injury (RSI).

If you’re building a repeatable cap workflow, using dedicated tools makes a massive difference. Terms like hooping stations are your gateway to understanding efficient production. These stations hold the cap frame rigid and provide visual grids, ensuring that the "seam line" is hit perfectly every single time, turning a 2-minute struggle into a 30-second load.

Needles for Foam Trucker Hats: 75/11 Standard vs 65/9 Ballpoint (SES) When You Want Fewer Perforation Problems

At 03:03–03:30, the presenter inspects the needle bar:

• Current setup: Groz-Beckert 75/11 standard (Sharp) needles.

He then suggests an alternative often used for delicate knits but surprisingly effective here:

• Suggestion: Groz-Beckert 65/9 ballpoint (RG or SES), described as “softer” on foam/mesh.

The Physics of the Point:

1. Standard/Sharp Point: cuts through the material. On foam, this creates a very crisp hole. However, if the stitch count is high, it can essentially "cut out" a piece of the foam, leading to the design falling out or tearing the facing.
2. Ballpoint (SES): pushes fibers aside. On trucker hats, it pushes through the foam and mesh rather than slicing them. This maintains the structural integrity of the foam front, reducing the "perforated stamp" effect.

Pro-Tip for Home Machines: If you are running a single-needle home machine with a cap attachment, such as a brother cap hoop setup, needle choice is even more critical. Home machines typically lack the punching power of commercial solenoids. A thinner 65/9 needle penetrates with less resistance, putting less stress on your machine's motor and reducing the chance of the hat flagging (bouncing) up and down.

Warning: If changing to a 65/9 needle, ensure your thread weight matches (usually 40wt is fine, but tight). If using thicker metallic thread, a 65/9 eye is too small and will shred the thread instantly.

Clear Topping Film on Caps: The Only Way It Works Is “Big, Taped, and Tight” (or It Will Get Sucked In)

The video details an experiment where clear topping is added only over the last letters (“M” and “S”) to visualize the texture difference. But the mechanical lesson here is about retention.

The Key Warning:

• If the topping piece is too small, loose, or fluttering, the vacuum effect created by the hook assembly and needle movement can suck the film down into the needle plate hole.

The Consequence: Birdnesting (massive thread tangle), jammed trimmers, and a ruined hat.

The Fix:

1. Size Matters: Use a piece of topping significantly larger than the design.
2. Tension is Life: Tape the edges down firmly to the cap frame or the hat itself so the film is taut, like a drum skin. It should not ripple when the machine moves.

Warning: Keep fingers clear when trimming topping or applying tape near a mounted cap frame. Scissors + a curved cap surface + a moving needle area is a perfect recipe for slips and punctures—stop the machine fully before you reach in.

Setup Checklist (right before you press start)

• Mechanical Lock: Confirm the cap is clamped on seams and the cable/strap is ratcheted tight.
• Backing Security: Verify backing is covering the entire sew field and hasn't folded under.
• Topping Integrity: If using film, is it taped? Is it larger than the needle plate area?
• Clearance Check: Re-check your height limit (95 mm). perform a strict trace to ensure the brim clears the head.
• Needle Verification: Confirm the correct needle is active (75/11 or 65/9) and the path is threaded.

Speed on Trucker Hats: Why the Video Runs 730 SPM (and Why 800 SPM Is a Practical Ceiling)

The presenter shares two speed realities:

1. He personally prefers low RPMs ("doesn't go past 600") for maximum quality control.
2. For this production run, he pushes it to 730 stitches per minute (SPM).
3. He notes the general industry limit for truckers is ~800 SPM.

The "Sweet Spot" for Beginners: If you are new to foam caps, ignore the 730 SPM figure. Start at 500-600 SPM. Why? At high speeds, the centrifugal force on a heavy cap frame is significant. This causes vibration. Vibration causes registration errors (outlines not matching fills).

Sensory Diagnostics:

• Listen: A rhythmic "thump-thump" is normal. A sharp, loud "CRACK" means the needle is deflecting and hitting the throat plate. Slow down immediately.
• Watch: Look at the brim. If it is shaking violently, your speed is too high for the design's width.

If you are scaling beyond hobby volume, speed becomes money. This is where the hardware matters. A commercial multi-needle platform (like a SEWTECH multi-needle embroidery machine) is built with heavier chassis and stronger dampeners. It pays for itself not just because it stitches "prettier," but because it can sustain that 800 SPM all day without shaking the registration apart.

The Finish Debate on Foam Caps: “Indented” Letters (No Topping) vs Cleaner Letters (With Topping)

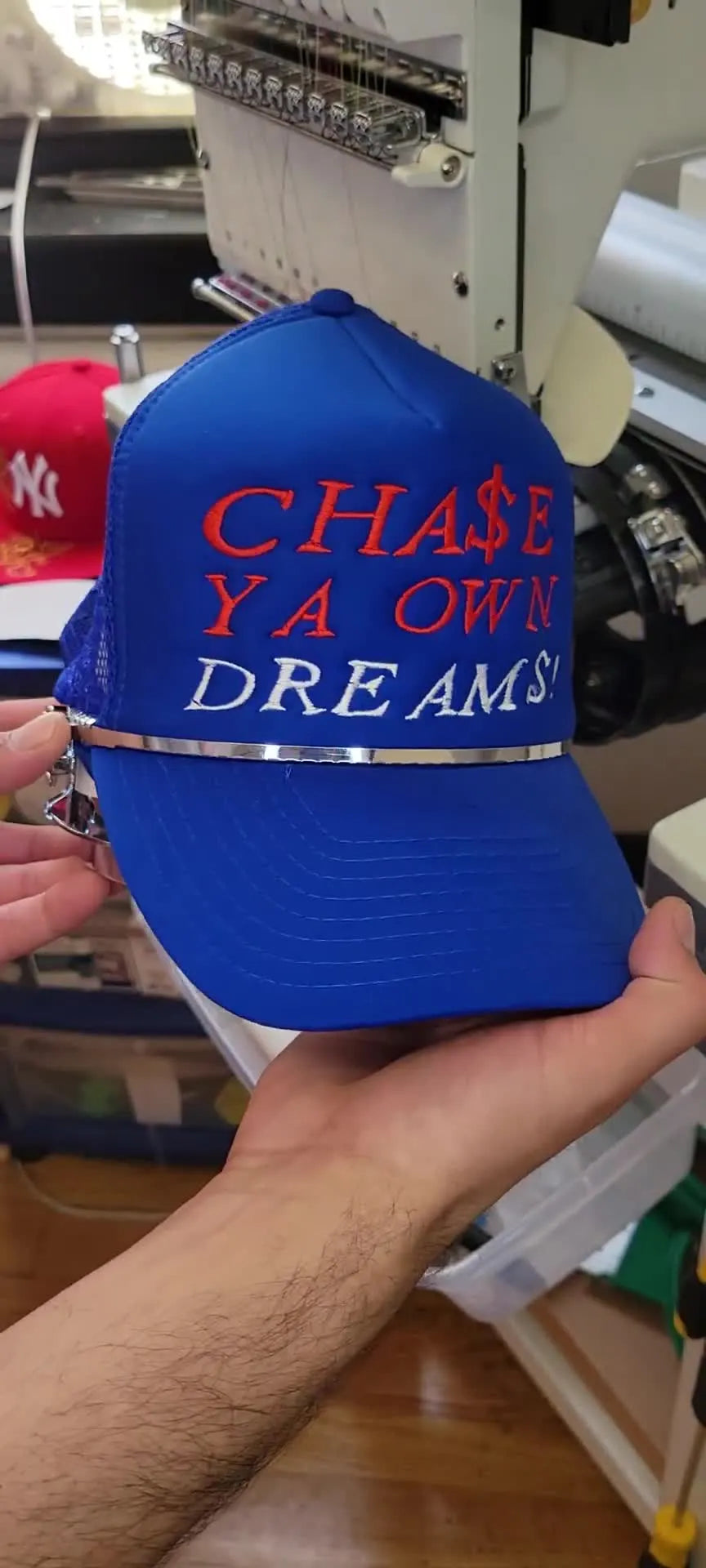

At the end, the presenter analyzes the texture:

• No topping: The stitches pull into the soft foam. Letters look indented/sunken.
• With topping: The stitches float on top of the film. Letters look flatter, fuller, and cleaner.

His verdict provides a crucial business insight: He personally likes the indented look and notes that customers rarely complain about it. In fact, on "vintage" or "rugged" style patches, the sinking effect adds character.

Decision Tree: Backing + Topping Choice for Foam-Front Truckers

Use this logic flow to decide before you hoop.

1. Criteria: The "Clean Corp" Look
   • Goal: Crisp, smooth lettering, legible small text.
   • Recipe: Tear-away backing + Clear topping.
   • Requirement: You must tape it tight and spend time picking out film bits later.
2. Criteria: The "Rugged/Street" Look
   • Goal: Texture, depth, bold aesthetics.
   • Recipe: Tear-away backing ONLY.
   • Note: Lean into the indentation; it looks intentional on bold fonts.
3. Criteria: The "Emergency Fix"
   • Symptom: Letters are sinking so deep they disappear or lose definition.
   • Action: Stop. Apply topping immediately. If that fails, checking your digitizing file density may be necessary.

Troubleshooting the 3 Problems That Ruin Trucker Hat Lettering (and the Fast Fixes)

If your hat isn't perfect, pause and diagnose using this table based on the video's lessons.

The Upgrade Path That Actually Matches Real Cap Production: Faster Hooping, Less Wrist Pain, Fewer Rejects

Once you can reliably stitch one hat, the bottleneck shifts. The problem is no longer "how do I stitch it?"—it becomes "how do I do 50 of these without my wrists falling off?"

Here is a practical framework for when to upgrade your tools:

Phase 1: The Alignment Battle

• Trigger: You spend 5 minutes hooping and 5 minutes stitching.
• Solution: Standardization. Shops that pair cap work with tools like the hoop master embroidery hooping station reduce hooping time to under 60 seconds per hat. The station eliminates the "eyeballing" variable.

Phase 2: The Volume Battle

• Trigger: You have an order for 100 hats. Changing thread colors manually on a single needle machine is adding hours to your job.
• Solution: Automation. This is the trigger point for a multi-needle machine (like SEWTECH). The ability to preset 12-15 colors and run continuous production is how you scale profit, not just volume.

Phase 3: The "Hoop Burn" Battle

• Trigger: The clamps on traditional cap frames leave markings, or clamping stiff trucker hats is physically painful for your hands.
• Solution: Magnetic technology. Magnetic hoops are a massive upgrade for flat work, and specialized magnetic cap systems are entering the market. They use force to hold the material without the friction that causes burn.
• Note: If you are looking for cylinder-arm compatibility, check for systems like the dime totally tubular hooping station which often features compatible magnetic framing options to ease the load.

Warning: Magnetic Safety. Magnetic hoops use industrial-grade magnets. They are incredibly powerful. Keep them away from pacemakers and implanted medical devices. Do not let two magnetic frames snap together near your fingers—severe pinch injuries/blood blisters are common when operators rush.

Operation Checklist (while the machine is running)

• The First 30 Seconds: Watch like a hawk. If the hat is going to creep, it will happen now.
• Sound Check: Listen for the "punch." Is it clean? A "crunch" means the needle is struggling.
• Topping Watch: Confirm the tape is holding and the film isn't fluttering.
• Brim Clearance: Ensure the brim Driver is not getting dangerously close to the machine arm on rotation.
• Speed Limit: Maintain 600-700 SPM. Do not exceed 800 SPM regardless of machine capability.

The Two Comment Questions, Answered Like You’re Standing at the Machine

“How do I change the parameters for trucker hats?” In the video, this is distinct from the embroidery file itself. You change this on the machine’s control panel/settings menu. You are looking for "Cap Frame Settings" or "Field Limits." The presenter increased the height limit from 80 mm to 95 mm and verified the width at 13.7 inches. This tells the machine's brain: "It is okay to stitch this close to the brim, I have verified it fits."

“How did you increase the height? My machine won’t allow taller than 2.35 inches with the hat hoop attached.” This is a "Hard Limit." Your machine's firmware has a safety profile for the standard cap driver. By manually changing the parameter to 95mm (as shown above), you are overriding that default safety. If your machine locks this setting and won't let you change it, consult your manual—some specific home-use or light-commercial models lock this permanently to prevent users from destroying the machine.

If you take one thing from this guide, let it be this: Seam-based clamping + Strong single-layer backing + A "Trace" check before every run will solve 90% of your trucker hat failures.

And if you are trying to standardize cap placement workflow—whether you are using a commercial setup or a totally tubular hooping station style rig—build your process around repeatable physical anchors, not guesswork. Happy stitching.

FAQ

• Q: Why does a commercial cap driver show a “Cap Frame Limit Error” when the height limit feels stuck around 2.35 inches on foam-front trucker hats?
  A: Increase the cap sewing field height limit carefully, then verify clearance with a slow trace before stitching.
  • Action: Open the machine control panel “Cap Frame Settings/Field Limits” and set width to 13.7 inches and raise height from 80 mm to 95 mm (if the machine allows it).
  • Action: Run a slow “Trace/Contour Check” immediately after changing limits.
  • Success check: The presser foot bar clears the brim clamp and brim by at least 3–4 mm through the full rotation with no scraping sound.
  • If it still fails: Stop and consult the machine manual—some models lock cap-frame limits and cannot be overridden safely.
• Q: How do commercial cap driver operators prevent brim-to-needle-bar crashes after increasing cap frame height limits to 95 mm on trucker hats?
  A: Treat every expanded cap field as a high-risk setup and prove clearance with a slow trace before pressing start.
  • Action: Trace at the slowest speed and watch the presser foot bar around the brim clamp area.
  • Action: Listen for any metal-on-metal scrape; stop immediately if heard.
  • Success check: The trace completes with consistent clearance and zero “tick/scrape” noises.
  • If it still fails: Reduce the height limit back toward the safer setting and re-center the design higher rather than forcing the brim area.
• Q: What does “hoop on the seams” mean on a commercial cap frame for foam-front trucker hats, and how does it stop design drift?
  A: Clamp the hat so the seam is the physical anchor, because foam panels flex and will “walk” under stitching.
  • Action: Align the cap frame clamp directly on the center seam (or the relevant panel seams) before tightening the strap.
  • Action: Ratchet the strap tight so the hat cannot creep during wide left-to-right travel.
  • Success check: Outlines return to the same position when the machine travels across and back—letters do not lean or shift.
  • If it still fails: Re-hoop on the seam again and remove extra bulk (avoid doubling backing, which can increase micro-shifting).
• Q: Should foam-front trucker hats use one strong tear-away backing layer or double backing on a commercial cap frame?
  A: Use one strong tear-away layer as the baseline; doubling backing often increases shifting and makes lettering uglier on a cap frame.
  • Action: Secure a single heavy tear-away layer inside the hat with adhesive spray or tape so it cannot slide.
  • Action: Keep the sew field fully covered so backing does not fold under during rotation.
  • Success check: Lettering registers cleanly without “shadowed” outlines or misaligned columns.
  • If it still fails: Focus on seam-based clamping and strap tension first; then consider topping if sinking (not more backing).
• Q: When should operators choose Groz-Beckert 75/11 sharp needles vs Groz-Beckert 65/9 ballpoint (SES/RG) needles for foam-front trucker hats?
  A: Switch to a 65/9 ballpoint when perforation/cut-out risk is high, and stay with 75/11 sharp when penetration is stable and holes are not tearing.
  • Action: Use 75/11 sharp as the current baseline setup; switch to 65/9 ballpoint if stitches start acting like a “perforated stamp” on foam/mesh.
  • Action: Confirm thread choice matches the smaller 65/9 eye (metallic thread is likely to shred in a 65/9).
  • Success check: Stitching penetrates cleanly without tearing the foam facing and without loud deflection noises.
  • If it still fails: Slow the machine down (start 500–600 SPM as a safe starting point) and re-check backing security and clamping.
• Q: How do commercial cap frame users stop clear water-soluble topping film from getting sucked into the needle plate and causing birdnesting on trucker hats?
  A: Make the topping big, taped, and tight—small loose pieces are what get pulled into the needle plate hole.
  • Action: Cut topping significantly larger than the design area so edges can be secured.
  • Action: Tape the film edges firmly so it is drum-tight and cannot flutter during stitching.
  • Success check: Film stays taut with no rippling as the frame moves, and the bobbin area stays clean with no thread tangle.
  • If it still fails: Stop immediately, clean the bobbin/hook area, and restart only after re-taping a larger, tighter piece.
• Q: What machine speed (SPM) is a safe starting point for stitching foam-front trucker hats on a commercial multi-needle cap driver, and what are the warning signs to slow down?
  A: Start at 500–600 SPM for control, then only increase if the cap frame stays stable; 800 SPM is a practical ceiling for truckers.
  • Action: Run the first hat at 500–600 SPM, especially on wide lettering designs.
  • Action: Watch the brim for violent shaking and listen for a sharp “CRACK” (needle deflection hitting the throat plate).
  • Success check: You hear a clean rhythmic “punch” and see stable registration without vibration-driven outline mismatch.
  • If it still fails: Reduce speed further and re-check seam clamping, strap tension, and whether topping/backing is fluttering or dragging.
