Big Appliqué Letters on a Brother Persona PRS100: Split-Hooping “AYA” on a 7.25" Magnetic Hoop Without Losing Your Mind

Here is the calibrated, experience-based guide designed to move beginners from frustration to mastery, while strategically integrating the required commercial context.

When you try to stitch big, bold appliqué letters on a thick sweatshirt with a single-needle machine, the stress usually hits in two places: (1) the anxiety of placement (will it be crooked?) and (2) the physical battle of hooping thick knits without distortion. If you’ve been discouraged, take a breath. You are not alone—seeing a “normal” mistake in a tutorial isn’t a sign of failure; it’s the reality of garment embroidery.

This post rebuilds Fantasia’s “AYA” sweatshirt project into a cleaner, repeatable workflow you can use on your own Brother Persona PRS100 (or similar tubular machines). Everything that’s “what she did” comes straight from the video; everything that’s “why it works” is the shop-floor logic you learn after years of fixing puckers, misalignment, and hoop burn.

Make Janome Artistic Digitizer appliqué letters that survive split-hooping (and don’t forget the satin)

Fantasia created her own appliqué file in Janome Artistic Digitizer by typing “AYA,” choosing an appliqué style, and setting the appliqué to Cut after Zigzag. She initially set the hoop size to 8x8 in software, then realized she needed to split the design into separate hoopings because the full word wouldn’t fit in one frame.

The key practical move: she made separate files for the letters (and realized she only needed to digitize the “A” once, reusing the file for the second “A”).

Experience Check: When splitting designs, always add a center run stitch or a specific alignment crosshair to your file. It acts as a visual anchor when you are physically re-hooping the garment later.

The mistake that bites almost everyone once: missing satin stitch

She caught a critical issue on the machine: the file was only giving her a zigzag and not the satin border. The cause was usually a checkbox in the software properties—she forgot to enable the satin finishing column. She had to go back to the computer, enable satin stitch, re-save, and return to the machine.

If you’re working with brother persona prs100 hoops, treat this as your non-negotiable rule: before you ever hoop a garment, confirm your appliqué object includes the satin border (not just placement + tack-down).

How to verify without guessing:

1. Visual Check: Look at the stitch count. A simple zigzag might be 2,000 stitches; a satin border will jump that to 6,000+.
2. Simulator: Run the "Slow Redraw" or simulator in your software. Watch the final pass. If you don't see thick, solid lines covering your raw edges, the machine won't stitch them.

Pro tip (from the video’s real-world moment): If your machine preview shows only a zigzag edge, stop. Don't "hope it will show up later." It won't.

Chalk lines, center marks, and paper templates: the placement ritual for a sweatshirt front

Fantasia’s placement method was practical: she found the center of the sweatshirt, then measured 4 inches down from the neckline to decide where the top of the letters should sit. This "4-inch rule" is the industry gold standard for adult crewneck sweatshirts.

Using a ruler and the grid on her cutting mat, she drew a straight horizontal line with chalk. Then she measured the appliqué height (about 7 inches) and drew a second parallel line to represent the bottom.

She also re-checked levelness—one side looked off, so she corrected the line. That’s not being picky; that’s avoiding a crooked word that you will notice every time you wear it.

Printed templates: helpful, but not a guarantee

She printed paper templates of the letters and laid them between the chalk lines to visualize spacing. She admitted it’s “not foolproof,” and she still had placement issues later.

That honesty matters: templates help you see the design balance, but they don’t solve the mechanics of hoop-to-needle alignment.

Hidden Consumables you need here:

• Tailor's Chalk or Water Soluble Pen: Never use standard ink or permanent marker.
• Long Ruler (18"+): Short rulers lead to crooked lines on broad chests.


Warning: Chalk, rulers, and paper templates prevent wild placement errors—but they don’t protect against mechanical strikes. You still must run the machine’s trace/test (the square button with arrows) before stitching, or you risk breaking a needle, shattering a bobbin case, or throwing the needle bar timing out of sync.

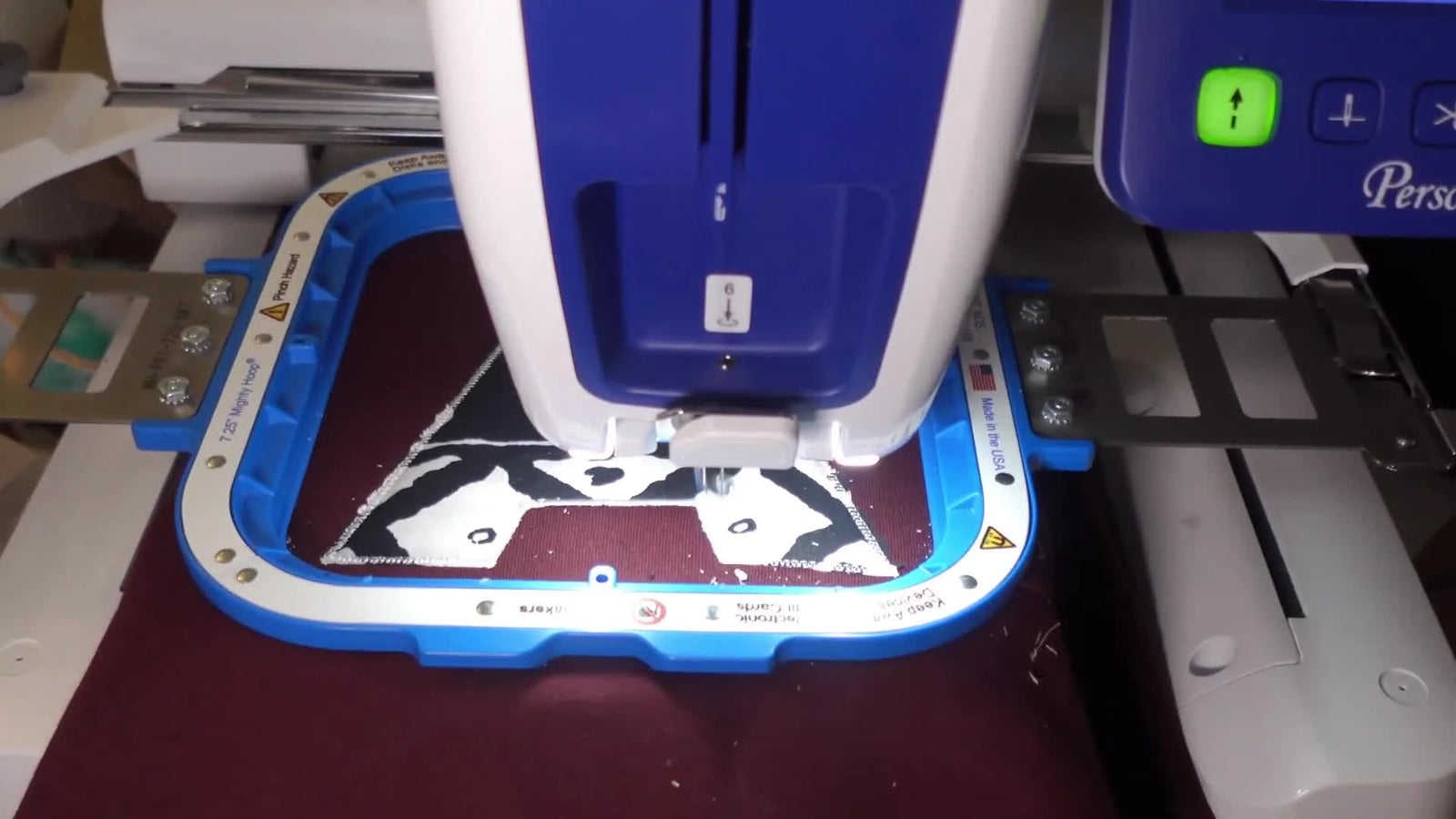

Hooping a thick sweatshirt with a 7.25" magnetic hoop—flat on the table, no station

Fantasia used a 7.25" magnetic hoop and hooped the sweatshirt flat on the table. Her method:

1. Slide the bottom ring inside the sweatshirt.
2. Place mesh cutaway stabilizer (she used a poly-mesh style).
3. Manually center the chalk markings in the hoop area.
4. Snap the top magnetic frame down to clamp the layers.




She highlighted two concerns you should take seriously: getting the chalk lines straight inside the frame, and ensuring the needle won’t stitch too close to the metal edge.

If you are researching 7.25 mighty hoop setups or compatible alternatives, this is the massive advantage of magnetic hooping on sweatshirts: you clamp the thick fabric instead of crushing it into a plastic groove.

Expert insight: why sweatshirts “wave” and why magnetic clamping helps

Sweatshirt fleece is spongy. When you force it into a traditional plastic hoop, you often pull it "drum tight." When you pop it out later, the fabric rebounds, creating irreversible puckering around the embroidery.

The Sensory Check: When using a magnetic hoop, the fabric should be taut but neutral.

• Touch: It should feel flat, but you shouldn't be able to bounce a quarter off it.
• Visual: The ribs of the knit should look straight, not curved like a smile.

Upgrade path (tool choice): If you are doing production runs of 10+ shirts, handling thick fleece in standard hoops causes wrist fatigue and "hoop burn" (shiny rings). A magnetic hoop system—like the SEWTECH magnetic frames compatible with Brother PRS/VR series—is the specialized tool that solves this friction.

Warning: Magnetic frames are incredibly strong. Pinch Hazard: Keep fingers clear of the edge when snapping the top frame down. Medical Safety: Keep magnets away from pacemakers, insulin pumps, and sensitive electronics like credit cards or hard drives. If you are new to a magnetic embroidery hoop, practice clamping on a scrap towel first to learn the "snap force."

The Brother Persona PRS100 trace test: catch hoop-edge danger before it breaks something

After loading the design, Fantasia ran a trace and saw the design was dangerously close to the hoop edge. This happened because she digitized for an 8x8 software field but was stitching in a 7.25" physical field.

Her fix was immediate: she used the on-screen editing tools to scale the design down until the trace path cleared the frame safely.

If you are comparing brother prs100 hoop sizes, understand that your "Physical Hoop" and "Write Field" are different. The machine doesn't know you switched to a smaller magnetic frame unless you tell it, or visually trace it.

Checkpoint: keep your letters consistent

Fantasia didn't write down her resize percentage, leading to a guessing game later. The Fix:

• Beginner: Write down the exact %. "Scaled to 92%."
• Pro: Re-export the file from the computer at the correct size so no machine scaling is needed.

The appliqué stitch sequence on the PRS100: placement, tack-down zigzag, trim, satin

Fantasia followed the classic appliqué workflow:

1. Placement stitch (Running stitch shows you where to put fabric).
2. Place appliqué fabric (Cow print).
3. Tack-down zigzag (Secures the fabric).
4. STOP & TRIM (Remove hoop, cut excess fabric).
5. Final Satin Border (The beauty pass).




Trimming: The difference between “handmade” and “clean”

She used curved appliqué scissors (often called "duckbill" scissors) and emphasized trimming close to the zigzag.

The Tactile Skill: You want to rest the blade on the stabilizer and glide it. If you cut the stabilizer, you lose tension. If you leave too much appliqu fabric, you get "whiskers" poking through the satin.

If you’re learning how to use magnetic embroidery hoop frames on garments, remember that the hoop is heavy. Place it on a flat table to trim. Do not try to trim while the hoop is hanging on the machine arm—you will torque the pantograph and ruin your alignment.

Operation Checklist (The "Do Not Fail" List)

• Pre-Stitch: Is the presser foot height set for thick fleece? (raise it slightly to 1.5mm-2.0mm if possible).
• Placement: Did you cover the entire outline with fabric?
• The Trim: Did you trim closer than 2mm to the stitches?
• The Satin: Did you check the bobbin? Do not start a massive satin column with a low bobbin.

Re-hooping the “Y” without a station: laser alignment, rework, and patience

The “Y” was the hardest part. The middle letter is where the eye judges symmetry.

She re-hooped the center section and used the machine’s red laser pointer to check alignment against the previous "A". She ran a placement stitch, saw it was short, and had to rip it out.

This is the reality of split-hooping: Test -> Fail -> Adjust -> Success.

Watch out: stabilizer bulk can sabotage your next hooping

Fantasia noted she should have trimmed the stabilizer after each letter. Because she didn't, the overlapping backing layers created "steps" or uneven mountains under the hoop.

Why this matters: If your hoop sits on a lump of old stabilizer, your machine thinks the fabric is higher than it is. This causes distinct "flagging" (fabric bouncing), leading to skipped stitches or bird-nesting.

Setup Checklist (Before you click start on Letter #2)

• Clearance: Did you trim the excess stabilizer from Letter #1?
• File: Did you load the "Y" and not the "A" again?
• Physics: Is the sweatshirt body free? (Check the neck and sleeves).
• Trace: Did you run the trace to ensure the "Y" doesn't hit the "A"?

The nightmare moment: stitching the back of the sweatshirt to the front

Fantasia accidentally stitched the back of the sweatshirt to the front. Fabric bunched underneath the hoop area and got caught in the needle path.

This isn't a rookie mistake; it's a fatigue mistake. It happens when you are focused on the needle and forget the rest of the garment.

The "Under-Arm Sweep" Prevention Habit

Before every single color change or restart:

1. Drape: Ensure the neck hole and sleeves are pulled away from the machine arm.
2. Sweep: Run your hand under the hoop. You should feel only the single layer of the hooped shirt. If you feel a lump, stop. It's a sleeve.

If you are running a business, this is where tool capability dictates workflow. A single-needle open arm helps, but SEWTECH multi-needle machines (Level 3 upgrade) offer a completely open cylinder arm structure that makes it much harder to accidentally make this mistake compared to smaller chassis machines.

The second “A” re-hoop: reuse the file, redraw a reference line

For the final “A,” Fantasia drew an additional placement line to help align it with the “Y.”

This is smart: Don't trust your eyes; trust your ruler.

Prep Checklist (Before Hooping)

• The Mark: Are your crosshairs drawn with water-soluble methods?
• The Backing: Do you have fresh stabilizer? (Don't reuse scraps for heavy appliqué).
• The Tools: Are your tweezers and snips within reach?

Cleanup that makes it look professional

Fantasia finished by using tweezers to pull out stray stitches, trimming jump stitches, and using a lint roller.

Expert finishing standard

A commercial-grade appliqué sweatshirt should pass the "Inside-Out Test":

• Inside: Stabilizer is trimmed in a rounded shape (no sharp corners to scratch skin). No "bird nests" of thread.
• Outside: Satin edges are smooth. No "whiskers" of raw fabric poking out.
• Feel: The embroidery should bend with the shirt, not feel like a piece of cardboard glued to the chest.

A stabilizer decision tree for sweatshirt appliqué

Fantasia used a mesh cutaway. Was that right? Here is the logic based on fabric physics.

Decision Tree: Sweatshirt Fabric → Stabilizer Choice

1. Is it a standard Cotton/Poly Fleece (Hoodie)?
   • Yes: Use Medium Weight Cutaway (2.5oz). This supports the heavy satin stitches of appliqué.
   • Alternative: Poly-Mesh Cutaway (what she used) provides a softer feel against the skin but may need two layers if the satin stitch is very dense.
2. Is the design heavy (Full fill stitch) or light (Appliqué)?
   • Heavy Fill: MUST use stable Cutaway. Mesh might distort.
   • Appliqué: Mesh is acceptable because the fabric patch provides stability.
3. To Top or Not to Top?
   • Textured Fleece: Always use a Water Soluble Topping (Solvy). It prevents the stitches from sinking into the pile.

If you are frequently doing garments and searching for magnetic hoops for embroidery machines, remember: the hoop holds the fabric, but the stabilizer holds the stitches. A magnetic hoop plus the wrong stabilizer will still result in a ruined shirt.

The upgrade conversation: When to stop fighting your tools

Fantasia completed a complex project on a Brother Persona PRS100. She proved it can be done. But if you are looking at her workflow—the measuring, the re-hooping, the alignment struggles—you might see the bottleneck.

The "Tool vs. Skill" Audit:

• Level 1 (Skill): If your letters are crooked, use better marking tools (Lasers, larger rulers).
• Level 2 (Efficiency): If hooping thick fleece hurts your hands or leaves burn marks, looking into mighty hoops for brother prs100 or SEWTECH magnetic frames is the logical next step. It turns a 2-minute struggle into a 10-second "snap."
• Level 3 (Scale): If you need to make 50 of these for a school team, splitting the design three times per shirt is financial suicide. This is the trigger point for a Multi-Needle machine with a larger field (allowing "AYA" to be stitched in one pass) and hooping stations to guarantee placement perfectly every time.

The goal isn't just to finish the sweatshirt; it's to finish it without holding your breath hoping it worked. Practice makes perfect, but the right tools make practice much less painful.

FAQ

• Q: Why does Janome Artistic Digitizer appliqué lettering stitch only the tack-down zigzag and skip the satin border on a Brother Persona PRS100?
  A: The appliqué object was saved without the satin finishing column enabled, so the file contains no satin pass.
  • Reopen the appliqué object properties in Janome Artistic Digitizer and enable the satin/finishing border option, then re-save the file.
  • Run the software simulator (Slow Redraw) and watch for the final thick border pass before you hoop the garment.
  • Compare stitch count: a satin border usually increases stitches dramatically versus zigzag-only.
  • Success check: The preview/simulator clearly shows a final satin outline covering the raw edge.
  • If it still fails: Re-export a fresh file (instead of editing on-machine) and confirm the PRS100 is loading the updated design, not an older version.
• Q: How do I prevent a Brother Persona PRS100 needle strike when using a 7.25" magnetic embroidery hoop with a design digitized for an 8x8 field?
  A: Always run the Brother Persona PRS100 trace test and resize until the trace path clears the hoop edge with margin.
  • Press Trace/Test (the square with arrows) before stitching every time you change hoop size or re-hoop a split design.
  • Use on-screen editing to scale the design down until the trace no longer approaches the metal/plastic edge.
  • Write down the exact resize percentage so the next letter matches (or re-export at the correct size from the computer).
  • Success check: The full trace path completes without coming close to the hoop frame at any point.
  • If it still fails: Stop and re-digitize/re-split the file for the actual physical hoop field instead of forcing a risky on-machine scale.
• Q: What is the correct “tautness” standard when hooping a thick sweatshirt with a magnetic embroidery hoop to avoid puckering and hoop burn?
  A: Aim for “taut but neutral”—flat and supported, not stretched drum-tight.
  • Clamp the sweatshirt flat on a table so the layers settle naturally before the magnetic top frame snaps down.
  • Align knit ribs and chalk lines so they stay straight (no curved “smile” distortion).
  • Choose stabilizer that supports satin density (often cutaway; poly-mesh may need doubling if the border is dense).
  • Success check: The fabric surface looks flat and the knit ribs remain straight, and the hoop area does not look stretched or shiny.
  • If it still fails: Reduce over-clamping/stretching, add appropriate cutaway support, and avoid pulling the garment while the hoop is closed.
• Q: How do I trim appliqué fabric cleanly after the tack-down zigzag on a Brother Persona PRS100 without cutting stabilizer or leaving “whiskers” under satin stitch?
  A: Stop after tack-down, remove the hoop, and trim close (about 2 mm) using curved appliqué scissors while resting on the stabilizer.
  • Remove the hoop from the machine and place it on a flat table before trimming (the hoop is heavy and trimming in-air can shift alignment).
  • Glide the duckbill/curved blade on the stabilizer to protect the garment fabric and avoid snipping backing.
  • Trim close enough that raw fabric will be fully covered by the satin border.
  • Success check: No fabric “whiskers” extend beyond the tack-down line, and the stabilizer remains uncut and intact.
  • If it still fails: Re-check that the design truly includes a satin border and consider a water-soluble topping on textured fleece so the satin sits on top.
• Q: How do I stop skipped stitches or bird-nesting on a sweatshirt when re-hooping split appliqué letters on a Brother Persona PRS100?
  A: Trim stabilizer bulk between letters and re-hoop on a flat, even surface to prevent “steps” that cause flagging.
  • Cut away excess stabilizer around Letter #1 before hooping Letter #2 so the hoop does not sit on layered ridges.
  • Ensure the sweatshirt body (neck/sleeves) is fully free and not tugging under the hoop area.
  • Re-run trace before stitching each new letter to confirm clearance from previous stitching and the hoop edge.
  • Success check: The fabric does not bounce (flag) under the needle and the underside shows clean stitches, not a thread nest.
  • If it still fails: Pause and verify bobbin is not low before starting dense satin, and reduce uneven bulk under the hoop.
• Q: How do I prevent stitching the back of a sweatshirt to the front on a Brother Persona PRS100 tubular embroidery setup?
  A: Use an “under-arm sweep” check before every restart or color change so only the hooped layer is in the needle path.
  • Drape and pull the neck hole, sleeves, and back panel away from the machine arm so they cannot fold under the hoop.
  • Sweep a hand under the hoop area to feel for unintended layers or a sleeve trapped underneath.
  • Run a brief trace/test after repositioning fabric to confirm nothing is obstructing the sew field.
  • Success check: Your hand feels only one garment layer under the hoop, and the garment hangs freely without bunching.
  • If it still fails: Stop immediately, remove the hoop, clear the trapped fabric, and re-check alignment before restitching to avoid compounding damage.
• Q: What magnetic embroidery hoop safety rules should beginners follow when clamping thick garments for appliqué?
  A: Treat magnetic hoops as a pinch-and-device hazard: clamp deliberately, keep fingers clear, and keep magnets away from medical implants and sensitive items.
  • Keep fingertips away from the closing edge and lower the top frame in a controlled way (do not “drop” it).
  • Practice clamping on a scrap towel first to learn the snap force before using a real garment.
  • Keep magnetic frames away from pacemakers/insulin pumps and away from items like credit cards and some electronics.
  • Success check: The frame closes without finger pinches and the fabric remains flat and centered after clamping.
  • If it still fails: Slow down, re-position hands for safer leverage, and consider using a flat table setup every time to control the closure.
