BES 4 Underlay + Push/Pull Compensation: The Fix for Gaps, Puckers, and “Why Won’t My Outline Line Up?”

If you’ve ever stitched a design that looked perfect on-screen—then watched the outline miss the fill, the edge roll on a sweatshirt, or a floated item creep mid-run—you’re not “bad at embroidery.” You are simply witnessing the laws of physics.

In professional embroidery, there is a constant battle between tension (the thread pulling tight) and stability (the fabric fighting back). In this master class, we are staying inside Brother BES 4 Dream Edition to utilize the two tools that separate amateur guesswork from professional precision: underlay and push-pull compensation.

We will move beyond theory into empirical data, sensory checks, and safety margins. Once you understand the forces at play, you stop guessing and start engineering.

Calm the Panic: Why Brother BES 4 Underlay and Push-Pull Compensation Fix “Perfect File, Ugly Stitch-Out”

When a stitch-out goes sideways, the natural instinct is to blame the machine tension or the needle. While those can be factors, very often the real culprit is how stitches physically deform the fabric.

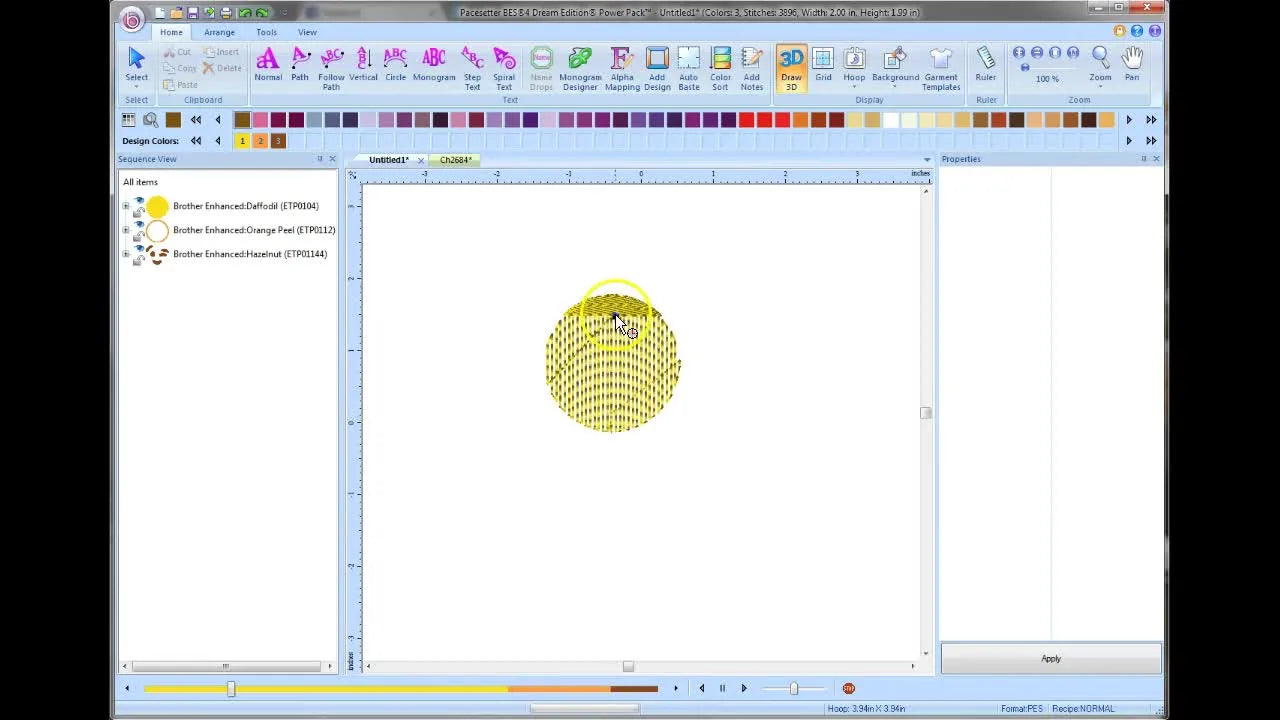

In the tutorial, J highlights a simple yellow fill object (an emoticon face) and plays the simulation: the software lays vertical underlay stitches first, then fills the top layer horizontally. That is not a random occurrence—it is deliberate structural engineering.

Here is the core physics concept you must visualize:

• The Pull (Contraction): A dense run of stitches acts like a tightening belt. It compresses fabric in the direction the stitches travel. If your fill runs left-to-right, the fabric shrinks left-to-right.
• The Push (Expansion): That compressed fabric has to go somewhere. It is forced to push outward perpendicular to the stitch direction.

If you do not account for this, your circular smiley face will stitch out as a vertical oval, and the border outline will land on empty fabric.

Read the Stitch Direction Like a Mechanic: Using the BES 4 Simulation Player to Predict Distortion

Before you change a single setting, do what experienced digitizers do: watch the simulation and identify the dominant stitch direction.

J points out the horizontal direction of the fill stitches on the yellow circle. That single observation tells you exactly where the fabric will try to shrink and where it will try to bulge.

Pro Tip (The "Pinch Test"): If you are unsure how a fabric will react, pinch a scrap of it. Pull it in the direction your stitches will run. Does it stretch easily? If yes, you need heavier underlay to stop that movement.

The “Hidden” Prep Pros Do First: Test Stitch-Out, Measure the Gap, and Plan Your Stabilizer

Underlay and compensation are powerful, but they’re not magic. They interact with your physical setup. Before you touch software, you must secure your physical variable.

The "Hidden Consumables" You Need

• Fresh Needle: A size 75/11 Ballpoint for knits, or 75/11 Sharp for wovens. A burred needle causes drag, making distortion worse.
• Temporary Spray Adhesive (Example: 505): Essential for floating items to prevent shifting.
• Calipers or Ruler: To measure the exact gap in millimeters.

Prep Checklist (Do this before touching settings)

1. Check your file type: Confirm you are editing a native working file (BES 4 uses .BRF) so object properties are editable.
2. Define your canvas: Decide if the item acts like a "drum skin" (woven cotton) or a "rubber band" (performance knit).
3. Secure the base: If you are learning hooping for embroidery machine success, remember that "tight like a drum" is partially a myth. The goal is neutral tension—taut but not stretched. Over-stretching the fabric in the hoop causes it to snap back after un-hooping, creating puckers.
4. Run a test: Stitch a sample on a similar scrap fabric.
5. Audit the failure: If you see a registration gap, measure it. Is it 0.5mm? 1.0mm? This data drives your software settings.

Warning: Project Safety First. Keep fingers, hair, and loose sleeves away from the needle area during test runs. Never reach under the presser foot while the machine is moving—needle strikes can shatter the needle and cause eye injuries.

Turn On the Right Underlay in Brother BES 4 Properties (Perpendicular, Contour, Parallel) Without Guessing

J clicks the yellow object, opens the Properties panel, and goes straight to the underlay section. This is the foundation of your house. Without it, the "heavy furniture" (top stitching) will sink.

1) Perpendicular underlay (The "Structural Beam")

In the video, Perpendicular is shown as the checked option for the fill object.

Visual Anchor: Think of this as the floor joists of a house.

• Function: If your top fill stitches run horizontally, perpendicular underlay runs vertically underneath.
• Why use it: The opposing directions lock the fabric to the stabilizer, preventing the "accordion effect" (puckering).
• When to use it: Almost always for Tatami fills or large areas of satin stitches larger than 1cm wide.

2) Contour underlay (The "Perimeter Fence")

J unchecks Perpendicular and selects Contour, explaining it as a base stitch around the outside edge.

Visual Anchor: Think of this as a fence marking your property line.

• Function: It places a running stitch exactly inside the edge of the shape before filling it in.
• Why use it: Without this, the edge of soft fabric (like fleece) will fray or roll up when the needle hits it.
• When to use it: Mandatory for thick sweatshirts, Sherpa, towels, or jackets. It creates a crisp edge for the outline to sit on.

3) Parallel underlay (The "Basting Stitch")

J highlights Parallel and explains it works well for text or floating items like dog collars.

Visual Anchor: Think of this as using painters tape to hold something down before nailing it.

• Function: It runs stitches in the same direction as the fill, but sparsely.
• Why use it: It is primarily an anchor. It doesn't fight the pull as well as Perpendicular, but it holds the object in place.
• When to use it: Small lettering (under 6mm) or when floating embroidery hoop techniques are used (sticking items on top of the hoop). It grabs the item quickly before the heavy stitching begins.

Lattice / Zigzag options

J also points out Zigzag and Lattice-style options.

• Lattice (Cross-hatch): The heavy-duty option. Creates a full mesh net under your design. Use this for highly unstable fabrics like pique polo shirts to prevent the design from sinking into the holes.

Dialing Underlay Density in BES 4: Stitch Length 3.8 mm, Inset Distance, and Why Stitch Count Jumps

Once you have chosen the type, you must set the parameters. J adjusts two critical settings:

1) Stitch Length (Underlay Density)

In the video, stitch length is set to 3.8 mm.

• The Novice Sweet Spot: For most standard fabrics, a stitch length between 3.0 mm and 4.0 mm is safe.
• The Logic: A shorter length (e.g., 2.0 mm) puts more thread into the fabric, making it stiffer (bulletproof patch feel). A longer length (e.g., 4.5 mm) is softer but offers less support. J’s use of 3.8 mm is a great balance—enough grip without turning the garment into cardboard.

2) Inset Distance (The "Safety Margin")

J discusses the inset and notes it determines how far the underlay sits from the edge.

• Rule of Thumb: You want the underlay hidden.
• Standard Setting: Typically 0.2 mm to 0.4 mm (or approx 0.015 inches).
• Risk: If set to 0.0, your underlay might poke out from under the satin border. If set too high (1.0 mm+), the edge of your fabric isn't supported and will look ragged.

J clicks Apply and shows the stitch count change:

• Before: 2559 stitches
• After: 2799 stitches


Accept the Cost: That increase is the price of quality. Do not fear higher stitch counts; fear poor results.

Setup Checklist (Software Configuration)

1. Select Object: Ensure you have clicked the specific fill area.
2. Select Type:
   • Polo/T-shirt: Perpendicular
   • Fleece/Towel: Perpendicular + Contour (or Lattice + Contour)
   • Small Text: Center Run or Parallel
3. Set Length: 3.5 mm - 4.0 mm.
4. Set Inset: 0.4 mm (approx).
5. Verify: Click Apply. Did the stitch count go up? If not, it didn't take.

If you are using a hooping station for machine embroidery in a small shop workspace, consistent software settings combined with consistent mechanical hooping creates a repeatable workflow where you aren't fighting "mystery errors" daily.

Fix Registration Errors Fast: Absolute vs Percentage Pull Compensation in Brother BES 4

Underlay prevents distortion. Push-pull compensation corrects the distortion that is unavoidable.

J explains the scenario: You stitched a circle, but it has a gap. You measured the gap on your test scrap, and it is 1 mm wide.

Absolute Compensation (The Engineer’s Choice)

J selects Absolute and enters 1.0 mm.

Why I recommend this for everyone:

• It relates to the physical world. If your gap is 1mm, you add 1mm (or 0.5mm to each side).
• It removes the math of percentages.
• Setting Advice: Start conservatively. If you see a small gap, add 0.2 mm - 0.4 mm. J’s example of 1.0 mm is aggressive, likely for demonstration or severe distortion.

Percentage Compensation

J demonstrates switching to Percentage and discusses a 6-inch design example, using 110%.

• How it works: It multiplies the width of the shape by a factor.
• The Trap: 110% on a thin column is a tiny increase. 110% on a wide fill is a huge increase. This can lead to inconsistent results if you resize the design later. Stick to Absolute until you are advanced.

If you run brother embroidery machines (like the PE800 or NQ1600E), keep a notebook. Write down: "Jersey Knit + Cutaway Stabilizer = 0.4mm Absolute Comp." This becomes your personal "cheat sheet" for future projects.

The File Format Trap That Wastes Hours: BRF vs PES/DST (Why You Suddenly Can’t Edit Underlay)

This section addresses a massive source of frustration for beginners.

A viewer asked: “If I have a Brother PE 770, is it worth buying the software... It seems like how I save matters.”

J clarifies the critical difference between Drafting files and Machine files.

1. BRF (Native / Working File)

• What it is: The "Blueprint."
• What it holds: Shapes, object types, underlay settings, density math.
• Power: You can open a .BRF file five years later and change the underlay from Parallel to Lattice in one click.

2. PES / DST (Stitch / Machine File)

• What it is: The "GPS Coordinates."
• What it holds: X/Y movements and Stop commands.
• Limitation: The machine does not know "this is a circle." It only knows "move needle here." You cannot easily change underlay settings in a PES file because the "object data" is gone.

J opens an external stitch-file ("Everyday Bear") and shows that the Properties panel is grayed out or limited.

He then adds text ("Teddy") and shows that the new text is editable because it was created natively.

The Golden Rule: Always Save As .BRF first. Then, Export as .PES for your machine. Never delete your BRF.

If you are shopping for accessories like magnetic embroidery hoops for brother pe770, remember that while good tools help hold fabric, they cannot fix a bad file. You must have the source .BRF to correct foundational digitizing errors.

The "Why" That Prevents Repeat Failures: Fabric Physics + Material Choices

The software controls the needle, but the hoop controls the canvas. If your canvas moves, the software is useless.

The Thick Fabric Challenge

J advises using Contour for fabrics with body (sweatshirts, Sherpa).

• The Mechanics: Thick loops of fabric can poke through stitches. Contour creates a "wall" that holds the nap down, allowing the top stitches to sit smoothly on top.
• Stabilizer: Use a water-soluble topping (Solvy) on top of Sherpa/Fleece in addition to the Contour underlay to prevent the design from disappearing.

The Floating Challenge

J describes "floating": hooping stabilizer, spraying adhesive, and pressing the item on top.

• The Risk: The item can peel up or shift during high-speed stitching.
• The Solution: Use Parallel underlay to tack it down, or use a "basting box" function on your machine before the design starts.
• The Hardware Fix: This is where many users upgrade. magnetic embroidery hoops allow you to clamp difficult items (bags, thick jackets) firmly without the pain of traditional screwing and unscrewing. This provides the stability of hooping with the ease of floating.

Warning: Magnetic Field Safety. Magnetic hoops use high-power industrial magnets/neodymium. Pinch Hazard: They can snap together with bone-crushing force; keep fingers clear. Health: Keep away from pacemakers (>6 inches distance recommended) and magnetic storage media.

Quick Decision Tree: Underlay + Stabilizer Strategy

Use this logic flow to make decisions before you start.

1) What is the fabric texture?

• Flat (Cotton/Denim): Standard Perpendicular underlay.
• Deep Texture (Fleece/Towel/Velvet): Must use Contour (Edge Walk) + heavy fill underlay + Water Soluble Topping.

2) How is it secured?

• Hooped Tightly: Standard underlay.
• Floated (Stuck on stabilizer): Add Parallel underlay or a basting stitch to anchor it early.

3) Is there a gap in your test stitch?

• No: Do not touch Compensation.
• Yes: Measure it. Add that amount (e.g., 0.4mm) to Absolute Compensation.

Troubleshooting the Real-World Symptoms

The Upgrade Path: From Frustration to Production

Once your digitizing is solid, your bottleneck will shift from "quality" to "efficiency."

• Level 1 (Technique): You master Underlay and Compensation in BES 4. Your success rate hits 90%.
• Level 2 (Workflow): You find that hooping takes longer than stitching. You research how to use magnetic embroidery hoop systems to speed up the framing process and eliminate "hoop burn" marks on sensitive garments.
• Level 3 (Scale): You are turning down orders because your single-needle machine is too slow. This is when you look at multi-needle solutions (like SEWTECH ecosystem machines) that allow you to prep the next hoop while the current one runs.

Operation Checklist (The "Go/No-Go" Final Check)

1. Auditory Check: Start the machine. Does it sound rhythmic (thump-thump)? A loud clatter often means the hoop is hitting something or the needle is dull.
2. Visual Check: Watch the first 100 stitches of underlay. Is it catching the fabric? Is the fabric lifting? If yes, stop immediately and re-hoop.
3. Gap Check: After the fill finishes but before the outline starts, pause. Look at the edge. Does it look aligned?
4. Save: If the result is perfect, save that file as specific version (e.g., Logo_Fleece_Draft2.BRF).

By combining the structural engineering of BES 4 (Underlay/Compensation) with the physical security of proper stabilizers and hoops, you transform embroidery from a game of luck into a repeatable science.

FAQ

• Q: What prep consumables should be ready before changing Underlay or Push-Pull Compensation in Brother BES 4 Dream Edition?
  A: Prep the “hidden consumables” first, because unstable materials will make any BES 4 setting look wrong.
  • Replace the needle (75/11 Ballpoint for knits, 75/11 Sharp for wovens) and avoid stitching with a burred needle.
  • Use temporary spray adhesive (example: 505) when floating to prevent mid-run creep.
  • Measure any registration gap with calipers/ruler in millimeters before you touch compensation settings.
  • Success check: The test stitch-out stays in place with no visible shifting during the first underlay and the gap is measurable (not “guessing”).
  • If it still fails: Re-evaluate hooping tension (neutral/taut, not stretched) and stabilizer choice before increasing compensation.
• Q: How can Brother BES 4 Simulation Player be used to predict outline-to-fill misregistration before stitching?
  A: Watch the simulation and identify the dominant stitch direction, because fabric distortion follows stitch direction.
  • Play the simulation and note whether the fill is primarily horizontal or vertical.
  • Pinch-test a scrap by pulling in the same direction the fill will run; if it stretches easily, plan stronger underlay support.
  • Plan underlay direction to oppose the top stitch direction (common professional approach for stability).
  • Success check: The predicted “pull” direction matches what you see on fabric (shrink along stitch direction, bulge perpendicular).
  • If it still fails: Run a small test stitch-out and measure the actual gap, then correct using Absolute Compensation.
• Q: Which Brother BES 4 Underlay type should be selected for fleece, towels, or thick sweatshirts when edges look ragged or roll?
  A: Enable Contour underlay to support the perimeter, because thick nap tends to lift and fray at the edges.
  • Select the object and turn on Contour (edge-walk style) underlay for a firm boundary.
  • Combine with a stronger fill-support underlay option when needed (for example, Perpendicular; Lattice is the heavy-duty mesh option mentioned for unstable fabrics).
  • Add water-soluble topping on top of Sherpa/fleece to keep stitches from sinking into the nap.
  • Success check: The outline lands on a clean, supported edge and the surface stitching stays visible above the nap.
  • If it still fails: Reduce the underlay inset slightly (keep underlay hidden) and re-test on scrap before increasing density.
• Q: What stitch length and inset distance are safe starting settings for Underlay density in Brother BES 4 Dream Edition?
  A: Use a safe starting point of 3.0–4.0 mm stitch length and about 0.2–0.4 mm inset so the underlay supports without showing.
  • Set underlay stitch length around 3.5–4.0 mm for most standard fabrics (3.8 mm is a proven balanced example).
  • Set inset so the underlay stays inside the edge (commonly 0.2–0.4 mm); avoid 0.0 mm if underlay might peek out.
  • Click Apply and confirm the stitch count increases, because added structure costs stitches.
  • Success check: Underlay is not visible at the edge, and the fill sits flatter with fewer ripples/puckers.
  • If it still fails: If the edge is unsupported, reduce inset; if the design feels overly stiff, slightly lengthen stitch length within the safe range.
• Q: How do you fix gaps between outline and fill using Absolute Pull Compensation in Brother BES 4 Dream Edition?
  A: Measure the gap on a test stitch-out and enter that value in millimeters using Absolute Compensation for predictable results.
  • Stitch a test on similar fabric and stabilizer, then measure the registration gap (example given: 1.0 mm).
  • Set compensation to Absolute and start conservatively for small gaps (often 0.2–0.4 mm), then re-test.
  • Avoid jumping to Percentage unless you understand how resizing changes the effect across different object widths.
  • Success check: After the fill finishes, the outline lands on the fill edge with no exposed fabric line.
  • If it still fails: Improve physical stability first (better hooping neutrality, cutaway stabilizer, stronger underlay) before adding more compensation.
• Q: Why is the Underlay Properties panel grayed out when opening PES or DST in Brother BES 4 Dream Edition, and how do you prevent it?
  A: Underlay editing requires the native BRF working file, because PES/DST are stitch-only files without object data.
  • Save and keep a BRF “blueprint” version first so object properties (underlay, density, compensation) remain editable.
  • Export PES for the embroidery machine only after the BRF is finalized; do not delete the BRF.
  • If you add new objects (like text) inside BES 4, those new objects stay editable because they were created natively.
  • Success check: Selecting an object shows editable underlay options (not locked/limited properties).
  • If it still fails: Locate the original BRF; if it is truly missing, re-digitizing may be required for full control.
• Q: What needle-area safety steps should be followed during test runs when dialing in Brother BES 4 Underlay and Compensation?
  A: Treat every test run like production—keep hands, hair, and sleeves away from the needle path and never reach under the presser foot while moving.
  • Start the test and observe from a safe distance; stop the machine before making any adjustments.
  • Keep fingers out of the hoop/needle zone to prevent needle strikes and shattered-needle eye injuries.
  • Pause strategically (for example, after fill and before outline) to inspect alignment without reaching into moving parts.
  • Success check: The machine runs without interference and you can safely stop/pause to inspect without any “near-miss” contact.
  • If it still fails: If you hear abnormal clatter or see the hoop hitting something, stop immediately and inspect setup (dull needle, hoop clearance, fabric lift).
