BERNINA Tip #7: Clean Your Thread Catcher and Reset the Warning

Watch the video: “BERNINA Jeff Tip #7 Cleaning The Thread Catcher” by BERNINA Jeff

Your BERNINA keeps count every time you tap the scissors button. When lint builds up, you’ll see a “Clean your thread catcher” message—and it won’t go away until you do the full routine and reset it. This guide walks you through Jeff’s exact, gentle method so your cutter grabs, trims, and gets you sewing smoothly again. bernina magnetic hoops

What you’ll learn

• How to navigate to the maintenance screen to see your thread cutter cycle count

• The safe way to remove the presser foot, needle, and stitch plate

• How to move the thread catcher out, clean it gently, and move it back in

• What not to do (no canned air!)

• How to verify the counter reset to zero, plus where to add a single drop of oil

Understanding the 'Clean Thread Catcher' Warning on Your BERNINA Your machine’s automatic thread cutter uses a small stack of plates beneath the stitch plate to hold and separate threads, especially the bobbin thread, for a clean start to the next stitch. Each cut is counted. After enough cuts, the machine prompts you to clean the “thread catcher,” which lives below the stitch plate and loves to collect lint.

Why it matters: if you skip the process, the message persists and the mechanism can start to misbehave—missed cuts, thread nests, or grabs that feel too tight. The fix is a guided cleaning routine and a proper reset. magnetic embroidery hoops for bernina

Pro tip If you embroider, you’ll trigger the scissors frequently, so expect to clean the catcher more often than if you only piece or garment sew.

Step 1: Accessing Your Machine's Maintenance Menu Navigating to the Settings On your BERNINA 7, 5, or most 4 series machines, open Settings (two gears). From the sewing machine icon, tap the Info icon (a circle “i”), then open V10 to see machine stats.

You’re looking for “Total number of cut cycles since cleaning.” This number tells you how busy your cutter has been and confirms whether it’s time to clean.

Quick check If the number is climbing and you haven’t cleaned recently, you’re due. In Jeff’s demo, the counter shows 60 before cleaning.

Step 2: Preparing Your Machine for Cleaning Removing the Presser Foot and Needle Go back to the sewing machine icon, tap the wrench, then choose the broom icon to start the guided cleaning. Remove the presser foot and use your needle tool to loosen and remove the needle. If you have a needle grabber, use it to hold the needle securely so it doesn’t drop.

Watch out Don’t over-torque the needle screw. Jeff cautions against “white knuckling”—overtightening can break the screw head or tip, which is an avoidable repair.

How to Safely Remove the Stitch Plate Lower the feed dogs. To release the plate, press down firmly on the two target circles, then lift the plate up and toward you—don’t push it back or it can get stuck under the lip.

From the comments Several sewists noted that this one move—press, then lift toward you—was the missing step that made the whole process finally click.

Step 3: The Cleaning and Reset Process Moving the Thread Catcher Mechanism On the screen, tap the blue underlined link “move the thread catcher out,” then press the scissors button on the head of the machine. The mechanism will slide to the right into view for cleaning.

If it doesn’t move right away: after pressing scissors, gently nudge the hand wheel to help the unit travel, then try again. This tip came up repeatedly in the discussion, and Jeff endorsed it when the unit hesitates.

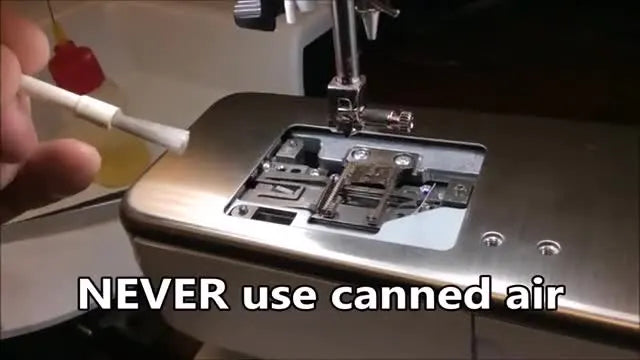

Gently Brushing Away Debris Use tweezers to pluck any obvious thread bits, then take a small lint brush and sweep lint away with a light touch. This area contains small springs—gentle is the name of the game. Never blow into the machine and never use canned air; it forces lint deeper into delicate parts.

The brushing itself is simple: short, outward strokes around the catcher’s plates and the surrounding channels. Keep your motions light so you don’t dislodge anything.

Watch out Brushing too hard can dislodge a spring and disable the grabber. If you feel resistance, stop and reset your angle.

Returning the Catcher and Reassembling Select the on-screen link “move the thread catcher in,” then press the scissors button again. The unit slides back to the left into its home position.

Reinstall the stitch plate by bringing it in from the right at a slight angle, aligning the left pegs, pressing down with your left index finger centered, and snapping it in.

Reinsert the needle (flat side to the back) and snug the screw—firm, not forceful. Raise your feed dogs. If they don’t pop up immediately, sew a stitch or two; they’ll reengage on the first rotation.

Pro tip Reattach the presser foot last so you have full access while seating the needle and plate.

Step 4: Verifying the Maintenance Reset Confirming the Cycle Counter is at Zero Return to Settings > Machine icon > Info > V10. Check “Total number of cut cycles since cleaning.” After the guided routine, it should read 0. That zero clears the message and confirms the reset.

Quick check If the number didn’t reset, repeat the move-out and move-in steps and make sure you followed the on-screen prompts in order. If it still won’t reset and the catcher doesn’t travel, try a power cycle—and if you hear grinding or see gear icons, it’s time for a technician.

Crucial Maintenance Don'ts: The Canned Air Warning Jeff is crystal clear: never use canned air and don’t blow into the machine. Lint can be driven deeper into gears and electronics, turning a quick clean into a repair visit. A soft brush and tweezers are the right tools here.

From the comments A number of viewers reported that one stubborn jam turned out to be a single thread in the catcher path. Tweezers were the hero tool—look carefully and pluck anything obvious.

Bonus Tip: Keeping Your Machine Running Smoothly How and Where to Oil Your Hook With the stitch plate off, look straight down below the needle and find the shiny tip of the hook. Place one drop of sewing machine oil directly on that tip. Jeff adds a drop every time he starts sewing; for heavy sessions, he refreshes every couple of hours of needle movement.

He also notes a longer schedule: oil the internal pads monthly and moving parts about every six months. If you’re using the BERNINA hook system, use the BERNINA red cap oil. For general metal-on-metal areas, a quality sewing machine oil works. bernina magnetic embroidery hoop

Troubleshooting: Common Questions from Sewists

• “My links aren’t blue / I can’t tap them.” Try rebooting; ensure you’re on the cleaning screen (broom icon). When you do tap the link, you must also press the physical scissors button to move the mechanism.

• “I tap the link and press scissors, but nothing moves.” Press scissors, then gently turn the hand wheel to help it travel. If you get multiple gear icons or grinding, stop and consult a technician.

• “My counter didn’t reset.” Repeat the move-out and move-in sequence and verify you completed the guided steps. The counter only resets after the full routine.

• “Can I vacuum the catcher?” The video doesn’t specify, but it does explicitly warn against canned air and blowing. A small brush and tweezers remain the recommended approach.

• “My cutter won’t cut or grab consistently.” After a proper clean, persistent cutting/holding issues may require service to fine-tune timing.

From the comments

• A new owner reported their foot control was unexpectedly cutting thread while pausing. Jeff’s tip: check foot control settings and set to needle up/down, not the cut function.

• Several owners of different models noted their Info screen layout varies. The procedure in this tutorial is shown on a B 790 Plus and is described as similar on 7, 5, and most 4 series models; your screens may differ slightly.

Safety basics you shouldn’t skip

• Remove the presser foot and needle before you take off the stitch plate.

• Handle the stitch plate carefully—forcing can break the clips.

• Tighten the needle screw firmly but not excessively; over-tightening can break the screw.

• Keep fingers clear when moving the catcher in and out.

Why your machine keeps count (and why that’s helpful) Each tap of the scissors button increments the “cut cycles since cleaning” counter. It’s a smart reminder, not a scold: it helps you maintain a smooth grab-and-cut so your next stitch starts cleanly. For many sewists, that zero after cleaning is a small but satisfying win—it confirms you did it right.

Case studies from the sewing room

• The “phantom jam”: After hours of tension checks, one viewer found a single thread in the catcher channel. Tweezers, quick pluck, problem solved.

• The “it finally clicked”: Multiple sewists said the press-then-lift-toward-you plate motion was the key detail they couldn’t glean from the manual.

• The “counter won’t zero”: Reattempting the move-in step—and confirming the beep/flash—was the missing piece. When the unit still wouldn’t travel, a gentle nudge on the hand wheel got it moving.

Gear you’ll find helpful

• Needle removal tool (screwdriver) and a needle grabber

• Tweezers for thread bits

• A soft lint brush

• Sewing machine oil (BERNINA red cap for the hook system)

Watch out It’s tempting to blow lint away—it’s quick, it feels effective, and it’s wrong for this job. Keep to the brush-and-tweezers playbook.

A note on model differences The demonstration machine is a B 790 Plus. Jeff states the process is similar on the 7, 5, and most 4 series. Interface screens can vary, but the essentials—remove foot and needle, take off plate, move the catcher out/in, gently clean, and verify the reset—remain the same.

Sew on: after-care and routine

• Start your session with a drop of oil on the hook tip.

• Lightly brush the catcher area whenever you notice linty fabrics (like flannel) shedding.

• Follow the on-screen cleaning prompt and verify the reset to keep your cutter in top shape.

From the comments: quick wins to try

• If the catcher hesitates, press scissors and help with a tiny turn of the hand wheel.

• If icons don’t tap correctly, screen calibration may be off (Jeff mentions a separate calibration video for that issue).

Planning an embroidery day? Heavier cutter use comes with the territory. Keep your tools—brush, tweezers, oil—within reach between hoop changes so you can give the catcher a quick sweep and keep moving. snap hoop for bernina

Side note for hoop-curious BERNINA owners While you’re in a maintenance mood, many embroiderers explore alternative hoop styles for tricky projects. If you’re researching options, you’ll see terms like Snap Hoops and magnetic frames in the BERNINA ecosystem. When you’re ready to compare, look up category guides that explain compatibility by model and fabric type. bernina snap hoop

If you’re comparing accessories across brands Sewists often search compatibility info across different machine families. If you’re cross-shopping or helping a friend, you may encounter summary guides that cover magnetic hoop categories for multiple brands alongside BERNINA options. Those guides can be handy reference points when planning multi-machine studios. dime snap hoop monster bernina

Research tips for your next accessory purchase

• Confirm the part is listed for your exact model series (7, 5, or 4) and firmware generation.

• Read the fine print on throat clearance and fabric thickness recommendations.

• Keep maintenance simple—choose accessories that don’t obstruct access to the stitch plate or the cleaning routine.

If you’re building an embroidery toolkit Choose accessories that make setup steady and repeatable without compromising service access. A good test: can you remove the stitch plate and reach the catcher quickly with the accessory removed? If not, keep shopping. magnetic embroidery hoops for brother uk

When to call a technician

• The catcher won’t move even after pressing scissors and gently turning the hand wheel

• You see multiple gear icons or hear grinding

• The cutter stops cutting or won’t hold bobbin thread reliably, even after a thorough clean

Quick recap

• Navigate: Settings > Machine > Info > V10 to check the counter

• Prep: remove foot and needle; lower feed dogs; remove stitch plate

• Move out: tap the link, press scissors

• Clean: tweezers, soft brush; no canned air

• Move in: tap the link, press scissors

• Reassemble: stitch plate, needle (flat to back), feed dogs up, foot on

• Verify: counter reads 0

Finish strong A careful five-minute clean can turn a frustrating warning into a smoother, quieter stitch. Add the single drop of oil on the hook, and your BERNINA will thank you with that signature hum. dime snap hoop bernina

Appendix: FAQ snapshots

• What is the thread catcher? An internal grab-and-cut mechanism that holds and trims threads so your next stitch starts cleanly.

• How often should I clean it? When prompted by the machine; more often if you embroider or sew linty fabrics.

• Can software updates fix cutter issues? Updates can make cleaning prompts easier, but they won’t fix mechanical problems.

• Can I use a vacuum? The video doesn’t address it; the explicit guidance given is to avoid canned air and blowing, and to rely on a soft brush and tweezers. snap hoop monster for bernina
