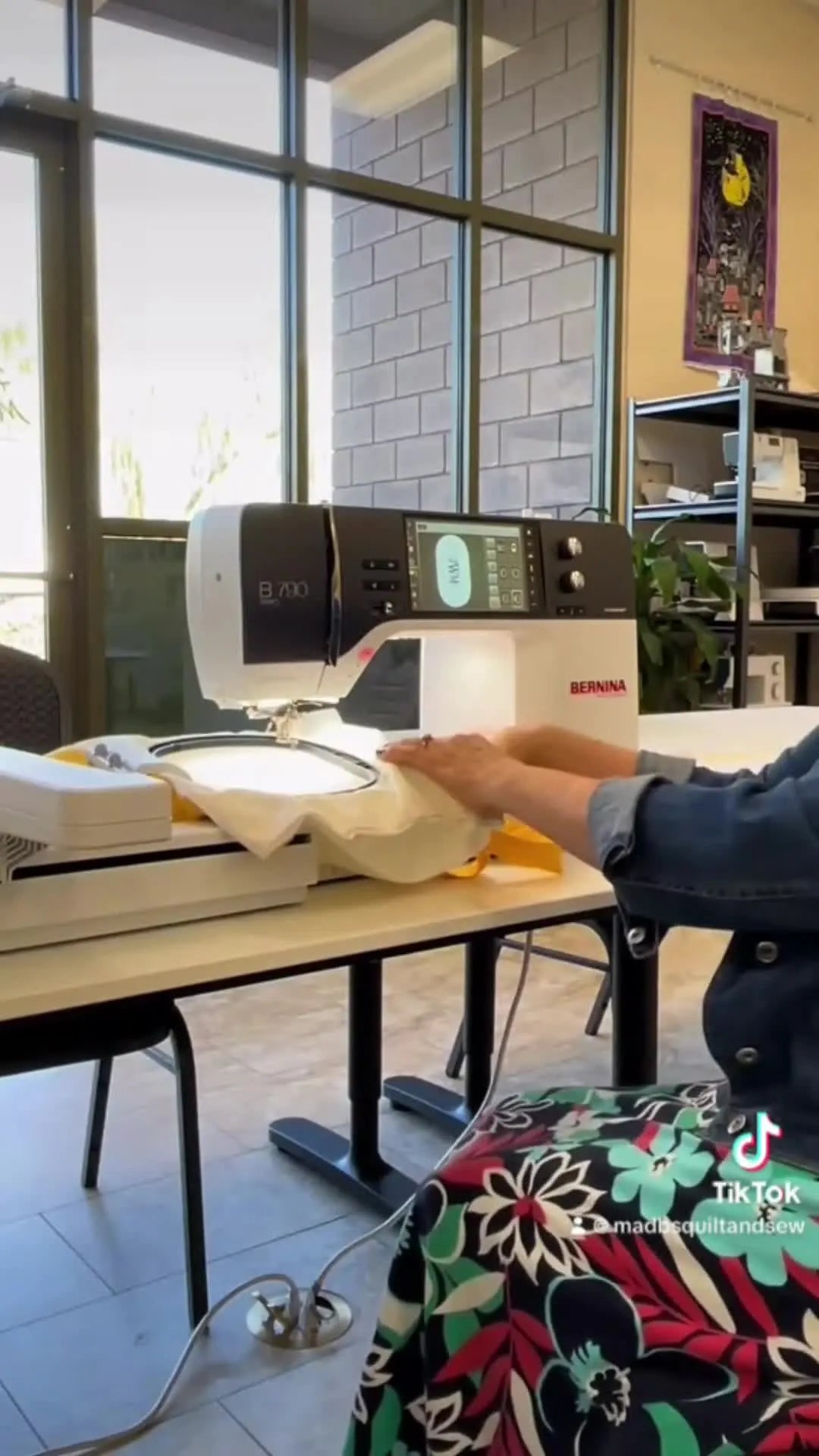

Bernina Large Freearm Hoop on a Tote Bag: The Click-Test Hooping Method + Pinpoint Placement That Saves Crooked Setups

If you have ever attempted to embroider a canvas tote bag and felt your patience evaporate during the hooping stage, you are not alone. Thick seams, bulky handles, and that unforgiving “tubular” shape make tote bags one of the fastest ways to turn a calm creative session into a wrestling match.

In my twenty years of machine embroidery, I’ve seen more broken needles and “hoop burn” on tote bags than any other garment. The fundamental problem isn't your skill—it's the physics of forcing a 3D object into a 2D clamp.

The good news: The Bernina Large Freearm Hoop is engineered specifically to solve this geometry problem. When paired with the Bernina B 790 PRO, you can leverage Pinpoint Placement to fix alignment digitally—meaning you no longer need to achieve impossible physical perfection while fighting heavy canvas.

1. Anatomy of the Tool: Understanding the Ratchet Mechanism

Before we start, let's understand why this hoop behaves differently than the standard hoops you likely learned on. Most hoops rely on a simple friction screw. This specialized hoop uses a ratchet-and-clamp system designed for heavy-duty retention.

The Inner vs. Outer Dynamic

Joan demonstrates a crucial distinction:

• The Inner Hoop contains the heavy-duty metal clamping mechanism.
• The Outer Hoop features gray ratchet release buttons.


Why does this matter? Because tote bags are not flat "quilt sandwiches." They are dimensional objects with thick side seams. When you press the gray release buttons, the outer hoop springs open wider than a standard frame. This allows you to slide it inside the bag without crushing the fibers or distorting the weave before you even begin—a common cause of the dreaded "pucker" effect.

Novices often ask if they should settle for a generic hoop or shop for a specific bernina snap hoop variant. The brand on the box is less important than the physics: you need a system that provides even, radial pressure without requiring hand strength that leaves your wrists aching.

2. The "Hidden" Prep: Stabilizers and Sensory Checks

This is the stage where experienced operators quietly win. Tote bags rarely fail because of the machine; they fail because the foundation (the stabilizer) shifts under the weight of the canvas.

The Stabilizer Decision Tree (Canvas & Twill)

Do not guess. Use this logic path to select your materials.

Hidden Consumables You Need:

• Fabric Chalk or Water-Soluble Pen: For marking crosshairs.
• Temporary Adhesive Spray (e.g., Odif 505): Essential for keeping stabilizer married to the bag inside the hoop.

Prep Checklist: The "Pre-Flight" Inspection

• Mark the Center: Draw a visible crosshair on the bag. Don't rely on "eyeballing" it.
• Stabilizer Marriage: Is the stabilizer pre-positioned inside the bag? (Pro tip: Use a light mist of 505 spray to tack it to the wrong side of the canvas).
• Obstruction Check: Feel the embroidery area with your hands. Are there pockets, straps, or thick internal seams in the stitch path?
• Clearance Test: Slide the empty bag over your machine's free arm to ensure it fits before you commit to hooping.

3. Hooping: The "Loud Click" and Tactile Tension

Joan’s sequence is specific. Follow it exactly to avoid frustration.

1. Slide the Outer Hoop inside the tote bag (ensuring it is under your stabilizer).
2. Place the Inner Clamping Frame on top of the outside of the bag.
3. Align your marks roughly (perfection is not required yet).


The Auditory Anchor: "Listen for the Click"

Tighten the ratchet knob. You are not looking for "tight enough"—you are listening for a specific sound.

• The Sound: You need to hear a distinct, sharp LOUD CLICK.
• The Feeling: The ratchet will slip; you cannot overtighten it once it clicks.


The Tactile Check: Run your fingers over the hooped area. It should feel taut, similar to a drum skin. If you can pinch fabric in the center, it is too loose. If the canvas is distorted into a bowl shape, it is too tight (loosen the screw slightly before ratcheting).

Pro Tip (The "Peek Test"): Before moving to the machine, look inside the bag. ensure the stabilizer completely covers the hoop area. A common rookie mistake is the stabilizer edge catching "half-in/half-out," which guarantees needle breaks.

4. Machine Setup: Safety Protocols and Boundaries

Tote bags are heavy. When they drag, they pull the embroidery arm, causing registration errors (gaps in your design). Setup is about managing this weight and defining boundaries.

Step 1: Joan removes the slide-on table to expose the free arm. This is non-negotiable for tubular items. Step 2: She parks the module to the left to create workspace.

Step 3: Select L-FA (Large Freearm) in the hoop menu.

Why this matters: The B 790 PRO needs to know the "No Fly Zone." If you select a standard Large Oval hoop but attach the Freearm hoop, the needle will collide with the plastic frame.

Setup Checklist: Machine & Environment

• Slide-on Table: Removed.
• Hoop Selection: L-FA selected on screen.
• Needle: Fresh Topstitch or Jeans Needle (Size 90/14) insterted. (Standard 75/11 needles will deflect and break on canvas).
• Speed Factor: Reduce max speed to 600-800 SPM. High speeds on heavy bags create "flagging" (bouncing fabric) which causes birdnesting.

Warning: Physical Safety
Keep fingers, lanyards, and bag handles away from the needle area when the module arm moves. The arm calibrates automatically when you touch the screen. The machine does not know your finger is there—it creates pinch points instantly.

5. Mounting: The "Everything Underneath" Rule

This is the single most common failure point for beginners: sewing the bag shut. The goal is to "tube" the bag around the open arm.

1. Slide the tote opening over the machine’s free arm.
2. Critical Check: Ensure the back of the bag goes UNDERNEATH the free arm mechanism.
3. Only when the fabric is clear, touch the needle icon to bring the arm into position.




Visual Check: The bag should hang freely. If the bag is bunched up behind the presser foot, STOP. You are about to stitch through multiple layers.

6. Pinpoint Placement: The Digital Salvation

Here is the secret: You do not have to hoop perfectly straight. Professional embroiderers rely on the machine to compensate for human error.

Joan uses the Pinpoint Placement (Grid Option) on the B 790 PRO:

1. She identifies the Virtual Center Dot on the screen.
2. She aligns it with the center chalk mark on her real fabric.
3. She selects a second point (Top Center), jogs the needle to match her chalk line, and presses SET.






The Result: The machine mathematically rotates the entire design to match your crooked hooping. As long as your chalk marks were accurate, the embroidery will be perfectly straight relative to the bag handles.

7. Scaling Up: When to Upgrade Your Tools

The ratchet hoop is excellent for intermittent use. However, if you are moving from "hobby" to "production" (e.g., fulfilling an order for 50 branded totes), you will encounter two friction points:

1. Hoop Burn: The Ratchet system relies on intense pressure, which can leave permanent shiny rings on delicate or dark canvas.
2. Wrist Fatigue: Ratcheting 50 times a day is physically exhausting.

The Trigger for Upgrade

If you find yourself searching for terms like hooping for embroidery machine tutorials because your wrists hurt, or if you are fighting to hoop thick seams that the ratchet can't quite clear, it is time to look at Magnetic Hoops.

The Solution Ladder:

• Level 1 (Technique): Use the ratchet hoop with the methods above. Good for 1-5 bags.
• Level 2 (Tool Upgrade): Magnetic Hoops (like Sewtech Magnetic Frames).
  • Why? Magnets self-adjust to any thickness. You simply lay the top frame over the fabric—SNAP—and it holds. No screwing, no ratcheting, no hoop burn.
  • Compatible: Look for a compatible bernina magnetic embroidery hoop.
• Level 3 (Workflow Upgrade): Using a hooping station.
  • For batches, a fixture like the hoop master embroidery hooping station ensures every logo is in the exact same spot without measuring every single bag.

Warning: Magnetic Hazard
Commercial-grade magnetic hoops use permanent Neodymium magnets. They snap together with crushing force.
* Pinch Hazard: Keep fingers clear of the contact zone.
* Medical Device Safety: Keep magnets at least 6 inches away from pacemakers.
* Electronics: Keep away from credit cards and screens.

8. Stitching and Removal: The Exit Strategy

Once finished, do not force the hoop off. There is often zero clearance between the bag and the needle bar.

1. Go to the Hoop Menu.
2. Select Park to Left.
3. Wait for the arm to move away.


Why? Forcing the connector off while the arm is centered puts torque on the embroidery unit's gears. Over time, this causes alignment drift, leading to expensive repairs.

Operation Checklist: The Final 4

• Support the Weight: While stitching, gently lift the bulk of the bag so it doesn't drag on the table edge.
• Watch the Handles: Ensure straps don't flop under the needle during stitching. Tape them down if necessary.
• Park First: Always park the module before removing the hoop.
• Tear Gently: Support the stitches with your thumb while tearing away stabilizer to avoid distorting the fresh embroidery.

9. Troubleshooting Guide: Symptom, Cause, Fix

The Bernina Large Freearm Hoop, when combined with Pinpoint Placement, transforms the tote bag from a dreaded chore into a repeatable, scientific process. Trust the "Click," respect the physics of the fabric, and let the digital tools handle the alignment. Happy stitching.

FAQ

• Q: How do I hoop a canvas tote bag correctly with the Bernina Large Freearm Hoop (L-FA) without fighting thick seams?
  A: Use the outer hoop inside the tote and the inner clamping frame on the outside, then rely on the ratchet “click” for consistent tension.
  • Slide the outer hoop inside the tote (under the stabilizer).
  • Place the inner clamping frame on the outside of the bag and roughly align marks.
  • Tighten the ratchet knob until a distinct LOUD CLICK is heard.
  • Success check: The hooped area feels drum-tight with no pinchable slack, and the canvas is not pulled into a bowl shape.
  • If it still fails: Re-hoop and confirm the stabilizer is not caught “half-in/half-out” along the hoop edge.
• Q: What stabilizer should I use for a tote bag when embroidering with a Bernina B 790 PRO on canvas or twill?
  A: Match stabilizer to fabric structure and design density—don’t guess, because shifting stabilizer is the most common tote failure.
  • Choose 2.5 oz tear-away for heavy canvas + light designs (outlines/text).
  • Choose cut-away (mesh or medium weight) for soft/unstructured totes + heavy fills to prevent distortion.
  • Add sticky-back or temporary spray adhesive (e.g., 505) when floating or when the bag tends to slide.
  • Success check: Stabilizer fully covers the hoop field and stays bonded to the tote during handling and stitching.
  • If it still fails: Upgrade from tear-away to cut-away and re-check hoop tightness (listen for the click).
• Q: Why does the Bernina Large Freearm Hoop need a “LOUD CLICK,” and how do I know the tension is right on a canvas tote?
  A: The loud click indicates the ratchet has reached its locking point, giving repeatable holding pressure without guesswork.
  • Tighten until the ratchet gives a sharp LOUD CLICK (do not chase extra tightness).
  • Feel the fabric: aim for taut like a drum, not loose and not distorted.
  • Inspect inside the tote before mounting: stabilizer must be completely under the clamping area.
  • Success check: You can run fingers across the center smoothly with no ripples, and the tote surface is not crushed into a ring.
  • If it still fails: Loosen slightly if the canvas bowls, then re-ratchet to the click.
• Q: What machine settings must be selected on the Bernina B 790 PRO to avoid needle strikes when using the Large Freearm Hoop (L-FA)?
  A: Select the correct hoop type on-screen and set up for heavy material so the needle stays out of the hoop’s collision zone.
  • Remove the slide-on table to use the free arm for tubular tote bags.
  • Select L-FA (Large Freearm) in the hoop menu (do not select a standard oval hoop if the L-FA hoop is attached).
  • Install a fresh Topstitch or Jeans needle size 90/14 for canvas.
  • Reduce maximum speed to 600–800 SPM to reduce flagging and thread issues.
  • Success check: The needle path clears the hoop frame during a careful trace/positioning check, and stitching starts without frame contact.
  • If it still fails: Stop immediately and re-confirm the on-screen hoop selection matches the hoop physically mounted.
• Q: How do I mount a tote bag on the Bernina B 790 PRO free arm without stitching the bag shut?
  A: Follow the “everything underneath” rule so only the front layer is in the stitch field.
  • Slide the tote opening over the machine’s free arm.
  • Ensure the back of the bag goes underneath the free arm mechanism (not behind the presser foot).
  • Let the tote hang freely before bringing the embroidery arm into position.
  • Success check: The bag hangs like a tube with no extra layers bunched near the needle area.
  • If it still fails: Stop and re-mount—any bunching near the presser foot means you’re about to catch multiple layers.
• Q: How does Bernina B 790 PRO Pinpoint Placement (Grid Option) fix crooked hooping on tote bags?
  A: Use two reference points so the machine mathematically rotates the design to match accurate chalk marks.
  • Mark a clear center crosshair on the tote using fabric chalk or a water-soluble pen.
  • In Pinpoint Placement (Grid), align the virtual center dot to the real center mark.
  • Set a second point (e.g., top center) by jogging to the chalk line and pressing SET.
  • Success check: The final embroidery is straight relative to tote handles even if the hoop is slightly crooked.
  • If it still fails: Re-check that the chalk marks are accurate and visible; alignment can only be as good as the marks.
• Q: How do I troubleshoot birdnesting (thread loops underneath) when embroidering a heavy tote bag on a Bernina B 790 PRO?
  A: Birdnesting on totes is commonly caused by drag and fabric “flagging,” so slow down and support the bag’s weight.
  • Reduce speed to 600 SPM (up to 800 SPM only if stable) to limit bouncing.
  • Support the bulk of the tote so it does not pull on the embroidery arm or snag the table edge.
  • Verify the upper thread path is correctly seated before restarting.
  • Success check: The underside shows clean, controlled stitching instead of loose loops forming immediately.
  • If it still fails: Re-hoop for firmer hold (confirm the loud click) and re-check stabilizer adhesion to prevent shifting.
• Q: When should tote-bag production switch from the Bernina ratchet-style Large Freearm Hoop to magnetic embroidery hoops, and what magnetic safety rules matter?
  A: Upgrade to magnetic hoops when hoop burn or wrist fatigue becomes the bottleneck, and treat strong magnets as a pinch and medical-device hazard.
  • Stay with the ratchet hoop for small runs (good technique is enough for a few bags).
  • Move to magnetic hoops when repeated ratcheting causes wrist fatigue or when pressure leaves hoop burn on dark/delicate canvas.
  • Keep fingers out of the snap zone—magnets can close with crushing force.
  • Success check: Hooping becomes faster with even holding power and reduced marking/shiny rings compared to high-pressure clamping.
  • If it still fails: Pause and reassess workflow—adding a hooping station for batch consistency may be the next step, and always keep magnets away from pacemakers and sensitive electronics.
