Bernina Large Freearm Embroidery Hoop (Hoop L FA): The 7 cm Rule That Saves Your Tote Bag (and Your Sanity)

If you have ever tried to embroider a finished tote bag or a T-shirt “tube” and felt that distinct spike of physiological panic—fabric bunching under your fingers, the hoop fighting against your grip, and the machine looking one millimeter away from a catastrophic collision—take a slow breath. You are not alone. This is the "fear barrier" every embroiderer faces when moving from flat fabrics to tubular objects.

The Bernina Large Freearm Embroidery Hoop (Hoop L FA) is an engineering solution built for exactly this job: closed tubular projects with a circumference of more than 80 cm. However, success with this tool isn't just about owning it; it's about mastering the physical feedback loop between your hands, the fabric tension, and the machine's calibration.

The catch is that this hoop only behaves beautifully when you respect two absolute laws: calibration (done once, with precision) and clearance (checked every single time). Below is the full workflow, rebuilt from the original video into a shop-floor "Standard Operating Procedure" (SOP) that ensures you can repeat the process without surprises.

The Bernina Large Freearm Embroidery Hoop (Hoop L FA): what it’s really for (and when it’s the wrong tool)

The Large Freearm Embroidery Hoop is designed to let you embroider tubular items—T-shirts, bags, and pant legs—without the labor-intensive task of ripping seams open. The physics here are simple: the machine’s free arm slides inside the item, while the hoop holds the specific area to be stitched.

The video’s key requirement is non-negotiable: your tubular project needs a circumference greater than 80 cm. If it is smaller, it simply will not slide over the machine’s free arm without binding, creating friction that ruins registration (design alignment).

In the kit, you will find four critical components:

1. One embroidery template (grid plastic).
2. Two template holders (purple clips).
3. The inner hoop (black piece).
4. The outer hoop (white/grey frame with twist lock).


A small but vital detail often missed by beginners: the boundary line on the right side of the embroidery template limits the embroidery area specifically for the Bernina 5 Series when using Embroidery Foot 26. That is Bernina’s way of keeping the stitch field honest. If you cross that line, the machine foot will physically hit the hoop mechanism.

Pro-Tip on Fatigue: If you are doing tubular work frequently (e.g., 50 team shirts or a run of tote bags), this is where many shops start comparing these mechanical twist-lock hoops to faster clamping systems. You will often see professionals discuss magnetic embroidery hoops for bernina in this context. This isn't because the mechanical hoop is "bad," but because repetitive twisting motions and the force required to hoop thick canvas can cause wrist strain (RSI). Magnetic hoops eliminate the "twist and grunt" motion, replacing it with a simple magnetic snap.

The “Hidden” prep that prevents 80% of hooping disasters: template holders, stabilizer, and a quick reality check

Before you even look at the machine screen, you must execute the "Pre-Flight Prep." In my 20 years of diagnostics, 80% of embroidery failures happen at the cutting table, not the needle.

Assemble the template holders (The Tactile Check)

1. Attach: Snap the two purple template holders to the sides of the embroidery template grid.
2. Check: Make sure the Bernina logo is clearly readable (facing up).
3. Seat: Place the template into the inner hoop.
4. Listen: You should hear or feel a distinct "click" as the holders sit in the groove of the inner hoop. If it wobbles, it’s wrong.

That “logo readable” rule sounds trivial, but it is a classic point of failure. If you flip the template, your visual center alignment will be inverted, and you will chase alignment errors for hours thinking the machine is broken.

Prep Checklist (Do this BEFORE you hoop)

• Size Check: Is the project tubular and > 80 cm circumference?
• Visual Audit: Inner hoop, outer hoop, template, and holders are present.
• Seating Check: Template snaps into the inner hoop groove securely.
• Consumable Check: Bobbin is wound (use 60wt bobbin thread for better tension) and top thread is selected.
• Stabilizer Selection: (See decision tree below).

A Note on "The Pro's Kit" (Hidden Consumables):
Beginners often miss items that aren't in the box. For tubular work, always have:
* Temporary Spray Adhesive (e.g., 505): Essential for keeping stabilizer stuck to the bag when you slide it on the arm.
* Water Soluble Pen: For marking center lines on the fabric.
* Painter's Tape: To tape back handles or straps so they don't get sewn into the design.

Stabilizer Decision Tree (The "Why" Behind the Choice)

Stabilizer is not just paper; it is the foundation of your building. A tote bag might look stiff, but once the needle perforates it 10,000 times, it loses structural integrity.

If you find yourself struggling to keep the stabilizer centered while wrestling a bag, equipment like hooping stations can act as a third hand, ensuring the stabilizer and fabric layers remain perfectly aligned before the hoop is applied.

The one-time calibration that makes Hoop L FA behave: Bernina Setup → Embroidery Settings → Calibrate

The video is very clear: before using the hoop for the first time, you must calibrate it. This is not a suggestion. Calibration tells the machine the exact X/Y coordinates of the needle relative to the hoop's physical center. Without this, you risk "hoop strikes"—where the needle slams into the plastic frame at 800 stitches per minute.

Calibrate the hoop (The Safety Sequence)

1. On the machine, navigate to Setup (The gear icon).
2. Select Embroidery Settings.
3. Choose Calibrate Embroidery Hoop.
4. Attach the hoop with the grid template loaded.
5. The Sensory Step: Using the handwheel only, slowly lower the needle.
   • Visual: Watch the needle tip approach the template crosshair.
   • Tactile: Feel for any resistance.
6. If the needle does not land in the exact center of the crosshair:
   • Delete the current calibration.
   • Use the on-screen arrows to nudge the needle position until it is dead center.
7. Press OK to save.


Why use the handwheel? Because if your calibration is wildly off, cranking the handwheel allows you to stop before the needle fractures against the plastic template.

Warning (Mechanical Safety): Keep fingers clear of the needle area during calibration. Never use the "Needle Down" button for the first check—always use the handwheel. A powered needle strike can shatter the needle (risk of eye injury) and damage the expensive hoop mechanism.

If you run a production shop, precise calibration is the baseline. This is also where high-volume users begin to look at alternatives like the bernina magnetic embroidery hoop, as magnetic systems often have strictly defined dimensions that maintain calibration stability over thousands of hoopings.

Opening the twist lock without fighting it: the two-button release that saves your hands

To open the Large Freearm Hoop, there is a specific mechanical interaction required:

1. Press the two release buttons on the gray twist lock simultaneously.
2. While holding them, the tension releases, allowing the inner ring to separate.


Expert Insight: This mechanism often feels stiff on a brand new hoop. Do not pry it with a screwdriver. Do not force it. It requires a firm, even pinch. This stiffness is intentional—it ensures the hoop maintains hoop tension (the tightness of the fabric) during high-speed stitching.

Hooping a tubular tote bag on Hoop L FA: the inside-out method that actually works

This is the "Crux" of the procedure. Hooping a closed item requires you to think in 3D.

The Hooping Sequence

1. Placement: Slide the white outer hoop inside the bag. (Yes, inside).
2. Sandwich: Place your stabilizer between the outer hoop and the wrong side of the fabric (inside the bag).
3. Align: Place the black inner hoop (with the template) on the outside (top) of the fabric.
4. The 7cm Rule: On closed seams (like the bottom of a tote), measure the distance between the left inside edge of the hoop and the left fabric edge. It must be at least 7 cm.




Why the 7 cm rule matters (The Physics of Drag)

The 7 cm buffer isn't about design aesthetics; it's about machine clearance. The free arm of the machine needs space to move left and right. If you hoop too close to a bulky seam, that seam will hit the side of the machine arm or the bed.

• The Result: The movement is blocked -> The motor strains -> The fabric doesn't move -> Registration loss (gaps in your design).

Sensory Check: The "Drum Skin"

Pull the fabric taut, but do not stretch it.

• Bad: Fabric looks distorted, weave lines are curved (this creates "puckering" when released).
• Good: Fabric is flat, smooth, and yields slightly when tapped, like a low-tuned drum.

Locking the hoop: Listen for the click

1. Turn the twist lock clockwise.
2. Success Metric: You must hear a distinct click. If you don't hear the click, the ratcheting mechanism hasn't engaged the lock.


If you simply cannot get the hoop to close, your fabric may be too thick. This is a common limitation of mechanical hoops. If you regularly embroider thick Carhartt jackets or heavy canvas, a hooping station for machine embroidery combined with clamps is helpful, but often a magnetic hoop is the only tool that can accommodate that thickness without damaging the hoop screw.

The Bernina screen setting that prevents frame strikes: selecting “Hoop L FA” every time

The hardware is ready. Now you must tell the software what is happening.

1. Open your design.
2. Check: Ensure the design isn't a "Crystal Work" file (these are incompatible).
3. Tap the Hoop Icon on the screen.
4. Select Hoop L FA.
5. Watch the screen redraw the "safe area."


If you fail to select Hoop L FA, the machine thinks it has a standard hoop attached. It might try to move the arm to a coordinate that is impossible for the Freearm setup, leading to a motor stall or a collision.

Transition Note: For users familiar with the bernina snap hoop systems, this digital selection step is familiar. Always match the digital reality to the physical reality.

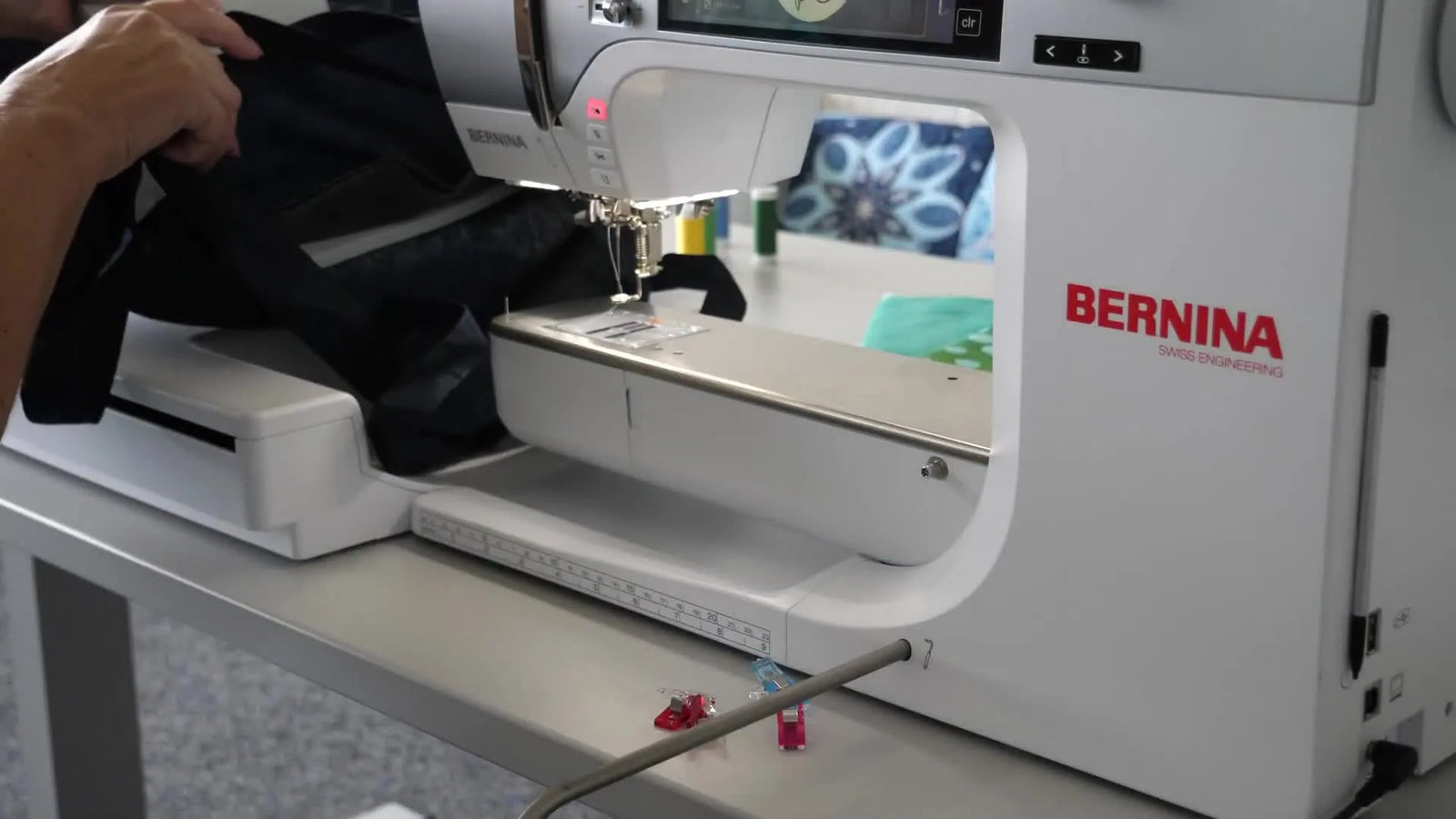

Mounting the hooped bag on the free arm: the “nothing under the needle plate” rule

This is the moment of truth.

1. Drape: Slide the bag opening over the free arm.
2. Connect: Snap the hoop connector onto the embroidery module arm.
3. Confirm: Press OK on the screen (the machine will move to center).
4. Remove: Take the template grid OUT. (Do not forget this!).
5. The "Under-Hoop" Sweep: Run your hand under the hoop. Ensure no part of the bag is folded under the needle plate.




Operation Checklist (The "Pre-Flight" Check)

• Hoop Selection: Screen says "Hoop L FA".
• Template: Removed and set aside.
• Clearance: Hand-sweep under the hoop confirms flat fabric; no folds.
• Obstruction: Bag handles, straps, and zippers are taped or pinned away from the needle path.
• Speed: Reduce machine speed. For tubular items, I recommend starting at 600 SPM (Stitches Per Minute). The extra drag of the bag means high speeds (1000+) increase the risk of thread breaks.

Warning (Safety): Secure all handles and straps! If a tote bag handle catches on the presser foot bar while the machine is moving, it can rip the hoop off the module or bend the needle bar. Use painter's tape to secure them to the outside of the hoop.

For those running high volume, a totally tubular hooping station approach helps standardize this mounting process, ensuring the bag hangs correctly every time.

Two common “why is this happening?” moments: calibration drift and 8 Series bobbin access

Problem 1: Needle not centered during calibration

• Symptom: You are calibrating, and the needle is 2mm to the left of the crosshair.
• Cause: Mechanical settling or "User Drift" (accidentally bumping the arm).
• Fix: Do not manually move the fabric to compensate. Use the touchscreen arrows in the Calibration menu to electronically align the needle. Trust the software.

Problem 2: Cannot open bobbin door (Bernina 8 Series)

• Symptom: You run out of bobbin thread, but the hoop blocks the door.
• Fix: You must remove the hoop to change the bobbin on these models when using Hoop L FA.
• Pro-Tip: Start every tubular project with a fresh, full bobbin. It saves you the annoyance of un-hooping mid-design.

The “why” behind cleaner stitches: tension, stabilization, and sound

The video shows how to mount, but as an expert, I want you to understand why stitches sometimes look bad on tubes.

1. The Sound of Drag

When embroidering flat fabric, the machine hums. When embroidering a heavy bag, listen for a rhythmic "thump-thump." This is the sound of the X/Y motors working harder to drag the weight of the bag.

• Remedy: Support the weight of the bag. Do not let it hang heavily off the arm. Hold it gently (without restricting movement) or use a table extension.

2. Tension "Teeth Flossing"

Tubular stitching requires perfect thread tension. Before you start, pull your top thread. It should feel smooth but firm, like pulling dental floss between tight teeth. If it's loose, your top thread will loop. If it's tight like a guitar string, it will snap due to the added drag of the bag.

Warning (Magnet Safety): If you decide to upgrade to how to use magnetic embroidery hoop systems to solve hooping fatigue, be aware these magnets are industrial strength. They can pinch fingers severely. Users with pacemakers should maintain a safe distance (usually 6 inches/15cm) from the magnetic brackets.

The upgrade path: When to stop fighting the hoop

If you are embroidering one tote bag for a gift, the Hoop L FA is a perfect tool. However, if you are attempting to fulfil an order for 50 bags, you will quickly encounter the "Pain Barrier."

Symptoms that you have outgrown the basic mechanical hoop:

1. Hoop Burn: You are spending 10 minutes steaming "rings" out of delicate fabrics.
2. Inconsistency: Bag #1 looks great, but Bag #10 is crooked because your hands are tired.
3. Physical Pain: Your wrists hurt from the twisting motion of the lock.

The Solution Hierarchy (The "Business Pivot"):

• Level 1 (Technique): Use better consumables. High-quality stabilizer and temporary spray reduce the need for "death-grip" hoop tightness.
• Level 2 (Tooling): Switch to a magnetic embroidery hoop.
  • Benefit: No "hoop burn" because it clamps flat, not inside-out.
  • Speed: Hooping takes 5 seconds, not 60 seconds.
  • Safety: No twisting action required.
  • SEWTECH Solution: Our magnetic frames for single-needle machines offer this ergonomic relief.
• Level 3 (Capacity): If you are doing continuous color changes on tubes, a single-needle machine is the bottleneck.
  • Benefit: 15 needles mean no re-threading stops.
  • Clearance: Multi-needle machines (like the SEWTECH line) have purely tubular arms with 360-degree clearance, making bag embroidery significantly easier than on a flatbed hybrid machine.


Final result check: what “good” looks like

The video ends with a pristine tote bag. Yours should look the same. Before you unclasp:

1. Flatness: Are there ripples around the design? (If yes -> Need more stabilizer next time).
2. Registration: Are the outlines lined up with the fill? (If no -> Bag dragged on the arm; check 7cm clearance).
3. Integrity: Check the inside. Did you sew the pocket shut? (Happens to the best of us).

By strictly following the Calibration -> Clearance -> Pre-Flight Check protocol, you transform the Hoop L FA from a terrifying accessory into a reliable profit-generator for your studio.

FAQ

• Q: What tubular circumference is required to use the Bernina Large Freearm Embroidery Hoop (Hoop L FA) without binding on the free arm?
  A: Use the Bernina Hoop L FA only on closed tubular items with a circumference greater than 80 cm, or the item can bind and ruin alignment.
  • Measure: Wrap a tape measure around the tube (T-shirt body, tote opening, pant leg area) before hooping.
  • Stop: Do not force a smaller tube onto the free arm; friction can cause registration loss.
  • Success check: The project slides over the free arm smoothly without “dragging” or catching.
  • If it still fails: Switch to a different hooping method or a project setup that does not require sliding the tube over the free arm.
• Q: What “hidden consumables” should be ready before hooping a tubular tote bag with the Bernina Large Freearm Embroidery Hoop (Hoop L FA)?
  A: Prep the small tools first—most tubular failures start at the cutting table, not at the needle.
  • Spray: Use temporary spray adhesive (e.g., 505) to keep stabilizer from shifting while sliding the item onto the arm.
  • Mark: Use a water-soluble pen to mark center lines for fast alignment.
  • Secure: Use painter’s tape to hold back handles/straps so they cannot get stitched into the design.
  • Success check: Stabilizer stays centered and handles/straps are visibly taped away from the needle path before stitching starts.
  • If it still fails: Re-do the pre-flight checklist and re-check that the template holders are seated correctly in the inner hoop groove.
• Q: How do you calibrate the Bernina Large Freearm Embroidery Hoop (Hoop L FA) the first time to prevent needle-to-hoop strikes?
  A: Calibrate Hoop L FA one time in the Bernina Embroidery Settings menu, and use the handwheel for the first needle-down check for safety.
  • Navigate: Setup (gear icon) → Embroidery Settings → Calibrate Embroidery Hoop.
  • Attach: Mount Hoop L FA with the grid template installed.
  • Lower: Turn the handwheel slowly to bring the needle down toward the template crosshair, then use on-screen arrows to center precisely and press OK to save.
  • Success check: The needle lands exactly in the center of the template crosshair with no resistance felt while handwheeling.
  • If it still fails: Delete the current calibration and repeat—do not shift fabric to “fake” alignment.
• Q: How can you tell the Bernina Hoop L FA fabric tension is correct when hooping tubular items (so puckering and distortion are minimized)?
  A: Hoop the fabric “drum-skin taut” (flat and smooth) without stretching, especially on knits and thin cotton.
  • Smooth: Pull fabric taut until wrinkles disappear, then stop before weave lines curve or the knit looks stretched.
  • Stabilize: Match stabilizer to fabric (mesh cut-away for thin cotton/knits; cut-away + topper for textured fabrics; medium tear-away may work for stiff canvas).
  • Start: Reduce speed to a safe starting point of 600 SPM for tubular drag.
  • Success check: Fabric taps like a low-tuned drum and the surface stays flat (no visible distortion) when released.
  • If it still fails: Increase stabilization (e.g., move from tear-away to cut-away on unstable fabrics) and support the project weight so it doesn’t “pull” during stitching.
• Q: Why must the Bernina embroidery screen hoop selection be set to “Hoop L FA” every time when using the Large Freearm Embroidery Hoop?
  A: Always select “Hoop L FA” on the Bernina screen so the machine uses the correct safe area and movement limits for the freearm setup.
  • Open: Load the design and confirm it is not a Crystal Work file (incompatible).
  • Select: Tap the hoop icon and choose “Hoop L FA.”
  • Verify: Confirm the screen redraws the safe area for Hoop L FA before pressing OK.
  • Success check: The screen shows “Hoop L FA,” and the machine centers without trying to move into an impossible position.
  • If it still fails: Stop immediately and re-check physical mounting plus digital hoop selection before restarting.
• Q: What does the “7 cm rule” mean on a Bernina Hoop L FA tubular tote bag setup, and what happens if the design is hooped too close to a bulky seam?
  A: Keep at least 7 cm between the left inside edge of the Hoop L FA and the left fabric edge on closed seams, or the seam can block movement and cause registration loss.
  • Measure: Check the 7 cm clearance before locking the hoop.
  • Avoid: Do not hoop right against thick bottom seams or bulky edges that can strike the machine bed/free arm.
  • Listen: Watch for motor strain or “blocked movement” behavior if clearance is too tight.
  • Success check: The hooped area moves freely with no seam rubbing the machine, and outlines align cleanly with fills.
  • If it still fails: Re-hoop farther from the seam and support the bag weight to reduce drag during stitching.
• Q: What are the key safety steps when mounting a hooped tubular bag on the Bernina free arm with Hoop L FA, and what can go wrong with loose tote handles?
  A: Treat mounting like a safety check—remove the template, sweep under the hoop, and secure handles/straps so nothing can snag and rip the hoop.
  • Remove: Take the template grid out after the hoop is mounted and centered.
  • Sweep: Run a hand under the hoop to confirm nothing is folded under the needle plate.
  • Tape: Secure handles/straps/zippers away from the needle path using painter’s tape.
  • Success check: Nothing is under the hoop area, and no strap can reach the presser-foot/needle-bar area during motion.
  • If it still fails: Stop the machine immediately and re-mount—snagging can pull the hoop off the module or bend/break needles.
