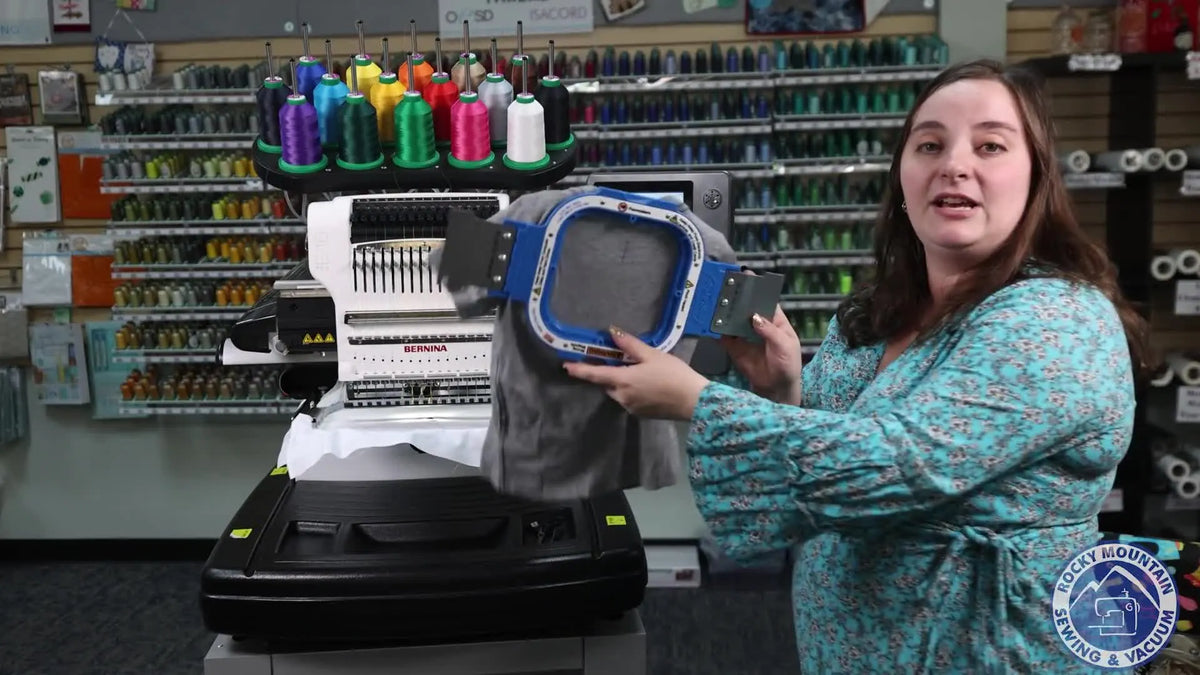

Bernina E16 Pro in the Real World: Magnetic Embroidery Hoops, Laser Placement, and a 1,400 SPM Reality Check

If the sound of a multi-needle machine running at 1,000+ stitches per minute (SPM) sounds less like productivity and more like a jackhammer to you, you aren't alone. High-speed embroidery is visually mesmerizing, but for the operator, it implies a terrifying question: “If this goes wrong, can I stop it before it destroys the garment?”

The Bernina E16 Pro demonstration serves as our case study here, but the principles discussed apply to any migration from a domestic single-needle machine to a professional multi-needle setup, such as the SEWTECH high-production series. The video highlights critical pressure points: placement recovery, trimming access, and hoop behavior under stress.

This guide will deconstruct these features not just as "specs," but as vital workflow safeguards. We will move beyond the marketing numbers to the sensory reality of running a shop floor, ensuring you have the confidence to transition from hobbyist to professional.

The Production Mindset: Control Centers vs. "Just Stitching"

The headline feature of machines like the 16 needle embroidery machine isn't just the needle count; it’s the shift in operator philosophy. The video showcases a 10.1" touchscreen and a heavy-duty stand. To a beginner, these look like luxuries. To a pro, they are fatigue management tools.

When you are six hours into a production run, mistakes happen because you are tired. Having controls at the front of the machine and a laser alignment system isn't about being fancy; it's about reducing the cognitive load required to center a design.

The Stability Factor: Note the stand. Vibration is the enemy of stitch quality. If your machine is on a flimsy folding table, high speeds will cause "micro-walking," leading to registration errors (where outlines don't line up with the fill).

• Sensory Check: Place your hand on the table while the machine runs at 800 SPM. You should feel a hum, not a rattle. If keys are jingling, your platform is too unstable.


The Acti-Feed Ritual: Calibrating Your "Finger Feel"

The video demonstrates Bernina’s Acti-feed system, emphasizing a specific motion: disengage and re-engage the tension.

In the world of embroidery, thread tension is not a "set it and forget it" variable; it is a physical relationship between the thread, the bobbin, and the fabric. Domestic users are used to auto-tension. On professional machines, you must develop a tactile standard.

The Pro Routine:

1. The Floss Test: When pulling thread through the needle eye (presser foot up), it should not pull freely, nor should it bend the needle. It should feel like pulling dental floss between two teeth—smooth, consistent resistance.
2. The Click: When seating the bobbin casing, you must hear a distinct, sharp click. No click means the bobbin will rattle loose at 1,000 SPM, causing the dreaded "bird's nest" of thread underneath the throat plate.

Why this matters: A 16-needle head doesn't just "stitch poorly" when mis-threaded; it breaks thread aggressively. Building a consistent manual threading habit is your first line of defense against downtime.

The "Hidden" Prep: Stabilizers, Consumables, and the Pre-Flight Check

Before you hit the green button, the battle is already won or lost at the prep station. The demo shows cotton stitching on a layer of stabilizer.

Beyond the Video - The Hidden Consumables: New operators often miss the invisible tools that make production possible.

• Temporary Spray Adhesive (Spray Baste): Crucial for "floating" precut fabrics or keeping stabilizer adhered to the garment without hoop burn.
• Water-Soluble Pens/Air-Erase Pens: For marking placement grids on the physical garment.
• 75/11 Ballpoint Needles: The standard workhorse for knits; using sharps on t-shirts creates holes.

Prep Checklist (The "Save Your Sanity" Protocol)

Perform this before the hoop touches the machine.

• Lint Check: Is the bobbin area clear of lint? (Use a brush, never canned air which blows dust into the gears).
• Needle Integrity: Run your fingernail down the needle tip. If it catches, the needle is burred—change it immediately. A burred needle shreds fresh thread.
• Stabilizer Match: Do you have the right backing? (See Decision Tree below).
• Tool Clearance: Are scissors, grippers, or spare bobbins removed from the machine bed?
• Safety Zone: Are your fingers clear of the needle bar path?

Warning: Projectiles Hazard. Never leave snips or metal tools on the throat plate or near the hoop arms. At high speeds, a moving hoop can strike these tools, turning them into projectiles or shattering the needle bar mechanism.

The "Park & Trim" Strategy: Solving the Appliqué Nightmare

The video highlights a critical feature: the ability to move the hoop forward for trimming without losing registration.

In applique work, you must trim flush to the tack-down stitch. If you remove the hoop to do this, you will never get it back in the exact same microscopic spot. The result is a "double line" or a gap in the satin stitch finishing.

The Workflow:

1. Machine stitches placement line.
2. Operator places fabric.
3. Machine stitches tack-down.
4. The Critical Step: The machine moves the hoop toward the operator (park position).
5. Trim the excess fabric.
6. Machine returns hoop to exact X/Y coordinates to finish the satin stitch.

This feature, found on high-end machines, translates to profit because it eliminates the risk of ruining a garment during the mid-production trim phase.

Optical Verification: The Laser Dot as Your Anchor

The built-in laser pointer is described as a tool for when "disaster strikes." This is accurate. Thread breaks, power surges, or running out of bobbin thread can leave you stranded in the middle of a design.

How to Recover: Instead of guessing where the needle will drop (visually estimating from the presser foot center), the laser shows the exact penetration point.

• Usage: Align the laser dot with the last completed stitch hole. Step back one or two stitches in the software to ensure an overlap (locking stitch), then resume.

Pro Tip: On lofty fabrics like fleece, the laser dot may distort over the texture. Press the fabric flat with your finger momentarily to check the true center.

The Infrastructure: Why the Stand and Hoops Matter

The video notes the included wheeled stand and the variety of hoops, including the large 15" x 16" frame.

The Logistics of Flow: A wheeled stand allows you to pull the machine away from the wall for maintenance (oiling, cleaning the rotary hook) without back strain. It also allows you to configure a "U-shaped" workspace: Hooping Station → Machine → Trimming/Folding Table.

The Magnetic Revolution: Solving "Hoop Burn" and Wrist Fatigue

The demonstration of magnetic embroidery hoops (or similar magnetic systems) is the most significant workflow upgrade shown.

The Problem with Standard Hoops: Standard "inner and outer ring" hoops work by friction. You must force the fabric between two plastic rings and tighten a screw.

• Risk 1: "Hoop Burn" (permanent shiny rings on delicate dark fabrics or crushed velvet).
• Risk 2: Repetitive Strain Injury (RSI) in your wrists from tightening screws hundreds of times a week.
• Risk 3: Uneven tension (puckering).

The Magnetic Solution: magnetic embroidery hoops use powerful attraction to clamp the fabric flat. There is no friction dragging the fabric fibers, and no screw tightening.

• Tactile Check: The fabric should sound like a drum skin when tapped gently, but without the "stretched" look of warped weave.

For users upgrading their toolkit, getting a bernina magnetic embroidery hoop or a universal magnetic frame for your SEWTECH machine is often the highest ROI investment you can make after the machine itself. It transforms hooping from a 2-minute struggle to a 10-second snap.

Warning: Pinch Hazard. Magnetic hoops produce substantial force (often 10+ lbs). Keep fingers clear of the contact zone when snapping them together. Operators with pacemakers should consult their physician before handling high-gauss magnetic frames.

Smart Setup: The Decision Tree

Stop guessing which stabilizer to use. Use this logic flow to maintain quality.

Decision Tree: Fabric → Stabilizer & Hoop Strategy

1. Is the fabric a Knit (T-shirt, Polo, Jersey)?
   • Yes: It stretches. You MUST use Cutaway Stabilizer. Tearaway will result in the design distorting after the first wash.
     • Hoop: Magnetic is best to avoid "stretching" the knit during hooping.
   • No: Go to #2.
2. Is the fabric unstable/lofty (Fleece, Puffy Jacket)?
   • Yes: It has depth. Use Cutaway for structure + Water Soluble Topping (Solvy) on top to prevent stitches from sinking into the pile.
   • No: Go to #3.
3. Is the fabric a stable Woven (Denim, Canvas, Twill)?
   • Yes: Use Tearaway Stabilizer. It is faster to clean up and the fabric supports itself.
     • Hoop: Standard hoops work fine here.

Setup Checklist (Ready to Load)

• Marking: Is the center point marked with a crosshair (removable ink)?
• Orientation: Is the design rotated correctly on the screen? (Don't embroider a shirt upside down!)
• Trace: Have you run a "Trace" or "Contour" check? (Watch the laser outline the design box to ensure the needle won't hit the hoop frame).


Production Scaling: The "One Stitching, One Hooping" Rule

The video mentions the machine comes with two hat frames. This highlights a critical production metric: Machine Uptime.

If you only have one hoop, the machine sits idle while you load the next hat. That is 2-3 minutes of dead time per cycle. With two frames (or a cap hoop for embroidery machine station), you load "Hoop B" while the machine stitches "Hoop A."

The Commercial Loop: When you start taking orders for 50 caps, single-needle machines fail because of this downtime. This is usually the trigger point where businesses upgrade to multi-needle systems (like the SEWTECH commercial line) that support rapid-change cap drivers.

The Z-Axis: Acti-Feed and Material Thickness

The presenter adjusts the "Material Thickness" slider. This controls how high the presser foot hovers.

• Standard Cotton: Setting 0-2. Foot holds fabric firmly.
• Puffy Jacket/Structured Cap: Setting 4-8 (or higher).
  • Why? If the foot presses too hard on a puffy jacket, it leaves a permanent impression and pushes a "wave" of fabric in front of the needle, causing registration errors.

Sensory Signal: If you hear a loud "slapping" sound against the fabric, your presser foot is too low. Raise it until the foot just barely kisses the fabric surface during the stitch.

Understanding Speed: 1,400 SPM is for Pros (Not Day 1)

The machine accelerates to 1,400 SPM. It is impressive, but speed magnifies errors.

The Beginner Safety Zone:

• Start at 600-800 SPM.
• At this speed, you can visually track the needle. You can hear if the thread is fraying before it breaks.
• High speeds (1200+) generate heat. On synthetic threads (polyester/rayon), excessive heat can melt the thread or using the wrong needle can cause "needle gumming" from adhesives.

Use hooping station for machine embroidery tools to ensure your hooping is perfect. If the fabric is loose, 1,400 SPM will cause puckering that cannot be ironed out. Speed is earned through perfect prep.

Troubleshooting Protocol: A Structured Approach

Don't panic. Follow the hierarchy of repair (Cheapest/Fastest -> Most Expensive/Slowest).

The Upgrade Path: Solving Bottlenecks

You are reading this because you want to produce more, faster, and with better quality.

• Level 1: Stability Upgrade. If you struggle with puckering or hoop burn, upgrade to Magnetic Frames and high-quality Cutaway Stabilizers. This solves 80% of quality issues on domestic machines.
• Level 2: Efficiency Upgrade. If you are spending more time re-threading colors than sewing, or if hats are a nightmare to hoop, this is the trigger to move to a multi-needle platform.

Whether you are looking for magnetic frames for embroidery machine options to boost your current setup, or exploring the capacity of SEWTECH multi-needle machines, the goal is the same: consistently repeatable results.

Operation Checklist: The Final Safeguard

Perform this for every single run.

1. Hoop Lock: Is the hoop arm clicked/locked into the driver? (Give it a gentle wiggle).
2. Tail Clearance: Are loose thread tails trimmed or tucked away so they don't get sewn over?
3. Trace: Run the trace function (Visual Check).
4. Speed Set: Set speed to a safe level for the specific fabric (e.g., 800 SPM for metallic thread).
5. Scan: Scan the table for rogue scissors.
6. GO: Press start and watch the first 100 stitches. Most failures happen immediately.

By adopting these habits, you move from "hoping it works" to "knowing it will work." That is the difference between an operator and a professional.

FAQ

• Q: On a Bernina E16 Pro multi-needle embroidery machine, how can an operator confirm correct top thread tension during manual threading (Acti-Feed routine)?
  A: Re-thread with the presser foot up and use the “dental floss” resistance as the baseline before sewing at speed.
  • Disengage and re-engage the tension exactly as part of the Acti-Feed threading motion.
  • Pull the thread through the needle eye with the presser foot up and aim for smooth, consistent resistance (not free-sliding, not so tight it bends the needle).
  • Sew a short test at a reduced speed first (a safe starting point is 600–800 SPM) before running faster.
  • Success check: The pull feels like dental floss between teeth—steady resistance with no jerky sticking.
  • If it still fails: Re-thread the entire path again and replace the needle before changing any tension settings.
• Q: On a Bernina E16 Pro embroidery machine, what does the correct bobbin case “click” mean, and how does it prevent bird’s nest tangles at 1,000+ SPM?
  A: Seat the bobbin case until a distinct sharp click is heard; no click often leads to a loose bobbin and thread tangles under the throat plate.
  • Remove the bobbin case and reinstall it slowly until the click is clear and unmistakable.
  • Clean lint from the bobbin area using a brush (avoid canned air that can push debris into the machine).
  • Start stitching at a moderate speed first, then increase only after stable formation.
  • Success check: A sharp click is heard during seating, and the bobbin case feels secure (no rattle/looseness).
  • If it still fails: Stop immediately, re-thread the top thread (ensure it is in the uptake lever path) and re-check bobbin seating again.
• Q: Before running a Bernina E16 Pro at high speed, what is the fastest “pre-flight check” to prevent needle shredding, lint jams, and tool projectiles?
  A: Run a quick consumables-and-safety sweep before hooping; most high-speed failures start from a missed prep step.
  • Brush-clean the bobbin area for lint (do not use canned air).
  • Inspect the needle by running a fingernail down the tip and replace it immediately if it catches (a burred needle shreds thread).
  • Remove all loose tools (snips, scissors, spare bobbins) from the machine bed/throat plate area.
  • Success check: The machine bed is clear and the needle tip feels smooth with no snag.
  • If it still fails: Reduce speed and re-check threading and bobbin seating before troubleshooting deeper.
• Q: When embroidering knit T-shirts on a Bernina E16 Pro, how should cutaway stabilizer and hoop choice prevent design distortion after washing?
  A: Use cutaway stabilizer for knits and avoid stretching the garment during hooping; magnetic hoops are often the easiest way to clamp knits flat.
  • Choose cutaway stabilizer (tearaway commonly leads to distortion on knits after the first wash).
  • Hoop without over-stretching the knit; aim for flat support rather than “pulled tight.”
  • Mark a center crosshair and run a trace/contour check before stitching.
  • Success check: The hooped knit lies flat and even, and tapping the hooped area gives a drum-like sound without a warped, stretched look.
  • If it still fails: Re-check hoop tension and confirm the stabilizer choice matches “knit = cutaway.”
• Q: On a Bernina E16 Pro, how does the “Park & Trim” hoop-forward function prevent appliqué outline gaps and double lines after trimming?
  A: Use the machine’s park position to trim without removing the hoop so the machine can return to the exact X/Y coordinates for the satin finish.
  • Stitch the placement line, place appliqué fabric, then stitch the tack-down line.
  • Activate the hoop-forward/park position and trim the fabric flush to the tack-down stitch.
  • Resume stitching so the machine returns to the same registration point for the satin stitch border.
  • Success check: The satin border lands cleanly over the tack-down with no visible double outline or gaps.
  • If it still fails: Confirm the hoop was not removed during trimming and re-run a trace/contour check to verify clearance.
• Q: What safety rules should operators follow when using magnetic embroidery hoops to prevent finger pinch injuries and avoid high-gauss risks?
  A: Keep fingers out of the contact zone when snapping magnetic hoops together and treat the magnets as a high-force clamp.
  • Position fabric first, then lower the magnetic ring/frame straight down—do not “slide” fingers under the closing edge.
  • Pause and reset if alignment is off; do not fight the magnets while they are half-engaged.
  • Follow medical guidance if the operator has a pacemaker before handling high-gauss magnetic frames.
  • Success check: The hoop closes with controlled contact and no sudden snap onto fingers; fabric is clamped flat.
  • If it still fails: Switch to a slower, two-hand placement routine and keep hands on the outside edges only.
• Q: If a shop keeps getting puckering, hoop burn, and excessive downtime on high-speed embroidery runs, what is a practical upgrade path from technique fixes to magnetic hoops to a multi-needle system?
  A: Fix stability and prep first, then upgrade hooping tools, and only then scale the machine platform when uptime becomes the bottleneck.
  • Level 1 (Technique): Stabilize the machine stand (no rattling/micro-walking) and follow the pre-flight checklist; start runs at 600–800 SPM until results are repeatable.
  • Level 2 (Tooling): Use magnetic hoops/frames to reduce hoop burn, reduce wrist strain, and improve consistent fabric clamping (especially on knits).
  • Level 3 (Production): Move to a multi-needle production workflow when the machine is idle due to hooping/color-change inefficiency (use “one stitching, one hooping” with multiple frames).
  • Success check: The machine spends more time stitching than waiting, and registration/puckering issues drop without constant rework.
  • If it still fails: Audit the top three time-wasters (re-threading, hooping time, registration re-dos) and address them in that order before buying more speed.
