Bernina B790 Pro Unboxing, Set Up, and the “Don’t-Panic” Checks That Save Your First Stitch-Out

Unboxing a premium machine like the Bernina B790 Pro isn’t just about opening a box; it is a commissioning procedure. You haven't just purchased a sewing machine; you have acquired a high-precision workstation that bridges the gap between domestic hobby loops and industrial-grade production.

I’ve commissioned thousands of machines for novices, boutique owners, and production floors. The data is consistent: the first 30 minutes determine your first 30 days. A rushed setup leads to "mystery thread breaks" and frustration, while a methodical setup builds a safety buffer into your workflow.

Below is a field-tested, "do-this-next" protocols walkthrough. I have optimized this guide to include the sensory checks—what you should feel and hear—that videos often miss, along with critical hardware upgrades that protect your investment.

Take a Breath: The Bernina B790 Pro Unboxing Is Designed in Layers (and That’s a Good Thing)

The packaging engineering on the B790 Pro is deliberate. It uses a "layered defense" strategy, allowing you to strip away accessories without exposing the machine’s core mechanics until you are physically ready to lift.

In the upper Styrofoam strata, you will encounter the peripheral ecosystem:

• The Slide-on Extension Table (crucial for large embroidery drag reduction).
• The Free Hand System (Knee Lifter).
• The Accessory Storage Case (colloquially known as the “Barbie Box”).
• The Bernina Stitch Regulator (BSR).
• Power topology (Cords) and documentation.


The “Hidden” Prep Most New Owners Skip (but Pros Never Do)

Before you cut a single piece of tape, we need to talk about workspace discipline. In a production environment, we never open a machine until the "Landing Zone" is prepped. Small parts like set screws have a habit of vanishing into carpet fibers, never to be seen again.

Hidden Consumables You Need Now:

• A small magnetic bowl (for stray screws).
• A dedicated trash bin (for the mountain of foam/plastic).
• A "Do Not Touch" zone: Clear a 3x3 foot area strictly for the machine.

Prep Checklist (Pre-Lift Protocol):

• Clear a flat, waist-high surface. Do not unbox on the floor; your lower back and the machine’s alignment will thank you.
• Locate the "Up" arrows on the box. Gravity is not your friend if you open the bottom.
• Identify the accessory box and move it to your table.
• Visual Check: Ensure your path from the box to the table is tripping-hazard free. The B790 Pro is heavy machinery.

The Bottom-of-the-Box Trap: Find the Buttonhole Foot #3A Before You Throw Anything Away

This is the single most expensive trash-can mistake new owners make. The Buttonhole Foot with Slide #3A—a sensor-driven component vital for automated buttonholes—is not in the accessory box. It is isolated in a structural recess at the very bottom of the shipping carton.

Execute this extraction exactly:

1. Remove the top foam layers and the machine itself.
2. Look Down: Stare into the empty white abyss of the bottom Styrofoam.
3. Tactile Search: Reach into the molded recess. You are looking for a small plastic bag.
4. Secure It: Place the #3A foot immediately into the "Barbie Box."

Success Metric: You physically see the silver sensor on the side of the #3A foot in your storage tray before you flatten the box for recycling.

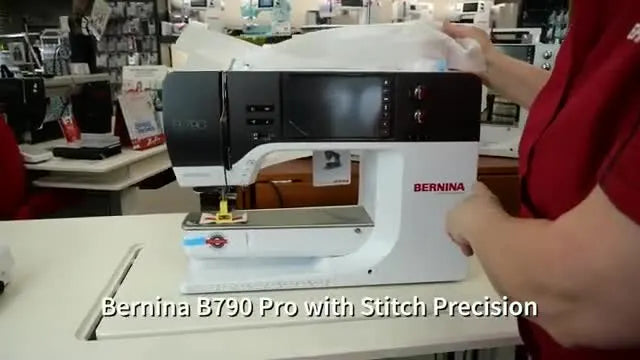

The “Machine Reveal” Moment: Satin Matte Faceplate and What It Signals About Handling

As you peel back the dust cover, you will notice the B790 Pro’s signature satin matte finish.

This is an engineering choice, not just an aesthetic one. Matte finishes reduce glare under bright LED task lighting, which reduces eye strain during long production runs. However, matte surfaces hold oil from your hands differently than glossy plastic. Treat this like handling a camera lens—touch the structural frame, not the display panels.

Warning: Lifting Hazard. When lifting the machine, place one hand under the carrying handle and the other supporting the base at the back. NEVER lift by the sewing head or the needle bar area. Doing so can misalign the needle bar shaft, requiring a technician recalibration before you sew your first stitch.

The One Shipping Part You Must Remove: The Yellow Needle Bar Brace (No Exceptions)

This is a Critical Failure Point. The video shows a yellow plastic brace clamped onto the needle bar. This is a "hard stop" designed to prevent the needle bar from vibrating during transit.

Removal Protocol:

1. Identify the bright yellow component near the needle clamp.
2. The Sensory Check: Apply a gentle upward pressure. You should feel a slight "give."
3. Pull it outward (towards you). It should disengage with a dull plastic clack.
4. Discard or Archive: Put this in your "box parts" bag. Do not leave it on the table.


Why this matters (The Physics)

If you power on the machine with this brace attached, the stepper motors will attempt to initialize the needle position. They will hit an immovable object (the brace). This creates a torque spike that can strip internal gears or burn out a sensor. It is a catastrophic error that takes seconds to prevent.

First Power-On on the Bernina B790 Pro: The Slow Boot Is Normal, and Language Selection Comes First

The B790 Pro is not a mechanical sewing machine; it is a computer with a needle. Unlike your grandmother’s mechanical unit that started instantly, this machine runs a complex Operating System (OS).

When you flip the switch, there will be a pause. Do not panic. Do not flip the switch off and on again.

The Boot Sequence:

1. Flip the power switch.
2. Wait: Count to 15 slowly. The screen will illuminate.
3. Language Protocol: The absolute first input required is Language Selection. Select English (or your native language).


The Peel: Remove the protective film from the touchscreen. Leaving it on reduces touch sensitivity and clarity.

Expected Outcome: The screen displays the Bernina "Dashboard" (Stitch width/length, tension metrics). It should look crisp and high-contrast.

The WiFi Icon on the Bernina OS Screen: What It Changes About Design Transfer

You will see a WiFi symbol in the top left corner. This is the Bernina WiFi Device integration, allowing you to send designs from your PC directly to the machine, bypassing the "USB Stick Shuffle."

Workflow Optimization: In a professional studio, "walk time" is wasted time. Wireless transfer keeps you at your design station longer. However, the bottleneck in embroidery is rarely data transfer—it is physical preparation (hooping).

This is where you need to start thinking about your studio layout. Place your hooping stations near the machine but with enough room to maneuver large garments. The synergy of wireless transfer and an ergonomic hooping station is what separates hobbyists from production workflows.

Blue Tape, Foam, and “Factory Test” Bits: Remove What’s Meant to Come Off (and Don’t Panic)

The machine is taped shut like a fortress. You will find blue non-residue tape securing doors and covers. You may also find a swatch of fabric under the foot—this is the Factory Test Strip, proof your machine was calibrated in Switzerland or Thailand before shipping.

The Strip-Down Procedure:

• Remove all visible blue tape.
• Hidden Tape: Check the bobbin door and the thread cutter area.
• The Test Fabric: Remove it, but look at the stitch quality on it. It is your reference standard for what a "perfect stitch" looks like on this unit.

Expected Outcome: All moving parts (doors, thread lever) move freely without the sticky resistance of tape.

Cable Routing Like a Pro: Foot Pedal and Power Cord Through the Table

The video demonstrates proper cable management through a Koala table. Even if you are on a standard desk, the principle applies: Strain Relief.

An embroidery module moves rapidly on an X-Y axis. If your power cord is taut, the vibration can wiggle the plug loose, causing a power loss mid-design. Leave a "service loop" (slack) in your cables behind the machine so the machine can vibrate without unplugging itself.

The “Barbie Box” Accessory Case: Organize It Once, Save Hours Later

The Bernina accessory case is modular. The video shows the drawers and the presser foot hangers.

The Organizing Principle: Frequency Access. Do not organize by color or size. Organize by "Need for Speed."

• Zone 1 (Front/Easy Access): #1C (Standard), #26 (Embroidery), #3A (Buttonhole).
• Zone 2 (Drawers): Bobbins, needles, brush, oil.

Hanging Presser Feet the Right Way (Wide Slot vs Narrow Slot)

This frustrates everyone initially. The feet hangers utilize a specific geometry.

The Mechanic:

1. Examine the mounting shank of the foot.
2. Visual Sort: Is it wide or narrow?
3. Match the shank to the hanger slot width.
4. Auditory Check: Push gently until you hear/feel a subtle click/seat. If you have to force it, you have the wrong slot.

The “Mystery Screw” Moment: It Probably Came From a Presser Foot

A common "heart attack moment" is finding a loose black or silver screw in the box.

Diagnosis: This is almost always the Seam Guide Retention Screw from the back of the standard presser foot ankle. It vibrates loose during shipping. Fix: Locate the hole on the back of the presser foot shaft and screw it back in immediately.

Stylus Tip + Magnet Storage: Keep the Screen Clean Over Time

Use the included stylus. Your fingers carry oils and acids that, over years, can degrade the oleophobic coating on screens. The stylus magnetically snaps to the side of the machine head. Train your muscle memory to put it there, not on the table.

Bobbin Storage on the Bernina B790 Pro: Sensor Dots Must Face Right

The B790 Pro uses the B9 Jumbo Bobbin. These are not just plastic spools; they are optical devices with silver sensor dots that tell the machine when thread is low.

Storage Protocol (Critical):

1. Hold the bobbin so the Silver Dots face RIGHT.
2. Press it into the grey rubberized slot in the accessory box.
3. Why? If you store them constantly with dots left, you might inadvertently load them backward into the machine.
4. Loading the Hook: When loading into the machine, the silver dots must face the sensor (usually visible).

Workflow Note: If you are getting into heavy hooping for embroidery machine projects, you will burn through bobbin thread rapidly. Fill 5-10 bobbins before you start a project to maintain flow.

The Bonus Bundle Reality Check: Isacord Thread + OESD Stabilizers Are Powerful (and Can Feel Overwhelming)

The bundle includes Isacord thread (the industry standard for polyester sheen and strength) and OESD stabilizers.

To a beginner, stabilizers look like identical rolls of white paper. They are not. Using the wrong one is the #1 cause of puckering and registration errors (where the outline doesn't match the color fill).

A Simple Decision Tree: Fabric Behavior → Stabilizer Direction (Beginner-Safe)

Do not guess. Use this logic gate:

The Stabilizer Decision Tree:

• Is the fabric stretchy (T-shirts, knits)?
  • MUST USE: Cutaway Stabilizer (PolyMesh). Tearaway will allow the fabric to stretch, ruining the design.
• Is the fabric stable (Denim, Canvas, Woven Cotton)?
  • USE: Tearaway (cleaner back) or Cutaway (softer feel).
• Is the fabric fluffy/textured (Towels, Velvet)?
  • ADD: Water Soluble Topper (Solvy) on top to prevent stitches from sinking into the pile.
• Is the item un-hoopable (Backpacks, Caps, Thick Jackets)?
  • USE: Sticky Stabilizer or a Floating Technique.

This "Un-hoopable" category is where traditional hoops fail. They leave "hoop burn" (crushed fibers) and cause wrist strain. This is the precise scenario where professionals switch to magnetic embroidery hoops.

Warning: Magnetic Safety. If you upgrade to magnetic hoops, be aware they use Neodymium industrial magnets. Pinch Hazard: Keep fingers clear of the snap zone. Medical Hazard: Keep magnets at least 6 inches away from pacemakers or insulin pumps.

The “Why” Behind Better Hooping: Tension, Distortion, and When Magnetic Hoops Earn Their Keep

You are now ready to embroider, but understand this: The machine can only embroider what the hoop holds still.

Hooping Physics: The "Drum Skin" Myth

Beginners are often told to tighten fabric "like a drum." This is dangerous advice. If you stretch fabric while hooping, it will snap back (retract) when you unhoop it, causing the design to pucker. Correct Tension: The fabric should be "neutral flat"—smooth, taut, but not stretched.

The Hoop Burn Problem

Bernina hoops are excellent, but they rely on friction and inner/outer ring pressure. On velvet, performance wear, or delicate silks, this pressure crushes fibers permanently.

This is where bernina magnetic hoops offer a massive technical advantage. Instead of friction-crushing the fibers, they use vertical magnetic clamping force. This holds the fabric securely without the abrasive "twist and lock" motion of standard hoops.

If you plan to do production runs (e.g., 50 left-chest logos), the repetitive motion of standard hooping will fatigue your wrists. Search for terms like how to use magnetic embroidery hoop videos to see how the single-step "snap" action creates a faster, safer workflow.

Setup Checklist: The “First Power-On” Routine I’d Use in Any Studio

This is your "Pre-Flight" list. Do not proceed until all boxes are mentally checked.

Setup Checklist:

• Inventory: #3A Foot located and stored? [ ]
• Safety: Yellow Needle Bar Brace removed? [ ]
• Power: AC Cable fully seated in the machine socket? [ ]
• Interface: Language set to English/Native? [ ]
• Bobbin: Bobbin Case installed, and Jumbo Bobbin loaded with sensor dots facing the sensor? [ ]
• Needle: Manufacturer needle inserted fully (flat side to back)? [ ]

Operation Checklist: Your First “Safe Test” Before Real Projects

Do not put a $50 jacket in the machine yet. Grab a scrap of woven cotton (like a pillowcase or quilt cotton).

Operation Checklist (The Maiden Voyage):

• Fabric: Stable woven cotton + 2 layers of Tearaway stabilizer.
• Design: Select a built-in font letter "B" or "A".
• Speed: Set the slide speed limiter to 50% (approx 500-600 SPM). High speed is for production; medium speed is for learning and accuracy.
• Auditory Check: Listen for a rhythmic, smooth "chug-chug-chug." A loud "CLACK" or grinding noise means STOP immediately—rethread the top and bobbin.
• Threading: Thread with the presser foot UP (this opens the tension discs). If you thread with the foot down, there is no tension, and you will get a "bird's nest" of thread underneath using the Isacord thread.

Quick “Watch Out” Notes Inspired by Viewer Reactions

Based on common support tickets I see regarding this machine:

• The "Recycling Regret": Again, check the bottom of the box for the #3A foot.
• The "Ghost Screw": If you find a screw, check the feet.
• The "Thread Nest": 90% of tension issues are because the user threaded the machine with the presser foot DOWN. Always foot UP to thread.

The Upgrade Path (When You’re Ready): Faster Hooping, Cleaner Results, and Less Fatigue

Congratulations. You have set up a world-class embroidery system. But as you transition from "testing" to "creating," you will notice bottlenecks. The machine is fast, but you are the slow part.

Here is the logical upgrade path for efficiency:

1. Level 1: Consumables optimization. Use the right stabilizer for the fabric (as per the decision tree).
2. Level 2: Tool Upgrade (The Magnetic Shift). If you struggle with thick fabrics (towels, jackets), wrist pain, or hoop burn, investigate a bernina magnetic embroidery hoop. It is the industry standard solution for "difficult" items that standard hoops can't grip.
3. Level 3: Scale. When selecting upgrades, check bernina magnetic hoop sizes carefully. A 5x5 inch (130x130mm) magnetic hoop is often the "workhorse" size for left-chest logos, offering the best ROI for small businesses.

Respect the machine, follow the checklists, and keep your workspace disciplined. The B790 Pro is a beast of creativity—now you are ready to tame it.

FAQ

• Q: What must be removed before first power-on on a Bernina B790 Pro to avoid needle bar damage?
  A: Remove the yellow needle bar brace before turning on the Bernina B790 Pro—powering on with it installed can cause a hard stop during initialization.
  • Locate the bright yellow plastic brace near the needle clamp/needle bar area.
  • Lift with gentle upward pressure, then pull outward toward you until it disengages.
  • Bag and store the brace with shipping parts so it does not end up back on the machine.
  • Success check: The needle bar area is clear and the brace comes off with a dull plastic “clack.”
  • If it still fails… Do not force the machine; power off and re-check for any remaining shipping tape or packing pieces near moving parts.
• Q: Where is the Bernina Buttonhole Foot with Slide #3A in the Bernina B790 Pro packaging, and how do I confirm I found it?
  A: The Bernina Buttonhole Foot with Slide #3A is often recessed at the very bottom of the shipping carton, not in the accessory case.
  • Remove the top foam layers and lift the machine out first.
  • Look into the bottom Styrofoam and feel inside the molded recess for a small plastic bag.
  • Place the #3A foot directly into the accessory case immediately.
  • Success check: The #3A foot is in your storage tray and you can see the silver sensor on the side before you flatten the box.
  • If it still fails… Stop throwing packaging away and re-check every molded cavity in the bottom foam insert.
• Q: What is the correct Bernina B790 Pro threading rule to prevent bird’s nests under the fabric?
  A: Thread the Bernina B790 Pro with the presser foot UP—threading with the presser foot down often leads to a “bird’s nest” underneath.
  • Raise the presser foot fully before you start threading the top path.
  • Rethread completely if you suspect you threaded with the foot down.
  • Reinsert the bobbin and confirm it is seated correctly before restarting.
  • Success check: Stitching starts cleanly with no sudden pile-up of thread under the fabric.
  • If it still fails… Stop immediately, remove the tangled thread, and rethread both top and bobbin from the beginning.
• Q: How should Bernina B9 Jumbo Bobbins be stored and oriented on a Bernina B790 Pro so the sensor dots are not loaded backward?
  A: Store Bernina B9 Jumbo Bobbins with the silver sensor dots facing RIGHT to reduce the chance of loading the bobbin backward later.
  • Hold the bobbin so the silver dots face right, then press it into the accessory case slot.
  • When loading into the machine, keep the dots facing the sensor side (the sensor area is usually visible).
  • Pre-wind multiple bobbins (often 5–10) before an embroidery session to avoid interruptions.
  • Success check: The bobbin sits in storage consistently with dots right, and loads into the hook with dots facing the sensor without second-guessing.
  • If it still fails… Remove and reload the bobbin slowly, focusing only on dot orientation and proper seating.
• Q: What stabilizer should be used first on a Bernina B790 Pro when embroidering knits, woven cotton, towels, or “un-hoopable” items?
  A: Match stabilizer to fabric behavior on the Bernina B790 Pro: cutaway for stretch, tearaway/cutaway for stable wovens, topper for fluffy fabrics, and sticky/floating methods for hard-to-hoop items.
  • Choose cutaway (such as PolyMesh-style) for T-shirts/knits so stretch does not distort the design.
  • Choose tearaway (clean back) or cutaway (support/soft feel) for stable denim/canvas/woven cotton.
  • Add water-soluble topper on towels/velvet to prevent stitches sinking into the pile.
  • Success check: The design stays registered (outlines line up with fills) and the fabric does not pucker after stitching.
  • If it still fails… Re-evaluate fabric stretch/texture and switch stabilizer type before changing machine settings.
• Q: What is the safest first test stitch setup on a Bernina B790 Pro before embroidering a jacket or real garment?
  A: Do a controlled “maiden voyage” on scrap fabric at reduced speed before putting a garment on the Bernina B790 Pro.
  • Use stable woven cotton with two layers of tearaway stabilizer.
  • Select a small built-in letter (like “B” or “A”) instead of a complex design.
  • Limit speed to about 50% (roughly 500–600 SPM) for learning and accuracy.
  • Success check: The machine sounds smooth and rhythmic (“chug-chug-chug”) with no loud clacks or grinding.
  • If it still fails… Stop and rethread top and bobbin; do not troubleshoot on an expensive garment.
• Q: How do Bernina magnetic embroidery hoops reduce hoop burn and wrist fatigue compared to standard Bernina hoops, and when is the upgrade justified?
  A: If hoop burn, thick items, or wrist fatigue are recurring on a Bernina embroidery workflow, magnetic hoops are often the next practical step because they clamp vertically without the twist-and-lock pressure of standard hoops.
  • Diagnose the trigger: Look for crushed fibers on velvet/performance wear, repeated re-hooping, or sore wrists during batch runs.
  • Try Level 1 first: Hoop with “neutral flat” tension (smooth and taut, not stretched) and match stabilizer to fabric.
  • Move to Level 2: Use a magnetic hoop when items are hard to hoop, prone to hoop marks, or hooping speed is the bottleneck.
  • Success check: The fabric holds securely with fewer hoop marks and faster, repeatable hooping across multiple pieces.
  • If it still fails… Re-check hoop size selection for the design area and confirm the fabric is not being stretched during hooping.
• Q: What magnetic hoop safety rules should be followed when using Bernina magnetic embroidery hoops with neodymium magnets?
  A: Treat Bernina magnetic embroidery hoops as industrial magnets—keep fingers clear of the snap zone and keep magnets away from pacemakers or insulin pumps.
  • Keep fingertips out of the closing area before bringing the magnetic frame down.
  • Close the hoop in a controlled motion instead of letting magnets “slam” together.
  • Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Success check: The hoop closes without pinching, and you can repeat the motion confidently without near-misses.
  • If it still fails… Slow down the closing motion and reposition the fabric so the hoop halves align before the magnets engage.
