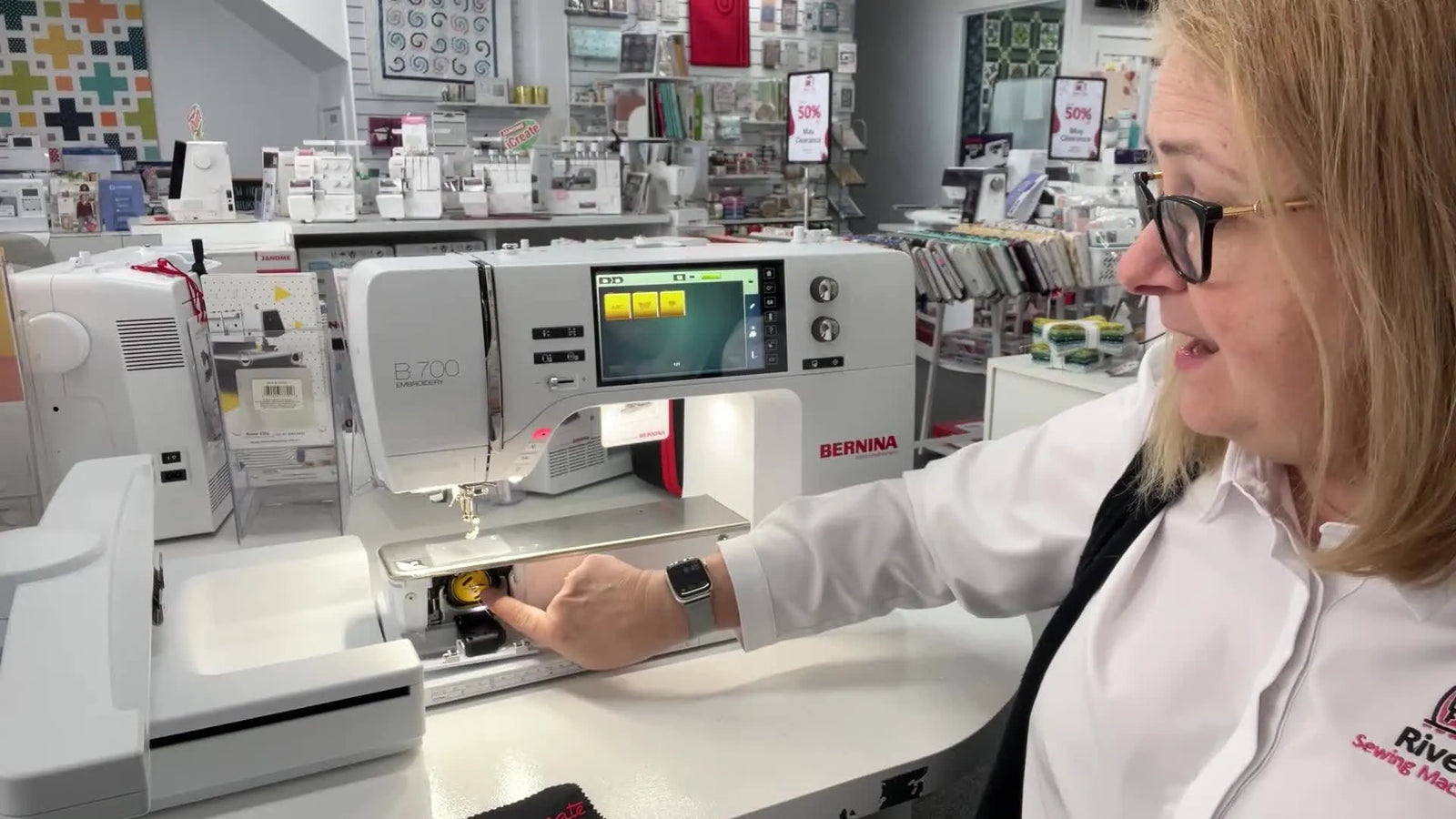

Bernina B700 Embroidery-Only Machine: The No-Feed-Dogs Reality, the Yellow Bobbin Case, and the Setup Habits That Prevent Tension Drama

If you’ve ever unboxed a new embroidery machine like the Bernina B700 and immediately thought, “Wait… where did the feed dogs go?”—you’re not alone. This moment of confusion is actually your first step into professional embroidery thinking.

The B700 is built with a specific philosophy: remove anything only needed for sewing (like feed dogs) to optimize everything for stability, speed, and repeatability. In Judy’s River City Sewing news video (24 May 2024), she walks through this machine. But as an educator with 20 years on the production floor, I’m going to translate her demo into a field manual.

We will move beyond distinct features and focus on the "tactile intelligence" required to master this machine—covering the prep that prevents bird nests, the physics of hoop stability, and the exact moment you should consider tool upgrades like magnetic embroidery hoops to save your wrists and your sanity.

The “Pilot’s Walkaround”: Why Your Machine Needs Love Before You Stitch

Judy opens with a crucial truth often whispered in repair shops: if you’re pulling your machine out after a break, you cannot just hit "Start." Machines settle. Oil pools. Dust hardens.

Before you book a class or join a "Stitch Out" club, you need to establish a pre-flight ritual. This isn't busy work; it is the difference between a project that flows and one that ends in a "bird's nest"—that horrible crunching sound of thread jamming under the plate.

The “Before You Load” Prep Checklist

When beginners say, "My machine suddenly hates me," it is usually deferred maintenance. Judy doesn't list a formal checklist, so here is the industry-standard prep I require for any embroidery-only platform.

Prep Checklist (Physical & Mechanical):

• The "Embroidery-Only" Check: Confirm the feed dogs are gone (smooth plate). You are now the transport system.
• The Lint Inspection: Remove the stitch plate. Use a small brush or vacuum attachment (never canned air, which pushes lint deeper) to clean the cutter area.
• The Needle Reset: If the current needle has stitched more than 40,000 stitches (roughly 4-6 hours), change it. A fresh 75/11 embroidery needle prevents 80% of thread shreds.
• The Bobbin Click: Insert the bobbin into the case. Pull the thread through the tension slit. Sensory Check: You should feel a slight resistance, like pulling dental floss, and the bobbin should spin smoothly.
• The Power Cycle: Turn it on. Sensory Check: Listen for the calibration "dance"—the embroidery arm should move x/y and return to center with a confident hum, not a grinder noise.

Warning: Needle Zone Safety. When threading or changing needles, keep your feet off the pedal (if attached) or lock the screen. A machine calibrating unexpectedly can drive a needle through a finger in a fraction of a second.

Hidden Consumables You Need:

• Tweezers (for grabbing jump threads).
• Non-permanent marking pen (for center points).
• Machine oil (specific to your model).


The "No Feed Dogs" Reality: Why Physics Changes Everything

Judy points to the B700 needle plate: smooth metal, absolutely no feed dogs. This is the "Aha!" moment. On a sewing machine, the metal teeth grip the fabric and move it. On this machine, the hoop is the only thing controlling the fabric.

The Cognitive Shift: Because there are no feed dogs helping you, hooping is everything. If your fabric is loose in the hoop, the needle will push the fabric down instead of penetrating it (Flagging). This causes skipped stitches and outlines that don't match up.

Sensory Anchor: When you hoop fabric, tap it with your finger. It should sound like a dull drum—thump, thump. If it ripples, it's too loose.

The Tool Upgrade: This reliance on hooping is why beginners struggle with "hoop burn" (the ring marks left by tightening a standard hoop too much to compensate for slip). If you are fighting slippery performance wear or thick towels, professionals often switch to magnetic embroidery hoops. The magnetic force provides even clamping pressure without the "crank and pray" friction of traditional screws, instantly solving the fabric slippage issue caused by the lack of feed dogs.

Muscle Memory: Repurposing the Buttons

On the B700, the button that is usually "Reverse" on a sewing machine now toggles the work light. This is your cue: Do not rely on sewing muscle memory.

Practical Takeaway: Spend 5 minutes pressing the front-panel buttons without a hoop attached. Learn which ones control the hoop position (Centering, Park). On an embroidery-only machine, using these physical buttons is 3x faster than digging through touch-screen menus.

The Yellow Bobbin Case: The "High Tension" Secret

Judy highlights the bright yellow bobbin case. This isn't a fashion statement; it is a piece of precision engineering.

The Data: Standard sewing bobbin tension is often around 100g-120g of resistance. Embroidery requires higher tension (often 180g-220g) on the bobbin to pull the top thread down sharply, creating crisp lettering.

The Rule: If you use the standard black sewing case, your top thread will likely loop on the back, or you will see white bobbin thread poking up on top of your design.

• Action: Use the yellow case for embroidery.
• Verification: Flip your test stitch over. You should see a "1/3 rule"—the white bobbin thread should take up the middle third of the sativa column. If you see only top thread, the bobbin is too loose.

If you are upgrading your setup for stability, treat your accessories like a system. Just as the yellow case stabilizes tension, a specialized bernina magnetic embroidery hoop stabilizes fabric tension. Consistency in these two areas—thread tension and fabric tension—is how you achieve "factory finish" quality.

Setup Like a Pro: Presser Feet & The "Crash" Prevention

The machine comes with Foot 26. Judy mentions compatible feet like 15, 43, 44, etc.

The Critical Error: Beginners often attach a new foot but forget to tell the machine.

• Risk: If you attach a bulky foot (like 43) but the machine thinks it has a skinny foot (26), the embroidery arm might move while the needle is down, causing the foot to collide with the hoop. Correction: Always select your foot on the screen immediately after physical installation.

Setup Checklist (The "Pre-Flight"):

1. Foot Match: Physical foot matches Screen selection.
2. Needle Clearance: Needle is at the highest position before attaching the hoop.
3. Hoop Recognition: The machine acknowledges the specific hoop size you attached (watch the screen icon).


Thread Management: Organizing Chaos

Judy demonstrates mapping thread brands (Isacord, Madeira, etc.) on the screen.

Why Expert Operators Care: When you are aiming for production speed, you don't have time to guess "Is this blue 302 or 305?" By mapping your actual thread inventory to the machine, you reduce "cognitive load."

The Bottleneck Solution: If you find yourself spending more time changing threads than stitching, consider your workflow. Pre-pull your threads. Lay them out in order. If you are doing bulk runs (e.g., 50 polo shirts), the time spent changing threads on a single-needle machine is your biggest profit killer. This is usually the trigger point where businesses look at multi-needle solutions like a SEWTECH setup. But for single-needle execution, prep is your only defense against lost time.

Additionally, using a tool like a hoopmaster hooping station can help standardize logo placement while you are managing these color changes, keeping your production line moving.

The "Fix it in Post" Trap: Editing vs. Physics

Judy shows the resize, rotate, and positioning tools. These are fantastic for design but dangerous for correction.

The 20-Year Rule: Never use on-screen positioning to fix a crooked hoop job.

• If the fabric is hooped crookedly, the grainline is crooked.
• If you rotate the design to match the crooked fabric, you are stitching against the grain.
• Result: Puckering and distortion after the first wash.

The Fix: Un-hoop and Re-hoop. If you struggle to get it straight, this is a hardware problem. Tools like hooping stations are standard in shops because they force the hoop and garment to stay square every single time.

Stabilizer Strategy: A Decision Tree for Beginners

Since the B700 has no feed dogs, the stabilizer does the heavy lifting. "Good enough" isn't good enough here.

Decision Tree: Fabric → Stabilizer Formulation

1. Is the fabric stretchy (T-shirt, Knit, Performance)?
   • Yes: CUTAWAY (2.5oz or mesh). Why? The fabric cannot support the stitches; the stabilizer must remain forever to hold the shape.
   • No: Go to #2.
2. Is the fabric unstable woven/texture (Towel, Velvet)?
   • Yes: TEARAWAY (underneath) + WATER SOLUBLE TOPPER (on top). Why? The topper prevents stitches sinking into the pile.
   • No: Go to #3.
3. Is it a standard stable woven (Quilting Cotton, Canvas)?
   • Yes: TEARAWAY (medium weight). Why? The fabric supports the stitch; the stabilizer just prevents flagging.

The "Hoop Burn" Variable: If your stabilizer choice is correct but you still get puckers, you might be over-tightening the hoop screw to prevent movement. A magnetic hoop eliminates the need for brute force tightening, allowing the stabilizer to do its job without crushing the fabric fibers.

Sensory Troubleshooting: Listen to Your Machine

Judy mentions repair wait times (3 weeks!). The best way to avoid the repair shop is to stop before damage occurs.

The "Stop Now" Signals:

• Sound: A sharp "click-click-click" (needle hitting something). A grinding "errr-errr" (motor struggle).
• Sight: The screen dims when the needle penetrates.
• Touch: The hoop feels hot at the connection point.

If you experience these, Stop.

1. Re-thread top and bottom.
2. Change the needle.
3. Clean the bobbin area.

90% of issues are solved by these three steps.

The B700 vs. B790 PRO: The "Specialist vs. Generalist" Choice

Judy compares the machines. Here is the operational verdict:

• Buy the B790 (Combo): If you have limited space and need one machine to do everything (making the dress and embroidering the collar).
• Buy the B700 (Dedicated): If you want to embroider while you sew on another machine.

The Productivity Secret: Two machines are always faster than one combo. You can sew a hem on your old machine while the B700 runs a 40-minute embroidery design.

If you are setting up this "tandem workflow," consider adding a hoop master embroidery hooping station to your bench. It allows you to prep the next hoop perfectly while the machine is running, minimizing downtime.

The "Hidden Math" of Productivity

Setup time is the invisible killer. Judy’s demo focuses on the machine, but your efficiency comes from what happens outside the machine.

Scenario: The 20-Shirt Order

• Standard Hoop: 3 mins to hoop/adjust per shirt x 20 = 60 mins setup.
• Magnetic Hoop: 30 seconds to click per shirt x 20 = 10 mins setup.
• Savings: 50 minutes.

Scenario Trigger → Solution:

• Trigger: Wrists hurt, hoop burn marks, slow setup.
• Solution: magnetic embroidery hoop.
• Trigger: Thread changes take longer than stitching; turning away bulk orders.
• Solution: Scale to a multi-needle platform (like SEWTECH’s production models).

Warning: Magnetic Safety. Powerful magnetic hoops can pinch skin severely. They can also interfere with pacemakers. Keep them at least 6 inches away from sensitive medical electronics and treat them like industrial tools, not toys.

Operation: The First Stitch-Out Routine

Let’s synthesize Judy’s demo into a "Go / No-Go" launch sequence.

Operation Flow:

1. Identity Check: Smooth plate confirmed? (Yes)
2. Tension Core: Yellow bobbin case installed? (Yes)
3. Foot Intel: Foot 26 attached AND selected on screen? (Yes)
4. Design Load: Design allows 20mm safety margin from hoop edge? (Yes)
5. Thread Match: Screen colors match real spools? (Yes)

Operation Checklist (Post-Run):

• No "bird nesting" underneath.
• Bobbin thread is visible on the back (1/3 width) but not on top.
• No puckering around the design borders.
• No "Hoop Burn" marks on the fabric.


Troubleshooting Guide: Symptoms & Cures

When things go wrong, do not panic. Follow this logic path.

The Trusted Upgrade Path: From Hobby to Production

Judy positions the B700 as a powerful tool. But a machine is only as good as the ecosystem around it. Here is the logical order of upgrades I recommend to my students to maximize ROI (Return on Investment):

1. Consumables: High-quality Thread (polyester for sheen/strength) and proper Stabilizers. This is the cheapest way to improve quality.
2. Ergonomics & Speed: If you hoop more than 5 items a week, magnetic hoops are not a luxury; they are a health and efficiency necessity.
3. Consistency: For recurring orders (logos), a hooping station creates repeatable placement.
4. Scale: When you are consistently running orders of 12+ items, the single-needle life will burnout your patience. This is when you look at hoopmaster systems integrated with multi-needle machines (Checking out SEWTECH's multi-needle options is a smart value move here).


One Final Note on Price

Judy mentions pricing ($4,999 AUD for B700 / $14,999 AUD for B790 PRO) and bonus offers. Remember, these are snapshots in time.

The real value of an embroidery machine isn't the price tag; it's the Finished Goods it produces. By mastering the prep, understanding the "no feed dog" physics, sliding in that yellow bobbin case, and upgrading to magnetic hoops when volume increases, you turn a plastic box into a reliable production engine.

FAQ

• Q: On a Bernina B700 embroidery-only machine, what pre-stitch maintenance checklist prevents bird nesting under the stitch plate after storage?
  A: Do a quick “pre-flight” clean + needle/bobbin reset before pressing Start—most sudden nests come from lint, an old needle, or a mis-seated bobbin.
  • Remove the stitch plate and brush/vacuum the cutter/bobbin area (avoid canned air).
  • Replace the needle if it has more than about 40,000 stitches (a 75/11 embroidery needle is the common choice).
  • Reinsert the bobbin and pull the thread through the tension slit correctly.
  • Success check: Power on and listen for a smooth calibration “dance” (confident hum, not grinding) and confirm the bobbin pull feels like gentle dental-floss resistance.
  • If it still fails: Re-thread top and bottom completely and repeat the clean + needle change before running another design.
• Q: On a Bernina B700, how can hooping be judged correctly with no feed dogs to prevent fabric flagging, skipped stitches, and misaligned outlines?
  A: Treat the embroidery hoop as the only “fabric transport”—if the fabric is not drum-tight, the needle can push fabric down and cause flagging.
  • Hoop the fabric and stabilizer so the surface is evenly tensioned (not rippled).
  • Tap the hooped fabric with a finger to evaluate tightness.
  • Success check: The hooping sounds like a dull drum “thump, thump” and the fabric surface does not ripple when tapped.
  • If it still fails: Improve stabilization first, then consider switching from a screw-tightened hoop to a magnetic embroidery hoop to reduce slip without over-cranking.
• Q: On a Bernina B700, what is the correct way to verify yellow embroidery bobbin case tension so white bobbin thread does not show on top or loop on the back?
  A: Use the yellow embroidery bobbin case for embroidery and verify bobbin seating/tension before adjusting anything else.
  • Install the yellow bobbin case (not the standard sewing case) for embroidery runs.
  • Seat the bobbin thread into the tension slit and confirm smooth unwind with slight resistance.
  • Stitch a small test and inspect both sides.
  • Success check: The underside shows the “1/3 rule” (bobbin thread occupies the middle third of the satin column), and no white bobbin thread is popping up on the top surface.
  • If it still fails: Re-check the thread path and re-seat the bobbin thread in the tension spring before making further changes.
• Q: On a Bernina B700, how can selecting the wrong presser foot on-screen cause a hoop crash, and what is the fastest prevention checklist?
  A: Always match the physical presser foot to the on-screen foot selection—mismatches can lead to clearance errors and hoop collisions.
  • Attach the intended presser foot, then immediately select the same foot on the B700 screen.
  • Raise the needle to the highest position before attaching the hoop.
  • Confirm the machine recognizes the attached hoop size on the screen.
  • Success check: The first movements clear the hoop with no contact and no sharp “click-click-click” sounds.
  • If it still fails: Stop immediately, re-check foot choice/clearance, and do not restart until the needle path is unobstructed.
• Q: On a Bernina B700, what stabilizer choice should be used for T-shirts, towels, and stable woven cotton to reduce puckering and design distortion?
  A: Choose stabilizer by fabric behavior first—stretch needs cutaway, pile needs topper, stable woven can use tearaway.
  • Use cutaway (often 2.5 oz or mesh) for stretchy knits and performance fabrics.
  • Use tearaway underneath plus a water-soluble topper on towels/velvet or other textured pile fabrics.
  • Use medium tearaway for stable woven cotton/canvas where the fabric can support stitches.
  • Success check: After stitching, the design border lies flat with no rippling/puckering around the edges.
  • If it still fails: Stop over-tightening the hoop screw to “force” stability; consider a magnetic hoop to clamp evenly while letting the stabilizer do the work.
• Q: On a Bernina B700, what immediate steps should be taken when loud clicking, grinding motor noises, screen dimming on needle penetration, or a hot hoop connection point occurs?
  A: Stop the machine immediately—those are “stop now” signals that can prevent damage if addressed early.
  • Stop the run and re-thread the top thread and bobbin from scratch.
  • Change to a fresh needle.
  • Clean the bobbin/cutter area under the stitch plate.
  • Success check: Restart only when the machine runs smoothly without grinding, the screen does not dim on penetration, and the hoop connection does not heat up.
  • If it still fails: Do not force continued stitching; re-check setup (foot selection, hoop recognition) and seek model-specific guidance in the machine manual.
• Q: When Bernina B700 hooping causes wrist pain, hoop burn marks, and slow setup on multi-item orders, how should the upgrade path be decided between technique changes, magnetic hoops, and a multi-needle machine?
  A: Use a tiered approach: fix technique first, upgrade hooping tools for speed/ergonomics next, and only then consider production hardware when volume justifies it.
  • Level 1 (Technique): Tighten the process—pre-clean, fresh needle, correct stabilizer, and consistent hooping tightness.
  • Level 2 (Tool): Switch to a magnetic hoop when standard hoop tightening causes hoop burn or frequent re-hooping (faster “click” setup with even pressure).
  • Level 3 (Capacity): Consider a multi-needle machine when thread changes take longer than stitching or bulk orders become unprofitable on a single-needle workflow.
  • Success check: Setup time drops noticeably per item, hoop marks reduce, and repeatability improves across a batch run.
  • If it still fails: Add a hooping station for square, repeatable placement before assuming the embroidery machine itself is the limiting factor.
• Q: What magnetic embroidery hoop safety rules should be followed to prevent pinched fingers and pacemaker interference during hooping and unhooping?
  A: Treat magnetic hoops like industrial magnets—keep fingers clear during closure and keep magnets away from sensitive medical electronics.
  • Separate and join magnetic rings slowly and deliberately to avoid sudden snap closures.
  • Keep hands and fingertips out of the closing gap to prevent severe pinches.
  • Keep magnetic hoops at least 6 inches away from pacemakers and sensitive medical electronics.
  • Success check: The hoop closes without skin contact, and handling remains controlled with no sudden snapping onto the work surface.
  • If it still fails: Use a more controlled hooping workflow (work on a stable bench, reposition fabric first, then bring magnets together last).
