Bernina 880 Hat Embroidery Without a Cap Driver: The Hoop ’N’ Buddyz Insert Workflow That Actually Stays Centered

Hat embroidery on a flatbed machine can feel like a high-stakes balancing act. You have rigid seams, curved panels, and a bill that acts like a lever against your embroidery arm. If you’ve ever hovered your finger over the "Stop" button, afraid of that sickening crunch sound of a needle striking a plastic hoop, you are not alone.

This is the definitive guide to stitching a baseball cap on a Bernina 880 Plus using the Hoop ’N’ Buddyz Hat Insert. While specific to this setup, the physics and safety protocols apply to almost any flatbed hat project.

We will move beyond basic instructions into "Experience-Based Calibration"—the sensory checks, the speed limits, and the safety zones that prevent ruined caps and broken machines.

The Physics of Fear: Why It Feels "Not Secure" (And Why That’s Okay)

The first psychological hurdle is the "Wiggle Test." Once mounted on the Hoop ’N’ Buddyz insert, the cap might feel like it’s only 80% secure compared to a flat t-shirt.

Here is the engineering reality: Flatbed machines rely on adhesion, not 360-degree clamping pressure, to hold hats. The cap is fighting to spring back to its curved shape. Your job is not to crush it into submission, but to anchor the embroidery field firmly enough for the underlay stitches to take over.

The Golden Rule: Do not over-handle the cap once it is stuck down. Every adjustment weakens the adhesive bond. Trust the process, but verify the adhesion.

Phase 1: The "Arrow Alignment" Ritual

Shelley begins by preparing the standard Bernina oval hoop. This is a precise mechanical assembly, not a suggestion.

The Mechanics: The Hoop ’N’ Buddyz insert replaces the inner ring of your standard hoop. It relies on the outer ring’s screw tension to lock the insert’s teeth into place.

Action Steps:

1. Disassemble: Remove the standard inner ring from your oval hoop (store it safely).
2. Insert: Place the Hoop ’N’ Buddyz gray insert into the outer oval ring.
3. Tighten: Begin turning the tension screw. Resistance will increase significantly.
4. Align: Continue tightening until the arrow on the gray insert perfectly matches the arrow on the outer hoop.

Sensory Check (The "Lock" State):

• Visual: The arrows form a straight line.
• Tactile: The insert should not rotate or rattle inside the yellow hoop ring. It must be a single solid unit.

Why this fails: If you stop tightening before the arrows align because you fear breaking the plastic, the hoop will vibrate during high-speed stitching, leading to jagged satin columns.

Warning: Pinch Hazard. Keep fingers clear of the screw mechanism and the gap between the rings while tightening. The tension required is high, and a slip can result in a painful blood blister.

Phase 2: The Adhesion Foundation

The "window" in the insert is where the magic happens. You are creating a sticky floor for the hat to rest on.

The Material Science: Use a Paper-Backed Sticky Stabilizer (like OESD Stablestick).

• Theory: We need immediate, high-tack grip to counteract the hat's curve.
• Format: Cut to size, peel the paper, and stick it to the underside of the insert, sticky side facing UP through the window.

Action Steps:

1. Cut: Size the stabilizer 1 inch wider than the window on all sides.
2. Peel: Remove the paper backing.
3. Apply: Stick it to the bottom of the plastic insert frame.
4. Smooth: Rub your thumb around the edges of the window frame to seal the stabilizer to the plastic.

The "Drum Skin" Myth: unlike hooping fabric, this stabilizer won't be drum-tight. It needs to be flat and taut, but expect slight give. The critical factor is that there are no wrinkles where the stabilizer adheres to the plastic frame.

Prep Checklist (The "No-Go" Criteria)

• Hardware: Inner ring removed; Insert arrows aligned with outer hoop arrows.
• Surface: Stabilizer covers the entire window with zero gaps at the edges.
• Adhesion: The sticky surface is fresh (do not reuse if you've touched the embroidery area repeatedly).
• Environment: Yellow masking tape and white bobbin thread are within arm's reach.

Phase 3: "Object Management" (Taping the Danger Zones)

A hat has two enemies of the embroidery needle: the sweatband and the sizing strap. If either flips into the stitch path, you will likely break a needle and ruin the cap.

Action Steps:

1. Flip: Pull the sweatband completely out of the hat.
2. Secure: Tape the sweatband down to the outside of the hat body using yellow masking tape or painter's tape.
3. Strap: Tape the rear sizing strap (velcro/plastic snap) securely away from the embroidery field.

Tactile Verify: Give the sweatband a sharp tug. If the tape lifts, use more tape. It must withstand the rapid back-and-forth jerking of the machine arm.

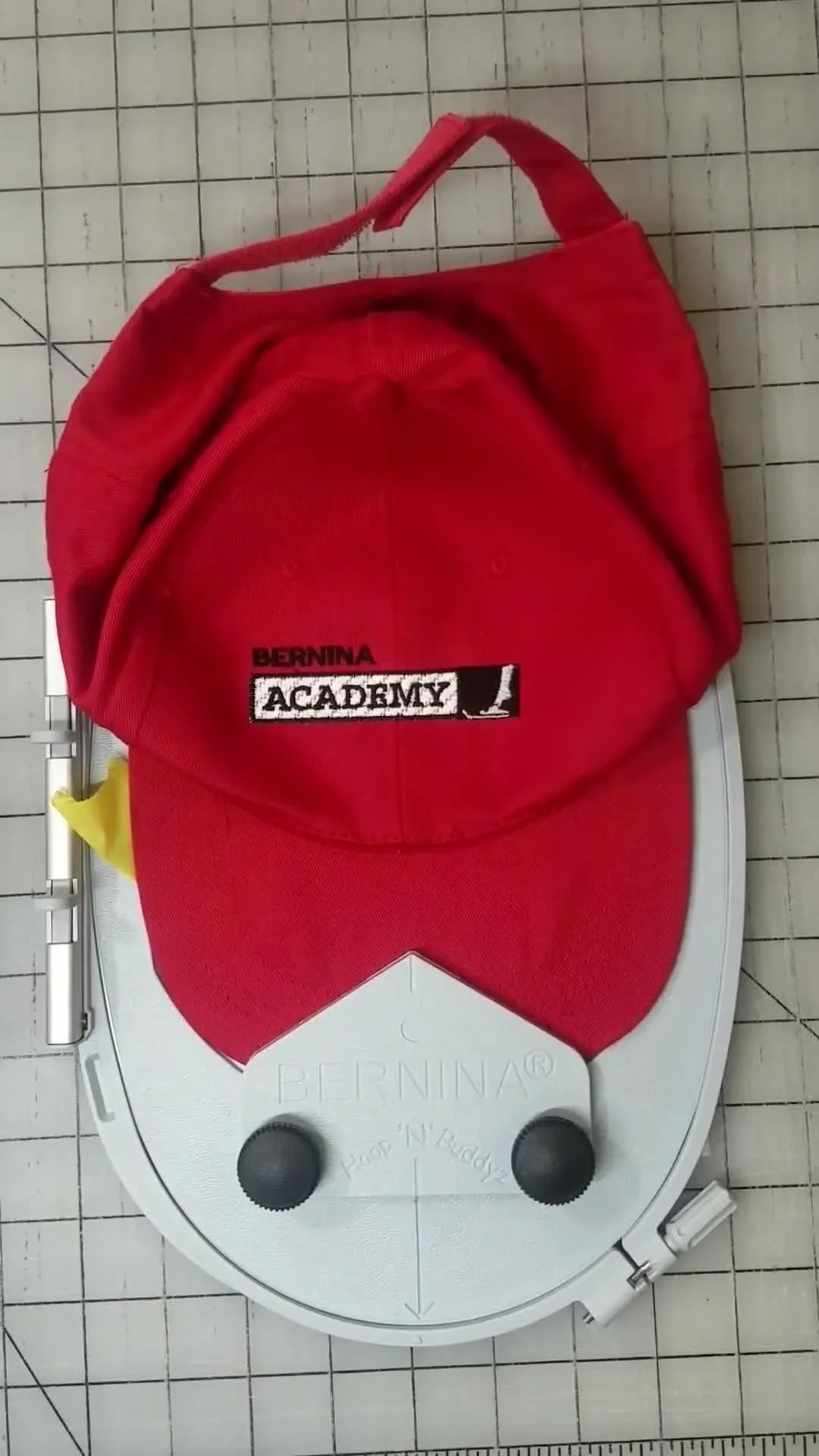

Phase 4: Mounting the Cap (The "Inside-Out" Technique)

This is the hardest physical step. You are inverting the hat's natural structure.

Action Steps:

1. Clamp: Slide the bill into the Hoop ’N’ Buddyz clamp and tighten the bill screw just enough to hold it.
2. Invert: Push the crown (back) of the hat inside out against the front panels.
3. Align: Locate the center seam of the hat. Line it up visually with the molded center line on the gray plastic insert.
4. Press: This is crucial. Press the hat fabric firmly onto the sticky stabilizer.
   • Technique: Start from the center seam and roll your thumbs outward to the sides. Massage the fibers into the glue.

Sensory Check:

• Sight: The center seam follows the plastic guide line perfectly.
• Touch: Run a finger over the embroidery area. It should feel relatively flat, with no "bubbling" of fabric away from the stabilizer.




Phase 5: Machine Safety & Positioning (Bernina 880 Specifics)

Now we move to the machine. This is where software settings prevent hardware collisions.

The Speed Limit: Do not run hats at 1000 stitches per minute (SPM). The vibration is too high for a single-point attachment.

• Recommended Speed: 400 - 600 SPM.
• Why: Slower speeds reduce the "centrifugal force" pulling the hat off the stabilizer during wide satin jumps.

The Critical "Thread Away" Setting: Shelley explicitly disables the Thread Away feature.

• The Risk: Thread Away moves the hoop to cut the tail, then moves it back. On a bulky object like a hat, this extra travel significantly increases the risk of the hat bill or crown striking the needle bar or presser foot.
• The Fix: Turn Thread Away OFF.

Precise Alignment (The 3-Point Check):

1. Select: Tell the machine you are using the Hoop ’N’ Buddyz (or Oval Hoop if not listed).
2. Center: Use the screen to move the needle to the design's center. Hand-wheel the needle down (without piercing) to ensure it hits the seam.
3. Perimeter: Check the Bottom Center and Top Center.
   • Visual: Ensure the needle doesn't get too close to the bill (hard plastic) or the top button (danger zone).






Setup Checklist (Pre-Flight Safety)

• Hoop Latch: Listen for the solid click when attaching the hoop to the embroidery arm. Use the "wiggle test" to ensure it's locked.
• Clearance: Manually lower the presser foot to ensure it doesn't graze the bulky side seams of the cap.
• Settings: Speed reduced to <600 SPM. Thread Away disabled.
• Path: Visually sweep the area—is the bill going to hit the machine head?

Phase 6: Stitching with Contrast Control (OESD Top Cover)

Shelley is stitching a white design on a red hat. Dark/bright fabrics tend to "bleed" visually through light thread because the thread fibers open slightly.

The Fix: Use a water-soluble topping or a "burn-away" film like OESD Top Cover.

• Function: It lofts the stitches above the fabric grain, creating a pristine white surface.
• Action: Float a piece of topping over the embroidery area. Let the first few stitches tack it down.

Auditory Monitoring: While the machine runs, listen.

• Normal: Rhythmic, soft humming/purring.
• Danger: A loud "Thump-Thump" or "Slap."
  • Diagnosis: This usually means the hat crown is bouncing and hitting the needle plate or the machine arm.
  • Immediate Action: STOP. Re-tape the loose fabric or slow the machine down further.








Phase 7: The Extraction

Action Steps:

1. Unclamp: loosen the bill screw.
2. Peel: Gently pull the hat away from the stabilizer. Support the embroidery with your thumb to prevent distorting the fresh stitches.
3. Tear: Remove the excess OESD topping (it tears away like a postage stamp). Small remnants can be removed with water later.

The Re-Use Hack: If the stabilizer frame is still tight, you don't need to re-hoop fresh stabilizer. You can patch the hole with another piece of sticky stabilizer effectively. This saves money on production runs.

Troubleshooting Guide: Symptoms & Fixes

When things go wrong, use this logic tree to fix the root cause, not the symptom.

The Efficiency Threshold: When to Upgrade Your Tools

Embroidery is a balance between skill and equipment. If you are struggling, check your volume against these scenarios to see if a tool upgrade is the logical business solution.

Scenario A: "Hooping hurts my hands / takes too long."

• The Pain: You dread tightenening the screw. You get "hoop burn" (shiny rings) on sensitive fabrics (not just caps).
• The Upgrade: For flat items (shirts/bags), professionals switch to Magnetic Hoops.
• Why: They use magnetic force to clamp instantly without screws. This eliminates "hooping strain" and prevents hoop burn.
• Search Intent: If you are researching a magnetic hoop for bernina, ensure it is rated for your specific embroidery arm weight limit.

Warning: Magnetic hoops contain powerful Neodymium magnets. Pacemaker Safety: Keep at least 6 inches away from implanted medical devices. Pinch Hazard: Never allow the two frames to snap together without fabric in between; they can crush fingers.

Scenario B: "I have an order for 50 caps."

• The Pain: The flatbed process (tape, invert, slow speed) takes 10 minutes per hat. You are losing money on labor.
• The Upgrade: This is the trigger point for a Multi-Needle Machine (like SEWTECH).
• Why: Commercial tubular machines spin the hat around a cylinder arm. You don't invert the hat. You don't tape the sweatband. You run at 1000 SPM.
• ROI: If you plan to sell hats regularly, a flatbed machine is a bottleneck. A dedicated multi-needle machine is a production engine.

Scenario C: "My design is centered, but looks tilted."

• The Pain: Human error in aligning the center seam.
• The Upgrade: A hooping station for machine embroidery.
• Why: These stations hold the hoop and the garment in a fixed grid, allowing consistent placement without "eyeballing it."

Decision Tree: Stabilizer & Topping for Hats

Question 1: Is the hat "Structured" (stiff front)?

• YES: Use Sticky Tearaway. The hat supports itself.
• NO (Floppy/Dad Hat): Float a layer of Cutaway under the hoop for stability, or the design will warp.

Question 2: Is the thread lighter than the hat color?

• YES: You MUST use a Topping (OESD Top Cover / Water Soluble).
• NO: Topping is optional but recommended for crisp text.

Question 3: Are you researching accessories?

• If looking for a cap hoop for embroidery machine, verify if it requires a "driver" (commercial style) or if it's an "insert" (flatbed style like Hoop 'N' Buddyz).
• If checking compatibility, terms like dime hoops for bernina or bernina magnetic hoops generally refer to specific aftermarket ecosystems—always check your machine's maximum field size first.
• For general efficiency, many users searching for magnetic embroidery hoops for bernina find that while they don't work for caps, they drastically speed up the chest-logo work that accompanies cap orders.

Operation Checklist (The Start Button Ritual)

• [ ] Thread Away is OFF.
• [ ] Speed is set to Medium/Low.
• [ ] Hat feels firmly stuck to the stabilizer.
• [ ] Topping is floating in place.
• [ ] Ears Open: I am ready to stop the machine at the first unusual sound.

Embroidery is 90% preparation and 10% stitching. By following this physics-based approach, you stop hoping for a good result and start engineering one.

FAQ

• Q: Why does a hat feel “not secure” on a Bernina 880 Plus when using the Hoop ’N’ Buddyz Hat Insert?
  A: This is common—flatbed hat setups rely on sticky stabilizer adhesion (not full 360° clamping), so a little “wiggle” can be normal as long as the adhesion and hoop lock are correct.
  • Press: Firmly massage the hat fabric into the sticky stabilizer starting at the center seam and rolling thumbs outward.
  • Avoid: Repositioning the cap repeatedly; each lift weakens the adhesive bond.
  • Verify: Confirm the Hoop ’N’ Buddyz insert is fully locked into the outer hoop (arrows aligned).
  • Success check: The hat surface over the design area feels flat with no bubbling, and the hoop/insert unit does not rattle or rotate.
  • If it still fails: Replace with fresh paper-backed sticky stabilizer—old/handled adhesive often causes shifting.
• Q: How tight should the Bernina oval hoop be when installing the Hoop ’N’ Buddyz Hat Insert, and what does “correctly locked” look like?
  A: Tighten until the arrow on the gray Hoop ’N’ Buddyz insert perfectly matches the arrow on the outer Bernina hoop—stop only when the arrows align.
  • Tighten: Keep turning the screw even as resistance increases; the insert must seat fully.
  • Check: Ensure the insert cannot rotate or rattle inside the outer ring.
  • Protect: Keep fingers away from the screw mechanism and ring gap to avoid pinch injuries.
  • Success check: The arrows form one straight line and the hoop feels like a single solid unit.
  • If it still fails: Re-seat the insert and tighten again—stopping early often leads to vibration and jagged satin columns.
• Q: How do I apply paper-backed sticky stabilizer to a Hoop ’N’ Buddyz Hat Insert window for hat embroidery on a Bernina 880 Plus?
  A: Use fresh paper-backed sticky stabilizer and seal it smoothly to the underside of the insert so the window becomes a flat, wrinkle-free sticky “floor.”
  • Cut: Make the stabilizer about 1 inch wider than the window on all sides.
  • Peel: Remove the paper backing and place it on the underside of the insert with sticky facing up through the window.
  • Smooth: Rub around the window edges to firmly seal stabilizer to the plastic frame.
  • Success check: No wrinkles or edge gaps where the stabilizer adheres to the plastic frame (slight give is OK).
  • If it still fails: Do not reuse a stabilizer surface that has been touched or re-lifted repeatedly—swap to a fresh piece.
• Q: How do I prevent the Bernina 880 Plus needle from hitting a hat sweatband or sizing strap when using a Hoop ’N’ Buddyz hat setup?
  A: Manage the hat “danger zones” by taping the sweatband and rear strap securely away from the stitch path before starting.
  • Flip: Pull the sweatband fully out of the hat.
  • Tape: Secure the sweatband to the outside of the hat body with masking/painter’s tape.
  • Secure: Tape the rear sizing strap (velcro/snap) away from the embroidery field.
  • Success check: A sharp tug on the sweatband does not lift the tape or allow fabric to spring back into the hoop area.
  • If it still fails: Use more tape and re-check clearance by visually sweeping the stitch path before pressing Start.
• Q: What Bernina 880 Plus settings reduce collisions when embroidering a baseball cap on a flatbed using a Hoop ’N’ Buddyz Hat Insert?
  A: Run at reduced speed and turn Thread Away OFF to minimize extra hoop travel that can cause hat strikes.
  • Set: Limit speed to about 400–600 SPM for hat work on this flatbed setup.
  • Disable: Turn Thread Away OFF to avoid the additional move-out/move-back cycle.
  • Check: Do a 3-point positioning check (design center, bottom center, top center) to confirm needle clearance near the bill and top button.
  • Success check: Manual positioning shows safe clearance and the machine runs without sudden “slap” impacts during travel.
  • If it still fails: Slow down further and re-check the hat’s taped-down bulk and travel path.
• Q: What does a “thumping” or “slapping” sound mean during hat embroidery on a Bernina 880 Plus with a Hoop ’N’ Buddyz setup, and what should I do first?
  A: Stop immediately—“thump-thump” usually means the hat crown is bouncing and striking a machine area due to bulk, looseness, or speed.
  • Stop: Hit Stop as soon as the sound changes from a soft hum to impact noise.
  • Reduce: Lower stitching speed (stay under the hat-safe range used for this setup).
  • Secure: Re-tape loose folds and confirm the sweatband/strap cannot flip into the stitch zone.
  • Success check: The sound returns to a steady, rhythmic humming/purring with no impact noise.
  • If it still fails: Confirm Thread Away is OFF, then re-press the hat firmly onto fresh sticky stabilizer.
• Q: When should a hat embroidery business consider upgrading from a flatbed Bernina 880 Plus workflow to magnetic hoops or a SEWTECH multi-needle machine?
  A: Use a tiered approach: optimize technique first, then upgrade tools for pain/time, and upgrade machine capacity when flatbed hat handling becomes the bottleneck.
  • Level 1 (Technique): Slow to hat-safe speeds, disable Thread Away, improve adhesion, and tape sweatband/strap reliably.
  • Level 2 (Tool upgrade): For flat items like shirts/bags (not caps), magnetic hoops often reduce hand strain and help prevent hoop burn by eliminating screw-tightening.
  • Level 3 (Capacity upgrade): For frequent hat orders (e.g., large batches), a dedicated multi-needle machine can remove many flatbed hat steps and increase throughput.
  • Success check: A “good upgrade timing” signal is consistent quality with reduced rework time—fewer re-hoops, fewer stops, and predictable cycle times.
  • If it still fails: Track time per hat and the specific failure mode (shift, collisions, labor time); the bottleneck points to whether technique, hooping tools, or production equipment is the next best move.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops for machine embroidery work?
  A: Treat magnetic hoops as high-force tools—keep them away from implanted medical devices and prevent the frames from snapping together on fingers.
  • Keep clear: Maintain at least 6 inches distance from pacemakers or implanted medical devices.
  • Control: Never let the two magnetic frames snap together without fabric between them.
  • Handle: Place and remove frames deliberately to avoid pinch/crush injuries.
  • Success check: Frames come together under control with no sudden slam, and hands stay out of the closing path.
  • If it still fails: Switch to a slower, two-handed placement routine and reposition the work surface to improve control.
