Bernina 790+ Setup Menu: The Small Settings That Stop Big Embroidery Headaches

If your Bernina 790+ ever feels like it has a mind of its own—speeding up when you want control, or leaving messy tails when you want a clean finish—you aren’t imagining it. You are simply colliding with factory defaults designed for a "perfect" average user who doesn't exist.

As someone who has spent two decades on production floors and in classrooms, I can tell you this: Machine embroidery is an experience-based science. The machine is the engine, but you are the navigator. The settings that work for a stiff denim jacket will absolutely ruin a delicate silk scarf.

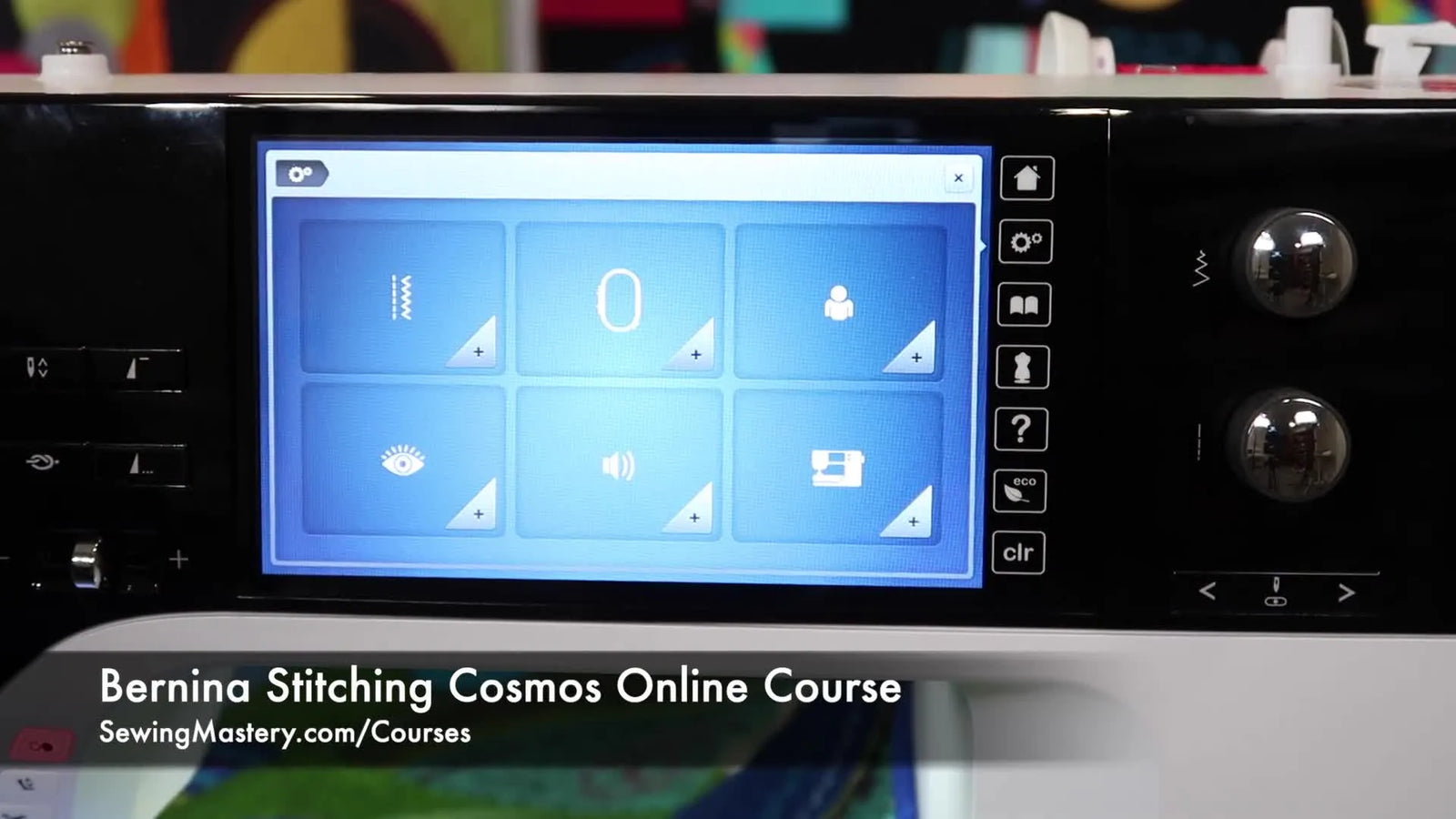

The Bernina 790+ Setup Program (accessed via the Gears icon) is your control center. It allows you to rewrite the machine's behavior to match your hand speed, your specific project, and your workflow.

This guide moves beyond the manual. We will walk through the critical adjustments, applying industry safety margins to keep you out of trouble, and identifying exactly when a problem is a software setting—and when it’s actually a hardware limitation that requires a tool upgrade.

The Navigation Logic: The "Breadcrumb" Lifeline

The Setup Program is deep. It is easy for beginners to get lost in sub-menus and accidentally change a setting they didn't mean to touch.

The Bernina interface uses a "Breadcrumb" system—those small tile icons that appear at the top-left of the screen as you dive deeper into menus.

• The Rookie Mistake: Closing the entire menu (X) to go back. This kills your momentum.
• The Expert Move: Tapping the breadcrumb to step back just one level.

Why this matters: When you are mid-project and need to tweak a cutting setting, you want to get in, make the change, and step back to the main sewing screen instantly. Master the breadcrumbs, and the fear of "messing up the menu" disappears.

Phase 1: The "Hidden" Pre-Flight Prep

Do not touch a single digital setting until you have verified the physical variables. I have seen countless students adjust tension settings for hours, only to realize their needle was dull or their bobbin was wound loosely. Software cannot fix physics.

Prep Checklist: The Physical Foundation

• Needle Integrity: Run your fingernail down the needle tip. If you feel a "click" or snag, change it. A burred needle creates loops that look like tension issues.
• Bobbin Health: Squeeze your bobbin. It should feel rock-solid, not squishy. A soft bobbin releases thread unevenly.
• The Floss Test: Pull the top thread through the needle eye manually. It should offer smooth consistency—like pulling dental floss through tight teeth. If it jerks, re-thread.
• Hidden Consumables: Ensure you have temporary spray adhesive (for stabilizer) and a fresh titanium needle on standby. These are the silent partners of good embroidery.

Warning: Always ensure the Embroidery Module is securely attached before powering on if you intend to embroider. Attaching it while the machine is live can sometimes cause calibration errors.

Phase 2: Sewing Settings (The Global Controls)

Tap the Gears icon, then the Straight/Zigzag Stitch icon. These settings affect the machine's mechanical behavior.

Global Tension: The "Macro" Adjustment

This slider adjusts the tension for every stitch.

• The Sensory Check: Flip your test stitch over. You should see the top thread pulled to the bottom by about 1/3 of the width.
• The Adjustment: If you see no white bobbin thread on the back, the top tension is too loose. If you see only bobbin thread (tunneling), the top is too tight.
• Safety Rule: Adjust in increments of 0.5 or 1.0. If the value turns yellow, it means it is modified. Tap the yellow number to reset to factory default instantly.

Expert Diagnostic: Global tension is a blunt instrument. If your tension is erratic (good on the left side of the hoop, bad on the right), do not touch this setting. That is a hooping issue. If you struggle to get consistent tension across a full hoop, the issue is often that traditional hoops lose grip on the fabric. This is where a hooping station becomes a vital asset for consistency, or where pros switch to magnetic frames to ensure the fabric remains drum-tight without "hoop burn."

Maximum Sewing Speed: Finding Your Sweet Spot

Just because the Ferrari goes 200mph doesn't mean you drive it that fast in a parking lot.

• Factory Default: Often 1000 SPM (Stitches Per Minute).
• Beginner Sweet Spot: 600 - 800 SPM.

Why slow down? friction generates heat. Heat weakens synthetic threads. If you hear the machine making a sharp, rhythmic "slapping" sound, you are driving too fast for the fabric's stability. Slowing down reduces thread breaks by up to 50% on metallic or delicate threads.

The "Question Mark" Decoder

Never guess what an icon does.

1. Tap the ? (Help) icon.
2. Tap the confusing setting button.
3. Read the on-screen definition.
   This is how you learn the difference between "Pattern Begin" and "Pattern End" security features without ruining a garment.

Securing Stitches: To Knot or Not to Knot?

The setting "Securing stitches at pattern begin" determines if the machine creates a locking knot before starting.

• Standard Embroidery: Leave ON. prevents raveling.
• Micro-Quilting: Turn OFF. You don't want visible knots building up in detailed quilt work.

Phase 3: Behavior & Ergonomics

Needle Up/Down & Hover: The "Third Hand"

Navigate to the Hand Touching Button icon. This controls the "Hover" feature—where the foot lifts slightly when the needle stops down.

The Physics of Hover:

• High Hover: Good for thick towels or fleece. Prevents the foot from dragging and distorting the pile.
• Low/No Hover: Essential for precise appliqué or slippery vinyl. You want the foot to pin the material down so it doesn't shift when the needle moves.

If you are seeing registration errors (outlines not matching the fill), try turning Hover OFF. It forces the fabric to stay put.

Thread Cutter: Eliminating the "Bird's Nest"

Go to the Scissor icon. You can select how many securing stitches (2, 3, 4, or Cluster) happen before a cut.

• The Risk: Too many securing stitches in one spot can create a hard "bullet" of thread on the back.
• The Fix: For delicate fabrics, select 2 stitches or Cluster. For heavy canvas, use 4 stitches.

Warning: Mechanical Safety. Keep hands clear when testing cutter settings. The cutter mechanism engages with force and speed. When the machine is cutting, your hands should be nowhere near the needle bar.

Programmable Foot Control (Heel Tap)

You can program the "Heel Kick" on your foot pedal.

• Production Tip: Program the heel kick to "Cut & Lift." This saves you two valuable seconds per thread change. In a design with 30 color changes, that's a minute saved—and significantly less wrist strain from reaching for the screen.

Phase 4: Embroidery-Specific Settings

Tap the Embroidery Hoop icon. These are the settings that distinguish a novice result from a boutique finish.

1. Fabric Thickness: Preventing the "Snowplow Effect"

If you are embroidering a quilt sandwich or a fluffy towel, the presser foot can act like a snowplow, pushing a wave of fabric in front of it. This destroys registration.

• Action: Measure your material's loft roughly.
• Setting: Increase Fabric Thickness (e.g., from 4mm to 7.5mm or 10mm).
• Sensory Check: The foot should glide over the surface, not furrow through it.

2. Thread Away: The Professional Clean-Up

This feature commands the machine to pull the top thread tail to the underside after a cut.

• Verdict: Turn it ON. It minimizes the "hairy" look on the top of your embroidery and saves you hours of trimming with scissors.

3. Units of Measurement: Consistency is Key

Choose mm or inches.

• Critical Note: Most commercial magnetic hoops and stabilizers are sold in metric (mm) or standard (inch) dimensions. Ensure your machine matches your purchasing habits. For example, when comparing bernina magnetic hoop sizes, knowing your machine is set to standard inches helps you visualize the actual field size (e.g., 5x7 vs 130x180mm).

Phase 5: Sensors, Sound, and Screen

Accessed via the Eye icon and Machine Settings.

Thread Sensors: Managing False Alarms

Sometimes, specialty threads (like metallic or clear mono-filament) trick the sensors into thinking the thread has broken because they vibrate differently.

• The Tactic: If you get a "Check Upper Thread" error but the thread is fine, temporarily disable the Upper Thread Sensor.
• The Risk: If the thread actually breaks, the machine will keep sewing, punching holes in your fabric without laying thread. Watch the machine like a hawk if you disable sensors.

Screen Calibration: The 60-Second Wonder

If you tap "Save" but the machine hits "Delete," your screen needs calibration.

• The Fix: Go to Machine Settings -> Calibration. Tap the center of the crosshairs precisely with your stylus.

The Troubleshooting Decision Tree

When embroidery goes wrong, use this logic flow to diagnose the root cause before changing settings.

1. Is the fabric puckering or shifting in the hoop?

• YES: This is a physics problem, not a software problem. The fabric is slipping.
  • Solution A: Re-hoop with a tighter "drum skin" feel.
  • Solution B: Use a firmer stabilizer (Cutaway instead of Tearaway).
  • Solution C (Tool Upgrade): Switch to a Magnetic Hoop. By clamping the fabric with continuous force rather than screwing an inner ring, you eliminate the "push-pull" distortion. Many users specifically search for magnetic embroidery hoops to solve this exact puckering issue on knits and delicate fabrics.
• NO: Go to step 2.

2. Is the thread breaking or shredding?

• YES: Slow the machine down (Speed Slider). Change to a larger needle (Topstitch 90/14).
• NO: Go to step 3.

3. Is the foot dragging or snagging loops?

• YES: Increase Fabric Thickness in the Settings. Turn Hover to "High."
• NO: Go to step 4.

4. Is the hoop leaving permanent "burn marks" or creases?

• YES: Your hoop is too tight for the delicate fabric (velvet/suede).
  • Solution: Use a "floating" technique or upgrade to a bernina snap hoop style magnetic frame, which holds without crushing the fibers.
• NO: You are good to go.

Warning: Magnetic Safety. If you upgrade to magnetic hoops, treat them with respect. The magnets are industrial-strength. They can pinch fingers severely and must be kept away from pacemakers and magnetic media (credit cards).

Establishing Your Workflow

Do not rely on memory. Use these checklists to standardize your process.

Setup Checklist (Do this when changing project types)

1. Needle Check: Is it new? Is it the right type (Ballpoint for knits, Sharp for wovens)?
2. Plate Check: Are you using the 0mm or Cutwork plate? (Ensure you are in the right mode).
3. Speed Set: Slide to 600-800 SPM for safety.
4. Hover: Set to "High" for towels, "Low" for t-shirts.
5. Sensors: Enabled (unless using metallic thread).

Operation Checklist (The "First 2 Minutes")

1. Thread Path: Floss test the top thread.
2. Bobbin: Verify 1/3 white thread showing on a test stitch.
3. Hoop Check: Inner ring slightly recessed? Fabric tight like a drum?
4. Clearance: Ensure the hoop arm has room to move without hitting the wall or coffee cup.
5. Watch the First Layer: Do not walk away during the first color. This is when 90% of failures happen.

The Bernina 790+ is a powerhouse, but it requires a pilot, not just a passenger. By mastering these settings and understanding the physical limitation of your tools—like recognizing when to switch from a standard hoop to a magnetic hoop for bernina—you transform frustration into professional, repeatable art.

FAQ

• Q: What should be checked on a Bernina 790+ before changing any embroidery tension or settings in the Setup Program?
  A: Check the physical variables first, because software settings cannot fix a dull needle, a soft bobbin, or a bad re-thread.
  • Replace the needle if a fingernail drag over the tip “clicks” or snags.
  • Squeeze the bobbin and re-wind/replace if it feels squishy instead of rock-solid.
  • Do the floss test by pulling top thread through the needle eye by hand; re-thread if it jerks.
  • Success check: Thread pulls smoothly and evenly by hand, and the first stitches form without random loops.
  • If it still fails: Stop adjusting global tension and re-check hooping and stabilizer choice for fabric slip.
• Q: How do Bernina 790+ users judge correct global tension using the test-stitch “1/3 rule”?
  A: Set Bernina 790+ global tension so the top thread is pulled to the back by about one-third of the stitch width.
  • Stitch a test and flip it to the back before touching the tension slider.
  • Increase top tension if there is no white bobbin thread visible on the back.
  • Decrease top tension if the back shows mostly bobbin thread or tunneling.
  • Success check: The back shows a balanced mix with about 1/3 top thread showing, not all white and not all top thread.
  • If it still fails: If tension looks good on one side of the hoop and bad on the other, treat it as a hooping/fabric-slipping issue, not a global tension issue.
• Q: What is a safe maximum sewing speed range on a Bernina 790+ to reduce thread breaks on delicate or metallic threads?
  A: Use 600–800 SPM as a safer starting range on a Bernina 790+ instead of running at factory-high speed.
  • Slide the speed down before starting the first color, especially on metallic or delicate threads.
  • Listen for a sharp rhythmic “slapping” sound and slow down if it appears.
  • Pair the speed change with a needle change when thread is shredding (often a larger needle helps).
  • Success check: The machine sound becomes smoother and thread breaks reduce during the first minutes of stitching.
  • If it still fails: Check needle condition and re-thread; then review hoop tightness and fabric stability.
• Q: How should Bernina 790+ Hover (Needle Up/Down “Hover” feature) be set to fix embroidery registration errors where outlines do not match fills?
  A: Turn Bernina 790+ Hover OFF as a quick test when registration is drifting, because Hover can let fabric shift between needle movements.
  • Go to the hand-touching-button settings and switch Hover OFF for precision work.
  • Use High Hover for thick towels/fleece only when the foot is dragging the pile.
  • Keep Hover Low/Off for slippery vinyl or appliqué where pinning the material matters.
  • Success check: The next outline-to-fill alignment improves and the fabric looks more “pinned” under the foot.
  • If it still fails: Treat it as a hooping/stabilizer stability problem and re-hoop for a drum-tight result.
• Q: How can Bernina 790+ thread cutter settings be adjusted to prevent “bird’s nest” buildup and hard thread bullets on the back?
  A: Reduce Bernina 790+ securing stitches before cut (or use Cluster) to avoid bulky knots that can trigger tangles.
  • Open the scissor (cutter) settings and choose 2 stitches or Cluster for delicate fabrics.
  • Use 4 stitches only for heavier canvas where bulk is less visible.
  • Keep hands clear while testing, because the cutter engages with force and speed.
  • Success check: The back shows smaller, flatter tie-offs and fewer tangles at trim points.
  • If it still fails: Turn Thread Away ON to pull tails to the underside and reduce top-side fuzz.
• Q: What should Bernina 790+ users do when the machine shows “Check Upper Thread” but the thread is not broken, especially with metallic or monofilament thread?
  A: Temporarily disable the Bernina 790+ Upper Thread Sensor for specialty threads that can trigger false alarms, but monitor stitching closely.
  • Disable the Upper Thread Sensor only for the problem thread type and only for that job.
  • Watch the needle area continuously, because the machine can keep sewing without thread if a real break happens.
  • Re-enable the sensor after the specialty-thread section is finished.
  • Success check: The job runs without repeated false stops while stitches are still forming normally.
  • If it still fails: Slow the machine down and re-thread using the floss test to confirm smooth feed.
• Q: When Bernina 790+ embroidery puckers or the fabric shifts in the hoop, what is the step-by-step “skills first, tools second” fix before upgrading equipment?
  A: Treat Bernina 790+ puckering and hoop-shift as a physics problem first, then escalate from technique to stabilizer to magnetic hoop if slipping persists.
  • Re-hoop for a drum-skin tight feel and confirm the fabric is not creeping during the first layer.
  • Upgrade stabilizer firmness (often cutaway instead of tearaway) when the design pulls the fabric.
  • Switch to a magnetic embroidery hoop when traditional hoop grip cannot stay consistent across the full hoop.
  • Success check: The fabric stays tight and flat through the first color with no creeping and improved registration.
  • If it still fails: Consider workflow/production upgrades (more consistent clamping/fixtures, and for higher throughput a multi-needle machine) once technique and stabilization are confirmed.
