Bernina 790 PRO Firmware Update V43.00.14: The FAT32 USB “No-Fail” Routine (and the Mistakes That Brick Your Afternoon)

If your Bernina 790 PRO update has ever failed, or if the mere thought of “flashing firmware” makes your palms sweat, let me stop you right there. You are not “bad with technology,” and you haven’t broken your expensive machine.

In my 20 years of running embroidery floors and training technicians, I’ve learned that 90% of update failures aren’t caused by the machine itself. They are caused by rushing the prep work. The machine is simply a strict rule-follower. If the USB stick isn’t perfect, or if an accessory is still plugged in, the machine protects itself by refusing to update.

This guide takes Jeff’s raw technical process and slows it down into a “safety-first” protocol. Think of this not as computer programming, but as a precise recipe. If you follow the ingredients exactly, the cake rises every time.

The Calm-Down Primer for Bernina 790 PRO Firmware Updates: You’re Not Breaking It—You’re Resetting It

Firmware updates trigger a specific anxiety in creatives: the fear of the "Black Screen of Death." You rely on this machine for your income or your passion, and seeing it reboot, flash, and go dark feels wrong.

Let me reframe this. An update is a controlled reset. It is the only time your machine gets to clear its digital throat and install improvements that fix bugs (like stitch regulator lagging or cutter issues).

Jeff’s key message—and mine—is to treat this like surgery prep. You wouldn’t operate in a dirty room. Similarly, you don’t update a commercial-grade machine like an embroidery machine bernina with a cluttered USB stick or a shaky power connection.

The Golden Rule: The actual update takes 5 minutes. The preparation should take 15. If you reverse those numbers, you will fail.

The “Unplug Before You Even Think About It” Rule: Remove the Embroidery Module and Unplug the BSR

Before you touch a computer, we must physically safeguard the machine. The Bernina 790 PRO needs to be in its simplest physical state to accept new software.

Jeff’s first prerequisite is non-negotiable. Do not think, "It'll probably be fine." It won't be.

1. Detach the Module: Physically lift and remove the large embroidery module from the left side.
   • Sensory Check: You should feel the mechanical release disengage smoothy. If you have to yank it, something is wrong.
2. Unplug the BSR: Ensure the Bernina Stitch Regulator is not connected to the port.

Why does this matter? When the machine reboots, it sends electrical signals to check all ports. If the embroidery module is attached, the machine tries to "talk" to it during the brain transplant. This signal cross-talk is a leading cause of frozen updates.

Warning: (Physical Safety)
When removing the embroidery module, always use two hands and keep your fingers clear of the connection rail pinch points. The module is heavier than it looks. Also, remove all needles and rotary cutters from the workspace—if you drop the module, you don't want to instinctively catch it and stab yourself.

Pro tip from the field (The "Hidden" Consumable)

Now is the time to clean. While the module is off, check the connection ports for lint. A can of compressed air (held upright) or a soft brush is your best friend here. Dust in the connector pins can simulate a hardware failure even when the software is fine.

Prep Checklist (Physical Sanctuary)

• Embroidery Module: Completely removed and set on a flat, safe surface (not the edge of a table!).
• BSR (Stitch Regulator): Unplugged.
• Foot Control: Unplugged (optional but recommended for total isolation).
• Power Supply: Plugged directly into a wall outlet or a high-quality surge protector (do not use an old, fraying extension cord).
• Time Allocation: You have committed 30 minutes where you will not walk away.


The #1 Failure Point: FAT32 USB Formatting and the “Small Stick Wins” Reality

This is where 80% of users get stuck. Jeff emphasizes this for a reason: The machine is not a PC. It cannot read your massive 1TB hard drive or a USB stick formatted for a Mac.

The "Sweet Spot" Specs:

• Capacity: Must be 32GB or less. (Jeff prefers 4GB, and I agree—smaller allows the machine to read data faster).
• Format: Must be FAT32.

Why FAT32? Think of FAT32 as "Basic English." It’s an older, simpler file language that almost every machine understands. Modern USBs often come formatted in exFAT or NTFS (complex languages). Your Bernina 790 PRO might not "speak" those fluently during a boot sequence.

The “Only Four Files” rule (and why it matters)

Jeff is essentially teaching digital hygiene here.

• The Rule: The USB stick must contain ONLY the update files. Nothing else.
• The Reality: If you have your kid’s homework, three old embroidery designs, and a folder of vacation photos on that stick, the machine’s bootloader gets confused. It’s looking for a needle in a haystack.
• The Verification: Check the file sizes. In the video, Jeff shows the file size in bytes. If your download was interrupted, your file might be 0KB. A 0KB file is an empty shell and will crash the update.


Setup Checklist (The Digital Hygiene Check)

• USB Stick Size: Verified as 32GB or smaller (4GB–8GB is the "Goldilocks" zone).
• Formatting: Stick is freshly formatted to FAT32 (this erases all data on it, so back up first!).
• File Count: Exactly four .BIN files are on the stick.
• File Location: Files are in the Root Directory (not inside a folder named "New Folder").
• File Integrity: File sizes match the download page specifications (no 0KB files).

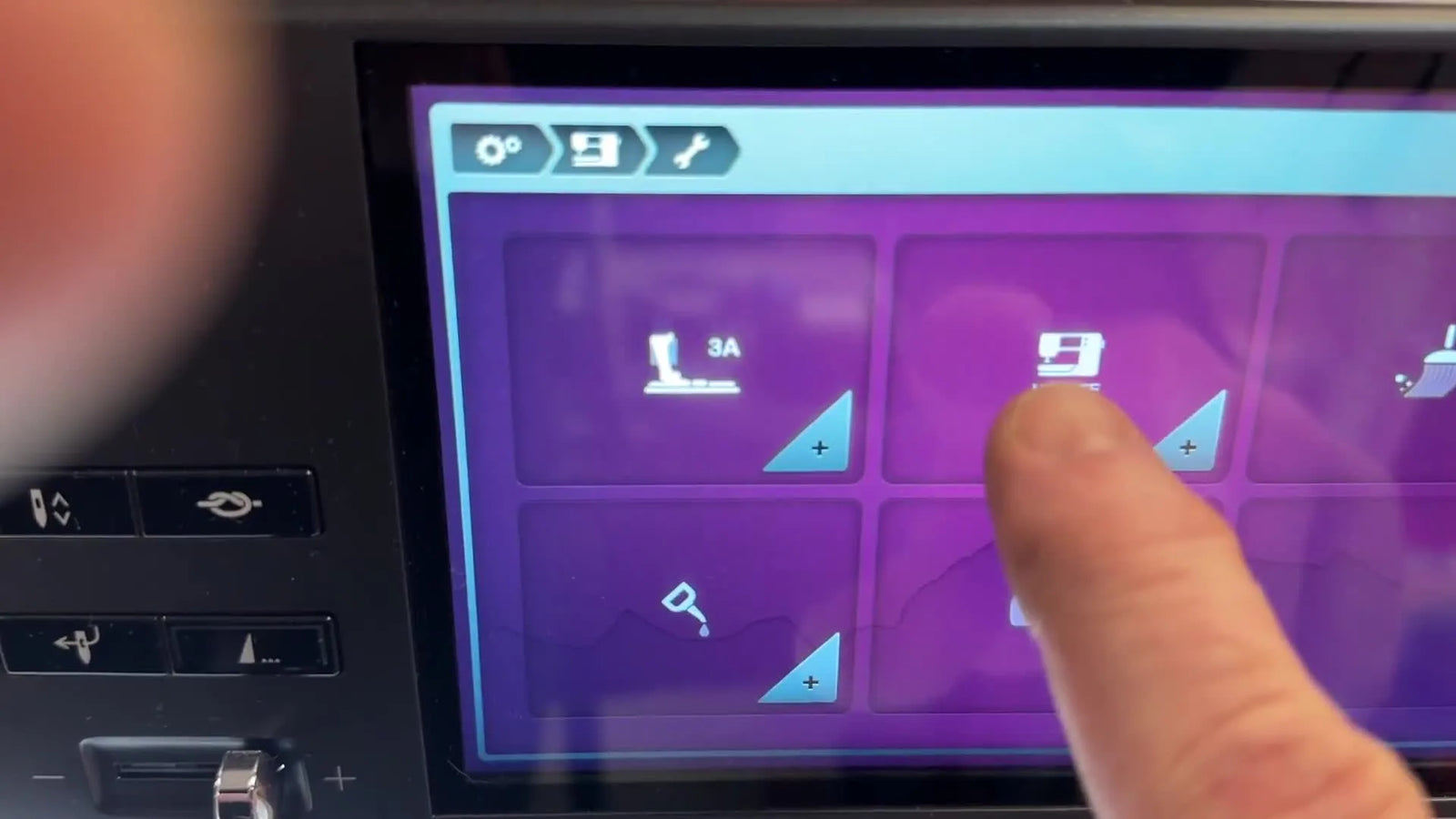

The Menu Path That Matters: Gears → Sewing Machine → Wrench → Update

Once your hardware is stripped down and your USB is prepped, the execution is simple. Jeff walks through the specific icon path. Do not guess; follow the map.

Touch Sequence:

1. Gears Icon (Settings)
2. Sewing Machine Icon (Machine Settings)
3. Wrench Icon (Maintenance/Service)
4. Update Icon (The Arrow/Box symbol)

Psychological Tip: If you are shaking because you are nervous, take a breath. The machine will not start the update until you confirm it in the next step. You are currently just navigating a menu.

A quick note for new Bernina owners (from the comments)

Unlike your smartphone, your embroidery machine generally won't annoy you with pop-ups saying "Update Now." You have to seek it out. This is a feature, not a bug—it prevents the machine from changing behavior in the middle of a critical wedding dress project. Only update when you have the downtime.

The Two-Button Moment: Back Up Settings First, Then Run the Update

This is the Point of No Return, but Bernina gives you a safety net.

1. Save Data (The Life Raft): Press the icon to save your settings/personal data to the USB. If you have custom stitch settings or saved parameters, this preserves them.
2. Update (The Launch): Press the Update button.




What “normal” looks like during the update

This is where the fear sets in. As the bar loads, the machine may restart, go black, make a "thump" sound, or flash standard lights.

• Sound Anchor: You might hear the internal mechanisms engage/disengage. This is the machine recalibrating.
• Visual Anchor: The screen may flicker.

Expert Rule: Sit on your hands. Literally. Do not touch the screen. Do not wiggle the USB stick. Do not turn off the power strip.

Warning: (Data Corruption Risk)
NEVER remove the USB stick while the update bar is moving or the screen is black. Interrupting the "write" process can corrupt the motherboard's basic operating system, turning a simple update into a costly dealer repair. Wait for the definitive success message.

Operation Checklist (The Flight Procedure)

• USB Insertion: Stick is firmly seated in the right-side port.
• Backup: Personal data saved (optional but smart).
• Initiation: "Update" button pressed once.
• Patience: Hands off the machine during black screens and reboots.
• Conclusion: You are looking for the text "Update Successful."

The Only Proof That Counts: “Update Successful” and Firmware V43.00.14 on the Version Screen

Jeff’s verification step is the stamp of approval. Don't assume it worked just because the screen is on.

1. Go back to the Setup Program (Gears).
2. Look for the Info or Version tab.
3. Target: You must see V43.00.14.

If you see the old number, the machine simply ignored your USB stick (likely a formatting issue) and booted normally. You haven't broken anything; you just haven't updated anything either.

When the Bernina 790 PRO Update Fails, Don’t Panic—Diagnose It Like a Technician

If you are staring at a failure message, stop. Do not force it. Use this structured triage table to identify the breakdown.

Troubleshooting: The "Why is this happening?" Chart

Watch out: “Almost right” is still wrong with firmware media

In embroidery, if your tension is slightly off, you get a mediocre stitch. In firmware, if a file is one byte off, you get zero function. Perfection is the only passing grade here.

The Hidden “Why”: What Your Machine Is Really Asking For (and How This Protects Your Schedule)

Why is this process so rigid? Because the Bernina 790 PRO is a high-precision computer dragging a needle through fabric at 1,000 stitches per minute. The software controls the timing of the hook and needle to the millisecond.

By forcing you to strip the machine down and use clean media, Bernina is ensuring that no conflicting signals interrupt that timing calibration.

Business Insight: I tell my shop owners: "Schedule updates for Friday afternoon, never Monday morning." If something goes wrong on a Friday, you have the weekend to troubleshoot. If it goes wrong Monday morning, you miss your deadline.

Comment Corner, Answered Like a Dealer Would: Wi-Fi Updates, Touchscreen Calibration, and What’s Realistic

Let’s address the common frustrations that popped up in the video comments.

“Will Bernina ever do a Wi-Fi update?”

We all want this. However, wired (USB) updates are currently the industry standard for core firmware because they are stable. Wi-Fi drops out. If Wi-Fi drops while rewriting your motherboard, the machine bricks. For now, embrace the USB as your "reliability cable."

“My Bernina 830 touchscreen stopped responding…”

Be careful conflating different issues. A firmware update fixes logic; it rarely fixes broken hardware. if your screen is dead, no amount of software updating will revive a disconnected ribbon cable. Call your tech.

“I followed your instructions and it updated—thank you!”

This feedback proves the "checklist method" works. The users who fail are usually the ones who skipped the "Delete other files from USB" step.

The Upgrade Path That Actually Saves Time: From Standard Hoops to Magnetic Hoops (Without Turning Your Workflow Upside Down)

Now that your machine’s brain (Software V43.00.14) is optimized, look at your hands. The update ensures the machine stitches perfectly, but notice how much time you still spend struggling with the hoop?

Jeff starts with a standard oval hoop. It works, but it's slow. Dealing with inner and outer rings, tightening screws, and fighting "hoop burn" on delicate fabrics is the bottleneck of the modern embroiderer.

The "Pain" Trigger: If you dread hooping slippery performance wear, or if your wrists ache after a production run of 10 shirts, your method needs an update, not just your machine.

The Solution Hierarchy:

1. Level 1: Skill Check. Are you using the right stabilizer? (See Decision Tree below).
2. Level 2: Tool Upgrade. Many professionals searching for a bernina magnetic hoop do so because they are tired of the "tug-of-war" with fabric.
3. Level 3: Production Speed. If you are doing volume, a bernina snap hoop or similar magnetic system allows you to "slap and stick" the fabric. There is no screwing or unscrewing. The magnet holds the fabric taut automatically.

Warning: (Magnetic Safety)
PACE MAKERS & PINCH HAZARDS: Magnetic hoops use industrial-strength neodymium magnets. They are incredibly strong.
1. Keep them at least 6 inches away from pacemakers or insulin pumps.
2. Watch your fingers! These magnets can snap together with enough force to pinch skin painfully. Slide them apart; don't pry them.

The physics piece most people miss (why hooping tools change stitch quality)

A standard hoop relies on friction. A magnetic hoop relies on direct vertical pressure.

• Friction (Standard): drags the fabric fibers (distortion risk).
• Pressure (Magnetic): sandwiches the fabric (zero distortion).

For users investigating magnetic hoops for bernina embroidery machines, the goal is usually consistency. A hooping station for machine embroidery combined with magnetic frames ensures that "Shirt #1" looks exactly like "Shirt #50."

Decision Tree: Choose Stabilizer and Hooping Strategy Before You Blame the Machine

You’ve updated the firmware. If your stitches still look bad, it’s likely physics, not software. Use this logic flow to diagnose the next step.

START: What is your fabric behavior?

1. "It's stable and flat" (e.g., Denim, Canvas, Cotton)
   • Stabilizer: Tearaway is usually fine.
   • Hoop: Standard Hoop works well here.
   • Risk: Low.
2. "It stretches when I pull it" (e.g., T-shirts, Jersey, Performance Knits)
   • Stabilizer: Cutaway (Must use cutaway to support stitches forever).
   • Hoop: Magnetic Hoop recommended.
   • Why? Standard hoops stretch the knit while tightening the screw. Magnets hold it in its relaxed state.
3. "It bruises easily" (e.g., Velvet, Suede, Satin)
   • Stabilizer: Float method with adhesive backing, or gentle clamping.
   • Hoop: Magnetic Hoop is critical here.
   • Why? Standard hoops leave permanent "burn" rings (crushed pile) on velvet. Magnets distribute pressure preventing the ring marks.
4. "I have to do 50 of them today" (Production Run)
   • Strategy: Stop using standard hoops. You will get repetitive strain injury.
   • Upgrade: Switch to a high-speed magnetic frame system to cut hooping time by 50%.

The Results Mindset: Update Cleanly, Then Build a More Profitable, Less Painful Workflow

A firmware update like V43.00.14 gives you a "clean slate." The bugs are gone, the logic is fresh. But a machine is only as good as the operator's workflow.

By mastering the "boring" basics—clean USBs, safe startup protocols, and choosing the right bernina magnetic embroidery hoop for difficult fabrics—you move from "hobbyist guessing" to "professional certainty."

Your Bernina 790 PRO is a powerhouse. Treat its software with respect, equip it with the right tools, and it will run your business for years to come.

FAQ

• Q: How do I prepare a Bernina 790 PRO correctly before starting a firmware update to prevent a frozen update?
  A: Strip the Bernina 790 PRO down to a “simple state” before updating—most failures come from skipping this prep.
  • Detach the embroidery module and set it on a flat, safe surface.
  • Unplug the BSR (Bernina Stitch Regulator) and (optionally) unplug the foot control.
  • Clean the module connection area using compressed air held upright or a soft brush.
  • Success check: The Bernina 790 PRO is physically bare (no module/BSR connected) and ports look lint-free before the USB is inserted.
  • If it still fails: Re-check USB formatting and file placement; accessory cross-talk and bad update media are the top causes.
• Q: What USB stick format and size does a Bernina 790 PRO need for a firmware update to start reliably?
  A: Use a freshly formatted FAT32 USB stick that is 32GB or smaller (often 4–8GB works best).
  • Choose a USB stick ≤32GB; avoid large-capacity drives.
  • Format the USB stick to FAT32 (backup first—formatting erases data).
  • Use a clean stick dedicated to the update (no extra files).
  • Success check: The Bernina 790 PRO can “see” the USB and the Update option is available instead of doing nothing.
  • If it still fails: Try a different USB stick (often an old/slow stick causes stalls) and reformat again to FAT32.
• Q: How do I place Bernina 790 PRO firmware update files on the USB so the machine does not show “File Not Found”?
  A: Put only the extracted update files on the USB root—do not place the ZIP file or folders on the stick.
  • Extract/unzip the download so you have exactly four .BIN files.
  • Copy those four .BIN files to the root directory (not inside any folder).
  • Verify the file sizes are not 0KB (0KB indicates a bad/incomplete download).
  • Success check: The Bernina 790 PRO recognizes the update files and proceeds to the update prompt instead of “File Not Found.”
  • If it still fails: Re-download the update files and repeat the unzip + root-copy step with a freshly formatted FAT32 stick.
• Q: What is the exact Bernina 790 PRO menu path to start a firmware update?
  A: Follow the icon path exactly: Gears → Sewing Machine → Wrench → Update.
  • Tap the Gears icon (Setup/Settings).
  • Tap the Sewing Machine icon (Machine Settings).
  • Tap the Wrench icon (Maintenance/Service).
  • Tap the Update icon (arrow/box symbol).
  • Success check: The Bernina 790 PRO displays the update screen where “Save Data” and “Update” are available.
  • If it still fails: The machine likely is not reading the USB; revisit FAT32 formatting and “only four .BIN files in root.”
• Q: What should “normal” look like during a Bernina 790 PRO firmware update, and when is it unsafe to touch the machine?
  A: Black screens, restarts, flicker, and mechanical sounds can be normal—do not touch anything until a success message appears.
  • Press Update once, then keep hands off the screen, USB stick, and power source.
  • Wait through black screens and reboots; do not power-cycle mid-process.
  • Never remove the USB stick while the progress bar is moving or the screen is black.
  • Success check: The Bernina 790 PRO shows a clear “Update Successful” message at the end.
  • If it still fails: If the screen stays black for more than 10 minutes, stop and contact a dealer/technician for guidance before powering off.
• Q: How do I confirm a Bernina 790 PRO firmware update actually installed (not just rebooted normally)?
  A: Verify the version number—successful completion should show firmware V43.00.14 on the Info/Version screen.
  • Return to Setup (Gears) after the update completes.
  • Open the Info/Version area and read the firmware version.
  • Compare the displayed version to the target V43.00.14.
  • Success check: The Bernina 790 PRO version screen explicitly shows V43.00.14.
  • If it still fails: If the old version remains, the machine likely ignored the USB (common causes: exFAT/NTFS format, files not in root, extra files on the stick).
• Q: What safety rules should embroidery users follow when handling Bernina magnetic hoops and why can they reduce hoop burn on delicate fabrics?
  A: Use Bernina magnetic hoops with pinch/pacemaker precautions, and choose them when standard hoops cause ring marks or fabric distortion.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Slide magnets apart and keep fingers clear—do not let magnets snap together.
  • Use magnetic clamping for velvet/satin or stretchy knits to avoid friction-based distortion from standard hoops.
  • Success check: Fabric stays in a relaxed, flat state with fewer or no visible hoop rings compared with a standard hoop.
  • If it still fails: Re-check stabilizer choice and hooping strategy (stretchy knits generally need cutaway support); if production volume is high, consider a faster magnetic frame workflow before blaming the machine.
