Bernina 790 Plus Embroidery: The Calm, Correct Setup (Icons, 0mm Plate, Hoop Lock Test, and Virtual Positioning That Actually Lands Where You Tap)

If you’ve ever sat in front of a Bernina 790 Plus with the hoop mounted, the design ready, and your finger hovering over "Start"—only for nothing to happen—you’re not alone. The silence of the machine can be deafening.

The good news: most "my Bernina won’t embroider" moments aren’t mechanical failures. They are usually a missing confirmation, a safety setting mismatch (plate vs. foot), or a hoop that isn’t truly locked.

This post rebuilds Bernina Jeff’s on-screen lesson into a field-tested, repeatable workflow. We will move beyond just "clicking icons" and focus on the sensory cues—the clicks, the visual checks, and the tactile feedback—that confirm your machine is safe and ready to stitch.

The "Don't Panic" Primer: Navigating the 790 Plus Dashboard

On the right-hand side of the 790 Plus screen, you need to develop muscle memory for four specific tabs. Think of this as your pilot’s instrument panel:

• Folder: Your library. Access designs (including fonts) and save your work here.
• Pencil: Your workshop. Edit mode—positioning, resizing, duplicating, flipping, layering.
• Palette: Your preparation. Thread/color list management.
• Needle with Dots: Your runway. The actual sewing/embroidery stitch mode.

The "Hidden Consumable" Trick: Jeff keeps a clean chopstick in his sewing drawer. It works as a non-conductive stylus and a fabric stiletto. Unlike metal tools, if the needle hits the chopstick, you break a 20-cent piece of wood, not a $3,000 timing belt.

Build a Quick Text Design (And Avoid the Vanishing Keyboard)

To learn the interface without getting lost in complex files, we start with a simple text stitch-out.

Step-by-Step Action Plan

1. Tap the Folder Icon.
2. Select ABC: Enter the fonts area.
3. Select Font: Choose a robust Block font for testing.
4. Type: Enter your text (e.g., "Jeff") using the upper/lowercase toggle.
5. Listen and Look: Tap the green check mark. You should hear a confirmation tone and see the screen shift to the edit view.

The "Ghost Keyboard" Trap

If you accidentally tap the text display bar above the keys, the keyboard collapses instantly. It feels like a bug, but it's a feature.

• The Fix: Train your finger to tap only the keys. Avoid the top bar unless you intend to hide the keyboard to see your design.


Expert Habit: Create a "Font Bible." Stitch every built-in font at its default size on stable cotton. Keep these samples in a binder. Digital previews are approximations; physical stitch-outs are reality.

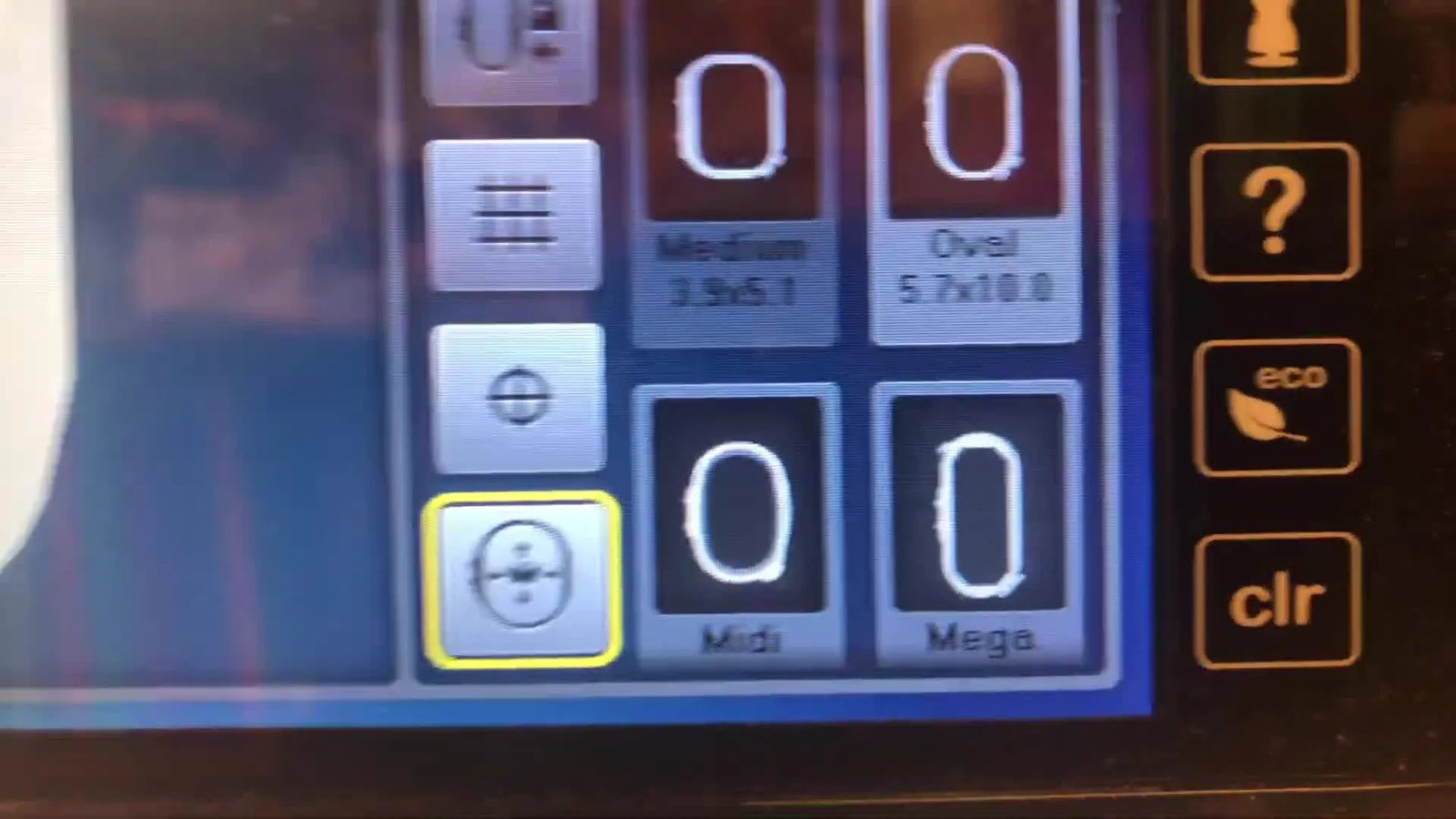

Select the Hoop and Lock in "Virtual Positioning"

After confirming text, the machine defaults to the smallest possible hoop to prevent collisions. You must manually override this to match your physical setup.

The Selection Sequence

1. Tap the Hoop Icon.
2. Select Oval 5.7 x 10.0 inches (or your specific hoop).
3. Critical Check: Verify the butterfly icon (Virtual Positioning) is yellow.
4. Exit: Tap the X.




Why the "Yellow Butterfly" Matters

If the butterfly is yellow, Virtual Positioning is active. This means the hoop will move to match where you tap on the screen. If it is grey (inactive), you are flying blind. Make the yellow butterfly your "Go/No-Go" gauge.

The Hidden Prep: 0mm Plate, Feed Dogs, and Foot Matching

This section is the number one cause of broken needles and damaged needle plates. You must align the physical reality of the machine with the digital brain of the software.

Jeff physically swaps to a single hole needle plate. This provides superior fabric support, preventing the needle from pushing fabric into the bobbin area (flagging).

Safety Setup Sequence (Do NOT deviate from this order)

1. Physical Action: Install the single hole plate and snap on Embroidery Foot #26.
2. Digital Setting: Tap the 9mm stitch plate icon on screen -> Select 0mm.
3. Physical Action: Lower the feed dogs (listen for the mechanical release sound).
4. Digital Setting: Verify the screen shows Foot #26.




Warning: Mechanical Safety
Never omit the 0mm plate confirmation in the software. If you install a single-hole plate but leave the software in 9mm mode, the machine may attempt a zigzag or calibration move that slams the needle into the metal plate. This can shatter the needle and send shrapnel flying. Always sync the screen to the metal.

Prep Checklist: The "Pre-Flight" Inspection

Before you even verify the specific design, run this scan:

• Hoop Match: Screen hoop matches physical hoop (e.g., Oval 5.7" x 10").
• Butterfly Check: Virtual Positioning icon is yellow.
• Plate Sync: Physical single-hole plate installed; Screen reads 0mm.
• Foot Sync: Physical Foot #26 installed; Screen reads Foot #26.
• Feed Dogs: Lowered (no jagged teeth felt on the plate).
• Consumables: Fresh needle installed (Size 75/11 or 90/14 depending on fabric).

Enter Sewing Mode: Respect the Arm Movement

When you tap the sewing tab (Needle with Dots), the machine performs a calibration check.

Action: Tap the icon clearly. Reaction: The machine will warn you that the embroidery arm is about to move. Response: Clear the area of coffee cups, scissors, and hands. Confirm with the Green Check.

Expert Note: If you see "scissors in yellow" on the interface, it refers to auto-cut settings. Defaults are usually fine for beginners. Don't let menu anxiety stall you—if the arm moves and the green light appears, you are winning.

Attach the Hoop: The "Click" and The Pull Test

Hoop attachment is a physical skill that relies on tactile feedback. A loose hoop guarantees a ruined design (and potentially a broken needle).

The Locking Protocol

1. Slide the hoop under the presser foot.
2. Squeeze the grey side tabs on the hoop connector firmly.
3. Align the connector pins with the carriage slots.
4. Release the tabs. You should feel them snap outward.
5. The Pull Test: Gently pull up on the front band of the hoop. It should feel rock solid. If it wobbles or pops loose, it was never locked.




When Hooping Hurts (The Commercial Trigger)

The standard hoop requires significant hand strength and creates "hoop burn" (permanent crease marks) on sensitive fabrics like velvet or performance wear.

• Trigger: If you find yourself avoiding embroidery because your wrists hurt from tightening screws, or you are ruining shirts with hoop marks.
• Criteria: Are you doing production runs (10+ items) or working with thick/delicate fabrics?
• The Upgrade: Many professionals switch to a bernina magnetic embroidery hoop. These use powerful magnets to clamp the fabric instantly without screws. This eliminates "hoop burn" and significantly reduces the physical strain of hooping.

Warning: Magnet Safety
magnetic embroidery hoops use industrial-strength magnets (neodymium). They snap together with extreme force. Keep fingers clear of the contact zone to avoid pinching. Do not use if you have a pacemaker, as the magnetic field can interfere with medical devices.

Virtual Positioning: Tap, Bullseye, Move

With the hoop locked, use Virtual Positioning to align your design perfectly.

The Alignment Workflow

1. Ensure you are in Edit (Pencil) Mode.
2. Targeting: Tap a point on the screen background. The Bullseye will jump to the nearest design stitch.
3. Action: The physical hoop will move, placing the needle directly over that point on the fabric.
4. Fine Tuning: Use the multi-function knobs (Left/Right, Up/Down) to jog the needle into the exact position (e.g., the center crosshair you marked on the fabric).




Expert Tip: Use the Check Function (four corners icon) to trace the perimeter of your design. This ensures the needle won't hit the hoop frame—a disaster that sounds like a gunshot and ruins the hoop.

The "Why Won't It Sew?" Fix: The 3-Second Rule

You are ready. The light is green. You press the button. Nothing happens. This is the most common beginner panic moment.

The Reality: The Bernina 790 Plus is a computer. It distinguishes between a "tap" (accidental bump) and a "press" (command).

The Action: Press the physical Start/Stop button and hold it for 3–5 seconds. You will hear the machine engage, and the needle will begin its slow initial stitches.

Setup Checklist: The Final Countdown

Do this immediately before the Start button press.

• Mode Check: You are in the Stitch/Sew tab (Needle/Dots icon).
• Arm Clear: Green checkmark confirmed; arm has calibrated.
• Hoop Secure: Passed the vertical Pull Test.
• Position Verified: Used Check function for center/corners.
• Bobbin Check: Full bobbin loaded; tail cut to correct length (leave 1 inch).
• Top Thread: Threaded correctly through the take-up lever (visual check).

Fabric & Stabilizer Decision Tree

Even perfect machine setup fails if the physics of the fabric are wrong. Use this logic gate to choose your consumables.

Start Here: What makes up the majority of your fabric?

A. Stable Woven (Cotton, Denim, Twill)

• Goal: Maintain Crispness.
• Stabilizer: Tear-away (2 layers if dense design).
• Hooping: Drum-tight.

B. Stretchy Knit (T-Shirt, Jersey, Fleece)

• Goal: Prevent Deformation.
• Stabilizer: Cut-away (Mesh styling for lighter garments).
• Hooping: Do NOT stretch the fabric. Lay it flat.
• Tool Upgrade: A magnetic hoop for bernina is superior here as it holds knits without pulling them out of shape during the clamping process.

C. High Pile / Textured (Towels, Velvet)

• Goal: Prevent Sinking.
• Stabilizer: Tear-away (Bottom) + Water Soluble Topping (Top - Solvy).
• Hooping: "Float" technique or use a magnetic frame to avoid crushing the pile.

Troubleshooting: Structured Diagnostics

Don't guess. Follow the troubleshooting path from Lowest Cost to Highest Complexity.

The Scale-Up Strategy: When to Upgrade Your Tools

Once you master the workflow above, your bottleneck will shift from "software confusion" to "production speed."

Level 1: The Hobbyist (1-5 items/week)

Stick to the stock tools. Focus on the checklists above. Optimize your prep time by keeping scissors, tweezers, and stabilizers organized.

Level 2: The Side Hustle (20-50 items/week)

Your hands and time are now your currency. The stock hoop becomes a liability due to slow clamping and hand fatigue.

• Solution: Terms like magnetic embroidery hoop are your gateway to efficiency. Investing in these frames turns a 2-minute hooping struggle into a 15-second snap.
• Consistency: Look into a embroidery hooping station. This simple board ensures every left-chest logo lands in the exact same spot on every shirt, reducing the need for frantic Virtual Positioning adjustments.

Level 3: The Production Shop (100+ items/week)

If you are constantly waiting for the 790 Plus to finish changing colors, or if hooping is taking longer than stitching:

• Solution: It is time to look at multi-needle machines (like SEWTECH models). These machines run faster, hold 10+ colors involved, and allow you to hoop the next garment while the current one runs.
• Workflow: Combine multi-needle speed with hooping for embroidery machine stations and bernina snap hoop compatible magnetic frames to close the loop on profitability.

Operation Checklist: Monitoring

• First 100 Stitches: Watch the start. This is where thread shredding happens.
• Sound Check: Listen for the rhythmic thump-thump. A sharp clack or grinding noise requires an immediate E-Stop.
• Fabric Watch: Ensure excess fabric isn't creeping under the hoop.

By following this sensory-based workflow, you turn the Bernina 790 Plus from an intimidating computer into a compliant, high-precision tool. Trust the checklists, respect the physics, and keep that butterfly yellow.

FAQ

• Q: Why does a Bernina 790 Plus embroidery design not start even when the screen looks ready and the light is green?
  A: This is common—on a Bernina 790 Plus, the Start/Stop button often needs a deliberate long-press to register.
  • Press and hold the physical Start/Stop button for 3–5 seconds (not a quick tap).
  • Confirm the machine is in the Stitch/Sew tab (needle-with-dots icon) before pressing Start.
  • Clear the area and confirm the green check when the machine warns the embroidery arm will move.
  • Success check: the machine audibly engages and begins slow initial stitches.
  • If it still fails: re-check that the hoop is fully locked (do the pull-up test) and that the correct hoop size is selected on-screen.
• Q: How does a Bernina 790 Plus single-hole needle plate setup cause broken needles if the screen is still set to 9mm?
  A: Do not run embroidery until the Bernina 790 Plus screen is synced to the physical single-hole plate—set the software plate to 0mm to prevent needle-to-plate impact.
  • Install the single-hole needle plate and attach Embroidery Foot #26.
  • Change the on-screen stitch plate setting from 9mm to 0mm.
  • Lower the feed dogs after the plate/foot are confirmed.
  • Success check: the screen clearly shows 0mm and Foot #26 before any stitching.
  • If it still fails: stop immediately and re-run the full pre-flight checklist (plate, foot, feed dogs, hoop match) before pressing Start.
• Q: How can a Bernina 790 Plus user confirm the embroidery hoop is truly locked and won’t pop off mid-stitch?
  A: A Bernina 790 Plus hoop must “click” into place and pass a physical pull test—if it wobbles, it was never locked.
  • Squeeze the grey side tabs on the hoop connector firmly.
  • Align the connector pins with the carriage slots and release the tabs to let them snap outward.
  • Pull up gently on the front band of the hoop to test the lock.
  • Success check: the hoop feels rock solid (no wobble, no lift, no pop).
  • If it still fails: remove the hoop and re-seat it from the start—do not try to “nudge it tighter” while half-engaged.
• Q: Why does a Bernina 790 Plus keep showing a “check hoop” situation or behave like the design won’t fit after the hoop is attached?
  A: On a Bernina 790 Plus, select the correct hoop size on-screen before stitching—the machine often defaults to the smallest hoop to prevent collisions.
  • Tap the hoop icon and choose the exact hoop size you are physically using (for example, Oval 5.7" x 10.0").
  • Verify Virtual Positioning is active by checking the butterfly icon is yellow.
  • Exit the hoop menu and then attach the hoop to the machine.
  • Success check: the selected hoop outline on-screen matches the real hoop and Virtual Positioning responds when you tap the screen.
  • If it still fails: use the Check function (corner-trace) to confirm the design perimeter clears the hoop frame.
• Q: How do Bernina 790 Plus owners stop birdnesting (loops underneath) during embroidery without changing random tension settings?
  A: Don’t worry—on a Bernina 790 Plus, birdnesting is often caused by incorrect top threading, so rethread with the presser foot up.
  • Raise the presser foot fully before threading the top thread.
  • Rethread completely, making sure the thread is properly seated through the take-up lever (visual check).
  • Reinsert the bobbin and leave an appropriate thread tail (about 1 inch).
  • Success check: underside shows controlled bobbin lines (not large loose loops) and the stitch-out stabilizes after the first seconds.
  • If it still fails: stop and check the first 100 stitches closely—then confirm needle condition and that the fabric/stabilizer choice matches the fabric type.
• Q: How can a Bernina 790 Plus user keep Virtual Positioning reliable, and what does the yellow butterfly icon mean?
  A: The yellow butterfly on a Bernina 790 Plus is the go/no-go indicator—yellow means Virtual Positioning is active and the hoop will move to your tapped target.
  • Select the correct hoop size first, then confirm the butterfly icon is yellow.
  • In Edit (pencil) mode, tap the screen background to move the bullseye to the nearest stitch point.
  • Use the multi-function knobs to jog the needle precisely to your marked center/crosshair.
  • Success check: the physical hoop moves and the needle lands where you targeted on the fabric.
  • If it still fails: run the Check function (four corners) to confirm safe clearance and re-confirm the butterfly is not grey/inactive.
• Q: What are the safety risks of using magnetic embroidery hoops, and what precautions should Bernina users follow?
  A: Magnetic embroidery hoops use powerful neodymium magnets—keep fingers clear to avoid pinching, and do not use if the operator has a pacemaker.
  • Keep fingertips away from the magnet contact zone when closing the frame.
  • Control the snap—bring magnets together deliberately rather than letting them slam.
  • Store magnets securely so they cannot jump onto tools or each other unexpectedly.
  • Success check: the fabric is clamped quickly and evenly without screw-tightening strain.
  • If it still fails: switch back to a standard hoop for that job and re-evaluate fabric thickness and hooping method before retrying magnetic clamping.
• Q: When should a Bernina 790 Plus embroidery user upgrade from standard hoops to magnetic hoops or move to a multi-needle machine for production efficiency?
  A: Upgrade based on the bottleneck: start with technique, move to magnetic hoops when hooping causes pain or inconsistency, and consider a multi-needle machine when color changes and throughput become the limit.
  • Level 1 (technique): follow the pre-flight checklist (hoop match, yellow butterfly, 0mm plate sync, Foot #26 sync, feed dogs down).
  • Level 2 (tool): choose magnetic hoops when hoop burn, wrist strain, or knit distortion keeps happening, especially in repeated runs.
  • Level 3 (capacity): consider a multi-needle machine when you are waiting on color changes or hooping time exceeds stitching time.
  • Success check: hooping time drops and placement becomes repeatable with fewer re-alignments.
  • If it still fails: add a hooping station for consistent placement and reduce reliance on last-second Virtual Positioning corrections.
