Beanie Embroidery That Doesn’t Sink or Pucker: The 5.5" Magnetic Hoop Method for Yupoong Knit Caps

The Definitive Guide to Embroidering Beanies: From Nightmare to Profit Center

Beanies are the ultimate "deception" in the embroidery world. They look simple—just a small logo on a knit cap, right? Yet, for beginners and even seasoned pros, they are often the source of the most intense frustration. You stare at a plush Yupoong knit that won't sit still, swallows your satin stitches, or puckers the moment you release it from the hoop.

If you are decorating for customers—or trying to scale from 5 units to a production run of 50—you don't need "hacks." You need a manufacturing protocol. You need consistent centering, non-destructive hooping, and a stitch foundation that fights the fluff.

This article reconstructs a proven industrial workflow for Yupoong-style knit beanies on a multi-needle machine using a 5.5" magnetic hoop. We will cover the tactile "feel" of correct tension, the specific safety data you need, and the small details that prevent expensive rapid unscheduled disassemblies (needle breaks).

Pick the Right Yupoong Beanie + Backing Combo Before You Hoop (So You Don’t Fight the Knit Later)

The workflow analyzed here uses three common beanie architectures: a 12-inch cuffed beanie, a pom-pom beanie with a similar gauge, and an 8-inch skull cap. While the fashion style changes, the engineering challenge remains the same: Loose Knit Structure vs. Needle Penetration Force.

The Non-Negotiable: Stabilizer Selection

For this workflow, the stabilizer choice is not a suggestion; it is a structural requirements. You must use Cutaway Backing (typically 2.5oz to 3.0oz).

In the visual guide, the operator uses black cutaway specifically. Why?

1. Visual Stealth: If the knit stretches during wear (which it will), a white stabilizer might peek through the dark knit loops. Black backing vanishes into the shadow of the fabric.
2. Structural Integrity: A beanie isn't a static panel; it is a dynamic object that is constantly pulled, stretched, and yanked over a human head. Tearaway stabilizer provides zero structural support once the fibers are perforated. Cutaway effectively "locks" the knit stitches in place, preventing the design from distorting over time.

The Scale Factor

If you are doing this on a home single-needle machine, the physics remain the same, but your throughput is capped by the time it takes to change threads and re-hoop. When beanies become a weekly product line, the downtime kills your profit margin. This is the physiological trigger point where a multi-needle platform (like a SEWTECH high-value multi-needle machine) shifts from a "luxury" to a necessary tool for survival.

Furthermore, integrating a magnetic embroidery hoop allows you to clamp thick materials without the wrist strain associated with forcing traditional inner and outer rings together. If you are struggling to close your hoop on a thick heavy-weight cuff, you are working harder than the industry standard.

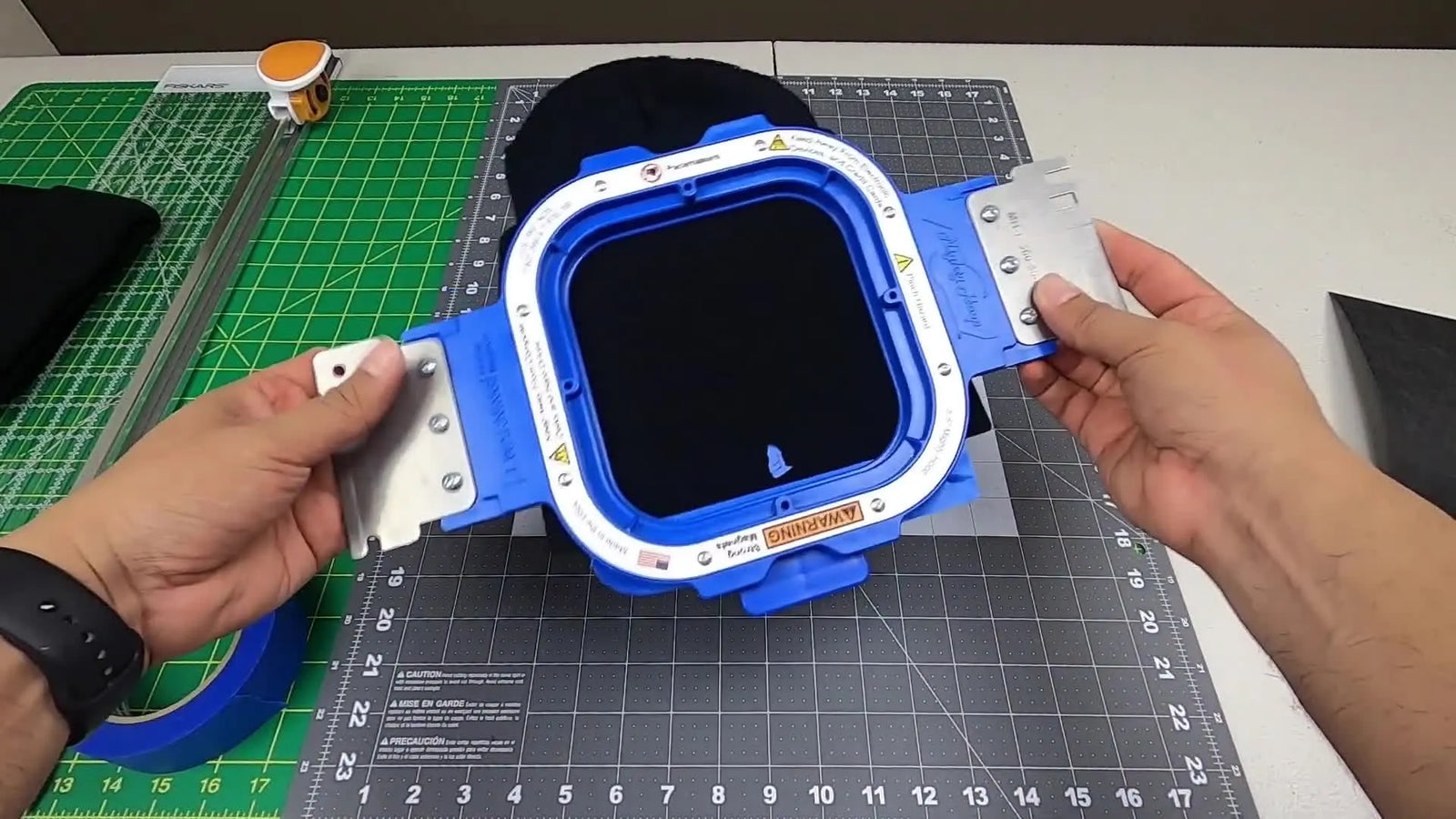

The “Open Gap” Stabilizer Trick on a 5.5" Magnetic Hoop (It Looks Wrong—Until You Stitch)

Here is the hoop prep technique that separates clean production runs from constant slippage.

The standard method is to "float" the stabilizer, but on a magnetic hoop, we secure it directly to the bottom ring. The operator taps a sheet of black cutaway stabilizer onto the bottom magnetic ring using masking tape.

Crucial Detail: He intentionally leaves a slight open gap at the top near the hoop tab. He does not tape the entire perimeter closed.

The Physics of the "Gap"

On knit beanies, you have to slide the bottom ring inside the cap. If the stabilizer is taped tightly all the way around, it creates a rigid drum that fights the curvature of the beanie. By leaving the top gap (near the clamp tab) untaped:

1. Clearance: It allows the beanie fabric to slide over the ring without snagging on the adhesive tape.
2. settling: It prevents the "guillotine effect" where the stabilizer bunches up against the top edge of the cuff.

This nuance is visible when using a 5.5 mighty hoop or similar compact magnetic frames. The working area is tight. Small distortions here translate to crooked logos later.

Prep Checklist: The "Pre-Flight" Inspection

Do not touch the beanie until these items are confirmed.

• Stabilizer: 2.5oz+ Cutaway, cut large enough to cover the full magnetic force area.
• Adhesion: Stabilizer taped to the bottom ring, but with a 1-inch "breathing gap" left open at the top.
• Consumables: Blue painter's tape is within arm's reach (pre-tear 3-4 strips for efficiency).
• Scissors: Snips ready for thread cleanup.
• Needle Check: Ensure you are using Ballpoint (BP) needles (size 75/11 is the sweet spot for heavy knits) to push fibers aside rather than piercing/cutting them.

Warning: Pinch Hazard. Magnetic hoops engage with force ranging from 10 to 40 lbs depending on the brand. Keep fingers clear of the mating surface. If the top ring snaps onto the bottom ring with your finger inside, it will cause significant injury.

The “4-Inch Center + F for Front” Method (Stops the Upside-Down Setup Mistake)

Beanies are notoriously disorienting. Once hooped, it is easy to lose track of which side is the "cuff edge" and which is the "crown." The creator’s fix is a standardized mistake-proofing ritual.

1. The Measurements

He finds the center by measuring 4 inches from one side seam and 4 inches from the other. Note: This assumes a standard adult beanie width.

• Action: Mark that center line with a small piece of blue painter’s tape.

2. The Cognitive Anchor

He writes a bold letter “F” on that tape. "F" stands for Front.

• Why this matters: When you are standing under the machine head, looking at an inverted hoop, spatial orientation can flip. The "F" serves as a definitive compass. If the "F" isn't facing you (or the machine, depending on your loading protocol), stop.

Whether you use a specialized "Tee Square It" tool or a simple shop ruler, the key is repeatability. If you are setting up a hooping station for embroidery, mark these measurements permanently on your table. This reduces the cognitive load of measuring every single unit from scratch.

The Inside-Out Hooping Strategy for Knit Caps (How to Slide the Bottom Ring In Without Warping the Cuff)

This is the maneuver that makes magnetic hoops legally unfair compared to standard hoops.

1. Inversion: Flip the beanie inside out / open the cuff entirely.
2. Orientation: Ensure your “F” tape mark is facing forward.
3. Insertion: Slide the bottom magnetic ring (with the taped stabilizer) inside the beanie.
4. Alignment: Align the center tape mark with the notches on the hoop’s frame.

The "Relaxed" State

Why inside-out? When you hoop a beanie right-side out on a tubular frame, you are often stretching the cuff diameter to fit the hoop arm. This stores "elastic potential energy" in the knit. By placing the hoop inside the beanie, you allow the knit to rest on top of the stabilizer in a relaxed state.

Sensory Check: The fabric should not look stretched like a balloon. It should settle onto the stabilizer. If you see the ribbing lines of the knit curving or distorting, you are forcing it. Reset and slide it gently.

Many professionals search for how to use magnetic embroidery hoop specifically to solve the issue of "hoop burn" (the shiny ring left by tight plastic hoops). The inside-out magnetic method eliminates hoop burn because the clamping pressure is distributed flatly, not by wedging fabric between plastic ridges.

The Painter’s Tape Bridge: Creating 4 Points of Contact So the Knit Can’t Slide

This step is the "secret sauce" for stability. The magnetic hoop clamps the sides and bottom effectively, but the "open end" of the beanie (where your head goes) is often loose. Loose fabric equals flag-waving, and flag-waving equals registration errors.

The 4th Point of Contact

The host bridges the open gap between the beanie fabric and the hoop frame using blue painter's tape.

• Action: Apply a strip of tape securing the top edge of the beanie knit to the stabilizer/hoop frame underneath.
• Reinforcement: "I just give it two," the host says, doubling the tape.

This adds friction. It prevents the heavy knit from creeping downward due to gravity or needle drag. If you are building a magnetic hooping station for speed, keep a dispenser of painter's tape loaded. This 10-second step saves you straight 10 minutes of picking out distorted stitches later.

Magnetic Clamping Without Puckers: “Taut, Not Yanked” Is the Rule That Pays You Back

With the beanie aligned and taped, place the top magnetic ring over the fabric. Align the warning tabs. Let the magnets snap. CLACK.

Now, stop.

The Tension Sweet Spot

The host uses the word taut. This is crucial to define for beginners.

• Too Loose: The fabric ripples when you touch it. Result: Poor registration.
• Too Tight (Stretched): The ribbing lines are expanded wide. Result: Puckering when unhooped.
• Just Right (Taut): The fabric feels like a firm handshake. It is flat, but the knit ribs are resting naturally.

Crucial Rule: Do not pull or "drum" the fabric after the magnets are engaged. If you yank the sides to make it tighter after clamping, you are creating a tension differential. The stabilizer will hold the design, but the fabric will snap back around it, creating the dreaded "doughnut" effect.

If you are using magnetic hoops for embroidery machines, trust the magnet. The clamp is the clamp. Do not assist it with manual stretching.

Setup Checklist: The "Go/No-Go" Decision

Before mounting to the machine.

• Sandwich Check: Stabilizer is on the bottom, Beanie is in the middle, Top Ring is clamped.
• Orientation: The "F" mark is pointing to the correct "Top" of the design.
• The Bridge: Painter's tape firmly secures the open end of the beanie to the hoop/stabilizer.
• Tactile Test: Press the center of the hoop area. It should have slight resistance (like a trampoline), not sag, and not feel rock hard.
• Obstruction Check: Ensure the excess beanie material is folded back and won't get caught under the needle arm.

Warning: Magnetic Safety. These hoops contain industrial-grade Neodymium magnets. keep them at least 6 inches away from pacemakers, ICDs, and other implanted medical devices. Do not rest them on laptops, credit cards, or tablets.

The Cross-Hatch Knockdown Underlay That Stops Stitches from Sinking Into Plush Knit

You have the perfect hoop job. Now, you can still ruin it with bad data. If you sew a standard satin stitch directly onto a chunky knit, the thread will sink between the yarn loops. The design will look "choppy" or disappear entirely.

The Mechanical Solution

The creator uses a "Knockdown Stitch" (also called a nap-tack or global underlay).

1. Shape: A shape slightly larger than your design (e.g., the flag rectangle).
2. Stitch Type: A loose cross-hatch or tatami fill.
3. Color: Match the beanie color (or the background of the patch).
4. Function: This layer physically mats down the hairy fibers of the yarn, creating a stable, flat "drywall" for your main design to paint on.

Digitizing Data Point: If you are programming this manually, aim for a density of roughly 1.0mm to 2.0mm spacing for the knockdown. You want to hold the fluff down, not create a bulletproof cardboard patch.

If you are running embroidery magnetic hoops and seeing gaps in your design, do not increase the hoop tension. Check your underlay. You cannot stabilize a fluid (air and yarn) with tension alone; you need a stitch foundation.

Run the Trace, Then Stitch the Knockdown Layer, Then the Design (This Order Matters)

At the machine interface (whether it's a home unit or a commercial SEWTECH), the sequence contributes to safety.

Step 1: The Boundary Trace

Run the design trace function.

• Visual Check: Watch the presser foot. Does it hit the plastic/metal of the frame? Does it come too close to the thick seam of the cuff?
• The Sound: Listen for the "click" of the foot hitting hard hoop impacts—if you hear this, stop immediately.

Step 2: The Knockdown

Stitch the underlay first. Watch how it transforms the bumpy knit into a smooth surface.

Step 3: The Main Design

Now run the logo.

• Speed Recommendation: While pros run fast, for your first few delicate beanies, cap your speed at 600-700 SPM (Stitches Per Minute). This reduces the chance of thread breakage caused by friction against the heavy wool/acrylic.










Operation Checklist: Final Quality Control

• Trace Logic: Did the trace clear all hard edges?
• Underlay Visual: Is the knockdown stitch covering the entire area of the main design?
• Unhooping: Remove the top magnet gently. Do not rip the beanie out.
• The Stretch Test: Pull the beanie width-wise. The design should move with the fabric, not separate from it.
• Cleanup: Trim the backing close (about 0.5cm to 1cm from design) but do not nick the knit loops. Scissors with a rounded tip are best here.

Stabilizer Decision Tree for Beanies: Cutaway vs Tearaway (And When “It Works” Still Isn’t Worth It)

A viewer asked the classic question: "Can I just use tearaway?" The honest answer is: You can, but you shouldn't.

Use this logic flow to make the right call every time:

Scenario A: The beanie is for actual wear (99% of cases).

• Choice: Cutaway (2.5 - 3.0 oz).
• Reason: The head stretches the hat. Tearaway breaks when stretched. Broken backing = distorted logo = customer return.

Scenario B: The design is extremely dense (patches, full fills).

• Choice: Heavy Cutaway or two layers of medium.
• Reason: High stitch counts act like a saw blade on the fabric. You need maximum backing to prevent the design from cutting a hole in the knit.

Scenario C: "I only have tearaway right now."

• Choice: Stop. Buy Cutaway.
• Reason: If you proceed, use a heavy spray adhesive (temporary) to bond the knit to the tearaway, but warn the customer the design structure may fail after washing.

Troubleshooting Beanie Embroidery on Magnetic Hoops: Symptoms → Causes → Fixes

When things go wrong, use this diagnostic table first. Do not touch the thread tension knob until you verify physical setup.

The Upgrade Path: When Magnetic Hoops + Multi-Needle Speed Turn Beanies Into Real Revenue

The content creator nails the conclusion: Magnetic hoops are about speed and consistency.

If you are a hobbyist doing one beanie for a grandchild, you can fight with a standard hoop for 20 minutes. But if you have an order for 24 beanies, that is 8 hours of struggle versus 1 hour of smooth production.

When to upgrade your toolkit:

1. Pain Point: "My hands hurt."
   • Solution: Magnetic Hoops. They use magnetic force, not your grip strength, to clamp thick fabric.
2. Pain Point: "I'm turning away orders because I'm too slow."
   • Solution: SEWTECH Multi-Needle Machines. Moving from a single needle (constant thread changes) to a 10+ needle machine transforms a 45-minute beanie run into a 10-minute run.
3. Pain Point: "My outlines are always off."
   • Solution: Commercial Magnetic Frames. These hold the fabric with uniform pressure around the entire perimeter, unlike standard hoops that pinch harder at the screw.

Remember the golden rule of beanie embroidery: The beanie doesn't need to be stretched tight—it needs to be stable.

Use magnetic hoops to achieve that stability without the struggle, trust your cutaway backing, and digitize a foundation that respects the fluff. That is how you turn a frustrating distinct knit cap into your shop's most profitable item.

FAQ

• Q: What stabilizer should be used for embroidering Yupoong-style knit beanies on a 5.5" magnetic hoop?
  A: Use 2.5–3.0 oz cutaway backing as the default because it keeps the knit supported after wear and washing.
  • Choose: Cutaway (not tearaway) for any beanie meant to be worn and stretched on a head.
  • Match: Use black cutaway on dark beanies to reduce show-through if the knit stretches.
  • Cut: Make the backing large enough to cover the full magnetic force/clamp area.
  • Success check: After unhooping and stretching the beanie width-wise, the design should move with the knit instead of warping or “breaking free.”
  • If it still fails… Upgrade to heavier cutaway or double-layer medium cutaway for very dense designs.
• Q: How do I tape cutaway backing onto the bottom ring of a 5.5" magnetic embroidery hoop without the beanie snagging or warping?
  A: Tape the cutaway to the bottom ring but leave a small “open gap” (about 1 inch) untaped near the top by the hoop tab so the beanie can slide on smoothly.
  • Tap: Secure the stabilizer to the bottom ring with painter’s/masking tape.
  • Leave: Keep the top area near the tab slightly open instead of sealing the full perimeter.
  • Slide: Insert the bottom ring into the beanie without the taped edge catching or bunching.
  • Success check: The beanie fabric should glide over the ring and settle flat—no stabilizer “bunching” at the cuff edge.
  • If it still fails… Re-tape with less tension and confirm the stabilizer sheet is not oversized and folding into the clamp zone.
• Q: How do I prevent hooping a knit beanie upside down on a multi-needle embroidery machine using the “4-inch center + F for Front” method?
  A: Standardize orientation every time by marking the beanie center and labeling it “F” (Front) before hooping.
  • Measure: Find center by measuring 4 inches from one side seam and 4 inches from the other (standard adult width assumption).
  • Mark: Place blue painter’s tape at that center point and write a bold “F” on the tape.
  • Verify: Keep the “F” facing the correct direction for your loading routine before mounting the hoop.
  • Success check: When standing at the machine with the hooped beanie inverted, the “F” still clearly indicates the front without second-guessing.
  • If it still fails… Stop and re-hoop immediately—do not “try to run it anyway,” because correction after stitching wastes more time.
• Q: What is the correct “taut, not yanked” tension standard for hooping knit beanies in magnetic hoops to avoid puckering after unhooping?
  A: Clamp the beanie so it is flat and stable, but never stretched—do not pull the fabric tighter after the magnets engage.
  • Clamp: Let the top ring snap on and accept the clamp pressure as-is.
  • Avoid: Do not “drum-tight” the knit or yank the sides after clamping (that creates tension differential).
  • Feel: Aim for “firm handshake” tautness—flat surface while knit ribs look natural.
  • Success check: Press the hoop center; it should feel slightly springy (trampoline-like), not saggy and not rock-hard.
  • If it still fails… Re-hoop inside-out so the knit rests in a relaxed state, and confirm puckers are not coming from missing underlay.
• Q: How do I stop a knit beanie from sliding in a magnetic hoop during stitching using the painter’s tape bridge method?
  A: Add a painter’s tape “bridge” to create extra contact at the open end of the beanie so gravity and needle drag can’t pull it downward.
  • Apply: Bridge the open edge of the beanie to the hoop/stabilizer area with a strip of blue painter’s tape.
  • Reinforce: Use two tape strips if the knit is heavy or the open end is loose.
  • Fold: Keep excess beanie material folded back so it cannot snag under the needle arm.
  • Success check: The beanie edge stays put when you lightly tug it—no creeping toward the design area.
  • If it still fails… Re-check that the beanie is not stretched in the clamp and that the tape is bonding fabric-to-stabilizer (not just fabric-to-fabric).
• Q: Why does embroidery on plush knit beanies look sunk, fuzzy, or “disappearing,” and how do I fix it with a cross-hatch knockdown underlay?
  A: Add a knockdown (nap-tack) underlay first to mat the knit fibers down before stitching the main satin/fill elements.
  • Digitize: Use a cross-hatch/tatami knockdown slightly larger than the design area.
  • Match: Use a knockdown thread color that matches the beanie/background.
  • Set: Use a loose knockdown (roughly 1.0–2.0 mm spacing is a safe starting point) so it holds fluff down without turning stiff.
  • Success check: After the knockdown runs, the knit surface looks visibly flatter and the main stitches sit on top instead of sinking between yarn loops.
  • If it still fails… Do not increase hoop tension first—re-check underlay coverage and confirm the beanie is hooped stable (not stretched).
• Q: What safety precautions are required when using magnetic embroidery hoops for beanies (pinch hazard and magnet safety)?
  A: Treat magnetic hoops like a pinch tool and a strong magnet—keep fingers clear during clamping and keep hoops away from medical implants and sensitive electronics.
  • Keep clear: Never place fingers between the rings when letting the magnets engage (pinch hazard can be severe).
  • Store smart: Keep magnetic hoops away from pacemakers/ICDs and other implanted medical devices (maintain at least 6 inches).
  • Protect devices: Do not rest magnetic hoops on laptops, tablets, credit cards, or similar items.
  • Success check: The top ring seats with a clean, controlled “snap” while hands stay outside the mating surface—no fumbling near the clamp line.
  • If it still fails… Slow down the hooping motion and align the tabs first so the ring does not jump sideways during engagement.
