Beads on Needle 12, Cording on Needle 1: Running a YunFu 500×800 Single-Head Machine Without Jams, Misalignment, or Ugly Tails

Mixed-media embroidery is the "high-wire act" of the apparel world. It looks expensive because it is physically unforgiving: glass beads can shatter needles, cording can drift off-path, and a single frame strike on a 500×800mm field can turn a profit center into a repair bill.

In this guide, I am deconstructing the operational flow of the YunFu single-head commercial machine—specifically utilizing the Glass Bead Device and the Easy Cording Device via the Dahao touchscreen controller.

But we aren't just following the manual. Drawing on two years of shop-floor experience, I will walk you through the "unwritten" sensory cues, safety buffers, and workflow adjustments that turn a terrifying complex setup into a repeatable production process.

You will learn two distinct workflows:

1. Beads Workflow: Loading, assigning Needle 12, laser alignment, and speed management.
2. Cording Workflow: Canceling status, loading the cording file, assigning Needle 1, executing the "trace," and the manual trim technique.

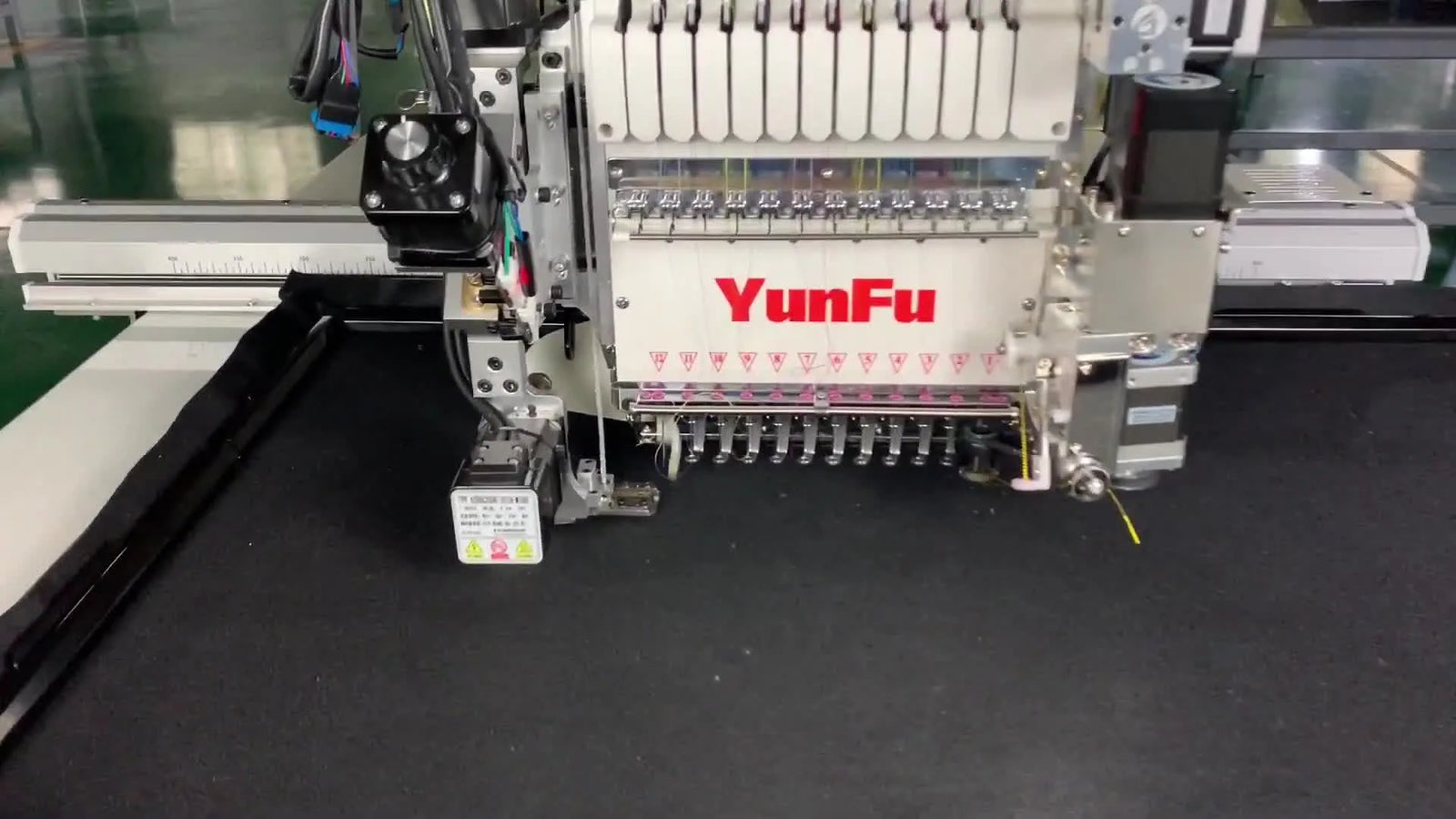

Meet the YunFu 500×800 Setup: Large Fields Create "Clearance Anxiety"

The first time you confirm a frame on a machine this size and the pantograph takes off toward the center, your heart rate likely spikes. That rapid movement is normal—it’s the machine re-referencing its coordinate system.

However, when you are moving from a standard 4x4 or 5x7 setup to a large hoop embroidery machine, the physics change. The sheer mass of the frame, combined with the weight of the attached bead hoppers and cording spools, creates momentum.

The Master's Mindset: Treat the 500×800mm field not as a canvas, but as a "flight path."

• The Hazard: The bulky bead device hangs off the side of the head. If your frame programming assumes a flat stitch area but you have a device installed, the pantograph might drive the frame right into the attachment.
• The Fix: Your safety relies entirely on the Frame Parameter you select in the Dahao controller. This defines the "No-Fly Zone."


The "Hidden" Prep: Verify Your Physics Before Touching the Screen

The video demonstrates black twill clamped in a large flat aluminum frame. But before you even look at the digital file, you must audit your physical reality. Experienced operators know that 90% of failures happen because of what is missing from the setup bench.

The "Hidden Consumables" You Need

Don't start without these within arm's reach:

• Curved Nippers: For trimming cording tails flush against the fabric.
• Tweezers: For guiding the cord through the foot eyelet if it slips.
• Masking Tape: To temporarily secure loose cording tails outside the hoop so they don't get sewn over.
• Spray Adhesive (Light): Essential if your stabilizer choice requires floating (more on this later).

Prep Checklist: The Physical Audit

• Device Check: Confirm the Beads Device is physically locked onto the Needle 12 position.
• Cord Check: Confirm the Cording Device is mounted to Needle 1.
• Bobbin Tension: Pull the bobbin thread. It should feel like pulling a spiderweb—smooth resistance, not loose, not tight. A 20-25g tension is standard, but for thick cording, I prefer it slightly tighter (around 30g) to pull the top thread down firmly.
• Frame Stability: Shake the frame gently. The fabric should sound tight, like a drum skin. If it ripples, the weight of the beads will distort your design.
• Clearance: Ensure no cables or hoop arms are in the travel path of the bead hopper.

Warning: Mechanical Safety
Keep hands, loose sleeves, and lanyards away from the needle bars and the moving pantograph. When a large 500x800mm frame moves at high speed, it has significant force. Never attempt to adjust the bead hopper while the machine is in motion.

Programming the Dahao: Assigning Needle 12 (Beads)

In mixed-media embroidery, the machine does not "see" the bead device; it only sees a needle position. You must bridge that gap manually.

In the workflow, the operator loads the bead design and assigns the color sequence to Needle 12.

Why this step is critical: If you leave it on default (or Needle 1), the machine will attempt to stitch the bead file using the cording device or a standard needle. This triggers a collision or a "bird's nest" instantly.

The Action Steps:

1. Select File: Choose the bead design from memory.
2. Confirm Status: Set machine to "Embroidery Ready" (or Wait) status.
3. Color Sequence: Navigate to the needle assignment screen.
4. Force Assignment: Set the first color block explicitly to 12.

Sensory Check: Look at the screen. Does the icon for that color block change to the number "12"? If yes, you are mapped correctly.

The "Clearance Policy": Selecting the Special Frame Parameter

This is the single most important safety step in the video. The operator navigates to the Frame Selection menu and chooses a specific icon designating the "Special Device" frame.

The Logic: Standard machine embroidery hoops have defined limits. But when you attach a bead hopper, the head width effectively increases. By selecting the special frame parameter, you are telling the Dahao computer: "I am wider than usual. restrict my travel limits so I don't smash into the frame edges."

The Action:

1. Enter Frame Selection.
2. Identify the specific localized frame type for Beads/Cording.
3. Listen: Upon confirmation, the machine will move (re-center). Listen for a smooth, confident motion. A grinding noise implies the frame parameters are fighting the physical limit switches.


Laser Positioning: The "Slow Jog" Technique

Beads and cording are unforgiving of placement errors. A 3mm shift in a flat stitch logo is annoying; a 3mm shift in a beaded border looks like a disaster.

The operator uses the directional arrows to "jog" the pantograph.

Master Tip: Do not hold the arrow key down. Tap it. Watch the red laser dot. You want the laser to sit exactly where the center of the first bead should land.

• Visual Anchor: Look at your fabric grain. Ensure the frame isn't crooked. The laser moving left-to-right should follow a single grain line of the twill.


Execution: Running Beads (Speed & Acoustics)

The operator presses start, and the machine begins the bead application. The device drops a bead, and the needle stitches over the connecting tape to secure it.

The "Sweet Spot" for Speed: The video runs at a controlled pace. Beginners often ask, "Can I run this at 1000 SPM (Stitches Per Minute)?" No.

• Expert Range: 450 – 600 SPM.
• Why: Gravity takes time to drop the bead. If you run too fast, the needle arrives before the bead has settled, shattering the glass.

Sensory Monitoring:

• Sound: You should hear a rhythmic clack-swish, clack-swish.
• Sight: Watch the tape. It should feed smoothly from the spool. If you see the tape jerking or "dancing," your speed is too high or the spool is tangled.


The Intermission Audit

The girl figure (beads) is done. Before you switch to cording, pause and inspect.

The "Touch Test": Run your finger lightly over the bead line.

• Pass: The beads feel firmly anchored.
• Fail: The beads wiggle or flip over. This means your top tension was too loose or the securing stitch missed the tape.
• Fix: If they are loose, you must fix it now with a hand needle before adding the cord layer.


The Changeover: Setting Up Easy Cording (Needle 1)

Now we switch personalities. We are moving from Needle 12 (Beads) to Needle 1 (Cording).

Action Steps:

1. Cancel Embroidery Condition: You must exit the "Ready" state to change files.
2. Load File: Select the knot/cording design.
3. Needle Assignment: Map the color sequence to Needle 1.
4. "Middle Options": The video highlights a specific setting in the controller (often related to foot height or "mending" mode for cording). Ensure this matches your device manual.

Productivity Note: This switchover time is money lost. In a high-volume shop, swapping out large nailed-on frames is slow. This is where magnetic embroidery frames become a game-changer. They allow you to swap garments in seconds without unscrewing clamps, keeping the production flow moving even when the digital setup takes time.

The Border Trace: The "Pre-Flight" Safety Check

Never trust the screen coordinates alone. The operator runs a "Check Border" (Trace) function. The laser creates a rectangle around the design area without stitching.

Why we do this:

• To ensure the design fits on the fabric.
• To ensure the cording foot won't hit a clamp.

Visual Cue: Watch the laser as it passes the frame edges. You want at least a finger-width (1.5cm) of clearance between the laser path and the frame wall. If it's closer, re-hoop.

Setup Checklist (The "Point of No Return")

Perform this check right before pressing START on the cording run:

• Needle 1 is selected on screen.
• Cording Spool is flowing freely (pull some slack).
• Border Trace completed with safe clearance.
• Fabric Tension checked again (did it loosen during the bead run?).
• Scissors are in your hand.


The "Manual Trim" Technique (Crucial Skill)

This is the nuance that separates amateurs from pros. The machine starts, anchors the cord, and then... the operator intervenes.

The Symptom: When cording starts, there is always an excess "tail" of material. The Fix:

1. Let the machine stitch 3-4 lock stitches to anchor the cord.
2. STOP the machine (or wait for the programmed stop).
3. Use your curved scissors to trim the excess starting tail as close to the lock stitch as possible.
4. Resume.

Why: If you don't trim now, the foot will eventually catch that loose tail and sew it into a messy lump later in the design.

Monitoring the Cording Run

As the device rotates to lay loops, listen to the machine.

• Good Sound: A dull, rhythmic thump-thump. This indicates the heavy cord is being pierced and anchored correctly.
• Bad Sound: A sharp slap or high-pitched whine. This usually means the cord is snagged on the spool or the tension is too tight.

Ergonomics & Production: If you are doing this all day, the physical strain of manipulating 800mm frames adds up. Many shops invest in a magnetic hooping station to ensure that every hooping is consistent. When the substrate is held with consistent tension, the cording lies flatter, and the operator suffers less wrist fatigue.

Final Inspection: The "Luxury" Standard

The video reveals the gold cording knot on black fabric. It looks sharp.

Quality Control Standards:

1. Curves: Are they smooth? (Jerky curves = speed too high).
2. Coverage: Is the gold cord covering the black fabric, or can you see gaps?
3. Flatness: Does the embroidery cup the fabric? (Cupping = stabilizer too weak).


Troubleshooting Guide: Symptoms & Solutions

The following table maps common disasters to their simple fixes.

Decision Tree: Choosing the Right Stabilizer

Your stabilizing strategy makes or breaks mixed media. The weight of beads + cord requires a solid foundation.

• Scenario A: Sturdy Cotton/Twill (Like the video)
  • Recommendation: Running Stitch Cutaway (2.5oz).
  • Why: Holds the weight without adding too much bulk.
• Scenario B: Stretchy Knits/Polyester
  • Recommendation: No-Show Mesh (Fusible) + Tearaway float.
  • Why: The fusible stops the stretch; the tearaway adds temporary rigidity for the beads.
• Scenario C: Unstable/Thin Silks
  • Recommendation: Heavy Cutaway + Water Soluble Topping.
  • Why: The cutaway prevents puckering; the topping prevents the cord from sinking into the fabric.

Strategic Upgrades: Moving from "Sample" to "Production"

The workflow shown in this video is capable of producing stunning, high-value garments. But as the comments suggest ("I love this, so amazingly"), the desire to scale is immediate.

If you find yourself bottlenecked by this process, diagnose your pain point before buying gear.

Level 1 Pain: "My hands hurt and hoop placement varies."

• Solution: Upgrade your workholding.
• Tool: A specific hooping station or Magnetic Hoops.
• Why: These tools standardize the tension and alignment, removing the human variable of "muscle fatigue" from the equation.

Warning: Magnetic Safety
Magnetic frames are incredibly powerful. They can pinch fingers severely and damage mechanical watches or credit cards.
* Pacemakers: Keep magnets at least 6 inches away from implanted medical devices.
* Storage: Always store them with the provided separators to prevent them from snapping together uncontrollably.

Level 2 Pain: "I need to do 500 of these shirts by Friday."

• Solution: Throughput capability.
• Tool: Multi-head machines or a fleet of huge-field single heads like the SEWTECH series.
• Why: When you have a machine dedicated to beads/cording and another for flat stitching, you eliminate the changeover downtime entirely.

End-of-Run Checklist

Before you power down or switch jobs:

• Clean the Bobbin Case: Cording creates lint. Blow it out.
• Retract the Bead Hopper: Ensure it is locked in the "Up" or "Safe" position if removing.
• Log Your Settings: Write down the exact Tension and Speed (SPM) that worked today. Your future self will thank you.

Mastering the YunFu 500x800 is about respecting the physics of the machine. Respect the clearance, slow down the feed, and prioritize stability over speed. That is how you turn a mechanical process into an art form.

FAQ

• Q: What consumables must be within reach before running a YunFu 500×800 mixed-media job with the Glass Bead Device and Easy Cording Device?
  A: Set up the “hidden consumables” first so the operator does not stop mid-run and create misfeeds or mistakes.
  • Prepare: Curved nippers (trim cord tails), tweezers (guide cord through the foot eyelet), masking tape (park loose tails outside the hoop), and light spray adhesive (when floating stabilizer).
  • Place: Scissors/nippers in the dominant hand zone before pressing START on cording.
  • Success check: The operator can complete bead-to-cord changeover without leaving the machine or handling loose cord ends uncontrolled.
  • If it still fails: Pause and re-audit the bench—most repeated errors come from missing small tools, not from the design file.
• Q: How can YunFu 500×800 operators judge correct hoop tension and frame stability before glass bead embroidery starts?
  A: Hoop the fabric drum-tight and confirm the frame is rigid, because beads add weight that can distort the design.
  • Shake: Gently shake the frame to verify the fabric does not ripple.
  • Listen: Tap the hooped fabric—aim for a “drum skin” sound, not a dull flutter.
  • Recheck: Confirm no cables or hoop arms sit in the travel path of the bead hopper.
  • Success check: The fabric stays flat with no visible waves when the frame is moved and the bead device is mounted.
  • If it still fails: Reinforce holding (often with better clamping or light adhesive spray, depending on stabilizer method).
• Q: What needle mapping must be set on the Dahao controller for YunFu Glass Bead Device (Needle 12) and Easy Cording Device (Needle 1) to prevent instant bird’s nests?
  A: Force the design color blocks to the correct needle numbers, because the machine only “sees” needle positions—not the bead or cording attachments.
  • Assign: Map the bead design color sequence explicitly to Needle 12.
  • Assign: Map the cording design color sequence explicitly to Needle 1 after canceling the embroidery-ready condition and loading the cording file.
  • Confirm: Look at the Dahao needle icon/number for each color block and verify it displays “12” for beads and “1” for cording.
  • Success check: The machine starts without immediate thread clumping or an attachment collision caused by the wrong device being driven.
  • If it still fails: Stop immediately and re-check the loaded file plus the on-screen needle assignment before restarting.
• Q: Which Dahao “Frame Parameter / Frame Type” should be selected on a YunFu 500×800 when the Glass Bead Device is installed to prevent the machine from hitting the frame?
  A: Select the Dahao “Special Device” frame parameter so the travel limits account for the wider bead/cording attachments.
  • Enter: Open the Frame Selection menu before running the job.
  • Choose: Select the localized frame icon/type intended for Beads/Cording (special device mode), not a standard frame type.
  • Listen: Let the machine re-center and monitor the motion—smooth motion is expected; grinding suggests a mismatch with physical limits.
  • Success check: A border trace or jog movement stays clear of clamps and frame walls without near-strikes.
  • If it still fails: Re-run a border trace and increase clearance by re-hooping; do not “force run” a tight setup.
• Q: What is a safe stitch speed (SPM) for YunFu glass bead embroidery to stop glass beads from crushing or breaking?
  A: Keep glass bead runs slow—typically 450–600 SPM—because beads need time to drop and settle before the needle arrives.
  • Set: Reduce speed to around 450 SPM if beads are breaking.
  • Watch: Observe bead tape feed; stop if the tape jerks or “dances,” which often indicates excessive speed or spool tangling.
  • Listen: Monitor for a steady “clack-swish” rhythm rather than chaotic impacts.
  • Success check: Beads seat consistently without cracked beads and the tape feeds smoothly.
  • If it still fails: Inspect the spool path for tangles and confirm the bead file is truly assigned to Needle 12.
• Q: When running YunFu Easy Cording Device on Needle 1, how should the cording “starting tail” be trimmed to prevent the foot from sewing a lump into the design?
  A: Trim the cording tail only after the machine makes 3–5 anchor (lock) stitches, then resume.
  • Start: Let the machine stitch 3–4 lock stitches to anchor the cord.
  • Stop: Pause the machine (or use the programmed stop) and trim the excess tail flush with curved scissors.
  • Resume: Continue the run only after the loose tail is removed or taped out of the sewing path.
  • Success check: The cord path stays smooth with no caught tail and no bulky knot forming later.
  • If it still fails: Confirm the cord is feeding freely from the spool and re-check border trace clearance so the foot is not snagging on clamps.
• Q: What are the key safety rules for operating a YunFu 500×800 pantograph with bead hoppers installed, and what extra safety rules apply when using magnetic embroidery frames?
  A: Treat the 500×800 field like a high-force moving system, and treat magnetic frames as pinch hazards that can affect medical devices and sensitive items.
  • Keep clear: Keep hands, sleeves, and lanyards away from needle bars and the moving pantograph; never adjust the bead hopper while the machine is in motion.
  • Verify clearance: Confirm cables, hoop arms, and clamps are outside the travel path before pressing START.
  • Handle magnets safely: Keep magnetic frames away from pacemakers (at least 6 inches), store with separators, and protect fingers from snap-together pinches.
  • Success check: The operator can run a border trace and a start/stop cycle without any need to reach into moving areas or fight snapping magnets.
  • If it still fails: Stop and reset the work area—safety issues are usually setup/handling issues, not something to “push through.”
