.BE vs .PES in Embrilliance: The “Save It Right” Habit That Saves Your Sanity (and Your Customer Orders)

If you’ve ever stared at an embroidery design on your screen thinking, “Why won’t it let me change the name?”—you’re not alone. As an educator who has guided thousands of businesses from "spare bedroom hobby" to commercial production, I have watched beginners lose hours (and confidence) simply because they saved the wrong file type for the job.

In this white paper, we analyze a workflow demonstrated by Jeanette from Boricua Sewing Crafts. We will deconstruct her simple habit in Embrilliance software and rebuild it into a "production-grade" standard operating procedure (SOP). This isn't just about saving files; it is about building a scalable workflow that prevents the three enemies of embroidery: fear, wasted materials, and downtime.

The Two-File Reality in Embrilliance: .BE Working File vs .PES Stitch File (and why beginners get burned)

To master digital embroidery, you must first understand that Embrilliance communicates in two distinct languages. Confusing them is the primary reason new commercial embroiderers fail to scale their personalization business.

1. The .BE (Working File): Think of this as your Recipe. It contains the ingredients (letters, densities, underlay settings) and the logic. As long as you have the recipe, you can change "Sugar" to "Splenda" (or "Nancy" to "Gabby") in seconds.
2. The .PES (Stitch File): Think of this as the Baked Cake. It contains raw X/Y coordinate data for the needle movements meant for Brother machines. Once the cake is baked, you cannot extract the eggs. You cannot change the font because the "font" no longer exists—only thousands of individual needle drops do.

The Emotional Trap: A .PES file looks identical to a .BE file on your screen. This visual illusion leads users to delete the .BE file to save space, only to realize later—when a customer asks for a small edit—that they have to rebuild the entire design from scratch.

The Education Officer’s Maxim:

"Your .PES file is for Production (the machine). Your .BE file is for Profit (the edits)."

Lock in the Right Hoop Boundary: Embrilliance Preferences > Hoops > 5x7 (130×180 mm)

Before you import a single pixel, you must align your digital workspace with your physical reality. If your software believes you have infinite space, but your machine has hard limits, you are setting yourself up for a mechanical collision.

Jeanette navigates to Embrilliance Preferences > Hoops, selects 5x7, and applies the setting. This draws a digital borderline on the canvas.

The Physics of the "Hard Stop"

Why is this step non-negotiable?

1. Safety Zone: If your design exceeds the hoop limit by even 1mm, modern machines will refuse to sew it.
2. Pantograph Crash: If you center a design in software that doesn't fit the physical hoop, the machine's carriage (pantograph) may slam into the frame limits. Listen for a grinding noise—that is the sound of steppers skipping steps, which ruins calibration.

When you are sourcing equipment, understanding these dimensions is critical. Whether you are buying standard frames or searching for compatible brother se1900 hoops, the software boundary acts as your first line of defense against hardware damage.

Build the Personalization the Smart Way: Import the design, then add the name with the “A” Lettering tool

Jeanette demonstrates a classic "high-profit" item: a deer design on a baby onesie, customized with a name.

The Protocol:

1. Import the deer design.
2. Select the “A” (Lettering) tool.
3. Choose a font.
4. Type “Nancy.”
5. Position text below the deer.






Expert Note: The "Sensory Check" for Quality Lettering

The software part is easy. The physical execution is where beginners fail. On stretchy knits (like onesies), "perfect" software lettering can look distorted or illegible if the physics aren't managed.

The "Clean Lettering" Formula:

1. Stabilizer: Never rely solely on tear-away for knits. Use a soft Cutaway stabilizer (2.0 - 2.5 oz). It prevents the stitches from pulling the fabric into a hole.
2. Needle: Swap your standard sharp needle for a Ballpoint 75/11.
   • Tactile Check: Run your finger over the finished letters. They should feel smooth, not crunchy. A "crunchy" feel means too much density or wrong stabilizer.
3. Topper: For professional crispness, place a layer of Water Soluble Topper on top. It prevents the thread from sinking into the knit fibers.

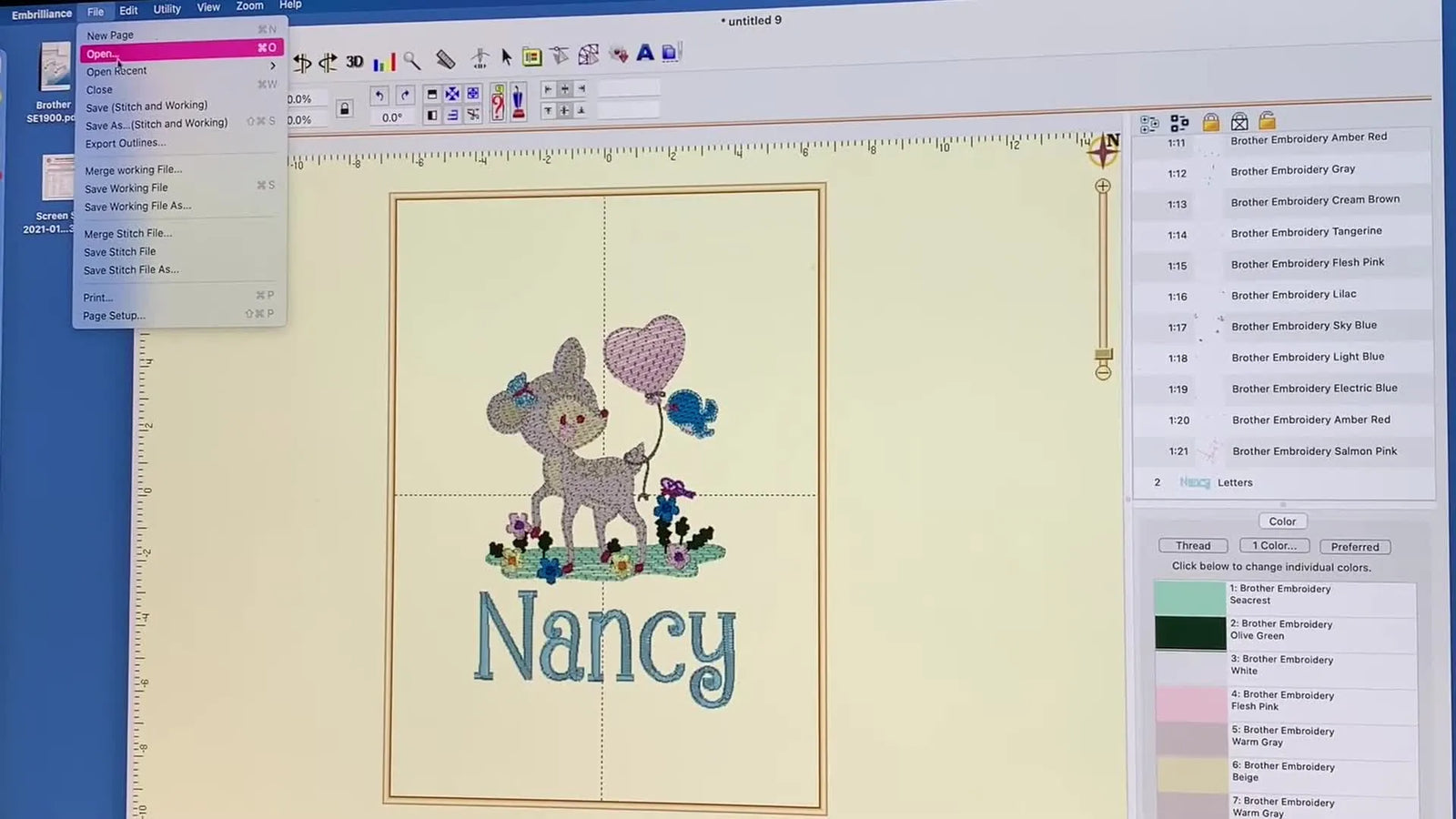

The Golden Click: File > Save As > “Stitch and Working” (creates BOTH files in one move)

This is the keystroke that separates amateurs from professionals.

Jeanette navigates to: File > Save As > Stitch and Working

She names the design “Nancy Onesie”. By doing this, the software automatically generates:

• Nancy Onesie.BE (The Recipe)
• Nancy Onesie.PES (The Cake)




This is your insurance policy. Hard drive space is cheap; your time is expensive. Never save just one.

Prep Checklist: The "Zero-Error" Launch

Before you click save, run this mental flight check:

• Hoop Validation: Does the design visually fit entirely within the 5x7 (130x180mm) boundary lines?
• Asset Check: Are all licensed fonts/designs valid? (No "Demo" watermarks).
• Naming Convention: Use a format like DATE_CLIENT_ITEM.BE (e.g., 231025_Smith_Onesie.BE).
• Format Protocol: Confirm you are saving as Stitch and Working.
• Backup: Save to a cloud-synced folder (Dropbox/Drive) immediately.

The “Why Can’t I Edit This?” Moment: Opening the .PES shows stitches and colors—but no editable text box

Jeanette closes the software and re-opens the files to demonstrate the frustration point. When opening Nancy Onesie.pes, clicking on the name does not open a text box.

Instead, the properties panel shows:

• Raw color blocks.
• Stitch counts.
• Zero font information.






The software has "forgotten" that these shapes are letters. To the machine, "N" is just a zigzag path of 400 coordinates. This is why you cannot change "Nancy" to "Gabby" here—you would have to manually move thousands of needle points.

Watch out (from the comments): “Did you mean .BX for fonts?”

A viewer query highlights a common vocabulary breakdown. Let's clarify the file ecosystem:

• .BX: This is an Installer File for fonts. You drag and drop this into Embrilliance to add a font to your library. You do not specificially "open" this file to stitch.
• .BE: This is your Project File. It is editable.
• .PES: This is the Machine Language. It is final.

Visual Anchor: If the file icon looks like a generic paper sheet, it might be BX. If it shows a preview (with thumbnail software), it is likely PES or BE.

The “Ah-Ha” Fix: Open the .BE file to change Nancy to GABBY instantly (font + spacing preserved)

Jeanette creates the solution by opening Nancy Onesie.be. Visual Confirmation: The file extension in the top bar reads .BE.

When she clicks the text object "Nancy," the Letters Tab reappears with the text field. She types “GABBY”, hits Enter, and the software recalculates the entire path—density, underlay, and spacing—instantly.

This capability is the bedrock of a personalized embroidery business. It transforms a 30-minute rebuild task into a 30-second edit.

Setup Checklist: The Batch Production Routine

Use this when processing multiple orders.

• Master File: Ensure Nancy Onesie.BE is open.
• Edit data: Input new name.
• Physical Audit: Check the width of the new name. Does "Christopher" fit where "Bob" did? If the name is longer, scale it down or change the hoop size.
• Export: File > Save Stitch File (save as Gabby_Onesie.pes).
• Reset: Do not save over the Master .BE if you changed the layout significantly.

The Production Rule for Brother SE1900: .PES goes to the machine, .BE stays on your computer

Jeanette clarifies the physical transfer: The Brother machine (or any commercial unit) cannot read the .BE file. It will result in an "Invalid File" error or simply show nothing on the USB drive.

Protocol:

1. Computer: Holds the .BE repository.
2. USB Drive: Holds only today's .PES files. Keep the USB clean to speed up machine loading times.

Throughput Engineering: The Hooping Bottleneck

Once you master the software speed, your bottleneck moves to the physical world: Hooping. Standard friction hoops (the ones with the screw) are the #1 cause of "Hoop Burn" (permanent shiny rings on fabric) and wrist fatigue (Carpal Tunnel is a real risk in this industry).

If you are struggling to keep garments straight, or if you are spending more time twisting screws than stitching, it is time to investigate better methodology. Researching proper techniques for hooping for embroidery machine setups can drastically improve your output quality.

The “Hidden” Prep Nobody Mentions: File thumbnails, demo-design limits, and how to stop feeling lost

Two technical obstacles frequently appear in the comments:

1) The "Demo Mode" Trap

Symptoms: You try to save, and a popup says "Demo Designs cannot be saved." Diagnosis: You are using a design or font that you have installed but not licensed (authorized). Fix: Verify your serial numbers in the "Help > Serial Numbers" menu. If you are using a demo version of a font, you must purchase the license to generate the stitch file.

2) The "Blind Pilot" Issue (No Thumbnails)

New users often stare at a folder of generic icons titled 001.pes, 002.pes. The Fix:

• Mac: View > As Icons.
• Windows: You often need a plugin (like Embrilliance Thumbnailer) to see embroidery files in Windows Explorer.
• Safety: Always verifying the visual thumbnail prevents the disaster of sending Skull_Logo.pes to the machine when you meant Flower_Logo.pes.

Decision Tree: Stabilizer + Hooping choices for onesies (and when a magnetic hoop is worth it)

Successful embroidery is a game of variables. Use this logic tree to make the right physical choices for your project.

Project: Baby Onesie (High Stretch Knit)

Step 1: Choose Stabilizer

• Is it touching skin? -> Use Fusible Mesh (No-Show Mesh). It is soft and permanent.
• Is the design dense (10,000+ stitches)? -> Add a layer of medium Cutaway.
• Never use Tear-away alone for onesies; the stitches will pop when the baby moves.

Step 2: Choose Hooping Method

• Traditional Method: Hoop the stabilizer, use spray adhesive (temporary spray), then float the onesie on top. Pin the perimeter.
• Advanced Method (High Volume): Use a specialized station. A hoop master embroidery hooping station allows you to align the stabilizer and garment identically every time, removing the "crooked logo" anxiety.

Step 3: Select the Hoop

• Pain Point: Are you getting hoop burn? Is it hard to clamp thick seams?
• Solution: This is the trigger to upgrade. Many professionals switch to a magnetic hoop for brother se1900.
  • The Benefit: Magnets hold fabric firmly without the "crushing" force of a screw hoop, eliminating burn marks.
  • The Speed: It snaps on/off in seconds rather than minutes.

Warning: Magnetic Hazard
Commercial-grade magnetic hoops use Neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can slam together with enough force to injure fingers. handle with care.
* Medical Safety: Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards.

Troubleshooting: Symptoms → likely cause → fix (based on what Jeanette demonstrates)

The “Why” that prevents repeat mistakes: stitches are final, objects are editable (and that affects your business)

Understanding the difference between Objects (geometry) and Stitches (coordinates) is the cognitive leap from amateur to pro.

When you work in a .BE file, you are a Designer. You have control over density, underlay, pull compensation, and sizing. When you save a .PES file, you become a Machine Operator. You are simply executing a code.

Scaling Your Business: The Tool Upgrade Path

As your volume increases, physical fatigue and machine speed become your primary limiting factors.

1. Level 1: The Hobbyist (Brother SE1900 / Single Needle)
   • Constraint: Constant thread changes, re-hooping fatigue.
   • Optimization: Use floating techniques. Upgrade to a brother 5x7 magnetic hoop to speed up the loading process and save your wrists.
2. Level 2: The Side Hustle (Optimization)
   • Constraint: Alignment consistency.
   • Optimization: Invest in alignment tools. When shopping for a new hoop for brother embroidery machine, prioritize magnetic options that allow for faster throughput without fabric damage.
3. Level 3: The Production Shop (Multi-Needle)
   • Constraint: One needle means you are the thread changer. You cannot leave the machine.
   • Solution: SEWTECH Multi-Needle Systems. These machines optimize production by holding 10-15 colors at once. Combined with magnetic frames, this setup allows for continuous production runs with minimal operator intervention.

Warning: Mechanical Safety
When using Scissors or Snippers to trim jump stitches while the garment is hooped, ensure your hands are clear of the start button. On multi-needle machines, always engage the "Lock" mode before putting hands near the needle bars. A needle moving at 1000 SPM is essentially invisible and dangerous.

The Upgrade Path (without the hard sell): what to improve first when you’re ready to stitch faster and cleaner

Success in embroidery is 20% software and 80% workflow. By adopting Jeanette's "Two-File Protocol," you solve the software side. The next step is solving the physical workflow.

Start by auditing your "pain points."

• If your hands hurt from tightening screws: Magnetic Hoops.
• If your designs are crooked: Hooping Station.
• If you spend 50% of your time changing thread: Multi-Needle Machine.

Operation Checklist: The "Go-No-Go" Final Launch

Perform this immediately before pressing the Green Button.

• Bobbin Check: Is there enough bobbin thread? (Visual: Is the spool full enough for this design?).
• Path Clearance: Is the fabric bunching behind the hoop? (Tactile: Reach under and feel for clearance).
• Presser Foot: Is the foot height correct? (For onesies, it should just barely kiss the fabric, not drag).
• Correct File: Verify the filename on the specific machine screen matches your job ticket.
• Trace: Run the "Trace" function on the machine to visually confirm the needle won't hit the hoop frame.


If you adopt only one habit from this white paper, let it be the Trace. It is the handshake between your digital .PES file and your physical reality. Listen for the beep, watch the light, and then create something beautiful.

FAQ

• Q: In Embrilliance, why can’t Embrilliance edit text after saving a Brother SE1900 embroidery design as a .PES stitch file?
  A: Open the .BE working file to edit the name; the .PES stitch file is “final stitches” and does not retain editable lettering objects.
  • Check the filename extension in the title bar: open DesignName.BE, not DesignName.PES.
  • Click the text object and confirm the Letters tab/text field appears, then type the new name.
  • Re-export a new stitch file for the Brother SE1900 after the edit.
  • Success check: clicking the name shows an editable text box (not just color blocks and stitch counts).
  • If it still fails: confirm the name was created with the “A” Lettering tool (not merged/converted stitches).
• Q: In Embrilliance, how do I save BOTH the .BE working file and the Brother .PES stitch file in one step?
  A: Use Embrilliance “Save As > Stitch and Working” so Embrilliance automatically creates both files at once.
  • Go to File > Save As > Stitch and Working.
  • Name the job once (example: “Nancy Onesie”) and let Embrilliance generate both extensions.
  • Store the .BE on the computer for future edits, and copy only the .PES to the USB for the Brother SE1900.
  • Success check: the folder shows two files with the same name, one ending in .BE and one ending in .PES.
  • If it still fails: check whether Embrilliance displays a message about demo content not being savable.
• Q: In Embrilliance, how do I set the correct 5x7 (130×180 mm) hoop boundary to avoid a hoop crash on a Brother SE1900?
  A: Set the hoop size first in Embrilliance Preferences so the on-screen boundary matches the physical 5x7 hoop limits.
  • Open Embrilliance Preferences > Hoops and select 5x7 (130×180 mm).
  • Re-check the entire design stays inside the boundary lines before saving the stitch file.
  • Use the Brother SE1900 “Trace” function before stitching to confirm safe travel.
  • Success check: the design sits fully inside the hoop boundary and the machine traces without hitting the frame.
  • If it still fails: re-center/re-size the design in Embrilliance and re-save a fresh .PES to a clean USB drive.
• Q: In Embrilliance, what stabilizer, needle, and topper setup prevents distorted lettering when embroidering names on a stretchy baby onesie?
  A: Use cutaway support plus a ballpoint needle and a water-soluble topper to keep knit lettering crisp and readable.
  • Choose a soft Cutaway stabilizer (2.0–2.5 oz) instead of relying on tear-away alone on knits.
  • Install a Ballpoint 75/11 needle before stitching the onesie name.
  • Add Water Soluble Topper on top to reduce thread sink into knit fibers.
  • Success check: lettering feels smooth (not “crunchy”) and looks clear without gaps or distortion.
  • If it still fails: reduce lettering density or review pull compensation settings as a next check.
• Q: Why does Embrilliance show “Demo Designs cannot be saved” when trying to save a .PES stitch file?
  A: The design or font in Embrilliance is not licensed; Embrilliance blocks saving stitch files from demo assets.
  • Open Help > Serial Numbers and verify the correct licenses are activated.
  • Replace the demo font/design with a fully licensed font/design.
  • Re-try File > Save As > Stitch and Working after confirming licensing.
  • Success check: the save completes without the demo warning and the .PES file is created.
  • If it still fails: isolate the problem by removing suspect fonts/designs one by one and re-saving.
• Q: What are the safety risks when trimming jump stitches on a multi-needle embroidery machine, and what is the safest habit?
  A: Keep hands away from any start control and engage the machine’s lock mode before trimming near needle bars.
  • Stop the machine completely before placing fingers near the hoop/needle area.
  • Engage “Lock” mode (or the machine’s equivalent safety lock) before trimming jump stitches.
  • Keep snips/scissors controlled and avoid reaching under moving parts.
  • Success check: needle bars are fully stopped and cannot be started accidentally while hands are in the work zone.
  • If it still fails: follow the specific machine manual safety procedure for maintenance/trim operations.
• Q: What are the magnetic hoop safety rules when using a magnetic embroidery hoop/frame for higher-speed hooping?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from sensitive medical devices and magnetic-stripe items.
  • Separate and attach magnets slowly to prevent sudden “snap” closures on fingers.
  • Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, and credit cards.
  • Store magnets so they cannot slam together during transport or drawer storage.
  • Success check: magnets seat securely without finger pinches and the hoop can be handled confidently without “slamming.”
  • If it still fails: switch to a slower two-handed placement routine and re-train the handling sequence before using magnets at speed.
