Batch-Stitch Kimberbell June Filler Blocks on a Brother Luminaire XP1: 4 Designs in One 7x12 Hoop (Without the Usual ITH Headaches)

If you have ever stared at a pile of partially finished “filler blocks” and felt that familiar dread—the wrestling match with the hoop, the fear of trimming too close, the endless thread swaps, and the sinking feeling when the batting shifts at the last second—you are not alone. Machine embroidery, especially In-The-Hoop (ITH) quilting, is an experience science. It requires a blend of mechanical precision and tactile intuition.

In this guide, we are analyzing a session where four 2x2 background quilting designs are stitched in a single 7x12 hoop on a Brother Luminaire Innov-is XP1. The base is hooped muslin, and the blocks are built using a "floating" technique. I will break this down not just as a set of steps, but as a masterclass in workflow efficiency, adding the sensory cues and safety margins that veteran embroiderers use to turn a chaotic struggle into a smooth production run.

The “Don’t Panic” Moment: Hooping Muslin in a 7x12 Hoop Without That Chunky Vinyl Surprise

The video highlights a crucial "save" right at the start: the presenter notices vinyl sitting inside the hoop area and immediately re-hoops. This instinct—checking your clearance—is what separates a successful run from a machine jam.

When hooping a stabilizer or base fabric like muslin, the goal is uniform radial tension. If there is bulk (like a vinyl project, a thick seam, or a zipper) trapped under the inner ring, you lose that uniformity. This leads to "flagging"—where the fabric bounces up and down with the needle—causing skipped stitches and registration errors.

The Sensory Hooping Standard:

• Touch: Run your fingertips over the hooped muslin. It should feel tight, like a drum skin, but with a slight "give" when pressed firmly. It should not feel like a trampoline (too tight causes puckering) or a bedsheet (too loose causes shifting).
• Sound: Tap the fabric firmly. You want a dull "thud," not a high-pitched "ping."

What to do (The Protocol):

1. Clear the Deck: Ensure the hoop area is 100% free of debris.
2. The "Walk" Method: As you press the inner ring into the outer ring, "walk" your hands down from the top screw to the bottom. Do not just push from the center.
3. The Bulky Rescue: If you have a project attached (like the vinyl mentioned), slide it completely out of the clamp zone. Use clips (wonder clips) to secure the excess material to the outside of the hoop so it doesn't flop back in.
4. Tighten Logic: Tighten the screw until fingertip tight. Do not use a screwdriver to crank it down unless you are using industrial hoops; on plastic hoops, this strips the screw.

If you are consistently fighting with fabric slippage or finding it painful to tighten hoops, this is a diagnostic indicator. The industry has largely moved toward magnetic solutions for this reason. When you search for hooping for embroidery machine technique, you will find that the physical limitation often isn't your hands—it's the friction mechanism of traditional rings.

The “Hidden” Prep Pros Don’t Skip: Fabric, Batting, Spray Tent, and a Clean Thread Plan Before You Touch the Screen

Speed in embroidery doesn't come from running the machine at 1050 SPM (Stitches Per Minute); it comes from minimizing downtime between colors. The video shows materials staged: batting squares, fabric scraps, and a spray tent ready before the first stitch.

The "Hidden Consumables" List

Beginners often miss these non-negotiables:

• Temporary Spray Adhesive (e.g., KK100 or 505): Vital for holding batting in place without hoops.
• Curved Tip Snips: For trimming fabric inside the hoop without slicing the base muslin.
• New Needle: Start a quilting project with a fresh Topstitch 90/14 or Embroidery 75/11 needle. A dull needle pushes batting down into the bobbin case.

Warning: Physical Safety Hazard. Keep fingers, snips, and trimming tools at least 4 inches away from the needle bar while the machine is running. In-The-Hoop projects require your hands to be close to the frame, which creates complacency. Stop the machine completely before reaching under the foot.

Prep Checklist (Pre-Flight)

• Base: Muslin hooped drum-tight in 7x12 hoop.
• Stage 1: Batting squares cut 0.5" larger than final size.
• Stage 2: Fabric scraps ironed flat (wrinkles cause puckers).
• Adhesion: Spray tent set up away from the machine (never spray near the screen/electronics).
• Thread: Bobbin filled (check level—you don't want to run out mid-block). Top thread selected for high or low contrast.

Expert Insight (The Physics): In ITH quilting, the "shear force" of the presser foot dragging across the fabric is your enemy. It pushes the top layer forward. Staging your materials allows you to place them calmly and accurately, rather than rushing and introducing ripples.

Brother Luminaire XP1 Touchscreen Workflow: Loading Kimberbell 2x2 Files and Building a 2x2 Grid Fast

On the Brother Luminaire Innov-is XP1, the efficiency comes from digital batching. Instead of stitching one block, unloading, and re-hooping, the presenter loads four designs into a single hoop field.

The Workflow Visualization:

1. Select Hoop: 7x12.
2. Import: Load the 2x2 design files from USB.
3. Arrange: Drag them into a 2x2 grid pattern on screen.
4. Buffer: Leave at least 15mm-20mm of space between the designs.

Why the Space Matters: Embroidery causes "pull compensation"—the fabric shrinks inward as stitches accumulate. If you place designs too close together (edge-to-edge) on the screen, they might physically overlap on the fabric by the time the fourth block stitches out. Give yourself a safety margin.

Refining the Tool Selection: While this demo uses a 7x12 hoop, many users own machines limited to smaller fields. It is worth noting that embroidery machine 6x10 hoop configurations are also excellent for batching; you would simply arrange two blocks vertically (1x2 grid) instead of four. The logic remains identical.

The Setup Choice That Controls Your Whole Run: Stitch One Block to Completion vs Color-Grouping

The presenter makes a critical tactical decision: she stitches each block one at a time to completion.

The Logic: Most machines have a "Color Sort" feature that groups all color 1s, then all color 2s.

• Do NOT use Color Sort for ITH Quilting.
• Why: ITH quilting involves manual steps (Place batting -> Stitch -> Place Fabric -> Stitch). If you color sort, the machine will try to stitch the placement line for all four blocks at once. By the time you get to block 4, strict alignment typically drifts.

Speed Setting (The Safety Zone): For ITH quilting involving lofty batting:

• Expert: 800-900 SPM.
• Beginner/Intermediate: 600-700 SPM.
• Why: High speeds can cause the foot to bounce off the soft batting, causing loops in your thread. Slow down to ensure the foot compresses the sandwich properly.

Setup Checklist (Digital Confirmation)

• Hoop Match: Screen shows 7x12; Physical hoop is 7x12.
• Grid Check: Designs do not touch the red safety border on screen.
• Workflow: "Color Sort" is OFF.
• Thread Path: Check that thread is seated in the tension discs (pull gently—you should feel resistance like flossing teeth).


Yellow Floral Filler Block (Standard ITH Method): Placement → Batting → Fabric → Tack-Down → Quilting

This is the "textbook" sequence. It offers the highest control but takes the most time.

The Standard Protocol:

1. Placement Stitch (The Map): The machine stitches a box on the muslin. Sensory Check: Ensure this stitch is clean and the tension isn't pulling the muslin.
2. Batting Placement: Spray light adhesive on the batting, place it inside the box.

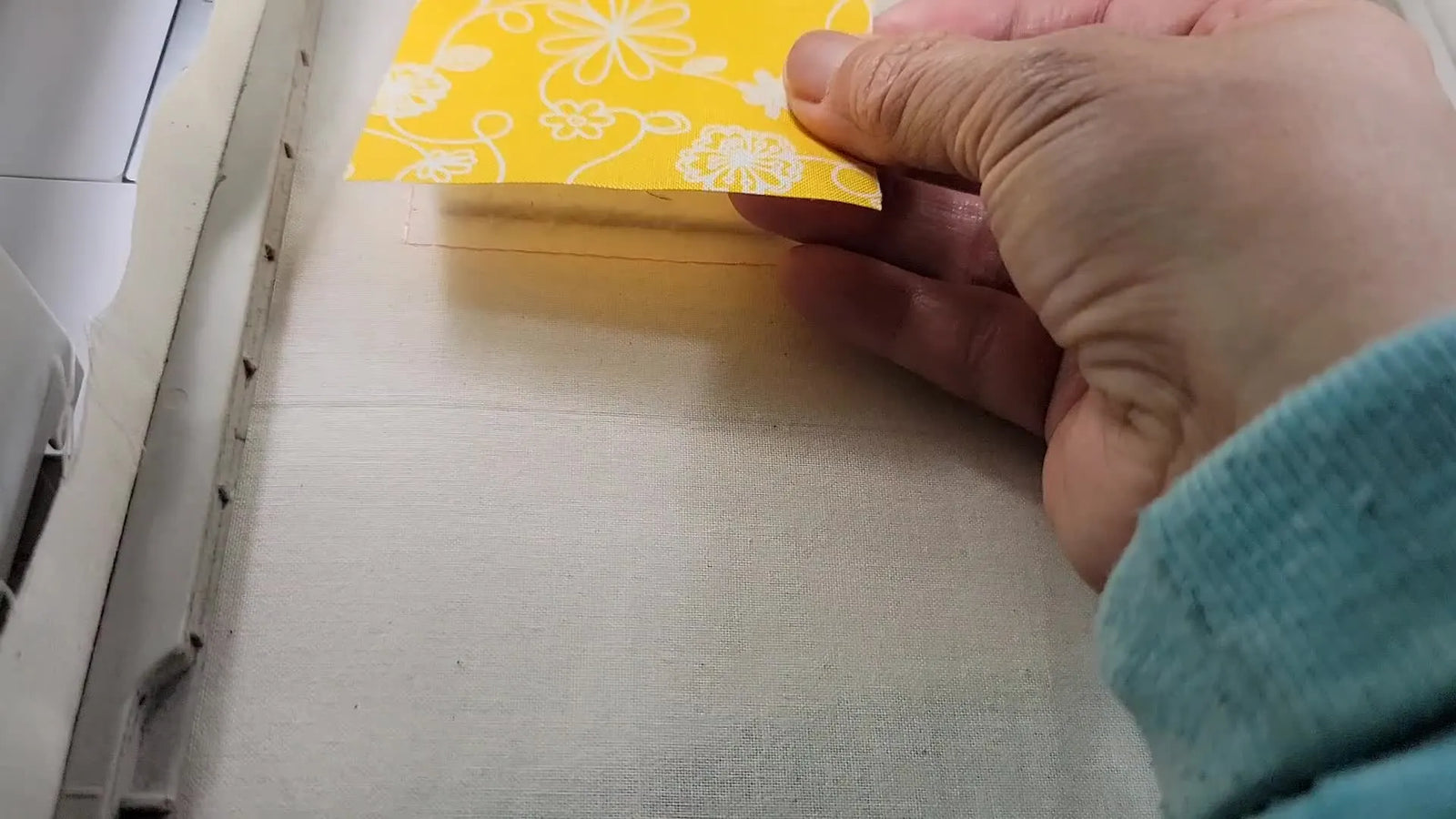

3. Fabric Placement: Place the yellow floral fabric over the batting (Right Side Up).
4. Tack-Down: This stitch secures the edges. Crucial: Watch your fingers! Keep the fabric taut but do not pull causing distortion.
5. Quilting: The decorative fill.

The Contrast Rule: The presenter chooses a lighter yellow thread.

• The "Squint Test": Hold the spool against the fabric and squint your eyes. If the spool disappears, your quilting texture will be invisible (texture only). If it stands out, the design will “pop.” For small 2x2 blocks, intentional contrast usually looks better than a near-miss match.


Blue Striped Filler Block (Modified Method): Float Batting + Fabric Together to Save a Step—Without Letting the Foot Scoop It

For Block 2, the presenter accelerates the workflow by combining steps. This is an advanced move that saves time but introduces risk.

The "Combo-Float" Technique:

1. Center the batting on the back of the fabric piece.
2. Place the combined "sandwich" over the placement line at once.

The Risk: The "Scoop" Effect Since the batting is not tacked down separately, the edge is thicker and looser. As the presser foot travels to the start position, it can catch the raw edge of the fabric/batting sandwich and flip it over.

The Fix:

• Machine Hover: If your machine (like the XP1) has adjustable presser foot height, raise it slightly (to approx 2mm) for the travel movement.
• Finger Guard: Use a stylus or the eraser end of a pencil to hold the leading edge of the fabric down as the foot approaches.

This struggle with holding thick layers flat is a primary trigger for equipment upgrades. Users often search for an embroidery magnetic hoop solution here because the strong magnetic force creates a flatter surface tension than standard inner rings, reducing the "bounciness" of the fabric that leads to foot sensory errors.

Purple + Orange Filler Blocks: Same Four-Step Logic, Different Skips—Because You’re Allowed to Be Flexible

The presenter demonstrates flexibility—skipping the batting tack-down or modifying the sequence. This teaches a vital lesson: The machine is dumb; you are the smart one.

The Immutable Laws of ITH: You can skip steps, provided you respect the physics.

1. Placement: Must happen so you know where to go.
2. Securement: The layer must be held by something (spray, tape, or hand) before the needle hits it.
3. Clearance: The foot must not crash into a raw edge.

As long as those three conditions are met, feel free to improvise. For the final block, she switches to white thread because the previous thread was "really dark" and risked shadowing through the lighter fabric.

Thread Contrast Isn’t Cosmetic—It’s Readability: How to Pick Quilting Thread That Shows Up Cleanly on Small Blocks

Shadowing is a common amateur mistake. Dark thread traveling behind light fabric (jump stitches) or heavy dark quilting on a light block can make the project look "dirty."

Thread Selection Heuristics:

• Light Fabric: Match thread or go lighter (White/Cream). Avoid black/navy unless it is a specific design feature.
• Busy Prints: Go solid and thick (40wt or even 30wt cotton) to be seen over the print pattern.
• Tone-on-Tone: If you want texture only, use a thread one shade darker than the fabric.

Sensory Que: When the stitching is done, step back 3 feet. If the quilting looks like a vague smudge, you didn't have enough contrast. If it looks like jagged lines, you had too much contrast on a design that wasn't perfectly digitized.

Decision Tree: Choosing Stabilizer/Backing + Batting Handling for ITH Filler Blocks (So They Don’t Shift Mid-Quilt)

Use this logic flow to determine your setup for your next session.

Decision Tree:

1. What is your Base Material?
   • Muslin/Woven Cotton: Standard Tear-away is usually sufficient, as the muslin provides the structure.
   • Knit/Stretchy Fabric: You must use Fusible No-Show Mesh (Cutaway). The stretch will deform your perfectly square blocks into diamonds if not stabilized.
2. What is your Risk Tolerance?
   • I hate mistakes: Use the Standard Method (Placement -> Batting -> Fabric -> Tack). Secure every layer individually.
   • I need speed: Use the Combo-Float Method (Batting + Fabric placed together). Requirement: Use spray adhesive.
3. Is your Machine High-Shank or Low-Shank (Clearance)?
   • Low Clearance (Standard Consumer Machines): Taping edges is recommended to prevent the foot from catching using the Combo-Float method.
   • High Clearance (Multi-Needle/high-end): You can float layers more easily.


The Upgrade Path When You’re Done “Fighting the Hoop”: Magnetic Hoops, Hooping Stations, and When They Actually Pay Off

The presenter in the video uses a standard 7x12 hoop with muslin. However, if you find yourself constantly re-hooping because of "hoop burn" (shiny marks on fabric) or struggling to clamp thick quilt sandwiches, this is a hardware limitation, not a skill failure.

The "Tool, not Toy" Mindset:

• Level 1 (Skill): Using spray adhesive and careful hand-walking (as described above).
• Level 2 (Workflow): Magnetic Hoops.
  • The Benefit: Instead of "screw and distort," you simply "snap and sew." This is critical for ITH quilting where you might need to float layers quickly.
  • The Product: Look into magnetic hoops for brother luminaire. These frames allow you to adjust fabric tension without un-hooping the entire project, simply by lifting a magnet.
• Level 3 (Production): Hooping Stations.
  • The Benefit: Consistency. If you are making 50 blocks, manual visual alignment isn't enough. A hoop master embroidery hooping station system aligns the hoop and fabric identically every single time.

Warning: Magnetic Hazard. High-quality magnetic hoops use industrial-strength magnets. They can pinch skin severely causing blood blisters. KEEP AWAY from pacemakers, credit cards, and hard drives. Do not let two magnets slam together without a separator.

The Commercial Shift: If your goal is to sell these mini-quilts or produce them in volume, the bottleneck becomes the single-needle machine itself (constant thread changes). Moving to a multi-needle platform (like SEWTECH models) paired with a brother magnetic hoop 7 x 12 equivalent allows for continuous production—you can hoard the next hoop while the machine stitches the current one, doubling your output.

Comment-to-Action Reality Check: Getting Organized Is the Difference Between “Someday” and Finished Blocks

A viewer comment notes they "need to get organized." In the psychology of embroidery, "friction" is the enemy. If it takes you 30 minutes to find your batting and clear off the table, you won't sew.

The "Mise-en-place" Tray: Adopt the chef's mentality. Before you turn off the lights in your sewing room, set up a "Next Session Tray":

• Hoop loaded with muslin.
• Batting squares pre-cut.
• Bobbin winded.
• USB stick inserted.

Next time you have 15 minutes, you can stitch one block.

Operation Checklist: The Exact Checkpoints That Prevent Shifting, Dull Quilting, and Wasted Re-Stitching

Print this list and tape it near your screen.

Operation Checklist (The "Save Your Sanity" List)

• Hoop Tension: Is the muslin drum-tight? (Flick test).
• Bobbin: Is there enough thread for the full 2x2 run? (Visual check).
• Needle: Is it fresh? (If you hear a "popping" sound entering fabric, change it).
• Foot Height: Is the presser foot high enough to clear the quilt sandwich?
• Speed: Is the machine set to 600-700 SPM?
• Spray: Did you spray the batting/fabric away from the machine?
• Contrast: Did you "Squint Test" your thread choice?


What you should see when it’s going right (Success Metrics)

• Visual: The muslin usually remains perfectly flat; no ripples appear around the block edges.
• Auditory: The machine runs with a rhythmic, steady hum ("chug-chug-chug"), not a labored pounding.
• Tactile: The finished block feels soft but integrated; the stitches are sunk slightly into the batting, creating that classic quilted texture.

By following this physics-based approach—securing your base, managing your bulk, and respecting the machine's travel path—you move from "hoping it works" to "knowing it will work." That is the essence of mastering ITH quilting.

FAQ

• Q: How do I hoop muslin correctly in a Brother Luminaire Innov-is XP1 7x12 hoop to prevent fabric flagging and registration errors?
  A: Hoop muslin with uniform “drum-tight” tension and keep all bulk completely out of the inner ring clamp zone.
  • Clear the hoop area: remove vinyl, thick seams, zippers, and any debris before closing the hoop.
  • “Walk” the inner ring in: press in from the top screw area and walk hands down to the bottom instead of pushing the center.
  • Tighten fingertip-tight only: avoid cranking plastic hoop screws with tools.
  • Clip excess project material to the outside of the hoop so it cannot fall back into the clamp zone.
  • Success check: the muslin feels like a drum with slight give, and a firm tap gives a dull “thud” (not a high “ping”).
  • If it still fails… re-hoop and check for hidden bulk trapped under the inner ring; persistent slipping may point to a hooping hardware limitation.
• Q: What “hidden consumables” should be prepared before starting ITH quilting filler blocks on a Brother Luminaire Innov-is XP1 to reduce downtime and shifting?
  A: Stage adhesive, trimming tools, and a fresh needle before the first stitch so the machine never waits on prep.
  • Prep temporary spray adhesive (such as KK100 or 505) and use a spray tent away from the machine.
  • Set out curved tip snips for trimming in-hoop without slicing the base muslin.
  • Start with a fresh Topstitch 90/14 or Embroidery 75/11 needle, and confirm the bobbin has enough thread for the run.
  • Success check: each color/step change happens immediately with no searching, and batting/fabric placement feels calm and controlled (no rushing).
  • If it still fails… slow down the workflow and switch to securing layers more conservatively (batting first, then fabric) until consistency returns.
• Q: How do I arrange four 2x2 quilting designs on the Brother Luminaire Innov-is XP1 touchscreen in one 7x12 hoop without overlap from pull compensation?
  A: Load all four designs and leave a real safety buffer between them so stitch pull does not close the gaps.
  • Select the 7x12 hoop on screen before importing the files from USB.
  • Drag designs into a 2x2 grid and keep about 15–20 mm spacing between designs.
  • Confirm nothing touches the red safety boundary on the screen.
  • Success check: after stitching, block edges remain distinct with no crowding where designs were “close but not touching.”
  • If it still fails… increase spacing and avoid edge-to-edge placement; pull compensation can make on-screen gaps shrink on fabric.
• Q: Why should Brother Luminaire Innov-is XP1 owners turn OFF “Color Sort” for ITH quilting filler blocks stitched as a 2x2 grid in one hoop?
  A: Keep Color Sort OFF and stitch one block to completion to prevent alignment drift during manual placement steps.
  • Disable Color Sort so the machine does not stitch placement lines for all blocks before batting/fabric is applied.
  • Complete the full sequence for Block 1 (placement → layers → tack-down → quilting) before moving to Block 2.
  • Run a safer speed for lofty batting: 600–700 SPM for beginner/intermediate, and only increase if results stay stable.
  • Success check: each block stays square and centered because batting/fabric is placed immediately after its own placement stitch.
  • If it still fails… reduce speed further and confirm the presser foot is clearing the quilt sandwich without bouncing.
• Q: How do I stop the Brother Luminaire Innov-is XP1 presser foot from “scooping” a combo-floated batting + fabric sandwich during ITH quilting?
  A: Control the leading edge and give the foot enough clearance during travel so it cannot catch the raw edge and flip it.
  • Place batting centered on the back of the fabric, then position the combined sandwich over the placement line.
  • Slightly raise the presser foot height for travel (about 2 mm) if the machine allows adjustment.
  • Hold the leading edge down with a stylus or pencil eraser as the foot approaches the start point.
  • Success check: the sandwich stays flat through the first stitches with no corner lift or fold-over.
  • If it still fails… revert to the standard method (batting tacked first, then fabric) for maximum control.
• Q: What needle and trimming safety rules should be followed during ITH quilting on a Brother Luminaire Innov-is XP1 when hands are close to the hoop?
  A: Stop the machine completely before reaching near the needle, and maintain a minimum hand-tool distance to prevent injury.
  • Stop the machine before trimming or repositioning any fabric/batting inside the hoop.
  • Keep fingers, snips, and tools at least 4 inches away from the needle bar while the machine is running.
  • Use curved tip snips to reduce the chance of accidentally cutting the base muslin.
  • Success check: all trimming happens with the needle fully stopped and hands never “chasing” moving parts.
  • If it still fails… restructure the workflow so trimming is done only at clear, planned pauses—not during active stitching.
• Q: What magnetic hoop safety hazards should be considered when using industrial-strength magnetic embroidery hoops for ITH quilting workflows?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive medical devices and magnetic-stripe items.
  • Separate magnets deliberately: do not let two magnets slam together without a separator.
  • Keep fingers out of the pinch zone when seating magnets to avoid blood blisters.
  • Keep magnets away from pacemakers, credit cards, and hard drives.
  • Success check: magnets close in a controlled way with no sudden snap and no skin contact in the clamp path.
  • If it still fails… slow down handling and reposition using two hands; safety comes before speed.
• Q: If hoop burn, re-hooping, and thick quilt sandwich handling keep slowing ITH quilting, what is a practical upgrade path from technique fixes to magnetic hoops to multi-needle production?
  A: Use a staged approach: optimize technique first, add magnetic hoops for easier tension control, then consider multi-needle equipment if thread changes become the bottleneck.
  • Level 1 (technique): improve hooping uniformity, use spray adhesive, avoid Color Sort, and run a safer 600–700 SPM on lofty batting.
  • Level 2 (tool): switch to magnetic hoops when tightening hurts, fabric slips, or hoop burn marks keep appearing on delicate fabric.
  • Level 3 (production): add a hooping station for repeatable alignment, and move to a multi-needle platform when constant thread swaps limit output.
  • Success check: fewer re-hoops, flatter stitching (less bounce/flagging), and shorter downtime between blocks/colors.
  • If it still fails… track exactly where time is lost (hooping vs placement vs thread changes) and upgrade the step that is actually the bottleneck.
