Batch-Making Clean Twill Patches on a Brother PE770: The Appliqué Workflow That Saves Stabilizer (and Your Sanity)

Mastering Patch Production: The Brother PE770 Batching Workflow

If you have ever watched a patch stitch-out and thought, "This looks great… but strictly mathematically, I cannot afford to hoop this many times for $10 a patch," you have officially graduated from hobbyist to production mindset.

Embroidery is a game of millimeters and minutes. Nate Matthews’ workflow on the Brother PE770 perfectly illustrates the "Patch Paradox": a client wants a handful of patches, but the design has a large white background. Stitching that background as a fill stitch is a rookie mistake—it eats production time, stiffens the patch, and introduces puckering risks.

The solution is an Appliqué Workflow: utilizing Twill fabric as the background, running a single "Validation Test," and then batching three patches into a single 5x7 hoop.

This guide rebuilds that workflow into an industrial-grade Standard Operating Procedure (SOP). We will focus on the physics of the needle, the sensory cues of correct tension, and the tool upgrades that protect your body and your bottom line.

The Psychology of Speed: Why You Must "Go Slow to Go Fast"

The biggest source of frustration for beginners is the belief that "production" means running the machine at maximum speed (650 SPM on the PE770).

This is false. Speed in embroidery comes from workflow efficiency, not needle speed. Nate starts on the Brother PE770 not because it is a Ferrari, but because it supports the 5x7 hoop required for batching. However, he obeys the Golden Rule of Engineering: Validation before Replication.

You must run one single test patch before committing to a batch. This "Insurance Policy" validates:

1. Digitizing Density: Does the thread pile up and break needles?
2. Thread Path Physics: Is the top thread flowing smoothly?
3. Material Stability: Does the Twill fray or shift under 2000+ stitch impacts?


The Hoop Strategy: Brother 4x4 vs. 5x7 for Profitability

Nate holds up both hoops to demonstrate a crucial production hierarchy.

• The brother 4x4 embroidery hoop: The R&D Lab.
  Use this for your single test. It uses less stabilizer and offers the tightest tension for a single unit. If you screw up here, you lose pennies.
• The brother 5x7 hoop: The Assembly Line.
  Once the design is proven, you graduate to this hoop. It fits three vertical patches. This divides your "hooping labor" by three. instead of hooping 30 times for 30 patches, you hoop 10 times.

The Economic Reality: If you are still using a basic 4x4 hoop for an order of 20 patches, you are voluntarily paying a "Time Tax" on every unit. Efficiency starts with maximizing your embroidery field.

Pre-Flight Physics: Design Reality & Tension Mechanics

Before stitching, we must address the physical interaction between needle and fabric. Embroidery is not printing; it is a violent process of pushing a needle through fabric hundreds of times a minute.

1. The Density Trap Patches are small and high-contrast. If your digitizer put too many stitches in one spot (high density), you will get "birdnesting" (a knot of thread under the throat plate).

• Sensory Check: Look at the digital preview. If you see solid blocks of color overlapping, that’s a danger zone.

2. The Tension Fallacy Beginners often crank the hoop screw as tight as possible. Stop.

• The Phenomenon: "Hoop Burn." This is circular bruising on the fabric caused by crushing the fibers fast and hard.
• The Correct Feel: The fabric should be taut, like the skin of a drum. When you tap it, you should hear a dull thump. It should not be stretched so tight that the weave distorts.

Scaling Up: If you are hooping 50 shirts a week, manual hooping will destroy your wrists. This is where professionals search for a hooping station for embroidery to ensure the logo is in the exact same spot on every shirt. If "Hoop Burn" is ruining your velvet or delicate items, the industry standard solution is upgrading to a Magnetic Frame (discussed later).

Prep Checklist (The "Pre-Flight" Safety Check)

• Hoop Validation: Ensure design size matches the hoop (Test in 4x4, Production in 5x7).
• Bobbin Check: Open the slide plate. Visual Cue: If the bobbin is less than 1/4 full, replace it now. Changing bobbins mid-patch often leaves a visible seam.
• Needle Freshness: Run your finger gently over the needle tip. If you feel a "hook" or scratch, change the needle (Size 75/11 is standard for patches).
• Consumables: Have your curved appliqué scissors and a lighter (for fuzz) within arm's reach.

The Spool Cap Sabotage: A Mechanical Friction Issue

Nate highlights a detail that causes 50% of beginner thread breaks: The Spool Cap Size.

On horizontal spool pins (like the PE770), the spool stays stationary while thread unwinds. If you use a large cap on a small spool, the thread hits the plastic rim of the cap on every revolution.

• The Sound of Failure: Listen for a rhythmic tick... tick... tick... as the thread snags.
• The Result: Irregular tension (looping) or a snapped thread.

The Fix: Always use a spool cap slightly smaller than the diameter of your thread spool to allow a frictionless feed.

Warning: Physical Safety
Keep fingers, hoodies, and loose jewelry away from the needle bar and take-up lever. When trimming appliqué fabric inside the hoop, remove your foot from the pedal (or keep hands clear of the Start button). A startled jerk while trimming can drive a scissor tip into your finger or the machine's pantograph.

The Appliqué Sequence: The Architecture of a Patch

Understanding the order of operations is critical. Appliqué patches are built in layers.

1. Placement Stitch (The Blueprint):
   The machine runs a simple running stitch on the stabilizer only.
   • Visual Check: A clean outline of the patch shape.
2. Fabric Placement:
   You lay your Twill fabric over the blueprint.
3. Tack-Down Stitch (The Anchor):
   The machine runs a second stitch to bolt the fabric to the stabilizer.
4. Trim:
   You cut away the excess fabric.
5. Finish:
   The machine runs the satin border to seal the raw edges.


Material Science: Why Twill Beats Fill

Nate’s machine estimated a full white stitched background would take 30 minutes. By using White Twill fabric instead, that drops to seconds.

Why Twill?

• Stability: Twill is a woven fabric with diagonal ribs (like denim). It resists the "pull" of embroidery better than basic cotton.
• Aesthetics: It provides a smooth, flat texture that text stands out against.
• Physics: It saves approximately 10,000 needle perforations, keeping the patch flexible rather than bulletproof-stiff.


The Fraying Factor: Because Twill is woven, cutting it breaks the yarns, leading to fraying. This is why the Satin Border (the final thick edge) is non-negotiable—it acts as a mechanical clamp to trap those loose ends.

The "Appliqué Moment": Placing and Anchoring

This is the step that ruins most batches. Nate places the pre-cut Twill over the Placement Stitch.

The "Bubble" Risk: After placing the fabric, run your fingers over it.

• Tactile Check: If you feel an air pocket or a "bubble," smooth it out.
• The Consequence: If you stitch over a bubble, the fabric will fold into a permanent wrinkle (a "pleat") under the tack-down stitch. This cannot be fixed—the patch is trash.


Surgical Trimming: The Duckbill Technique

Nate trims the excess Twill close to the tack-down stitch.

Technique for Success:

1. Use Curved Scissors: Ideally "Duckbill" appliqué scissors, which have a paddle to protect the fabric.
2. The Angle: Angle the blades slightly away from the stitch line.
3. Sensory Feedback: You should feel the scissors gliding through fabric. If you feel hard resistance (like cutting wire), STOP. You are about to cut the tack-down thread.
4. The Margin: Leave about 1mm – 2mm of fabric. Better to have a tiny bit of tuft (covered by satin) than to cut the anchor threads and have the patch fall apart.


Warning: The "Kill Zone"
When trimming, do not lift the stabilizer out of the hoop! Keep everything hooped. If you pop the stabilizer out to trim, you will never get it back in with perfect alignment. The design will shift, and your border will miss the edge.

Batching Logic: The 3-Up Layout

Nate switches to the 5x7 hoop with a file containing three vertical patches.

The Digitizing Secret: The file is not just copy-pasted. It is sequenced intelligently:

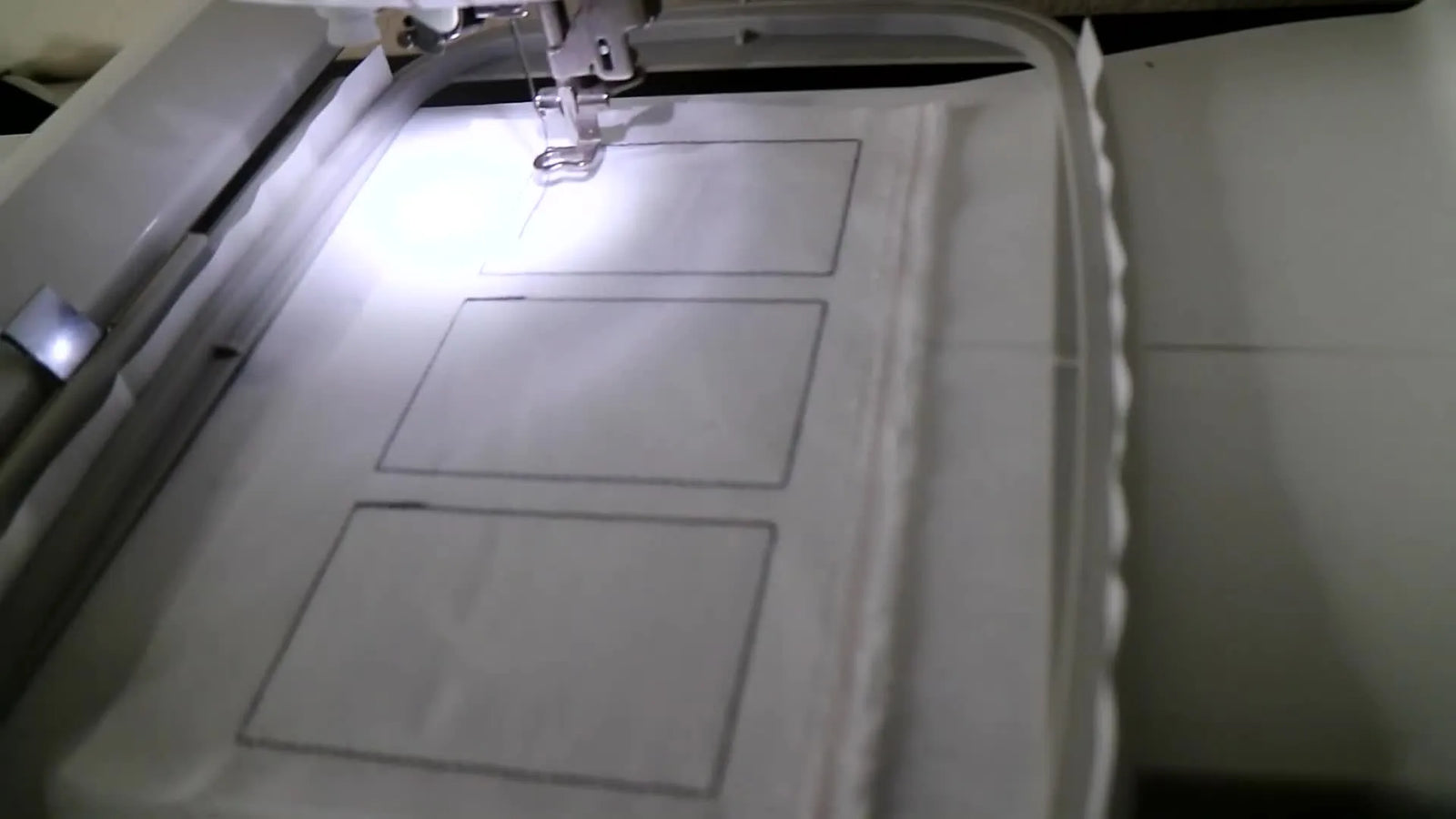

1. Placement Stitches (All 3): Draws all three boxes. Stop.
2. Tack-Down Stitches (All 3): Bolts all three fabrics. Stop.
3. Finishing: Stitches details on all three.

This "Color Sorting" prevents you from having to place fabric/trim fabric three separate times. You do all placement at once, and all trimming at once. This is the essence of assembly line manufacturing.

Many professionals dealing with these repetitive alignment tasks eventually invest in a system like the hoopmaster hooping station to guarantee that every batch starts perfectly straight.

The "Zero-Waste" Checkpoints

When running a batch, a mistake is multiplied by three. Use these sensory checkpoints to catch errors early.

Checkpoint A: The Audit (After Placement Stitches)

• Look: Are the three boxes aligned vertically?
• Check: Is there any distortion? If the bottom box looks like a trapezoid, your fabric is pulled too tight (Hoop Burn territory) or your stabilizer is slipping.

Checkpoint B: The Anchor (After Tack-Down)

• Touch: Press down on the fabric inside the boxes. It should feel flat and adhered.
• Fix: If the fabric is "bouncing," it’s too loose. Tape it down before the next step or restart.

Checkpoint C: The Trim (Pre-Finish)

• Action: Trim all three patches.
• Cleanup: Blow away any loose fibers or threads. Stray threads can get sewn into the final white background, leaving permanent dark lines.


Stabilizer Selection: The "Decision Tree"

Nate uses both Tear-Away and Cutaway. Beginners often ask, "Which is best?" The answer depends on the physics of your patch.

The Stabilizer Decision Matrix

Use this logic to choose your backing:

• Scenario A: Standard Patch (Twill + Medium Density Text)
  • Choice: Tear-Away (Heavyweight).
  • Why: Fast cleanup. The clean tear leaves a sharp edge. Twill is stable enough to support itself.
• Scenario B: Dense Patch (Full coverage stitch / 15,000+ stitches)
  • Choice: Cutaway (Mesh or Medium).
  • Why: High stitch counts "chew" through Tear-Away, causing the patch to fall out of the hoop mid-stitch. Cutaway remains stable forever.
• Scenario C: Stretchy Fabric Base (Jersey/Spandex)
  • Choice: Cutaway + Spray Adhesive.
  • Why: You must assume the fabric will distort. You need maximum rigidity.

The Pro Upgrade: If you find yourself fighting with slipping stabilizer or "hoop burn" marks on sensitive fabrics, this is often the trigger to investigate magnetic embroidery hoops for brother. They use magnetic force rather than friction to hold the sandwich, reducing distortion.

Finishing: The "Retail Ready" Standard

Nate doesn’t just toss the patches on a table. He seals them.

• Heat Seal: Use a lighter (carefully!) to singe any tiny fuzzy threads protruding from the satin border.
• Packaging: Professional bags protect the white twill from dirt during shipping.






The Roadmap: From Frustration to Scale

You are currently at a pivotal point in your embroidery journey. The Brother PE770 is a capable workhorse, but you will eventually hit a ceiling defined by physics and human endurance.

The "Equipment Bottleneck" Diagnostic: How do you know when to upgrade? Monitor these three symptoms:

1. The Wrist Pain Trigger: If you are spending more time clamping hoops than stitching, your wrists will tell you.
   • Level 1 Solution: Upgrade to a magnetic hoop for brother pe770. This eliminates the thumbscrew tightening action, saving your wrists and speeding up reloading by 30%.
2. The "Hoop Burn" Reject Rate: If you are throwing away 1 in 10 delicate garments because the hoop left a permanent ring.
   • Level 1 Solution: brother pe800 magnetic hoop (Verify your machine model compatibility). The flat magnetic hold eliminates the "crush" ring of standard hoops.
3. The Speed Wall: If you have orders for 50+ patches and the single-needle color changes (stopping to re-thread for every color) are taking 15 minutes per run.
   • Level 2 Solution: This is when the math justifies a Multi-Needle Machine.

Warning: Magnet Safety
Magnetic hoops use strong industrial neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the mating surfaces.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place credit cards or phones directly on the magnets.

Setup Checklist (Before you power on)

• [ ] Spool Cap: Correct size installed (smaller than spool).
• [ ] Bobbin: Full and tension-checked (Drop test: hold thread, bobbin should hold but drop slightly when jerked).
• [ ] Needle: New 75/11 Sharp or Titanium.
• [ ] Design: Correct batch file loaded (Check rotation!).

Operation Checklist (During the run)

• [ ] Placement: Run step 1. Visual confirmation of 3 boxes.
• [ ] Tack: Place fabric. Run step 2. Check for bubbles/wrinkles.
• [ ] Trim: Remove hoop (optional) but DO NOT un-hoop. Trim with duckbill scissors. Test for "wire cutting" resistance.
• [ ] Finish: Slow machine speed down (if possible) to 400-500 SPM for the final satin border to ensure razor-sharp edges.
• [ ] QC: Burn loose threads, inspect back for knots, package immediately.

FAQ

• Q: On a Brother PE770 patch workflow, should the first “validation test” be stitched in the Brother 4x4 hoop or the Brother 5x7 hoop?
  A: Run the first validation test in the Brother 4x4 hoop, then batch production in the Brother 5x7 hoop.
  • Stitch 1 complete patch in the 4x4 hoop to confirm density, thread feed, and material stability before risking a 3-up run.
  • Switch to the 5x7 hoop only after the single patch is clean, because the 5x7 hoop is the labor-saver for three patches per hooping.
  • Success check: the test patch finishes without thread breaks, puckering, or obvious edge/border issues.
  • If it still fails, reduce risk first: re-check spool cap size, bobbin level, needle condition, and stabilizer choice before batching.
• Q: On a Brother PE770, how can the wrong spool cap size cause repeated thread breaks during patch embroidery?
  A: Use a spool cap slightly smaller than the thread spool diameter to prevent the thread from ticking/snapping on the cap rim.
  • Listen for a rhythmic “tick…tick…tick…” while the thread unwinds on the horizontal spool pin.
  • Swap to a smaller cap if the thread is catching the plastic edge each revolution.
  • Re-thread the top path carefully after changing the cap to ensure smooth feed.
  • Success check: the ticking sound disappears and the top thread runs smoothly without sudden tension spikes.
  • If it still fails, inspect the thread path for snags and replace the needle if the tip feels scratched or hooked.
• Q: When hooping twill for appliqué patches on a Brother PE770, how do you prevent hoop burn while still keeping proper tension?
  A: Stop over-tightening the hoop screw—aim for “drum taut,” not fiber-crushing tightness.
  • Tighten only until the fabric is taut and stable, without distorting the weave.
  • Tap the hooped fabric to confirm a dull “thump” feel instead of a stretched, warped surface.
  • Re-hoop if the fabric looks pulled into a trapezoid shape during placement-stitch checks.
  • Success check: no circular bruising/ring marks and the placement boxes stitch as clean, undistorted shapes.
  • If it still fails, consider a magnetic embroidery hoop (often reduces distortion because it holds by magnetic force rather than clamp friction).
• Q: In a Brother PE770 appliqué patch sequence, what is the correct order of placement stitch, tack-down stitch, trimming, and satin border?
  A: Follow the fixed appliqué order: placement stitch → place twill → tack-down stitch → trim → satin border finish.
  • Run the placement stitch on stabilizer only to draw the patch outline.
  • Lay twill over the outline, then run the tack-down stitch to anchor the twill.
  • Trim excess twill close to the tack-down, then stitch the satin border last to seal edges.
  • Success check: the satin border fully covers the raw twill edge with no exposed fraying.
  • If it still fails, stop and check for fabric “bubbles” before tack-down—stitching over a bubble creates an unfixable pleat.
• Q: During Brother PE770 batch patch production in a 5x7 hoop, how do you prevent wrinkles or “bubbles” under the twill before the tack-down stitch?
  A: Smooth the twill flat by touch before running the tack-down stitch—any trapped bubble will become a permanent pleat.
  • Place the twill over the placement outline, then run fingers across the entire area to detect air pockets.
  • Reposition and smooth until the twill lies perfectly flat with no raised sections.
  • Pause and re-check each patch area if running a 3-up layout before committing to tack-down stitches.
  • Success check: the fabric feels uniformly flat and adhered after tack-down, with no “bouncy” spots when pressed.
  • If it still fails, tape down loose areas as a temporary fix or restart the hooping to restore alignment.
• Q: For Brother PE770 patches, when should Tear-Away stabilizer be used versus Cutaway stabilizer?
  A: Use heavyweight Tear-Away for standard twill patches, and switch to Cutaway for dense or stretchy situations.
  • Choose heavyweight Tear-Away for a standard twill patch with medium-density text for fast, clean cleanup.
  • Choose Cutaway (mesh or medium) for dense designs (often high stitch counts) that can chew through Tear-Away and slip mid-stitch.
  • Choose Cutaway plus spray adhesive for stretchy bases like jersey/spandex to prevent distortion.
  • Success check: the patch stays stable in the hoop through the full run with no shifting or “falling out” mid-stitch.
  • If it still fails, re-evaluate design density and run a single validation test before batching multiple patches.
• Q: What is the safest way to trim twill appliqué inside the hoop on a Brother PE770 to avoid cutting the tack-down stitch or injuring fingers?
  A: Keep the fabric hooped, stop the machine from running, and trim with curved (duckbill) appliqué scissors using controlled angles.
  • Remove your foot from the pedal (or keep hands clear of the Start button) before trimming near the needle area.
  • Trim with curved/duckbill scissors and angle blades slightly away from the stitch line; leave about 1–2 mm margin.
  • Stop immediately if trimming feels like “cutting wire,” because that often means you are cutting the tack-down thread.
  • Success check: the trim line is close and clean, and the patch remains firmly anchored before the satin border runs.
  • If it still fails, do not un-hoop to “fix alignment”—restart the appliqué step because re-hooping rarely returns perfect registration.
• Q: What safety precautions are required when using magnetic embroidery hoops for Brother machines during patch or garment production?
  A: Treat magnetic hoops as strong pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Keep fingers clear when bringing the magnetic ring halves together—they can snap shut instantly.
  • Maintain at least 6 inches distance from pacemakers and similar medical devices.
  • Avoid placing phones or credit cards directly on the magnets.
  • Success check: the hoop closes without finger pinches and holds the fabric flat without excessive clamp pressure marks.
  • If it still fails, slow down handling and align the hoop halves carefully before letting magnets engage.
