Batch-Making Appliqué Patches on a BAI 12-Needle Machine: Floating Duck Cloth, Auto-Stops, and a Clean Save When the Bobbin Runs Out

The Multi-Needle Patch Workflow: From Fear to Production Factory

If you’ve ever watched a multi-needle machine confidently chew through a batch of patches and thought, “Mine would absolutely shift, pucker, or eat the fabric,” take a breath. Machine embroidery is an experience-based science, and the secret to perfect patches isn't magic—it's physics.

The workflow we are about to break down is built on three pillars: Stabilizer-First, Floating Fabric, and Controlled Stops.

In this masterclass, we’re keeping the exact structure of a 4-patch run on a BAI 12-needle machine using Embrilliance, but we are adding the safety protocols and sensory checks that usually take years to learn. Our goal: clean appliqué squares, crisp satin borders, and zero distortion.

Make Embrilliance “Color Sort” Do the Boring Work

The goal: Stop your machine from treating every patch as a separate island.

The video starts in Embrilliance with four patch designs arranged to fit inside one hoop. If you send this file directly to the machine, it will stitch Patch #1 fully, then cut, move to Patch #2, and repeat. This is the "Slow Mode" trap.

To unlock "Batch Mode," you must use the Color Sort function (usually found in the Utilities menu). This reorganizes the data so the machine stitches the Placement Line for all four patches at once, then pauses. Then it does the Tack-down for all four at once.

Why this matters for your business:

• Without Color Sort: 4 patches x 4 tool changes = 16 interruptions.
• With embrilliance color sort: 4 steps total. You save 20+ minutes of babysitting per hoop.

Note: Check your specific Embrilliance module (Essentials, Enthusiast, etc.) capabilities. If you don't see Color Sort, you may need to upgrade your software level.

Load the DST and Respect the "Red Box"

On the BAI control panel (or any modern multi-needle interface), you load the DST file via USB. The screen provides your first line of defense:

• Red Outline: The design exceeds the printable area of the selected hoop. (Danger Zone)
• Green Outline: The design fits safely.

Experience Check: Just because it’s green doesn’t mean it’s safe. If your design is "green" but touching the edge, you risk the needle striking the plastic hoop frame. This can shatter a needle or throw off your machine's timing.

The Fix: Always center the design via the touchscreen. If you are struggling to fit it, do not force it. This is where owning a slightly larger hoop or specialized bai embroidery machine accessories saves you from a mechanical crash.

The “Printed Template” Habit: Trust But Verify

Digital screens lie; paper doesn't. Before you even touch a hoop, print the design template from your software at 100% scale with a crosshair enabled.

The Sensory Anchor: Place the paper template inside your physical hoop. Does it look centered?

• Visual Logic: Sometimes the machine's "mathematical center" feels visually off due to the hoop's shape.
• The Reset: If the alignment feels wrong, re-select the hoop on your machine (often touching the specific Hoop icon, like "Hoop B"). Listen for the servos engaging. This forces the machine to re-calibrate its XY zero point.

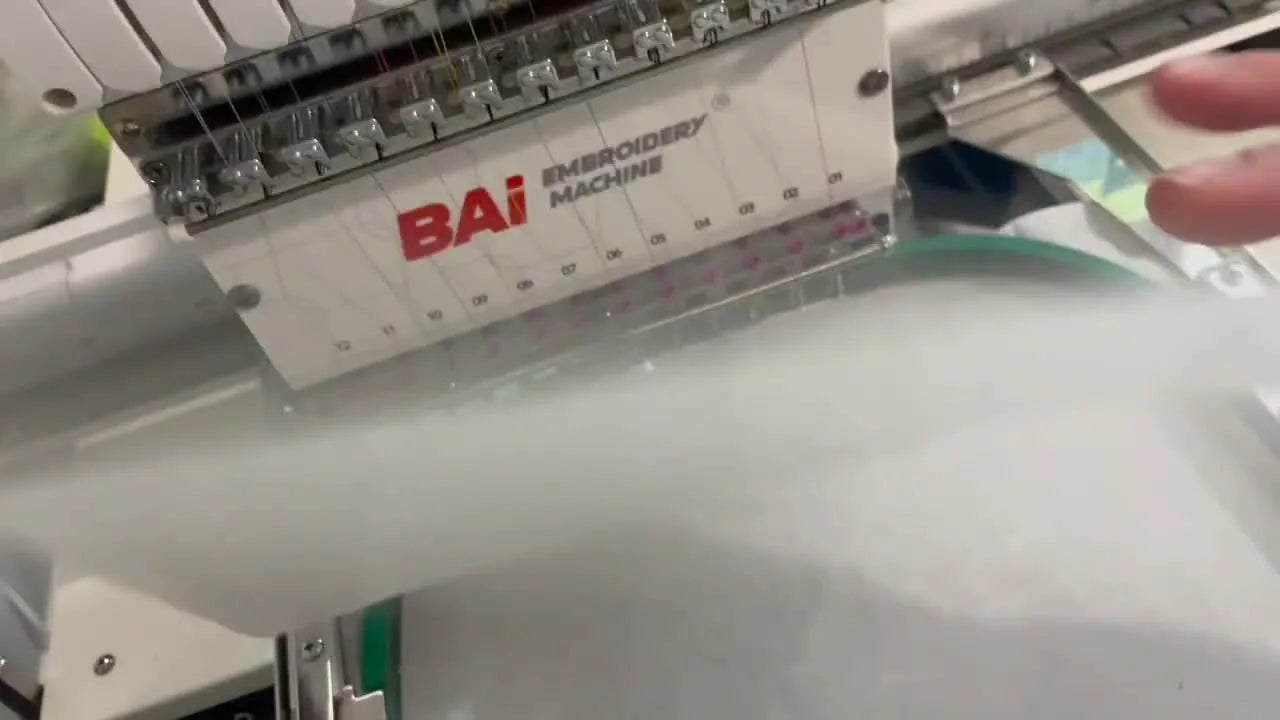

The Foundation: Hooping Tear-Away Stabilizer (And Nothing Else)

Here is the core of the "Floating" technique: You do not hoop the fabric. You only hoop the stabilizer.

Step-by-Step Hooping:

1. Select the Stabilizer: Use a high-quality Tear-Away stabilizer.
2. Hoop It: Place the stabilizer between the rings.
3. The Tactile Test: Tighten the screw. Now, tap the stabilizer with your finger. It should sound like a drum skin (thump-thump). If it sounds loose or paper-like, it is not tight enough.
4. Secure It: If your stabilizer is barely effectively wide enough, use painter's tape on the edges.

Prep Checklist (Pre-Flight):

• File: Is it Color Sorted? (4 patches in one batch).
• Stabilizer: Is it "drum-tight" in the hoop?
• Fabric: Pre-cut your Duck Cloth (canvas) larger than the patches.
• Adhesion: Iron HeatnBond Lite onto the back of the Duck Cloth. Peel the paper so the back is shiny and tacky.
• Tools: Place sharp appliqué scissors (Duckbill style) next to the machine.


Programming the "F" Stops: Controlling the Workflow

Multi-needle machines are designed to run non-stop. For appliqué patches, you must force them to pause.

On your screen, navigate to the color sequence. You need to tell the machine to stop (often indicated by a Hand icon or an "F" for Frame-out) at specific intervals:

1. Stop 1: After the Placement Stitch (so you can lay down fabric).
2. Stop 2: After the Tack-Down Stitch (so you can trim the fabric).
3. Run: The remaining Satin Border, Lettering, and Hearts run without interruption.

If you skip this, the machine will blindly start satin stitching over your raw fabric square. Mastering these programmed stops is essential when operating a 12 needle embroidery machine.

Step 1: Specific Placement

Hit start. The machine will stitch four outlines onto your bare, hooped stabilizer.

• Pro Tip: Use the machine run-time (about 2 minutes) to do prep work. Peel the paper backing off your HeatnBonded fabric while you wait.


The Float: Adhesion without Hooping

The machine stops (because you programmed it to!). Now, place your pre-cut Duck Cloth squares directly over the placement lines.

The "Float" Logic:

• Why? Hooping thick canvas causes "Hoop Burn" (permanent crushing of fibers) and makes it hard to get perfect tension.
• How: Press the fabric down. The shiny HeatnBond backing will stick slightly to the stabilizer.

Crucial Safety Warning: You might be tempted to hold the fabric with your fingers while the machine does the initial tack-down stitches. DO NOT DO THIS.

• The Risk: If your finger slips into the needle path, a needle moving at 800 stitches per minute (SPM) will go through bone.
• The Solution: Use a "Stylus Tool," a chopstick, or the eraser end of a pencil to hold the fabric edge. Or, use pins at the remarkably far edges of the fabric, well away from the foot.

This is the standard floating embroidery hoop technique: rely on the tackiness and the specific tack-down stitch, not your fingers.

Warning: HANDS CLEAR. Never place your fingers inside the hoop area while the machine is active. Use a chopstick or specialized holding tool to secure floating fabric.

The Tack-Down and The Trim

The machine stitches a simple running stitch to lock the fabric to the stabilizer. Then, it stops again. Remove the hoop from the machine to trim.

The Trimming Technique: Use Curved Appliqué Scissors (Duckbill).

1. Pull: Gently lift the excess fabric edge.
2. Glide: Rest the "bill" of the scissors flat against the stabilizer.
3. Cut: Trim as close to the stitching as possible without cutting the thread.
   • If you leave too much fabric: It will poke out of the satin border (looks messy).
   • If you cut the stitch: The patch falls apart.


Why Float? The Physics of Tension

Why not just hoop the canvas? When you force thick fabric into a standard hoop, you stretch it. When the needle penetrates, that stretch partially releases, causing "puckering" around your letters.

By floating:

1. The Stabilizer bears the hoop tension.
2. The Fabric sits relaxed on top.

The Professional Upgrade: If you find floating difficult because the fabric slips, or if standard hoops hurt your wrists to tighten, this is where professionals switch to magnetic embroidery hoops.

• Benefit: They clamp down instantly without forcing the inner ring inside the outer ring.
• Result: no hoop burn, zero wrist strain, and a rock-solid grip on floating fabric.


The Long Hall: Satin Borders and Bobbin Awareness

Re-attach the hoop. Press start. The machine will now run the heavy Satin Borders.

Sensory Check - The Sound of Trouble: A happy machine makes a rhythmic chug-chug-chug sound.

• Listen: If you hear a "clacking" or "slapping" sound, your top tension might be loose.
• Look: Watch the bobbin supply. Satin stitches consume massive amounts of bobbin thread.

Setup Checklist (The "Go" Moment):

• Hoop: Is it clicked in fully? wiggle it to check.
• Thread: Is the bobbin full enough for 4 patches? (Don't risk it on 10%).
• Needles: Are the correct colors assigned to the correct needle numbers? (Trust your eyes, not the screen).

This attention to detail is what defines skilled hooping for embroidery machine workflows—it's 90% preparation, 10% stitching.

Troubleshooting: The "Bobbin Run-Out" Rescue

In the source video, the bobbin runs out, but the sensor ignores it for a few seconds. The result: sparse, loopy stitching on top.

The Fix Protocol:

1. Stop Immediately.
2. Back Up: Use the machine's interface (usually a "+/-" stitch key) to reverse the needle to before the error started.
3. Restitch: Let the machine stitch over the bad area. The new satin stitch will cover the gap.
4. Clean Up: After the patch is done, carefully trim the loose loops with fine-point scissors.

Pro Rule: Never start a satin border segment with a low bobbin. It is cheaper to change the bobbin early than to ruin a garment.

Finishing: Tear-Away and Stiffness

Once finished, remove the hoop. Tear the stabilizer away from index patches.

• Note: For patches, leave the tear-away on the back. It acts as a permanent stiffener, keeping the patch flat when it is eventually sewn onto a pillow or jacket.


Decision Tree: Choosing Your Setup

Use this logic to decide your materials for your next project.

Project: Structural Patch (Badge/Logo)

• Fabric: Duck Cloth / Canvas / Twill.
• Stabilizer: Tear-Away (2 layers if heavy).
• Hooping: Float the fabric over hooped stabilizer.
• Needle: 75/11 Sharp or Titanium.

Project: T-Shirt Direct Embroidery

• Fabric: Cotton Knit (Stretchy).
• Stabilizer: Cut-Away (Must use Cut-Away for wearables/knits).
• Hooping: Float or Magnetic Hoop.
• Needle: 75/11 Ballpoint.

Constraint Check: If you are using standard hoops and they keep popping open, verify you are using the correct bai embroidery hoops size. If the design is too close to the edge, the hoop's grip is compromised. Upgrade to a larger size or a magnetic solution.

Common Questions & Production Logic

"Where did the design come from?" Designed in Embrilliance. To do this commercially, you need to be comfortable editing text. "Can I change the text?" Yes. In a production environment, you should save a "Master Template" with the text field left blank or editable.

This is where a hooped station for embroidery machine (or a dedicated hooping station tool) helps ensuring every patch is placed in the exact same spot on the stabilizer, minimizing waste.

Scaling Up: When to Upgrade Your Tools

This workflow proves that you can produce high-quality patches with the right technique. However, if you start getting orders for 50 or 100 patches, you will hit two walls:

1. Physical Fatigue: Screwing and unscrewing hoops 100 times will damage your wrists.
2. Time: Trimming appliqué takes time.

The Commercial Upgrade Path:

• Level 1: Switch to bai magnetic hoops (SEWTECH Magnetic Hoops). This reduces hooping time to 5 seconds and eliminates hoop burn.
• Level 2: Move to a multi-head machine or multiple single-head machines to run batches in parallel.

Operation Checklist (Final Quality Control):

• Front: Are satin edges crisp? (No fabric poking out to the "beard").
• Back: Is the bobbin tension balanced? (White thread visible in the center 1/3).
• Edges: Are all jump threads trimmed flush?
• Seal: Did you heat-seal the edges (optional for longevity)?

By mastering this stabilizer-first, floating workflow, you stop fighting your machine and start producing professional inventory.

FAQ

• Q: How do Embrilliance Color Sort settings reduce stops when running four appliqué patches on a BAI 12-needle embroidery machine?
  A: Use Embrilliance Color Sort so the BAI machine stitches the same step across all patches before moving on, instead of finishing one patch at a time.
  • Enable: Run Color Sort in Embrilliance so all Placement Lines stitch first, then all Tack-Down stitches, then borders/details.
  • Confirm: Review the stitch/color sequence to verify the file is grouped by function (placement together, tack-down together).
  • Success check: The machine completes all four placement outlines in one run, then pauses once (not after every patch).
  • If it still fails: Check whether the Embrilliance module level supports Color Sort, or upgrade the module so the option appears.
• Q: What does the red outline (red box) mean on the BAI multi-needle embroidery machine hoop preview when loading a DST file by USB?
  A: A red outline means the DST design exceeds the selected hoop’s stitchable area and risks a hoop/needle strike, so do not start stitching.
  • Re-select: Choose the correct hoop size on the touchscreen before running the design.
  • Center: Use the touchscreen centering function so the design is not touching the hoop edge.
  • Success check: The preview changes to a green outline with visible clearance from the hoop boundary (not “barely touching”).
  • If it still fails: Switch to a larger hoop or adjust the design layout in software instead of forcing it to fit.
• Q: How do you hoop tear-away stabilizer “drum-tight” on a multi-needle embroidery machine for floating appliqué patches?
  A: Hoop only tear-away stabilizer and tighten until it is truly drum-tight, because the stabilizer—not the fabric—must carry the hoop tension.
  • Hoop: Place tear-away stabilizer in the hoop with no fabric in the rings.
  • Tighten: Turn the screw until the stabilizer is firm and evenly tensioned.
  • Success check: Tap the hooped stabilizer and listen for a drum-skin “thump-thump” sound (not a loose, papery rattle).
  • If it still fails: Tape the stabilizer edges with painter’s tape when the stabilizer width is barely enough to hold securely.
• Q: How do you program “F” (Frame-out) stops on a BAI 12-needle embroidery machine for appliqué patch placement and trimming?
  A: Add two controlled stops in the color sequence so the machine pauses after placement and after tack-down, preventing satin stitching over untrimmed fabric.
  • Set Stop 1: Insert a stop after the Placement Stitch so fabric can be laid down.
  • Set Stop 2: Insert a stop after the Tack-Down Stitch so trimming can be done safely.
  • Success check: The machine pauses exactly twice at the correct moments—once after outlines, once after tack-down—then runs borders and details continuously.
  • If it still fails: Re-open the color sequence and verify the stop icons are placed after the correct stitch blocks, not just between random color changes.
• Q: What is the safest way to hold floating fabric during tack-down stitches on a multi-needle embroidery machine to avoid needle injury?
  A: Keep hands completely out of the hoop area while the machine runs and use a tool—not fingers—to guide floating fabric edges.
  • Prepare: Place the fabric over placement lines with adhesive backing (tacky surface) so it stays put.
  • Hold: Use a stylus tool, chopstick, or the eraser end of a pencil to steady the edge if needed.
  • Success check: The fabric stays flat through tack-down with zero hand contact inside the hoop sewing field.
  • If it still fails: Re-check fabric adhesion (heat-activated bonding applied and paper removed) or reposition the fabric during a programmed stop—never while stitching.
• Q: How do you fix sparse, loopy satin stitching after a BAI embroidery machine bobbin runs out during a patch border?
  A: Stop immediately, back up stitches to before the run-out started, replace the bobbin, and restitch to cover the gap.
  • Stop: Halt the machine as soon as loopy/sparse stitching appears on top.
  • Back up: Use the machine’s +/- stitch function to reverse to a point before the defect began.
  • Restitch: Run forward again so the satin border re-covers the problem area.
  • Success check: The repaired satin border looks dense and consistent with no visible gaps, and loose loops are only minimal cleanup.
  • If it still fails: Avoid starting any satin-border segment with a low bobbin; change the bobbin earlier rather than gambling mid-border.
• Q: When should patch production upgrade from standard screw hoops to magnetic embroidery hoops or a higher-capacity multi-needle setup?
  A: Upgrade when hooping time, wrist strain, fabric hoop burn, or fabric slipping becomes the bottleneck—fix technique first, then upgrade tools, then upgrade capacity.
  • Level 1 (Technique): Float fabric on hooped tear-away, program two stops, and standardize trimming with curved appliqué scissors.
  • Level 2 (Tool): Switch to magnetic embroidery hoops when repeated tightening causes wrist fatigue, hoops pop open, or floating fabric shifts.
  • Level 3 (Capacity): Consider higher-volume equipment when orders reach batch sizes where one head cannot keep up and trimming/hooping time dominates.
  • Success check: Hooping becomes fast and repeatable, patches stay distortion-free, and rework from shifting/puckering drops noticeably.
  • If it still fails: Re-check design clearance from hoop edges and confirm the selected hoop size matches the physical hoop being used.
